Product Type	Hi-Fi System
Brand	Aiwa
Model	ZL70
Main Unit Dimensions (W × H × D)	360 × 394.5 × 387.5 mm
Main Unit Weight	10.5 kg
Speaker Dimensions (W × H × D)	290 × 444 × 296 mm
Speaker Weight	6.8 kg
Power Supply	Mains 120 V, 60 Hz
Power Consumption	180 W (operation)
Amplifier Output Power (mid/high)	30 W + 30 W (200 Hz - 20 kHz, THD < 1 %, 6 ohms)
Amplifier Output Power (bass)	90 W + 90 W (50 Hz - 200 Hz, THD < 1 %, 6 ohms)
FM Tuner Section	Range 87.5 - 108 MHz, sensitivity 13.2 dBf, antenna 75 ohms
AM Tuner Section	Range 530 - 1710 kHz (10 kHz step) or 531 - 1602 kHz (9 kHz step)
Cassette Deck Section	4-track, 2-channel stereo, types I/II/IV
CD Player Section	5 discs, semiconductor laser 780 nm, dual 1-bit D/A converter

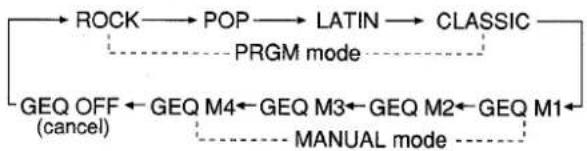

Graphic Equalizer	4 preset curves (ROCK, POP, LATIN, CLASSIC) + 4 manual
Sound Systems	BBE (high-frequency enhancement), T-BASS (enhanced bass)
Karaoke Functions	Vocal reduction, multiplex, microphone mixing (2 inputs)
Timer	Programmable power-on timer, sleep timer
Remote Control	Yes, R6 (AA) batteries x 2
Inputs	VIDEO/AUX, PHONO, MIC 1/2, FM/AM antenna

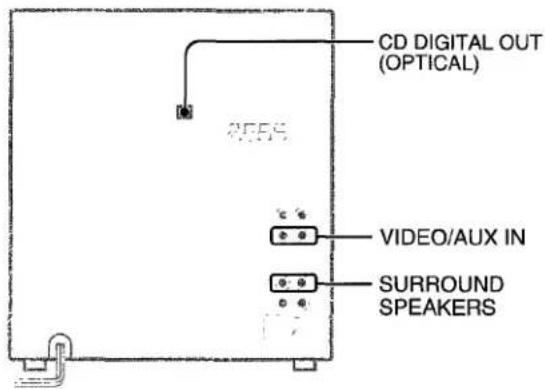

Outputs	CD DIGITAL OUT (optical), speakers (6 ohms), surround (8-16 ohms), headphones
Safety	Polarized plug, antenna grounding, auto stop, surge protection
Maintenance	Cassette head cleaning, demagnetization (20-30 h), disc cleaning

Frequently Asked Questions - ZL70 AIWA

How to clean the cassette deck heads?

Use a special cleaning cassette after 10 hours of use. Follow the instructions on the cleaning cassette.

What to do if the unit does not turn on?

Check that the power cord is properly plugged in and the mains outlet works. If the problem persists, reset the unit by unplugging the cord, then plugging it back in while holding ■ CLEAR.

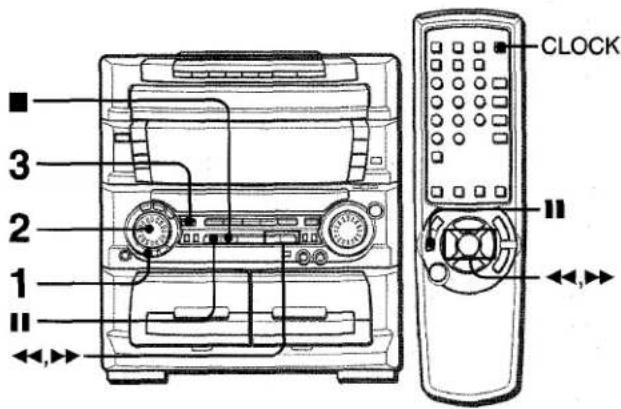

How to set the clock?

Press CLOCK, then turn MULTI JOG within 4 seconds to set hours and minutes. Press ENTER or II to confirm.

Why is the sound low or unbalanced during cassette playback?

The playback heads may be dirty. Clean them with a cleaning cassette. If the problem persists, demagnetize the heads.

How to record a CD onto a cassette?

Insert the cassette into deck 2, select the reverse mode, press CD then ● REC/REC MUTE. Playback and recording start simultaneously.

What to do if the CD player does not work?

Check that the disc is placed correctly (label side up) and is not dirty. In case of condensation, wait about an hour. If the problem persists, reset the unit.

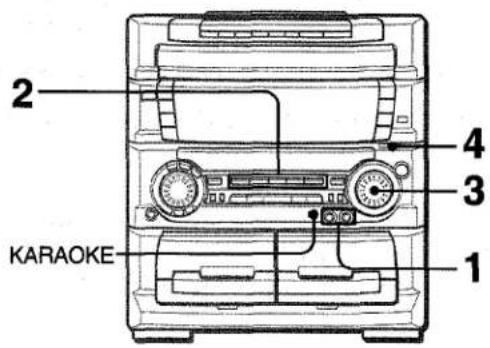

How to use the Karaoke function?

Connect a microphone to the MIC 1 or 2 jacks. Press KARAOKE to select the mode (vocal reduction, multiplex, etc.). Adjust the microphone volume with MIC MIXING.

How to set the power-on timer?

Select the source (CD, TUNER, etc.), press TIMER several times until ⏻ appears. Set the power-on time and duration with MULTI JOG. Turn off the unit to activate the timer.

Why does recording not start?

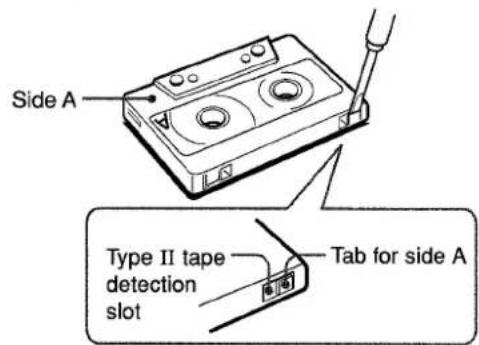

Check that the cassette's safety tabs are not broken. If so, cover the cavities with adhesive tape. Ensure the cassette is inserted correctly into deck 2.

How to connect an external FM antenna?

Connect the external antenna to the FM 75 Ω terminals. Ensure the antenna is properly grounded to avoid surges (see diagram in the manual).

USER MANUAL ZL70 AIWA

COMPACT DISC STEREO SYSTEM SISTEMA ESTEREO CON REPRODUCTOR DE DISCOS COMPACTOS CHAINE STEREO AVEC LECTEUR DE DISQUES COMPACTS

Z-L70

OPERATING INSTRUCTIONS MANUAL DE INSTRUCCIONES MODE D'EMPLOI

En (English)

E (Español)

F (Français)

For assistance and information

call toll free 1-800-BUY-AIWA

(United States and Puerto Rico)

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

"CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL."

Explanation of Graphical Symbols:

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Owner's record

For your convenience, record the model number and serial number (you will find them on the rear of your unit) in the space provided below. Please refer to them when you contact your Aiwa dealer in case of difficulty.

Model No.	Serial No. (Lot No.)
CX-ZL70
SX-WZL70
PX-E860

PRECAUTIONS

Read the Operating Instructions carefully and completely before operating the unit. Be sure to keep the Operating Instructions for future reference. All warnings and cautions in the Operating Instructions and on the unit should be strictly followed, as well as the safety suggestions below.

Installation

1 Water and moisture — Do not use this unit near water, such as near a bathtub, washbowl, swimming pool, or the like.
2 Heat — Do not use this unit near sources of heat, including heating vents, stoves, or other appliances that generate heat. It also should not be placed in temperatures less than 5°C (41°F) or greater than 35°C (95°F).
3 Mounting surface — Place the unit on a flat, even surface.

4 Ventilation — The unit should be situated with adequate space around it so that proper heat ventilation is assured. Allow 10 cm (4 in.) clearance from the rear and the top of the unit, and 5 cm (2 in.) from each side.

• Do not place the unit on a bed, rug, or similar surface that may block the ventilation openings.
• Do not install the unit in a bookcase, cabinet, or airtight rack where ventilation may be impeded.

5 Objects and liquid entry — Take care that objects or liquid do not get inside the unit through the ventilation openings.

6 Carts and stands — When placed or mounted on a stand or cart, the unit should be moved with care.

Quick stops, excessive force, and uneven surfaces may cause the unit or cart to overturn or fall.

7 Condensation — Moisture may form on the CD pickup lens when:

• The unit is moved from a cold spot to a warm spot
• The heating system has just been turned on
• The unit is used in a very humid room
• The unit is cooled by an air conditioner

When this unit has condensation inside, it may not function normally. Should this occur, leave the unit for a few hours, then try to operate again.

8 Wall or ceiling mounting — The unit should not be mounted on a wall or ceiling, unless specified in the Operating Instructions.

Electric Power

1 Power sources — Connect this unit only to power sources specified in the Operating Instructions, and as marked on the unit.
2 Polarization — As a safety feature, some units are equipped with polarized AC power plugs which can only be inserted one way into a power outlet. If it is difficult or impossible to insert the AC power plug into an outlet, turn the plug over and try again. If it is not still inserted easily into the outlet, please call a qualified service technician to service or replace the outlet. To avoid defeating the safety feature of the polarized plug, do not force it into a power outlet.

3 AC power cord

• When disconnecting the AC power cord, pull it out by the AC power plug. Do not pull the cord itself.
• Never handle the AC power plug with wet hands, as this could result in fire or shock.
• Power cords should be firmly secured to avoid being severely bent, pinched, or walked upon. Pay particular attention to the cord from the unit to the power socket.
• Avoid overloading AC power plugs and extension cords beyond their capacity, as this could result in fire or shock.

4 Extension cord — To help prevent electric shock, do not use a polarized AC power plug with an extension cord, receptacle, or other outlet unless the polarized plug can be completely inserted to prevent exposure of the blades of the plug.

5 When not in use — Unplug the AC power cord from the power outlet if the unit will not be used for several months or more. When the cord is plugged in, a small amount of current continues to flow to the unit, even when the power is turned off.

Outdoor Antenna

1 Power lines — When connecting an outdoor antenna, make sure it is located away from power lines.
2 Outdoor antenna grounding — Be sure the antenna system is properly grounded to provide protection against unexpected voltage surges or static electricity build-up. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information on proper grounding of the mast, supporting structure, and the lead-in wire to the antenna discharge unit, as well as the size of the grounding unit, connection to grounding terminals, and requirements for grounding terminals themselves.

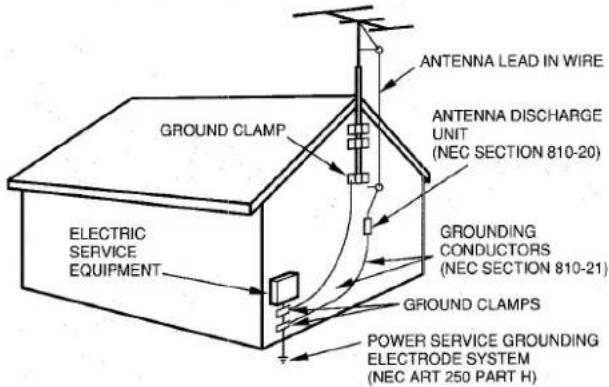

Antenna Grounding According to the National Electrical Code

ANTENNA LEAD IN WIRE ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUND CLAMP GROUNDED CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS ELECTRIC SERVICE EQUIPMENT POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250 PART H)

NEC-NATIONAL ELECTRICAL CODE

Maintenance

Clean the unit only as recommended in the Operating Instructions.

Damage Requiring Service

Have the units serviced by a qualified service technician if:

• The AC power cord or plug has been damaged
• Foreign objects or liquid have got inside the unit
• The unit has been exposed to rain or water
• The unit does not seem to operate normally
• The unit exhibits a marked change in performance
• The unit has been dropped, or the cabinet has been damaged DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.

TABLE OF CONTENTS

PREPARATIONS

CONNECTIONS 4
REMOTE CONTROL 6
BEFORE OPERATION....6

SOUND

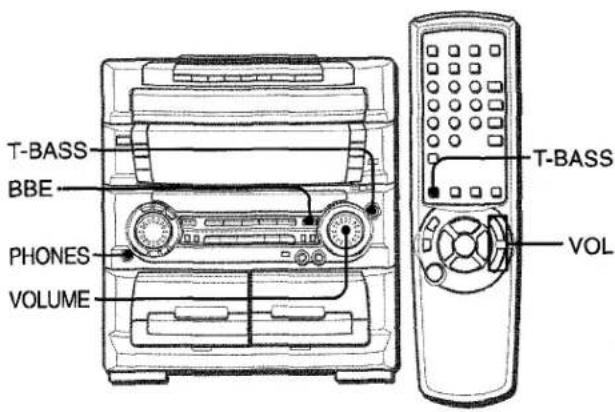

AUDIO ADJUSTMENTS 9
GRAPHIC EQUALIZER 10

RADIO RECEPTION

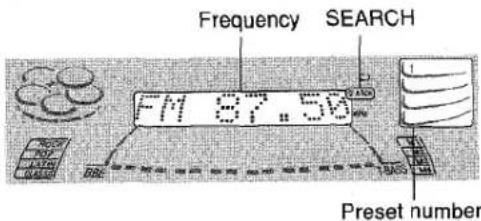

MANUAL TUNING 11
PRESETTING STATIONS 12

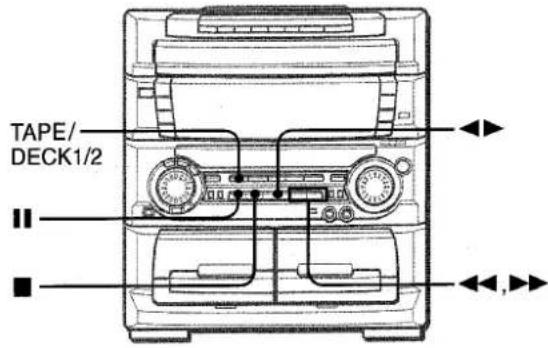

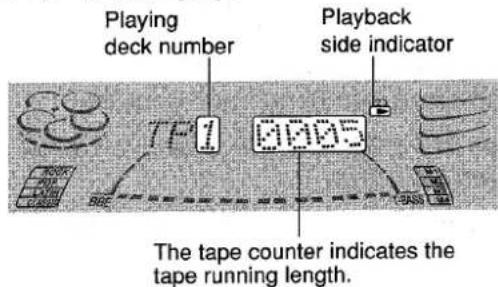

TAPE PLAYBACK

BASIC OPERATIONS 13
CONTINUOUS PLAY 14

CD PLAYING

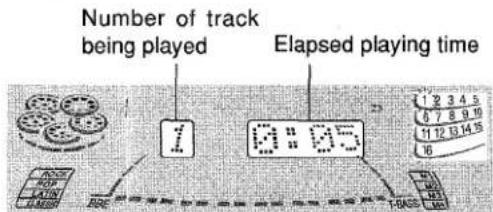

BASIC OPERATIONS .... 15
PROGRAMMED PLAY 17

RECORDING

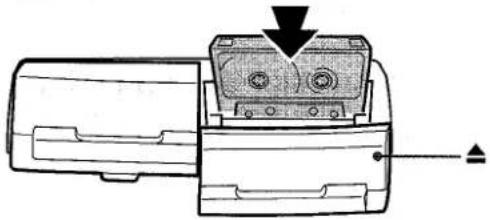

BASIC RECORDING 18
DUBBING A TAPE MANUALLY 19
DUBBING THE WHOLE TAPE 19

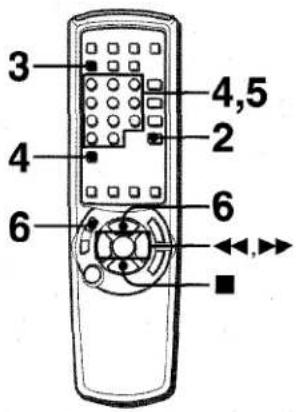

AI EDIT RECORDING 20
PROGRAMMED EDIT RECORDING.... 21

KARAOKE

MICROPHONE MIXING 22
CD KARAOKE PROGRAM 23

CLOCK AND TIMER

SETTING THE CLOCK.... 24

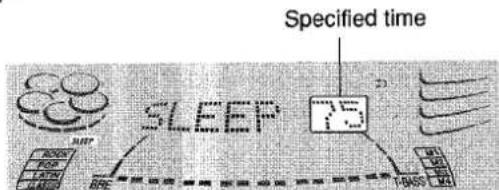

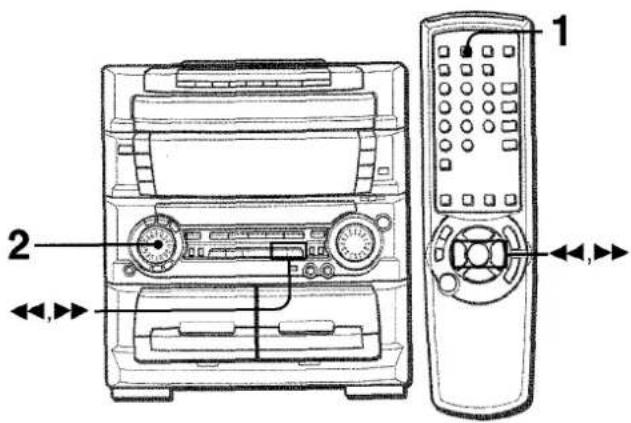

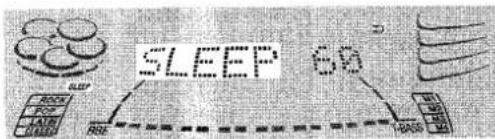

SETTING THE SLEEP TIMER 25
SETTING THE TIMER 25

TURNTABLE

BASIC OPERATION 26

OTHER CONNECTIONS

CONNECTING OPTIONAL EQUIPMENT 27
LISTENING TO EXTERNAL SOURCES 27

GENERAL

CARE AND MAINTENANCE 28
TROUBLESHOOTING GUIDE 28
SPECIFICATIONS 29

PARTS INDEX ...... Back cover

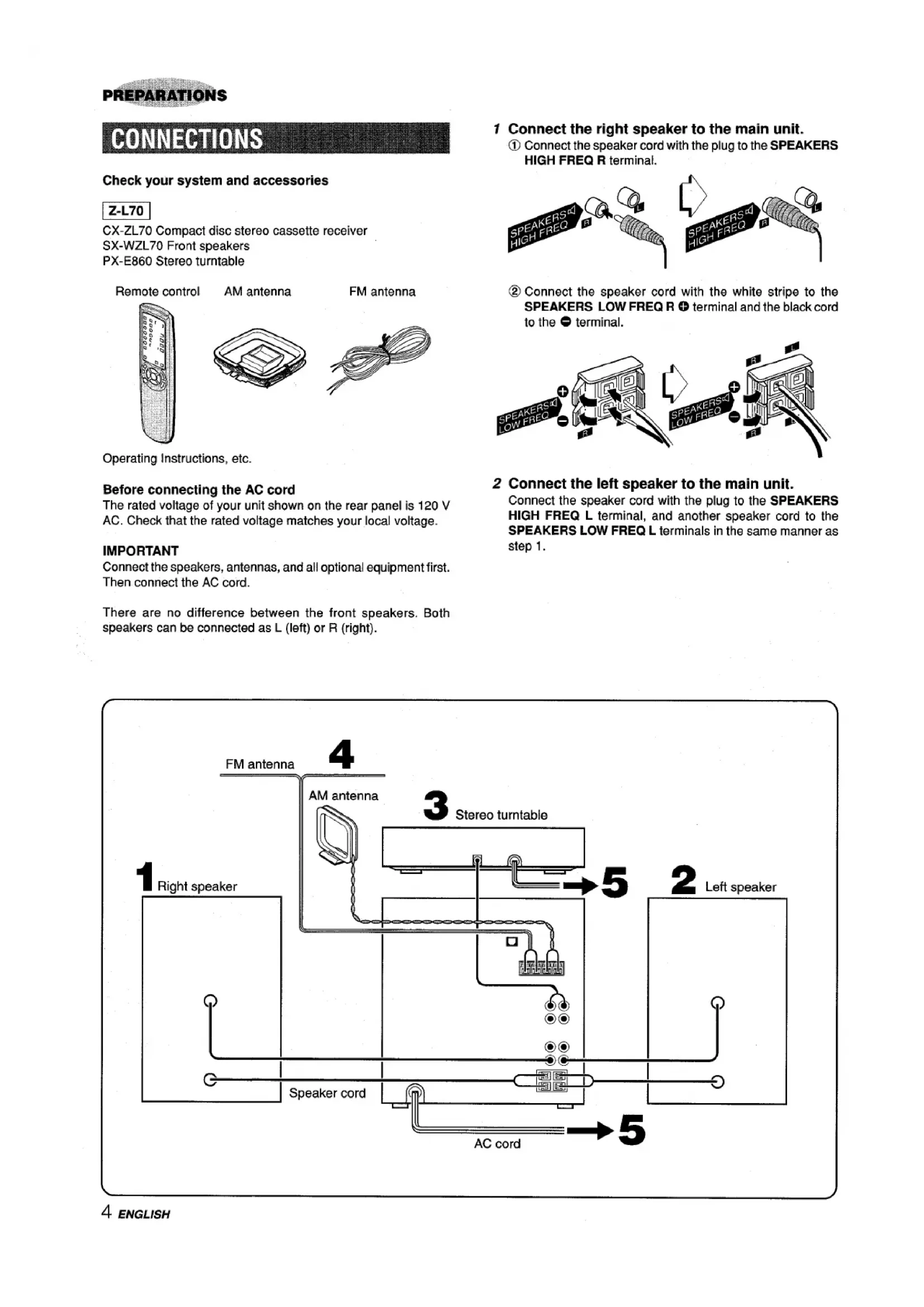

CONNECTIONS

Check your system and accessories

Z-L70

CX-ZL70 Compact disc stereo cassette receiver

SX-WZL70 Front speakers

PX-E860 Stereo turntable

Remote control

AM antenna

FM antenna

Operating Instructions, etc.

Before connecting the AC cord

The rated voltage of your unit shown on the rear panel is 120 V AC. Check that the rated voltage matches your local voltage.

IMPORTANT

Connect the speakers, antennas, and all optional equipment first. Then connect the AC cord.

There are no difference between the front speakers. Both speakers can be connected as L (left) or R (right).

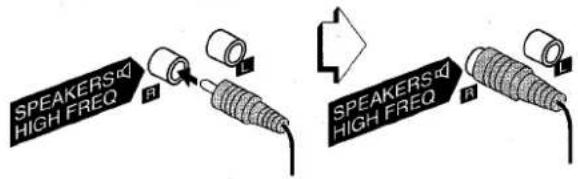

1 Connect the right speaker to the main unit.

① Connect the speaker cord with the plug to the SPEAKERS HIGH FREQ R terminal.

SPEAKERS HIGH FREQ R L SPEAKERS HIGH FREQ R L

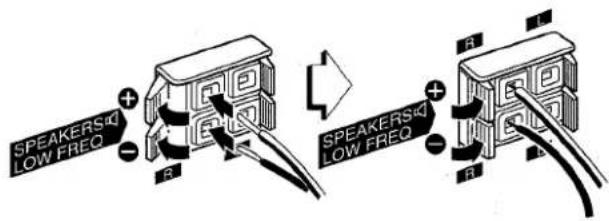

② Connect the speaker cord with the white stripe to the SPEAKERS LOW FREQ R ⊕ terminal and the black cord to the ● terminal.

SPEAKERS LOW FREQ + - B SPEAKERS LOW FREQ + - B B

2 Connect the left speaker to the main unit.

Connect the speaker cord with the plug to the SPEAKERS HIGH FREQ L terminal, and another speaker cord to the SPEAKERS LOW FREQ L terminals in the same manner as step 1.

3 Connect the stereo turntable to the main unit.

Connect the red plug to PHONO IN R jack, and the white plug to PHONO IN L jack.

PHONO IN B

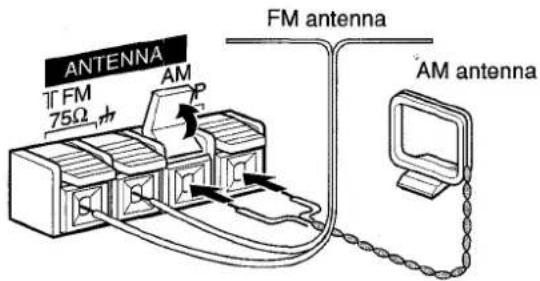

4 Connect the supplied antennas.

Connect the FM antenna to FM 75 Ω terminals and the AM antenna to AM LOOP terminals.

ANTENNA FM 75Ω AM FM antenna AM antenna

5 Connect the AC cord to an AC outlet.

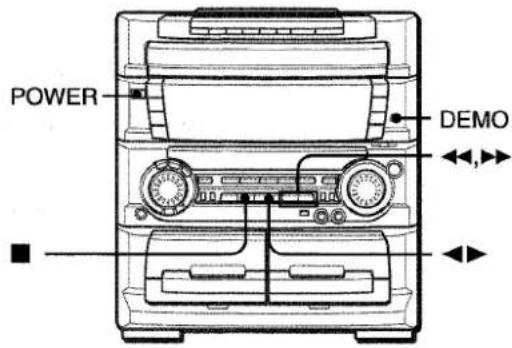

- The game Demo will begin when the AC cord is plugged into an AC outlet. See page 8 "GAME DEMO" for details.

To position the antennas

FM feeder antenna:

Extend the antenna horizontally in a T-shape and fix its ends to a wall.

AM loop antenna:

Position to find the best reception.

To stand the AM antenna on a surface

Fix the claw to the slot.

NOTE

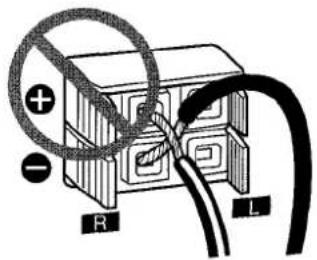

- Be sure to connect the speaker cords correctly. Improper connections can cause short circuits in SPEAKERS terminals.

Diagram showing a device with labeled terminals (R, L) and a prohibition symbol, likely illustrating electrical or circuitry.

• Do not leave objects generating magnetism, such as credit cards, near the speakers, as the objects may be damaged.
• Do not bring the FM antenna near metal objects or curtain rails.
• Do not bring the AM antenna near other optional equipment, the stereo system itself, the AC cord or speaker cords, since noise will be picked up.
• Do not unwind the AM antenna wire.

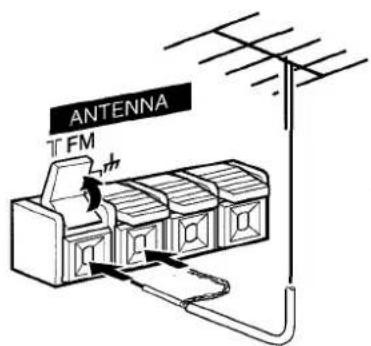

CONNECTING AN OUTDOOR ANTENNA

For better FM reception, use of an outdoor antenna is recommended.

Connect the outdoor antenna to FM 75 Ω terminals.

ANTENNA T FM

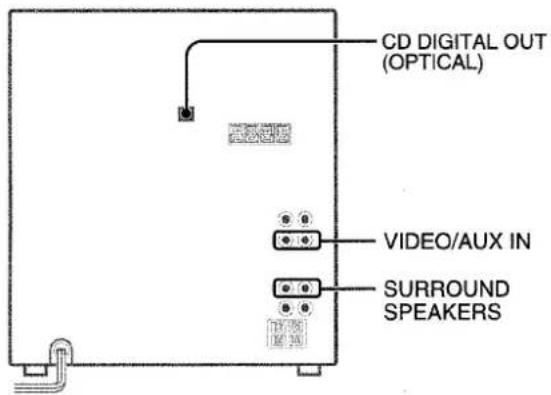

To connect other optional equipment → page 27.

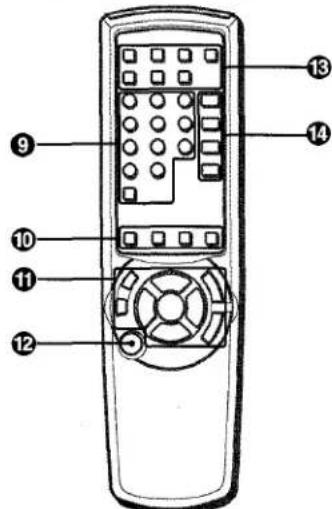

REMOTE CONTROL

Inserting batteries

Detach the battery cover on the rear of the remote control and insert two R6 (size AA) batteries.

R6(AA)

When to replace the batteries

The maximum operational distance between the remote control and the sensor on the main unit should be approximately 5 meters (16 feet). When this distance decreases, replace the batteries with new ones.

▶/◀▶PRESET on the remote control

The function is the same as that of ◀▶ on the main unit.

NOTE

• If the remote control is not going to be used for an extended period of time, remove the batteries to prevent possible electrolyte leakage.
  • The remote control may not operate correctly when:
• The line of sight between the remote control and the remote sensor inside the display window is exposed to intense light, such as direct sunlight
• Other remote controls are used nearby (those of a television, etc.)

BEFORE OPERATION

POWER ENTER ECO MULTI JOG CD

To turn the power on

Press one of the function buttons (TAPE, TUNER, PHONO, VIDEO/AUX or CD).

Playback of the inserted disc or tape begins, or the previously tuned station is received (Direct Play Function).

POWER is also available.

To turn the power off

Press POWER.

Illumination guides

Whenever POWER or one of the function buttons is pressed, the buttons for the selected operation light up or flash.

Example: When CLOCK is pressed, IISET, ◀◀ and ▶▶ flash as a guide to setting the current time.

Flash windows

The window on the top of the unit and the cassette decks light up or flash while the unit's power is on.

To turn off the light of the top window, press ■CLEAR while pressing CD. To turn back on, repeat the above.

Using the remote control

The instructions in this manual refer mainly to the buttons on the main unit. Buttons on the remote control with the same names as those on the main unit can be used as well.

To change the brightness level of the display

1 Press ECO so that "ECO MODE" is displayed.
2 Within 4 seconds, turn MULTI JOG to display "DIM MODE", and then press ENTER within 4 seconds.
3 Within 4 seconds, turn MULTI JOG to select the dimmer mode as below.
The mode will be automatically set after 4 seconds. It will also be set if ENTER is pressed within 4 seconds after step 3.

DIM-OFF: The normal display.

DIMMER 1: The illumination of the display is dimmer than usual.

DIMMER 2: The illumination of the display is dimmer than DIMMER 1.

DIMMER 3: The illumination of the display is dimmer than DIMMER 2. The spectrum analyzer, the window on the top of the unit, and the button lamps light off.

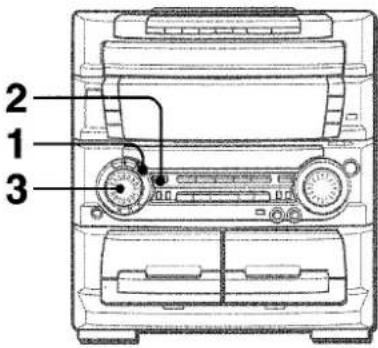

SETTING POWER ECONOMIZING MODE

2 1 3

Setting this unit to power economizing mode reduces power consumption as follows.

• When the power is turned off, all the display lights turn off, and only the indicator on the POWER button lights.
  However, if the clock is not set, the game Demo (page 8), will begin when the power is turned off.
• If CD or tape does not play for 10 minutes or if there is no audio input from any connected external equipment for 10 minutes when VIDEO/AUX or PHONO is selected as the source, the power shuts off.
• The display brightens only when operating the unit. When the unit has not been used for 10 seconds, the brightness level switches to the mode previously selected in "DIM MODE". (Page 6)

(If the display brightness level is set to "DIM-OFF", the brightness does not change. When the level is "DIMMER 3", the button lamps are also turned off.)

1 Press ECO.

"ECO MODE" will be displayed.

ECO MODE

2 Press ENTER within 4 seconds.

The current power-economizing mode status will be displayed. If the power-economizing mode is OFF: ECO OFF If the power-economizing mode is ON: ECO ON

3 Turn MULTI JOG within 4 seconds to switch the power-economizing mode on or off.

Example: When "ON" is selected

ECO ON

The mode will be automatically set after 4 seconds. It will also be set if ENTER is pressed within 4 seconds after step 3.

Standby power consumption

If the power-economizing mode is OFF: 31 W

If the power-economizing mode is ON: 2.5 W

NOTE

To view the clock, press CLOCK so that the time is displayed for 4 seconds.

4-CHANNEL MULTI-AMPLIFIER SYSTEM

To provide reinforcement for the ultra-low frequencies, in addition to the Left/Right 2-channel amplifier used to reproduce mid-to-high-range frequencies, this system incorporates a second L/R 2-channel amplifier just for reproduction of ultra-low frequencies — making it, in effect, a 4-amplifier system. By utilizing discrete amplifiers for mid-to-high-frequencies and low frequencies, high-quality sonic reproduction that is virtually free from distortion can be realized.

This Multi Amplifier System, which utilizes independent circuitry for the different frequency ranges, enables superb sonic reproduction free from distortion.

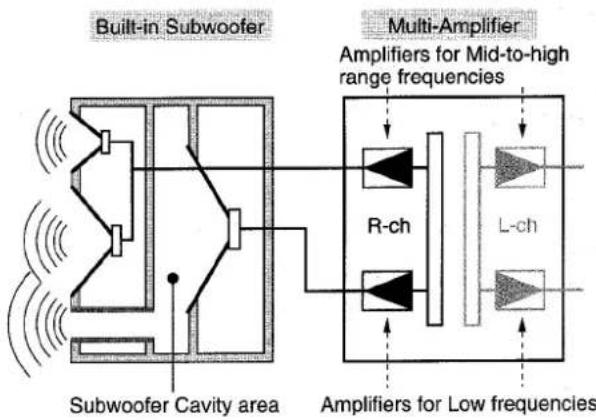

BUILT-IN SUBWOOFER SYSTEM

The built-in subwoofer system has a separate subwoofer cavity area that is part of the loudspeaker cabinet structure, which acts as a sonic filter to cut distortion components. (In the Multi Amplifier System, the ultra-low frequency signals transmitted from their own independent amplifier are reproduced in this area.) This separate construction gives a clear, rich definition to bass reproduction and it can realize clear, well-defined mid-to-high frequency signals.

And AIWA's built-in subwoofer system incorporates a subwoofer capable of powerful, satisfying bass performance with true stereo separation.

GAME DEMO

POWER DEMO

When the AC cord is plugged into an AC outlet for the first time after purchase, the game Demo will begin in the display. When the power is turned on, the game Demo will end. When the power is turned off, the game Demo will begin again.

Until the clock is set, the game Demo will begin whenever the power is turned off.

When the clock is set, the game Demo will not begin even if the power is turned off. (See "SETTING THE CLOCK" on page 24.)

To start or end game Demo when the clock is set

Press DEMO when the power is off, the game Demo will begin.

To end the game Demo, press DEMO again.

To play the game Demo

1 Press DEMO so that the game Demo displays.
2 Press ◀▶.

Three numbers on the display start to run.

3 Press ■ once.

The number on the left side stops.

4 Press ■ twice to stop the remaining two numbers.

Scoring:

20 points are given to start the game.

If all the numbers are equal, 50 points are added to the score.

If not equal, one point is subtracted.

If the gained points reach 9999, you win.

If the gained points fall to 0, you lose.

To reset the game

Press DEMO twice, then press ◀►. The game starts again.

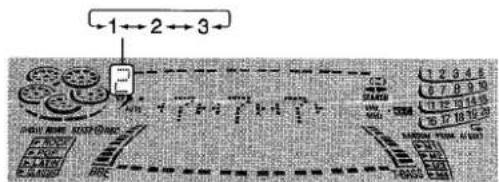

To change the probability of equalizing the three numbers

Press ◀◀ or ▶▶ repeatedly to select one of the three probability levels when playing the game Demo. The tray number indicator in the display changes between 1 and 3. As the tray number increases from 1 to 3, the higher the probability of equalizing.

NOTE

• During the game Demo, ◀▶, ◀◀, ▶▶ and ■ are available only for the game Demo. Cancel the game Demo to use these buttons for the functions such as CD playing, etc.
• During the game Demo, some indicators unrelated with the actual operation light up on the display.

AUDIO ADJUSTMENTS

T-BASS BBE PHONES VOLUME T-BASS VOL

VOLUME CONTROL

Turn VOLUME on the main unit, or press VOL ∧ or √ on the remote control.

The volume level is displayed as a number from 0 to MAX (50). The volume level is automatically set to 20 when the power is turned off with the volume level set to 21 or more.

BBE SYSTEM

The BBE system enhances the clarity of high-frequency sound. It also enriches the Karaoke function to make your voice sound clear and pleasant.

Press BBE.

Each time it is pressed, the level changes. Select one of the three levels or the off position to suit your preference.

RPG PLG LATE GLASS SBE

Using the headphones

Connect headphones to PHONES jack with a stereo standard plug (ø6.3 mm, 1/4 inch).

No sound is output from the speakers while the headphones are plugged in.

Sound adjustment during recording

The output volume and tone (except BBE) of the speakers or headphones can be freely varied without affecting the recording.

NOTE

When playing back a tape recorded with BBE, it is recommended that BBE be set to off to avoid distorted high frequency sound.

SUPER T-BASS SYSTEM

The T-BASS system enhances the realism of low-frequency sound.

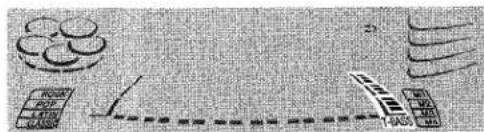

Press T-BASS.

Each time it is pressed, the level changes. Select one of the three levels or the off position to suit your preference.

Scanned document with handwritten-style text and a small diagram showing a table, pie chart, and ruler-like items.

NOTE

Low-frequency sound may be distorted when the T-BASS system is used for a disc or tape in which low-frequency sound is already emphasized. In this case, cancel the T-BASS system.

GRAPHIC EQUALIZER

M1-M4 ROCK,POP, LATIN, CLASSIC GEQ FREQ (LOW,HIGH) MULTI JOG ENTER GEQ

SELECTING THE PROGRAMMED EQUALIZATION CURVE

This unit provides the following 4 different equalization curves:

ROCK: Powerful sound emphasizing treble and bass

POP: More presence in the vocals and midrange

LATIN: Accented higher frequencies for latin-type music

CLASSIC: Enriched sound with heavy bass and fine treble

Press one of the graphic equalizer preset buttons.

The PRGM indicator turns on.

The selected program mode indicator flashes and that program mode appears for 4 seconds on the display.

ROCK ● ROCK POR LATIN DAKES BEE TAKKS

To cancel the selected mode

Press the selected graphic equalizer preset button. "GEQ OFF" is displayed and the equalization curve becomes flat.

To select with the remote control

Press GEQ repeatedly until the desired program mode is displayed.

SETTING A NEW EQUALIZATION CURVE MANUALLY

The equalization curve can be customized to suit your preference.

1 Press GEQ FREQ (LOW).

The lowest level frequency indicator flashes for 8 seconds.

2 Within 8 seconds, turn MULTI JOG to adjust the level of the lowest frequency.

GEO ON RISK POP LATCH GAMES

3 Press GEQ FREQ (HIGH).

The highest level frequency indicator flashes for 8 seconds.

4 Within 8 seconds, turn MULTI JOG to adjust the level of the highest frequency.

GEO ON RICH TOP LARGE LEARN

The frequency level indicators between the lowest and the highest are adjusted accordingly.

MEMORIZING THE NEW EQUALIZATION CURVES

Up to 4 customized equalization curves can be stored on the MANUAL mode M1-M4.

1 Set a new equalization curve with GEQ FREQ and MULTI JOG.

See "SETTING A NEW EQUALIZATION CURVE MANUALLY".

The created equalization curve is displayed for 8 seconds.

2 Within 8 seconds, press ENTER.

"MEMORY" is displayed and all the manual mode indicators flash for 8 seconds. Go to step 3 within those 8 seconds.

- If this step is not completed within 8 seconds, press GEQ FREQ first to display "GEQ ON". Then press ENTER within 8 seconds.

3 Press one of the graphic equalizer preset buttons M1-M4.

The MANUAL indicator turns on and the equalization curve is stored.

To select the stored equalization curve

Press one of the graphic equalizer preset buttons M1-M4.

MANUAL TUNING

POWER 1 3 2 MONO TUNER

1 PressTUNER/BAND to select the FM or AM band. When TUNER/BAND is pressed while the power is off, the power is turned on directly (Direct Play Function).
2 Press TUNER PRESET repeatedly to select the manual tuning mode.

Each time the button is pressed, the following three tuning modes are selected cyclically.

① Preset tuning mode: The preset number flashes.
② Auto search mode: "SEARCH" is displayed.
③ Manual tuning mode: "SEARCH" is not displayed and the preset number does not flash.

Frequency SEARCH F77 87:50 Preset number

NOTE

The preset tuning mode is skipped if no station is preset.

3 Turn MULTI JOG clockwise or counter-clockwise to tune in to a station.

The frequency changes as you turn MULTI JOG. When a station is received, "TUNE" is displayed for 2 seconds. During FM stereo reception, (100) is displayed.

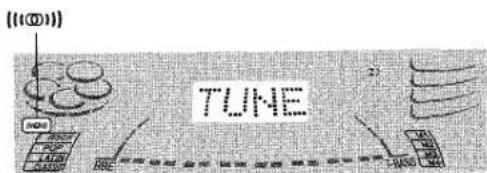

TUNE

- ◀◀DOWN and ▶▶UP are also available to tune in to a station.

To search for a station quickly (Auto Search)

Press TUNER PRESET repeatedly to display "SEARCH" (auto search mode), and turn MULTI JOG clockwise or counterclockwise until the frequency starts to change rapidly. After tuning in to a station, the search stops.

SEARCH FM 93.00

To stop the Auto Search manually, turn MULTI JOG a little in either direction.

• The Auto Search may not stop at stations with very weak signals.
- ◀DOWN and ▶UP are also available to search for a station. Keep ◀DOWN or ▶UP pressed until the tuner starts searching. Press the button to stop the search manually.

When an FM stereo broadcast contains noise

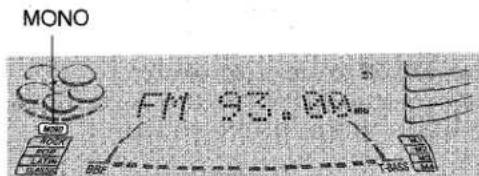

Press MONO TUNER on the remote control so that "MONO" appears on the display.

Noise is reduced, although reception is monaural.

MONO F11 93.00

To restore stereo reception, press MONO TUNER so that "MONO" disappears and "STEREO" is displayed for 2 seconds.

To change the AM tuning interval

The default setting of the AM tuning interval is 10 kHz/step. If you use this unit in an area where the frequency allocation system is 9 kHz/step, change the tuning interval.

Press POWER while pressing ◀▶ on the unit. To reset the interval, repeat this procedure.

PRESETTING STATIONS

1 2 1

The unit can store a total of 32 preset stations for all bands. When a station is stored, a preset number is assigned to the station. Use the preset number to tune in to a preset station directly.

1 Press TUNER/BAND to select a band, and tune in to a station with ◀◀DOWN or ▶▶UP.
2 Press IISET to store the station.

A preset number beginning from 1 in consecutive order for each band is assigned to a preset station.

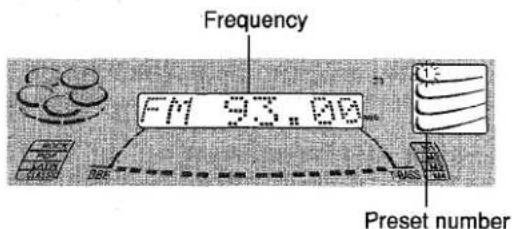

Frequency FM 93.00 Preset number

3 Repeat steps 1 and 2.

No more stations will be stored if a total of 32 preset stations have already been stored.

NOTE

• When the AM tuning interval is changed, all preset stations are cleared. The preset stations have to be set again.
• "FULL" is displayed if you attempt to store more than 32 preset stations.

PRESET NUMBER TUNING

Use the remote control to select the preset number directly.

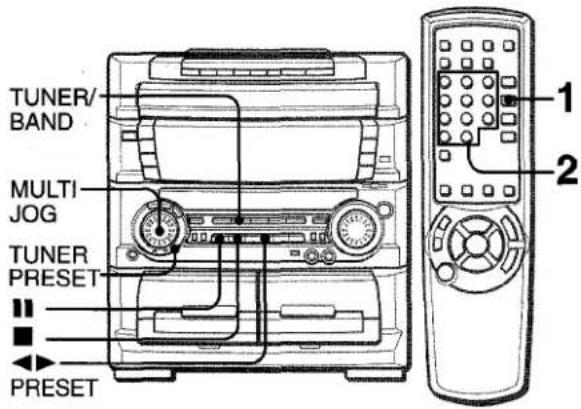

TUNER/ BAND MULTI JOG TUNER PRESET PRESET 1 2

1 Press TUNER/BAND to select a band.
2 Press numbered buttons 0-9 and +10 to select a preset number.

Example:

To select preset number 20, press +10, +10 and 0.

To select preset number 15, press +10 and 5.

Selecting a preset number on the main unit

Press TUNER/BAND to select a band. Press TUNER PRESET repeatedly until the preset number flashes (preset tuning mode), and turn MULTI JOG. The preset numbers are selected in sequence as you turn MULTI JOG.

- ◀▶PRESET is also available to select the preset number. Each time the button is pressed, the next highest number is selected.

To clear a preset station

Select the preset number of the station to be cleared with the numbered buttons. Then, press ■CLEAR, and press IISET within 4 seconds.

The preset numbers of all other stations in the band with higher numbers are decreased by one.

BASIC OPERATIONS

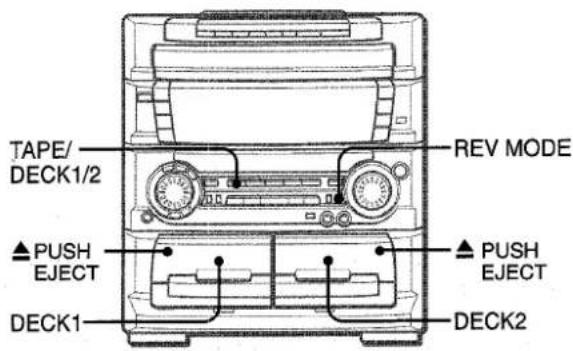

INSERTING TAPES

Use Type I (normal), Type II (high/CrO2) or Type IV (metal) tapes for playback.

TAPE/ DECK1/2 REV MODE ▲ PUSH EJECT ▲ PUSH EJECT DECK1 DECK2

Press TAPE, then press ▲PUSH EJECT to open the cassette holder.

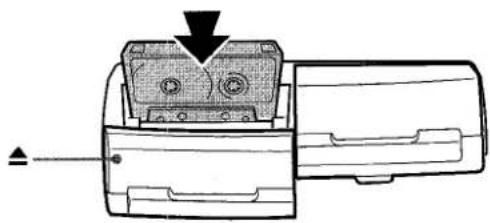

Technical diagram of a mechanical component with arrows indicating direction (no text or symbols)

Insert a tape with the exposed side down. Push the cassette holder to close.

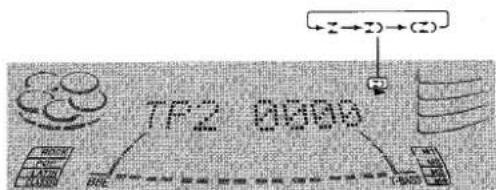

To select a reverse mode on Deck 2

Each time REV MODE is pressed, the reverse mode changes.

TF2 0000 +→→→→(2)

To play one side only, select =.

To play from front side to back side once only, select ☐.

To play both sides repeatedly, select (☐).

- When tapes are loaded in both decks, ☐ on the display indicates Continuous Play.

- On Deck 1, tapes are always played back on both sides once.

PLAYING BACK A TAPE

TAPE/ DECK1/2

Insert a tape.

Press ◀▶ to start play.

Playing deck number Playback side indicator TP1 D005 The tape counter indicates the tape running length.

▶: The front side is being played (forward).
◀: The back side is being played (reverse).

When tapes are loaded in both decks

Press TAPE/DECK 1/2 first to select a deck.

The selected deck number is displayed.

To stop play, press ■.

To pause play (Deck 2 only), press III. To resume play, press again.

To change the playback side, press ◀▶DIRECTION/PRESET in play or pause mode.

To fast forward or rewind, press ◀◀ or ▶▶. Then press ■ to stop the tape.

To start play when the power is off (Direct Play Function)

Press TAPE. The power is turned on and play of the inserted tape begins.

To set the tape counter to "0000"

Press ■CLEAR in stop mode.

The counter is also set to "0000" when the cassette holder is opened.

CONTINUOUS PLAY

1 2 3 4 1

After playback on one deck finishes, the tape in the other deck will start to play without interruption.

1 Insert tapes into Deck 1 and Deck 2.
2 Press TAPE/DECK 1/2 to select the deck to be played back first.
3 Press REV MODE to select 二).
4 Press ◀▶ to start playback. Playback continues until ■ is pressed.

About cassette tapes

- To prevent accidental erasure, break off the plastic tabs on the cassette tape after recording with a screwdriver or other pointed tool.

Side A Type II tape detection slot Tab for side A

To record on the tape again, cover the tab openings with adhesive tape, etc. (On Type II tapes, take care not to cover the Type II tape detection slot.)

• 120-minute or longer tapes are extremely thin and easily deformed or damaged. They are not recommended.
  • Take up any slack in the tape with a pencil or similar tool before use. Slack tape may break or jam in the mechanism.

Line drawing of hands using a handheld device to press or install a button (no text or symbols visible)

BASIC OPERATIONS

LOADING DISCS

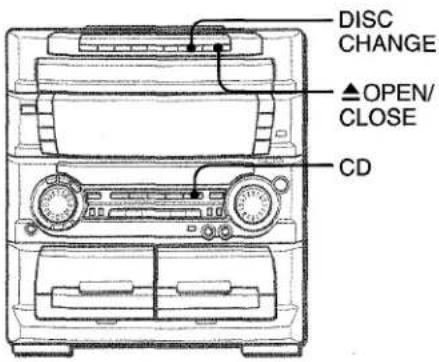

DISC CHANGE ▲OPEN/ CLOSE CD

Press CD, then press △OPEN/CLOSE to open the disc compartment. Load disc(s) with the label side up.

To load one or two discs, place the disc(s) on the tray(s) in the direction of the arrows as illustrated.

Tray number DISC CHANGE

To load three to five discs, press DISC CHANGE to rotate the trays after placing two discs. Place the next disc on empty tray. Each time DISC CHANGE is pressed, the trays rotate and one disc can be placed.

After placing the discs, press ▲OPEN/CLOSE to close the disc compartment.

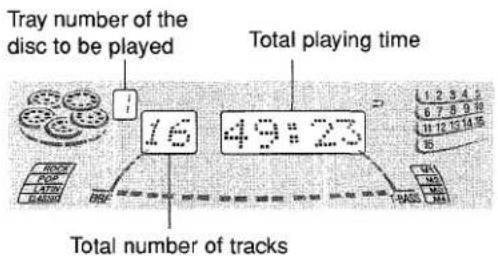

The display shows the information of the disc to be played.

Tray number of the disc to be played Total playing time 15 49:23 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

PLAYING DISCS

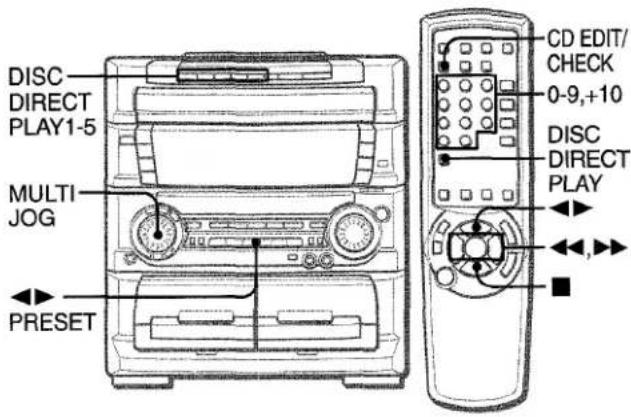

DISC DIRECT PLAY1-5 MULTI JOG PRESET CD EDIT/ CHECK 0-9,+10 DISC DIRECT PLAY ◀◀,◀◀

Load discs.

To play all discs in the disc compartment, press ◀▶.

All discs are played once.

The indicator of DISC DIRECT PLAY flashes to indicate the disc being played.

Number of track being played Elapsed playing time 1 2:05 3:05 4:05 5:05 6:05 7:05 8:05 9:05 10:05 11:05 12:05 13:05 14:05 15:05 16:05 17:05 18:05 19:05 20:05 21:05 22:05 23:05 24:05 25:05 26:05 27:05 28:05 29:05 30:05 31:05 32:05 33:05 34:05 35:05 36:05 37:05 38:05 39:05 40:05 41:05 42:05 43:05 44:05 45:05 46:05 47:05 48:05 49:05 50:05 51:05 52:05 53:05 54:05 55:05 56:05 57:05 58:05 59:05 60:05 61:05 62:05 63:05 64:05 65:05 66:05 67:05 68:05 69:05 70:05 71:05 72:05 73:05 74:05 75:05 76:05 77:05 78:05 79:05 80:05 81:05 82:05 83:05 84:05 85:05 86:05 87:05 88:05 89:05 90:05 91:05 92:05 93:05 94:05 95:05 96:05 97:05 98:05 99:05 100:05

To play one disc only, press DISC DIRECT PLAY 1-5.

The disc with the selected tray number is played once.

Only the indicator of the selected DISC DIRECT PLAY flashes.

Selected disc tray number Elapsed playing time Number of track being played

To play with the remote control

Press DISC DIRECT PLAY, then press one of the numbered buttons 1-5 within 3 seconds to select a disc.

To stop play, press ■.

To pause play, press III. To resume play, press again.

To search for a particular point during playback, keep ◀◀ or ▶▶ pressed and release the button at the desired point.

To skip to the beginning of a track during playback, turn MULTI JOG or press ◀◀ or ▶▶ repeatedly.

To remove discs, press ▲OPEN/CLOSE.

You can only remove the two discs that face you. When the disc(s) to be removed does(do) not face you, press DISC CHANGE repeatedly.

To start play when the power is off (Direct Play Function)

Press CD. The power turns on and play of the loaded disc(s) begins.

When ▲OPEN/CLOSE is pressed, the power is also turned on.

To check the remaining time

Press CD EDIT/CHECK on the remote control during play. The amount of time remaining until all tracks finish playing is displayed. To restore the playing time display, press CD EDIT/CHECK.

Selecting a track with the remote control

1 Press DISC DIRECT PLAY, then press one of the numbered buttons 1-5 within 3 seconds to select a disc.

2 Press the numbered buttons 0-9 and +10 to select a track. Example:

To select the 25th track, press +10, +10 and 5.

To select the 10th track, press +10 and 0.

The selected track starts to play and play continues to the end of that disc.

Replacing discs during play

While one disc is playing, the other discs can be replaced without interrupting play.

1 Press DISC CHANGE.

Two discs can be replaced.

2 Remove the discs and replace with other discs.

To replace the other two discs, press DISC CHANGE again.

3 Press ▲OPEN/CLOSE to close the disc compartment.

NOTE

• When loading an 8-cm (3-inch) disc, make sure to place it onto the inner circle of the tray precisely. Otherwise, the disc may be damaged or the disc compartment will not open. If it does not open, please consult your Aiwa dealer for repair.
• Do not place more than one compact disc on one disc tray.
• Do not tilt the unit with discs loaded. Doing so may cause malfunctions.
• When transporting the unit, remove the discs from the trays.
• When replacing the discs during play, do not replace discs other than those facing you.

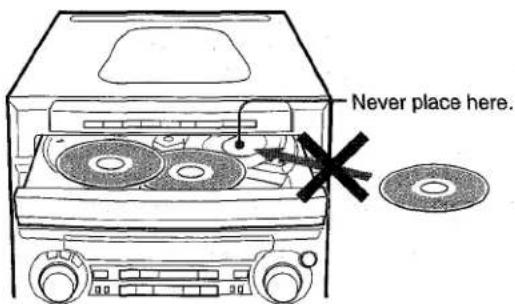

If you place a disc on the empty right inner tray, and then press ▲ OPEN/CLOSE, "ERROR" is displayed and the disc compartment may not close. Remove the disc on that tray.

- Do not use irregular shape CDs (example: heart-shaped, octagonal ones). It may result in malfunctions.

Never place here.

RANDOM/REPEAT PLAY

RANDOM/ REPEAT

Use the remote control.

RANDOM PLAY

All the tracks on the selected disc or on all the discs can be played randomly.

REPEAT PLAY

A single disc or all the discs can be played repeatedly.

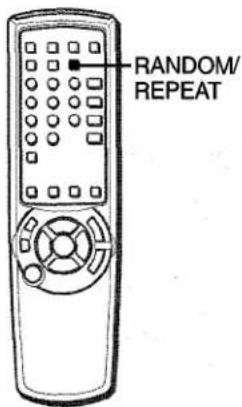

Press RANDOM/REPEAT on the remote control.

Each time it is pressed, the function can be selected cyclically.

RANDOM play — RANDOM lights up on the display.

REPEAT play — lights up on the display.

RANDOM/REPEAT play — RANDOM and ➕ light up on the display.

Cancel — RANDOM and ↩ disappear from the display.

To play all discs, press ◀▶ to start play.

To play a single disc, press DISC DIRECT PLAY, then press one of the numberd buttons 1-5 within 3 seconds to start play.

NOTE

During random play, it is not possible to skip to the previously played track with ◀◀.

PROGRAMMED PLAY

Up to 30 tracks can be programmed from any of the inserted discs.

1 2,3 2 RANDOM/ REPEAT 5

Use the remote control.

1 Press PRGM twice in stop mode.

“--” and “PRGM” appear on the display.

0:30 12 345 67 500 112 318 10 PFGM

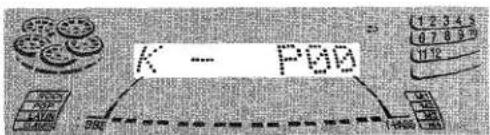

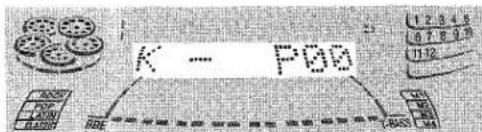

- When PRGM is pressed once in step 1, the unit enters the CD KARAOKE PROGRAM (page 23).

2 Press DISC DIRECT PLAY, then press one of the numbered buttons 1-5 within 3 seconds to select a disc.

Go to the next step when the tray stops rotating.

3 Press the numbered buttons 0-9 and +10 to program a track.

Example:

To select the 25th track, press +10, +10 and 5.

To select the 10th track, press +10 and 0.

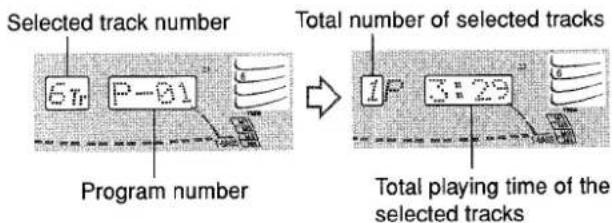

Selected track number 5Tr P-01 Program number Total number of selected tracks 1P 3:29 Total playing time of the selected tracks

4 Repeat steps 2 and 3 to program other tracks.

5 Press ◀▶ to start play.

To check the program

Each time ◀◀ or ▶▶ is pressed in stop mode, a disc number, track number, and program number will be displayed.

To clear the program

Press ■ CLEAR in stop mode.

To add tracks to the program

Repeat steps 2 and 3 in stop mode. The track will be programmed after the last programmed track.

To change the programmed tracks

Clear the program and repeat all the steps again.

To play the programmed tracks repeatedly

After programming the tracks, press RANDOM/REPEAT repeatedly until ↩ appears on the display.

NOTE

• During programmed play, you can not use random play, check the remaining time or select a track.
• "FULL" is displayed if you attempt to program more than 30 tracks.

BLANK SKIP PLAY

The silent portions between tracks recorded on a CD can be skipped during playback.

1 Press CD BLANK SKIP on the main unit.

"CD BLANK SKIP ON" is displayed and a small dot will appear in the display.

Small dot CD BLANK

2 Press ◀▶ to start playback.

The silent portions between tracks will be skipped, and the sound will be played back without interruption. If a track fades out (ends with the sound gradually decreasing), the fadeout portion will also be skipped.

To return to normal playback

Press CD BLANK SKIP again, "CD BLANK SKIP OFF" is displayed and the dot in the display will disappear.

NOTE

• There may be a case where BLANK SKIP PLAY does not function correctly.
• BLANK SKIP PLAY is automatically canceled when performing AI EDIT RECORDING (page 20), PROGRAMMED EDIT RECORDING (page 21), or recording during PROGRAMMED PLAY (left column) or RANDOM PLAY (page 16).

BASIC RECORDING

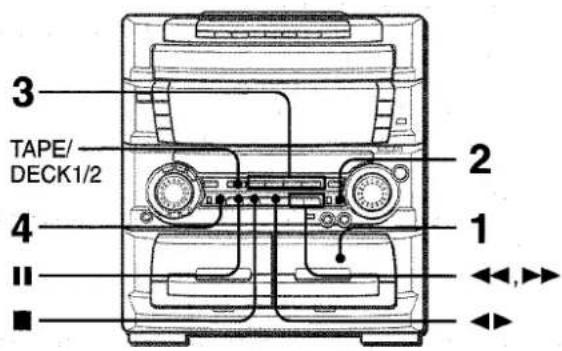

This section explains how to record from the tuner, CD player, or external equipment.

3 TAPE/ DECK1/2 2 4 1 II ■

Preparation

• Set the tape to the point where recording will start.
• Use Type I (normal) and Type II (high/CrO2) tapes for recording.

1 Insert the tape to be recorded on into Deck 2.

Insert the tape with the side to be recorded on first facing out from the unit.

Technical diagram of a mechanical device with labeled components and directional arrows (no text or symbols)

2 Press REV MODE to select the reverse mode.

To record on one side only, select 二. To record on both sides, select 二) or (二).

3 Press one of the function buttons and prepare the source to be recorded.

To record from a CD, press CD and load the disc(s). To record from a radio broadcast, press TUNER and tune in to a station. To record from the connected source, press PHONO or VIDEO/AUX and play.

4 Press ●REC/REC MUTE to start recording.

FAM 93.00 REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC REC

When the selected function is CD, playback and recording start simultaneously.

To stop recording, press ■.

To pause recording, press II. (Applicable when the recording source is TUNER, PHONO or VIDEO/AUX.)

To resume recording, press again.

To start recording with the remote control

First press ●/OREC/REC MUTE, and then press ◀▶ within 2 seconds.

NOTE

"Can't REC" is displayed if you attempt to record on a tape with the plastic tabs broken off.

SOUND ADJUSTMENT DURING RECORDING

The output volume and tone (except BBE) of the speakers or headphones are freely varied without affecting the recording.

To erase a recording

Make sure the microphone is not connected to the unit.

Set the microphone volume to MIN (page 22).

1 Insert the tape to be erased into Deck 2 and press TAPE/DECK 1/2 to display "TP2".
2 Set the tape to the point where the erasure is to be started.
3 Set the reverse mode by pressing REV MODE.
4 Press ●REC/REC MUTE to start the erasure.

DUBBING A TAPE MANUALLY

1,3 4 2 2

Preparation

• Set the tape to the point where recording will start.
• The reverse mode is automatically set to . Note that recording will be done on one side of the tape only.

1 Press TAPE.

2 Insert the original tape into Deck 1 and the tape to be recorded on into Deck 2.

Insert the tapes with the sides to be played back or recorded on first facing out from the unit.

3 Press TAPE/DECK 1/2 to select Deck 1.

"TP1" is displayed.

4 Press ●REC/REC MUTE to start recording.

Playing and recording start simultaneously.

TP142RECD BOS MOS LADBE RASS BOS BOS

To stop dubbing

Press ■.

DUBBING THE WHOLE TAPE

1 3 2 2

This function allows you to make exact copies of both sides of the original tape. The reverse side of both tapes will start simultaneously as soon as the longer tape has been reversed.

NOTE

• Dubbing does not start from a point halfway in the tape.
- The reverse mode is automatically set to ☐. Recording will be done on both sides.

1 Press TAPE.

2 Insert the original tape into Deck 1 and the tape to be recorded on into Deck 2.

Insert each tape with the side to be played back or recorded on first facing out from the unit.

3 Press SYNC DUB once or twice to start recording.

① For recording at normal speed, press it once to display "NORM-DUB".
② For recording at high speed, press it twice to display "HIGH-DUB".

①
②

The tapes are rewound to the beginning of the front sides, and recording starts.

To stop dubbing

Press ■.

NOTE

Recording does not start if the erasure prevention tab on either side of the tape is broken off.

AI EDIT RECORDING

3 4,5 4 2 6 6

The AI edit recording function enables CD recording without worrying about tape length and track length. When a CD is inserted, the unit automatically calculates the total track lengths. If necessary, the order of tracks is rearranged so that no track is cut short.

(Al: Artificial Intelligence)

NOTE

The AI edit recording will not start from a point halfway into the tape. The tape must be recorded from the beginning of either side.

Use the remote control from steps 3 to 6.

1 Insert the tape into Deck 2.

Insert the tape with the side to be recorded on first facing out from the unit.

2 Press CD and load the disc(s).

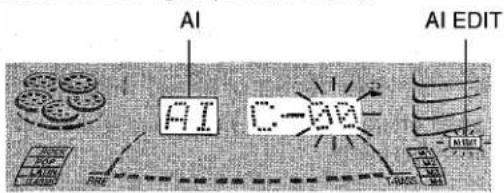

3 Press CD EDIT/CHECK once.

"AI EDIT" and "AI" light up on the display.

AI AI EDIT AI C-80 INTUIT

When "PRGM" is displayed, press CD EDIT/CHECK again.

4 Press DISC DIRECT PLAY, then press one of the numbered buttons 1-5 within 3 seconds to select a disc.

5 Press the numbered buttons 0-9 to designate the tape length.

10 to 99 minutes can be specified.

Example: When using a 60-minute tape, press 6 and 0. In a few seconds, the tracks to be recorded on each side of the tape are determined.

- ◀◀ and ▶▶ are also available to designate the tape length.

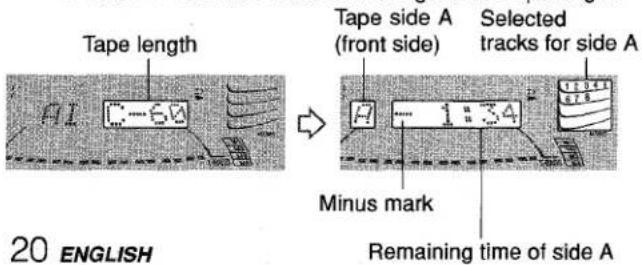

Tape length Tape side A (front side) Selected tracks for side A Minus mark Remaining time of side A 20 ENGLISH

6 First press ●/OREC/REC MUTE, then press ◀▶ within 2 seconds to start recording.

The tape is rewound to the beginning of the front side, the lead segment is played through for 10 seconds, and recording starts. When recording on the front (side A) ends, recording on the back (side B) starts.

To stop recording

Press ■. Recording and CD play stop simultaneously.

To clear the edit program

Press ■ twice so that "EDIT" disappears on the display.

To check the order of the programmed track numbers

Before recording, press CD EDIT/CHECK to select side A or B, and press ◀◀ or ▶▶ repeatedly.

Programmed track

Tape side Program number numbers 1 2 3 4 5 6 7 8 Track number

To add tracks from other discs to the edit program

If there is any time remaining on the tape after step 5, you can add tracks from other discs in the CD compartment.

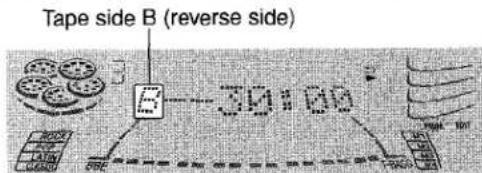

1 Press CD EDIT/CHECK to select side A or B.
2 Press DISC DIRECT PLAY, then press one of the numbered buttons 1-5 within 3 seconds to select a disc.
3 Press the numbered buttons 0-9 and +10 to select tracks. A track whose playing time is longer than the remaining time cannot be programmed.
4 Repeat steps 2 and 3 to add more tracks.
5 Start recording.

Time on cassette tapes and editing time

The actual cassette recording time is usually a little longer than the specified recording time printed on the label. This unit can program tracks to use the extra time. When the total recording time is a little longer than the tape's specified recording time after editing, the display shows the extra time (without a minus mark), instead of the time remaining on the tape (with the minus mark).

NOTE

• Recording is inhibited if the erasure prevention tab on either side of the tape is broken off.
• The AI edit function cannot be used with discs containing 31 tracks or more. "TR OVER" is displayed if this is attempted.

4 Press DISC DIRECT PLAY, then press one of the numbered buttons 1-5 within 3 seconds to select a disc.

5 Press the numbered buttons 0-9 to designate the tape length.

10 to 99 minutes can be specified.

Example: When using a 60-minute tape, press 6 and 0. In a few seconds, the tracks to be recorded on each side of the tape are determined.

- ◀◀ and ▶▶ are also available to designate the tape length.

Tape length Tape side A (front side) Selected tracks for side A Minus mark Remaining time of side A 20 ENGLISH

PROGRAMMED EDIT RECORDING

3,7 4,5 5 2 8 8

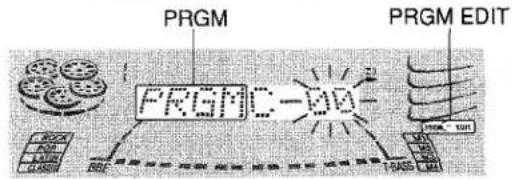

In the programmed edit recording function, the tracks can be programmed while checking the remaining time on each side of the tape as the tracks are programmed.

NOTE

The programmed edit recording will not start from a point halfway in the tape. The tape must be recorded on from the beginning of either side.

Use the remote control from steps 3 to 8.

1 Insert the tape into Deck 2.

Insert the tape with the side to be recorded on first facing out from the unit.

2 Press CD and load the disc(s).

3 Press CD EDIT/CHECK twice.

"PRGM EDIT" and "PRGM" light up on the display.

PRGM PRGM EDIT PRGM C-00 0.25 1.50 2.00 3.50 4.00 4.50 5.00 5.50 6.00 6.50 7.00 7.50 8.00 8.50 9.00 9.50 10.00

When "AI" is displayed, press CD EDIT/CHECK again.

4 Press the numbered buttons 0-9 to designate the tape length.

10 to 99 minutes can be specified.

Tape length PRGRC-60 Maximum recording time for side A A 30:60 Tape side(A)

5 Press DISC DIRECT PLAY, then press one of the numbered buttons 1-5 within 3 seconds to select a disc. Then, press the numbered buttons 0-9 and +10 to program a track.

Example: To select the 10th track of disc 2, press DISC DIRECT PLAY and 2, then +10 and 0.

Selected disc number Program number A B P-01 Selected track number Remaining time on side A -24:54 Programmed track numbers

6 Repeat step 5 for the rest of the tracks for side A.

A track whose playing time is longer than the remaining time cannot be programmed.

7 Press CD EDIT/CHECK to select side B and program the tracks for side B.

After confirming B on the display, repeat step 5.

Tape side B (reverse side) 30:00

8 Press ●/OREC/REC MUTE and then press ◀▶ within 2 seconds to start recording.

The tape is rewound to the beginning of the front side, the lead segment is played through for 10 seconds, and recording starts. When recording on the front side A ends, recording on the back side B starts.

To stop recording

Press ■. Recording and CD play stop simultaneously.

To check the order of the programmed track numbers Before recording, press CD EDIT/CHECK to select side A or B, and press ◀◀ or ▶▶ repeatedly.

Disc number Program number 1 2 3 4 5 6 7 8 9 10 11 P-01 Track number Programmed track numbers

To change the program of each side

Press CD EDIT/CHECK to select side A or B, and press ■ CLEAR to clear the program on the selected side. Then program tracks again.

To clear the edit program

Press ■ CLEAR twice so that "EDIT" disappears on the display.

NOTE

Recording is inhibited if the erasure prevention tab on either side of the tape is broken off.

MICROPHONE MIXING

2 4 3 KARAOKE 1

Two microphones (not supplied) can be connected to this unit, allowing you to sing along to music sources.

Use microphones with standard plugs (ø6.3 mm, 1/4 inch).

Before connecting a microphone

Set MIC MIXING to MIN.

1 Connect your microphones to MIC 1 and MIC 2 jacks.

1-MIC-2

2 Press one of the function buttons to select the source to be mixed, and play the source.

3 Adjust the volume and tone of the source.

4 Adjust the microphone volume with MIC MIXING.

The volume of both microphones is adjusted simultaneously.

To record microphone sound mixed with source sound Follow the procedure for recording from the sound source (see page 18).

SYNC DUB cannot be used for mixing recording.

When the microphones are not in use

Set MIC MIXING to MIN and remove the microphones from MIC jacks.

NOTE

• If a microphone is held too near the speakers, a howling sound may be produced. In this case, hold the microphone away from the speakers, or decrease the microphone volume.
- If sound through the microphone is extremely loud, it may be distorted. In this case, decrease the microphone volume.

Recommended microphones

Use of unidirectional type microphones is recommended to prevent howling. Contact your local Aiwa dealer for details.

VOCAL FADER/MULTIPLEX FUNCTIONS

This unit can use discs or tapes as Karaoke sources.

• Use the vocal fader function for ordinary discs or tapes.
• Use the multiplex function for multi audio discs or tapes.

Press KARAOKE repeatedly to select the vocal fader or multiplex function.

Each time KARAOKE is pressed, one of the following functions is selected cyclically.

① Vocal Fader

The singer's voice becomes softer than the accompaniment.

② Auto Vocal Fader

The singer's voice becomes softer only while there is audio input through a microphone.

③ Multiplex

Only the sound on the left channel is heard from both speakers, and the sound on the right channel is muted.

④ Auto Multiplex

The sound on the left channel is heard from both speakers, and the sound on the right channel is muted only while there is audio input through a microphone.

⑤ Cancel

To change the time lag setting in Auto Vocal Fader or Auto Multiplex function

The muted original singer's voice can be turned faster than the normal level.

When Auto Vocal Fader or Auto Multiplex is selected, "A-VF" or "A-MPX" is displayed for 3 seconds and disappears. Then hold down KARAOKE until "FAST" is displayed.

To return to the initial setting, select SLOW.

When the power is turned off, SLOW is restored.

To change the audible channel in Multiplex function

Only the sound on the right channel can be heard from both speakers.

When Multiplex is selected, "MPX-L" is displayed for 3 seconds and disappears. Then the selected function name is displayed, hold down KARAOKE until "MPX-R" is displayed.

To return to the initial setting, select MPX-L.

When the power is turned off, MPX-L is restored.

NOTE

- The Karaoke functions may not operate correctly with the following kinds of CDs or tapes.

• Those with monaural sound
• Those recorded with strong echoes
• Those with the vocal part recorded on the right or left side of the sound width
• While the Karaoke function is on, the sound is output as monaural.
• When the function is changed, the Karaoke function is canceled.

CD KARAOKE PROGRAM

2 1 3 5

Before or during CD play, you can reserve up to 15 tracks to be played after the current track. Each reservation is cleared when it finishes playing.

Use the remote control.

1 Press CD and load the discs.

2 Press PRGM once.

"CD KARAOKE" scrolls on the display.

K --- P00 1 2 3 4 5 0 7 8 9 11:12

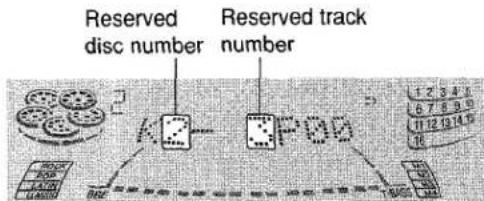

3 Press DISC DIRECT PLAY, then one of the numbered buttons 1-5 within 3 seconds to select a disc. Then, press the numbered buttons 0-9 and +10 to select a track.

Reserved disc number Reserved track number 12 34 67 59.0 112 121.0 11 200 400 400 400 400

4 Repeat step 3 to reserve other tracks.

5 Press ◀▶ to start play.

After a track is played, it is cleared from the program.

Currently playing disc Track number of the last reservation Currently playing track number flashes. Disc number of the last reservation Number of remaining reserved tracks

To add a reservation during play

Repeat step 3.

To check the reserved tracks

Press CD EDIT/CHECK repeatedly. Each time it is pressed, the disc number and track number are displayed in the reserved order.

To stop play

Press ■. When ◀▶ is pressed, the play starts from the last track again.

To skip a track

Press ▶▶.

The skipped track is cleared from the program.

To clear all the reservations

In stop mode, press ▶▶ repeatedly until "K - P00" is displayed.

K - P00 1 2 3 4 5 0 7 8 9 10 112 500 14500

Press it once more to cancel the Karaoke programs. The display returns to that of CD play.

NOTE

• If the reserved track number does not exist on the selected disc, the unit stops playing and the display flashes.
  In this case, press ▶▶ to skip the error track. Then press ◀▶ to start play with the next reserved track.
• When PRGM is pressed twice in step 2, “--0:00” is displayed and the unit enters CD programmed play mode (page 17).
  To cancel programmed play, press ■.

SETTING THE CLOCK

CLOCK 1 2 3

When the clock is set, the ":" between the hours and minutes flashes. When the power cord is plugged into an AC outlet for the first time after purchase or when the clock setting is canceled due to a power failure, the entire clock display flashes.

1 Press CLOCK.

AP12:00

2 Within 4 seconds, turn MULTI JOG to designate the hour and the minute.

Turning MULTI JOG changes both the hour and the minute. ◀◀ or ▶▶ is also available instead of MULTI JOG. Holding these buttons down will vary the time rapidly.

3 Press ENTER or II.

The clock starts from 00 seconds.

To view the clock when another display is in the display Press CLOCK. The time is displayed for 4 seconds and then the original display reappears. However, the clock cannot be displayed during recording.

To switch to the 24-hour standard

Press CLOCK and then press ■ within 4 seconds.

Repeat the same procedure to restore the 12-hour standard.

If the clock display flashes

If the display flashes when the clock is displayed, it indicates that the clock has stopped due to a power failure or the removal of the power cord. The current time needs to be reset.

NOTE

If the power-economizing mode (page 7) is on, all the display lights turn off when the power is turned off. To view the clock, press CLOCK so that the time is displayed for 4 seconds.

SETTING THE SLEEP TIMER

Diagram of a desktop computer rack with labeled components and directional arrows indicating ports or connections.

The unit can be turned off automatically at a specified time.

Use the remote control.

1 Press SLEEP on the remote control.

SLEEP 60° RISK POT LIFE GAMES

2 Within 4 seconds, turn MULTI JOG or press ◀◀ or ▶▶ to specify the time until the power is turned off.

The time changes between 5 and 240 minutes in 5-minute steps.

Specified time SLEEP 75 23 800K 1000K 1200K 1400K 1600K 1800K

To check the time remaining until the power turns off Press SLEEP once. The remaining time is displayed for 4 seconds.

To cancel the sleep timer

Press SLEEP twice so that "SLEEPoFF" appears.

SETTING THE TIMER

7 1 3 3,4 2 " 5 TIMER Function buttons VOL "

The unit can be turned on at a specified time every day with the built-in timer.

Preparation

Make sure the clock is set correctly.

1 Press one of the function buttons to select a source.
2 Press TIMER repeatedly until ⏻ appears on the display.

Time and audio source name flash alternately.

O PLAY

3 Within 6 seconds, turn MULTI JOG to designate the timer-on time, then press ENTER or II.

Turning MULTI JOG changes both the hour and the minute. ◀◀ or ▶▶ is also available instead of MULTI JOG. Holding these buttons down will vary the time rapidly.

0AM12:00

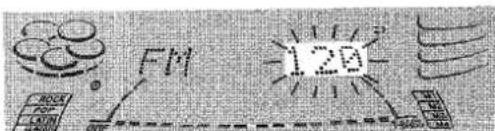

4 Within 4 seconds, turn MULTI JOG to select the duration for the timer-activated period.

The duration can be set between 5 and 240 minutes in 5-minute steps.

◀◀ or ▶▶ is also available instead of MULTI JOG.

F11 120 MOSA F12 120 MOSA F13 120

The duration will be automatically set after 4 seconds. It will also be set if ENTER or II is pressed within 4 seconds after step 4.

(To be continued)

TURNTABLE

BASIC OPERATION

5 Adjust the volume.

The source sound will play at the volume level set in this step when the power is turned on by the timer.

If the volume level is set to 21 or higher, however, it will automatically be set to 20 when the power is turned on.

6 Prepare the source.

To listen to a CD, load the disc to be played first on tray 1.

To listen to a tape, insert the tape into Deck 1 or 2.

To listen to the radio, tune in to a station.

7 Press POWER to turn off the power.

② remains on the display after the power is turned off (timer standby mode) if the power-economizing mode is OFF.

AM10:35

When the timer-on time is reached, the unit turns on and begins play with the selected source.

NOTE

• You can change the source that was selected in step 1 by pressing one of the function buttons before pressing ENTER or II in step 3.
• If the power-economizing mode is ON, ⏻ is not displayed in the timer standby mode.

To check the timer setting

Press TIMER.

The selected source, the timer-on time, and the duration for the timer-activated period will be displayed for 4 seconds.

To change any of the previous setting

Carry out from step 1.

However, if you do not change the timer-on time, in step 3 just press ENTER twice and continue from step 4.

To cancel the timer standby mode temporarily

Press TIMER repeatedly until ⏻ disappears and "OFF" is displayed.

To restore the timer standby mode, press TIMER once or twice to display ⏻ or ⏻REC.

Using the unit while the timer is set

You can use the unit normally after setting the timer.

Before turning off the power, carry out step 5 and 6.

NOTE

• Timer playback and timer recording will not begin unless the power is turned off.
• Connected equipment cannot be turned on and off by the built-in timer of this unit. Use an external timer.

TIMER RECORDING

Timer recording is applicable for TUNER and VIDEO/AUX (with an external timer) sources only.

Press TIMER repeatedly until ⒽREC appears on the display, then press ENTER within 6 seconds.

Carry out the steps of "SETTING THE TIMER" from step 3 and insert the tape to be recorded on into Deck 2 after step 6.

1 2,4 3

Preparation

• Connect the supplied stereo turntable to the main unit. (See page 4)
• Set EQUALIZER AMP. selector on the turntable to ON position. (Refer to the operating instructions of the turntable for details.)

1 Press PHONO on the main unit.
"PHONO" appears on the display.
2 Adjust the volume to minimum.
Turn VOLUME counterclockwise until "VOL 00" is displayed.
3 Play the turntable.
Refer to the operating instructions of the turntable for details.
4 Adjust the volume according to your preference.

OTHER CONNECTIONS

CONNECTING OPTIONAL EQUIPMENT

CD DIGITAL OUT (OPTICAL) VIDEO/AUX IN SURROUND SPEAKERS

Refer to the operating instructions of the connected equipment for details.

• The connecting cords are not supplied. Obtain the necessary connecting cords.
• Consult your local Aiwa dealer for optional equipment.

VIDEO/AUX IN JACKS

This unit can input analog sound signals through these jacks. Use a cable with RCA phono plugs to connect audio equipment (LD player, VCR, TV, etc.)

Connect the red plug to VIDEO/AUX R jack, and the white plug to VIDEO/AUX L jack.

CD DIGITAL OUT (OPTICAL) JACK

This unit can output CD digital sound signals through this jack. Use an optical cable to connect digital audio equipment (DAT deck, MD recorder, etc.)

Remove the dust cap ⓐ from CD DIGITAL OUT (OPTICAL) jack, then connect an optical cable plug to CD DIGITAL OUT (OPTICAL) jack.

CD DIGITAL OUT (OPTICAL) CD DIGITAL OUT (OPTICAL) a

When CD DIGITAL OUT (OPTICAL) jack is not being used Attach the supplied dust cap.

Connect optional surround speakers with 8 ohms to 16 ohms impedance to the jacks.

LISTENING TO EXTERNAL SOURCES

POWER 1

To play equipment connected to the VIDEO/AUX IN jacks, proceed as follows:

1 Press VIDEO/AUX.

"VIDEO" appears on the display.

2 Play the connected equipment.

To change a source name on the display

When VIDEO/AUX is pressed, "VIDEO" is displayed initially. It can be changed to "AUX" or "TV".

With the power on, press POWER while pressing VIDEO/AUX. Repeat the procedure to select one of the names.

To adjust the sound level of equipment connected to the VIDEO/AUX IN jacks

When the sound level of the external source is much higher or much lower than that of other function sources, adjust it as follows.

1 Press VIDEO/AUX and play the equipment.
2 Press ◀◀ or ▶▶ until the sound level becomes the same as that of other function sources.

NOTE

During recording, the sound level can not be adjusted.

CARE AND MAINTENANCE

Occasional care and maintenance of the unit and the software are needed to optimize the performance of your unit.

To clean the cabinet

Use a soft dry cloth.

If the surfaces are extremely dirty, use a soft cloth lightly moistened with mild detergent solution. Do not use strong solvents, such as alcohol, benzine or thinner as these could damage the finish of the unit.

To clean the tape heads

When the tape heads are dirty;

• high frequency sound is not emitted
• the sound is not adequately high
• the sound is off-balance
• the tape cannot be erased
• the tape cannot be recorded on

After every 10 hours of use, clean the tape heads with a head cleaning cassette.

Refer to the instructions of the cleaning cassette for details.

To demagnetize the tape heads

The tape heads may become magnetized after long-term use. This may narrow the output range of recorded tapes and increase noise.

After every 20 to 30 hours of use, demagnetize the tape heads with a separately sold demagnetizing cassette.

Refer to the instructions of the demagnetizing cassette for details.

Care of discs

- When a disc becomes dirty, wipe the disc from the center out with a cleaning cloth.

Illustration of hands holding a disc with a curved object above, no text or symbols present

• After playing a disc, store the disc in its case. Do not leave the disc in places that are hot or humid.

Care of tapes

• Store tapes in their cases after use.
• Do not leave tapes near magnets, motors, television sets, or any source of magnetism. This will downgrade the sound quality and cause noise.
• Do not expose tapes to direct sunlight, or leave them in a car parked in direct sunlight.

TROUBLESHOOTING GUIDE

If the unit fails to perform as described in these Operating Instructions, check the following guide.

GENERAL

There is no sound.

• Is the AC cord connected properly?
• Is there a bad connection? (→ page 4)
- There may be a short circuit in the speaker terminals.

→ Disconnect the AC cord, then correct the speaker connections.

• Was an incorrect function button pressed?
  Sound is emitted from one speaker only.
  • Is the other speaker disconnected?

The output sound is not stereo.

• Is the Karaoke function turned on? (→ page 22)

An erroneous display or a malfunction occurs.

→ Reset the unit as stated below.

TUNER SECTION

There is constant, wave-like static.

• Is the antenna connected properly? (→ page 5)
  • Is the signal weak?

→ Connect an outdoor antenna.

The reception contains noise interferences or the sound is distorted.

• Is the system picking up external noise or multipath distortion?

→ Change the orientation of the antenna.

→ Move the unit away from other electrical appliances.

CASSETTE DECK SECTION

The tape does not run.

• Is Deck 2 in pause mode? (→ page 13)

The sound is off-balance or not adequately high.

• Is the playback head dirty? (→ page 28)

Recording is not possible.

• Is the erasure prevention tab on the tape broken off? ( page 14)
  • Is the recording head dirty? (→ page 28)

Erasure is not possible.

• Is the erasure head dirty? (→ page 28)
• Is a metal tape being used?

High frequency sound is not emitted.

• Is the playback head dirty? (→ page 28)

CD PLAYER SECTION

The CD player does not play.

• Is the disc correctly placed? (→ page 15)
• Is the disc dirty? (→ page 28)
• Is the lens affected by condensation?

→ Wait approximately one hour and try again.

To reset

If an unusual condition occurs in the display window or the cassette decks, reset the unit as follows.

1 Press POWER to turn off the power.
2 Press POWER to turn the power back on while pressing ■ CLEAR. Everything stored in memory after purchase is canceled.

If the power cannot be turned off in step 1 because of a malfunction, reset by disconnecting the AC cord, and connect it again. Then carry out step 2.

SPECIFICATIONS

Main unit CX-ZL70

FM tuner section
Tuning range	87.5 MHz to 108 MHz
Usable sensitivity (IHF)	13.2 dBf
Antenna terminals	75 ohms (unbalanced)
AM tuner section
Tuning range	530 kHz to 1710 kHz (10 kHz step)
	531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity	350 μV/m
Antenna	Loop antenna
Amplifier section
Mid-high frequency amplifier
Power output	30 W + 30 W (200 Hz - 20 kHz, THD less than 1 %, 6 ohms)
Total harmonic distortion	0.15 % (15 W, 1 kHz, 6 ohms)
Low frequency amplifier
Power output	90 W + 90 W (50 Hz - 200 Hz, THD less than 1 %, 6 ohms)
Total harmonic distortion	0.15 % (45 W, 135 Hz, 6 ohms)
Inputs	VIDEO/AUX: 310 mV (adjustable)
	PHONO: 400 mV (47 kohms)
	MIC 1, MIC 2: 1.4 mV (20 kohms)
Outputs	CD DIGITAL OUT (OPTICAL)
	SPEAKERS: accept speakers of 6 ohms or more
	SURROUND SPEAKERS: accept speakers of 8 -16 ohms or more
	PHONES (stereo jack): accepts headphones of 32 ohms or more
Cassette deck section
Track format	4 tracks, 2 channels stereo
Frequency response	CrO2 tape: 50 Hz - 16000 HzNormal tape: 50 Hz - 15000 Hz
Signal-to-noise ratio	50 dB (CrO2 tape peak level, above 400 Hz)
Recording system	AC bias
Heads	Deck 1: Playback head × 1Deck 2: Recording/playback/ erase head × 1

Compact disc player section

Laser	Semiconductor laser ( = 780 nm)
D-A converter	1 bit dual
Signal-to-noise ratio	85 dB (1 kHz, 0 dB)
Harmonic distortion	0.05 % (1 kHz, 0 dB)
Wow and flutter	Unmeasurable
General
Power requirements	120 V AC, 60 Hz
Power consumption	180 W
Dimensions of main unit(W × H × D)	360 × 394.5 × 387.5 mm( 14^1/4 × 15^5/8 × 15^3/8 in.)
Weight of main unit	10.5 kg (23 lb. 2 oz.)

Speaker system SX-WZL70

Cabinet type	3 way, built-in subwoofer
Speakers	Subwoofer:
	220 mm (8 ^3 /4 in.) cone type
	Full range:
	120 mm (4 ^3 /4 in.) cone type
	Super tweeter:
	20 mm ( ^13 / _16 in.) ceramic type
Impedance	6 ohms
Output sound pressure level	89 dB/W/m
Dimensions (W × H × D)	290 × 444 × 296 mm
	(11 ^1 / _2 × 17 ^1 / _2 × 11 ^3 / _4 in.)
Weight	6.8 kg (14 lbs. 16 oz.)

Specifications and external appearance are subject to change without notice.

COPYRIGHT

Please check the laws on copyright relating to recordings from discs, radio or external tape for the country in which the machine is being used.

BBE SYSTEM

The word "BBE" and the "BBE symbol" are trademarks of BBE Sound, Inc. Under license from BBE sound, Inc.

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Modifications or adjustments to this product, which are not expressly approved by the manufacturer, may void the user's right or authority to operate this product.

ADVERTENCIA

PARA REDUCIR EL RIESGO DE INCENDIOS O SACUDIDAS ELECTRICAS, NO EXPONGA ESTE APARATO A LA LLUVIA NI A LA HUMEDAD.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

"PRECAUCION: PARA REDUCIR EL RIESGO DE QUE SE PRODUZCAN SACUDIDAS ELECTRICAS, NO QUITE LA CUBIERTA (O PANEL POSTERIOR). EN EL INTERIOR NO HAY PIEZAS QUE DEBA REPARAR EL USUARIO. SOLICITE LAS REPARACIONES AL PERSONAL DE SERVICIO CAPACITADO."

PHONO IN R

NOTA

Diagram showing electrical connections with labeled terminals A and L, and polarity indicators (+/-)

T-BASS BBE PHONES VOLUME T-BASS VOL

CONTROL DE VOLUMEN

Scanned document with handwritten-style icons and printed text, including a table, ruler, and envelope

NOTA

1 Pulse GEQ FREQ (LOW).

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of hands using a handheld device to press or install a component (no text or symbols visible)

OPERACIONES BASICAS

INTRODUCCION DE DISCOS

DISC CHANGE ▲OPEN/ CLOSE CD

Line drawing of a remote control with keypad and scroll (no text or symbols)

·RANDOM/REPEAT

Technical line drawing of a mechanical device with no visible text or symbols

AI PI C-90 AI EDIT

Cuando se visualice "PRGM", pulse otra vez CD EDIT/CHECK.

PRGM PRGM EDIT PRGM C-00 PRGM EDIT

Diagram of a front-mounted radio unit with labeled parts including front, back, and control panel

TOMA CD DIGITAL OUT (OPTICAL)

CD DIGITAL OUT (OPTICAL) CD DIGITAL OUT (OPTICAL) a

Cuando no se utilice la toma CD DIGITAL OUT (OPTICAL)

Line drawing of a hand holding a circular object with a handle, no text or symbols present

"CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL."

SPEAKERS HIGH FREQ R L SPEAKERS HIGH FREQ R

PHONO IN B

4 Raccordez les antennes fournies.

Raccordez l'antenne FM aux bornes FM 75 Ω et l'antenne AM aux bornes AM LOOP.

ANTENNA FM 75Ω AM FM Antenne AM Antenne

REMARQUE

Diagram showing a device with labeled terminals (R, L) and prohibition symbols, likely indicating a basic electrical or electrical hazard.

T-BASS BBE PHONES VOLUME T-BASS VOL

VOLUME

Hand-drawn diagram with labeled items including a bowl, tray, ruler, and scale, likely illustrating a technical or educational concept.

Scanned document with handwritten notes, a pie chart, and a building illustration

REMARQUE

Mechanical component diagram showing a piston assembly with mounting holes and a downward arrow indicating force (no text or symbols)

Line drawing of hands using a handheld device to press or install a device (no text or symbols visible)

OPERATIONS DE BASE

CHARGEMENT DES DISQUES

DISC CHANGE ▲ OPEN/ CLOSE CD

RANDOM/ REPEAT

Technical line drawing of a mechanical device with no visible text or symbols

FM 93.00 REC

TP14 2REC RBC RBC LRC RBC RBC RBC RBC RBC RBC RBC RBC RBC RBC RBC RBC RBC RBC RBC RBC RBC RBC RBC RBC RBC RBC RBC RBC RBC RBC RBC RBC RBC RBC RBC RBC RBC RBC

PRGM PRGM EDIT PRGMC-00 PROGRT

Diagram of a desktop computer with labeled parts including front and back views, showing internal components like dials, switches, and remote control.

Scanned text of a document with dense, illegible characters and possible Chinese characters at the bottom.

CD DIGITAL OUT (OPTICAL) VIDEO/AUX IN SURROUND SPEAKERS

PRISE CD DIGITAL OUT (OPTICAL)

CD DIGITAL OUT (OPTICAL) CD DIGITAL OUT (OPTICAL) a

Scanned text of a Chinese document with dense vertical columns and horizontal lines, likely from a form or official record.

POWER 1

Illustration of a hand holding a disc with a curved object above it, no text or symbols present

Diagram of a car air conditioner unit with numbered parts labeled for identification.

Name/Nombre/Nom
Page/Página/Page

POWER 6,26-28 GEQ 10 (ROCK, POP, LATIN, CLASSIC)
② ENTER .... 7,10,24-26 SYNC DUB NORM/HIGH .... 19 ● REC/REC MUTE .... 18-21
③ MULTI JOG .... 7,10-12,15,24,25 GEQ FREQ (LOW, HIGH) .... 10 ECO .... 6,7 CLOCK .... 24 TIMER .... 25,26 TUNER PRESET .... 11,12 PHONES .... 9
④ II SET....6,12,13,15,18,25 ■ CLEAR....6,8,12,15,17-21,24,28 ◀▶DIRECTION/PRESET....8,11-18,20,21,24 ▶▶/▶▶IUP....8,11-13,15,17,20,21, 24,25-27 ◀◀/I◀◀DOWN....8,11-13,15,17,20,21, 24,25-27
⑤ DISC DIRECT PLAY1-5 ..... 15-17,20,21,23 DISC CHANGE ..... 15,16 ▲OPEN/CLOSE ..... 15
6 GEQ....10 (M1, M2, M3, M4) DEMO....8 MIC MIXING....22
7 TAPE/DECK 1/2 .... 13,14,18,19 TUNER/BAND .... 11,12 PHONO .... 26 VIDEO/AUX .... 27 CD .... 6,15,16,20,21,23
8 VOLUME ..... 9 T-BASS ..... 9 BBE ..... 9 REV MODE (DECK 2) ..... 13,14,18 CD BLANK SKIP ..... 17 KARAOKE ..... 22,23 MIC1,2 ..... 22

Diagram of a remote control with numbered labels pointing to various ports and functions

Name/Nombre/Nom
Page/Página/Page

9 0-9,+10 12,15,16,17,20,21,23 DISC DIRECT PLAY 15-17,20,21,23
10 T-BASS....9 GEQ....10 KARAOKE....22,23 ▲OPEN/CLOSE....15
11 ●/OREC/REC MUTE.... 18-21 IISET.... 6,12,13,15,18,25
▶/◀▶ DIRECTION/ PRESET .... 8,11-18,20,21,24 ▶▶/▶▶IUP .... 8,11-13,15,17,20,21, 24,25-27
◀◀/I◀◀DOWN 8,11-13,15,17,20,21,24,25-27 ■CLEAR 8,12-15,17-21,24,28 VOL (∧,∨) 9
⑫ POWER 6,26-28
13 TIMER .... 25 SLEEP .... 25,26 MONOTUNER .... 11 CLOCK .... 24 CD EDIT/CHECK .... 20,21 PRGM .... 17,23 RANDOM/REPEAT .... 16
14 TAPE/DECK 1/2 .... 13,14,18,19 TUNER/BAND .... 11,12 VIDEO/AUX .... 27 CD .... 6,15,16,20,21,23

For assistance and information

call toll free 1-800-BUY-AIWA (United States and Puerto Rico)
