USER MANUAL EHM1001 Ferm

Industrial heater unit labeled 'FERM' with orange control knobs and mesh grille (no readable text beyond label)

EN Original instructions 04
DE Übersetzung der Originalbetriebsanleitung 07
NL Vertaling van de oorspronkelijke gebruiksaanwijzing 10
FR Traduction de la notice originale 13
CS Překlad původního návodu k používání 16
PL Tłumaczenie instrukcji oryginalnej 19
UK Переклад оригінальних інструкцій 23

FERM 1 2 3 4 5

Fig. 1

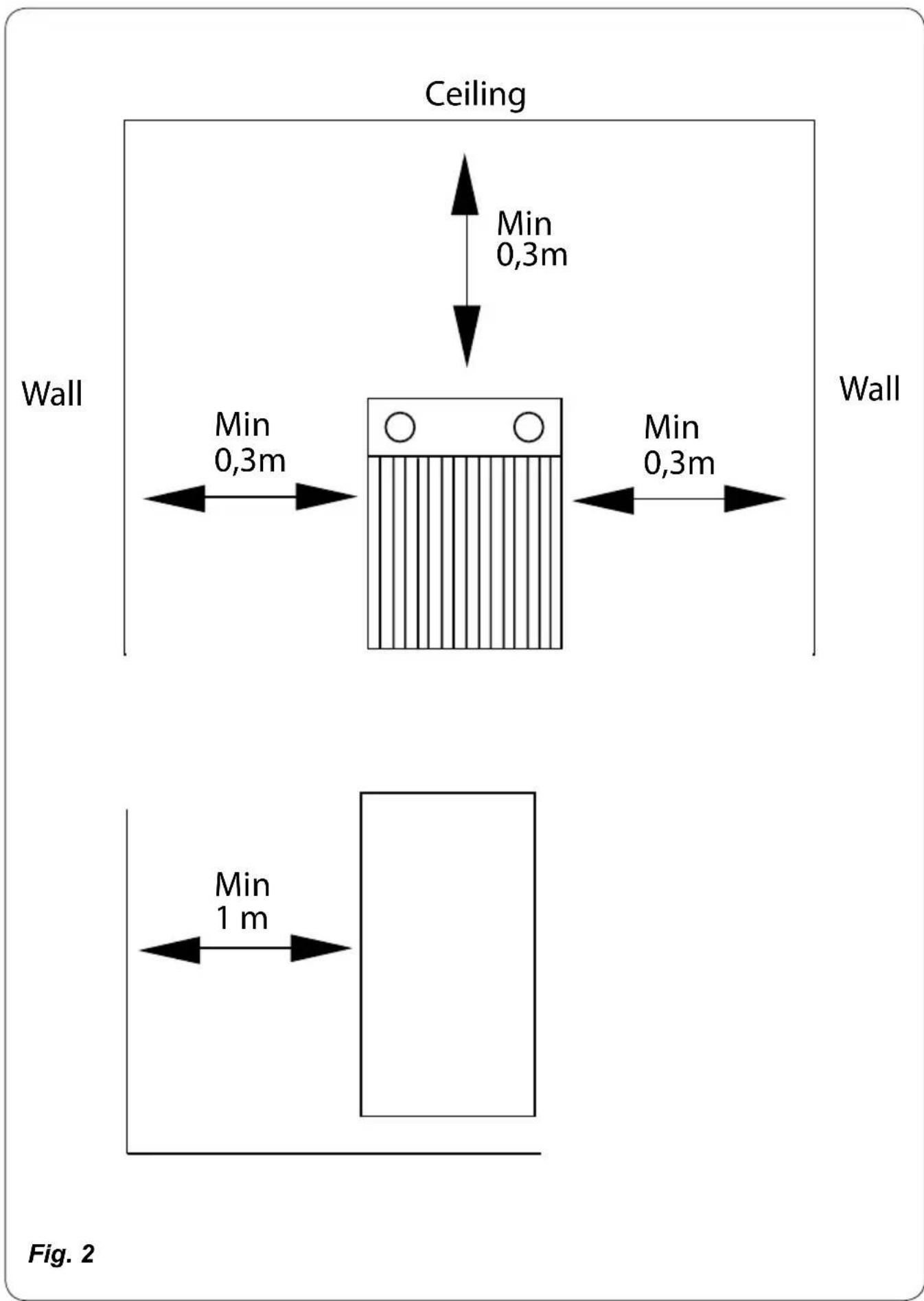

Ceiling Min 0,3m Wall Min 0,3m Min 0,3m Wall Min 1 m Fig. 2

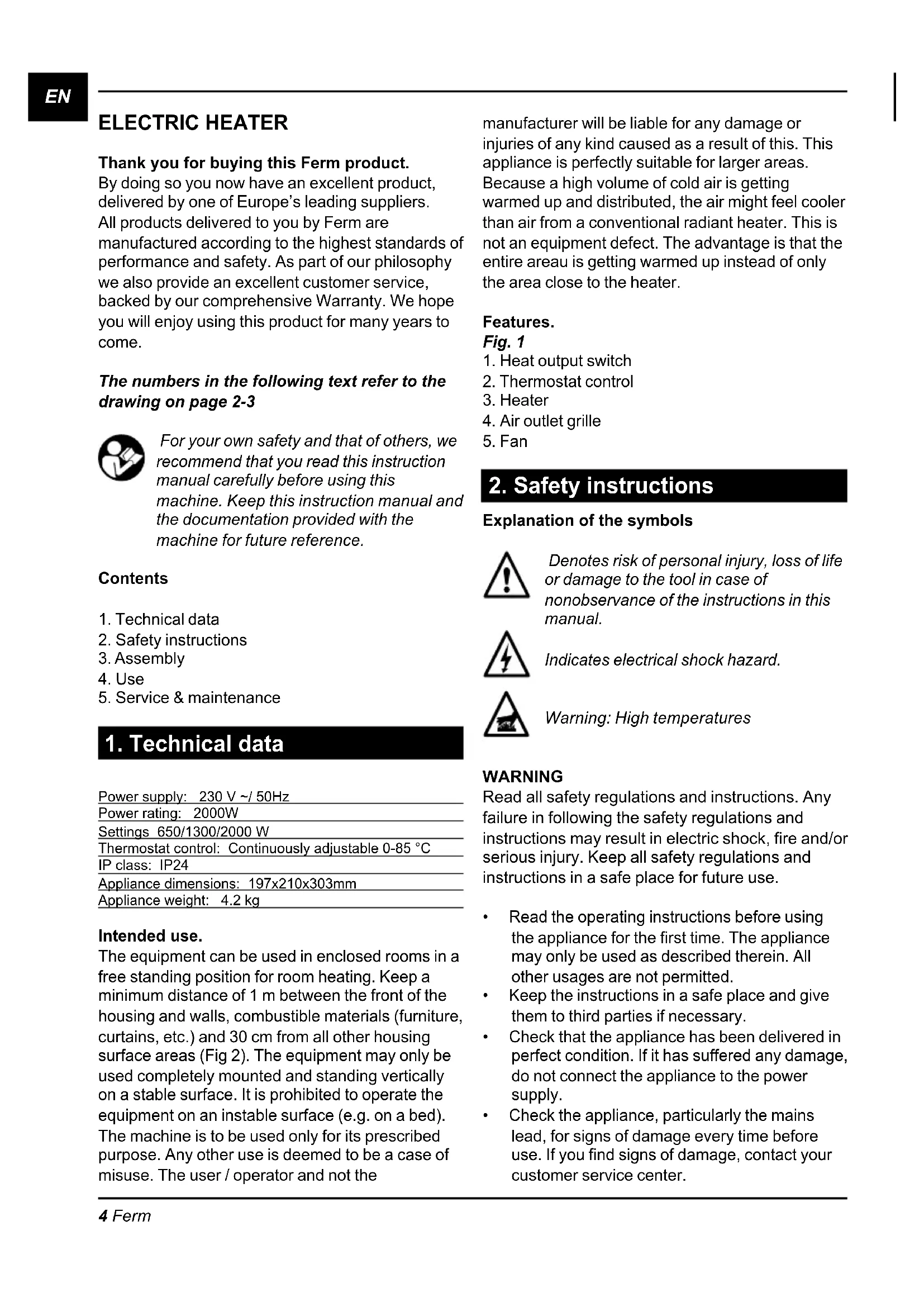

ELECTRIC HEATER

Thank you for buying this Ferm product.

By doing so you now have an excellent product, delivered by one of Europe's leading suppliers. All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive Warranty. We hope you will enjoy using this product for many years to come.

The numbers in the following text refer to the drawing on page 2-3

For your own safety and that of others, we recommend that you read this instruction manual carefully before using this machine. Keep this instruction manual and the documentation provided with the machine for future reference.

Contents

1. Technical data
2. Safety instructions
3. Assembly
4. Use
5. Service & maintenance

1. Technical data

Power supply: 230 V \~/ 50Hz

Power rating: 2000W

Settings 650/1300/2000 W

Thermostat control: Continuously adjustable 0-85 °C

IP class: IP24

Appliance dimensions: 197x210x303mm

Appliance weight: 4.2 kg

Intended use.

The equipment can be used in enclosed rooms in a free standing position for room heating. Keep a minimum distance of 1 m between the front of the housing and walls, combustible materials (furniture, curtains, etc.) and 30 cm from all other housing surface areas (Fig 2). The equipment may only be used completely mounted and standing vertically on a stable surface. It is prohibited to operate the equipment on an instable surface (e.g. on a bed). The machine is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the

manufacturer will be liable for any damage or injuries of any kind caused as a result of this. This appliance is perfectly suitable for larger areas. Because a high volume of cold air is getting warmed up and distributed, the air might feel cooler than air from a conventional radiant heater. This is not an equipment defect. The advantage is that the entire area is getting warmed up instead of only the area close to the heater.

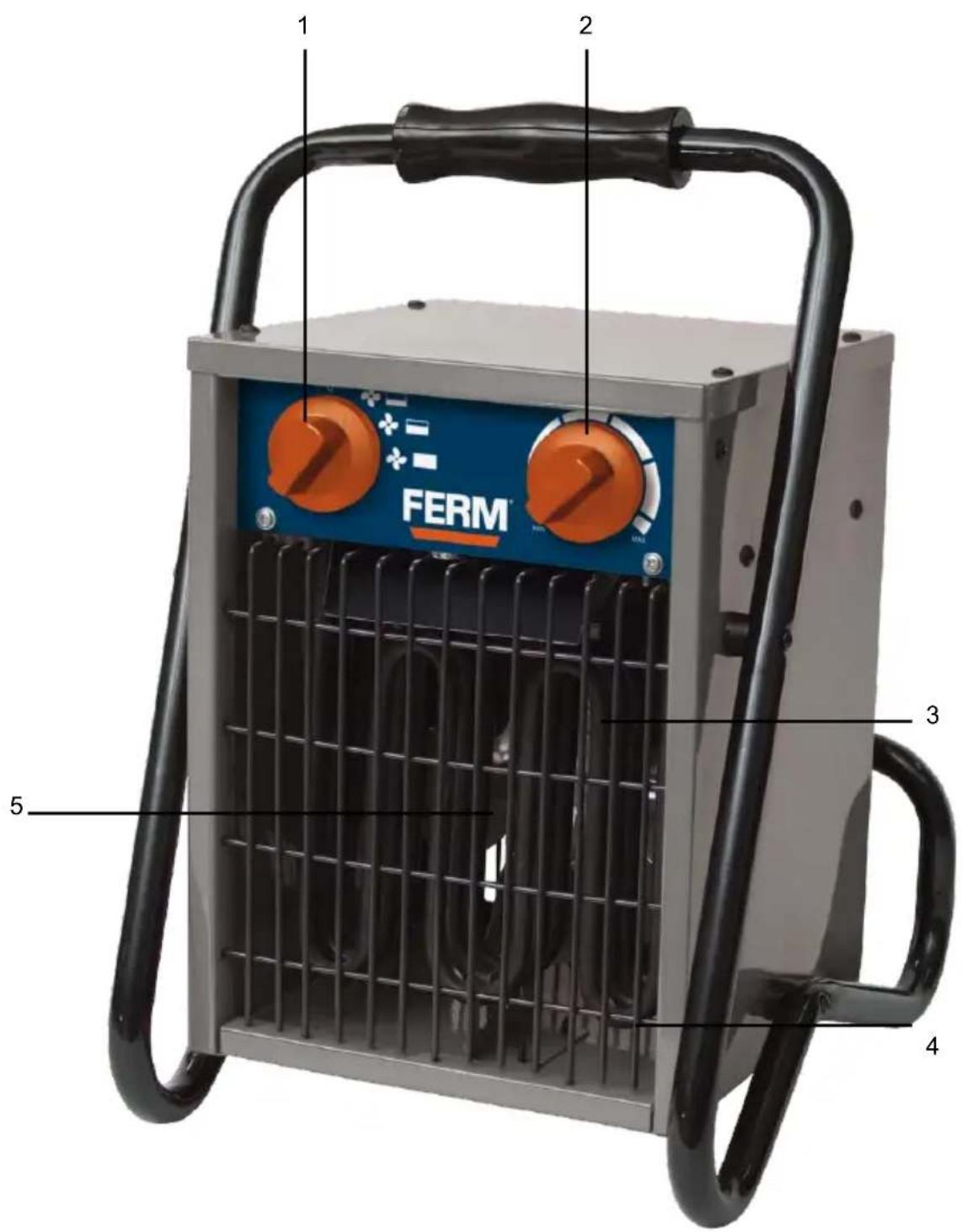

Features.

Fig. 1

1. Heat output switch
2. Thermostat control
3. Heater
4. Air outlet grille
5. Fan

2. Safety instructions

Explanation of the symbols

Denotes risk of personal injury, loss of life or damage to the tool in case of nonobservance of the instructions in this manual.

Indicates electrical shock hazard.

Warning: High temperatures

WARNING

Read all safety regulations and instructions. Any failure in following the safety regulations and instructions may result in electric shock, fire and/or serious injury. Keep all safety regulations and instructions in a safe place for future use.

• Read the operating instructions before using the appliance for the first time. The appliance may only be used as described therein. All other usages are not permitted.
• Keep the instructions in a safe place and give them to third parties if necessary.
• Check that the appliance has been delivered in perfect condition. If it has suffered any damage, do not connect the appliance to the power supply.

• Check the appliance, particularly the mains lead, for signs of damage every time before use. If you find signs of damage, contact your customer service center.

• Place the mains cable so that there is no danger of tripping over the cable.

• Do not guide the mains cable over hot parts of the appliance during operation.
• Never use the mains cable to pull the power plug out of the socket-outlet! Never use the mains cable to carry the appliance or try to move the appliance by pulling the mains cable.
• Never wind the mains cable around the fan heater.
• Never jam the mains cable between objects, or pull the cable over sharp edges, or place the cable over hot plates or open flames.
  • Not suitable for commercial purposes.
  • Use the appliance in enclosed rooms only.
• Never open the appliance or touch live parts – danger of fatal accident!
• Never immerse the appliance in water – danger of fatal accident!
• Do not place the appliance near wet rooms or wet areas (bathroom, shower room, swimming pool, etc.). It must not be possible for the control elements to be touched by a person in a shower, a vessel filled with liquid or the bathtub.
  • Never use the appliance with wet hands.
• Position the appliance in such a way that the mains plug is accessible at all times.
• If the appliance is not used for a longer period of time, disconnect it from the mains supply.
• Do not position the appliance directly below a socket.
  • For supervised operation only.
• If the appliance is used for a longer time the housing can become very hot. Position the appliance in such a way as to prevent accidental touching.
• Never position the appliance on deep pile carpets.
• Do not use the appliance in rooms in which inflammable materials (for example solvents, etc.) or gases are used or stored.
• Keep highly inflammable substances and gases away from the appliance.
• Do not use in areas where there is a fire risk (for example wooden sheds).
• Only use the radiator with its mains lead fully extended.
• Not suitable for installation on permanently installed electrical cables.
• Do not use the appliance for animal husbandry or livestock breeding.
• Do not insert any foreign objects in the appliance's openings.
  • Danger of electric shock and damage to the

appliance.

- Keep children and people on medication or under the influence of alcohol away from the appliance.

- Maintenance and repair work may only be carried out by authorized trained personnel.

Important! Do not cover the appliance – fire risk!

- For electrical safety purposes provide separate fusing for the equipment (16A) and install a residual current device circuit-breaker (RCD).

- This equipment is not designed to be used by people (including children) with limited physical, sensory or mental capacities or those with no experience and/or knowledge unless they are supervised by a person who is responsible for their safety or they have received instructions from such a person in how to use the equipment safely.

- Children must always be supervised in order to ensure that they do not play with the equipment.

- Do not connect the fan heater using an on/off timer or other equipment which can automatically switch the device on.

- If an extension cord is used, it must be as short as possible and always be fully extended. Only use certified 3 wired extension cords with a minimum of 2.5 mm ^2 thickness suitable for a minimum of 2500W.

3. Assembly

Check the correct air throughput by holding a sheet of paper at a distance of 10 cm in front of the air outlet grille in air circulation mode (without heating). The paper must be blown away from the air outlet grille. When the equipment is used for the first time or after a long period of rest it may emit an odor for a short time. This is not a fault. Because the heating system works with specially encapsulated heating elements and a high air delivery rate, the emitted air may be felt to be cooler than that from a conventional fan heater. This is not an equipment defect.

4. Use

Thermostat control

Fig 1.

Note:

The fan will start as soon as the equipment is switched on. The equipment will only heat up when the room temperature falls below the temperature set on the thermostat and the heat output switch is on.

Switch on the required heating output (1). Turn the control (2) to "max" until the required room temperature has been reached. Then turn down the control until you hear a clear click. The thermostat will switch the heating element on and off automatically.

Overheating guard

In case of excessive heating, the heating function shuts down automatically. The fan will restart. If this occurs, turn off the equipment, disconnect the mains plug and wait a few minutes for the equipment to cool. After eliminating the cause (e.g. a covered air grille), the equipment can be switched on again.

Switching off

After the hot equipment has been switched off (by turning the heat output switch to "0") the fan may continue to run for a while to cool the equipment. However, if the fan continues to run for more than 10 minutes, this is a sign that it cannot cut out automatically because of the high room temperature. In this case you must pull out the power plug.

5. Service and Maintenance

Cleaning

Keep the ventilation slots of the machine clean to prevent overheating of the engine. Regularly clean the machine housing with a soft cloth, preferably after each use. Keep the ventilation slots free from dust and dirt. If the dirt does not come off use a soft cloth moistened with soapy water. Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

Storage

Store the equipment and accessories out of children's reach in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30^ . Store the equipment in its original packaging.

Faults

Should a fault occur, e.g. after wear of a part,

please contact the service address on the warranty card. In the back of this manual you will find an exploded view showing the parts that can be ordered.

Environment

To prevent damage during transport, the appliance is delivered in a solid packaging which consists largely of reusable material. Therefore please make use of options for recycling the packaging.

Damaged and/or disposed of electrical or electronic devices must be dropped off at recycling stations intended for that purpose.

Warranty

For the conditions of warranty, please refer to the separately provided warranty card. The product and the user manual are subject to change. Specifications can be changed without further notice.

ERM Exploded view

CE

DECLARATION OF CONFORMITY EHM1001 ELECTRIC HEATER

(EN) We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 9 June on the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt der Direktive 2011/65/EU des Europäischen Parlaments und des Rats vom 8. Juni 2011 über die Einschränkung der Anwendung von bestimmten gefährlichen Stoffen in elektrischen und elektronischen Geräten entspricht. den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijk heid dat dit product voldoet aan de conform Richtlijn 2011/65/EU van het Europees Parlement en de Raad van 8 juni 2011 betreffende beperking van het gebruik van bepaalde gevaarlijke stoffen in elektrische en elektronische apparatuur. en in overeenstem ming is met, de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants: est conforme à la Directive 2011/65/EU du Parlement Européen et du Conseil du 8 juin 2011 concernant la limitation d'usage de certaines substances dangereuses dans l'équipement électrique et électronique.
(CZ) Na naši vlastní zodpovědnost prohlašujeme, že je tento výrobek v souladu s následujícími standardy a normami: Je v súlade s normou 2011/65/EÚ Európskeho parlamentu a Rady z 8. júna 2011 týkajúcej sa obmedzenia používania určitých nebezpečných látok v elektrickom a elektronickom vybavení.

Zwolle, 01-07-2012 Authorized to compile the technical file:

I. Mönnink

CEO Ferm BV

It is our policy to continuously improve our products and we therefore reserve the right to change the product specification without prior notice.

Ferm BV • Lingenstraat 6 • 8028 PM • Zwolle The Netherlands

WWW.FERM.COM 1207-24
