USER MANUAL EWA7700 AEG

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.aeg.com/webselfservice

Register your product for better service: www.registeraeg.com

Buy Accessories and Consumables for www.aeg.com/shop

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available:

• Model Number
• PNC number
• Serial number

The information can be found on the rating plate.

www.aeg.com

www.aeg.com

ENGLISH

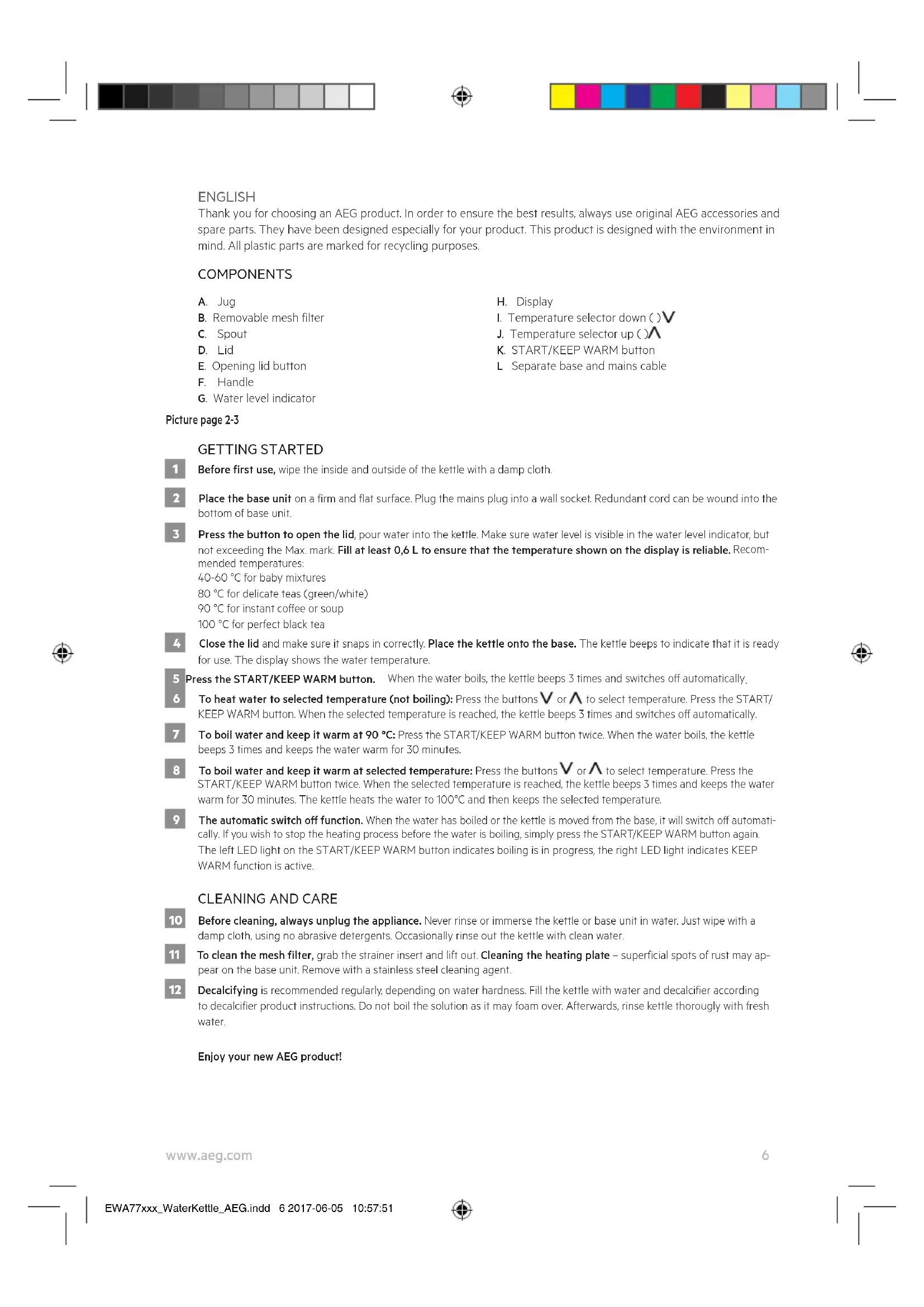

Thank you for choosing an AEG product. In order to ensure the best results, always use original AEG accessories and spare parts. They have been designed especially for your product. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.

COMPONENTS

A. Jug
B. Removable mesh filter
C. Spout
D. Lid
E. Opening lid button
F. Handle
G. Water level indicator

H. Display
1. Temperature selector down ()
J. Temperature selector up (A)
K. START/KEEP WARM button
L Separate base and mains cable

Picture page 2-3

GETTING STARTED

1 Before first use, wipe the inside and outside of the kettle with a damp cloth.
2 Place the base unit on a firm and flat surface. Plug the mains plug into a wall socket. Redundant cord can be wound into the bottom of base unit.
3 Press the button to open the lid, pour water into the kettle. Make sure water level is visible in the water level indicator, but not exceeding the Max. mark. Fill at least 0.6 L to ensure that the temperature shown on the display is reliable. Recommended temperatures:

40-60°C for baby mixtures

80°C for delicate teas (green/white)

90°C for instant coffee or soup

100 °C for perfect black tea

4 Close the lid and make sure it snaps in correctly. Place the kettle onto the base. The kettle beeps to indicate that it is ready for use. The display shows the water temperature.
5 Press the START/KEEP WARM button. When the water boils, the kettle beeps 3 times and switches off automatically.
6 To heat water to selected temperature (not boiling): Press the buttons or A to select temperature. Press the START/ KEEP WARM button. When the selected temperature is reached, the kettle beeps 3 times and switches off automatically.
To boil water and keep it warm at 90^ : Press the START/KEEP WARM button twice. When the water boils, the kettle beeps 3 times and keeps the water warm for 30 minutes.
8 To boil water and keep it warm at selected temperature: Press the buttons or A to select temperature. Press the START/KEEP WARM button twice. When the selected temperature is reached, the kettle beeps 3 times and keeps the water warm for 30 minutes. The kettle heats the water to 100^ and then keeps the selected temperature.
The automatic switch off function. When the water has boiled or the kettle is moved from the base, it will switch off automatically. If you wish to stop the heating process before the water is boiling, simply press the START/KEEP WARM button again. The left LED light on the START/KEEP WARM button indicates boiling is in progress, the right LED light indicates KEEP WARM function is active.

CLEANING AND CARE

Before cleaning, always unplug the appliance. Never rinse or immerse the kettle or base unit in water. Just wipe with a damp cloth, using no abrasive detergents. Occasionally rinse out the kettle with clean water.
To clean the mesh filter, grab the strainer insert and lift out. Cleaning the heating plate - superficial spots of rust may appear on the base unit. Remove with a stainless steel cleaning agent.
12 Decalcifying is recommended regularly, depending on water hardness. Fill the kettle with water and decalcifier according to decalcifier product instructions. Do not boil the solution as it may foam over. Afterwards, rinse kettle thoroughly with fresh water.

Enjoy your new AEG product!

SAFETY ADVICE

Read the following instruction carefully before using the appliance for the first time.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
  Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!
• Never use or pick up the appliance if
• the supply cord is damaged,
• the housing is damaged.
• The appliance must only be connected to an earthed socket. If necessary an extension cable suitable for 10 A can be used.
• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.
  Always place the appliance on a flat, level surface.
• Never leave the appliance unattended while connected to the supply mains.
• The appliance must be switched off and the mains plug withdrawn each time after use, before cleaning and maintenance.
• The appliance and accessories become hot during operation. Use only designated handles and knobs. Allow to cool down before cleaning or storage.
• Do not immerse the appliance in water or any other liquid.
• Do not use or place the appliance on a hot surface or near source of heat.
• Warning: Avoid spillage on the connector.
• Attention: The heating element surface is subject to residual heat after use.
• The mains cable must not come into contact with any hot parts of the appliance.
• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.
• Attention: If the kettle is overfilled there is a risk that the boiling water may spray out, which could scald or burn! Therefore never fill the kettle above the maximum marking.
• Never operate appliance with open lid.
• Only use the kettle for heating water!
• The kettle can only be used with the stand provided.
• The mains cable or anything else must do not touch the power switch. Failure to do so could result in the auto shut off function not to work correctly and therefore in a risk

www.aeg.com

of overheating or fire.

• While water boiling, avoid contacting with steam from the spout when water is boiling or just after it has switched off. Do not be anxious to uncover the lid.

This appliances is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
The appliance switches off before boiling.	Too much lime scale at the base of the kettle.	Run the decalcifying procedure.
The appliance does not switch off. Close	lid until it locks
		Insert the strainer correctly.
The appliance cannot be switched on. After operating with little or no water, the appliance has not cooled down sufficiently.		Allow to cool a short time and try again.
Error message E1, E2, E3 or ERR is shown on the display.		Allow to cool a short time and try again. If the problem persists, please turn to nearest AEG Service Station.

DISPOSAL

This symbol on the product indicates that this product contains a battery which shall not be disposed with normal household waste.

This symbol on the product or on its packaging indicates that the product may not be treated as household waste. To recycle your product, please take it to an official collection point or to an AEG service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

AEG reserves the right to change products, information and specifications without notice.
