GYT12012CB - Kettle AEG - Free user manual and instructions

Product type	Electric kettle
Brand	AEG
Model	GYT12012CB
Capacity	1.7 L
Power	2200 W
Supply voltage	220-240 V, 50/60 Hz
Material	Stainless steel
Swivel base	360°
Scale filter	Yes, removable
Automatic shut-off	Yes
Dry boiling protection	Yes
Water level indicator	Yes, transparent
Interior light	Blue LED
Lid	Automatic opening
Handle	Ergonomic, non-slip
Dimensions (L x W x H)	22 x 16 x 25 cm
Weight	1.1 kg
Cable length	0.75 m
Care and cleaning	Clean with a damp cloth, descale regularly
Safety	Safety thermostat, automatic shut-off
Included accessories	Base, filter
Repairability	Spare parts available (filter, base)

Frequently Asked Questions - GYT12012CB AEG

What is the capacity of the AEG GYT12012CB kettle?

The kettle has a capacity of 1.7 liters, ideal for preparing up to 7 cups of tea or coffee.

How to descale the kettle?

Use a special kettle descaler or diluted white vinegar. Pour the solution, bring to a boil, let it sit for 15 minutes, then rinse thoroughly. Repeat if necessary.

Does the kettle shut off automatically?

Yes, it is equipped with an automatic shut-off as soon as the water reaches boiling point, as well as overheat protection.

Can I operate the kettle without its base?

No, the kettle must always be placed on its 360° swivel base to operate. The base provides the power supply.

Is the scale filter removable?

Yes, the filter is removable for easy cleaning. Remove it regularly and rinse under running water.

Does the kettle make noise?

A slight noise is normal during heating. If the noise is excessive, check the limescale level and descale if necessary.

Can I use mineral water?

Yes, you can use mineral water, but it may accelerate limescale buildup. More frequent descaling will be necessary.

How to clean the exterior of the kettle?

Clean the exterior with a soft, damp cloth. Do not use abrasive products or harsh cleaners.

What is the warranty of the AEG GYT12012CB kettle?

The standard warranty is 2 years for manufacturing defects. Keep your receipt for any claims.

Where can I buy a replacement scale filter?

You can find replacement filters from authorized AEG dealers or online. Use the reference compatible with your model.

USER MANUAL GYT12012CB AEG

AEG

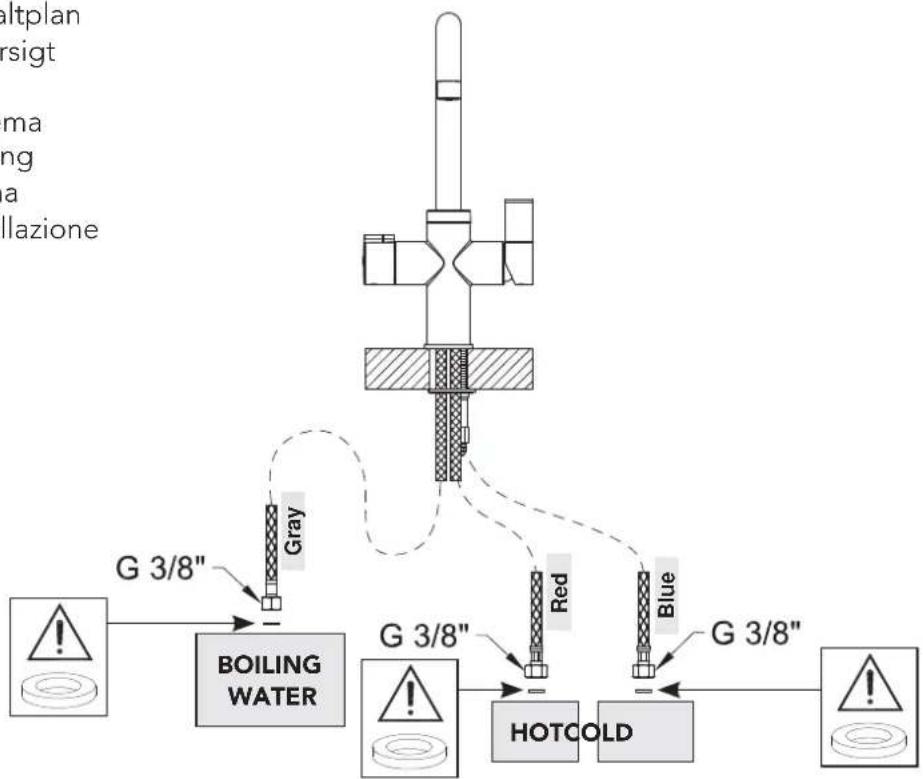

Image 2 Installation layout Installation layout Installation layout Installation layout Installation layout Installation layout Installation layout Installation layout Installation layout

Image 3

Installation Installation Installation Installation Installation Installation Installation Installation Installation

Image 4

Operation mixer side Operation mixer side Operation mixer side Operation mixer side Operation mixer side Operation mixer side Operation mixer side Operation mixer side Operation mixer side

Image 5

Operation boiling water Operation boiling water Operation boiling water Operation boiling water Operation boiling water Operation boiling water Operation boiling water Operation boiling water Operation boiling water

Image 6

Boiling water side use Boiling water side use Boiling water side use Boiling water side use Boiling water side use Boiling water side use Boiling water side use Boiling water side use Boiling water side use

CONTENTS

1. PRE-INSTALLATION INFORMATION......8
2. INSTALLATION....10
3. WORKING....10
4. MAINTENANCE....11

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler - features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information:

www.aeg.com

Register your product for better service:

www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution - Safety information.

General information and tips.

Environmental

information.

Subject to change without notice.

1. PRE-INSTALLATION

1.1

Important

! 1.3 Package content (Image 1)

Qualified staff should read these instructions very carefully before installation and/or maintenance of the product. Afu Mixer B - Base C - Fastening set D - Spacer for the fastening E - Gaskets

1.2

work

Before installation and setting to

Attention! The feeding pipes have to be rinsed thoroughly before the installation of the mixer, so that no shavings, welding or hemp residual or other dirt can be found in the pipes. Foreign bodies can enter the mixer through the rinsed pipes or the general water plant and could damage the washers/ring washers. In order to guarantee a long use of the product, install the angle valve equipped with filter and clean them regularly.

Before the setting to work, unscrew the aerator and rinse it very well.

Technical data

• Maximum working pressure 5 bar

- Recommended working pressure 3 bar (in case of water pressure higher than 5 bar install pressure reducers)

Respecting these indications will

maintain the warranty rights, ensure the declared properties of the products and warrant complete reliability.

- Before assembling the hose, please check the appropriate crimping of both sides of the hoses.

- Don't tighten by tools.

- Hand-tighten O-ring seal connectors until feeling a mechanical rest.

- Don't set the hose in the wall.

- Tighten the hose without any twist or tension.

- Prolonged contact with any substance, even scarcely aggressive, can cause external braid damage and subsequent flexible burst.

- Before bending the hose please consider a straight part of 2 times the external diameter.

- Maintain minimum bend radius (DN= nominal internal diameter):

DN6 = 25mm

DN8 = 30mm

DN10 = 35mm

DN13 = 45mm

- Hand-tighten connectors with gasket seal (nuts) then apply 1/4 turn using an appropriate wrench.

- Do not expose the hose to lateral stress nor overtight by any tool (ex. during the installation of the faucet stud or the drain pop-up lever).

2. INSTALLATION

3. WORKING

2

.1 Please follow exactly the following

sequence (Image 3)

.1 Operation mixer side (Image

- Open the handle to the right to start water supply; the more the handle is opened the more water is supplied.

2.2

For UK market

- Turn up the handle to open cold water, ns of turn it down to open hot water.

If necessary for network connections of the taps and fittings use adapter 3/8 - 1/2" with the relative seals present in the kit GYB06116XA.

3.2

Operation boiling water

2.3

Warning!

In case of "COMBI" configuration for installation of the mixer valve GYBMIX16XA and relative connections, pay attention to the directions in the system's handbook included in the package of the boiler.

The tap has a handle with safety function (especially for kids) for boiling water, enabled with a pressure and rotation motion. The handle retracts if released and locks automatically.

WARNING! The temperature of water flow can reach values that may cause burnings.

3.3

Boiling water side use

To get the best results, for example to prepare coffee or tea, it is necessary to let "first water" flow. This allows removing air bubbles that are in the water and tend to form a layer of foam on the preparation.

IMPORTANT! Keep the container to fill so as to contain completely the water supply spout. So you avoid boiling water splashes and the tap will be used safely.

Use only appropriate containers for high temperature water.

3.4 Warning!

At the expiry of warranty terms, the product should undergo full maintenance, first of all of all functional parts, for an optimal use of the product.

This maintenance should be carried out every two years by qualified staff.

4. MAINTENANCE

4.1 Directions for product cleaning

Water contains scale deposit in variable quantity, which remains on the surface of the product, leaving deposits once water has evaporated. It is possible to prevent the formation of scale deposits, and keep your product clean by drying it always with a soft cloth immediately after use.

NEVER USE DETERGENTS, SOLVENTS, CHEMICAL AGENTS, ABRASIVE MOPS, METALLIC WIPES, ALCOHOL, ETC. that would damage irremediably product surfaces, damaging its esthetic, its gloss and its satin finish.

CLEAN ONLY WITH WATER AND NEUTRAL SOAP DRYING WITH A SOFT CLOTH.

CONTENTS

1. PRELIMINARIES....13
2. INSTALLATION....15
3. OPERATION....15
4. MAINTENANCE....16

FOR PERFECT RESULTS

DN6 = 25mm DN8 = 30mm DN10 = 35mm DN13 = 45mm
