SFE 1500 B2 - Fondue, raclette and wok appliance SILVERCREST - Free user manual and instructions

USER MANUAL SFE 1500 B2 SILVERCREST

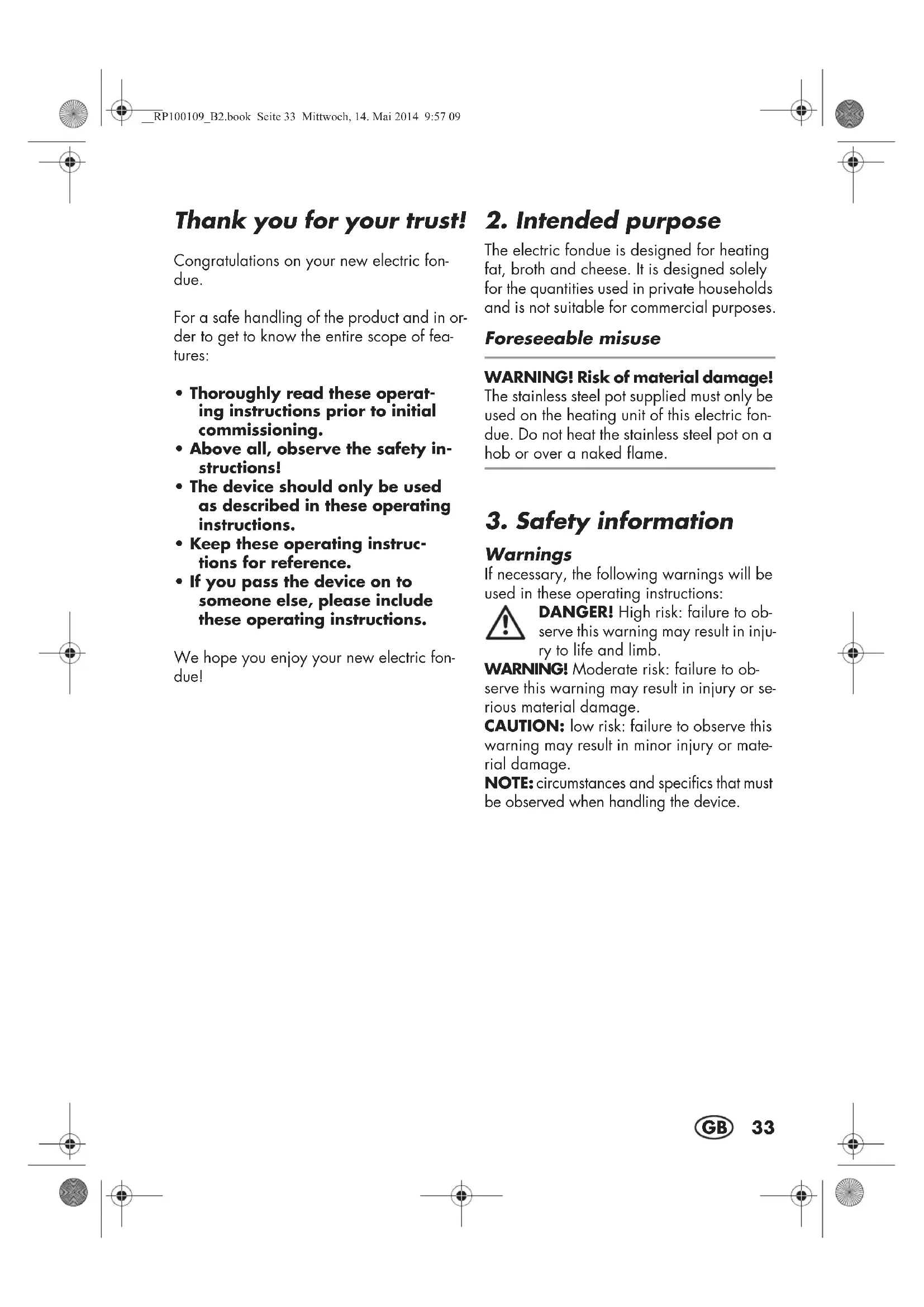

Thank you for your trust! Congratulations on your new electric fon- due. For a safe handling of the product and in or- der to get to know the entire scope of fea- tures:

• Thoroughly read these operat- ing instructions prior to initial commissioning.

• Above all, observe the safety in- structions!

• The device should only be used as described in these operating instructions.

• Keep these operating instruc- tions for reference.

• If you pass the device on to someone else, please include these operating instructions. We hope you enjoy your new electric fon- due!

The electric fondue is designed for heating fat, broth and cheese. It is designed solely for the quantities used in private households and is not suitable for commercial purposes. Foreseeable misuse WARNING! Risk of material damage! The stainless steel pot supplied must only be used on the heating unit of this electric fon- due. Do not heat the stainless steel pot on a hob or over a naked flame.

3. Safety information

Warnings If necessary, the following warnings will be used in these operating instructions: DANGER! High risk: failure to ob- serve this warning may result in inju- ry to life and limb. WARNING! Moderate risk: failure to ob- serve this warning may result in injury or se- rious material damage. CAUTION: low risk: failure to observe this warning may result in minor injury or mate- rial damage. NOTE: circumstances and specifics that must be observed when handling the device. __RP100109_B2.book Seite 33 Mittwoch, 14. Mai 2014 9:57 0934

Instructions for safe operation

• This device must not be used by children aged between 0 and 8years. This device may be used by children aged 8 years or above, if they are permanently supervised. This device can be used by people with restricted physical, sensory or intellectual abilities or people without adequate experience and/or understanding if they are supervised or instructed on how to use this device safely and if they are aware of the resulting risks.

• Keep children under the age of 8 away from the device and the power cable.

• The cleaning and maintenance by the user may not be per- formed by children.

• Place the device in a stable position by using the handles, in or- der to prevent the hot liquid from spilling.

• Do not immerse the heating unit, the power cable or the mains plug in water or any other liquid.

• This device is equally intended for use in the home and in appli- cations similar to the home, such as for example... … in kitchens for employees in shops, offices and other commer- cial areas; … on agricultural estates; … by customers in hotels, motels and other residential facilities; … in bed-and-breakfast establishments.

• This device is not intended to be operated using an external timer clock or a separate remote control system.

• If the power cable of this device should become damaged, it must be replaced by the manufacturer, the manufacturer's custom- er service department or a similarly qualified specialist, in order to avoid any hazards.

• Packing materials are not children's toys. Children should not be allowed to play with the plastic bags: there is a risk of suffocation. DANGER! Risk of electric shock due to moisture

• Protect the heating unit from moisture, dripping and splashing water.

• Do not use the device in the open air or near vessels filled with water, e.g. sinks.

• If the heating unit has fallen into water, remove the mains plug immediately, and only then remove the device from the water. Do not use the device again, and have it checked by a specialist.

• Never touch the heating unit with wet hands. DANGER! Risk of electric shock

• Do not use the device if the device or the power cable has any visible damage, or if the device has previously been dropped.

• Extension cables must be designed for a minimum of 10 ampere.

• Lay the power cable and any extension ca- ble such that nobody can step on them, get caught on them, or trip over them.

• Before connecting the device, check that the temperature controller is set to the "0" marking.

• Connect the mains plug only to a cor- rectly installed, easily accessible wall socket with an earthing contact with voltage corresponding to the rating plate. The wall socket must continue to be easily accessible after the device is plugged in.

• Ensure that the power cable cannot be damaged by sharp edges or hot points. Do not wind the power cable around the device but into the housing base of the heating unit.

• Even after it has been switched off, the device has not been completely discon- nected from the mains. In order to fully disconnect it, pull out the mains plug.

• When setting up the device, make sure that the power cable is not trapped or crushed.

• To pull the mains plug out of the wall socket, always pull on the mains plug, and never on the power cable.

• Disconnect the mains plug from the wall socket, … … if there is a fault, … when you are not using the device, … before you clean the device and … during thunderstorms.

• Do not connect another device with a high power consumption to a wall socket on the same circuit. This way you will avoid overloading the mains power supply.

• To avoid any risk, do not make modifica- tions to the product. DANGER! Risk of injury through burning!

• Danger to life from burns. Please ensure that children are not able to pull the de- vice down from the work surface with the power cable.

• Danger from explosive deflagration. Make sure you use fat that is fresh, clean and suitable for a fondue. Old, used or unsuitable fat may ignite even at low temperatures. Should the fat catch fire while using the fondue, do not try to extinguish it with water under any circumstances. Smother the fire with a saucepan lid of appropriate size or a woollen blanket.

• WARNING! Risk of burns caused by splashes of hot liquid when dipping food into the pot: dry food off before- hand and protect hands and forearms with oven gloves. __RP100109_B2.book Seite 35 Mittwoch, 14. Mai 2014 9:57 0936

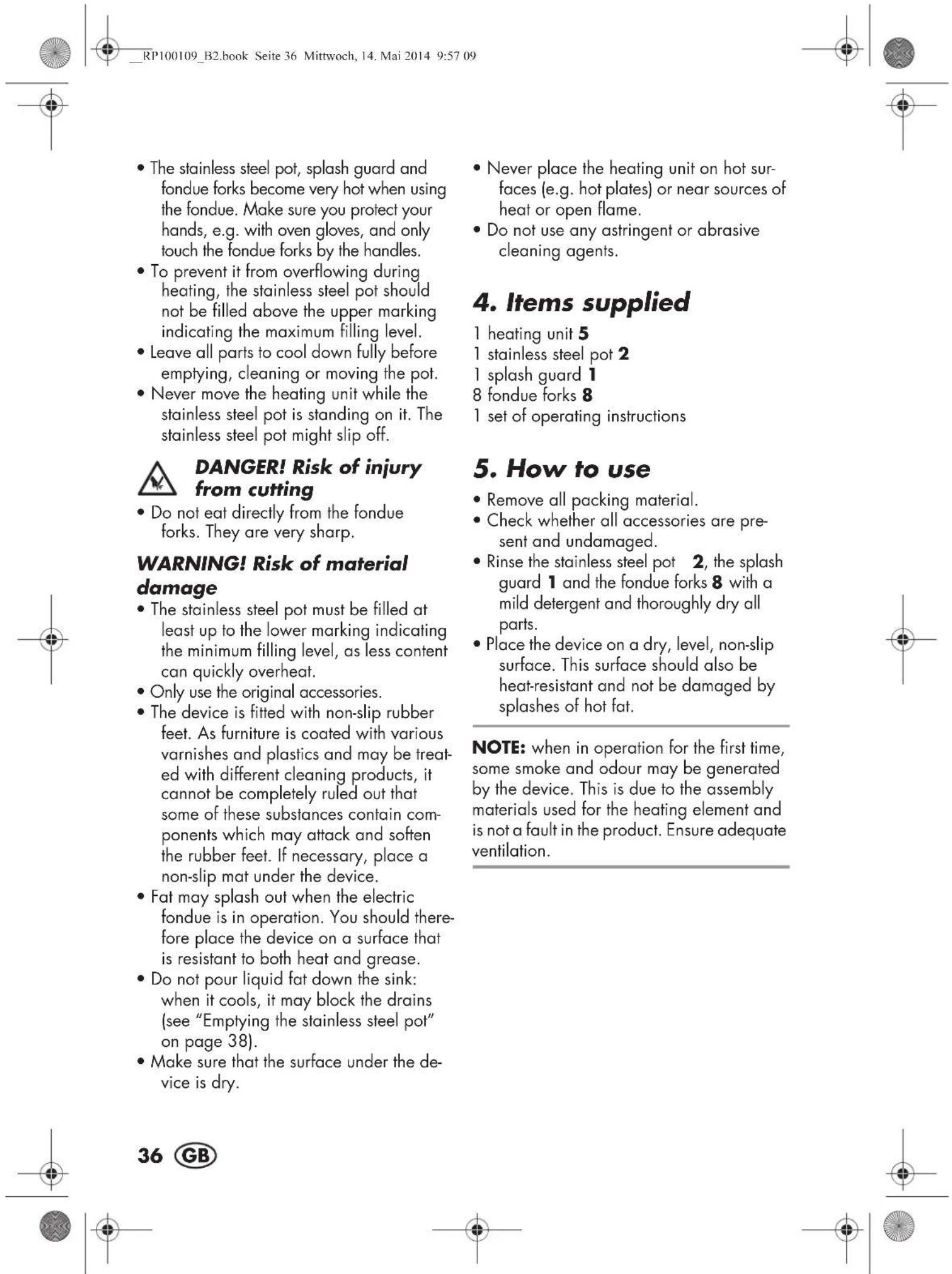

• The stainless steel pot, splash guard and fondue forks become very hot when using the fondue. Make sure you protect your hands, e.g. with oven gloves, and only touch the fondue forks by the handles.

• To prevent it from overflowing during heating, the stainless steel pot should not be filled above the upper marking indicating the maximum filling level.

• Leave all parts to cool down fully before emptying, cleaning or moving the pot.

• Never move the heating unit while the stainless steel pot is standing on it. The stainless steel pot might slip off. DANGER! Risk of injury from cutting

• Do not eat directly from the fondue forks. They are very sharp. WARNING! Risk of material damage

• The stainless steel pot must be filled at least up to the lower marking indicating the minimum filling level, as less content can quickly overheat.

• Only use the original accessories.

• The device is fitted with non-slip rubber feet. As furniture is coated with various varnishes and plastics and may be treat- ed with different cleaning products, it cannot be completely ruled out that some of these substances contain com- ponents which may attack and soften the rubber feet. If necessary, place a non-slip mat under the device.

• Fat may splash out when the electric fondue is in operation. You should there- fore place the device on a surface that is resistant to both heat and grease.

• Do not pour liquid fat down the sink: when it cools, it may block the drains (see “Emptying the stainless steel pot” on page 38).

• Make sure that the surface under the de- vice is dry.

• Never place the heating unit on hot sur- faces (e.g. hot plates) or near sources of heat or open flame.

• Do not use any astringent or abrasive cleaning agents.

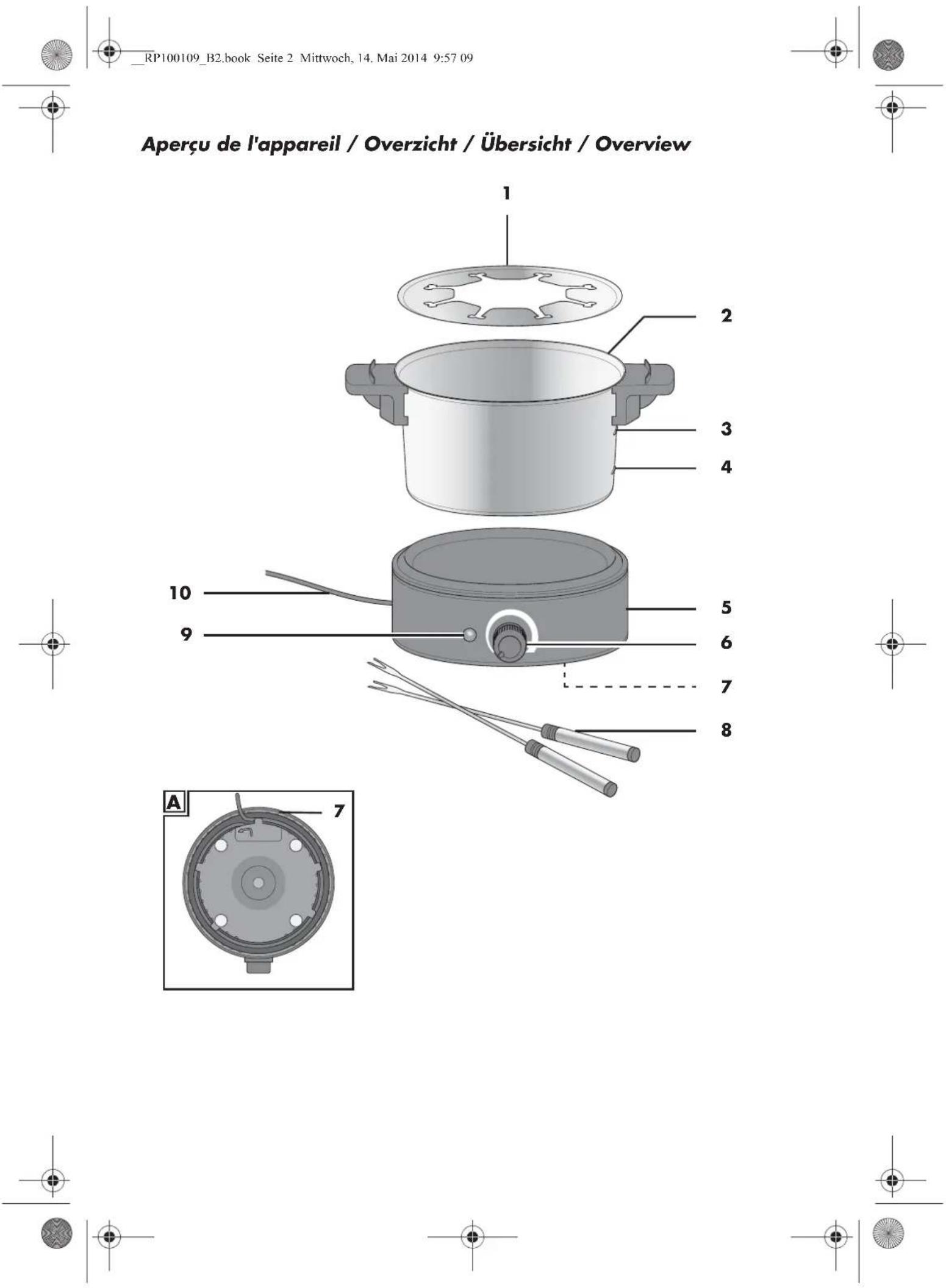

1 heating unit5 1 stainless steel pot2 1 splash guard1 8 fondue forks8 1 set of operating instructions

• Check whether all accessories are pre- sent and undamaged.

with a mild detergent and thoroughly dry all parts.

• Place the device on a dry, level, non-slip surface. This surface should also be heat-resistant and not be damaged by splashes of hot fat. NOTE: when in operation for the first time, some smoke and odour may be generated by the device. This is due to the assembly materials used for the heating element and is not a fault in the product. Ensure adequate ventilation. __RP100109_B2.book Seite 36 Mittwoch, 14. Mai 2014 9:57 0937

DANGER TO LIFE from scalding! Please ensure that children are not able to pull the device down from the work surface with the power ca- ble

1. Before connecting the device, check that

the temperature controller6 is set to the "0" marking.

2. Insert the mains plug into a wall socket

corresponding to the specifications of the rating plate.

DANGER! Risk of injury through burning!

• Danger from explosive deflagration. Make sure you use fat that is fresh, clean and suitable for a fondue. Old, used or unsuitable fat may ignite even at low temperatures. Should the fat catch fire while using the fondue, do not try to extinguish it with water under any circumstances. Smother the fire with a saucepan lid of appropriate size or a woollen blanket.

• The stainless steel pot2, splash guard1 and fondue forks8 become very hot when using the fondue. Make sure you protect your hands, e. g. with oven gloves, and only touch the fondue forks8 by the handles.

• Danger of burns caused by splashes of hot liquid when dipping food into the pot: dry food off beforehand and protect hands and forearms with oven gloves.

• To prevent it from overflowing during heating, the stainless steel pot2 should not be filled above the upper marking in- dicating the maximum filling level3.

1. Add fat, broth or cheese to the pot de-

pending on the intended use. The con- tents must not lie above or below the two filling level markings4 +3 in the pot.

2. Place the splash guard

3. Fat and broth: turn the temperature control-

clockwise to the end stop to heat the pot and its contents. The device will now heat up. Cheese: turn the temperature control- ler6 until it is midway between the markings "0" and MAX to melt the cheese carefully, stirring as it melts. In- crease or reduce the setting depending on the way the cheese you are using melts. NOTE: the temperature controller

allows you to freely select a lower temperature after initially heating up the pot. This is advisable, for example, in order to keep the temperature of the contents at just below the boiling point.

4. Prick the dried pieces of food onto the

fondue forks8 and place them in the fat, broth or cheese.

out when the food has reached the desired consistency. Cheese: dip the fondue forks

into the melted cheese, turning them as you do so to coat the food in cheese.

6. After finishing with the fondue, turn the

temperature controller

"0" , unplug the device and wait until all parts have cooled down before starting the cleaning process. __RP100109_B2.book Seite 37 Mittwoch, 14. Mai 2014 9:57 0938

DANGER! Risk of electric shock!

• Remove the mains plug from the wall socket before cleaning the electric fon- due.

• Do not immerse the heating unit5, the power cable10 or the mains plug in water or any other liquid. DANGER! Risk of injury through burning! Leave all parts to cool down fully be- fore emptying the pot and cleaning. DANGER! Risk of injury from cutting! The fondue forks8 are very sharp. WARNING! Risk of material damage!

• Do not use any astringent or abrasive cleaning agents.

• Do not pour liquid fat down the sink: when it cools, it may block the drains. Heating unit

• Clean the heating unit5 with a soft, damp cloth using a mild soap solution. Accessories

• Clean the stainless steel pot

with a mild detergent. Emptying the stainless steel pot Fat which becomes hard when cooled down can be easily poured off when it is in a cooled but still liquid state. Liquid fat can be poured back into a suitable vessel, if required. Dis- pose of old fat via your local disposal facility or discard with household waste. NOTE: burnt-on food or fat residue is often easier to remove if you fill the pot with water, add a sachet of baking soda and leave to stand overnight.

DANGER for children! The electric fondue should be kept out of the reach of children. WARNING! Risk of material damage! Figure A: do not wind the power cable10 around the device but anti-clockwise into the housing base7 of the heating unit5.

• Clean all parts and make sure they are properly dry before putting away the electric fondue.

The symbol showing a wheelie bin crossed through indicates that the product re- quires separate refuse collec- tion in the European Union. This applies to the product and all accessories marked with this symbol. Products identified with this symbol may not be discarded with normal household waste, but have to be taken to a collection point for recycling electric and electronic devices. Re- cycling helps to reduce the consumption of raw materials and protect the environment. Packaging When disposing of the packaging, make sure you comply with the environmental reg- ulations applicable in your country. __RP100109_B2.book Seite 38 Mittwoch, 14. Mai 2014 9:57 0939

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself. DANGER! Risk of electric shock! Do not attempt to repair the device yourself under any circum- stances.

specifications Subject to technical modification.

HOYER Handel GmbH Dear Customer, your device is provided with a 3 year war- ranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our war- ranty presented in the following. Warranty conditions The warranty period starts with the purchase date. Please keep the original purchase re- ceipt in a safe place. This document is re- quired to verify the purchase. If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or re- placed by us – at our discretion – free of charge to you. This warranty implies that within the period of three years the defective device and the purchase receipt are present- ed, including a brief written description of the defect and the time it occurred. If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product. Warranty period and statutory claims for defects The warranty period is not extended when the warranty has been claimed. This also ap- plies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immedi- ately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge. Warranty coverage The device was produced carefully according to strict quality guidelines and tested diligent- ly prior to delivery. Fault Possible causes / Action

• Has the device been connected to the power supply?

• Check the connection.

The warranty applies to material or factory defects. This warranty does not include prod- uct parts that are subject to standard wear and therefore can be considered wear parts; the same applies to damages at fragile parts, e.g. switches, rechargeable batteries or parts made of glass. This warranty expires if the product is dam- aged, not used as intended or not serviced. For the proper operation of the product, all in- structions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided. The product is only intended for private and not for commercial use. In the case of incor- rect and improper treatment, use of force and interventions not performed by our author- ised Service Centre, the warranty shall cease. Handling in case of a warranty claim In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number IAN: 100109 and the purchase receipt as a purchase verification for all inquiries.

• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.

• Then, you are able to send a product re- ported as defective free of charge to the service address specified to you, includ- ing the purchase receipt and the infor- mation on the defect and when it occurred. Please visit www.lidl-service.com to download this and many other manuals, product videos and soft- ware. Service Centre Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: hoyer@lidl.co.uk Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: hoyer@lidl.ie IAN: 100109 Supplier Please note that the following address is no service address. First contact the afore- mentioned Service Centre. HOYER Handel GmbH Kühnehöfe 5 22761 Hamburg Germany
