USER MANUAL WD 3 Premium Home Kärcher
English 10
Français 15
Italiano 20
Nederlands 25
Español 30
Português 35
Dansk 40
Norsk 45
Svenska 50
Suomi 55
Ελληνικά 60
Türkçe 65
Русский 70
Magyar 76
Čeština 81
Slovenščina 86
Polski 91
Românește 96
Slovenčina 101
Hrvatski 106
Srpski 111
Български 116
Eesti 121
Latviešu 126
Lietuviškai 131
Українська 136
Қазақша 141
العربية 153
Register and win! www.kaercher.com/register-and-win
EAC
!
59656640 03/16
General notes....EN 5
Safety instructions....EN 5
Description of the Appliance ..... EN 7
Operation....EN 8
Care and maintenance ..... EN 8
Troubleshooting.....EN 9
Technical specifications....EN 9
Dear Customer,
Please read and comply with these original instructions prior to the initial operation of your appliance and store them for
later use or subsequent owners.
General notes
Proper use
In accordance with the descriptions and the safety information in these operating instructions the appliance is intended for use as a multi-purpose vacuum cleaner.
This appliance has been designed for use in private households and is not intended for commercial use.
- Protect the unit from rain. Do not store outside.
- This device may not be used to suck in ash and soot.
Use the multi-purpose vacuum cleaner only with:
- Original filter bag.
- Original spare parts, accessories and special accessories.
The manufacturer is not responsible for any damages that may occur on account of improper use or wrong operations.
Environmental protection
The packaging material can be recycled. Please do not place the packaging into the ordinary refuse for disposal, but arrange for the proper recycling.
Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old appliances. Please dispose your old appliances using appropriate collection systems.
Disposing the filters and filter bags
Filters and filter bags are made from environment-friendly materials.
They can therefore be disposed off through the normal household garbage provided you have not sucked in substances that are not permitted to be thrown into household garbage.
Notes about the ingredients (REACH)
You will find current information about the ingredients at: www.kaercher.com/REACH
Warranty
The terms of the guarantee applicable in each country have been published by our respective national distributors. We will repair possible faults on your unit free of charge within the warranty period, insofar as the faults are caused by material defects or defective workmanship. Guarantee claims should be addressed to your dealer or the nearest authorized customer service centre, and supported by documentary evidence of purchase.
Customer Service
Our KÄRCHER branch will be pleased to help you further in the case of questions or faults.
Ordering spare parts and special attachments
At the end of the operating instructions you will find a selected list of spare parts that are often required.
You can procure the spare parts and the attachments from your dealer or your KÄRCHER branch office.
Safety instructions
⚠️DANGER
- The appliance may only be connected to alternating current. The voltage must correspond with the type plate on the appliance.
- Never touch the mains plug and the socket with wet hands.
- Do not pull the plug from the socket by pulling on the connecting cable.
- Check the power cord with mains plug for damage before every use. To avoid risks, arrange immediately the exchange by an authorized customer service or a skilled electrician, if the power cord is damaged.
- To avoid accidents due to electrical faults we recommend the use of sockets with a line-side current-limiting circuit breaker (max. 30 mA nominal tripping current).
- Turn off the appliance and remove the mains plug prior to any care and maintenance work.
- Repair works may only be performed by the authorised customer service.
⚠ WARNING
- This appliance is not intended for use by persons with limited physical, sensory or mental capacities or lacking experience and/or skills, unless such persons are accompanied and supervised by a person in charge of their safety or they have received precise instructions on the use of this appliance and have understood the resulting risks.
- Children may only use this appliance if they are over the age of 8 and supervised by a person in charge of their safety, or if they have received instructions on the use of this appliance and have understood the resulting risks.
- Children must not play with this appliance.
- Supervise children to prevent them from playing with the appliance.
- Cleaning and user maintenance must not be performed by children without supervision.
- Keep packaging film away from children - risk of suffocation!
- Switch the appliance off after every use and prior to every cleaning/maintenance procedure.
-
Risk of fire. Do not vacuum up any burning or glowing objects.
-
The appliance may not be used in areas where a risk of explosion is present.
- Immediately switch the appli- ance off or pull the power plug if foam forms or liquids es- cape!
- Do not use abrasives, glass or universal cleaners! Never immerse the appliance in water.
Certain materials may produce explosive vapours or mixtures when agitated by the suction air!
Never vacuum up the following materials:
- Explosive or combustible gases, liquids and dust particles (reactive dust particles)
- Reactive metal dust particles (such as aluminium, magnesium, zinc) in combination with highly alkaline or acidic detergents
- Undiluted, strong acids and alkalies
- Organic solvents (such as petrol, paint thinners, acetone, heating oil).
In addition, these substances may cause the appliance materials to corrode.
Hazard levels
⚠️DANGER
Pointer to immediate danger, which leads to severe injuries or death.
⚠ WARNING
Pointer to a possibly dangerous situation, which can lead to severe injuries or death.
⚠CAUTION
Pointer to a possibly dangerous situation, which can lead to minor injuries.
ATTENTION
Pointer to a possibly dangerous situation, which can lead to property damage.
Description of the Appliance
Illustrations on fold-out page!

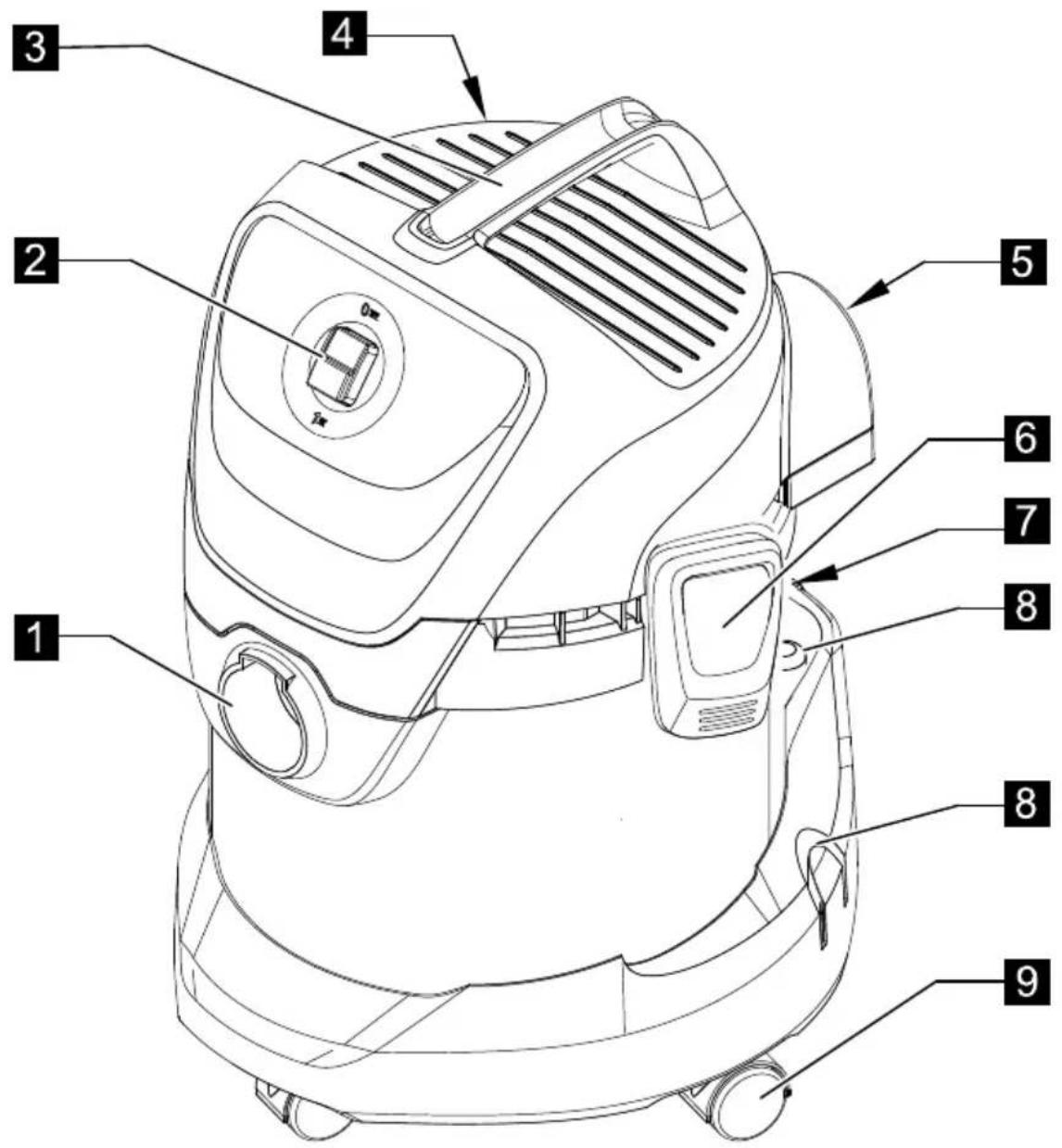

These operating instructions describe the multi-purpose vacuum cleaner shown on the cover page.
When unpacking the product, make sure that no accessories are missing and that none of the package contents have been damaged. If you detect any transport damages please contact your dealer.
1 Suction hose connection
Illustration B1
→ To connect the suction hose during vacuuming.
2 ON/OFF switch for appliance
Illustration B 3
→ Position I: Suction or blowing Position 0: Appliance is switched off
3 Carrying handle
→ To carry the appliance or to remove the appliance head after unlocking.
4 Cable hook
Illustration F2
→ To store the mains cable.
5 Blowing connection
Illustration C1
→ Connect the suction hose to the blower connection, this will activate the blower function.
6 Container closure
Illustration A 1
→ Pull out to open, push in to lock.
7 Parking position
Illustration D1
→ To rest the floor nozzle during work interruptions.
8 Accessory mount
Illustration E1
→ The accessories compartment allows the storage of suction pipes and suction nozzles on the appliance.
9 Steering roller
Illustration A 1
→ The steering rollers are located in the compartment when the appliance is delivered. These must be attached prior to starting up the appliance.
10 Filter bag 3x
Note: Do not use a filter bag for wet vacuuming!
Illustration A 2
→ Recommendation: To vacuum fine dust, use the filter bag.
11 Cartridge filter
Illustration F1
→ The cartridge filter must always be installed - with wet and dry vacuuming.
Note: Let the wet cartridge filter dry prior to using it for dry vacuuming.
12 Suction hose with connecting piece
Illustration B 1
→ Push the suction hose into the connection on the appliance, it snaps in place.
→ In order to disconnect it, push down with your thumb and pull the suction hose out.
Note: Accessories, such as suction brushes (optional) can be directly attached to the connecting piece and thus connected to the suction hose.
For convenient working even in tight spaces.
See position 13.
The removable handle can be attached between the accessories and the suction hose if necessary.
Recommendation: In order to vacuum the floor, attach the handle to the suction hose.
13 Removable handle
Illustration B1
→ Connect the handle with the suction hose until it snaps in place.

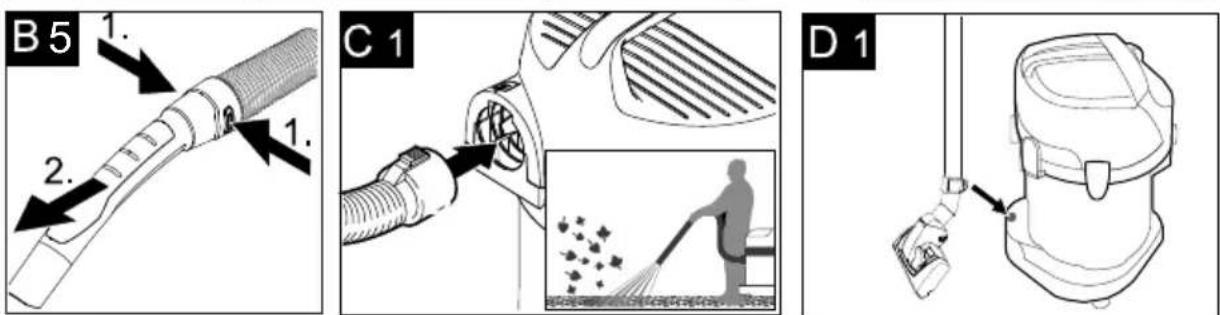

Illustration B 5
→ To remove the handle from the suction hose, press the notch using your thumb and pull off the handle.
Note: Due to removing the handle, accessories can be directly attached to the suction hose.
Recommendation: In order to vacuum the floor, attach the handle to the suction hose.
See position 12.
14
Suction tubes 2 x 0.5 m
Illustration B1
→ Put both suction tubes together and connect them with the handle.
15 Crevice nozzle
→ For edges, joints, heaters and hard to reach locations.
16 Floor nozzle, reversible
Recommendation:
Use the floor nozzle to vacuum up dry dirt only.
Vacuuming carpeted floors
Illustration B 4
→ Use your foot to press the reversing switch of the floor nozzle. The brush strips at the bottom of the floor nozzle are retracted.
Vacuuming hard surfaces
Illustration B 4
→ Use your foot to press the reversing switch of the floor nozzle. The brush strips at the bottom of the floor nozzle are extended.
17 Upholstery nozzle
→ For cleaning upholstered furniture, mattresses, laced curtains, etc.
Operation
ATTENTION
Always work with an inserted cartridge filter during wet as well as dry vacuum cleaning!
Before Startup

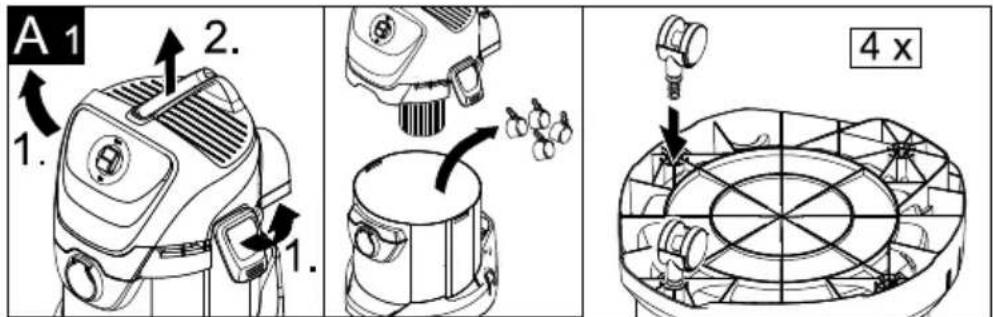

Illustration A 1
→ Mount loose parts delivered with appliance prior to start-up.
Start up
Illustration B1
→ Connect accessories.

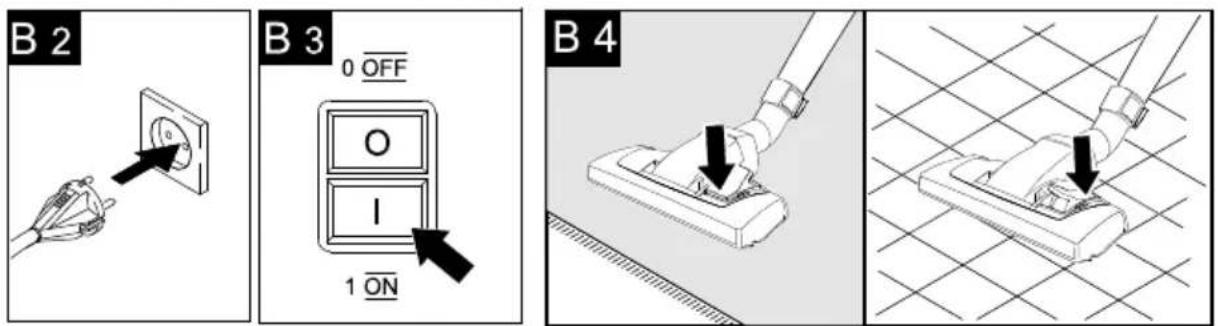

Illustration B2
→ Plug in the mains plug.
Illustration B3
→ Turn on the machine.
Dry vacuum cleaning
ATTENTION
Check the filter for damage prior to installation and replace as necessary.
Work with a dry cartridge filter only!

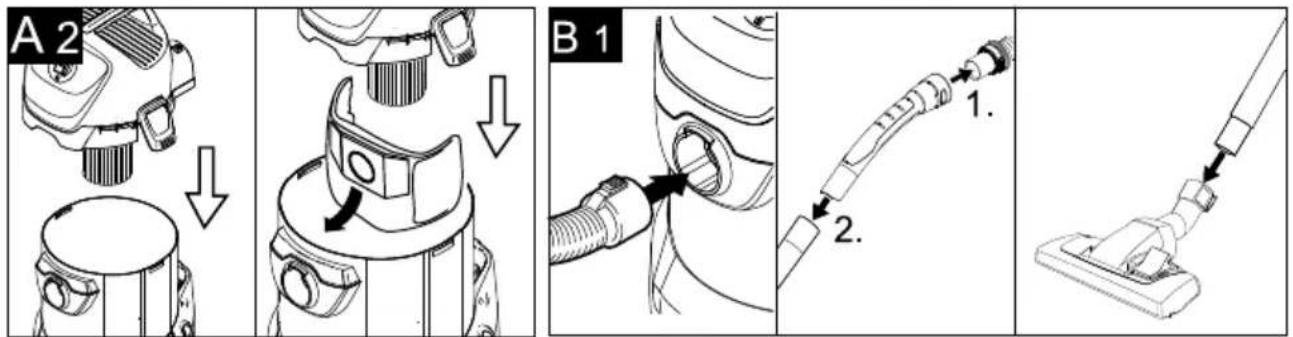

Illustration A2
→ Recommendation: To vacuum fine dust, use the filter bag.
Information filter bag
- The filling level of the filter bag depends on the dirt that is sucked in.
- The filter bag needs to be replaced more frequently while sucking in fine dust, sand, etc.
– Clogged filter bags can burst - therefore make sure to replace the filter bag in a timely manner!
ATTENTION
Vacuum cold ashes only when using a pre-filter.
Order no. basic design: 2.863-139.0, premium design: 2.863-161.0.
Wet vacuum cleaning
ATTENTION
Do not use a filter bag!
→ Take fluids or shards up with the handle.
→ If necessary, the floor nozzle can be used with the hard floor setting.
ATTENTION
The floor nozzle must dry completely after use, before it can be used again for dry vacuum cleaning.
Note: If the container is full, a float closes the suction opening, and the appliance works at a higher speed. Switch off the appliance immediately, and empty the container.
Blowing function
Cleaning hard to reach locations or, where vacuuming is not possible, like leaves from a gravel bed.
Illustration C1
→ Connect the suction hose to the blower connection, this will activate the blower function.
Interrupting operation
→ Turn off the appliance.
Illustration D1
→ Hook the floor nozzle into the parking position.
Finish operation
→ Turn off the appliance and disconnect the mains plug.
Empty the container

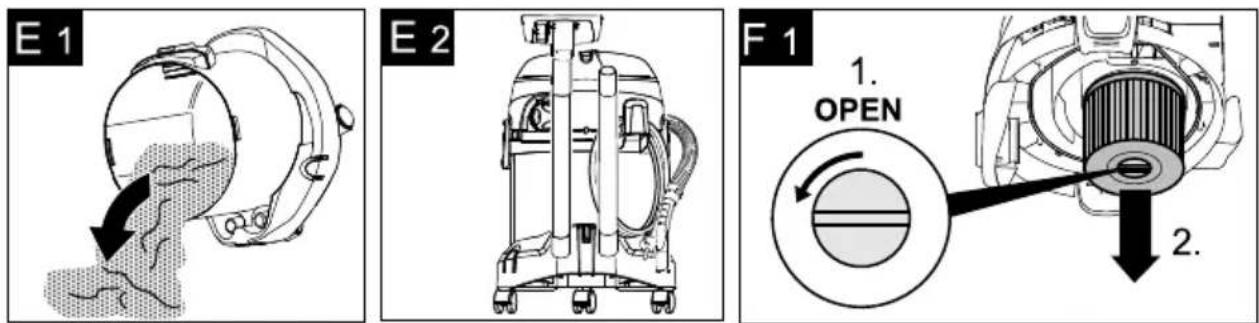

Illustration E1
→ Remove the appliance head and empty the reservoir.
Storing the appliance
Illustration E2
→ Stow away the mains cable and accessory at the machine. Store the appliance in a dry room.
Care and maintenance
→ Clean the appliance and accessory parts made of plastic with a commercial plastic cleaner.
→ If required, rinse the container and accessories with water properly and dry them before reuse.

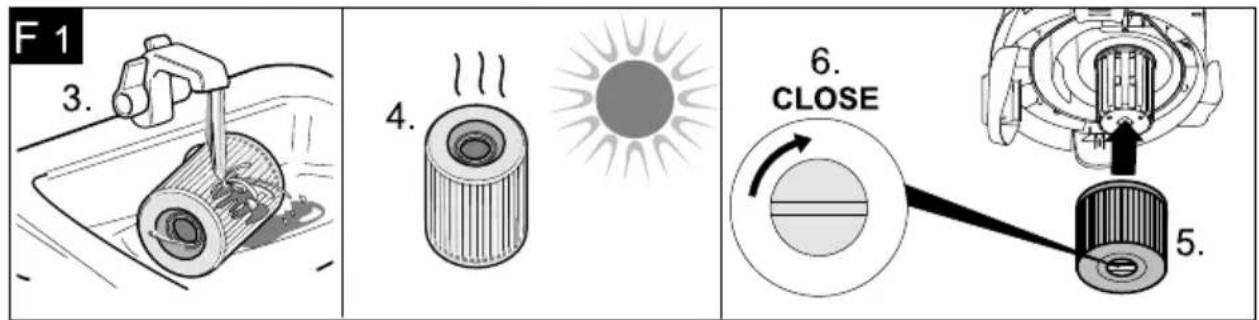

Illustration F1
→ Only clean the cartridge filter under running water; do not wipe or brush. Let it dry completely prior to installation.
Troubleshooting
Decreasing cleaning power
If the cleaning power of the appliance deteriorates please check the following:
→ Accessories, suction hose or suction pipes are clogged, please remove the obstruction using a stick.
Illustration A 2
→ Filter bag is full, install new filter bag.
Illustration F1
→ Cartridge filter is dirty, knock off dirt from cartridge filter and clean under running water if necessary.
→ Replace damaged cartridge filter.
Technical specifications
| Mains voltage 220 - 240 V | ||
| Frequency 1~50-60 Hz | ||
| Output P_nom | 1000 W | |
| Mains fuse (slow-blow) 10 A | ||
| Container capacity 17 l | ||
| Water intake with handle 10 l | ||
| Water intake with floor nozzle 8 l | ||
| Power cord H 05VV-F2x0.75 | ||
| Weight (without accessories) 5,8 kg | ||
| Sound pressure level(EN 60704-2-1) | 75 dB(A) | |
Subject to technical modifications!
Table des matières
www.kaercher.com/REACH
Garantie
www.kaercher.com/REACH
Garanzia
www.kaercher.com/REACH
Garantie
www.kaercher.com/REACH
Garantía
4 Gancho porta cables
Imagen F2
www.kaercher.com/REACH
Garantia
www.kaercher.com/REACH
Garanti
www.kaercher.com/REACH
Garanti
www.kaercher.com/REACH
Εγγύηση
www.kaercher.com/REACH
Garanti
www.kaercher.com/REACH
Garancia
www.kaercher.com/REACH
Záruka
www.kaercher.com/REACH
Garancija
www.kaercher.com/REACH
Gwarancja
Mult stimate client,
www.kaercher.com/REACH
Conditii de garantie
www.kaercher.com/REACH
Záruka
www.kaercher.com/REACH
Jamstvo
www.kaercher.com/REACH
Garancija
U svakoj zemlji važe uslovi garancije koje je objavila naša prodajna služba. U garantnom roku besplatno otklanjamo sve smetnje na uređaju ako se radi o grešci materijala ili proizvodnim manama. U slučaju ostvarivanja garantnih prava obratite se svom prodavcu ili ovlašćenoj servisnoj službi; priložite pribor i originalni račun.
Servisna služba
www.kaercher.com/REACH
Гаранция
www.kaercher.com/REACH
Garantii
www.kaercher.com/REACH
Garantija
www.kaercher.com/REACH
Garantija
www.kaercher.com/REACH
Гарантія
www.kaercher.com/REACH
Кепілдеме
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
