USER MANUAL Silence Force Extreme TW5853HO TEFAL

TW58xx / TW59 series

www.tefal.com

28*

fig.1 fig.2 fig.4 fig.3

fig.5 fig.6 fig.8 fig.7

fig.9 fig.10 fig.12 fig.11

fig. 13 fig. 14 fig. 16 fig. 15

fig. 17 fig. 18 fig. 20 fig. 19

fig. 21 fig. 22 fig. 24fig. 23

fig. 25 fig. 26 fig. 28fig. 27

fig. 29 fig. 30 fig. 32fig. 31
fig. 33

CONSEILS DE SECURITE

Retirez le support de sac du compartmente sac (fig.15).

Retirez le sac Wonderbag* du support de sac (fig.16).

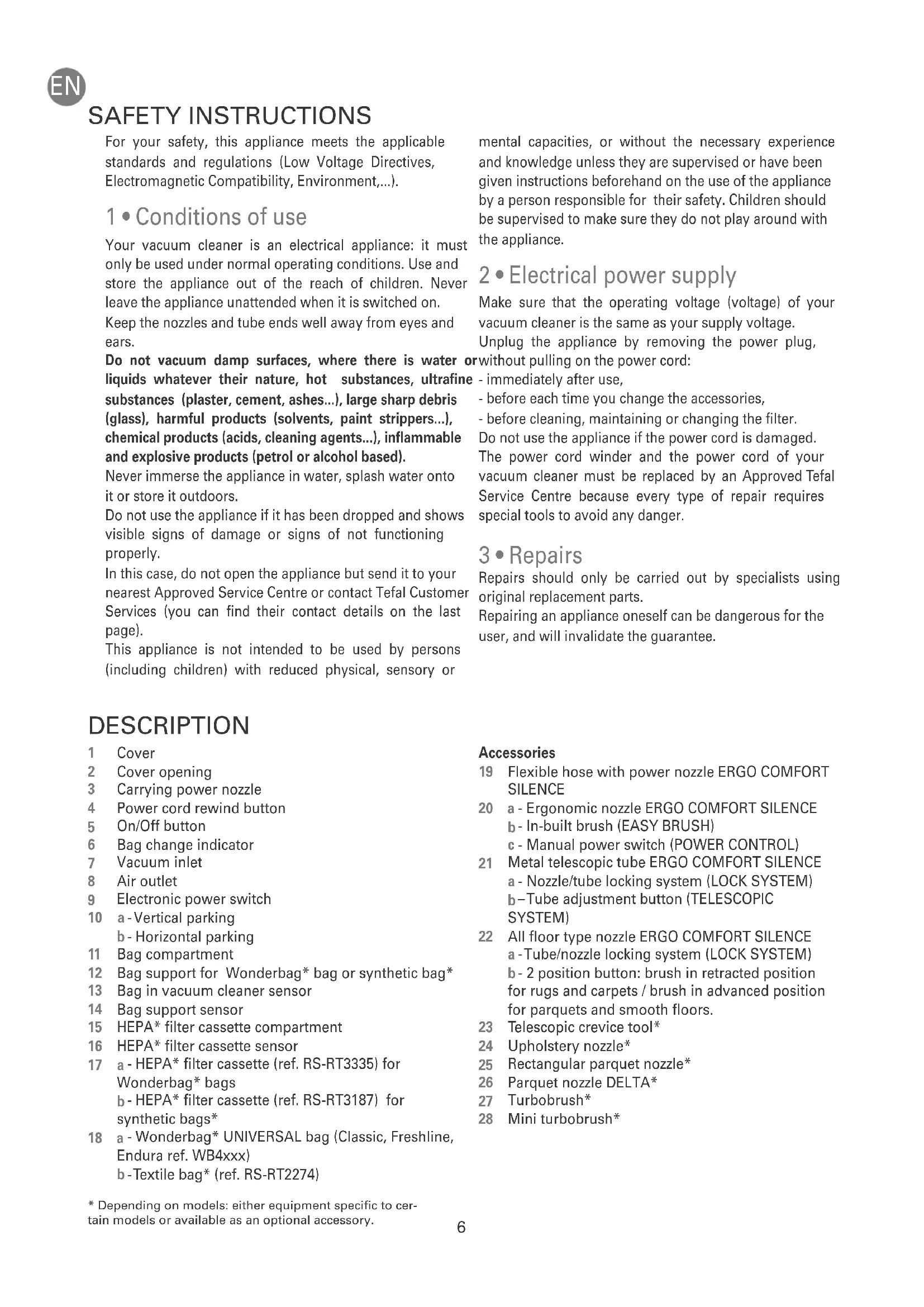

For your safety, this appliance meets the applicable standards and regulations (Low Voltage Directives, Electromagnetic Compatibility, Environment,...).

1 · Conditions of use

Your vacuum cleaner is an electrical appliance: it must only be used under normal operating conditions. Use and store the appliance out of the reach of children. Never leave the appliance unattended when it is switched on. Keep the nozzles and tube ends well away from eyes and ears.

Do not vacuum damp surfaces, where there is water or liquids whatever their nature, hot substances, ultrafine substances (plaster, cement, ashes...), large sharp debris (glass), harmful products (solvents, paint strippers...), chemical products (acids, cleaning agents...), inflammable and explosive products (petrol or alcohol based).

Never immerse the appliance in water, splash water onto it or store it outdoors.

Do not use the appliance if it has been dropped and shows visible signs of damage or signs of not functioning properly.

In this case, do not open the appliance but send it to your nearest Approved Service Centre or contact Tefal Customer Services (you can find their contact details on the last page).

This appliance is not intended to be used by persons (including children) with reduced physical, sensory or

mental capacities, or without the necessary experience and knowledge unless they are supervised or have been given instructions beforehand on the use of the appliance by a person responsible for their safety. Children should be supervised to make sure they do not play around with the appliance.

2 - Electrical power supply

Make sure that the operating voltage (voltage) of your vacuum cleaner is the same as your supply voltage.

• Unplug the appliance by removing the power plug, or without pulling on the power cord:

• immediately after use,

• before each time you change the accessories,

• before cleaning, maintaining or changing the filter.
  Do not use the appliance if the power cord is damaged.

The power cord winder and the power cord of your vacuum cleaner must be replaced by an Approved Tefal Service Centre because every type of repair requires special tools to avoid any danger.

3 • Repairs

Repairs should only be carried out by specialists using original replacement parts.

Repairing an appliance oneself can be dangerous for the user, and will invalidate the guarantee.

DESCRIPTION

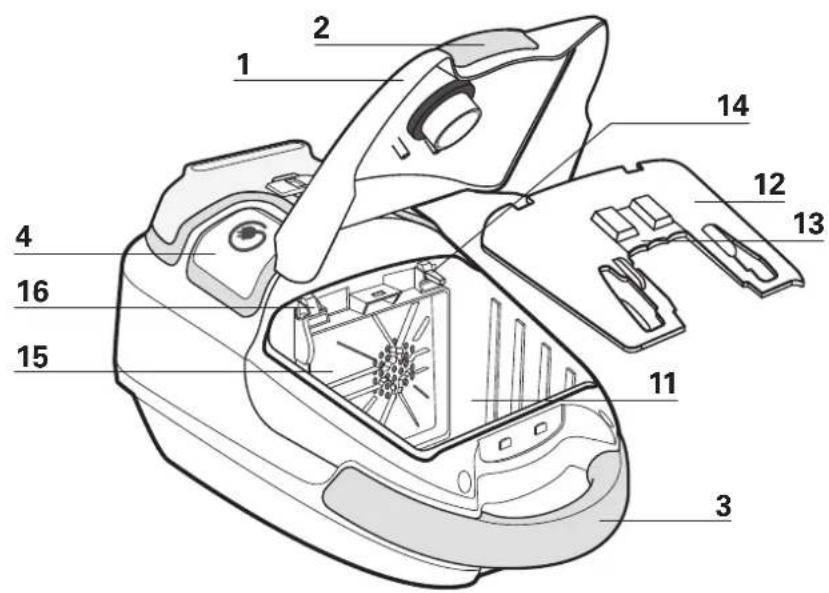

1 Cover

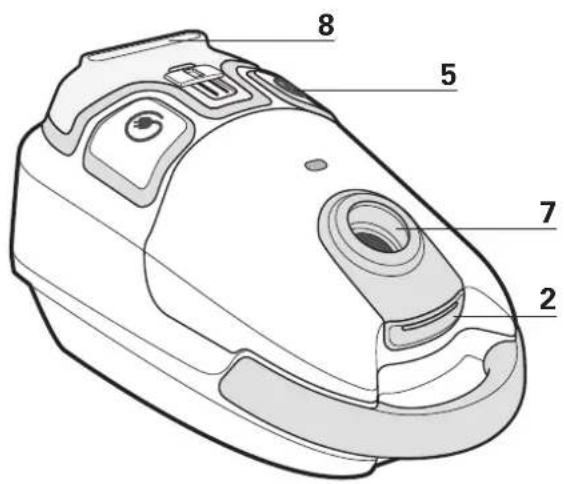

2 Cover opening

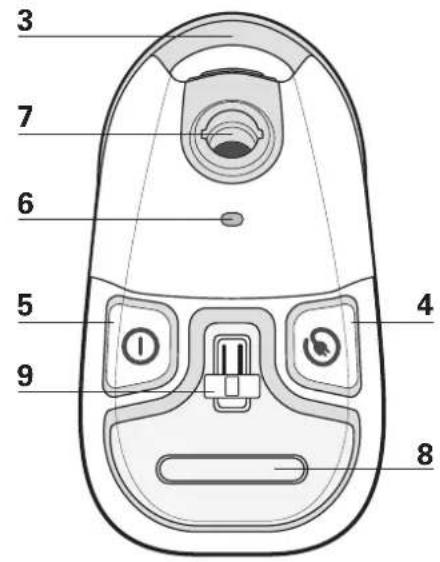

3 Carrying power nozzle

4 Power cord rewind button

5 On/Off button

6 Bag change indicator

7 Vacuum inlet

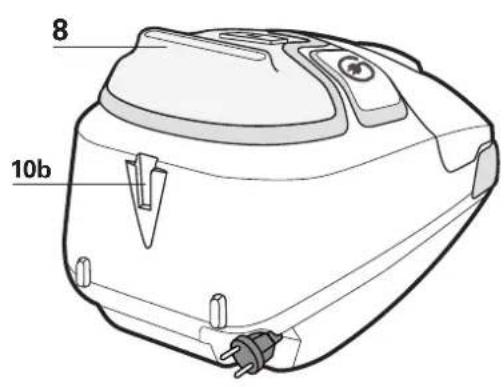

8 Air outlet

9 Electronic power switch

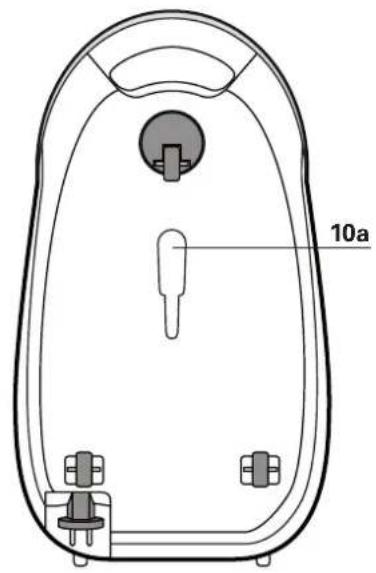

10 a-Vertical parking

b - Horizontal parking

11 Bag compartment

12 Bag support for Wonderbag bag or synthetic bag

13 Bag in vacuum cleaner sensor

14 Bag support sensor

15 HEPA* filter cassette compartment

16 HEPA* filter cassette sensor

17 a - HEPA filter cassette (ref. RS-RT3335) for Wonderbag bags

b-HEPA filter cassette (ref. RS-RT3187) for synthetic bags

18 a - Wonderbag* UNIVERSAL bag (Classic, Freshline, Endura ref. WB4xxx)

b-Textile bag* (ref. RS-RT2274)

• Depending on models: either equipment specific to certain models or available as an optional accessory.

Accessories

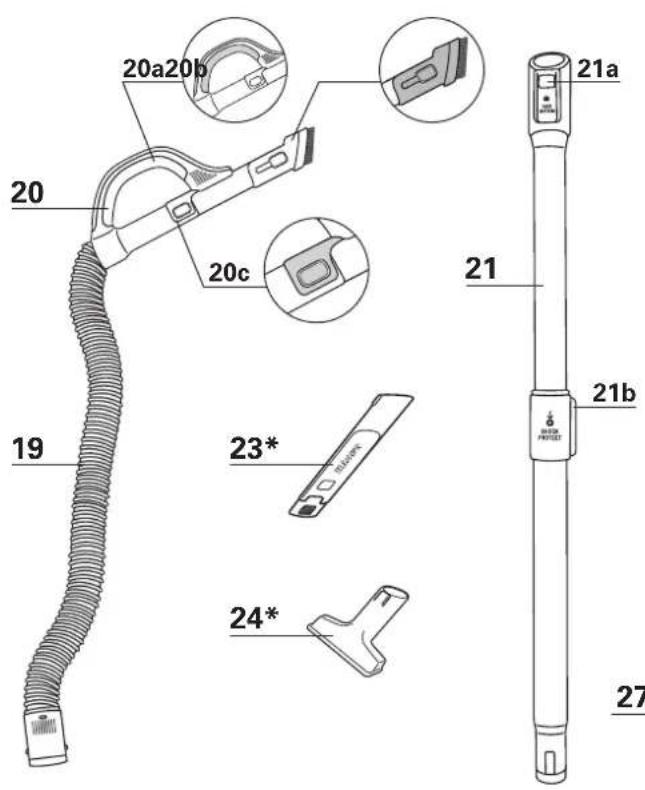

19 Flexible hose with power nozzle ERGO COMFORT SILENCE
20 a-Ergonomic nozzle ERGO COMFORT SILENCE b-In-built brush (EASY BRUSH) c-Manual power switch (POWER CONTROL)
21 Metal telescopic tube ERGO COMFORT SILENCE a - Nozzle/tube locking system (LOCK SYSTEM) b-Tube adjustment button (TELESCOPIC SYSTEM)
22 All floor type nozzle ERGO COMFORT SILENCE a -Tube/nozzle locking system (LOCK SYSTEM) b-2 position button: brush in retracted position for rugs and carpets / brush in advanced position for parquets and smooth floors.
23 Telescopic crevice tool
24Upholstery nozzle*
25 Rectangular parquet nozzle*
26 Parquet nozzle DELTA*
27 Turbobrush
28 Mini turbobrush*

BEFORE USING FORTHE FIRST TIME

1·Removing packaging

Unpack your appliance and remove any unwanted stickers. Keep your guarantee form and read the instructions carefully before using your appliance for the first time.

2. Advice and precautions

Each time before use, the power cord must be unwound completely.

Do not jam it and do not allow it to rub against sharp edges.

If you're using an electrical extension, check that it is perfect condition and that it is suited to the power of your vacuum cleaner. Never unplug the appliance by pulling on the power cord.

Never operate the vacuum cleaner without a bag in it and without its filtration system (cassette).

For your peace of mind your vacuum cleaner is fitted with two safety check systems: for the bag (13 & 14) and for the HEPA filter cassette (16).

Do not move the vacuum cleaner by pulling on the power cord, the appliance must be moved using its carrying handle. Do not use the power cord for lifting the appliance. Switch off and unplug your vacuum cleaner each time you've finished using it. Always switch off and unplug your vacuum cleaner before maintaining or cleaning it.

Only use original Tefal or Wonderbag bags and filters.

Only use Tefal original accessories. Check that all the filters are correctly in place.

If you experience difficulties getting hold of the accessories and filters for this vacuum cleaner, please contact Tefal customer services (you can find their contact details on the last page).

USING THE APPLIANCE

1. Assembling the elements of the appliance

Push the flexible hose into the vacuum inlet (Fig.1) and turn until it locks. To remove it, turn in the opposite direction and pull.

• Push the metal telescopic tube into the end of the power nozzle until you hear a locking 'click' (Fig.2) (to release it, push the locking button on the tube and remove it).
• Push the all floor type nozzle (22) into the end of the metal telescopic tube until you hear a locking 'click' (Fig.3) (to release it, push the locking button on the nozzle and remove it).
• Adjust the telescopic metal tube to the required length using the telescopic system (TELESCOPIC SYSTEM) (Fig.4)

Fit the appropriate accessory to the end of the metal telescopic tube or the power nozzle:

• For rugs and carpets: use the all floor type nozzle in the retracted brush nozzle position or the Turbobrush* (fibres and animal hairs).
• For parquets and smooth floors: use the all floor type nozzle in the advanced position or, for a better result, use the parquet nozzle*.
• For corners and hard to reach spots: use the telescopic crevice tool*.
• For furniture and fragile surfaces: use the brush built into the power nozzle (EASY BRUSH) or the upholstery nozzle*.

IMPORTANT Never operate your vacuum cleaner without its bag and without its filtration system (cassette).

IMPORTANT Always switch off and unplug your vacuum cleaner before changing the accessories.

COMFORT TIPS

ERGO COMFORT SILENCE Chain

Comfortable to use, the ERGO COMFORT SILENCE range has been designed to make using your vacuum cleaner an easier and more enjoyable experience.

So that you can keep an upright position and avoid bending your back, make sure you:

1. Adjust the length of the metal telescopic tube ERGO COMFORT SILENCE to suit your body build (Fig.5).
2. Place your second hand in front of the power nozzle handle ERGO COMFORT SILENCE (Fig.6).

2 · Plugging in the power cord and switching on the appliance

Unwind the power cord completely, plug in your vacuum cleaner and press on the On/Off button (Fig.7).

Remark: you can use your vacuum cleaner in the horizontal position (sleigh position) but also in the vertical position, notably when you are vacuuming the stairs or removing dust from the curtains.

Adjust the suction power:

• Position

(MIN) for vacuuming delicate fabrics (net curtains, textiles)

• Position

(Medium) for everyday vacuuming for all types of floors, which are only slightly dirty

• Position

(MAX) for vacuuming hard floors and very dirty rugs and carpets.

open the power control flap in order to reduce the suction power manually and avoid the nozzle "sticking" to the surface that has been vacuumed (Fig.9) e.g.: net curtains, fragile surfaces...

CLEANING AND MAINTAINING

The air we breathe contains particles that may be allergens: mite larvae and droppings, mould, pollen, smoke and animal residues (hair, skin, saliva, urine). The smallest particles penetrate deep into the respiratory system where they can cause inflammation and lung impairment. HEPA filters (High Efficiency Particulate Air) are used to filter out the smaller particles. With the HEPA filter, the air released back into the room is healthier than the air that is vacuumed.

IMPORTANT Always switch off and unplug your vacuum cleaner before servicing it.

1 • Changing the bag

The change bag light tells you that the bag is full or saturated. If you notice that your vacuum cleaner is not working as well as it should be, turn the power up to maximum and hold the lifted nozzle above the floor. If the light stays red, replace the bag.

a) If your vacuum cleaner is fitted with a Wonderbag (18a): IIMPORTANT Wonderbag UNIVERSAL (Classic, Freshline, Endura ref. WB4xxx) bags are available from retail outlets and at Approved Service Centres.

IMPORTANT Wonderbag* COMPACT bags can't be used on this appliance. Using them could damage the vacuum cleaner and may invalidate the appliance guarantee.

Open the cover to your vacuum cleaner (Fig.14). Remove the bag support from the bag compartment (Fig.15).

Remove the Wonderbag bag from the bag support (Fig.16). Throw the Wonderbag bag away (Fig.17).

Place a new Wonderbag* bag in the bag support using its ring (Fig.18).

Place the bag support in the bag compartment and fit the bag inside the compartment (Fig.19).

Make sure that the bag is correctly positioned before closing the cover.

3 • Storing and carrying your vacuum cleaner

After use, switch off your vacuum cleaner by pressing the On/Off switch and unplug it (Fig.10). Rewind the power cord by pressing the power cord rewind button (Fig.11). In the vertical position place the nozzle in the parking position (Fig.12).

This allows you to carry and store your vacuum cleaner when it is in the parking position (Fig.13).

b) If your vacuum cleaner is fitted with a synthetic (textile) bag* (18b):

Synthetic bags* (ref.RS-RT2274) are available from Approved Service Centres.

• Open the cover to your vacuum cleaner (Fig.14).
• Remove the bag support from the bag compartment (Fig.20).
• Remove the synthetic bag* from the bag support (Fig.21).
• Open the synthetic bag* using the zip (Fig.22) then empty it into a dustbin (Fig.23).

Check that the zip is properly closed once more before putting the bag back in again (Fig.24).

Place the synthetic bag* on the bag support using its cardboard holder (Fig.25), place the bag support in the bag compartment and fit the bag inside the compartment (Fig.26).

Make sure that the bag is correctly positioned before closing the cover.

IMPORTANT Never operate the vacuum cleaner without a bag. For your peace of mind your vacuum cleaner is fitted with a safety system which tells you that the bag is inside (the cover won't close unless you've put the bag in).

2 - Changing the HEPA* filter cassette (ref. RS-RT3335*) (for all appliances fitted with a Wonderbag* bag)

IMPORTANT Replace the filtration system once a year.

The HEPA filter cassette ref. RS-RT3335* is available from all retail outlets and at approved Service Centres.

Open the cover to your vacuum cleaner (Fig.14). Remove the bag support from the bag compartment (Fig.15), then remove the HEPA* filter cassette (Fig.27) and throw the cassette into a bin (Fig.28).

Fit the new HEPA* filter cassette into its compartment (Fig.29)

Put the bag support back into the compartment (Fig.19).

Make sure that the HEPA* filter cassette is correctly positioned before closing the cover.

3 • Cleaning the HEPA* filter cassette (ref RS-RT3187*) (for appliances which come with a synthetic bag*)

IMPORTANT! This cleaning procedure is only for HEPA filter cassettes ref. RS-RT3187*.

The HEPA filter cassette ref. RS-RT3187 is available from all retail outlets and at approved Service Centres.

Open the cover to your vacuum cleaner (Fig.14). Remove the bag support from the bag compartment (Fig.20), then remove the HEPA* filter cassette (Fig.30).

Tap the HEPA* filter cassette above a dustbin (Fig.31).

Put the HEPA filter cassette back in its compartment (Fig.32). Put the bag support back with the synthetic bag in the bag compartment.

Make sure that the HEPA* filter cassette is correctly positioned before closing the cover.

IMPORTANT Never use the vacuum cleaner without a HEPA filter cassette.

For your peace of mind your vacuum cleaner is fitted with a safety system which tells you that the HEPA cassette filter is in place (the cover won't close unless you've put the HEPA) filter cassette in.

4 • Cleaning your vacuum cleaner

1. Wipe the body of the appliance and the accessories with a soft cloth (Fig.33). Do not use detergents, chemical or abrasive products.

TROUBLESHOOTING

IMPORTANT: As soon as you notice that your vacuum cleaning is not working as well as it should be and before carrying out any checks, switch it off using the On/ Off button.

If your vacuum cleaner won't start

• The appliance has not got any power: check that the appliance is correctly plugged in.

If your vacuum cleaner doesn't have any suction power

• An accessory or the flexible hose is blocked: unblock the accessory or the flexible hose.
• The cover won't close properly: check the positioning of the bag, bag support and HEPA filter cassette and close the cover.

If your vacuum cleaner has less suction power, makes noise, whistles

• An accessory or the flexible hose is partially blocked: unblock the accessory or the flexible hose.
• The bag is full or saturated with fine dust: replace the Wonderbag bag (18a) or empty the synthetic bag (18b).
• The filtration system is saturated: change the HEPA filter cassette (ref RS-RT3335) and put it back into its housing or clean the HEPA filter cassette (ref RS-RT3187) as indicated in the procedure.
• The mechanical power control switch (20c) is open: close the power nozzle adjustable manual power switch.

If the change bag light stays on Red
- The bag is saturated: replace the Wonderbag bag (18a) or empty the synthetic bag (18b).

If the cover won't close (presence sensors 13, 14, 16)

• Check that the bag support is fitted as well as the bag and that it is positioned correctly.
• Check that the HEPA filter cassette is fitted or that it is correctly positioned.

If the nozzle is difficult to move
- Reduce the power by opening the power nozzle adjustable manual power switch (20c) or by moving the electronic power control (9) to the MIN position.

If the power cord does not rewind completely
- The power cord is slowed down when rewinding: pull the power cord out again and press the power cord rewind button.

If a problem persists, take your vacuum cleaner to your local Tefal Approved Service Centre or contact Tefal Customer Services (you can find contact details on the last page).

GUARANTEE

• This appliance has been designed for domestic use only; the Read the instructions for use carefully before using your manufacturer will accept no responsibility in the event of anyappliance for the first time: any use of the appliance which inappropriate use or failure to comply with the instructions does not conform to these instructions will release Tefal from and the guarantee will cease to apply. any liability.

WHERE TO BUY ACCESSORIES

ACCESSORIES* USE FITTING AN ACCESSORY		PURCHASE LOCATIONS
Wonderbag® UNIVERSAL Bag	Universal bag. Fit the ring on to the bag support.		Tefal Approved Service Centres.
Upholstery brush For cleaning	furniture.	Fix the upholstery brush to the end of the nozzle.
Upholstery nozzle For cleaning	furniture.	Fit the upholstery nozzle to the end of the nozzle or the tube.
Telescopic crevice tool	To get into corners and places that are hard to reach.	Fit the telescopic crevice tool to the end of the nozzle or the tube.
Rectangular parquet nozzle	For fragile floors.	Fit the parquet nozzle to the end of the tube.
DELTA parquet nozzle	For fragile floors.	Fit the DELTA parquet nozzle to the end of the tube.
Mini turbobrush	For cleaning furniture fabrics thoroughly.	Fit the mini turbobrush to the end of the tube.
Turbobrush	For removing threads and animal fur embedded in rugs and carpets.	Fit the turbobrush to the end of the tube.

ENVIRONMENT

• In accordance with current regulations, any appliance which is no longer needed must be rendered unusable once and for all: unplug and cut off the power cord before disposing of the appliance.

Help us take care of the environment!

1 Your appliance contains many materials which can be recovered or recycled.
Leave it at a waste collection point so that it can be processed.

ARAHAN KESELAMATANÉ

5 Tombol On/Off (Hidup/Mati)

15 Wadah kaset filter HEPA*

16 Sensor kaset filter HEPA*

17 a-Kaset filter HEPA (ref. RS-RT3335) untuk kantung Wonderbag

b - Kaset filter HEPA* (ref. RS-RT3187) untuk kantung sintetis *

18 a-Kantung Wonderbag* UNIVERSAL (Classic, Freshline, Endura ref. WB4xxx)

b - Kantung kain* (ref. RS-RT2274)
