USER MANUAL WF1602NHWGYLE SAMSUNG

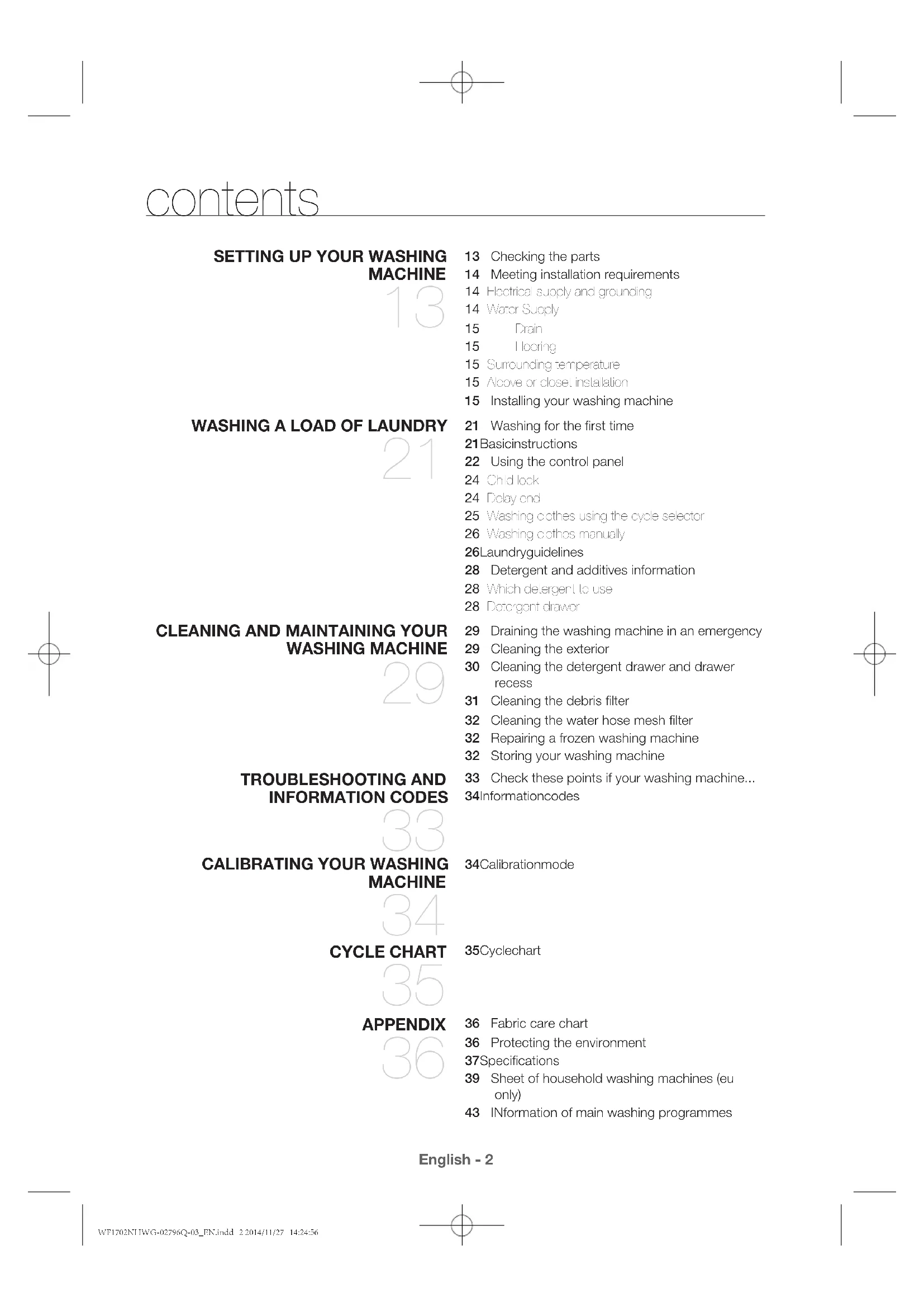

13 Checking the parts 14 Meeting installation requirements 14 Electrical supply and grounding 14 Water Supply 15 Drain 15 Flooring 15 Surrounding temperature 15 Alcove or closet installation 15 Installing your washing machine

21 Washing for the ﬁrst time 21 Basic instructions 22 Using the control panel 24 Child lock 24 Delay end 25 Washing clothes using the cycle selector 26 Washing clothes manually 26 Laundry guidelines 28 Detergent and additives information 28 Which detergent to use 28 Detergent drawer

CLEANING AND MAINTAINING YOUR

29 Draining the washing machine in an emergency 29 Cleaning the exterior 30 Cleaning the detergent drawer and drawer recess 31 Cleaning the debris ﬁlter 32 Cleaning the water hose mesh ﬁlter 32 Repairing a frozen washing machine 32 Storing your washing machine TROUBLESHOOTING AND INFORMATION CODES

36 Fabric care chart 36 Protecting the environment 37 Speciﬁcations 39 Sheet of household washing machines (eu only) 43 INformation of main washing programmes WF1702NHWG-02796Q-03_EN.indd 2 2014/11/27 14:24:56English - 3 safety information Congratulations on your new Samsung ActivFresh™ washer. This manual contains important information on the installation, use and care of your appliance. Please take time to read this manual to take full advantage of your washer’s many beneﬁts and features. WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS Please read this manual thoroughly to ensure that you know how to safely and efﬁciently operate the extensive features and functions of your new appliance and retain it at a safe place near the appliance for your future reference. Use this appliance only for its intended purpose as described in this instruction manual. Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your washer. Because these following operating instructions cover various models, the characteristics of your washer may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service center or ﬁnd help and information online at www.samsung.com.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

What the icons and signs in this user manual mean: WARNING Hazards or unsafe practices that may result in severe personal injury, death and/or property damage. CAUTION Hazards or unsafe practices that may result in personal injury and/or property damage. CAUTION To reduce the risk of ﬁre, explosion, electric shock, or personal injury when using your washer, follow these basic safety precautions: Do NOT attempt. Do NOT disassemble. Do NOT touch. Follow directions explicitly. Unplug the power plug from the wall socket. Make sure the machine is grounded to prevent electric shock. Call the service centre for help. Note These warning signs are here to prevent injury to you and others. Please follow them explicitly. After reading this section, keep it in a safe place for future reference. Read all instructions before using the appliance. As with any equipment using electricity and moving parts, potential hazards exist. To safely operate this appliance, become familiar with its operation and exercise care when using it. WF1702NHWG-02796Q-03_EN.indd 3 2014/11/27 14:24:57English - 4 WARNiNG

WARNING: To reduce the risk of ﬁre, electric shock, or injury to persons when using

your appliance, follow basic precautions, including the following: Do not let children (or pets) play in or on your washing machine. The washing machine door does not open easily from the inside and children may be seriously injured if trapped inside. This appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. For use in Europe: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualiﬁed persons in order to avoid a hazard. safety information WF1702NHWG-02796Q-03_EN.indd 4 2014/11/27 14:24:57English - 5 This appliance should be positioned so that the power plug, the water supply taps, and the drain pipes are accessible. For appliances with ventilation openings in the base, that a carpet must not obstruct the openings. The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility. WF1702NHWG-02796Q-03_EN.indd 5 2014/11/27 14:24:57English - 6 SeVeRe WARNiNG SiGNS FoR iNSTAllATioN The installation of this appliance must be performed by a qualiﬁed technician or service company. - Failure to do so may result in electric shock, ﬁre, an explosion, problems with the product, or injury. The appliance is heavy, take care upon lifting it Plug the power cord into an AC 220-240V/50Hz/15A wall socket or higher and use the socket for this appliance only. In addition, do not use an extension cord. - Sharing a wall socket with other appliances using a power strip or extending the power cord may result in electric shock or ﬁre. - Ensure that the power voltage, frequency and current are the same as those of the product speciﬁcations. Failure to do so may result in electric shock or ﬁre. Failure Plug the power plug into the wall socket ﬁrmly. Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis. - Unplug the power plug and clean it with a dry cloth. - Failure to do so may result in electric shock or ﬁre. Plug the power plug into the wall socket in the right direction so that the cord runs towards the ﬂoor. - If you plug the power plug into the socket in the opposite direction, the electric wires within the cable may be damaged and this may result in electric shock or ﬁre. Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children. - If a child places a bag over its head, it may result in suffocation. When the appliance or power plug or power cord is damaged, contact your nearest service centre. This appliance must be properly grounded. Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line. - This may result in electric shock, ﬁre, an explosion, or problems with the product - Never plug the power cord into a socket that is not grounded correctly and make sure that it is in accordance with local and national codes. Do not install this appliance near a heater, inﬂammable material. Do not install this appliance in a humid, oily or dusty location, in a location exposed to direct sunlight and water (rain drops). Do not install this appliance in a location of low temperature - Frost may cause tubes to burst Do not install this appliance in a location where gas may leak. - This may result in electric shock or ﬁre. Do not use an electric transformer. - It may result in electric shock or ﬁre. Do not use a damaged power plug, damaged power cord or loose wall socket. - This may result in electric shock or ﬁre. Do not pull or excessively bend the power cord. Do not twist or tie the power cord. safety information WARNiNG WF1702NHWG-02796Q-03_EN.indd 6 2014/11/27 14:24:57English - 7 Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance. - This may result in electric shock or ﬁre. Do not pull the power cord, when unplugging the power plug. - Unplug the power plug by holding the plug. - Failure to do so may result in electric shock or ﬁre. Do not lay the power cord and tubes where you may fall over them. CAuTioN SiGNS FoR iNSTAllATioN This appliance should be positioned in such a way that it is accessible to the power plug. - Failure to do so may result in electric shock or ﬁre due to electric leakage. Install your appliance on a level and hard ﬂoor that can support its weight. - Failure to do so may result in abnormal vibrations, moves, noise, or problems with the product. SeVeRe WARNiNG SiGNS FoR uSiNG If the appliance is ﬂooded, cut the water supply and power immediately and contact your nearest service centre. - Do not tough the power plug with wet hands - Failure to do so may cause electric shock If the appliance generates a strange noise, a burning smell or smoke, unplug the power plug immediately and contact your nearest service centre. - Failure to do so may result in electric shock or ﬁre. In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the power plug. Do not touch the appliance or power cord. - Do not use a ventilating fan. - A spark may result in an explosion or ﬁre. Do not let children play in or on the washer. In addition, when disposing of the appliance, remove the washer door lever. - If trapped inside, the child may become trapped and suffocate to death. Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the washer before using it. WARNiNG CAuTioN WF1702NHWG-02796Q-03_EN.indd 7 2014/11/27 14:24:57English - 8 Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or other ﬂammable or explosive substances. - This may result in electric shock, ﬁre or an explosion. Do not open the washer door by force while it is operating (high-temperature washing/ drying/spinning). - Water ﬂowing out of the washer may result in burns or cause the ﬂoor to be slippery. This may result in injury. - Opening the door by force may result in damage to the product or injury. Do not insert your hand under the washer. - This may result in injury. Do not touch the power plug with wet hands. - This may result in electric shock. Do not turn the appliance off by unplugging the power plug while an operation is in progress. - Plugging the power plug into the wall socket again may cause a spark and result in electric shock or ﬁre. Do not let children or inﬁrm persons use this washer unsupervised. Do not let children climb in the appliance - Failure to do so may result in electric shock, burns or injury. Do not insert your hand or a metal object under the washer while it is operating. - This may result in injury. Do not unplug the appliance by pulling at the power cord, always grip plug ﬁrmly and pull straight out from the outlet. - Damage to the cord may cause short-circuit, ﬁre and/or electric shock Do not attempt to repair, disassemble, or modify the appliance yourself. - Do not use any fuse(such as cooper, steel wire, etc.) other than the standard fuse. - When repairing or reinstalling the appliance is required, contact your nearest service centre. - Failure to do so may result in electric shock, ﬁre, problems with the product, or injury. If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest service centre. - Failure to do so may result in electric shock or ﬁre. When the water supply hose comes loose from the faucet and ﬂoods the appliance, unplug the power plug. - Failure to do so may result in electric shock or ﬁre. Unplug the power plug when the appliance is not being used for long periods of time or during a thunder/lightning storm. - Failure to do so may result in electric shock or ﬁre. safety information WF1702NHWG-02796Q-03_EN.indd 8 2014/11/27 14:24:57English - 9 CAuTioN SiGNS FoR uSiNG When the washer is contaminated by a foreign substance such as detergent, dirt, food waste, etc., unplug the power plug and clean the washer using a damp and soft cloth. - Failure to do so may result in discoloration, deformation, damage or rust. The front glass may be broken by a strong impact. Take care when using the washer. - When the glass is broken, it may result in injury. After a water supply failure or when reconnecting the water supply hose, open the faucet slowly. Open the faucet slowly after a long period of non-use. - The air pressure in the water supply hose or the water pipe may result in damage to a part or in water leakage. If a drain error occurs during an operation, check if there is a draining problem. - If the washer is used when it is ﬂooded because of a draining problem, it may result in electric shock or ﬁre due to electric leakage. Insert the laundry into the washer completely so that laundry does not get caught in the door. - If laundry gets caught in the door, it may result in damage to the laundry or the washer, or result in water leakage. Ensure that the faucet is turned off when the washer is not being used. - Ensure that the screw on the water supply hose connector is properly tightened. - Failure to do so may result in property damage or injury. Check if the rubber seal is not contaminated by foreign substances (waste, thread, etc). - If the door is not closed completely, it may result in water leakage. Open the faucet and check if the water supply hose connector is ﬁrmly tightened and that there is no water leaking before using the product. - If the screws or the water supply hose connector are loose, it may result in water leakage. To reduce the risk of ﬁre or explosion: - Under certain conditions, hydrogen gas may be produced in a hot water system such as your hot water heater that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If your hot water system has not been used for two weeks or more, turn on all hot water taps in your home, and let the water ﬂow for several minutes before using your washing machine. This will release any hydrogen gas build–up. Since hydrogen gas is ﬂammable, do not smoke or light an open ﬂame during this time. Ventilate immediately without touching the power plug if there is a gas leak. The product you have purchased is designed for domestic use only. The use for business purposes qualiﬁes as product misuse. In this case, the product will not be covered by the standard warranty provided by Samsung and no responsibility can be attributed to Samsung for malfunctions or damages resulting from such misuse. CAuTioN WF1702NHWG-02796Q-03_EN.indd 9 2014/11/27 14:24:57English - 10 Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. - This may result in electric shock, ﬁre, problems with the product, or injury. Do not spray volatile material such as insecticide onto the surface of the appliance. - As well as being harmful to humans, it may also result in electric shock, ﬁre or problems with the product. Do not place an object that generates a electromagnetic ﬁeld near the washer. - This may result in injury due to a malfunction. Since the water drained during a high-temperature wash or drying cycle is hot, do not touch the water. - This may result in burns or injury. Do not wash, spin or dry water-proof seats, mats or clothing (*) unless your appliance has a special program for washing these items. - Do not wash thick, hard mats even if the washer mark is on the care label. - This may result in injury or damage to the washer, walls, ﬂoor or clothing due to abnormal vibrations.

Woollen bedding, rain covers, ﬁshing vests, ski pants, sleeping bags, diaper covers, sweat suits, and bicycle, motor cycle, car covers, etc. Do not operate the washer when the detergent box is removed. - This may result in electric shock or injury due to water leakage. Do not touch the inside of the tub during or just after drying as it is hot. - This may result in burns. Do not insert your hand into the detergent box after opening it. - This may result in injury as your hand may be caught by the detergent input device.Do not place any objects (such as shoes, food waste, animals) other than laundry into the washer. - This may result in damage to the washer, or injury and death in the case of pets due to the abnormal vibrations. Do not press the buttons using sharp objects such as pins, knifes, ﬁngernails, etc. - This may result in electric shock or injury. Do not wash laundry contaminated by oils, creams or lotions usually found in skincare shops or massage clinics. - This may result in the rubber seal becoming deformed and water leakage. Do not leave metal objects such as a safety pin or hair pin, or bleach in the tub for long periods of time. - This may cause the tub to rust. - If rust starts appearing on the surface of the tub, apply a cleansing agent (neutral) to the surface and use a sponge to clean it. Never use a metal brush. Do not use dry cleaning detergent directly and do not wash, rinse, or spin laundry contaminated by dry cleaning detergent. - This may result in spontaneous combustion or ignition due to the heat of the oxidation of the oil. Do not use hot water from water cooling/heating devices. - This may result in problems with the washer. safety information WF1702NHWG-02796Q-03_EN.indd 10 2014/11/27 14:24:57English - 11 Do not use natural hand-washing soap for the washer. - If it hardens and accumulates inside the washer, it may result in problems with the product, discoloration, rust or bad odors. Do not wash large laundry items such as bedding in the washing net. - Place socks and brassieres into the washing net and wash them with the other laundry. - Failure to do so may result in injury due to abnormal vibrations. Do not use hardened detergent. - If it accumulates inside the washer, it may result in water leakage. For washing machines with ventilation openings in the base, ensure that the opening is not obstructed by carpet or any other obstacles. Make sure that the pockets of all clothing to be washed are empty. - Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause extensive damage to the appliance. Do not wash clothing with large buckles, buttons, or other heavy metal. SeVeRe WARNiNG SiGNS FoR CleANiNG Do not clean the appliance by spraying water directly onto it. Do not use the strong acid cleaning agent. Do not use benzene, thinner or alcohol to clean the appliance. - This may result in discoloration, deformation, damage, electric shock or ﬁre. Before cleaning or performing maintenance, unplug the appliance from the wall socket. - Failure to do so may result in electric shock or ﬁre. WARNiNG WF1702NHWG-02796Q-03_EN.indd 11 2014/11/27 14:24:57English - 12 safety information iNSTRuCTioN AbouT THe Weee MARk Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government ofﬁce, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. WF1702NHWG-02796Q-03_EN.indd 12 2014/11/27 14:24:57English - 13 01 setting up setting up your washing machine Be sure to have your installer follow these instructions closely so that your new washing machine works properly and so that you’re not at risk of injury when doing laundry.

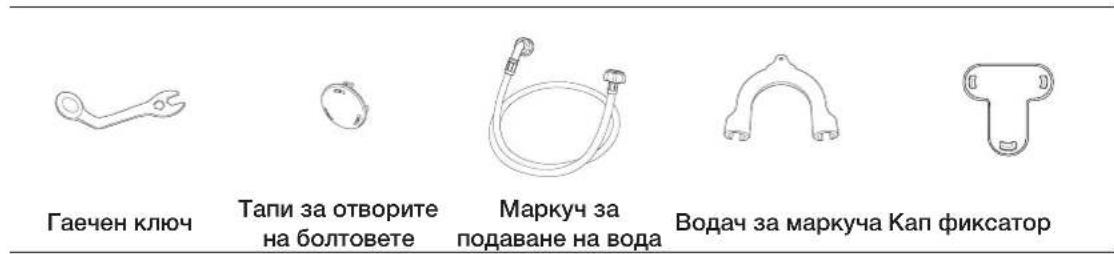

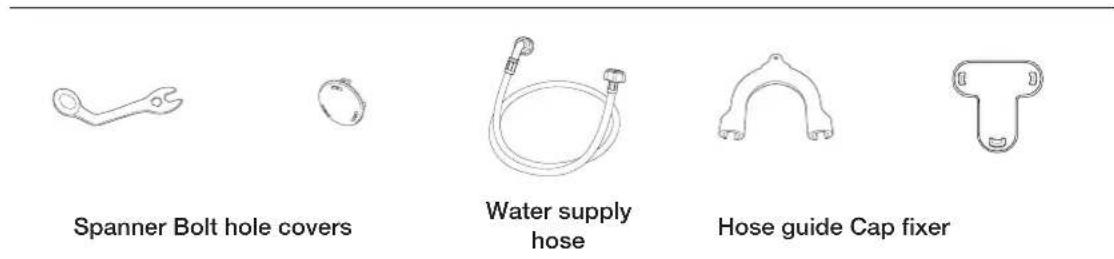

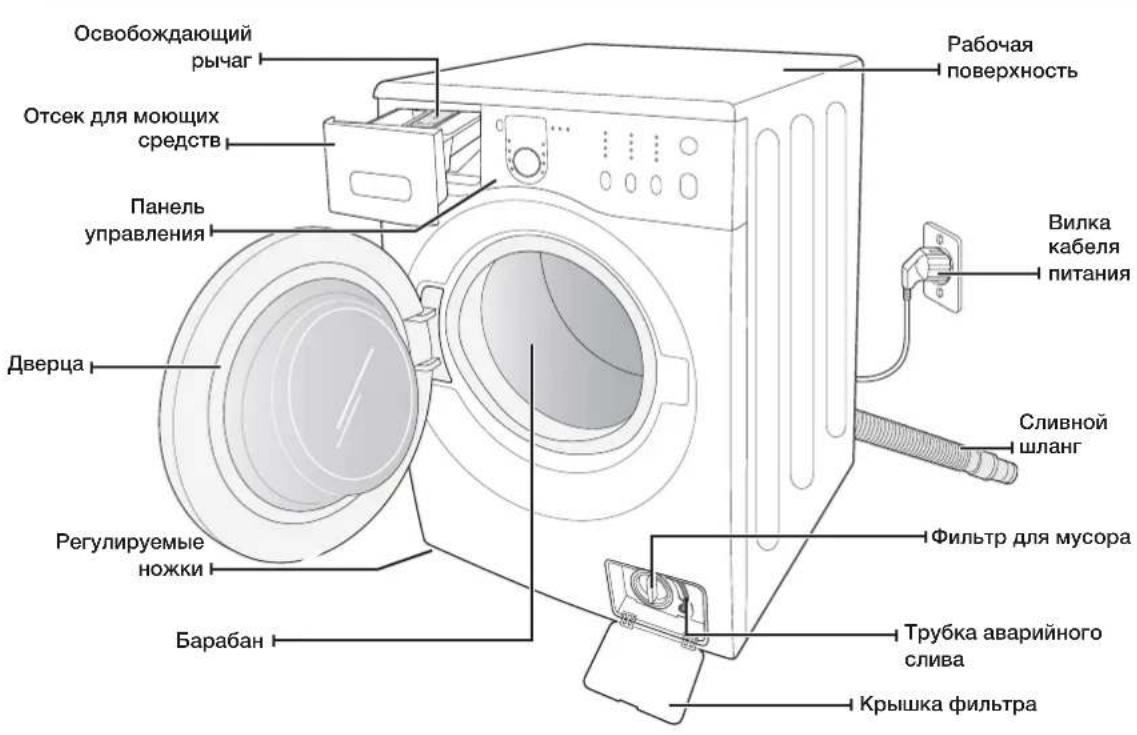

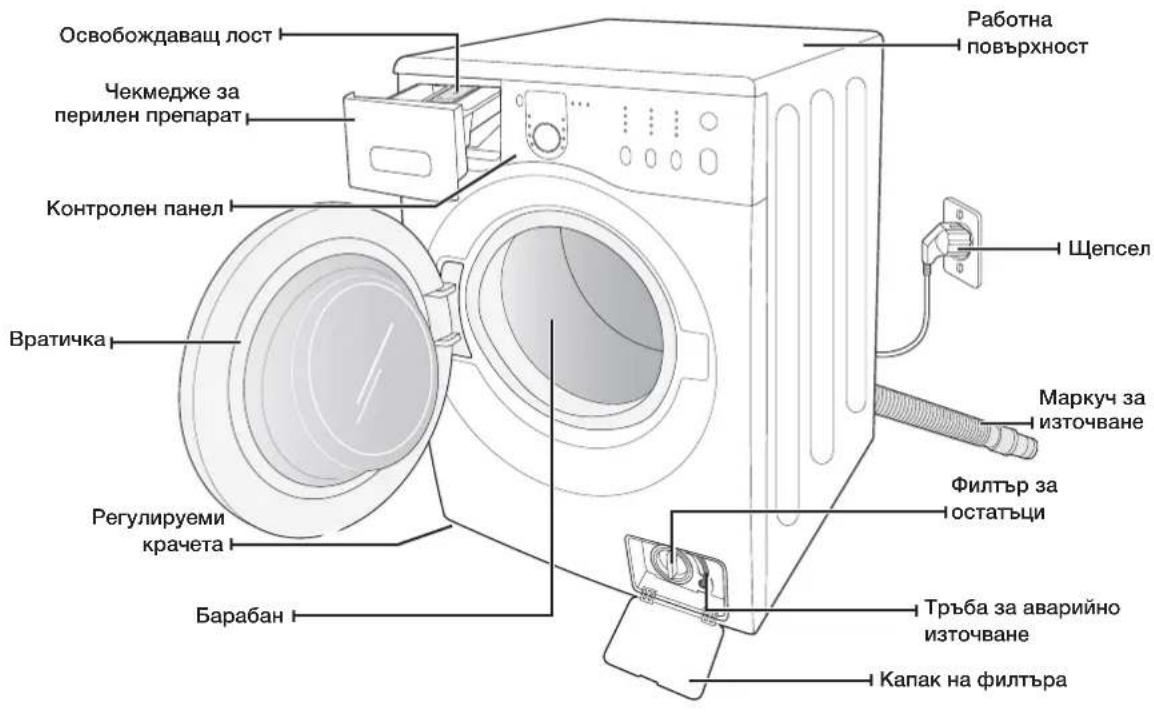

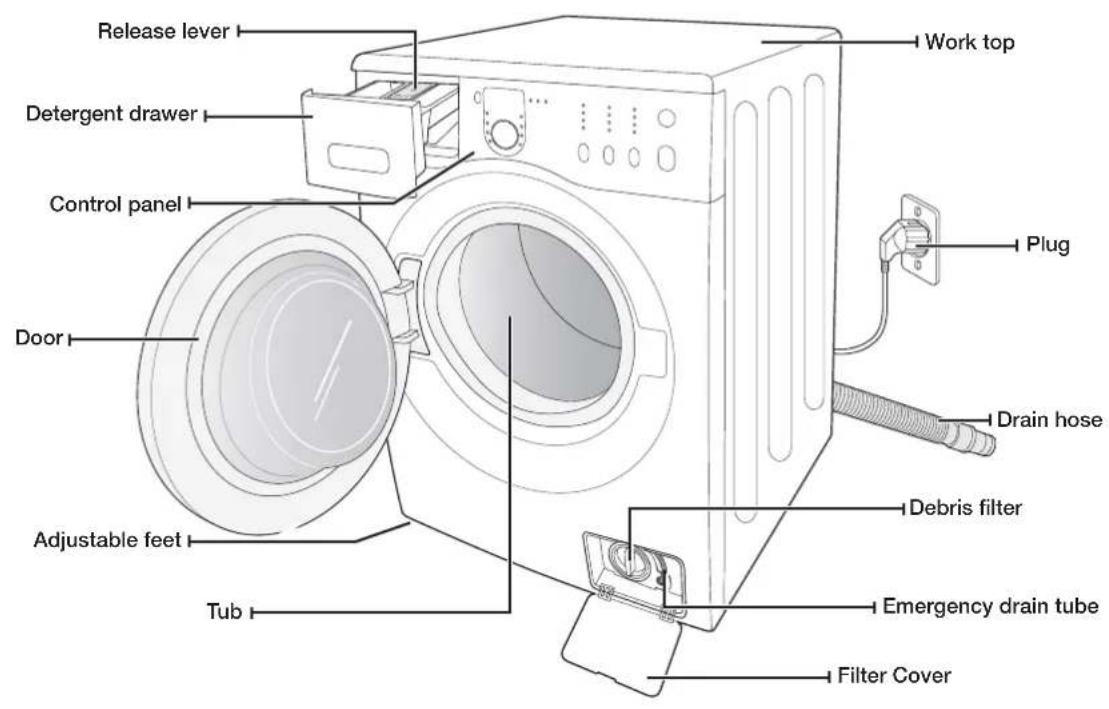

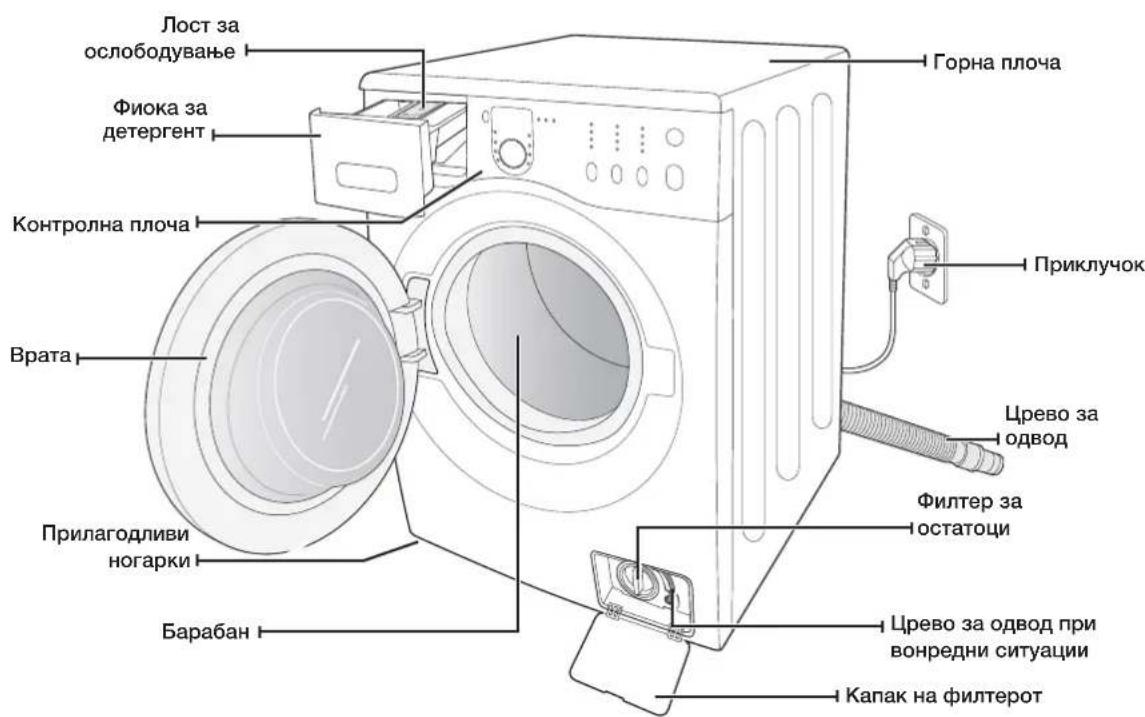

Carefully unpack your washing machine, and make sure you’ve received all of the parts shown below. If your washing machine was damaged during shipping, or if you do not have all of the parts, contact Samsung Customer Service or your Samsung dealer. Spanner Bolt hole covers Water supply hose Hose guide Cap ﬁxer

Bolt hole covers : The number of bolt hole covers depends on the model (3~5 covers). Detergent drawerControl panel Door Adjustable feetWork top Plug Drain hoseDebris ﬁlterEmergency drain tubeFilter Cover Tub Release leverWF1702NHWG-02796Q-03_EN.indd 13 2014/11/27 14:24:58English - 14 setting up your washing machine

MEETING INSTALLATION REQUIREMENTS

Electrical supply and grounding To prevent unnecessary risk of ﬁre, electrical shock, or personal injury, all wiring and grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No. 70 Latest Revision and local codes and ordinances. It is the personal responsibility of the appliance owner to provide adequate electrical service for this appliance. Never use an extension cord. Use only the power cord that comes with your washing machine. When preparing for installation, ensure that your power supply offers:

220V~240V 50Hz 15 AMP fuse or circuit breaker

Individual branch circuit serving only your washing machine Your washing machine must be grounded. If your washing machine malfunctions or breaks down, grounding will reduce the risk of electric shock by providing a path of least resistance for the electric current. Your washing machine comes with a power cord having a three-prong grounding plug for use in a properly installed and grounded outlet. Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes. Improperly connecting the equipment-grounding conductor can result electrical shock. Check with a qualiﬁed electrician or serviceman if you are unsure if the washing machine is properly grounded. Do not modify the plug provided with the washing machine. If it does not ﬁt the outlet, have a proper outlet installed by a qualiﬁed electrician. Water Supply Your washing machine will ﬁll properly when your water pressure is 50 kPa ~ 800 kPa. Water pressure less than 50 kPa may cause water valve failure, not allowing the water valve to shut off completely. Or, it may take the washing machine longer to ﬁll than what the controls allow, resulting in your washing machine turning off. (A ﬁll-time limit, designed to prevent overﬂows/ ﬂooding if an internal hose becomes loose, is built into the controls.) The water taps must be within 4 feet (122cm) of the back of your washing machine for the provided inlet hoses provided to reach your washing machine. Most plumbing supply stores sell inlet hoses of various lengths up to 10 feet (305cm) long. You can reduce the risk of leaks and water damage by:

Periodicallycheckingforleaksatwaterinlethosettings. Before using your washing machine for the ﬁrst time, check all connections at the water valve and taps for leaks. WARNINGWARNINGWF1702NHWG-02796Q-03_EN.indd 14 2014/11/27 14:24:58English - 15 01 setting up Drain Samsung recommends a standpipe height of 65 cm. The drain hose must be routed through the drain hose clip to the standpipe. The standpipe must be large enough to accept the outside diameter of the drain hose. The drain hose is attached at the factory. Flooring For best performance, your washing machine must be installed on a solidly constructed ﬂoor. Wood ﬂoors may need to be reinforced to minimize vibration and/or unbalanced loads. Carpeting and soft tile surfaces are contributing factors to vibrations and the tendency for your washing machine to move slightly during the spin cycle. Never install your washing machine on a platform or poorly supported structure. Surrounding temperature Do not install your washing machine in areas where water may freeze, since your washing machine always retains some water in its water valve, pump, and hose areas. Frozen water in the lines can cause damage to belts, the pump, and other components. Alcove or closet installation To operate safely and properly, your new washing machine requires minimum clearances of: Sides – 25 mm Rear – 51 mm Top – 25 mm Front – 465 mm If both the washing machine and a dryer are installed together, the front of the alcove or closet must have at least 465 mm unobstructed air opening. Your washing machine alone does not require a speciﬁc air opening.

INSTALLING YOUR WASHING MACHINE

STEP 1 Selecting a location Before you install the washing machine, make sure the location:

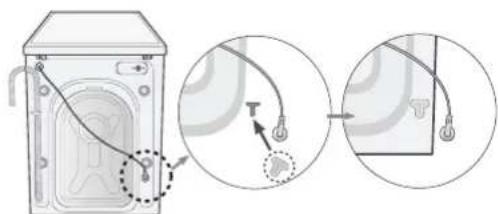

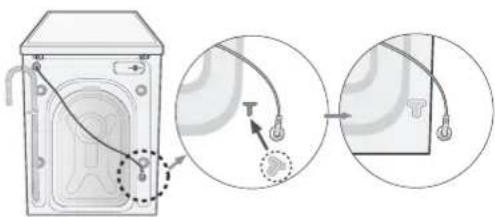

1. Loosen all the bolts with the supplied wrench.

2. Hold the bolt with the spanner and pull it through the wide

section of the hole. Repeat for each bolt.

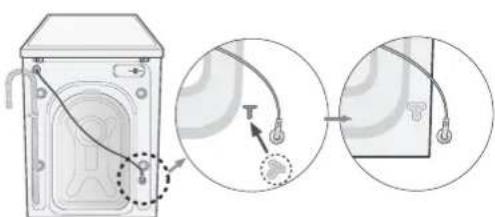

3. Fill the holes with the supplied plastic covers.

4. Store the shipping bolts away safely in case you have to move the washing machine in the

future. Packaging materials can be dangerous to children; keep all packaging material (plastic bags, polystyrene, etc.) well out of the reach of children. Insert the cap ﬁxer, (one of the accessories in the vinyl pack), into the hole from which you removed the power cord at the back of the product. setting up your washing machine WARNING WF1702NHWG-02796Q-03_EN.indd 16 2014/11/27 14:24:58English - 17 01 setting up STEP 3 Adjusting the levelling feet When installing your washing machine, ensure that the power plug, the water supply and the drain are easily accessible.

1. Slide the washing machine into position.

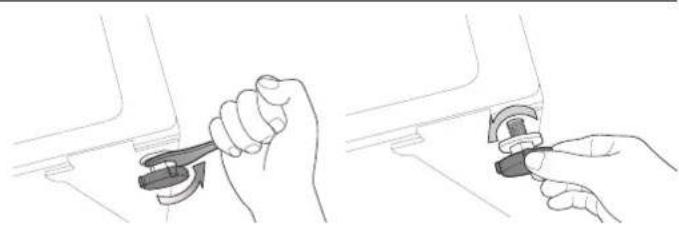

2. Level your washing

machine by turning the leveling feet in and out as necessary by hand.

3. When your washing machine is level, tighten the nuts using

the wrench supplied with your washing machine. STEP 4 Connecting the water and drain Connecting the water supply hose

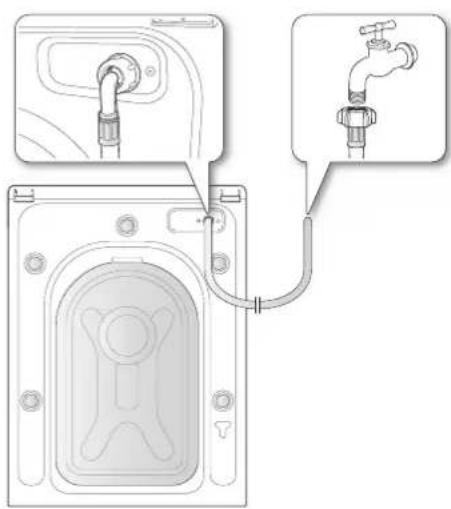

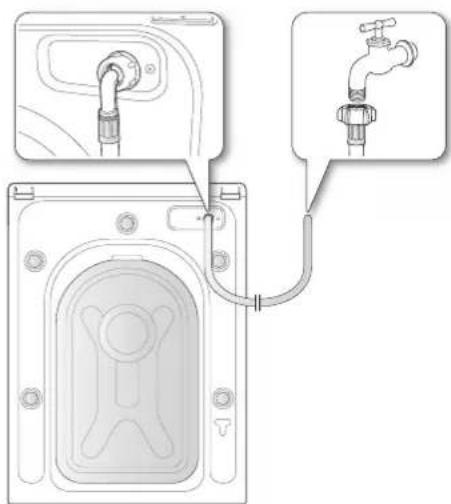

1. Take the L-shaped arm ﬁtting for the cold water

supply hose and connect it to the cold water supply intake on the back of the machine. Tighten by hand. The water supply hose must be connected to the washing machine at one end and to the water tap at the other. Do not stretch the water supply hose. If the hose is too short, replace the hose with a longer, high pressure hose.

2. Connect the other end of the cold water supply

hose to your sink’s cold water tap and tighten it by hand. If necessary, you can reposition the water supply hose at the washing machine end by loosening the ﬁtting, rotating the hose, and retightening the ﬁtting. For selected models with an additional hot water intake:

1. Take the red L-shaped arm ﬁtting for the hot water supply hose and connect it to the hot

water supply intake on the back of the machine. Tighten by hand.

2. Connect the other end of the hot water supply hose to your sink’s hot water tap and tighten

3. Use a Y-piece if you only want to use cold water.

WF1702NHWG-02796Q-03_EN.indd 17 2014/11/27 14:24:59English - 18 setting up your washing machine Connecting the water supply hose (selected models)

1. Remove the adaptor from the water supply hose.

2. First, using a ‘+’ type screwdriver, loosen the four screws

on the adaptor. Next, take the adaptor and turn part (2) following the arrow until there is a 5 mm gap.

3. Connect the adaptor to the water tap by tightening the

screws ﬁrmly while lifting the adaptor upwards. Turn part (2) following the arrow and connect (1) and (2).

4. Connect the water supply hose to the adaptor.

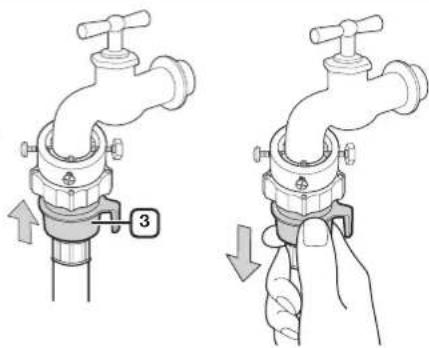

When you release part (3), the hose automatically connects to the adaptor making a ‘click’ sound. After you have connected the water supply hose to the adaptor, ensure that it is connected correctly by pulling the water supply hose downwards.

5. Connect the other end of the water supply hose to the inlet

water valve at the rear of the washing machine. Screw the hose clockwise all the way in. Adaptor Water supply hose

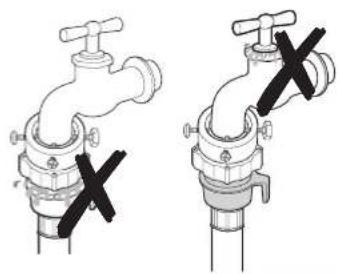

6. Turn on the water supply and ensure that no water leaks

from the water valve, tap or adaptor. If there is a water leaks, repeat the previous steps. Do not use your washing machine if there is a water leak. This may cause electric shock or injury.

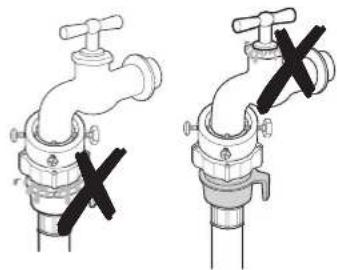

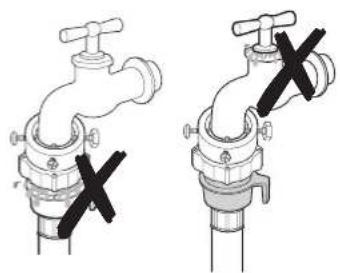

If the water tap has a screw type tap, connect the water supply hose to the tap as shown. Use the most conventional type of tap for the water supply. In case the tap is square or too big, remove the spacing ring before inserting the tap into the adaptor.

WARNiNG WF1702NHWG-02796Q-03_EN.indd 19 2014/11/27 14:24:59English - 20 Connecting the drain hose The end of the drain hose can be positioned in three ways:

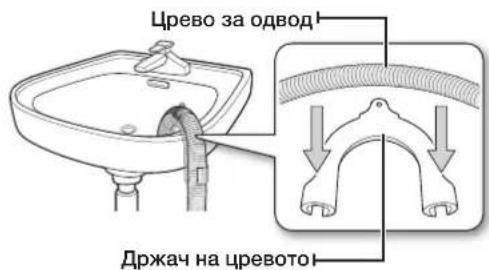

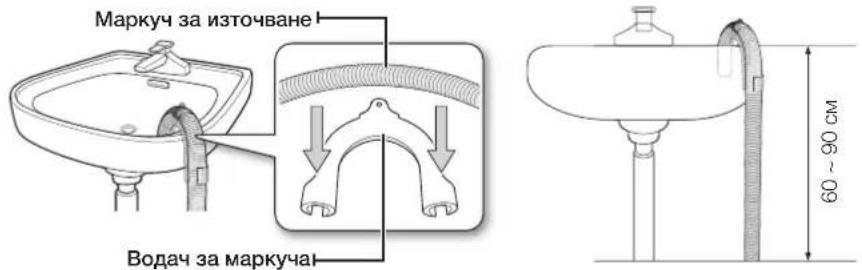

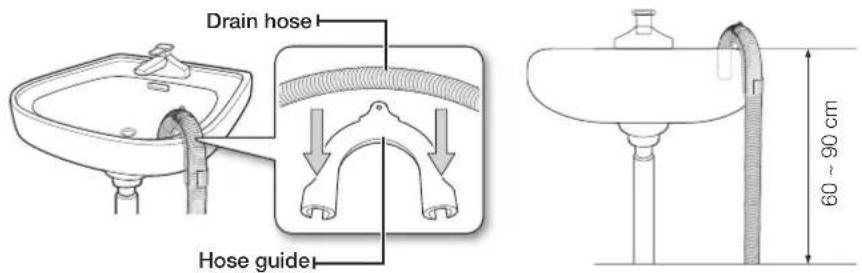

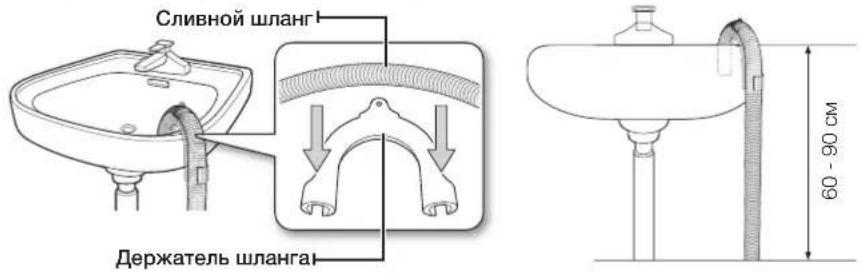

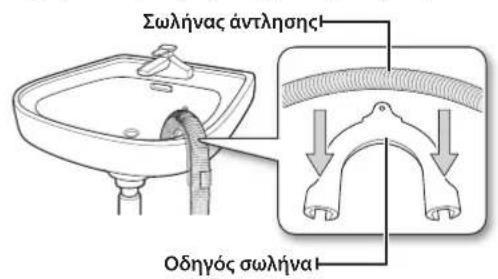

1. Over the edge of a wash basin: The drain hose must be placed at a height of between 60

and 90 cm. To keep the drain hose spout bent, use the supplied plastic hose guide. Secure the guide to the wall with a hook or to the tap with a piece of string to prevent the drain hose from moving.

2. ln a sink drain pipe branch: The drain pipe branch must be above the sink siphon so that

the end of the hose is at least 60 cm above the ground.

3. ln a drain pipe: We recommend using a 65 cm high vertical pipe; it must be no shorter than

60 cm and no longer than 90 cm. The standpipe drain requires;

minimumcarry-awaycapacity60literperminute. STEP 5 powering your washing machine Plug the power cord into a wall sockets, an AC 220-240V / 50Hz approved electrical outlet protected by a fuse or circuit breaker. (For more information on electrical and grounding requirements, see page 14.) Test run Make sure that you install your washing machine correctly by running the Rinse+Spin cycle after the installation is complete. setting up your washing machine 60 ~ 90 cmDrain hoseHose guide60 ~ 90 cmWF1702NHWG-02796Q-03_EN.indd 20 2014/11/27 14:25:00English - 21 02 Washing a load of laundry washing a load of laundry With your new Samsung washing machine, the hardest part of doing laundry will be deciding which load to wash ﬁrst.

WASHING FOR THE FIRST TIME

Before washing laundry for the ﬁrst time, you must run a complete empty cycle (i.e. no laundry).

1. Press the Power button.

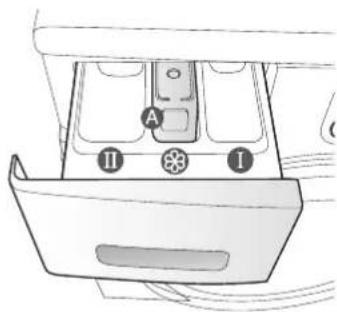

2. Add a little detergent to the detergent compartment

the detergent drawer.

3. Turn on the water supply to the washing machine.

4. Press the Start/Pause button.

This will remove any water that might be left over in the machine from the manufacturer’s test run. Compartment : Detergent for prewash, or starch. Compartment : Detergent for the main wash, water softener, pre-soaking agent, bleach and stain removal product. Compartment : Additives, e.g. fabric softener or former (ﬁll no higher than lower edge (MAX) of “A”) BASIC INSTRUCTIONS

1. Load your laundry into the washing machine.

Do not overload the washing machine. To determine the load capacity for each type of laundry, refer to the chart on page 27.

Makesurethatlaundryisnotcaughtinthedoor,asthismaycauseawaterleak.

Washingdetergentmayremaininthefrontrubberpartofthewasherafterawashcycle. Remove any remaining detergent, as they may cause a water leak.

Donotwashwater-proofeditems.

2. Close the door until it latches.

3. Turn the power on.

4. Add detergent and additives to the dispenser drawer.

5. Select the appropriate cycle and options for the load.

The Wash Indicator light will illuminate and the estimated cycle time will appear in the display.

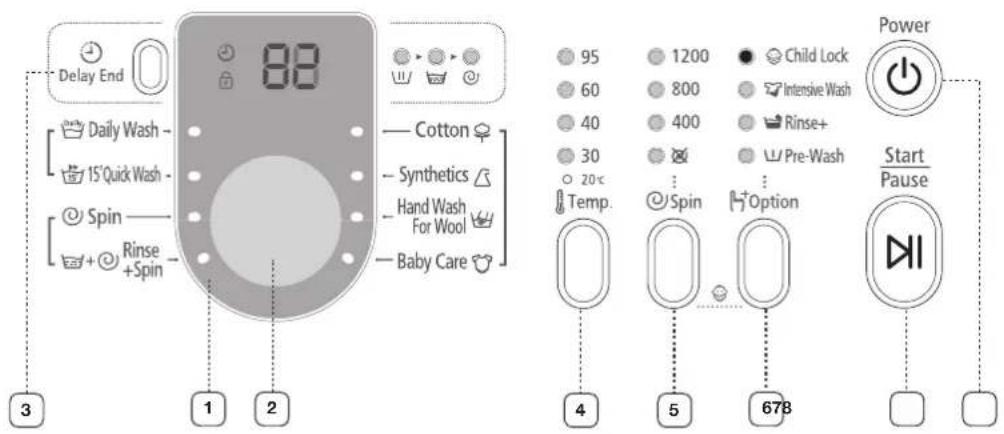

DIGITAL GRAPHIC DISPLAY Displays the remaining wash cycle time, all cycle information, and error messages. CYCLE SELECTOR Select the tumble pattern and spin speed for the cycle. For detailed information, refer to “Washing clothes using the cycle selector” (see page 25) . Cotton( ) - For averagely or lightly soiled cotton, bed linen, table linen, underwear, towels, shirts, etc. Synthetics( ) - For averagely or lightly soiled blouses, shirts, etc., made of polyester (diolen, trevira), polyamide (perlon, nylon) or other similar blends. Hand Wash For Wool( ) - Only for machine-washable wool. A load should be less than 2.0 kg.

T he wool course washes the laundry using gentle cradling actions. During the wash, the gentle cradling and soaking actions are continued to protect the wool ﬁbers from shrinkage / distortion and for a super gentle clean. This stop operation is not a problem.

Neutral detergent is recommended for wool course, for improved washing results and for improved care of the wool ﬁbers. Baby Care( ) - High temperature wash and extra rinses ensure that no washing powder remains to mark your thin clothes. Daily Wash( ) - Use for everyday items such as underwear and shirts. Short programme for test institutes. 15’ Quick Wash( ) - For lightly soiled garments that you require quickly.

The values(15’ minutes) can vary from the indicated values depending on water pressure, water hardness, water inlet temperature, room temperature, type and amount of washing and degree of soiling, utilized detergent, ﬂuctuation in the electricity supply and extra options selected.

Add only a small amount of detergent for a small amount of laundry (less than 2kg) for the 15’ Quick Wash course, because if you add too much detergent, detergent may remain after the wash. Spin( ) - Performs an additional spin cycle to remove more water. Rinse + Spin( ) - Use for a load that needs rinsing only or to add rinse-added fabric softener to a load. washing a load of laundry

DELAY END SELECTION BUTTON Press this button repeatedly to cycle through the available Delay End options (from 3 hours to 19 hours in one hour increments). The hour displayed indicates the time when the wash cycle will be ﬁnished. TEMPERATURE SELECTION BUTTON Press this button repeatedly to cycle through the available water temperature options: (20˚C(AllLampsTurnOff),30˚C,40˚C,60˚Cand95˚C). SPIN SELECTION BUTTON Press the button repeatedly to cycle through the available speeds for the spin cycle. WF1702 / WF1602 All Lamps Turn Off, , 400, 800, 1200 rpm WF1700 / WF1600 All Lamps Turn Off, , 400, 800, 1000 rpm “No spin ” - The laundry remains in the drum and no spin cycle is performed after the ﬁnal drain. “Rinse Hold (All Lamps Turn Off)” -The laundry remains soaking in the ﬁnal rinse water. Before the laundry can be unloaded, either a Drain or Spin cycle must be performed. OPTION SELECTION BUTTON Press this button repeatedly to cycle through the wash options: (Pre-Wash) (Rinse+) (Intensive) (Pre-Wash) + (Rinse+) (Pre-Wash) + (Intensive) (Rinse+) + (Intensive) (Pre-Wash) + (Rinse+) + (Intensive) (off) (Pre-Wash): Press this button to select Pre-Wash. Pre-wash is only available with: Cotton( ), Synthetics( ), Baby Care( ), Daily Wash( ). (Rinse+): Press this button to add additional rinse cycles. (Intensive): Press this button when the laundry is heavily soiled and needs to be washed intensively. The cycle time is increased for each cycle. START/PAUSE SELECTION BUTTON Press to pause and restart a cycle. POWER BUTTON Press it once to turn your washing machine on, press it again to turn your washing machine off. If the washing machine is left on for more than 10 minutes without any buttons being touched, the power automatically turns off.

WF1702NHWG-02796Q-03_EN.indd 23 2014/11/27 14:25:02English - 24 Child lock The Child Lock function allows you to lock the buttons so that the wash cycle you’ve chosen can’t be changed. Activating/Deactivating If you want to activate or deactivate the Child Lock function, press the Spin( ) and Option( ) buttons at the same time for 3 seconds. The “Child Lock ” will be lit when this feature is activated. When the Child Lock function is activated, only the Power

) button works. The Child Lock function remains on even after the power is turned on and off or after the disconnecting and reconnecting the power cord. Delay end You can set the washing machine to ﬁ nish your wash automatically at a later time, choosing a delay of between 3 to 19 hours (in 1 hour increments). The hour displayed indicates the time at which the wash will be ﬁ nished.

1. Manually or automatically set your washing machine according to the type of laundry you are

2. Press the Delay End( ) button repeatedly until the delay time is set.

3. Press the Start/Pause(

) button. The “Delay End ” indicator will be lit, and the clock will begin counting down until it reaches the set time.

4. To cancel a Delay End function, press the Power(

) button and then turn the washing machine on again. washing a load of laundry 3 SEC.WF1702NHWG-02796Q-03_EN.indd 24 2014/11/27 14:25:03English - 25

02 WASHING A LOAD OF LAUNDRY

Washing clothes using the cycle selector Your new washing machine makes washing clothes easy, using Samsung’s “Fuzzy Control” automatic control system. When you select a wash program, the machine will set the correct temperature, washing time, and washing speed.

1. Turn on your sink’s water tap.

4. Load the articles one at a time loosely into the drum, without overﬁlling it.

6. Add detergent, softener, and pre-wash detergent (if necessary) into the appropriate

compartments. Pre-wash is only available when selecting the Cotton( ), Synthetics( ), Baby Care( ), and Daily Wash( ) cycles. It is only necessary if your clothing is heavily soiled.

7. Use the Cycle Selector to select the appropriate cycle according to the type of material:

. The relevant indicators will illuminate on the control panel.

8. At this time, you can control the wash temperature, the amount of rinses, the spinning

speed, and the delay time by pressing the appropriate option button.

9. Press the Start/Pause button and the wash will begin. The process indicator will light up

and the remaining time for the cycle will appear in the display. Pause Option Within 5 minutes of starting a wash, it is possible to add/remove laundry items.

1. Press the Start/Pause(

) button to unlock the door. The door cannot be opened when the water is too HOT or the water level is too HIGH.

2. After closing the door, press the Start/Pause(

) button to restart the wash. When the cycle is ﬁnished: After the total cycle has ﬁnished, the power will turn off automatically.

WF1702NHWG-02796Q-03_EN.indd 25 2014/11/27 14:25:04English - 26 Washing clothes manually You can wash clothes manually without using the Cycle Selector.

1. Turn the water supply on.

) button on the washing machine.

4. Load the articles loosely into the drum one at a time, without overﬁlling it.

6. Add detergent and, if necessary, softener or prewash detergent, into the appropriate

) button to select the Rinse+ to add a rinse time. The wash duration is increased accordingly.

) button to select the spin speed. The rinse hold function allows you to remove items that are still wet from the washing machine. ( : No Spin (All Lamps Turn Off): Rinse Hold)

10. Press the Delay End(

) button repeatedly to cycle through the available Delay End options (from 3 hour to 19 hours in one hour increments). The hour displayed indicates the time at which the wash will be ﬁnished.

11. Press the Start/Pause(

) button and the machine will begin the cycle. LAUNDRY GUIDELINES Follow these simple guidelines for the cleanest laundry and the most efﬁcient wash. Always check the Care label on clothing before washing. Sort and wash your laundry according to the following criteria:

Care Label: Sort laundry into cottons, mixed ﬁbres, synthetics, silks, wools and rayons.

Colour: Divide whites and colours. Wash new colour items separately.

Size: Placing items of different sizes in the same load will improve the wash action.

Sensitivity: Wash delicate items separately, using the Delicate wash cycle for pure, new woollen items, curtains and silk articles. Check the labels on the items you are washing or refer to the fabric care chart in the appendix. Emptying pockets Before each wash, empty all the pockets of your laundry. Small, irregularly shaped hard objects, such as coins, knives, pins, and paperclips could damage your washing machine. Do not wash clothing with large buckles, buttons, or other heavy metal objects. Metal on clothing may damage your clothing as well as the tub. Turn clothing with buttons and embroidered clothes inside out before washing them. If zips of pants and jackets are open while washing, the spin basket may be damaged. Zips should be closed and ﬁxed with a string before washing. Clothing with long strings may become entangled with other clothes damaging them. Be sure to ﬁx the strings before starting the wash. Prewashing cotton Your new washing machine, combined with modern detergents, will give perfect washing results, thus saving energy, time, water and detergent. However, if your cotton is particularly dirty, prewash with a protein-based detergent. washing a load of laundry WF1702NHWG-02796Q-03_EN.indd 26 2014/11/27 14:25:04English - 27

02 WASHING A LOAD OF LAUNDRY

Determining the load capacity Do not overload the washing machine or your laundry may not wash properly. Use the chart below to determine the load capacity for the type of laundry you are washing. Fabric Type Load Capacity Model WF1702 WF1700 WF1602 WF1600 Cotton - average/lightly soiled - heavily soiled

Whenthelaundryisunbalanced(“UE” lights up on the display), redistribute the load. If the laundry is unbalanced, the spin efﬁciency may be degraded.

WhenwashingBeddingorDuvets,thewashtimemaybelengthenedorthespin efﬁciency may be degraded.

ForBeddingorDuvets,therecommendedloadcapacityis1.8(kg)orless. Make sure to insert brassieres (water washable) into a laundry net (to be purchased additionally).

Themetalpartsofthebrassieresmaybreakthroughthematerial and damage the laundry. Therefore make sure to place them inside a ﬁne laundry net.

Small,lightclothingsuchassocks,gloves,stockingsand handkerchiefs may become caught around the door. Place them inside a ﬁne laundry net. Do not wash the laundry net by itself without other laundry. This may cause abnormal vibrations that could move the washing machine and cause an accident resulting in injury. CAUTION WF1702NHWG-02796Q-03_EN.indd 27 2014/11/27 14:25:04English - 28

DETERGENT AND ADDITIVES INFORMATION

Which detergent to use The type of detergent you should use is based on the type of fabric (cotton, synthetics, items, Hand Wash For Wool), colour, wash temperature, and degree of soiling. Always use “low suds” laundry detergent, which is designed for automatic washing machines. Follow the detergent manufacturer’s recommendations based on the weight of the laundry, the degree of soiling, and the hardness of the water in your area. If you do not know how hard your water is, enquire at your local water authority. Do not use detergent that has hardended or solidiﬁed as the detergent may remain in the rinse cycle. It may cause your washing machine to not rinse properly or result in the overﬂow becoming blocked. Please note the following when using the Wool course.

Useaneutralliquiddetergentforwoolonly.

Whenusingapowderdetergent,itmayremainonthelaundryandcausedamagetothe material (wool). Detergent drawer Your washing machine has separate compartments for dispensing detergent and fabric softener. Add all laundry additives to the correct compartment before starting your washing machine. Do NOT open the detergent drawer when your washing machine is running.

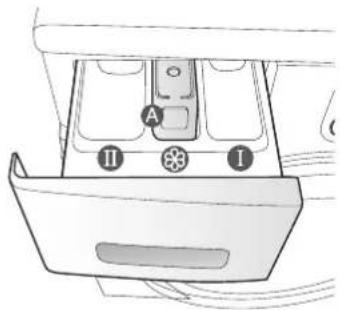

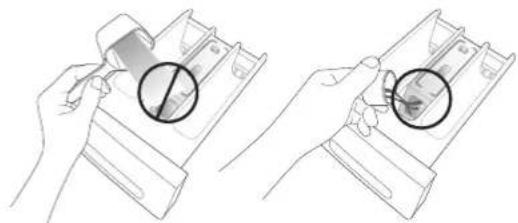

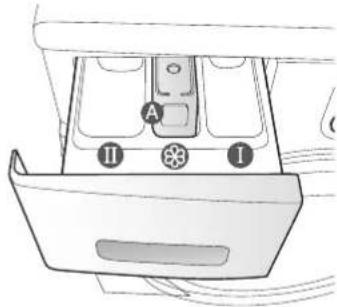

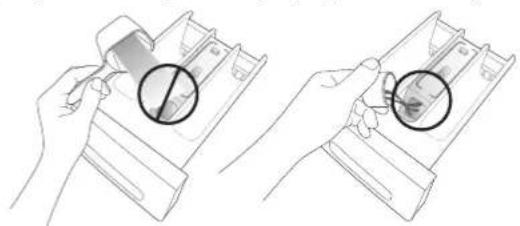

1. Pull out the detergent drawer on the left side of the control panel.

2. Add the recommended amount of laundry detergent

directly into the detergent compartment before starting your washing machine.

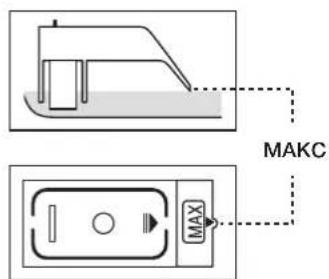

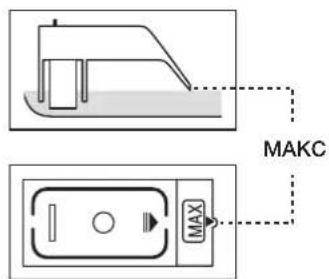

3. Add the recommended amount of fabric softener into the

softener compartment if required. Do NOT add any powder/liquid detergent to the softener compartment (

amount of laundry detergent into the prewash compartment

When washing large items do NOT use the following detergent types.

Tabletandcapsuletypedetergents

Detergentsusingaballandnet Concentrated or thick fabric softener and conditioner must be diluted with a little water before being poured into the dispenser (prevents the overﬂow from becoming blocked.) Be careful that the fabric softener does not overﬂow, when you close the detergent drawer after adding fabric softener into the rinse detergent compartment. washing a load of laundry MAX CAUTIONWF1702NHWG-02796Q-03_EN.indd 28 2014/11/27 14:25:04English - 29

03 CLEANING AND MAINTAINING

cleaning and maintaining your washing machine Keeping your washing machine clean improves its performance, wards off unnecessary repairs, and lengthens its life. DRAINING THE WASHING MACHINE IN AN EMERGENCY

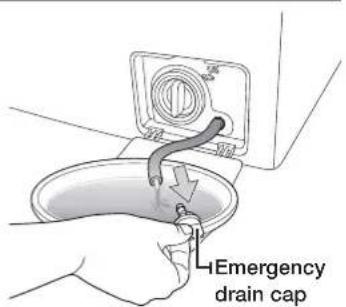

1. Unplug the washing machine from the power supply.

2. Open the ﬁlter cover using a coin or a key.

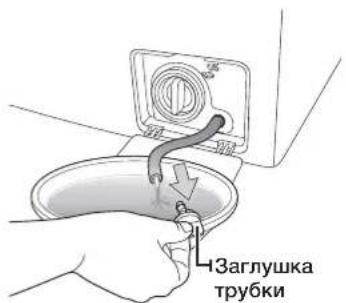

3. Pull forward the emergency drain tube to separate it from

4. Take off the emergency drain cap closing the emergency

5. Allow all the water to ﬂow into a bowl.

Remain water maybe more than you expected. Prepare larger bowl.

6. Re-attach the cap to the emergency drain tube and then ﬁx

the emergency drain tube to the guide hook.

1. Wipe the washing machine surfaces, including the control panel, with a soft cloth using a

nonabrasive household detergent.

2. Use a soft cloth to dry the surfaces.

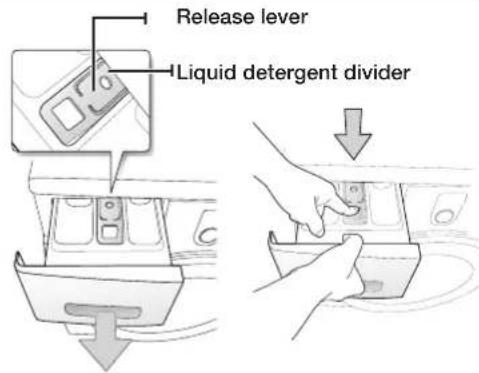

1. Press the release lever on the inside of the

detergent drawer and pull the drawer out.

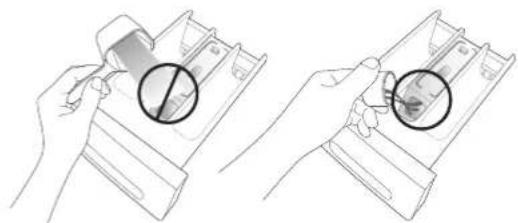

2. Remove the liquid detergent divider from the

3. Wash all parts under running water.

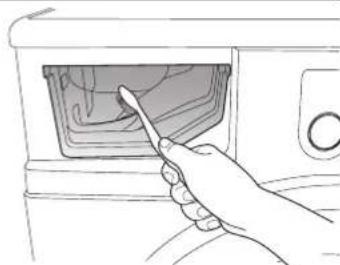

4. Clean the drawer recess with an old toothbrush.

5. Replace the liquid detergent divider by pushing it ﬁrmly into

6. Push the drawer back into place.

7. To remove any remaining detergent, perform a rinse cycle

without any laundry in the drum. cleaning and maintaining your washing machine Release lever Liquid detergent divider WF1702NHWG-02796Q-03_EN.indd 30 2014/11/27 14:25:05English - 31

03 CLEANING AND MAINTAINING

CLEANING THE DEBRIS FILTER

We recommend cleaning the debris ﬁlter 5 or 6 times a year, or when the error message of “5E” is displayed. (Refer to “Draining the washing machine in an emergency” in the previous page.) Before cleaning the debris ﬁlter, make sure to unplug the power cord.

1. Remove the remaining water ﬁrst (refer to “Draining the

washing machine in an emergency” on page 29.) If you separate the ﬁlter without draining the remaining water, the remaining water may trickle out.

2. Open the ﬁlter cover by using a key or coin.

3. Unscrew the emergency drain cap by turning it to the left

and drain off all the water.

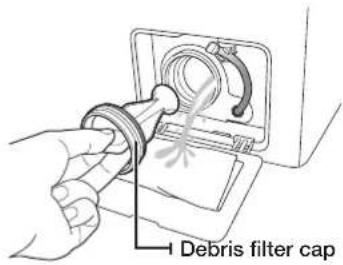

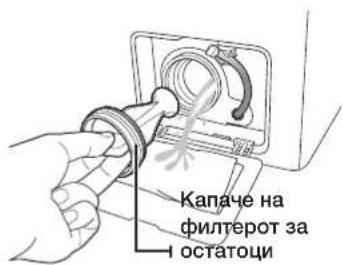

4. Unscrew the debris ﬁlter cap.

5. Wash any dirt or other material from the debris ﬁlter. Make

sure the drain pump propeller behind the debris ﬁlter is not blocked.

Do not open the debris ﬁlter cap while the machine is running or hot water may ﬂow out.

Makesuretoreplacetheltercapaftertheltercleaning.Ifthelterisoutofthemachine,your washing machine may malfunction or leak water.

Theltershouldbefullyassembledaftertheltercleaning. Debris ﬁlter cap CAUTIONCAUTION WF1702NHWG-02796Q-03_EN.indd 31 2014/11/27 14:25:05English - 32 CleANiNG THe WATeR HoSe MeSH FilTeR You should clean the water hose mesh ﬁlter at least once a year, or when the error message of “4E” is displayed:

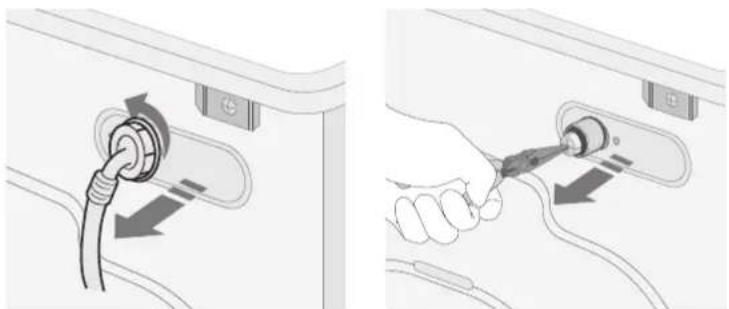

1. Turn off the water supply to the washing machine.

2. Unscrew the hose from the back of the washing machine. To prevent water from gushing out

due to the air pressure in the hose, cover the hose with a cloth.

3. Gently pull out the mesh ﬁlter from the end of the hose using a pair of pliers and rinse it under

water until clean. Also clean inside and outside the threaded connector.

4. Push the ﬁlter back into place.

5. Screw the hose back onto the washing machine.

6. Make sure the connections are watertight and turn on the tap.

RepAiRiNG A FRoZeN WASHiNG MACHiNe If the temperature drops below freezing and your washing machine is frozen:

1. Unplug the washing machine.

2. Pour warm water over the tap to loosen the water supply hose.

3. Remove the water supply hose and soak it in warm water.

4. Pour warm water into the washing machine drum and let it sit for 10 minutes.

5. Reconnect the water supply hose to the water tap and check if the water supply and drain

are operating normal. SToRiNG youR WASHiNG MACHiNe If you need to store your washing machine for an extended time, it’s better to drain and disconnect it. Washing machines can be damaged if water is left in the hoses and internal components before storage.

1. Select the Quick Wash cycle and add bleach to the bleach compartment. Run your washing

machine through the cycle without a load.

2. Turn the water taps off and disconnect the inlet hoses.

3. Unplug your washing machine from the electrical outlet, and leave your washing machine

door open to allow air to circulate inside the tumbler. If your washing machine has been stored in below-freezing temperatures, allow time for any leftover water in your washing machine to thaw out before using it. cleaning and maintaining your washing machine WF1702NHWG-02796Q-03_EN.indd 32 2014/11/27 14:25:05English - 33 04 TROUBLESHOOTING troubleshooting and information codes CHECK THESE POINTS IF YOUR WASHING MACHINE... PROBLEM SOLUTION Will not start • Make sure your washing machine is plugged in.

Make sure the door is ﬁrmly closed.

Make sure the water source tap(s) are turned on.

Make sure to press the Start/Pause button. Has no water or not enough water

Turn the water tap on fully.

Make sure the water source hose is not frozen.

Straighten the water intake hoses.

Clean the ﬁlter on the water intake hose. Has detergent remains in the detergent drawer after the wash cycle is complete

Make sure your washing machine is running with sufﬁcient water pressure.

Make sure the detergent is added to the center of the detergent drawer. Vibrates or is too noisy • Make sure your washing machine is on a level surface. If the surface is not level, adjust the washing machine feet to level the appliance.

Make sure that the shipping bolts are removed.

Make sure your washing machine is not touching any other object.

Make sure the laundry load is balanced. The washing machine does not drain and/or spin

Straighten the drain hose. Eliminate kinked hoses.

Make sure the debris ﬁlter is not clogged. Door is locked shut or will not open.

Make sure all the water in your drum is drained out.

Make sure the door lock light is off. Door lock light will off after drained. If the problem persists, contact your local Samsung Customer Service. WF1702NHWG-02796Q-03_EN.indd 33 2014/11/27 14:25:05English - 34 iNFoRMATioN CoDeS When your washing machine malfunctions, you may see an information code on the display. If that happens, check this table and try the suggested solution before calling Customer Service.

Make sure the door is ﬁrmly closed.

Make sure that laundry is not caught in the door.

Make sure the source water tap is turned on.

Check the water pressure.

Clean the mesh ﬁlters of water hose. When the washer displays the “4E” code, the washer do draining for 3 minutes. During this time, the Power button is inoperative.

Clean the debris ﬁlter.

Make sure the drainage hose is installed correctly.

The laundry load is unbalanced. Redistribute the load. If only one item of clothing needs washing, such as a bathrobe or pair of jeans, the ﬁnal spin result might be unsatisfactory and an “UE” error message will be shown in the display window. cE/3E

Call the after-sales service.

This occurs when too much foaming is detected. It is also displayed while foaming is removed. When the removal is ﬁnished, the normal cycle proceeds.(This is one of the normal operations. It is an error for preventing non-sensing faults.)

If the voltage of the supplied power is instable, the washing machine will be paused to protect its electric devices.

If the correct voltage is supplied, the cycle will resume automatically. For any codes not listed above, or if the suggested solution doesn’t ﬁx the problem, call your Samsung Service Centre or local Samsung dealer. calibrating your washing machine CAlibRATioN MoDe Samsung washing machine detects the laundry weight automatically. For more accurate weight detection, please run Calibration Mode after the installation. Calibration mode is done by following the steps below.

1. Remove laundry or any contents in the machine and turn off the machine.

2. Press the Temp button and Delay End button simultaneously, and press the Power button

in addition. Then the machine turns on.

3. Press the Start button to activate “Calibration Mode”.

4. The drum rotates clockwise and counterclockwise approximately for 3 minutes.

5. When “Calibration Mode” is ﬁnished, “End(En)” appears on the display, and the machine

automatically turns off. The washing machine is now ready for use. troubleshooting and information codes WF1702NHWG-02796Q-03_EN.indd 34 2014/11/27 14:25:06English - 35 05 CYCLE CHART cycle chart CYCLE CHART ( user option) PROGRAM Max load(kg) DETERGENT Max Temp

Spin Speed(MAX) rpm Delay end WF1702 WF1700 WF1602 WF1600 Pre- wash wash Soft- ener WF1702 WF1602 WF1700 WF1600 Cotton(

1. A cycle with a prewash takes approx. 15 minutes longer.

2. The cycle duration data has been measured under the conditions speciﬁed in Standard IEC 60456 / EN

Please run Calibration Mode after the installation(see page 34).

3. Course time in individual homes may differ from the values given in the table due to variations in the

pressure and temperature of the water supply, the load and the type of laundry.

4. When the Intensive Wash function is selected, the cycle time is increased for each cycle.

WF1702NHWG-02796Q-03_EN.indd 35 2014/11/27 14:25:06English - 36 appendix FAbRiC CARe CHART The following symbols provide garment care directions. The care labels include four symbols in this order: washing, bleaching, drying and ironing, and dry cleaning when necessary. The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow the care label directions to maximize garment life and reduce laundering problems. Resistant material Canbeironedat100˚Cmax Delicate fabric Do not iron Itemmaybewashedat95˚C Can be dry cleaned using any solvent Itemmaybewashedat60˚C Dry clean with perchloride, lighter fuel, pure alcohol or R113 only Itemmaybewashedat40˚C Dry clean with aviation fuel, pure alcohol or R113 only Itemmaybewashedat30˚C Do not dry clean Item may be hand washed Dry ﬂat Dry clean only Can be hung to dry Can be bleached in cold water Dry on clothes hanger Do not bleach Tumble dry, normal heat Canbeironedat200˚Cmax Tumble dry, reduced heat Canbeironedat150˚Cmax Do not tumble dry pRoTeCTiNG THe eNViRoNMeNT

This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance, please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected to a power source. Remove the door so that animals and small children cannot get trapped inside the appliance.

Do not exceed the detergent quantities recommended in the detergent manu-facturers’ instructions.

Use stain removal products and bleaches before the wash cycle only when strictly necessary.

Save water and electricity by only washing full loads (the exact amount depends upon the program used). WF1702NHWG-02796Q-03_EN.indd 36 2014/11/27 14:25:07English - 37 06 AppeNDiX SpeCiFiCATioNS

rpm 1200 1000 The appearance and speciﬁcations of the product are subject to change without prior notice for purposes of product enhancement. WF1702NHWG-02796Q-03_EN.indd 37 2014/11/27 14:25:07English - 38 appendix SpeCiFiCATioNS

MODEL WF1602 / WF1600

rpm 1200 1000 The appearance and speciﬁcations of the product are subject to change without prior notice for purposes of product enhancement. WF1702NHWG-02796Q-03_EN.indd 38 2014/11/27 14:25:07English - 39 06 APPENDIX SHEET OF HOUSEHOLD WASHING MACHINES (EU ONLY) According to Regulation (EU) No. 1061/2010 “ * ” Asterisk(s) means variant model and can be varied (0-9) or (A-Z). Samsung Model Name WF1702NHW WF1702NHWG WF1700*** Capacity kg 7 7 Energy Efﬁciency A+++ (highest efﬁciency) to D (least efﬁcient) A+ A+ Energy Consumption Annual Energy Consumption (AE_C)

kWh/yr 220 220 Energy Consumption (E_t.60) Cotton 60 ºC at full load kWh 1.23 1.23 Energy Consumption (E_t.60.1/2) Cotton 60 ºC with partial load kWh 0.89 0.89 Energy Consumption (E_t.40.1/2) Cotton 40 ºC with partial load kWh 0.69 0.69 Weighted power off-mode (P_o) W 0.45 0.45 Weighted power in left-on mode (P_l) W 5 5 Annual water consumption (AW_c)

A (most efﬁcient) to G (least efﬁcient) B C Maximum Spin Speed rpm 1200 1000 Residual moisture % 53 62 Programs to which the information on the label and the Sheet relate Cotton 60 ºC and 40 ºC + Intensive

1. Annual energy consumption is based on 220 standard washing cycles for cotton programs at 60 °C and

40 °C at full and partial load, and the consumption of off and left-on modes. Actual energy consumption will depend on how the appliance is used.

2. Annual water consumption is based on 220 standard washing cycles for cotton programs at 60 °C and

40 °C at full and partial load. Actual water consumption will depend on how the appliance is used.

3. Spin extraction is very important when you use a clothes dryer to dry your clothes.

The energy for drying costs much higher than the energy for washing. Wasing with the high spin saves more energy in drying your clothes in a clothes dryer.

4. The ‘standard cotton 60 °C program’ and ‘standard cotton 40 °C program’, which can be selected

by adding the Intensive option to the cotton 60 °C and cotton 40 °C program, are suitable to clean normally soiled cotton laundry and they are the most efﬁcient (concerning water and energy consumption) for this type of laundry. Please run Calibration Mode after the installation(see page 34). In these programs the actual water temperature may differ from the declared temperature.

5. Distance to the wall from the unit is not included in the depth dimension.

WF1702NHWG-02796Q-03_EN.indd 40 2014/11/27 14:25:07English - 41 06 APPENDIX SHEET OF HOUSEHOLD WASHING MACHINES (EU ONLY) According to Regulation (EU) No. 1061/2010 “ * ” Asterisk(s) means variant model and can be varied (0-9) or (A-Z). Samsung Model Name WF1602NHW WF1602NHWG WF1600*** Capacity kg 6 6 Energy Efﬁciency A+++ (highest efﬁciency) to D (least efﬁcient) A+ A+ Energy Consumption Annual Energy Consumption (AE_C)

kWh/yr 195 195 Energy Consumption (E_t.60) Cotton 60 ºC at full load kWh 1.06 1.06 Energy Consumption (E_t.60.1/2) Cotton 60 ºC with partial load kWh 0.79 0.79 Energy Consumption (E_t.40.1/2) Cotton 40 ºC with partial load kWh 0.65 0.65 Weighted power off-mode (P_o) W 0.45 0.45 Weighted power in left-on mode (P_l) W 5 5 Annual water consumption (AW_c)

1. Annual energy consumption is based on 220 standard washing cycles for cotton programs at 60 °C and

40 °C at full and partial load, and the consumption of off and left-on modes. Actual energy consumption will depend on how the appliance is used.

2. Annual water consumption is based on 220 standard washing cycles for cotton programs at 60 °C and

40 °C at full and partial load. Actual water consumption will depend on how the appliance is used.

3. Spin extraction is very important when you use a clothes dryer to dry your clothes.

The energy for drying costs much higher than the energy for washing. Wasing with the high spin saves more energy in drying your clothes in a clothes dryer.

4. The ‘standard cotton 60 °C program’ and ‘standard cotton 40 °C program’, which can be selected

5. Distance to the wall from the unit is not included in the depth dimension.

WF1702 WF1700 WF1602 WF1600

MODEL WF1602 / WF1600

MUDEL WF1602 / WF1600

MODÈLE WF1702 WF1700

230V 530 W 500 W POMPAGE 34 W ViTeSSeS D’eSSoRAGe

MODÈLE WF1702 WF1700

MODÈLE WF1602 / WF1600

MODÈLE WF1602 WF1600

230V 530 W 500 W POMPAGE 34 W ViTeSSeS D’eSSoRAGe

MODÈLE WF1602 WF1600

WF1702 WF1700 WF1602 WF1600

WF1702 WF1602 WF1700 WF1600 Cotton (Βαβακερά)(

MODEL WF1602 / WF1600

MODELL WF1702 / WF1700

MODELL WF1702 WF1700

MODELL WF1602 / WF1600

MODELL WF1602 WF1600

MODELIS WF1702 WF1700

MODELIS WF1602 / WF1600

SKALBIMAS 220 V 150 W 240 V 150 W SKALBIMAS IR KAITINIMAS 220 V 2000 W 240 V 2400 W GRĘŽIMO
