USER MANUAL FAAS 12 B1 FLORABEST

PDF online www.lidl-service.com florabest FLA46 12 B1 florabest

AKKU-ASTSÄGE / CORDLESS BRANCH SAW / COUPE-BRANCHES SANS FIL FAAS 12 B1

DE AT CH

AKKU-ASTSÄGE

Translation of the original instructions

NL BE

ACCU-TAKKENZAAG

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IE Translation of the original instructions Page 11

Technical diagram of a weapon system with numbered components for identification

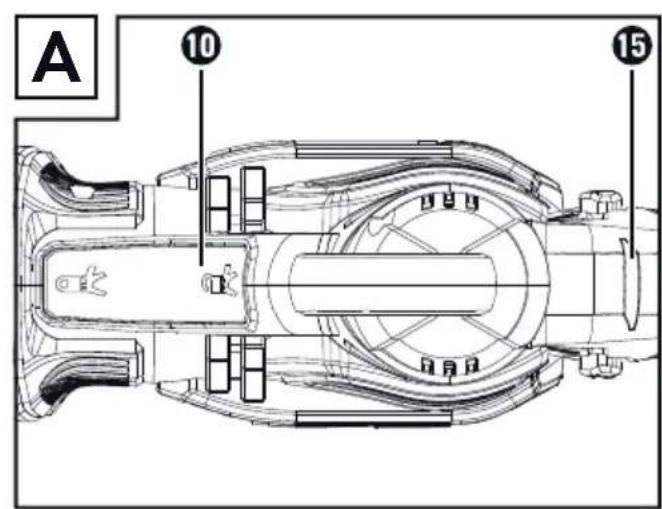

A 10 15

B 8 11

Technical line drawing of a mechanical clamp or tool assembly (no text or symbols)

Technical line drawing of a mechanical device with zigzag components and an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a spring-loaded component and directional arrow (no text or symbols)

Technical line drawing of a mechanical device with gear and base components, showing motion arrows (no text or symbols)

Inhaltsverzeichnis

Einleitung 2

Diagram showing a hand inserting a lock into a device with labeled parts, including a numbered step indicator.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Entsorgung

General Power Tool Safety Warnings 13

1. Work area safety 13
2. Electrical safety 13
3. Personal safety 14
4. Power tool use and care 14
5. Service 15
   Appliance-specific safety instructions 15
   Use and handling of the cordless electrical power tool 15
   Safety guidelines for battery chargers 15

Practical advice on sawing 16

Original accessories/auxiliary equipment 16 Information on saw blades 16

Before use....16

Charging the battery pack .... 1 6 Attaching/disconnecting the battery pack to/from the appliance .... 1 6 Checking the battery charge level .... 1 6 Attaching/removing the grip bracket .... 1 7 Fitting/changing the saw blade .... 1 7

Operation 17

Switching on and off .... 17 Sawing methods .... 17

Maintenance and cleaning 18

Kompernass Handels GmbH warranty 18

Service....19

Importer....19

Disposal 20

Translation of the original Conformity Declaration 20

CORDLESS BRANCH SAW FAAS 12 B1

Introduction

Congratulations on the purchase of your new appliance. You have selected a high-quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the specified areas of application. Please also pass on these operating instructions to any future owner.

Intended use

This appliance - standard designation: reciprocating saw - is intended for the sawing of wood, plastics and building materials up to a fixed stop (base plate). The appliance is suitable for rough sawing work, straight and curved cuts; it cuts surfaces off flush. With the grip bracket mounted, the appliance is suitable for sawing branches. Follow the information concerning saw blades and practical advice on sawing. Any other uses of or modification to the appliance is deemed to be improper and carries the risk of serious personal injury. The manufacturer accepts no responsibility for damage(s) attributable to misuse. The appliance is not intended for commercial use.

Features

① Safety lock-out
② Handle
3 Battery pack
4 Release (battery pack)
5 ON/OFF switch
6 Saw blade
7 Base plate
8 Quick-release chuck
9 Hand guard
10 Release (grip bracket)
11 Grip bracket
12 High-speed battery charger
13 Control LED (green)
14 Control LED (red)
15 Battery charge level display

Package contents

1 cordless branch saw FAAS 12 B1
1 high-speed battery charger FAAS 12 B1-2
1 battery pack FAAS 12 B1-1
1 grip bracket
1 saw blade for wood 152 mm
1 carrying case
1 set of operating instructions

Technical data

Cordless branch saw: FAAS 12 B1

Rated voltage: 12 V = (DC)

Rated idle speed: n 0-2700 rpm

Stroke length: 20 mm

Max. cutting performance: Wood 80 mm

Battery pack: FAAS 12 B1-1

Type: LITHIUI Rated voltage: 12 V = (DC) Capacity: 1500

High-speed

battery charger: FAAS 12 B1-2

INPUT:

Rated current: 230–240 V\~, 50 Hz (alternating current)

Rated power consumption: 30 W

OUTPUT:

Rated voltage: 12.6 V--- (DC)

Rated current: 1800 mA

Charging time: approx. 60 min.

Protection class: II/回 (double insulation)

Noise emission values:

Measured values for noise determined in accordance with EN ISO 4871. The A-rated noise level of the power tool at the working location is typically as follows:

Sound pressure level: L_pA = 82 dB(A)

Uncertainty: K_pA = 3 dB

Sound power level: I_WA = 93 dB(A)

Uncertainty: K_WA = 3 dB

Wear hearing protection!

Total vibration values (vector total of three directions) determined in accordance with EN 60745:

Cutting boards: a _h,B = 6.37 m/s^2 Uncertainty K = 1.5 m/s ^2

Cutting wooden beams: q_h,WB = 9.26 m/s^2 Uncertainty K = 1.5 m/s ^2

NOTE

The vibration level specified in these instructions has been measured in accordance with a standardised measuring procedure and can be used to make equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate.

WARNING!

The vibration level varies in accordance with the use of the power tool and may be higher than the value specified in these instructions in some cases. Regular use of the electric tool in such a way may cause the user to underestimate the vibration. Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

General Tool Safety Warnings

Power

WARNING!

▶ Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Less properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5. Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Appliance-specific safety instructions

- Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring or its own cord. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

■ Wear a dust mask!

Use and handling of the cordless electrical power tool

a) Charge a rechargeable battery unit using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used.

b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire.

c) When they are not being used, store rechargeable battery units away from paper clips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire.

d) Fluids may leak out of rechargeable batteries if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.

CAUT + Prote max. 50°C

ON! RISK OF EXPLOSION!

Never charge non-rechargeable batteries!

t the rechargeable battery from heat, for example from continuous exposure to sunlight, fire, water and moisture. There is a risk of explosion.

Safety guidelines for battery chargers

This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to play with the appliance. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

narger is suitable for indoor use only.

To avoid potential risks, damaged mains cables should be replaced by the manufacturer or the manufacturer's customer service department or a similarly qualified person.

Practical advice on sawing

- Check the material to be worked to make sure that all foreign objects have been removed, e.g. nails, screws, etc.

■ Switch the appliance off immediately if the saw blade jams. Open up the sawn gap using a suitable tool and pull out the reciprocating saw.

■ Saw the material at a constant speed.

Original accessories/auxiliary equipment

■ Use only the additional equipment and accessories specified in the operating instructions. Using attachments or accessory tools other than those recommended in the operating instructions can lead to a risk of injury.

Information on saw blades

You can use any saw blade that has a suitable mount - 1/2" (12.7 mm) universal shaft. Saw blades are available from retail stores in various lengths and optimised for a variety of purposes.

NOTE

▶ TPI = teeth per inch = the number of teeth per 2.54 cm

Before use

Charging the battery pack

CAUTION!

▶ Always unplug the appliance before you remove the battery pack ③ from or connect the battery pack to the high-speed battery charger ⑫

■ Never charge the battery pack 3 when the ambient temperature is below 10°C or above 40°C.

Connect the battery pack 3 to the high-speed battery charger 12.

◆ Insert the power plug into the socket. The control LED lights up red.

The green control LED indicates that the charging process is complete and the battery pack is ready for use.

◆ Push the battery pack 3 back into the appliance.

You should always switch the high-speed charger 12 off for at least 15 minutes between successive charging processes. Also disconnect the power plug from the mains power socket.

Attaching/disconnecting the battery pack to/from the appliance

Attaching the battery pack:

◆ Click the battery pack 3 into the handle 2

Removing the battery pack:

◆ Press the release button 4 and remove the battery pack 3.

Checking the battery charge level

Press the safety lock-out and the ON/OFF switch 5 to check the charge level of the battery. The status/remaining charge will be shown on the battery charge level display 15 as follows:

◆ RED / ORANGE / GREEN = maximum charge/performance RED/ORANGE = medium charge/performance RED = low charge - charge the battery

Attaching/removing the grip bracket

NOTE

The grip bracket ^1 cannot be attached/removed while the saw blade is attached.

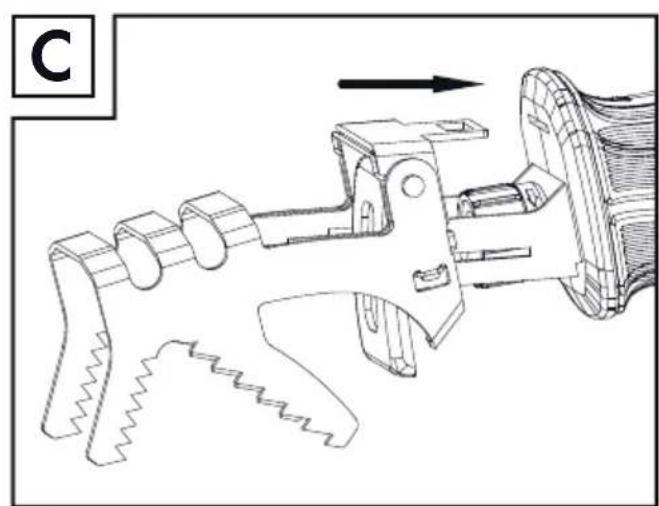

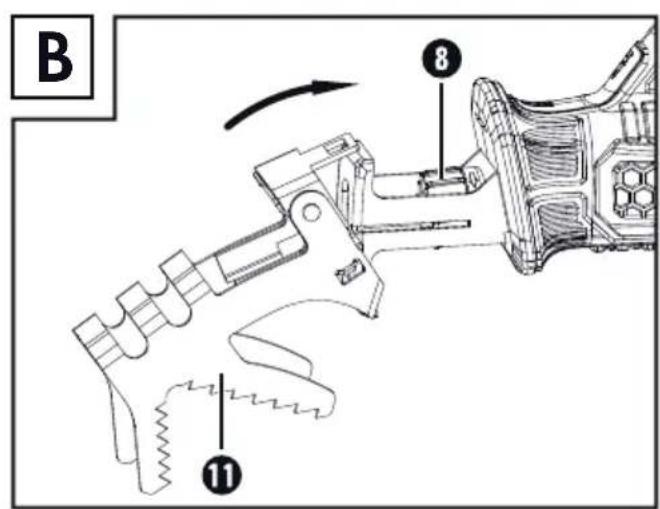

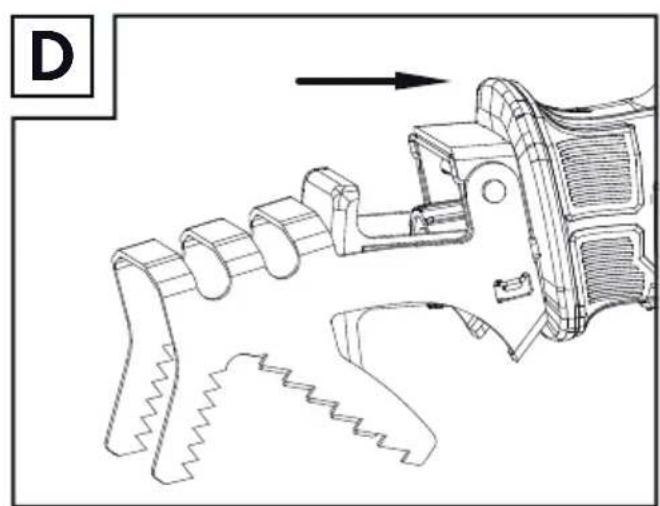

Attaching the grip bracket (see fig. B-D):

◆ Press the release button10.
♦ Push the grip bracket 11 over the guides on the base plate 7 and onto the appliance.
◆ Lock the release button10.

Removing the grip bracket:

◆ Press the release 0 and pull the grip bracket 11 forwards out of the guides.

Fitting/changing the saw blade

Wear protective gloves when fitting/changing a saw blade.

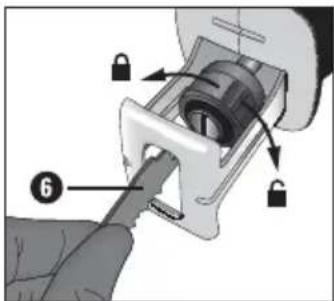

Turn the quick-release chud ^8 as far as it will go in the direction of the arrow and hold it in this position.
♦ Push the required saw blade into the quick-release chuck 8 as far as the stop.

CAUTION!

The teeth of the saw blade must point downwards!

Diagram showing a hand using a lock to adjust or install a mechanical component, with labeled parts 6 and 7.

Let go of the quick-release chuck, it must return to its initial position. The saw blade is now locked.

Operation

Switching on and off

Switching on:

◆ Press the safety lock-out.
◆ Press the ON/OFF switch5.

Switching off:

◆ Release the ON/OFF switch ^5 .

Sawing methods

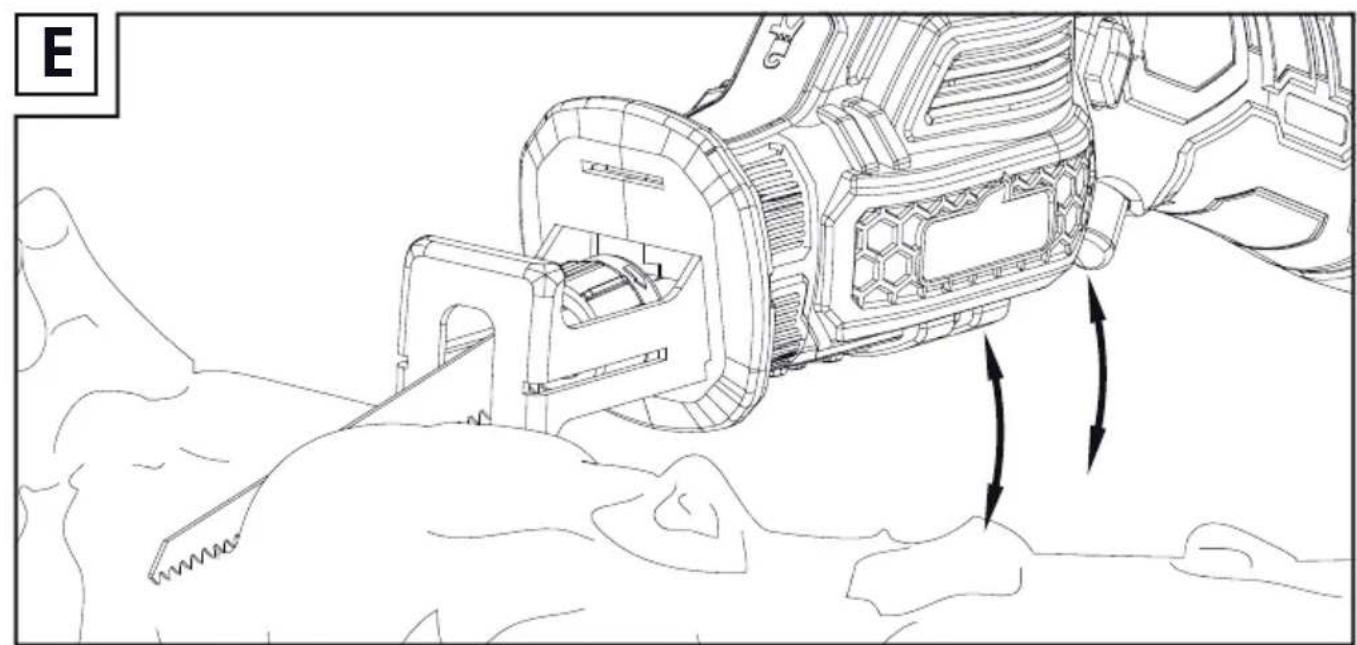

A) Working without the grip bracket (see fig. E):

For branches of a larger diameter or wood, plastic or building material, work without the grip bracket. The workpiece must be right up against the base plate. Use a rocking cutting motion for round workpieces.

A1) Sawing flush:

■ Flexible saw blades allow you to saw off protruding workpieces such as pipes located close to the wall, provided the saw blade is long enough.

1. Place the saw blade directly against the wall.
2. Bend it by applying lateral pressure to the reciprocating saw so that the base plate ⑦ comes into contact with the wall.
3. Switch the appliance on as described and saw off the workpiece by applying constant pressure.

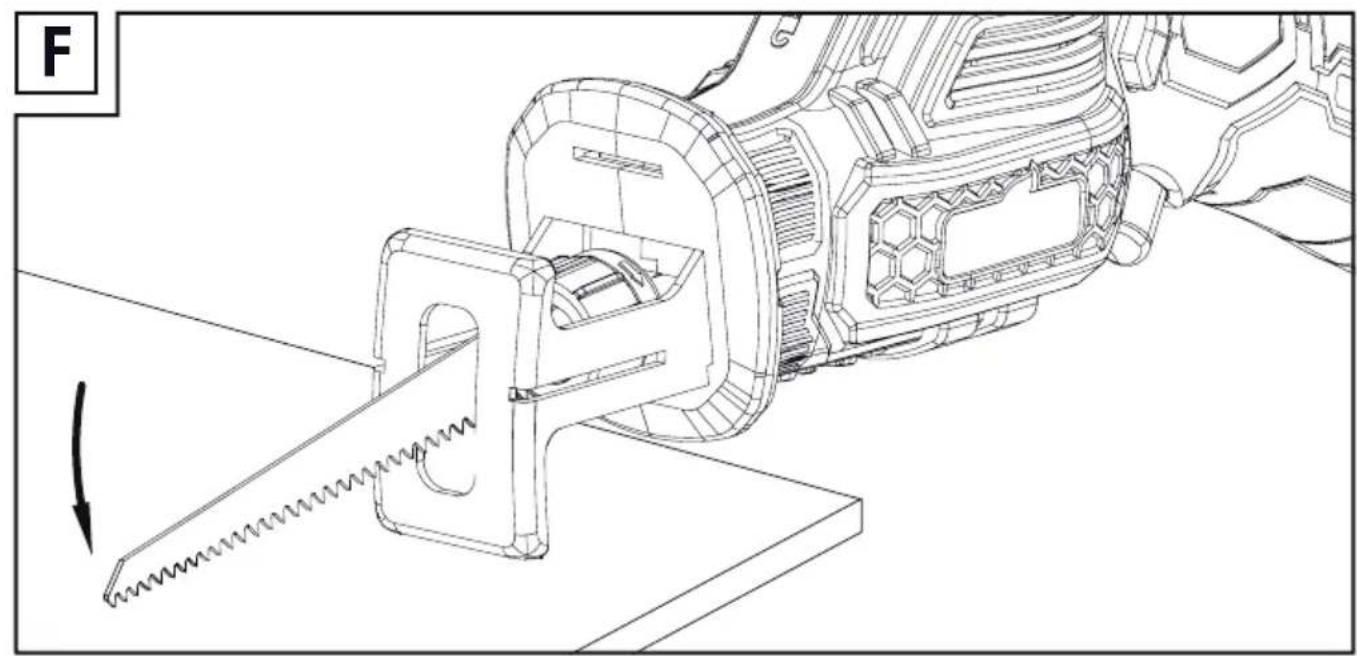

A2) Plunge cutting (see fig. F):

CAUTION! RISK OF KICKBACK!

▶ Plunge cuts may only be made in soft materials (wood or similar).

1. Place the reciprocating saw with the lower edge of the base plate ⑦ on the workpiece. Switch the appliance on.
2. Tilt the reciprocating saw forwards and plunge the saw blade into the workpiece.
3. Position the reciprocating saw vertically and continue sawing along the cutting line.

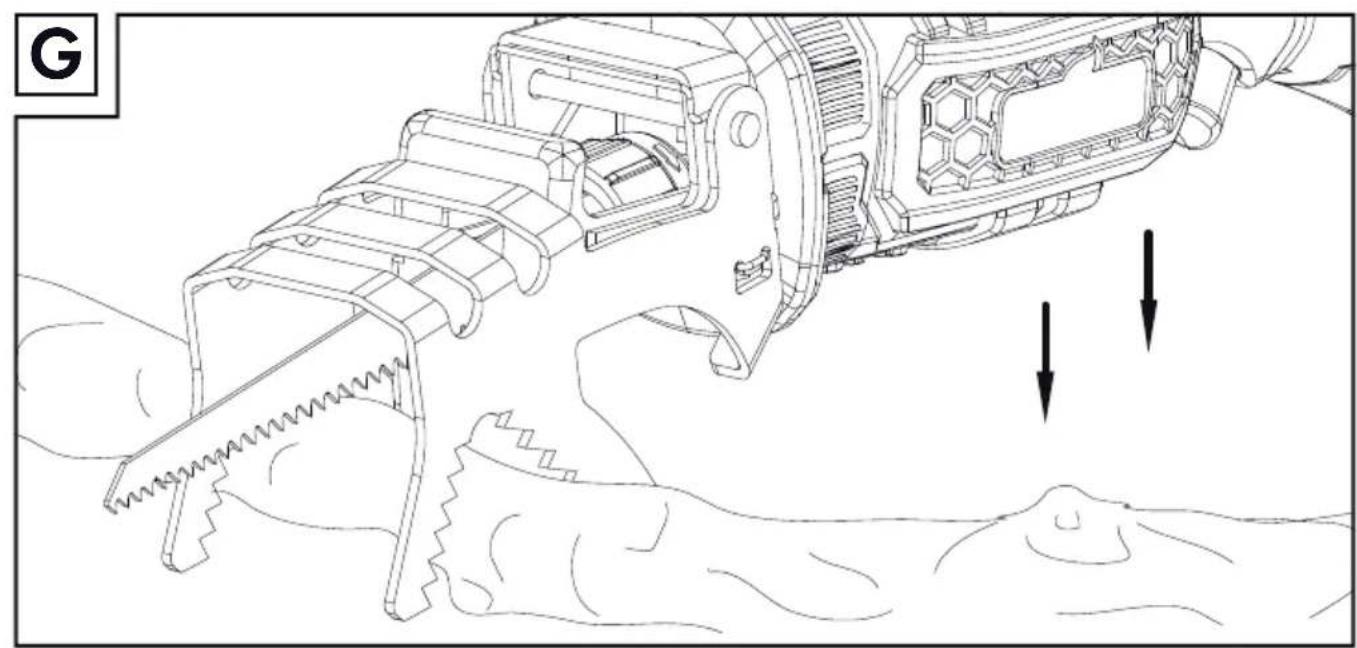

B) Working with the grip bracket (see fig. G):

♦ Push down lightly and move the saw downwards.

Maintenance and cleaning

NING! RISK OF INJURY! Always switch the appliance off and remove the battery before carrying out any work on the appliance.

■ Always remove the saw blade before carrying out any work on the power tool.

- Keep the appliance and ventilation slits clean at all times. If the ventilation slits are blocked, there is a risk of overheating and/or the appliance being damaged.

■ Always clean the appliance after completion of work.

■ Do not allow any liquids to get into the appliance. Use a cloth to clean the housing. Never use petrol, solvents or cleansers which can damage plastic.

■ Clean the saw blade mount, if necessary with a brush or by blowing it out with compressed air.

If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The optimum storage climate is cool and dry.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.

■ You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

WARNING!

▶ Have the power tool repaired by the Service centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.

▶ Always ensure that the power plug or the mains cable is replaced only by the manufacturer of the appliance or by an approved customer service provider. This will ensure that the safety of the appliance is maintained.

NOTE

▶ Replacement parts not listed (such as batteries, switches and grip bracket) can be ordered via our service hotline.

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 285192

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Disposal

kaging is made from environmen- tally friendly material and can be dis- posed of at your local recycling plant.

dispose of power tools in your normal household waste!

European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environmentally compatible manner.

dispose of batteries in your normal domestic waste!

Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Take the battery pack and/or appliance to a nearby collection facility.

Please consult your local authorities regarding suitable disposal of worn out power tools/battery packs.

Translation of the original Conformity Declaration

We, KOMPERNASS HANDELS GMBH, documents officer: Mr. Semi Uguzlu, BURGSTR. 21, DE - 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:

Machinery Directive (2006/42/EC)

EMC (Electromagnetic Compatibility) (2014/30/EU)

RoHS Directive (2011/65/EU)*

*The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.

Applied harmonised standards:

EN 60745-1:2009/A11:2010

EN 60745-2-11:2010

EN 62233:2008

EN 60335-1:2012/A11:2014

EN 60335-2-29:2004/A2:2010

EN 55014-1:2006/A2:2011

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

Type/appliance designation:

Cordless branch saw FAAS 12 B1

Year of manufacture: 3 - 2017

Serial number: IAN 285192

Bochum, 20/03/2017

Sofia Gruick

CE

Semi Uguzlu

- Quality Manager -

The right to effect technical changes in the context of further development is reserved.

Table des matières

Introduction 22

Informations relatives aux lames 26

Informations relatives aux lames

Diagram showing a hand using a tool to adjust or install a mechanical component with labeled parts and directional arrows.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Mise au rebut

J. J. J. J. J.

CE

Semi Uguzlu

Accupack: FAAS 12 B1-1

Diagram showing a hand using a tool to adjust or install a mechanical component with labeled parts and directional arrows.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DUITSLAND

www.kompernass.com

Afvoeren

Sethyfonk

CE

Semi Uguzlu

Diagram showing a hand using a tool to adjust or install a mechanical component with labeled parts and directional arrows.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

NĚMECKO

www.kompernass.com

Likvidace

Diagram showing a hand inserting a key into a lock mechanism, with labeled parts and directional arrows

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANIA

www.kompernass.com

Desecho

Diagram showing a hand using a lock to adjust a mechanical component, with labeled parts 6 and 7.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANHA

www.kompernass.com

Eliminação

Jed Fyond

CE

Semi Uguzlu

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE - 44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Stand der Informationen · Last Information Update · Version des informations

Stand van de informatie · Stav informací · Estado de las informaciones
