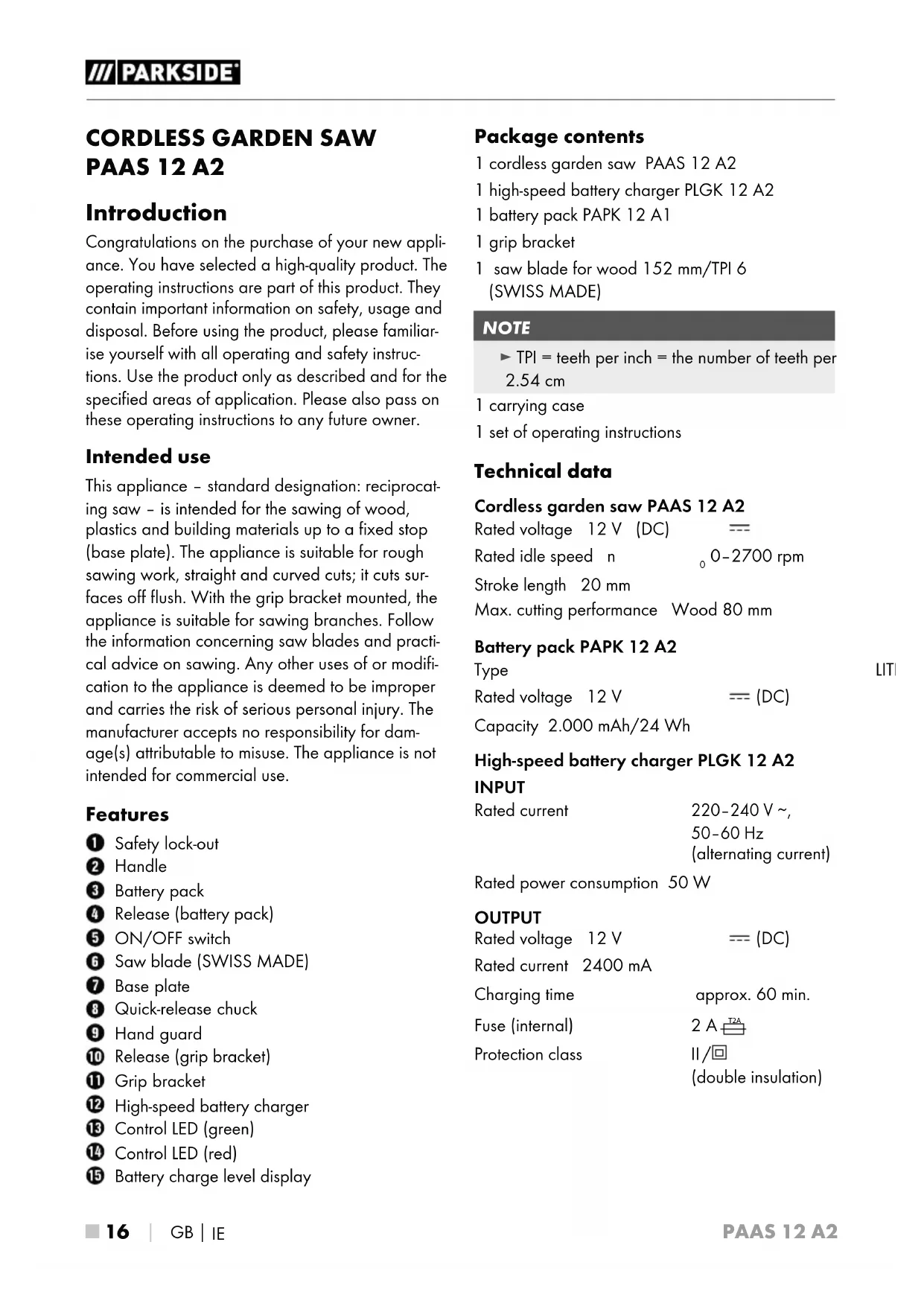

PAAS 12 A2 Introduction Congratulations on the purchase of your new appli- ance. You have selected a high-quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, please familiar- ise yourself with all operating and safety instruc- tions. Use the product only as described and for the specified areas of application. Please also pass on these operating instructions to any future owner. Intended use This appliance – standard designation: reciprocat- ing saw – is intended for the sawing of wood, plastics and building materials up to a fixed stop (base plate). The appliance is suitable for rough sawing work, straight and curved cuts; it cuts sur- faces off flush. With the grip bracket mounted, the appliance is suitable for sawing branches. Follow the information concerning saw blades and practi- cal advice on sawing. Any other uses of or modifi- cation to the appliance is deemed to be improper and carries the risk of serious personal injury. The manufacturer accepts no responsibility for dam- age(s) attributable to misuse. The appliance is not intended for commercial use. Features Safety lock-out Handle Battery pack Release (battery pack) ON/OFF switch Saw blade (SWISS MADE) Base plate Quick-release chuck Hand guard Release (grip bracket) Grip bracket High-speed battery charger Control LED (green) Control LED (red) Battery charge level display Package contents 1 cordless garden saw PAAS 12 A2 1 high-speed battery charger PLGK 12 A2 1 battery pack PAPK 12 A1 1 grip bracket 1 saw blade for wood 152 mm/TPI 6 (SWISS MADE) NOTE ► TPI = teeth per inch = the number of teeth per

1 carrying case 1 set of operating instructions Technical data Cordless garden saw PAAS 12 A2 Rated voltage 12 V (DC) Rated idle speed n

0–2700 rpm Stroke length 20 mm Max. cutting performance Wood 80 mm Battery pack PAPK 12 A2 Type LITHIUM ION Rated voltage 12 V (DC) Capacity 2.000 mAh/24 Wh High-speed battery charger PLGK 12 A2 INPUT Rated current 220–240 V ∼, 50–60Hz (alternating current) Rated power consumption 50 W OUTPUT Rated voltage 12 V (DC) Rated current 2400 mA Charging time approx. 60 min. Fuse (internal) 2 A T2A Protection class II / (double insulation)GB

 17 ■ PAAS 12 A2 Noise emission values Measured values for noise determined in accord- ance with EN 62841. The A-rated noise level of the power tool at the working location is typically as follows: Sound pressure level L

= 84.3 dB (A) Uncertainty K

= 3 dB Sound power level L

= 95.3 dB (A) Uncertainty K

= 3 dB Wear hearing protection! Total vibration values (vector total of three direc- tions) determined in accordance with EN 62841: Cutting board a h,B = 7.845 m/s

Cutting wooden beams a h,WB = 9.154 m/s

NOTE ► The declared total vibration value and the declared noise emission value have been measured according to a standardized test procedure and can be used to compare one power tool with another. ► The specified total vibration value and noise emission value (s) can also be used for a preliminary estimation of the load. WARNING! ► The vibration and noise emissions during the actual use of the power tool may deviate from the indication values, depending on the manner in which the power tool is used, in particular, which type of workpiece is being processed. ► Try to minimize the impact of vibration and noise. Exemplary measures to reduce vibra- tion exposure include wearing gloves while using the tool and limiting working time. In this case, all portions of the operating cycle are to be considered (for example, times in which the power tool is switched off, and those in which it is turned on, but runs without load). General power tool safety warnings WARNING! ► Read all safety warnings, instructions, illust- rations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or bat- tery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or ground- ed surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.■ 18 

PAAS 12 A2 d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduc- es the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that can- not be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or remove the battery pack, if detacha- ble, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool acci- dentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired be- fore use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.GB

 19 ■ PAAS 12 A2 g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, tak- ing into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unex- pected situations.

5. Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b) Use power tools only with specifically desig- nated battery packs. Use of any other battery packs may create a risk of injury and fire. c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. d) Under abusive conditions, liquid may be ejec- ted from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C (265°F) may cause explosion. g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instruc- tions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries! Protect the rechargeable battery from heat, for example from continuous exposure to sunlight, fire, water and moisture. There is a risk of explosion.

a) Have your power tool serviced by a qualified repair person using only identical replace- ment parts. This will ensure that the safety of the power tool is maintained. b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. Appliance-specific safety instructions ■ Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring or its own cord. Fasteners contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock. ■ Wear a dust mask!■ 20 

PAAS 12 A2 Safety guidelines for battery chargers ■ This appliance may be used by children aged 8 years and above and by persons with limited physi- cal, sensory or mental capabilities or lack of experience and know- ledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to play with the appliance. Cleaning and user maintenance tasks may not be car- ried out by children unless they are supervised. The charger is suitable for indoor use only.

To avoid potential risks, damaged mains cables should be replaced by the manufacturer or the manufactur- er’s customer service department or a similarly qualified person. WARNING! ■ Do not use any accessories which are not recommended by PARKSIDE. This can lead to an electric shock and fire. ATTENTION! ► This charger can only charge the following batteries: PAPK 12 A1/PAPK 12 A2/ PAPK 12 B1. ► A current list of battery compatibility can be found at www.Lidl.de/Akku. Practical advice on sawing ■ Check the material to be worked to make sure that all foreign objects have been removed, e.g. nails, screws, etc. ■ Switch the appliance off immediately if the saw blade jams. Open up the sawn gap using a suitable tool and pull out the reciprocating saw. ■ Saw the material at a constant speed. Original accessories/auxiliary equipment ■ Use only the additional equipment and acces- sories specified in the operating instructions. Using attachments or accessory tools other than those recommended in the operating instruc- tions can lead to a risk of injury. Information on saw blades You can use any saw blade that has a suitable mount – ½” (12.7 mm) universal shaft. Saw blades are available from retail stores in various lengths and optimised for a variety of purposes. NOTE ► TPI = teeth per inch = the number of teeth per

 21 ■ PAAS 12 A2 Before use Charging the battery pack CAUTION! ► Always unplug the appliance before you remove the battery pack from or connect the battery pack to the high-speed battery charger . NOTE ► Never charge the battery pack if the ambient temperature is below 10°C or above 40°C. If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The storage climate should be cool and dry and the ambient tem- perature should be between 0°C and 50°C. ♦ Connect the battery pack to the high-speed battery charger . ♦ Insert the power plug into the socket. The control LED lights up red. ♦ The green control LED indicates that the charging process is complete and the battery pack is ready for use. ♦ Push the battery pack back into the appli- ance. ♦ You should always switch the high-speed charger off for at least 15 minutes between successive charging processes. Also disconnect the power plug from the mains power socket. Attaching/disconnecting the battery pack to/from the appliance Attaching the battery pack ♦ Click the battery pack into the handle . Removing the battery pack ♦ Press the release buttons and remove the battery pack . Checking the battery charge level ♦ Press the safety lock-out and the ON/ OFF switch to check the charge level of the battery. The status/remaining charge will be shown on the battery charge level display as follows: RED/ORANGE/GREEN = maximum charge/ performance RED/ORANGE = medium charge/performance RED = low charge – charge the battery Attaching/removing the grip bracket NOTE ► The grip bracket cannot be attached/ removed while the saw blade is attached. Attaching the grip bracket (see fig. A–D) ♦ Press the release button

♦ Push the grip bracket over the guides on the base plate and onto the appliance. ♦ Lock the release button

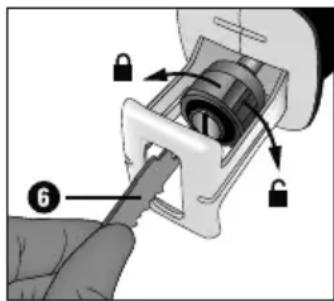

Removing the grip bracket ♦ Press the release and pull the grip bracket forwards out of the guides. Fitting/changing the saw blade Wear protective gloves when fitting/changing a saw blade . ♦ Turn the quick-release chuck as far as it will go in the direction of the arrow and hold it in this position. ♦ Push the required saw blade into the quick- release chuck as far as the stop. CAUTION! ► The teeth of the saw blade must point downwards! ♦ Let go of the quick-release chuck ; it must return to its initial position. The saw blade is now locked.■ 22 

PAAS 12 A2 Operation Switching on and off Switching on ♦ Press the safety lock-out

Switching off ♦ Release the ON/OFF switch

Sawing methods A) Working without the grip bracket (see fig. E) ■ For branches of a larger diameter or wood, plastic or building material, work without the grip bracket . The workpiece must be right up against the base plate. Use a rocking cutting motion for round workpieces. A1) Sawing flush ■ Flexible saw blades allow you to saw off pro- truding workpieces such as pipes located close to the wall, provided the saw blade is long enough.

1. Place the saw blade

directly against the wall.

2. Bend it by applying lateral pressure to the recip-

rocating saw so that the base plate comes into contact with the wall.

3. Switch the appliance on as described and saw

off the workpiece by applying constant pressure. A2) Plunge cutting (see fig. F) CAUTION! RISK OF KICKBACK! ► Plunge cuts may only be made in soft materials (wood or similar).

1. Place the reciprocating saw with the lower edge

of the base plate on the workpiece. Switch the appliance on.

2. Tilt the reciprocating saw forwards and plunge

the saw blade into the workpiece.

3. Position the reciprocating saw vertically and

continue sawing along the cutting line. B) Working with the grip bracket (see fig. G) ♦ Push down lightly and move the saw downwards. Maintenance and cleaning WARNING! RISK OF INJURY! Always switch the appliance off and remove the battery before carrying out any work on the appliance. ■ Always remove the saw blade before carrying out any work on the power tool. ■ Keep the appliance and ventilation slits clean at all times. If the ventilation slits are blocked, there is a risk of overheating and/or the appliance being damaged. ■ Always clean the appliance after completion of work. ■ Do not allow any liquids to get into the appli- ance. Use a cloth to clean the housing. Never use petrol, solvents or cleansers which can damage plastic. ■ Clean the saw blade mount, if necessary with a brush or by blowing it out with compressed air. ■ If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The optimum storage climate is cool and dry.GB

 23 ■ PAAS 12 A2 Kompernass Handels GmbH warranty Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below. Warranty conditions The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase. If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred. If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee. Scope of the warranty This appliance has been manufactured in accor- dance with strict quality guidelines and inspected meticulously prior to delivery. The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres. The warranty period does not apply to ■ Normal reduction of the battery capacity overtime ■ Commercial use of the product ■ Damage to or alteration of the product by the customer ■ Non-compliance with safety and maintenance instructions, operating errors ■ Damage caused by natural hazards Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: ■ Please have the till receipt and the item number (e.g.IAN12345) available as proof of purchase. ■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product. ■ If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. ■ You can return a defective product to us free of charge to the service address that will be pro- vided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.■ 24 

PAAS 12 A2 You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com. This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 123456. Service WARNING! ► Have the power tool repaired by the Service centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appli- ance is maintained. ► Always ensure that the power plug or the mains cable is replaced only by the manu- facturer of the appliance or by an approved customer service provider. This will ensure that the safety of the appliance is maintained. NOTE ► Replacement parts not listed (such as batteries, switches and grip bracket) can be ordered via our service hotline. Service Great Britain Tel.: 0800 404 7657 E-Mail: kompernass@lidl.co.uk Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: kompernass@lidl.ie IAN 340502_1910 Importer Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21 44867 BOCHUM GERMANY www.kompernass.com Disposal The packaging is made from environ- mentally friendly material and can be disposed of at your local recycling plant. Do not dispose of power tools in your normal domestic waste! European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environ- mentally compatible manner. Do not dispose of batteries in your normal household waste! Defective or worn-out rechargeable batteries must be recycled according to Directive 2006/66/EC. Take the battery pack and/or appliance to a nearby collection facility. Please consult your local authorities regarding suitable disposal of worn out power tools/battery packs. Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packag- ing material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites. Your local community or municipal authorities can provide information on how to dispose of the worn-out product. The product is recyclable, subject to extended producer responsibility and is collected separately.GB

 25 ■ PAAS 12 A2 Translation of the original Conformity Declaration We, KOMPERNASS HANDELS GMBH, document officer: Mr. Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives: Machinery Directive (2006/42/EC) EC Low Voltage Directive (2014/35/EU, charger only) EMC (Electromagnetic Compatibility) (2014/30/EU) RoHS Directive (2011/65/EU)*

• The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances. Applied harmonised standards: EN 62841-1:2015 EN 62841-2-11:2016 EN 62233:2008 EN 60335-1:2012/A13:2017 EN 60335-2-29:2004/A11: 2018 EN 55014-1:2017 EN 55014-2:2015 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 50581:2012 Type/appliance designation: Cordless garden saw PAAS 12 A2 Year of manufacture: 02–2020 Serial number: IAN 340502_1910 Bochum, 28/01/2020 Semi Uguzlu - Quality Manager - The right to effect technical changes in the context of further development is reserved.■ 26 

PAAS 12 A2 Ordering a replacement battery If you want to order a replacement battery for your appliance, you can do so easily via the Internet on www.kompernass.com or by telephone. Due to limited stocks, this item may sell out in a relatively short time. NOTE ► Online ordering of replacement parts might not be possible in some countries. In this is the case, please contact the Service hotline. Telephone ordering Service Great Britain Tel.: 0800 404 7657 Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., peak · 0,06 EUR/Min., off peak) To ensure fast processing of your order, have the article number of your appliance to hand (e.g. IAN 340502) in case of questions. The article number can be found on the type plate or the title page of these instructions.FR
