USER MANUAL PFBS 160 A1 PARKSIDE

Grip collar with LED light

Carbon brushes cover

2 Grinding discs, abrasive

3 Polishing attachments

1 Combination wrench

1 Clamping mandrel for polishing attachments

5 Grinding bits, abrasive

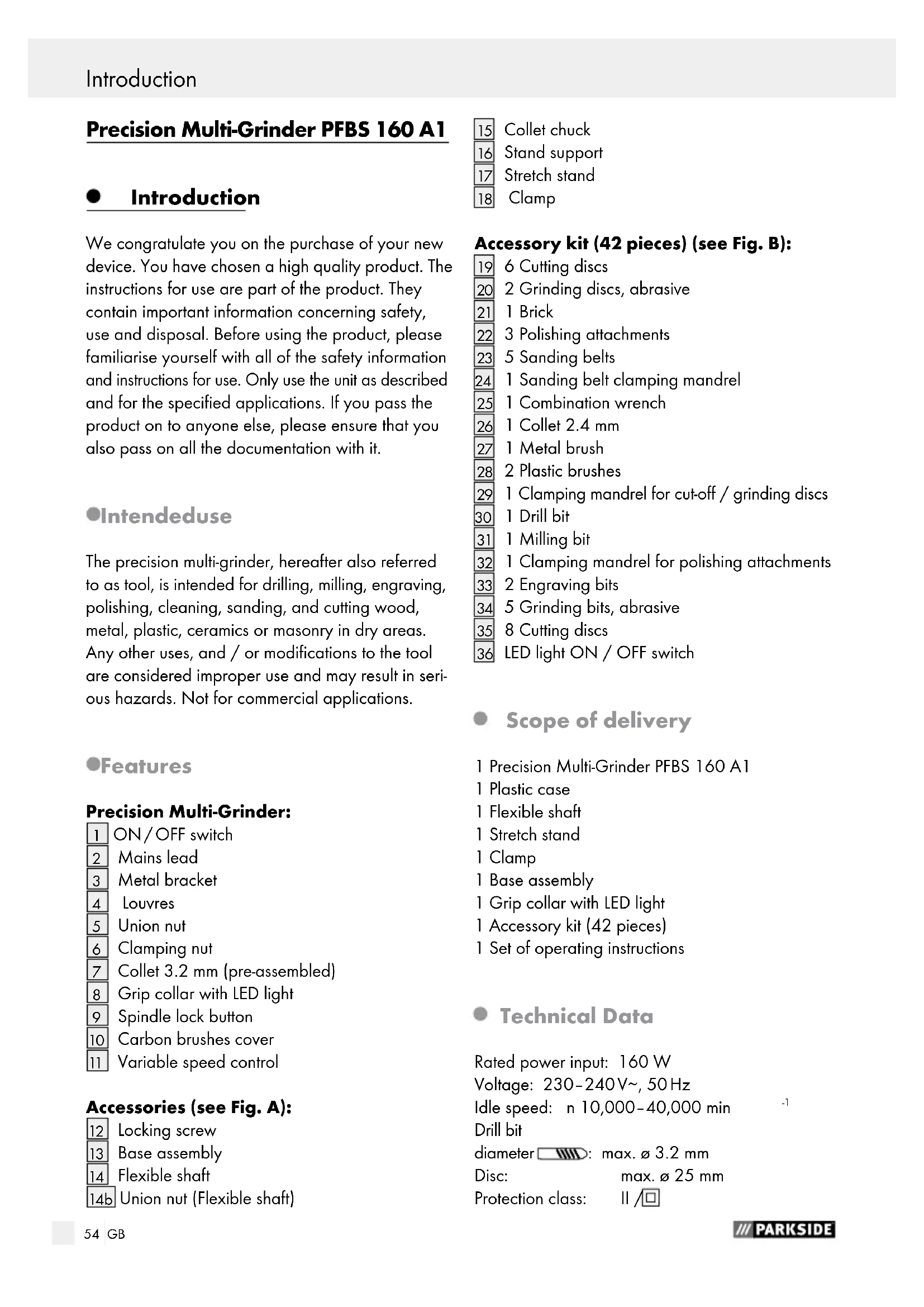

LED light ON / OFF switch Scope of delivery 1 Precision Multi-Grinder PFBS 160 A1 1 Plastic case 1 Flexible shaft 1 Stretch stand 1 Clamp 1 Base assembly 1 Grip collar with LED light 1 Accessory kit (42 pieces) 1 Set of operating instructions Technical Data Rated power input: 160 W Voltage: 230–240 V∼, 50 Hz Idle speed: n 10,000–40,000 min

Drill bit diameter : max. ø 3.2 mm Disc: max. ø 25 mm Protection class: II / Introduction / General power tool safety warnings55 GB Introduction Introduction / General power tool safety warnings Noise emission value: Measured values for noise are determined in accord- ance with EN 60745. The A-weighted noise level of the electrical power tool are typically: Sound pressure level: L = 80 dB(A) Uncertainty K : 3 dB(A) Sound power level: L = 91 dB(A) Uncertainty K : 3 dB(A) Wear ear protection! Vibration values (vector sum in three directions) determined according to EN 60745: Vibration emission value a

Uncertainty K = 1.5 m / s

Note: The vibration level specified in these instruc- tions was measured in accordance with an EN 60745 standardised measurement process and can be used to compare equipment. The vibration emission value specified can also serve as a preliminary assessment of the exposure. The vibration level will change according to the application of the electrical tool and in some cases may exceed the value specified in these instructions. Regularly using the electric tool in such a way may make it easy to underestimate the vibration. Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the work- ing time. Wherein all states of operation must be in- cluded (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load). General power tool safety warnings Read all safety warnings and all instructions. Failure to follow the warnings and in- structions may result in electric shock, fire and / or serious injury. Save all warnings and instructions for future reference! The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-op- erated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) D o not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractio

can cause you to lose control.

2. Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plug

and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

When operating a power tool outdo ors, use an extension cord suitable for out- door use. Use of a cord suitable for outdoor use reduces the risk of electric shock.56 GB General power tool safety warnings f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operat- ing a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medica- tion. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal in- juries. c) Avoid accidental starting. Verify the po- wer tool is switched off before connec- ting it to the mains and / or connecting the battery, picking it up, or carrying it. Accidents can happen if you carry the device with your finger on the ON / OFF switch or with the device switched on. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper foot- ing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from mov- ing parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connec- tion of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4. Power tool use and care

a) Do not force the power tool. Use the correct power tool for your applica tion. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Pull the mains plug out of the socket and / or remove the rechargeable bat- tery before you make any adjustments to the device, change accessories or when the device is put away. This pre- caution is intended to prevent the device from unintentionally starting. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of un- trained users. e) Maintain power tools. Check for mis- alignment or binding of moving parts, breakage of parts and any other con- dition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

a) Have your power tool serviced by a qualified repair person using only iden- General power tool safety warnings57 GB General power tool safety warnings General power tool safety warnings tical replacement parts. This will ensure that the safety of the power tool is maintained. Safety instructions for all operations Safety warnings common for grinding, sanding, wire brushing, polishing, carving or abrasive cutting-off operations: a) This power tool is intended to function as a grinder, sander, wire brush, pol- isher, carving or cut-off tool. Read all safety warnings, instructions, illustra- tions and specifications provided with this power tool. Failure to follow all instruc- tions listed below may result in electric shock, fire and / or serious injury. b) Do not use accessories which are not specifically designed and recommend- ed by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation. c) The rated speed of the grinding acces- sories must be at least equal to the max- imum speed marked on the power tool. Grinding accessories running faster than their rated speed can break and fly apart. d) The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. In- correctly sized accessories cannot be ade quately controlled. e) The arbour size of wheels, sanding drums or any other accessory must properly fit the spindle or collet of the power tool. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control. f) Mandrel mounted wheels, sanding drums, cutters or other accessories must be fully inserted into the collet or chuck. If the mandrel is insufficiently held and / or the overhang of the wheel is too long, the mounted wheel may become loose and be ejected at high velocity. g) Do not use a damaged accessory. Be- fore each use inspect the accessory such as abrasive wheels for chips and cra cks, sanding drum for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After in spect- ing and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory and run the power tool at maximum no- load speed for one minute. Damaged accesso- ries will normally break apart during this test time. h) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glass- es. As appropriate, wear dust mask, hearing protectors, gloves and work- shop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

i) Keep bystanders a safe distance away

from work area. Anyone entering the work area must wear personal protec- tive equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation. j) Hold power tool by insulated gripping surfaces only, when performing an op- eration where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a «live» wire may make exposed metal parts of the power tool «live» and could give the operator an electric shock. k) Always hold the tool firmly in your hand(s) during the start-up. The reaction torque of the motor, as it accelerates to full speed, can cause the tool to twist. l) U se clamps to support workpiece wh en- ever practical. Never hold a small work- piece in one hand and the tool in the other hand while in use. Clamping a small58 GB General power tool safety warnings workpiece allows you to use your hand(s) to control the tool. Round material such as dowel rods, pipes or tubing have a tendency to roll while being cut, and may cause the bit to bind or jump toward you. m) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory. n) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control. o) After changing the bits or making any adjustments, make sure the collet nut, chuck or any other adjustment devices are securely tightened. Loose adjustment devices can unexpectedly shift, causing loss of control, loose rotating components will be vio- lently thrown. p) Do not run the power tool while car- rying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body. q) Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing and excessive accumulation of pow- dered metal may cause electrical hazards. r) Do not operate the power tool near flammable materials. Sparks could ignite these materials. s) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock. Further safety instructions for all operations Kickback and related warnings Kickback is a sudden reaction to a pinched or sn agged rotating wheel, sanding band, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation. For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel’s movement at the point of pinching. Abrasive wheels may also break under these con- ditions. Kickback is the result of power tool misuse and / or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below. a) Maintain a firm grip on the power tool and position your body and arm to al- low you to resist kickback forces. The operator can control kickback forces, if proper precautions are taken. b) U se special care when working corne rs, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.

Do not attach a toothed saw blade. S uch blades create frequent kickback and loss of control. d) Always feed the bit into the material in the same direction as the cutting edge is exiting from the material (which is the same direction as the chips are thrown). Feeding the tool in the wrong direc- tion causes the cutting edge of the bit to climb out of the work and pull the tool in the direction of this feed. e) When using rotary files, cut-off wheels, high-speed cutters or tungsten carbide cutters, always have the work securely clamped. These wheels will grab if they be- come slightly canted in the groove, and can kickback. When a cut-off wheel grabs, the wheel itself usually breaks. When a rotary file, high-speed cutter or tungsten carbide cutter grabs, it may jump from the groove and you could lose control of the tool. General power tool safety warnings59 GB General power tool safety warnings General power tool safety warnings Additional safety instructions for grinding and cutting-off operations Safety warnings specific for grinding and abrasive cutting-off operations: a) Use only wheel types that are recom- mended for your power tool and only for recommended applications. For example: do not grind with the side of a cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter. b) For threaded abrasive cones and plugs use only undamaged wheel mandrels with an unrelieved shoulder flange that are of correct size and length. Proper man- drels will reduce the possibility of breakage. c) Do not “jam” a cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Over- stressing the wheel increases the loading and susceptibility to twisting or snagging of the wheel in the cut and the possibility of kickback or w heel breakage. d) Do not position your hand in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your hand, the possible kickback m

propel the spinning wheel and the power tool directly at you. e) When wheel is pinched, snagged or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never att empt to remove the cut-off wheel from the cut while the wheel is in motion other- wise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel pinching or snagging. f) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece. g) Support panels or any oversized work- piece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel. h) Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback. Additional safety instructions for wire brushing operations Safety warnings specific for wire brushing operations: a) Be aware that wire bristles are thrown by the brush even during ordinary op- eration. Do not overstress the wires by applying excessive load to the brush. The wire bristles can easily penetrate light cloth- ing and / or skin.

Allow brushes to run at operating spe

for at least one minute before using them. During this time no one is to stand in front or in line with the brush. Loose bristles or wires will be discharged during the run-in time. c) D irect the discharge of the spinning wir

brush away from you. Small particles and tiny wire fragments may be discharged at high velocity during the use of these brushes and may become imbedded in your skin. Safety notices specific to rotary tools When you use the drill / grinder wear the fol- lowing protective equipment: safety glasses and protective gloves. CAUTION! RISK OF INJURY! The tool continues to rotate after it has been switched off! Avoid contact with rapidly rotating drill / grinder components.60 GB General power tool safety warnings / Start-up Securely support the work- piece. Use clamps or a vice to grip the workpiece firmly. This is much safer than holding it in your hand. RISK OF INJURY! Never support yourself by placing your hands near or in front of the device or the workpiece surface. A slip can result in injury.

DANGER OF FIRE FROM FLYING

SPARKS! Abrading metal creates flying sparks. For this reason, always make sure that nobody is placed in any danger and that there are no inflamma ble materials near the working area. DUST HAZARD! Any harmful / noxious dusts generated from machin- ing represent a risk to the health of the person operating the device and to anyone near the work area. Wear a dust mask! TOXIC DUST! Ensure that there is adequate ventilation when machining surfaces containing plastic or covered with paint, varnish etc. Its use as a saw or the use of saw blades with this device is prohibited. Do not soak the materials or the surface you are about to work on with liquids containing solvents. Avoid abrading paints containing lead or other substances hazardous to health. Do not machine materials containing asbestos. Asbestos is a known carcinogen. Avoid contact with moving sanding or grinding tools. Do not machine moist materials or damp surface

NOTE! Do not allow the tool to come to a standstill by overloading it! RISK OF INJURY! Switch the device off and allow it to come to a standstill before you put it down. Always keep the device clean, dry and free of oil or grease. Children or persons who lack the knowledge or experience to use the device or whose physical, sensory or intellectual capacities are limited must never be allowed to use the device without super- vision or instruction by a person responsible for their safety. Children must never be allowed to play with the device. Safety instructions for LED lights ATTENTION! RISK OF EYE INJURY! Never aim the light beam directly at people or animals, and never look directly into the light beam of LED lights. Safety Instructions for batteries ATTENTION! Do not leave drained battery in the device, as even leak-proof batteries can corrode, releasing chemicals which could be harmful to your health or ruin the device. Do not leave batteries lying about carelessly. Children or pets could swallow them. If acciden- tally swallowed seek immediate medical attention

Remove the batteries from the device when it will not be used for extended periods to prevent leaks. Touching leaked or damaged batteries may cause chemical burns. Therefore wear suitable protective gloves in this event. Ensure batteries are not short-circuited. Never throw batteries into fire. Do not recharge batteries. Explosion hazard! Original accessories / tools Use only the accessories and attachments de-

ailed in the operating instructions, or those w hich are compatible with the tool. Start-up Attaching / changing the tool / collet Press and hold the spindle lock

until the lock catches. Loosen the clamping nut

for the thread. If applicable, remove the attached tool. Start-up61 GB General power tool safety warnings / Start-up Start-up First slide the tool you wish to use through the clamping nut

before inserting it into the collet

fitting the tool shaft. Press and hold the spindle lock

into the threaded insert, then tighten the clamping nut

using the combination wrench

on the thread. Using a tool with clamping mandrel: Use the screwdriver end of the combination wrench

to loosen and tighten the screw on the clamping mandrels. Insert the clamping mandrel in the tool as de- scribed. Using the combination wrench

, loosen the screw on the clamping mandrel. Insert the attachment you wish to use onto the screw between two washers. Use the combination wrench

to tighten the screw on the clamping mandrel. Brick Do not resharpen any edges by hand with the brick

Installing sanding belts Slide the grinding belt

onto the grinding man- drel

to secure the grinding belt

Attaching polishing tools Turn the polishing attachment

on the point of the mandrel for polishing attachments

Switching on and off / Adjusting the speed Switching on / adjusting the speed: Set the ON / OFF switch

to position „I“ by pressing down and sliding it forward. Set the variable speed control

to a position between „1“ and „MAX“. Switching off: Set the ON / OFF switch

to position „0“. Using the grip collar with LED light Hold the spindle lock

and unscrew the clamping nut

from the thread, turning coun- ter-clockwise. Release the spindle lock

Then screw the union nut

anti-clockwise from the thread. Screw the grip collar with LED light

onto the thread, turning clockwise. Hold the spindle lock

onto the thread, turning clockwise. Release the spindle lock

Set the ON / OFF switch of the LED light

position “I“ to switch it on (see Fig. C). Set the ON / OFF switch of the LED light

position “0“ to switch it off again. Repeat the steps in reverse order to reattach the union nut

Information about processing materials / tool / speed range Use the router bits to process wood, plastic and sheetrock at maximum speed. Determine the speed range for processing zinc, zinc alloys, aluminium, copper and lead by testing scrap pieces. Process plastics and materials with a low melt- ing point at a low speed. Process wood at high speeds. Clean, polish and buff at a medium speed. Note: The milling bit

is not intended for use on steel or iron. Suitable milling bits are available. The following information are non-binding recom- mendations. When performing the actual work also test yourself, which tools and settings are ideal for the material you are working on.62 GB Start-up Setting the appropriate speed: Numeral on the rotational speed control

Material to be worked on

Plastics and low melting point materials 2–3 Stone, Ceramics

Hardwood Max. Steel Examples of appropriate tool selection Function: Function Accessory Application Projection (min–max) mm Drilling Drill

Drilling wood 18–25 when us- ing the smallest drill the projection is 10 mm Milling Milling bit

Various tasks, e.g. hollowing out, gouging, shaping, grooving or slotting 18–25 Engraving Engraving bits

Making marks, craft projects (see Fig. D) 18–25 Polishing, derusting CAUTION! Use only the lightest contact pressure of the tool on the workpiece. Metal brush

Derusting 9–15 Polishing attach- ments

Working on various metals and plastics, in particular noble metals like gold or silver (see Fig. F) 12–18 Cleaning Plastic brush

E.g. cleaning complex plastic housings or the area around a door lock 9–15 Grinding Grinding wheels

Grinding work on stone, wood; fine work on hard materials such as ceramic or alloyed steel (see Fig. G) 12–18

Cutting and sawing Cutting discs

Cutting metal, plastic or wood 12–18 Be sure not to exceed the maximum diameter of composite abrasive wheels and grinding cones and cylinders with 55 mm thread insert, and the 80 mm maximum diameter of sandpaper grinding accessories. Note: The max. permissible mandrel length is 33 mm. Start-up63 GB Start-up Start-up Store accessories inside the original box or oth- erwise protect the accessories from damage. Store accessories dry and away from aggres- sive media. Tips and tricks Applying excessive pressure can cause the in- stalled tool to break and / or damage the work piece. Optimal results can be achieved by ap- plying the tool to the work piece at a steady speed range and little pressure. Hold the device with both hands whilst cutting. Please note the data and information in the chart to prevent the spindle end touching the perforated plate of the grinding tool. Flexible shaft Never use the spindle lock with the motor on. The tool or the flexible shaft could otherwise be damaged. Unscrew the union nut

from the tool, turning counter-clockwise, and put aside. Press and hold the spindle lock

from the tool, turning counter-clockwise. Attach the flexible shaft

to the tool, inserting the inner axle on the flexible shaft along with the clamping nut

Use the combination wrench

to the tool, turning clockwise. Now insert the accessory you wish to use into the collet

of the flexible shaft. To lock the spindle, slide back the black sleeve on the flexible shaft. Using the combination wrench

on the flexible shaft, insert the accessory and tighten the collet holder

can be screwed into the clamp in two different positions, de- pending on the whether you‘re attaching to a horizontal or vertical surface. Secure the clamp

at the edge of a work- bench or a work table no thicker than 55 mm. The stretch stand

is height adjustable. Loosen the upper tube of the stretch stand

by turning to the left (–). Extend the tube to the maximum height and secure by turning to the right (+). The holder

is also height adjustable, simple turn the black thread to the left. After adjusting the holder to the correct height, turn the thread in the opposite direction to tighten. Secure the tool to the holder

of the stretch stand

with the metal bracket

rotates by 360°. Base assembly Using the attachment, the tool is particularly suited for cutting special shapes (holes for sockets, etc.). Attach the milling bit

as described in chapter „Attaching / changing the tool / collet“. Ensure that the bit’s shaft protrudes from collet by approx. 13 mm. Unscrew the union nut

from the tool, turning clockwise, and put aside. Screw the base

onto the unit. To set the correct working depth, loosen the locking screw

and adjust the bottom of the base assembly to the desired size. Then tighten the locking screw

.64 GB Start-up / Cleaning, care and storage / Warranty

approx. 13 mm Changing the battery Ensure the LED light is switched off. Remove the three battery cover screws at the back of the grip collar with LED

Remove the drained battery and replace with a new battery (button cell LR41). Please note the correct polarity when inserting the batteries. Close the battery compartment by fastening the three screws. Cleaning, care and storage RISK OF INJURY! Switch the tool off and pull the plug out of the mains socket before carrying out any work on the tool. Always keep the tool clean, dry and free of oil or grease. Use a dry cloth to clean the housing. If the connection cable needs to be replaced, this repair must be performed by the manufacturer or a representative to prevent safety hazards. Carefully store the tool and all parts in desig- nated plastic case to prevent losing any parts. Note: Spare parts not listed (e.g. carbon brushes, switches) can be ordered through our call centre. Warranty The warranty for this appliance is for 3 years from the date of purchase. The ap- pliance has been manufactured with care and meticulously examined before deliv- ery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured. The warranty covers only claims for material and maufacturing defects, but not for transport damage, for wearing parts or for damage to fragile compo- nents, e.g. buttons or batteries. This product is for pri- vate use only and is not intended for commercial use. The warranty is void in the case of abusive and im- proper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty. The warranty period will not be extended by repairs made unter warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment. … / Disposal / Translation of the original declaration of conformity / Manufacturer65 GB Start-up / Cleaning, care and storage / Warranty … / Disposal / Translation of the original declaration of conformity / Manufacturer

Service Great Britain Tel.: 0871 5000 720 (0.10 GBP / Min.) e-mail: kompernass@lidl.co.uk IAN 273280 Disposal The packaging is wholly composed of environmentally-friendly materials that can be disposed of at a local recycling centre. Do not dispose of electric tools in the household waste! In accordance with European Directive 2012 / 19 / EU about waste electrical and electronic equipment and its transposition into national legislation, worn out electric tools must be collected separately and taken for environmentally compatible recycling. Please contact your municipal or city council to ask about how to dispose of old electrical tools. Batteries may not be disposed of in household waste! Every consumer is legally obligated to return batter- ies to a municipal collection site or a retail store. This duty is to ensure batteries are disposed of in an environmentally friendly manner. Only return drained batteries. Translation of the original declaration of conformity / Manufacturer We, KOMPERNASS HANDELS GMBH, the person responsible for documents: Mr Semi Uguzlu, BURG- STRASSE 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EU directives: Machinery Directive (2006 / 42 / EC) Electromagnetic Compatibility (2004 / 108 / EC) RoHS Directive (2011 / 65 / EU) Applicable harmonized standards EN 60745-2-23:2013 EN 60745-1:2009+A11:2010 EN 55014-1:2006/+A1:2009/+A2:2011 EN 55014-2:1997/+A1:2001/+A2:2008 EN 61000-3-2:2006/+A1:2009/+A2:2009 EN 61000-3-3:2013 Type / Appliance Designation: Precision Multi-Grinder PFBS 160 A1 Date of manufacture (DOM): 12–2015 Serial number: IAN 273280 Bochum, 31.12.2015 Semi Uguzlu - Quality Manager - We reserve the right to make technical modificat ions in the course of further development.KOMPERNASS HANDELS GMBH BURGSTRASSE 21 44867 BOCHUM DEUTSCHLAND
