USER MANUAL PABS 20Li A1 PARKSIDE

PDF online www.lidl-service.com PARKSIDE PARS 20-Li A1

CORDLESS DRILL PABS 20-Li A1

GB IE

CORDLESSDRILL

Operation and Safety Notes

Translation of the original instructions

SE

SLADDLÖS BORRSKRUVDRAGARE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FI

GB / IE Operation and Safety Notes Page 5

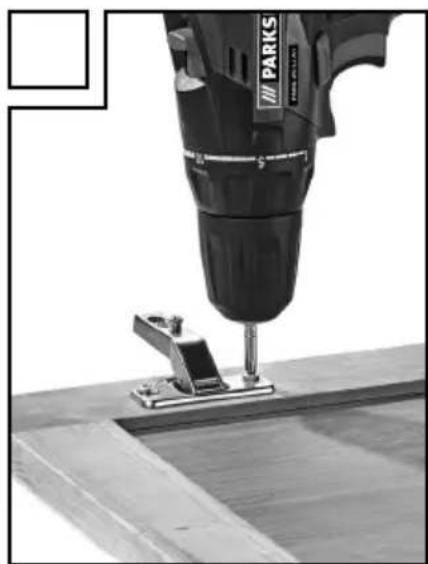

Close-up of a hand operating a drill bit on a wooden surface, labeled A, B, C (no text or symbols on the drill bit)

Close-up of a black-and-white photo of a PADS drill press tool on a wooden surface (no visible text or symbols)

X20CT 7 8 14 15 13

Introduction

Intended purpose....Page 6

Equipment Components......Page 6

Scope of delivery....Page 6

Technical Data Page 6

General safety advice for electrical power tools

1. Workplace safety......Page 7

2. Electrical safety......Page 7

3. Personal safety......Page 8

4. Careful handling and use of electrical power tools....Page 8

5. Use and handling of the cordless electrical power tool Page 9

6. Service Page 9

Safety advice relating to cordless drill drivers Page 9

Safety notices for chargers....Page 9

Supplementary Instructions....Page 9

Original ancillaries/accessories Page 10

Start-up

Charging the battery pack....Page 10

Insertion/removal of a battery pack into the appliance....Page 10

Checking battery status Page 10

Changing tools....Page 11

Speed preset/drilling stage......Page 11

2 Gear Drive Page 11

Operation

Switching On/Off......Page 11

Setting the speed....Page 11

Switching direction of rotation Page 11

Tips and Tricks....Page 11

Maintenance and Cleaning......Page 12

Warranty Page 12

Disposal Page 13

Translation of the original declaration of conformity / Manufacturer....Page 14

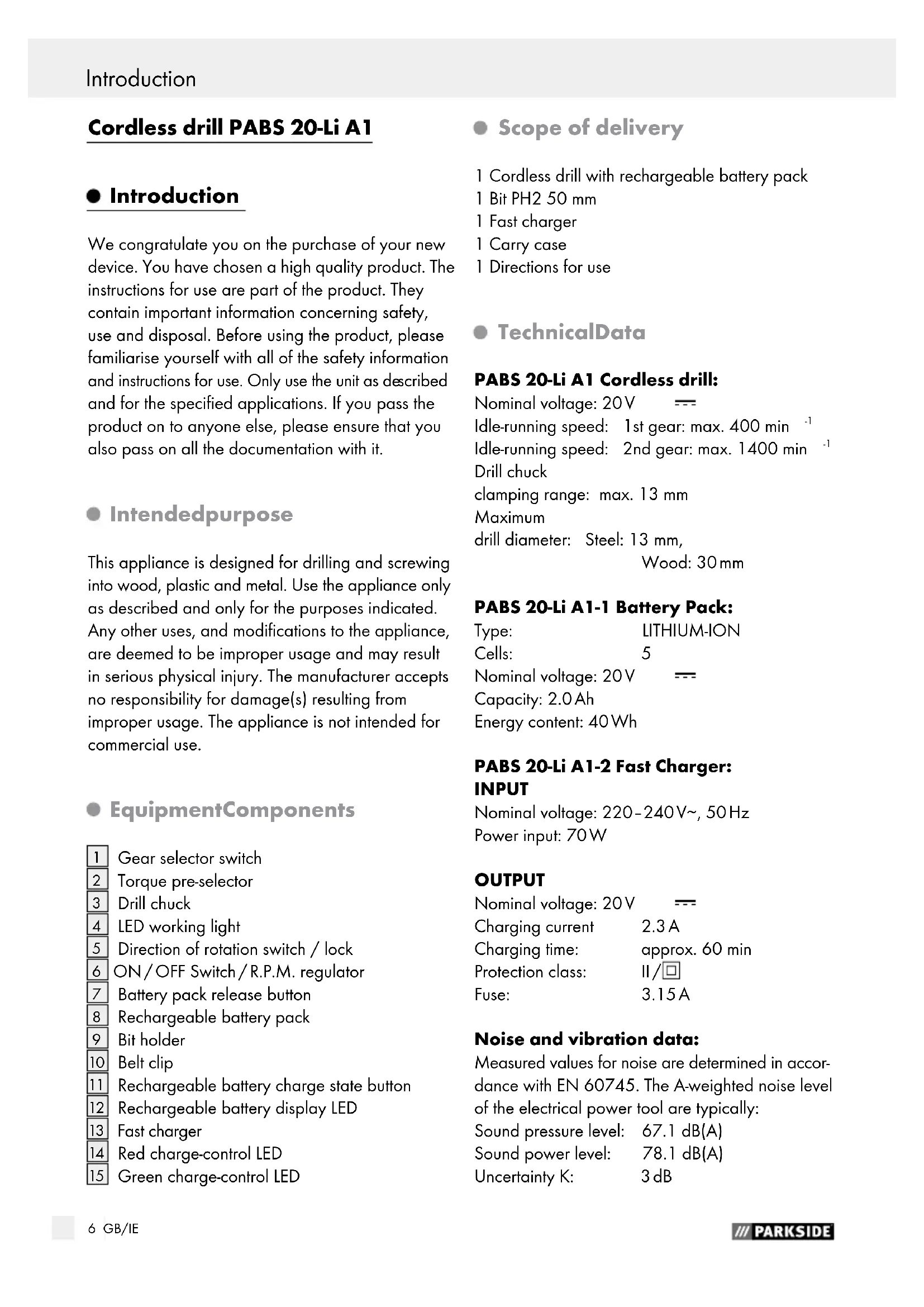

Cordless drill PABS 20-Li A1

- Introduction

We congratulate you on the purchase of your new device. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the unit as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Intendedpurpose

This appliance is designed for drilling and screwing into wood, plastic and metal. Use the appliance only as described and only for the purposes indicated. Any other uses, and modifications to the appliance, are deemed to be improper usage and may result in serious physical injury. The manufacturer accepts no responsibility for damage(s) resulting from improper usage. The appliance is not intended for commercial use.

EquipmentComponents

1	Gear selector switch
2	Torque pre-selector
3	Drill chuck
4	LED working light
5	Direction of rotation switch / lock
6	ON/OFF Switch/R.P.M. regulator
7	Battery pack release button
8	Rechargeable battery pack
9	Bit holder
10	Belt clip
11	Rechargeable battery charge state button
12	Rechargeable battery display LED
13	Fast charger
14	Red charge-control LED
15	Green charge-control LED

- Scope of delivery

1 Cordless drill with rechargeable battery pack
1 Bit PH2 50 mm
1 Fast charger
1 Carry case
1 Directions for use

- TechnicalData

PABS 20-Li A1 Cordless drill:

Nominal voltage: 20V Idle-running speed: 1st gear: max. 400 min ^-1 Idle-running speed: 2nd gear: max. 1400 min ^-1 Drill chuck clamping range: max. 13 mm Maximum drill diameter: Steel: 13 mm, Wood: 30 mm

PABS 20-Li A1-1 Battery Pack:

Type: LITHIUM-ION Cells: 5 Nominal voltage: 20V --- Capacity: 2.0 Ah Energy content: 40 Wh

PABS 20-Li A1-2 Fast Charger: INPUT

Nominal voltage: 220-240V\~, 50Hz Power input: 70W

OUTPUT

Nominal voltage: 20V Charging current 2.3A Charging time: approx. 60 min Protection class: II/☐ Fuse: 3.15A

Noise and vibration data:

Measured values for noise are determined in accordance with EN 60745. The A-weighted noise level of the electrical power tool are typically: Sound pressure level: 67.1 dB(A) Sound power level: 78.1 dB(A) Uncertainty K: 3 dB

Total vibration (vector sum of three directions) is calculated in accordance with EN 60745:

Drilling metal:

Vibration emission value a max. 1.088 m / §

Uncertainty K = 1.5 m/s ^4

Screws:

Vibration emission value a max. 1.088 m / §

Uncertainty K = 1.5 m/s ^4

Note: The vibration level specified in these instructions was measured in accordance with an EN 60745 standardised measurement process and can be used to compare equipment. The vibration emission value specified can also serve as a preliminary assessment of the exposure.

A WARNING! The vibration level will change according to the application of the electrical tool an in some cases may exceed the value specified in these instructions. Regularly using the electric tool in such a way may make it easy to underestimate the vibration. If you wish to make an accurate assessment of the vibration loads experienced during a particular period of working, you should also take into account the intervening periods of time when the device is switched off or is running but is not actually in use. This can result in a much lower vibration load over the whole of the period of working.

● General safety advice for electrical power tools

WARNING! Read all the safety advice and instructions! Failure

to observe the safety advice and instructions may result in electric shock, fire and / or serious injury.

Keep all the safety advice and instructions in a safe place for future reference!

The term "electrical tool" used in the safety advice refers to electrical tools powered by mains electricity (by means of a mains lead) and electrical tools powered by rechargeable batteries (without a mains lead).

1. Workplace safety

a) Keep your working area clean and well lit. Untidy or poorly lit working areas can lead to accidents.
b) Do not work with the device in potentially explosive environments in which there are inflammable liquids, gases or dusts. Electrical power tools create sparks, which can ignite dusts or fumes.
c) Keep children and other people away while you are operating the electrical tool. Distractions can cause you to lose control of the device.

2. Electrical safety

a) The mains plug on the power tool (or on the power supply) must fit the mains socket. Never modify the plug in any way. Never use adapter plugs with earthed power tools. Unmodified plugs and the correct sockets reduce the risk of electric shock.
b) Avoid touching earthed surfaces such as pipes, radiators, ovens and refrigerators with any part of your body. There is an increased risk of electric shock if your body is earthed.

c) Keep the device away from rain or moisture. Water entering an electrical device increases the risk of electric shock.

d) Do not use the mains lead for any purpose for which it was not intended, e.g. to carry the device, to hang up the device or to pull the mains plug out of the mains socket. Keep the mains lead away from heat, oil, sharp edges or moving parts of the device. Damaged or tangled mains leads increase the risk of electric shock.

e) When working outdoors with an electrical power tool always use extension cables that are also approved for use outdoors. The use of an extension cable suitable for outdoor use reduces the risk of electric shock.

f) Use a residual current device (RCD) for protection if operating the electrical power tool in a moist environment is unavoidable. The use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Remain alert at all times, watch what you are doing and always proceed with caution. Do not use the device if you are tired or under the influence of drugs, alcohol or medication. One moment of carelessness when using the device can lead to serious injury. b) Wear personal protective equipment and always wear safety glasses. The wearing of personal protective equipment such as dust masks, non-slip safety shoes, safety helmets or ear protectors, appropriate to the type of electrical power tool used and work undertaken, reduces the risk of injury.
c) Avoid accidental starting. Verify the power tool is switched off before connecting it to the mains and / or connecting the battery, picking it up, or carrying it. Accidents can happen if you carry the device with your finger on the ON / OFF switch or with the device switched on.
d) Remove any setting tools or spanners before you switch the device on. A tool or spanner left attached to a rotating part of a device can lead to injury.
e) Avoid placing your body in an unnatural position. Keep proper footing and balance at all times. By doing this you will be in a better position to control the device in unforeseen circumstances.
f) Wear suitable clothing. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves clear of moving parts. Loose clothing, jewellery or long hair can become trapped in moving parts.
g) If vacuum dust extraction and collection devices are fitted do not forget to check that they are properly connected and

correctly used. The use of these devices reduces the hazard presented by dust.

4. Careful handling and use of electrical power tools

a) Do not overload the device. Always use an electrical power tool that is intended for the task you are undertaking. By using the right electrical power tool for the job you will work more safely and achieve a better result.
b) Do not use an electrical power tool if its switch is defective. An electrical power tool that can no longer be switched on and off is dangerous and must be repaired.
c) Pull the mains plug out of the socket and / or remove the rechargeable battery before you make any adjustments to the device, change accessories or when the device is put away. This precaution is intended to prevent the device from unintentionally starting.
d) When not in use always ensure that electrical power tools are kept out of reach of children. Do not let anyone use the device if he or she is not familiar with it or has not read the instructions and advice. Electrical power tools are dangerous when they are used by inexperienced people.
e) Look after the device carefully. Check that moving parts are working properly and move freely. Check for any parts that are broken or damaged enough to detrimentally affect the functioning of the device. Have damaged parts repaired before you use the device. Many accidents have their origins in poorly maintained electrical power tools.
f) Keep cutting tools clean and sharp. Carefully maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.
g) Use the electrical power tool, accessories, inserted tools etc. in accordance with these instructions and advice, and

the stipulations drawn up for this particular type of device. In doing this, take into account the working conditions and the task in hand. The use of electrical power tools for purposes other than those intended can lead to dangerous situations.

5. Use and handling of the cordless electrical power tool

a) Charge a rechargeable battery unit using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used.
b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire.
c) When they are not being used, store rechargeable battery units away from paperclips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire.
d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.
■ CAUTION! DANGER OF EXPLOSION! The batteries must never be recharged!
Protect the battery against heat, e.g., against continuous intense sunlight, fire, water and moisture. Danger of explosion.
Protect the battery against heat, e.g., against continuous intense sunlight, fire, water and moisture. Danger of explosion.

6. Service

a) Have your device repaired at the service centre or by qualified specialist personnel using original manufacturer parts only. This will ensure that your device remains safe to use.

● Safety advice relating to cordless drill drivers

WARNING! Hold the device by the insulated handle surfaces when you are undertaking work where there is the danger of the screw striking hidden electricity cables or the device's mains lead. Contact of the screw with a live wire could cause metal parts of the device to become live and lead to electric shock.

● Safety notices for chargers

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

The charger is only suitable for indoor use.

If the mains power cable of this appliance is damaged, it has to be replaced by the manufacturer or its service department or a similarly qualified person in order to avoid hazards.

• Supplementary Instructions

- Securely support the workpiece. A workpiece held in a clamp or vice is kept more securely in place than one held by your hand.

Harmful / noxious dusts generated from your work represent a risk to the health of the person operating the device and to anyone near the work area. Wear safety glasses and a dust mask!

• Do not drill any material containing asbestos. Asbestos is a known carcinogen.
• Hold the electrical power tool firmly. High reaction torques may occur momentarily during tightening or loosening of screws.
  If the inserted tool jams, switch off the electrical power tool immediately. Be prepared for high reaction torques as they may cause kickback. The inserted tool may jam if the electrical power tool is overloaded or is held at an angle to the workpiece.
  Before you carry out any tasks on the device, transport or store it, make sure that the direction of rotation switch is in the middle position (lock). To prevent the device from starting up unintentionally.

DANGER! Take steps to ensure that you do not hit upon any service lines (electricity, gas, water) when working with electrical appliances. Check, if need be with a service line detector, before you start to cut or bore into a surface.

• Originalancillaries/accessories
Use only the ancillaries and accessories that are detailed in the operating instructions. The use of ancillaries and accessories other than those recommended in the operating instructions could lead to an increased risk of personal injury for you.

- Start-up

- Charging the battery pack

⚠️ CAUTION! Always ensure the plug is removed from the mains socket before inserting a battery pack into, or removing one from, the charging station.

■ Never charge the battery pack if the ambient temperature is less than 10 °C or greater than 40 °C .

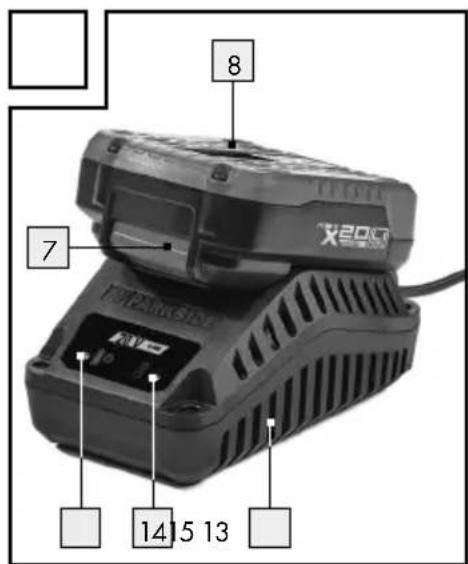

1. Insert the battery pack 8 into the rapid charger 13 (see Fig. C).
2. Insert the mains plug into the mains socket. The status LED 14 will light up red. The green charging status LED 15 indicates charging has completed and the battery pack 8 is ready for use.
3. Slide the battery pack 8 into the device.

■ Never charge the battery pack for a second time immediately after a fast charging process has been completed. This can give rise to the battery pack becoming overcharged and to a reduced service life of the battery and charging station.
☐ Switch the charger off for at least 15 minutes between two successive charging procedures. Remove the power plug from the wall socket.
- Insertion / removal of a battery pack into the appliance

Inserting the rechargeable battery pack:

☐ Move the rotation switch into the middle position (lock). Push the rechargeable battery pack 8 into the handle until it engages.

Removing the rechargeable battery pack:

☐ Press the release button 7 and remove the rechargeable battery pack.

- Checking battery status

☐ To check the battery status, press the battery LED button 11 (refer to main diagram). The three battery LEDs 12 indicate the condition and the remaining charge as follows: GREEN/RED/ORANGE = maximum charge/capacity RED/ORANGE = medium charge/capacity RED = weak charge - recharge battery

- Changingtools

Your cordless drill has a fully automatic spindle lock SPINDLE LOCK®.

Once the motor has come to a halt, the drive shaft is automatically locked, so that the drill chuck 3 can be opened simply by turning it ↗.

After you have inserted the required bit and fixed it in place by turning the chuck ↗, you can immediately continue working. The spindle lock releases itself automatically when the motor is started (by operation of the ON / OFF switch 6).

• Speed preset / drilling stage

You can adjust the torque by using 2 torque pre-selection.

☐ Select a low setting for small screws, soft work material.
☐ Select a high setting for large screws, hard work materials and for the extraction of screws.
☐ For drilling, push the selector to the setting for drilling, in that you adjust the torque pre-selector to the position.

2 Gear Drive

⚠️ CAUTION! Move the gear selector switch 1 only after the device has come to a standstill.

Failure to observe this advice may result in damage to the device.

In the first gear (Gear selector switch 1 in Position: 1)

A speed of up to approx. 400 rpm can be achieved and a high torque. This setting is intended for use with all screwing tasks and for accessories (see example Fig. B).

In the second gear (Gear selector switch 1 in Position: 2)

It achieves a speed of up to approx. 1400 rpm, for the carrying out of drilling tasks (see example Fig. A).

Operation

- Switching ON/OFF

Switching on:

☐ To start the appliance squeeze on the ON / OFF switch 6 and then keep it pressed down. The LED working light 4 comes on with a slightly or fully pressed ON /OFF switch 6 and illuminates the working area in poor lighting conditions.

Switching off:

☐ To stop the appliance, release the ON / OFF switch 6.

Setting the speed

The ON/OFF switch 6 has a variable speed control device. Slight pressure on the ON/OFF switch 6 will cause the rotation speed to slow down. With increased pressure, the rotational speed will increase.

Note: The integrated engine brake means that the device will come to a fast standstill.

- Switching direction of rotation

☐ To switch the direction of rotation, push the direction of rotation switch 5 to either the right or to the left.

- Tips and Tricks

Before you use the appliance, check to see that the screw or drill bit is properly fitted, i.e. located centrally in the chuck.
☐ Screw bits are designated with their dimensions and their shape. If you are unsure, always try the particular screw bit out to see whether it sits in the screw head without any free play.

Torque:

☐ Smaller screws and bits in particular can be easily damaged if you adjust the appliance with too high a torque and / or rotation speed.

Hard screwdriving conditions (into metal):

☐ Particularly high torques can occur, for example with metal screws tightened by socket tool bits. Select a lower rotation speed.

Soft screwdriving conditions (e.g. into soft wood):

☐ You should also select a low speed in order not to damage the wood workpiece surface through contact with the metal screw head. Use a countersinker.

When drilling into wood, metal and other materials, take note of the following advice:

☐ With small diameter drill bits use a high drill speed. For large diameter drill bits, use a low drill speed.
☐ For hard materials, select a low drill speed. For soft materials, select a high drill speed.
☐ Secure or fix down the workpiece (if possible) in a clamp or vice.
☐ Mark the intended position of the hole with a centre punch or a nail and select a low drill speed for drilling.
☐ Take the rotating drill bit out of the hole frequently so that swarf or drill dust can be re-moved and the hole and tool is ventilated.

Drilling in metal:

☐ Use a metal drill bit (HSS). For the best results, you should cool the bit with oil. Metal drill bits can also be used to drill into plastic.

Drilling in wood:

Normally you should use a wood drill with a centring point. For deep holes, use an auger type bit. For large diameter holes, use a forstner bit. You can screw small screws into soft wood without the need for pre-drilling.

● Maintenance and Cleaning

WARNING! RISK OF INJURY! Switch the device off, unplug from the mains socket and remove the battery before performing any work on the device.

The cordless drill is maintenance-free.

□ Always keep the device clean, dry and free of oil or grease.
☐ Use a dry cloth to clean the housing.

WARNING! If the connection cable needs to be replaced, this repair must be performed by the manufacturer or a representative to prevent safety hazards.

☐ When storing a lithium-ion battery for extended periods, regularly check the charge. The optimal charge is between 50 % and 80 %. The optimal storage climate is cooling and dry.

Note: Spare parts not listed (e.g. carbon brushes, switches) can be ordered through our call centre.

- Warranty

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use.

The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.

The warranty period will not be extended by repairs made unter warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after

the purchase date. Repairs made after the expiration of the warranty period are subject to payment.

GB

Service Great Britain

Tel.: [phone]

(0.10 GBP/Min.)

e-mail: [e-mail]

IAN 113378

IE

Service Ireland

Tel: [phone]

(0.08 EUR/Min. (peak)

0.06 EUR/Min. (off peak))

e-mail: [e-mail]

IAN 113378

Do not dispose of rechargeable batteries with your household refuse!

Defective or worn out rechargeable batteries must be recycled according to Directive 2006 / 66 / EC. Dispose of batteries and appliances over the existing collection facilities.

Your local communal or municipal authorities can provide information on how to dispose of the worn out appliance.

- Disposal

The packaging comprises exclusively environmentally-friendly material. Dispose of it in your local recycling containers.

Do not dispose of electrical appliances with your domestic waste!

According to the European Directive 2012 / 19 / EU, concerning used electrical and electronic appliances and its implementation in national law, superannuated electrical appliances must be collected and disposed of via an environmentally suitable recycling facility.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

Translation of the original declaration of conformity/Manufacturer

● Translation of the original declaration of conformity / Manufacturer CE

We, KOMPERNASS HANDELS GMBH, the person responsible for documents: Mr Semi Uguzlu, BURGSTRASSE 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EU directives:

Machinery Directive (2006/42/EC)

EC Low Voltage Directive (2006/95/EC)

Electromagnetic compatibility (2004/108/EC)

RoHS Directive (2011/65/EU)

Applicable harmonized standards

EN 60745-1:2009/A11:2010

EN 60745-2-1:2010

EN 60745-2-2:2010

EN 60335-1:2012+A11

EN 60335-2-29:2004+A2

EN 62233:2008

EN 55014-1:2006/A2:2011

EN 55014-2:1997/A2:2008

EN 55014-1:2006+A1+A2

EN 55014-2:1997+A1+A2

EN 61000-3-2:2014

EN 61000-3-3:2013

Type / Appliance Designation:

Cordless drill PABS 20-Li A1

Date of manufacture (DOM): 07-2015

Serial number: IAN 113378

Bochum, 31.07.2015

Jeddyand

Semi Uguzlu

- Quality Manager -

We reserve the right to make technical modifications in the course of further development.

Johdanto

Date of manufacture (DOM): 07-2015

Sarjanumero: IAN 113378

Bochum, 31.07.2015

Jed Fyork

Semi Uguzlu

- Laatumanageri -

Fourniture......Page 46

Directive Machines (2006/42/EC)

RoHS Directive (2011/65/EU)

Nominale spanning: 20V ---

Capaciteit: 2,0 Ah

WAARSCHUWING! GIFTIGE STOFFEN!

WAARSCHUWING! GEVAAR VOOR

Date of manufacture (DOM): 07-2015

Serienummer: IAN 113378

Bochum, 31.07.2015

Jeddyush

Semi Uguzlu

Jed Fyork

Semi Uguzlu - Qualitätsmanager -

KOMPERNASS HANDELS GMBH

BURGSTRASSE21

44867BOCHUM

GERMANY

Last Information Update · Tietojen tila · Informationsstatus

Tilstand af information · Version des informations

Stand van de informatie · Stand der Informationen:

07 / 2015 · Ident.-No.: PABS20-LiA1072015-3
