DBF140 - Radio DAEWOO - Free user manual and instructions

Product type	Radio
Brand	Daewoo
Model	DBF140
Power supply	Batteries (3x R14/UM2/C) or mains via AC cable
Main functions	FM Radio, Clock, Alarm, Snooze, Sleep, MP3 playback via USB/Micro SD/AUX
Tuning	Manual and automatic
Preset memory	50 stations
Antenna	Telescopic
Clock format	12h/24h
Sleep duration	15, 30, 45, 60, 75, 90 minutes or OFF
Snooze duration	5, 10, 15, 20 or 25 minutes
Alarm sounds	Beep (bb), USB, Radio
Audio inputs	USB, Micro SD, AUX IN (3.5 mm)
Care and cleaning	Clean with a dry cloth, avoid humidity and extreme temperatures
Safety	Do not open, do not expose to rain, unplug if not used for a long time
General information	CE certification, WEEE directive, end-of-life recycling

Frequently Asked Questions - DBF140 DAEWOO

How to set the clock on the Daewoo DBF140 radio?

Make sure the radio is off. Press and hold TIME/PROG for 3 seconds. Use PRESET + to choose the 12h/24h format, then press TIME/PROG again. Set the hours with PRESET +/–, press TIME/PROG to move to minutes, set them in the same way, then press TIME/PROG to confirm.

How to set the alarm on the Daewoo DBF140 radio?

Turn off the radio. Press and hold AL/MODE for 3 seconds. Use PRESET +/– to set the hour, press AL/MODE for minutes. Press AL/MODE again to choose the alarm sound (bb, USB or Radio) with PRESET +/–. Finally, set the snooze duration (5, 10, 15, 20 or 25 min) with PRESET +/– and confirm with AL/MODE.

How to use the sleep function?

Turn on the radio and press SLEEP to choose a duration: 15, 30, 45, 60, 75, 90 minutes or OFF. The radio will turn off automatically after the selected time. You can also press ON/STAND BY to turn it off manually.

How to tune FM stations?

Press ON/STAND BY to turn on, then press AL/MODE once or twice to select FM. For manual tuning, briefly press TUNING + or TUNING – until the desired frequency. For automatic tuning, press and hold TUNING + or TUNING – until the frequency scrolls; the device will stop at a strong station.

How to save station presets?

Turn on the radio and tune to the desired station. Press TIME/PROG once to enter programming mode. Use PRESET +/– to choose a memory location (up to 50). Press TIME/PROG to confirm. To recall a preset, simply press PRESET +/–.

How to listen to MP3 files via USB or Micro SD?

Insert a USB stick or Micro SD card (unlocked). Press AL/MODE to select the USB or SD source. Playback starts automatically. Use PRESET +/– to change track and TIME/PROG for pause/resume.

What to do if the radio does not turn on?

First check the power supply: if using batteries, ensure they are correctly inserted and not worn out; if using mains, plug the AC cable into a working outlet. If the problem persists, contact an authorized service center.

How to improve FM reception?

Extend and orient the telescopic antenna located at the back of the radio. Try placing it in different directions to catch the strongest signal. Avoid metal obstacles or thick walls.

How to use the AUX input?

Connect your external device (MP3 player, smartphone, etc.) to the AUX IN jack at the back of the radio using a 3.5 mm audio cable. Press AL/MODE until AU is selected. Playback is from the connected device; use its controls.

How to change the radio's batteries?

Open the battery compartment at the back of the device. Remove the old batteries and insert three new batteries of type R14, UM2 or C, observing the indicated polarities (+/-). Close the cover. For longer life, remove the batteries if the device is not used for several weeks.

USER MANUAL DBF140 DAEWOO

MANUEL D'INSTRUCTIONS

MANUAL DE INSTRUÇÕES

Open the battery compartment and insert as indicated in the compartment three Batteries, type R14, UM2 o C cells.

ENG

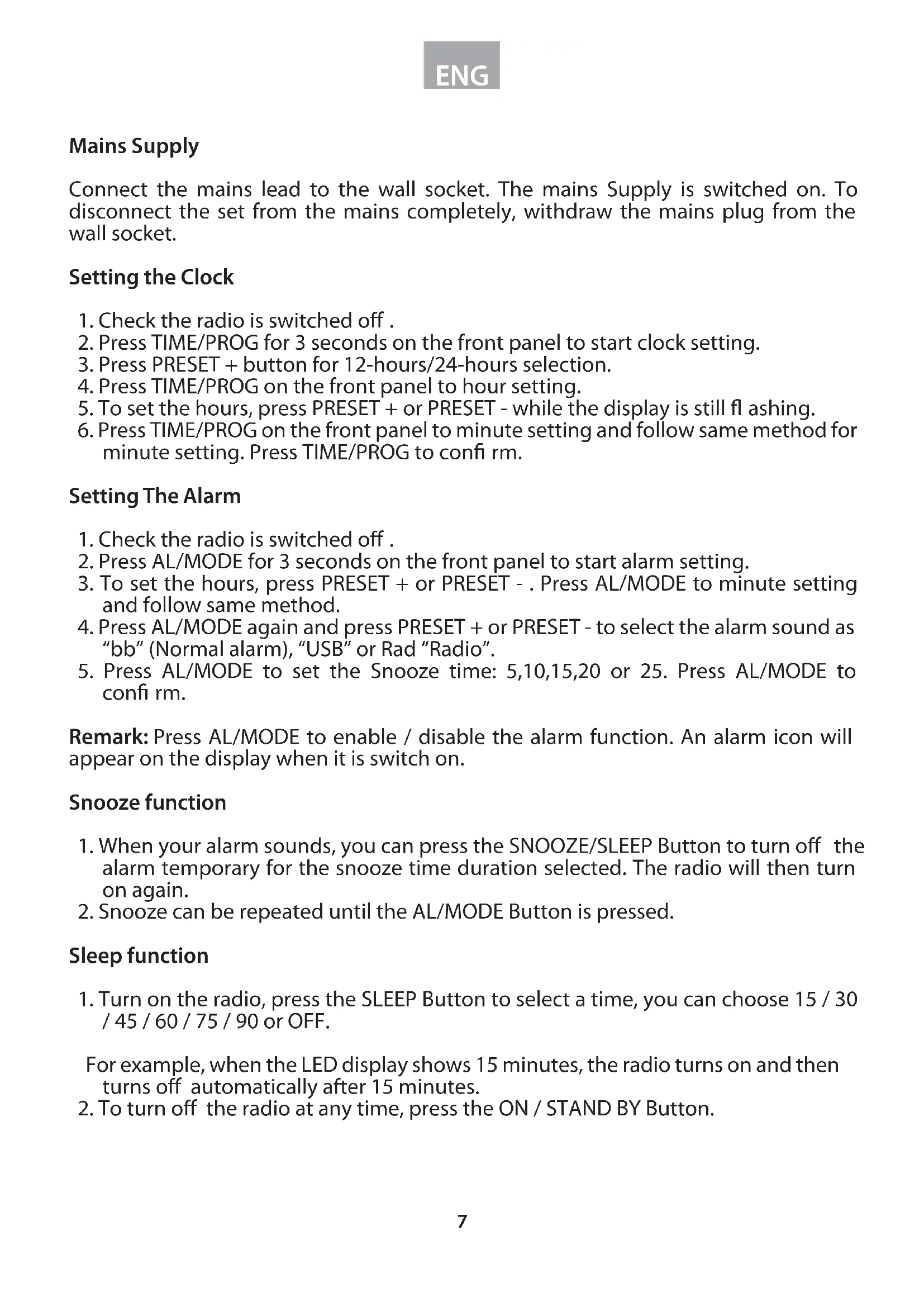

Mains Supply

Connect the mains lead to the wall socket. The mains Supply is switched on. To disconnect the set from the mains completely, withdraw the mains plug from the wall socket.

Setting the Clock

1. Check the radio is switched off.
2. Press TIME/PROG for 3 seconds on the front panel to start clock setting.
3. Press PRESET + button for 12-hours/24-hours selection.
4. Press TIME/PROG on the front panel to hour setting.
5. To set the hours, press PRESET + or PRESET - while the display is still flashing.
6. Press TIME/PROG on the front panel to minute setting and follow same method for minute setting. Press TIME/PROG to confirm.

Setting The Alarm

1. Check the radio is switched off.
2. Press AL/MODE for 3 seconds on the front panel to start alarm setting.
3. To set the hours, press PRESET + or PRESET -. Press AL/MODE to minute setting and follow same method.
4. Press AL/MODE again and press PRESET + or PRESET - to select the alarm sound as "bb" (Normal alarm), "USB" or Rad "Radio".
5. Press AL/MODE to set the Snooze time: 5,10,15,20 or 25. Press AL/MODE to confirm.

Remark: Press AL/MODE to enable / disable the alarm function. An alarm icon will appear on the display when it is switch on.

Snooze function

1. When your alarm sounds, you can press the SNOOZE/SLEEP Button to turn off the alarm temporary for the snooze time duration selected. The radio will then turn on again.
2. Snooze can be repeated until the AL/MODE Button is pressed.

Sleep function

1. Turn on the radio, press the SLEEP Button to select a time, you can choose 15 / 30 / 45 / 60 / 75 / 90 or OFF.

For example, when the LED display shows 15 minutes, the radio turns on and then turns off automatically after 15 minutes.

1. To turn off the radio at any time, press the ON / STAND BY Button.

ENG

Radio

1. Press ON / STAND BY to switch on the radio.
2. Press AL/MODE once or more to select FM radio mode.
3. The display shows the radio station details, Select your station by using TUNING + or TUNING -.

Tuning

Manual tuning: Press TUNING + or TUNING – briefly, once or more until the right frequency is found.

Automatic tuning: Press and hold down TUNING + or TUNING – until the display frequency starts to run. When a station of sufficient strength has been found tuning stops, or you can stop automatic tuning by pressing TUNING + or TUNING – again.

Presets

You can store the frequencies of up to 50 radio stations in the memory. A stored frequency can be erased from the memory by storing another frequency in its place.

1. Turn on the radio and press TIME/PROG once to enter programming mode.
2. Select desired station and press TIME/PROG once again to confirm.
3. Press PRESET + or PRESET – to select the desired memory location.

To listen to a preset station:

- press the PRESET + or PRESET – for selecting your desired station.

To improve reception: pull out the telescopic aerial incline and turn the aerial to improve the reception.

Volume

Adjust the sound with the controls VOLUME + or VOLUME -

AUX IN, USB, MICRO SD CARD PLAYBACK

You can play MP3 files stored in the memory media with USB connector, MICRO SD Card Slot or connect an external player using the AUX IN jack.

1. Press AL/MODE to select USB, SD or AU.
2. Connect the USB media to the unit or insert the MICRO SD Card. The radio will automatically start reading the MP3 fi les stored.
3. Press PRESET + or PRESET – buttons to select the desired track, you can press TIME/PROG to Pause/Play the MP3 device.

Wrongly connect the USB Storage Media or MICRO SD Card upside down could damage the unit or the USB Storage Media or MICRO SD Card. A locked MICRO SD Card cannot be detected or playback.

PRECAUTIONS:

1. For AC operation, make sure the voltage is compatible. Always use the provided AC power cord; never use other AC power cord.
2. Always disconnect the AC power cord from the AC power source when it is not in use or when DC power is operating.
3. Do not leave the batteries in the compartment for a long time. Remove the batteries to avoid leakage and damage.
4. Do not expose the unit to extreme temperature nor high humidity to ensure normal functioning for a long lifetime.
   For instances, never place the unit in bathing areas nor around stoves and radiators.
5. If you find the unit is not working properly, please take it to your nearest services centre. Do not attempt to repair by yourself.

WARNING:

To prevent fi re or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet, refer to service agent or qualifi ed engineer only.

If at any time in the future you should need to dispose of this product please note that Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive).

STATEMENT OF COMPLIANCE

Flamagas S.A. hereby declares that the DRP-120 product complies with the requisites and basic safety requirements of Directive 2004/108/EC on Electromagnetic Compatibility

For a full copy of the statement of compliance please see: www.electronicafl amagas.com
