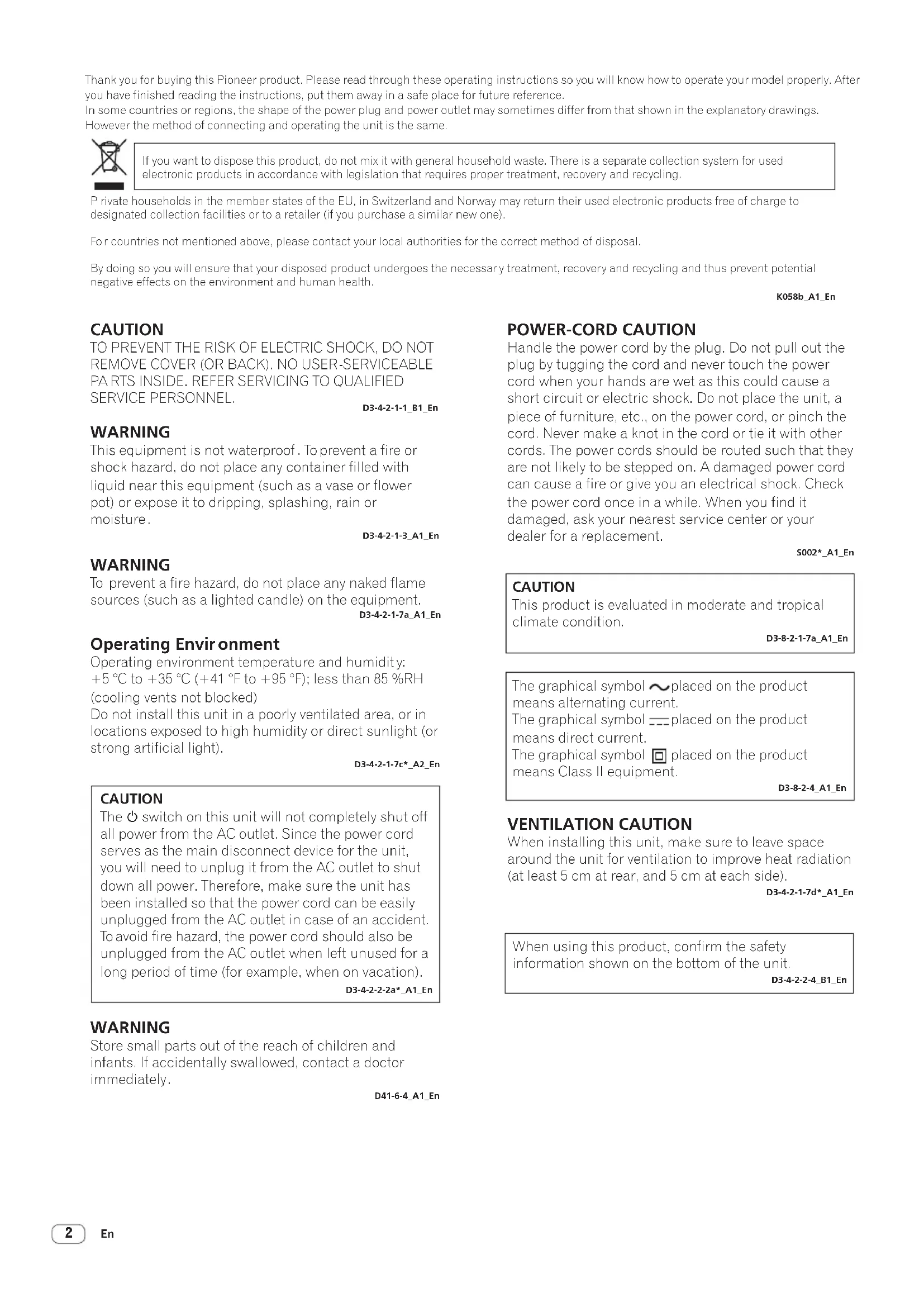

Operating Instructions (Quick Start Guide)

Thank you for buying this Pioneer product. Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference.

In some countries or regions, the shape of the power plug and power outlet may sometimes differ from that shown in the explanatory drawings. However the method of connecting and operating the unit is the same.

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private households in the member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).

For countries not mentioned above, please contact your local authorities for the correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

K058b_A1_En

CAUTION

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

D3-4-2-1-1_B1_En

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

D3-4-2-1-3_A1_En

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

D3-4-2-1-7a_A1_En

Operating Environment

Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked)

Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light).

D3-4-2-1-7c*_A2_En

CAUTION

The ⏻ switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-2a*_A1_En

WARNING

Store small parts out of the reach of children and infants. If accidentally swallowed, contact a doctor immediately.

D41-6-4_A1_En

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest service center or your dealer for a replacement.

S002*_A1_En

CAUTION

This product is evaluated in moderate and tropical climate condition.

D3-8-2-1-7a_A1_En

The graphical symbol ∼ placed on the product means alternating current.

The graphical symbol —— placed on the product means direct current.

The graphical symbol □ placed on the product means Class II equipment.

D3-8-2-4_A1_En

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 5 cm at rear, and 5 cm at each side).

D3-4-2-1-7d*_A1_En

When using this product, confirm the safety information shown on the bottom of the unit.

D3-4-2-2-4_B1_En

Before start

How to read this manual

• Thank you for purchasing this Pioneer DJ product.
  This manual provides brief descriptions of the connection between the unit and your computer, and the audio output. For more instructions on how to use this product, refer to the Operating Instructions for this product.
  Read this manual and the Operating Instructions before using the product. Both contain important information that you should understand to properly use the product.
• In this manual, names of buttons and terminals, menus of this product and your computer, etc., are enclosed in square brackets ([]) (e.g. [File], [CUE] button, [PHONES] output terminal).
• Screens, external appearance, and software and hardware specifications described in this manual are based on the product that is still under development and may differ from the final specifications.
• Depending on your operating system, the web browser settings, etc., the procedures described in this manual may differ from actual operations.

Features

This unit is an all-in-one DJ controller designed specifically for rekordbox dj. Its interfaces incorporating various controls such as "BIG JOG", "PERFORMANCE PADS", and "4-CHANNEL MIXER" are positioned with room to spare to allow for more individualistic DJ performances using rekordbox dj. Also, numerous input and output terminals support a variety of DJ styles, and the design makes the unit look high quality, which is appropriate in a variety of scenes such as nightclubs and home parties.

Accessories

• AC adapter
• Power cord
• USB cable ^1
• Operating Instructions (Quick Start Guide) (this document)
• rekordbox dj license key card
  1 One USB cable is included with this unit.
  To connect two units, separately prepare a cable that conforms to the USB 2.0 standard.

Cautions

The license key cannot be reissued. Be careful not to lose it.

Viewing the manuals

Viewing the Operating Instructions for this unit

1 Launch a web browser on a computer and access the following Pioneer DJ site.
pioneerdj.com
2 Click [Support].
3 Click [Tutorials, manuals & documentation].
4 Click [DDJ-1000] in the [DJ CONTROLLER] category.
5 Click the desired language from the Operating Instructions list.
Download the manual as necessary.

Viewing the rekordbox introduction

1 Launch a web browser on the computer and access the site below.

rekordbox.com/manual

2 Click the required language of the rekordbox introduction.

rekordbox

• rekordbox rekordbox is music management software for DJs to prepare tracks and perform DJ play.
• rekordbox dj The DJ performance functions of rekordbox are called rekordbox dj. Enter the license key on the rekordbox dj license key card included with this product to use rekordbox dj.

Operating environment

Supported operating systems	CPU and required memory
Mac: macOS High Sierra 10.13/Sierra 10.12 (latest update), OS X 10.11/10.10 (latest update)	Intel®processor CoreTM i7, i5, i3Intel®processor CoreTM 2 Duo 2.0 GHz or better
	4 GB or more of RAM
Windows: 32-bit version or 64-bit version of Windows 10, Windows	Intel®processor CoreTM i7, i5, i3Intel®processor CoreTM 2 Duo 2.0 GHz or better
8.1, or Windows 7 (latest service pack)	4 GB or more of RAM

Others

USB port	A USB 2.0 port is required to connect a computer to this unit.
Display resolution 1 280 x 768 or greater
Internet connection	An Internet connection is required for registering the rekordbox user account and downloading the software.

• For information on the latest system requirements, compatibility, and supported operating systems of rekordbox, see the site below. rekordbox.com/system
• Operation on all computers is not guaranteed, even if the computers meet the required operating environment.
• The CPU and hard disc may not provide sufficient processing capabilities depending on the power-saving setting, etc. on the computer. Confirm that the computer meets the conditions to provide constant high-performance (for example, connecting the computer to a power outlet to maintain a stable power supply) especially when using rekordbox on a laptop.
• A separate contract with an Internet service provider and payment of the utilization fee are required to access the Internet.
• Use the latest version/service pack of the operating system.

Preparing rekordbox

Install the software by following the procedure below when you use rekordbox for the first time or if you are using rekordbox 4.x or an earlier version.

If you have already installed rekordbox Ver. 5.x, update it to the latest version from rekordbox Update Manager. In this case, the following installation procedure is not required. For details on the update procedure, access the site below and see "rekordbox Introduction". rekordbox.com/manual

Installing rekordbox

1 Launch a web browser on the computer and download rekordbox from the site below.

rekordbox.com/download

When downloading a Windows version, select either the 32-bit version or 64-bit version to match your computer.

2 Double-click the downloaded file to unzip it.

3 Double-click the unzipped file to launch the installer.

4 Carefully read the Software End User License Agreement, and proceed with the installation by following the instructions on the screen if you agree to the terms.

- If you do not agree to the license agreement, cancel the installation.

5 When the installation completion screen appears, close the installer by following the instructions on the screen.

The installation is completed.

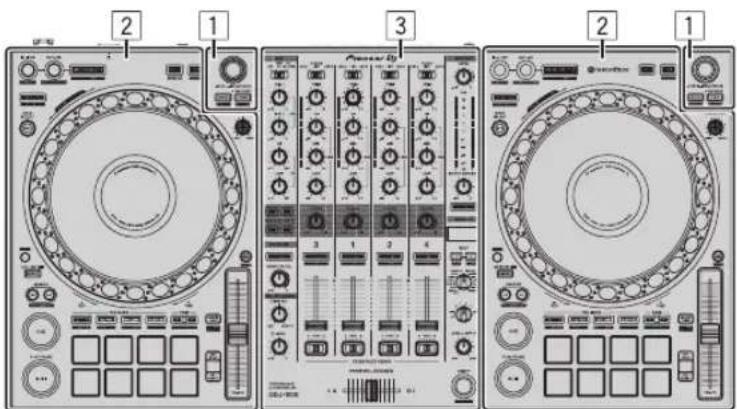

Part names

For details on the buttons and controls, see Part names and functions in the Operating Instructions.

Diagram of three industrial duper consoles labeled 1, 2, and 3, showing front, top, and side views with control knobs and dials.

1 Browser section

2 Deck sections

3 Mixer section

Browser section

1 2 3

1 Rotary selector
2 BACK button
3 VIEW button

Deck sections

The deck sections are used to control the four decks. The buttons and controls for operating decks 1 and 3 are located on the left side of the controller, and those for operating decks 2 and 4 are located on the right side of the controller.

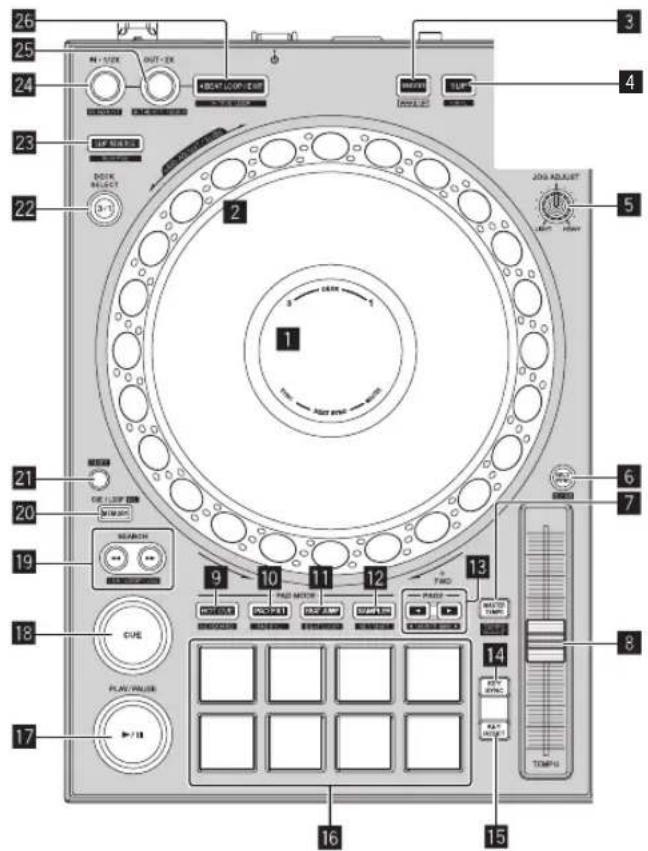

Labeled diagram of a rotary device with numbered components and control buttons

1 Jog dial display section
2 Jog dial
3 QUANTIZE button
4 SLIP button
5 JOG FEELING ADJUST control
6 BEAT SYNC button
7 MASTER TEMPO button
8 TEMPO slider
9 HOT CUE mode button
10 PAD FX1 mode button
11 BEAT JUMP mode button
12 SAMPLER mode button
13 PAGE ◀, ► button
14 KEY SYNC button
15 KEY RESET button
16 Performance pads
17 PLAY/PAUSE ▶/II button
18 CUE button
19 SEARCH ◀◀, ►► buttons
20 MEMORY button
21 SHIFT button

22 DECK selector button
23 SLIP REVERSE button
24 LOOP IN, LOOP 1/2X button
25 LOOP OUT, LOOP 2X button
26 4 BEAT LOOP/EXIT button

Mixer section

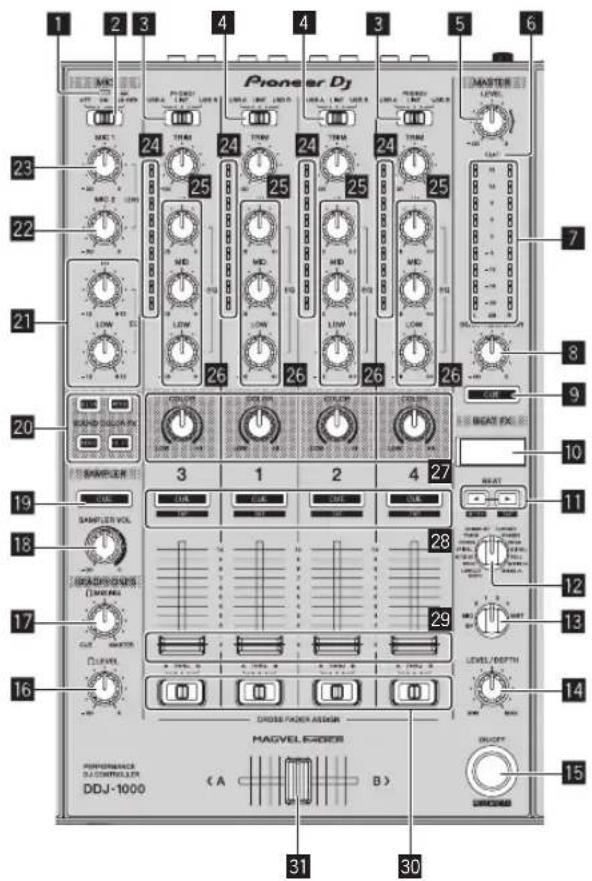

1 2 3 4 4 3 5 6 Pioneer DJ MASTER LEVEL 23 24 25 24 25 24 25 24 25 7 8 9 20 SANDER 3 1 2 4 27 BEAT FX 10 19 SAMPLER VOL 18 GOLDENOMICS (MAGVEL ORDER) 17 CJW/AMETER 16 DROSS POWER-ASSIGAR MAGVEL ORDER 15 POWERFORMANCE S/CONTROLLER DDJ-1000 (A B)

1 Microphone indicator
2 OFF, ON, TALK OVER selector switch
3 USB A, PHONO/LINE, USB B selector switch
4 USB A, LINE, USB B selector switch
5 MASTER LEVEL control
6 CLIP indicator
7 Master level indicator
8 BOOTH MONITOR LEVEL control
9 MASTER CUE button
10 Effect section display
11 BEAT ◀, ► buttons
12 BEAT FX SELECT control
13 BEAT FX CH SELECT control
14 BEAT FX LEVEL/DEPTH control
15 BEAT FX ON/OFF button
16 HEADPHONES LEVEL control
17 HEADPHONES MIXING control
18 SAMPLER VOL control
19 SAMPLER CUE button
20 SOUND COLOR FX SELECT buttons
21 MIC EQ (HI, LOW) controls
22 MIC2 LEVEL control

23 MIC1 LEVEL control
24 Channel level indicator
25 TRIM control
26 EQ (HI, MID, LOW) control
27 COLOR control
28 Headphones CUE button
29 Channel fader
30 Crossfader assign selector switch
31 Crossfader

Rear panel

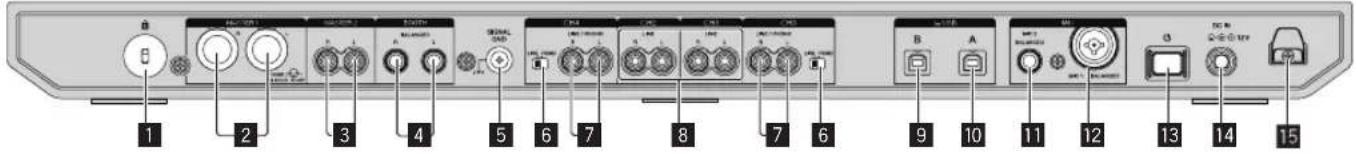

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

1 Kensington security slot
2 MASTER 1 output terminal
3 MASTER 2 output terminal
4 BOOTH output terminals
5 SIGNAL GND terminal
6 LINE/PHONO switch
7 LINE/PHONO input terminals
8 LINE input terminals

9 USB terminals (USB B)
10 USB terminals (USB A)
11 MIC2 input terminals
12 MIC1 input terminals
13 switch

This switch is used to switch between standby and on.

14 DC IN terminal
15 DC cord hook

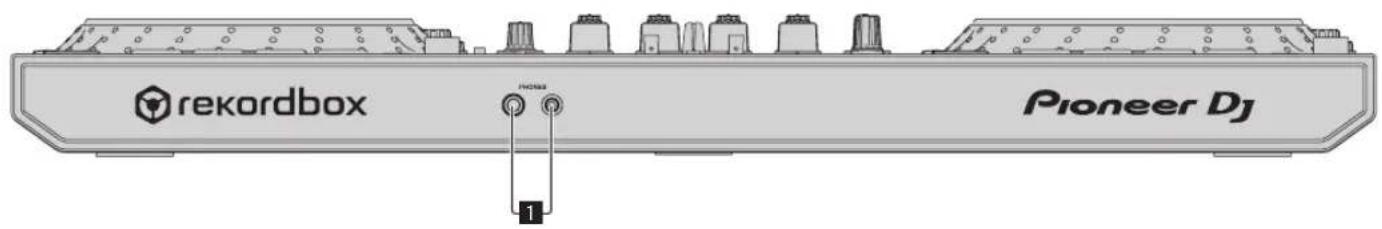

Front panel

rekordbox Pioneer DJ

1 PHONES output terminals

Operation

• Connect the power cord to a power outlet after all the connections are completed. Turn off this unit and disconnect the power cord from the power outlet before connecting components or changing the connections. Refer to the operating instructions for the components to be connected.
• Be sure to use the included power cord and AC adapter.
• Be sure to use the USB cable included with this product or one that conforms to USB 2.0.
• Do not use a USB hub.

Example of connections

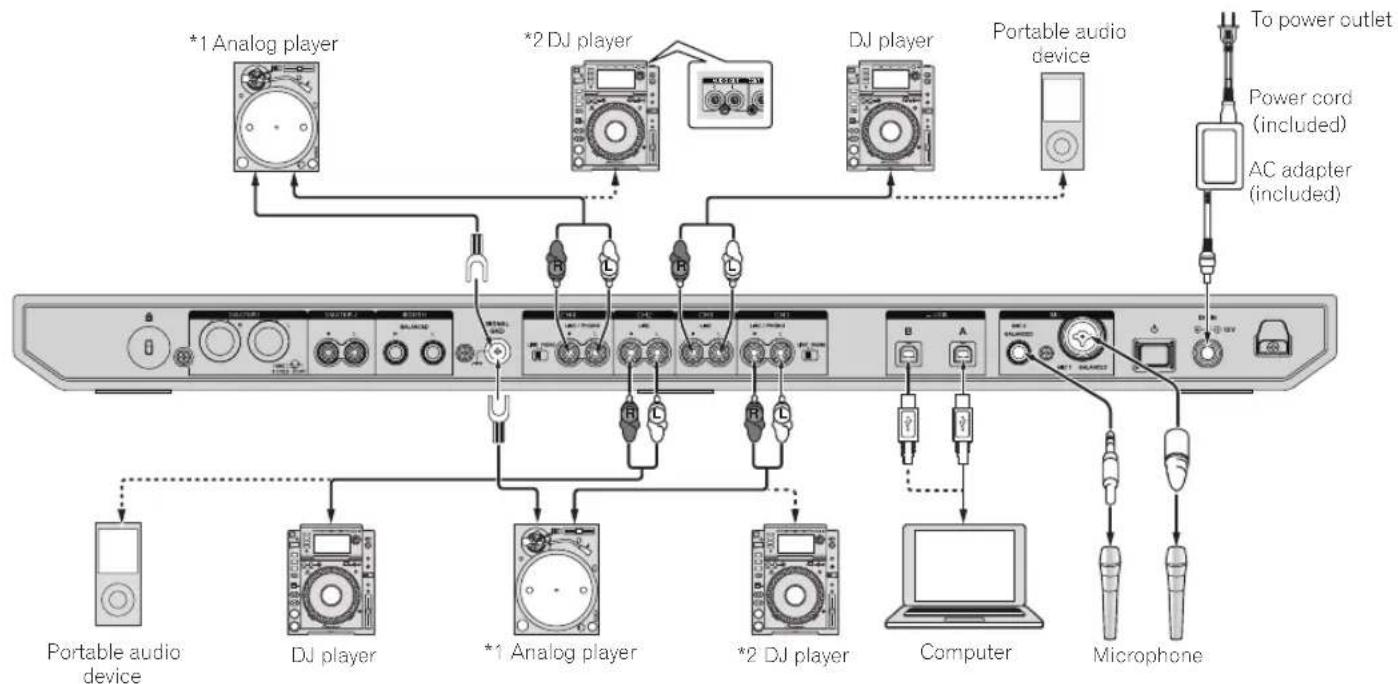

Connecting input terminals

Rear panel

• *1 When connecting an analog player, switch the [LINE/PHONO] switch beside the terminals to [PHONO].
  *2 When connecting a DJ player, switch the [LINE/PHONO] switch beside the terminals to [LINE].

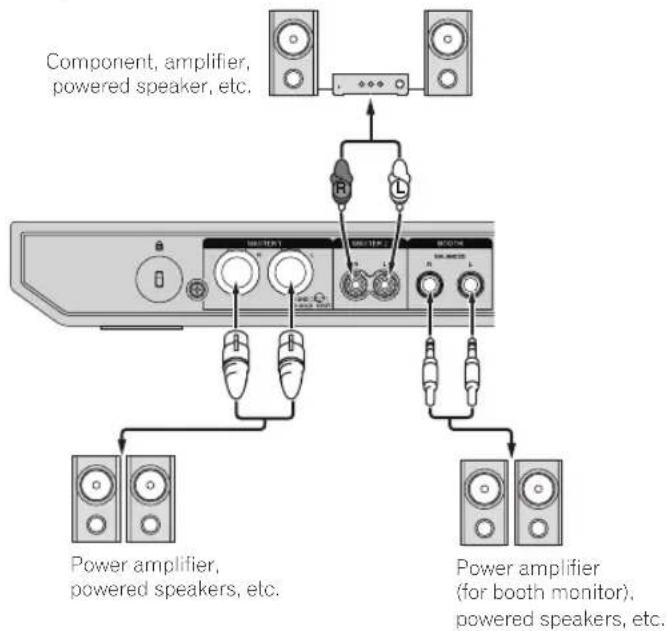

Connecting output terminals

Rear panel

Component, amplifier, powered speaker, etc. Power amplifier, powered speakers, etc. Power amplifier (for booth monitor), powered speakers, etc.

Front panel

rekordbox Headphones

1 Be sure to use the [MASTER 1] output terminals for a balanced output. If they are connected to an unbalanced input (such as RCA) using an XLR to RCA converter cable (or converter adapter), etc., the sound quality may be lowered or noise may occur. For connection with an unbalanced input (such as RCA), use the [MASTER 2] output terminals.
2 Be careful not to accidentally insert the power cord plug of another unit into a [MASTER 1] output terminals. Do not connect terminals capable of supplying phantom power to the [MASTER 1] output terminals.
3 Be sure to use the [BOOTH] output terminals for a balanced output. If they are connected to an unbalanced input (such as an RCA or TS terminal) with an TRS to RCA converter cable (or converter adapter), TS cable, etc., the sound quality may be lowered or noise may occur.

Connections

For more information on how to use this product with rekordbox dj, refer to this product's Operating Instructions that is available on the Pioneer DJ site.

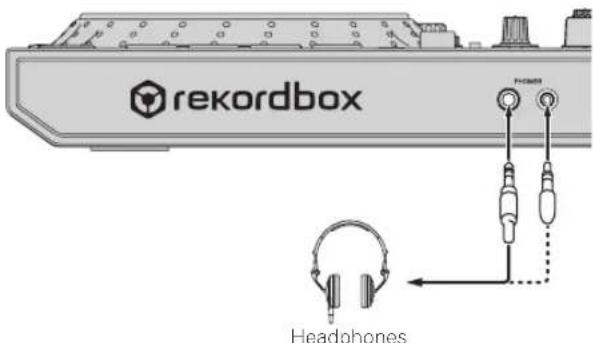

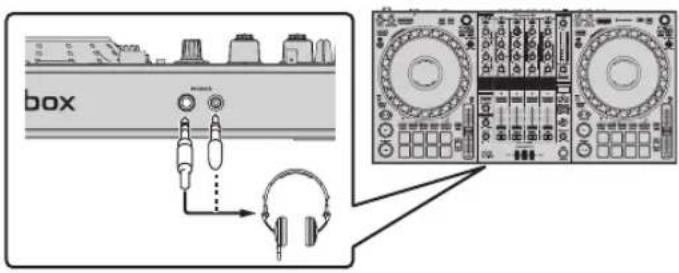

1 Connect headphones to the [PHONES] output terminals.

box R30000 R30000

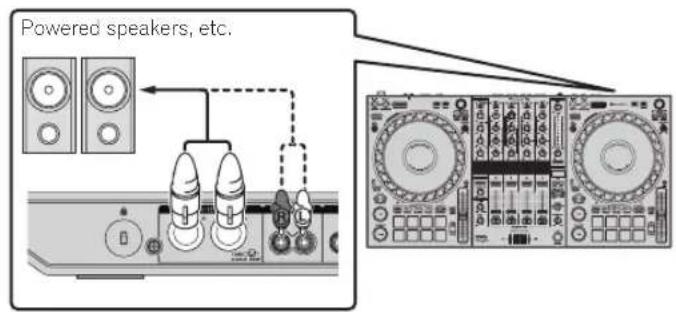

2 Connect devices such as powered speakers, a power amplifier, and components to the [MASTER 1] or [MASTER 2] output terminals.

Powered speakers, etc.

- To output the sound from the [BOOTH] output terminals, connect devices such as speakers to the [BOOTH] output terminals.

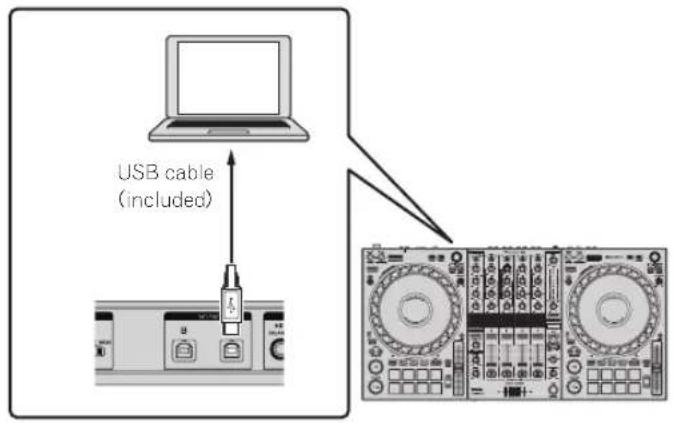

3 Connect this unit to your computer using a USB cable.

USB cable (included)

4 Turn the computer on.

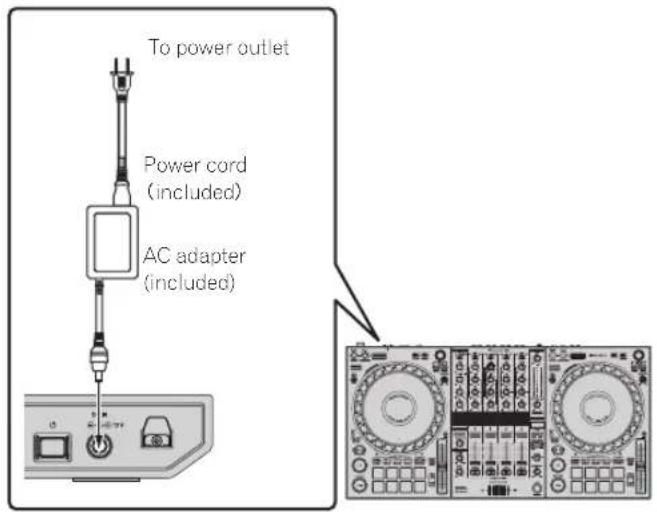

5 Connect the AC adapter.

To power outlet Power cord (included) AC adapter (included)

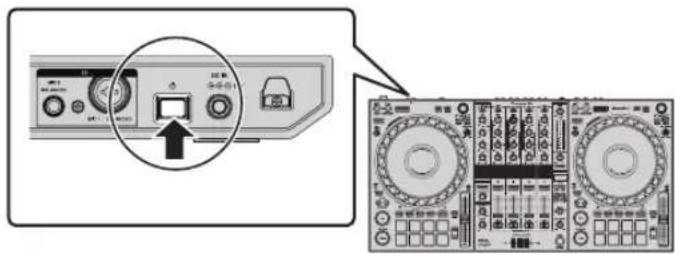

6 Press the [☐] switch on the rear panel of this unit to turn this unit on.

Diagram showing device control panel with zoomed-in view and dual DDA front panels, labeled in Chinese.

This unit turns on.

- For Windows

[Installing device driver software] may appear when this unit is connected to the computer for the first time or connected to a different USB port on the computer. Wait for a while until [Your devices are ready for use] appears.

7 Turn on the devices connected to the output terminals (powered speakers, power amplifier, components, etc.).

- If a microphone, DJ player or other external device is connected to the input terminals, turn on the connected device.

Starting the system

Launching rekordbox

Account registration and activation work for rekordbox dj are required at first startup. For details on each work procedure, access the site below and see "rekordbox Introduction". rekordbox.com/manual

For Mac

Open the [Applications] folder in Finder, and double-click the [rekord-box] icon.

For Windows 10

From the [Start] menu, click [Pioneer] > [rekordbox] icon.

For Windows 8.1

Click the [rekordbox] icon in [Apps view].

For Windows 7

Click the [Start] menu > [All Programs] > [Pioneer] > [rekordbox X.X.X] > the [rekordbox] icon in order.

Checking audio settings

Check that the Audio settings in [Preferences] of rekordbox are set as follows.

For Mac

[Output channels]:

[Master Output]: [DDJ-1000: MASTER]

[Headphones Output]: [DDJ-1000: HEADPHONE]

For Windows

Audio: [DDJ-1000 ASIO]

[Output channels]:

[Master Output]: [DDJ-1000 ASIO: MASTER]

[Headphones Output]: [DDJ-1000 ASIO:HEADPHONE]

- If PC MASTER OUT is enabled, the “+ Name of audio device in computer” information will also be displayed after [MASTER] of the [Master Output] item in the Audio settings.

Adding music files to [Collection]

A list of track files managed by rekordbox is displayed on the

[Collection] screen.

Register the track files on the computer as the collection of music for rekordbox and analyze them to enable those tracks to be used with rekordbox.

1 Click [Collection] in the tree view.

A list of the tracks registered in [Collection] is displayed.

2 Open Finder or Windows Explorer, and drag and drop track files or folders containing track files to the track list.

The track files are added to [Collection], and the waveform analysis of the track files starts. Wait until the analysis of all the track files is finished.

Loading tracks into a deck

The following describes the procedure for loading tracks into deck 1 (left side) as an example.

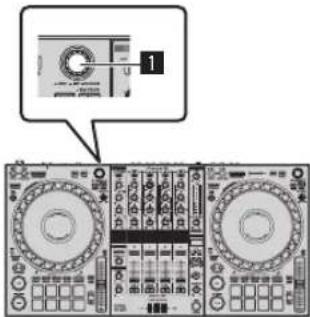

Diagram showing a CD/DVD interface with labeled components and a zoomed-in view of the device's control panel.

1 Rotary selector

- Turn the rotary selector of deck 1 (left side) to select a track in [Collection] and then press the rotary selector.

The track is loaded into deck 1.

Playing a music file

The following describes the procedure for outputting the sound of deck 1 (left side) as an example.

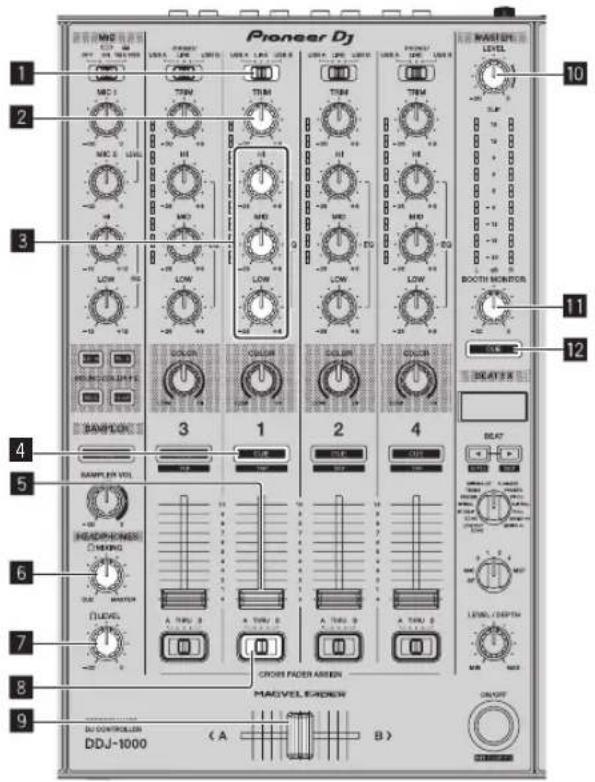

Pioneer DJ 1 2 3 4 5 6 7 8 9 DDJ-1000 ( A ) ( B ) MAXLEVEL EADDED CROSS FADER AMEN DAJ-1000 BEAT 28 BEAT LEAVES DO CONTROLLER DAJ-1000 BEAT 28 MAXLEVEL EADDED DAJ-1000 BEAT 28 MAXLEVEL EADDED DAJ-1000 BEAT 28 MAXLEVEL EADDED DAJ-1000 BEAT 28 MAXLEVEL EADDED DAJ-1000 BEAT 28 MAXLEVEL EADDED DAJ-1000 BEAT 28 MAXLEVEL EADDDD DAJ-1000 BEAT 28 MAXLEVEL EADDDD DAJ-1000 BEAT 28 MAXLEVEL EADDDD DAJ-1000 BEAT 28 MAXLEVEL EADDDD DAJ-1000 BEAT 28 MAXLEVEL EADDDD DAJ-1000 BEAT 28 MAXLEVEL EADDD DAJ-1000 BEAT 28 MAXLEVEL EADDD DAJ-1000 BEAT 28 MAXLEVEL EADDD DAJ-1000 BEAT 28 MAXLEVEL EADDD DAJ-1000 BEAT 28 MAXLEVEL EADDD DAJ-1000 BEAT 28 MAXLEVEL EADD DAJ-1000 BEAT 28 MAXLEVEL EADD DAJ-1000 BEAT 28 MAXLEVEL EADD DAJ-1000 BEAT 28 MAXLEVEL EADD DAJ-1000 BEAT 28 MAXLEVEL EADD DAJ-1000 BEAT 28 MAXLEVEL EADDD DAJ-1000 BEAT 28 MAXLEVEL EADDD DAJ-1000 BEAT 28 MAXLEVEL EADDD DAJ-1000 BEAT 28 MAXLEVEL EADDD DAJ-1000 BEAT 28 MAXLEVEL EADDC DAJ-1000 BEAT 28 MAXLEVEL EADDC DAJ-1000 BEAT 28 MAXLEVEL EADDC DAJ-1000 BEAT 28 MAXLEVEL EADDC DAJ-1000 BEAT 28 MAXLEVEL EADDC DAJ-1000 BEAT 28 MAXLEVEL EADD DAJ-1000 BEAT 28 MAXLEVEL EADD DAJ-1000 BEAT 28 MAXLEVEL EADD

1 USB A, LINE, USB B selector switch
2 TRIM control
3 EQ (HI, MID, LOW) control
4 Headphones CUE button
5 Channel fader
6 HEADPHONES MIXING control
7 HEADPHONES LEVEL control
8 Crossfader assign selector switch
9 Crossfader
10 MASTER LEVEL control
11 BOOTH MONITOR LEVEL control
12 MASTER CUE button

1 Set the following as specified.

Part Operation
USB A, LINE, USB B selector switch	USB A
TRIM control	Rotate it clockwise until it stops.
EQ (HI, MID, LOW) control	Center position
COLOR control Center position
Channel fader Move it forward.
MASTER LEVEL control	Rotate it clockwise until it stops.
Crossfader Center position
Crossfader assign selector switch [THRU] position

2 Press the [PLAY/PAUSE ▶/Ⅲ] button to play the track.

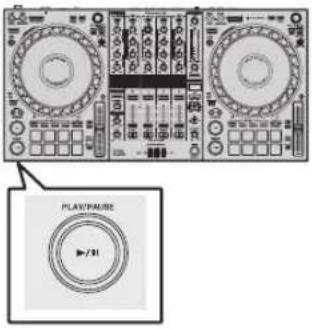

PLAY/Pause /11

3 Rotate the [TRIM] control.

Adjust the [TRIM] control to confirm that the channel level indicator lights up in orange at the highest volume.

4 Move the channel fader forward.

5 Rotate the [MASTER LEVEL] control to adjust the sound level of the speakers.

Adjust the level of the sound output from the [MASTER 1] and [MASTER 2] output terminals to an appropriate level.

- To output sound from the computer's speaker, adjust the volume of the computer's speaker instead of the [MASTER LEVEL] control.

Monitoring sound with headphones

Set the following as specified.

Part Operation
HEADPHONES MIXING control Center position
HEADPHONES LEVEL control	Rotate it clockwise until it stops.

1 Press the headphones [CUE] button for channel 1.

2 Rotate the [HEADPHONES LEVEL] control.

Adjust the level of sound output from the headphones to an appropriate level.

Note

This unit and rekordbox dj include many functions to allow for more individualistic DJ performances. For details on each function, access the site below and see the "rekordbox Manual". rekordbox.com/manual

Turning off the system

1 Close rekordbox.

2 Press the [☐] switch on the rear panel of this unit to set the unit to standby.
3 Disconnect the USB cable from the computer.

Additional information

Changing the settings

- For details on changing the settings of this unit, see Changing the settings in the Operating Instructions.

Troubleshooting

- If you think that there is something wrong with this unit, check the items in the "Troubleshooting" section of this unit's operating instructions and access the Pioneer DJ support site and check [FAQ]. pioneerdj.com/support/

Some problems occur due to the connected components. If the problem cannot be resolved after checking the connected components, contact the service center or your dealer for repairs.

- This unit may not operate properly due to static electricity or other external influences. In such cases, disconnect the power cord, wait for approximately one minute, and connect it again to restore normal operation.

Trademarks and registered trademarks

• Pioneer DJ is a trademark of the PIONEER CORPORATION and is used under license, rekordbox and KUVO are trademarks or registered trademarks of the Pioneer DJ Corporation.
• rekordbox is a trademark or registered trademark of the Pioneer DJ Corporation.
• Windows is a registered trademark of Microsoft Corporation in the United States and other countries.
  • Mac, macOS, OS X, and Finder are trademarks of Apple Inc., registered in the U.S. and other countries.
• Intel and Intel Core are trademarks of Intel Corporation in the U.S. and/or other countries.

The names of companies and products mentioned herein are trademarks or registered trademarks of their respective owners.

Cautions on copyrights

rekordbox restricts playback and duplication of copyright-protected music contents.

• When coded data, etc., for protecting the copyright is embedded in the music contents, it may not be possible to operate the program normally.
• When rekordbox detects that coded data, etc., for protecting the copyright is embedded in the music contents, processing (playback, reading, etc.) may stop.

Recordings you have made are for your personal enjoyment and according to copyright laws may not be used without the consent of the copyright holder.

• Music recorded from CDs, etc., is protected by the copyright laws of individual countries and by international treaties. It is the full responsibility of the person who has recorded the music to ensure that it is used legally.
• When handling music downloaded from the Internet, etc., it is the full responsibility of the person who has downloaded the music to ensure that it is used in accordance with the contract concluded with the download site.

Specifications

AC adapter

Power requirements ......AC 220 V to 240 V, 50 Hz/60 Hz

Rated current 0.9 A

Rated output DC 12 V, 3 A

Power consumption (standby) 0.4 W

General – Main Unit

Power consumption.....DC 12 V, 2 000 mA

Main unit weight....6.0 kg

Max. external dimensions

708 mm (width) x 73.4 mm (height) x 361.4 mm (depth)

Tolerable operating temperature ....+5 °C to +35 °C

Tolerable operating humidity 5% to 85% (no condensation)

Audio Section

Sampling rate....44.1 kHz

D/A converter 32-bit

A/D converter 24-bit

Frequency characteristic

USB, LINE, MIC1, MIC2.... 20 Hz to 20 kHz

S/N ratio (rated output, A-WEIGHTED)

USB 112 dB

LINE 96 dB

PHONO 85 dB

MIC1 80 dB

MIC2 80 dB

Total harmonic distortion (20 Hz to 20 kHzBW)

USB 0.002%

LINE 0.005%

Standard input level / Input impedance

LINE -12 dBu/47 kΩ

PHONO -52 dBu/47 kΩ

MIC1 -57 dBu/3.3 kΩ

MIC2 -57 dBu/3.3 kΩ

Standard output level / Load impedance / Output impedance

MASTER 1....+6 dBu/10 kΩ/330 Ω or less

MASTER 2....+2 dBu/10 kΩ/680 Ω or less

BOOTH....+6 dBu/10 kΩ/330 Ω or less

PHONES +8 dBu/32 Ω/10 Ω or less

Rated output level / Load impedance

MASTER 1....25 dBu/10 kΩ

MASTER 2....21 dBu/10 kΩ

BOOTH 25 dBu/10 kΩ

Crosstalk

LINE 82 dB

Channel equalizer characteristic

HI -26 dB to +6 dB (20 kHz)

MID....-26 dB to +6 dB (1 kHz)

LOW -26 dB to +6 dB (20 Hz)

Microphone equalizer characteristic

HI -12 dB to +12 dB (10 kHz)

LOW -12 dB to +12 dB (100 Hz)

Input / Output terminals

LINE input terminals

RCA pin jacks....2 sets

LINE/PHONO input terminals

RCA pin jacks....2 sets

MIC input terminals

XLR connector & 1/4" TRS jack ....1 set

1/4" TRS jack....1 set

MASTER output terminals

XLR connector....1 set

RCA pin jacks....1 set

BOOTH output terminal

1/4" TRS jack....1 set

PHONES output terminal

1/4" stereo jack .... 1 set

3.5 mm stereo mini jack....1 set

USB terminals

B type....2 sets

— The specifications and design of this product are subject to change without notice.

• © 2017 Pioneer DJ Corporation. All rights reserved.

Diagram of three industrial sewing machines labeled 1, 2, and 3, showing front, top, and side views with control knobs and dials.

Labeled diagram of a rotary device with numbered components and control buttons

1 Section d'affichage de la molette jog
2 Molette jog
3 Touche QUANTIZE
4 Touche SLIP
5 Commande JOG FEELING ADJUST
6 Touche BEAT SYNC
7 Touche MASTER TEMPO
8 Curseur TEMPO
9 Touche de mode HOT CUE
10 Touche de mode PAD FX1
11 Touche de mode BEAT JUMP
12 Touche de mode SAMPLER
13 Touche PAGE ◀, ▶
14 Touche KEY SYNC
15 Touche KEY RESET
16 Pads performance
17 Touche PLAY/PAUSE ▶/II
18 Touche CUE
19 Touches SEARCH ◀◀, ▶▶
20 Touche MEMORY
21 Touche SHIFT

22 Touche de sélecteur DECK
23 Touche SLIP REVERSE
24 Touche LOOP IN, LOOP 1/2X
25 Touche LOOP OUT, LOOP 2X
26 Touche 4 BEAT LOOP/EXIT

Section Mixeur

Pioneer DJ MASTER LEVEL 23 24 25 26 27 28 29 30 31 32 33 34 35 36 7 8 9 10 11 12 13 14 15 DROSS FLOWER ASIGN MAGVEL SCRITER A B) DROCKET COMPRESSOR COMPRESSOR COMPRESSOR COMPRESSOR COMPRESSOR COMPRESSOR COMPRESSOR COMPRESSOR COMPRESSOR COMPRESSOR COMPRESSOR COMPRESSOR COMPRESSOR COMPRESSOR COMPRESSOR COMPRESSOR COMPRESSOR COMPRESSOR COMPRESSOR COMPRESSOR COMPRESSOR COMPRESSOR COMPRESSOR COMPRESSOR COMPRESSOR COMPRESSORD COMPRESSORD COMPRESSORD COMPRESSORD COMPRESSORD COMPRESSORD COMPRESSORD COMPRESSORD COMPRESSORD COMPRESSORD COMPRESSORD COMPRESSORD COMPRESSORD COMPRESSORD COMPRESSORD COMPRESSORD COMPRESSORD COMPRESSORD COMPRESSORD COMPRESSORD COMPRESSORD COMPRESSORD COMPRESSORD COMPRESSORD COMPRESSORD COMPRESSORMS COMPRESSORMS COMPRESSORMS COMPRESSORMS COMPRESSORMS COMPRESSORMS COMPRESSORMS COMPRESSORMS COMPRESSORMS COMPRESSORMS COMPRESSORMS COMPRESSORMS COMPRESSORMS COMPRESSORMS COMPRESSORMS COMPRESSORMS COMPRESSORMS COMPRESSORMS COMPRESSORMS COMPRESSORMS COMPRESSORM SCKRER COMPRESSORM SCKRER COMPRESSORM SCKRER COMPRESSORM SCKRER COMPRESSORM SCKRER COMPRESSORM SCKRER COMPRESSORM SCKRER COMPRESSORM SCKRER COMPRESSORM SCKRER COMPRESSORM SCKRER COMPRESSORM SCKRER COMPRESSORM SCKRER COMPRESSORM SCKRER COMPRESSFORM SCKRER COMPRESSFORM SCKRER COMPRESSFORM SCKRER COMPRESSFORM SCKRER COMPRESSFORM SCKRER COMPRESSFORM SCKRER COMPRESSFORM SCKRER COMPRESSFORM SCKRER

1 Indicateur du microphone
2 Sélecteur OFF, ON, TALK OVER
3 Sélecteur USB A, PHONO/LINE, USB B
4 Sélecteur USB A, LINE, USB B
5 Commande MASTER LEVEL
6 Indicateur CLIP
7 Indicateur de niveau principal
8 Commande BOOTH MONITOR LEVEL
9 Touche MASTER CUE
10 Écran de la section des effets
11 Touches BEAT ◀, ▶
12 Commande BEAT FX SELECT
13 Commande BEAT FX CH SELECT
14 Commande BEAT FX LEVEL/DEPTH
15 Touche BEAT FX ON/OFF
16 Commande HEADPHONES LEVEL
17 Commande HEADPHONES MIXING
18 Commande SAMPLER VOL
19 Touche SAMPLER CUE
20 Touches SOUND COLOR FX SELECT
21 Commandes MIC EQ (HI, LOW)
22 Commande MIC2 LEVEL

rekordbox Pioneer DJ

Câble USB (fourni)

Diagram showing device control panel with zoomed-in view and labeled buttons, likely illustrating a physical or electronic setup.

[Headphones Output] : [DDJ-1000 ASIO:HEADPHONE]

Diagram showing a CD/DVD interface with labeled components and a zoomed-in view of the device's control panel.

1 Sélecteur rotatif

Diagram of three industrial duper consoles labeled 1, 2, and 3, showing front, top, and side views with control knobs and dials.

1 Browser-Sektion

2 Deck-Sektionen

3 Mixer-Sektion

Browser-Sektion

1 2 BACK 1/4" TRACK 3

1 Drehregler

2 BACK-Taste

3 VIEW-Taste

Deck-Sektionen

Labeled diagram of a rotary device with numbered components and control buttons

rekordbox Pioneer DJ

Diagram showing device control panel with zoomed-in interface and two CD/DVD displays labeled in Chinese

[Headphones Output]: [DDJ-1000: HEADPHONE]

Für Windows

Audio: [DDJ-1000 ASIO]

[Ausgangskanäle]:

[Master Output]: [DDJ-1000 ASIO: MASTER]

[Headphones Output]: [DDJ-1000 ASIO:HEADPHONE]

Diagram showing a CD/DVD interface with labeled components and a zoomed-in view of the device's control panel.

1 Drehregler

Diagram of three industrial duper consoles labeled 1, 2, and 3, showing front, top, and side views with control knobs and dials.

1 Sezione browser

2 Sezioni deck

3 Sezione mixer

Sezione browser

1 2 BACK 1/4" TRACK 3

1 Manopola selettrice
2 Pulsante BACK
3 Pulsante VIEW

Sezioni deck

Labeled diagram of a rotary device with numbered components and control buttons

Diagram showing device control panel with zoomed-in interface and two CD/DVD displays, one labeled in Chinese.

[Headphones Output]: [DDJ-1000: HEADPHONE]

In Windows

Audio: [DDJ-1000 ASIO]

[Canali di uscita]:

[Master Output]: [DDJ-1000 ASIO: MASTER]

[Headphones Output]: [DDJ-1000 ASIO:HEADPHONE]

Diagram showing a CD/DVD interface with labeled components and a zoomed-in view of the device's control panel.

Pioneer DJ 1 2 3 4 5 6 7 8 9 DDJ-1000 DA CONTROLLER DDJ-1000 A THU 3 A THU 2 A THU 1 A THU 0 A THU 0.1 A THU 0.2 A THU 0.3 A THU 0.4 A THU 0.5 A THU 0.6 A THU 0.7 A THU 0.8 A THU 0.9 A THU 1.0 A THU 1.1 A THU 1.2 A THU 1.3 A THU 1.4 A THU 1.5 A THU 1.6 A THU 1.7 A THU 1.8 A THU 1.9 A THU 2.0 A THU 2.1 A THU 2.2 A THU 2.3 A THU 2.4 A THU 2.5 A THU 2.6 A THU 2.7 A THU 2.8 A THU 2.9 A THU 3.0 A THU 3.1 A THU 3.2 A THU 3.3 A THU 3.4 A THU 3.5 A THU 3.6 A THU 3.7 A THU 3.8 A THU 3.9 A THU 4.0 A THU 4.1 A THU 4.2 A THU 4.3 A THU 4.4 A THU 4.5 A THU 4.6 A THU 4.7 A THU 4.8 A THU 4.9 A THU 5.0 A THU 5.1 A THU 5.2 A THU 5.3 A THU 5.4 A THU 5.5 A THU 5.6 A THU 5.7 A THU 5.8 A THU 5.9 A THU 6.0 A THU 6.1 A THU 6.2 A THU 6.3 A THU 6.4 A THU 6.5 A THU 6.6 A THU 6.7 A THU 6.8 A THU 6.9 A THU 7.0 A THU 7.1 A THU 7.2 A THU 7.3 A THU 7.4 A THU 7.5 A THU 7.6 A THU 7.7 A THU 7.8 A THU 7.9 A THU 8.0 B OUTCH MONTECKS BEAT X:R BEAT

HI Da-12 dB a+12 dB (10 kHz)

LOW Da-12 dB a + 12 dB (100 Hz)

WAARSCHUWING NETSNOER

Diagram of three industrial duper consoles labeled 1, 2, and 3, showing front, top, and side views with control knobs and dials.

1 Bladergedeelte

2 Deckgedeelten

Labeled diagram of a rotary device with numbered components and control buttons

1 Instelknop-aanduidingsdeel
2 Jog-draaiknop
3 QUANTIZE-toets
4 SLIP-toets
5 Regelaar JOG FEELING ADJUST
6 Toets BEAT SYNC
7 MASTER TEMPO knop
8 Schuifregelaar TEMPO
9 HOT CUE-standtoets
10 Toets PAD FX1-stand
11 Toets BEAT JUMP-stand
12 SAMPLER-standtoets
13 Toets PAGE ◀, ▶
14 KEY SYNC-toets
15 Toets KEY RESET
16 Performance-pads
17 PLAY/PAUSE ▶/II knop
18 CUE-toets
19 SEARCH ◀◀, ►► toetsen
20 MEMORY-toets
21 SHIFT-toets

22 Keuzetoets DECK
23 SLIP REVERSE-toets
24 Toets LOOP IN, LOOP 1/2X
25 Toets LOOP OUT, LOOP 2X
26 4 BEAT LOOP/EXIT-toets

Mengpaneel-gedeelte

1 2 3 4 4 3 5 6 Pioneer DJ MASTER LEVEL 23 24 25 24 25 24 25 24 25 7 22 21 LOW LOW LOW LOW LOW LOW 26 26 26 26 8 20 SAND REDON FX BEAT FX 19 3 1 2 4 27 BEAT 11 18 28 12 13 17 29 LEVEL DEPTH 16 CROSS FLOOR ASIGN MAGVEL ORDER POWERBASCE D/CONTROLLER DDJ-1000 (A B) DROCCOM 31 30

1 Microfoonindicator
2 OFF, ON, TALK OVER-keuzeschakelaar
3 USB A, PHONO/LINE, USB B-keuzeschakelaar
4 USB A, LINE, USB B-keuzeschakelaar
5 MASTER LEVEL instelling
6 Indicator CLIP
7 Hoofdniveau-aanduiding
8 BOOTH MONITOR LEVEL-instelling
9 MASTER CUE-toets
10 Effectweergave
11 Toetsen BEAT ◀, ►
12 Regelaar BEAT FX SELECT
13 Regelaar BEAT FX CH SELECT
14 Regelaar BEAT FX LEVEL/DEPTH
15 Toets BEAT FX ON/OFF
16 HEADPHONES LEVEL instelling
17 HEADPHONES MIXING instelling
18 Regelaar SAMPLER VOL
19 SAMPLER CUE-toets
20 SOUND COLOR FX SELECT toetsen
21 Bedieningselementen MIC EQ (HI, LOW)
22 Regelaar MIC2 LEVEL

rekordbox Pioneer DJ

Diagram showing device control interface with labeled ports and a zoomed-in view of the next two panels

Schakel dit apparaat in.

- Voor Windows

[Headphones Output]: [DDJ-1000: HEADPHONE]

Voor Windows

Audio: [DDJ-1000 ASIO]

[Uitgangskanalen]:

[Master Output]: [DDJ-1000 ASIO: MASTER]

[Headphones Output]: [DDJ-1000 ASIO:HEADPHONE]

Diagram showing a CD/DVD interface with labeled components and a zoomed-in view of the device's control panel.

1 Draaiknop

Diagram of three industrial duper consoles labeled 1, 2, and 3, showing front, top, and side views with control knobs and dials.

Labeled diagram of a rotary device with numbered components and control buttons

rekordbox Pioneer DJ

Diagram showing front panel and back panel of a CD/DVD interface with control buttons and display screens

[Headphones Output]: [DDJ-1000: HEADPHONE]

Para Windows

Audio: [DDJ-1000 ASIO]

[Canales de salida]:

[Master Output]: [DDJ-1000 ASIO: MASTER]

[Headphones Output]: [DDJ-1000 ASIO:HEADPHONE]

Diagram showing a CD/DVD interface with labeled components and a zoomed-in view of the device's control panel.

1 Selector giratorio

General – Unidad principal

USB, LINE, MIC1, MIC2 20 Hz a 20 kHz

MID....-26 dB a +6 dB (1 kHz)

LOW -26 dB a + 6 dB (20 Hz)

HI -12 dB a + 12 dB (10 kHz)

LOW -12 dB a +12 dB (100 Hz)

Diagram of three industrial duper consoles labeled 1, 2, and 3, showing front, top, and side views with control knobs and dials.

1 Secção do browser

2 Secções dos decks

Labeled diagram of a rotary device with numbered components and control buttons

24 Botão LOOP IN, LOOP 1/2X

rekordbox Pioneer DJ

Diagram showing device control panel with zoomed-in view and labeled buttons, likely illustrating audio or audio processing interface.

[Headphones Output]: [DDJ-1000: HEADPHONE]

Para o Windows

Áudio: [DDJ-1000 ASIO]

[Canais de Saída]:

|Master Output: |DDJ-1000 ASIO: MASTER|

[Headphones Output]: [DDJ-1000 ASIO:HEADPHONE]

Diagram showing a CD/DVD interface with labeled components and a zoomed-in view of the device's control panel.

1 Seletor rotativo

MID....-26 dB a + 6 dB (1 kHz)

LOW -26 dB a + 6 dB (20 Hz)

HI -12 dB a + 12 dB (10 kHz)

LOW -12 dB a +12 dB (100 Hz)

Terminais de entrada/saída

Terminais de entrada LINE

Diagram of three CD/DVD driver headsets with labeled control panels and buttons

1 Раздел браузера

2 Области дек

3 Раздел микшера

Раздел браузера

1 2 BACK 1/4" TRACK 3

Labeled diagram of a rotary device with numbered components and control buttons

1 Раздел дисплея поворотного переключателя
2 Поворотный переключатель
3 Кнопка QUANTIZE
4 Кнопка SLIP
5 Ручка JOG FEELING ADJUST
6 Кнопка BEAT SYNC
7 Кнопка MASTER TEMPO
8 Ползунок ТЕМРО
9 Кнопка режима HOT CUE
10 Кнопка режима PAD FX1
11 Кнопка режима BEAT JUMP
12 Кнопка режима SAMPLER
13 Кнопка PAGE ◀, ▶
14 Кнопка KEY SYNC
15 Кнопка KEY RESET
16 Площадки для исполнения
17 Кнопка PLAY/PAUSE ▶/II
18 Кнопка CUE
19 Кнопки SEARCH ◀◀, ►▶
20 Кнопка MEMORY
21 Кнопка SHIFT

22 Кнопка выбора DECK
23 Кнопка SLIP REVERSE
24 Кнопка LOOP IN, LOOP 1/2X
25 Кнопка LOOP OUT, LOOP 2X
26 Кнопка 4 BEAT LOOP/EXIT

Раздел микшера

1 2 3 4 4 3 5 6 Pioneer DJ MASTER LEVEL 23 24 25 24 25 24 25 24 25 7 22 21 LOW LOW LOW LOW LOW LOW 26 26 26 26 8 20 SAND REDON FX BEAT FX 19 3 1 2 4 27 BEAT 11 18 28 12 17 29 13 16 LEVEL DEPTH DROSS FLOOR ASIGN MAGVEL ORDER POWERBASCE D/CONTROLLER DDJ-1000 (A B) CROCCOM 31 30

1 Индикатор микрофона
2 Селекторный переключатель OFF, ON, TALK OVER
3 Переключатель USB A, PHONO/LINE, USB B
4 Переключатель USB A, LINE, USB B
5 Ручка MASTER LEVEL
6 Индикатор CLIP
7 Индикатор контрольного уровня
8 Ручка BOOTH MONITOR LEVEL
9 Кнопка MASTER CUE
10 Отображение раздел эффектов
11 Кнопки BEAT ◀, ▶
12 Ручка BEAT FX SELECT
13 Ручка BEAT FX CH SELECT
14 Ручка BEAT FX LEVEL/DEPTH
15 Кнопка BEAT FX ON/OFF
16 Ручка HEADPHONES LEVEL
17 Ручка HEADPHONES MIXING
18 Ручка SAMPLER VOL
19 Кнопка SAMPLER CUE
20 Кнопки SOUND COLOR FX SELECT
21 Ручки MIC EQ (HI, LOW)
22 Ручка MIC2 LEVEL

box music

Diagram showing device control panel with zoomed-in view and dual output dials, labeled in Chinese.

[Headphones Output]: [DDJ-1000: HEADPHONE]

Для Windows

Аудио: [DDJ-1000 ASIO]

[выходные каналы]:

[Master Output]: [DDJ-1000 ASIO: MASTER]

[Headphones Output]: [DDJ-1000 ASIO:HEADPHONE]

Diagram showing a CD/DVD interface with labeled components and a zoomed-in view of the device's control panel.

© 2017 Pioneer DJ Corporation. All rights reserved.

Pioneer DJ Corporation

6F, Yokohama i-Mark Place, 4-4-5 Minatomirai, Nishi-ku, Yokohama, Kanagawa 220-0012 JAPAN

Pioneer DJ 株式会社

Pioneer DJ Europe Limited

Anteros Building, Odyssey Business Park, West End Road, South Ruislip, Middlesex, HA4

6QQ, U.K. TEL: [phone]

Pioneer DJ Americas, Inc.

2050 W. 190th Street, Suite 109, Torrance, CA 90504, U.S.A. TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

2 Jalan Kilang Barat, #07-01, Singapore 159346 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

5 Arco Lane, Heatherton, Victoria, 3202, Australia, TEL: [phone]

PIONEER ELECTRONICS (THAILAND) CO., LTD.

17th Fl., KPN Tower, 719 Rama 9 Road, Bangkapi, Huaykwang, Bangkok 10310

TEL: [phone]

PIONEER TECHNOLOGY (MALAYSIA) SDN. BHD

16th Floor, Menara Uni. Asia 1008 Jalan Sultan Ismail 50250 Kuala Lumpur

TEL: [phone]

先鋒股份有限公司

PIONEER INDIA ELECTRONICS PRIVATE LTD.

216, Second Floor, Time Tower, M.G. Road, Sector 28, Gurgaon 122001,

Haryana, India TEL: [phone]

PDJ_001_all

Сделано в Малайзии
