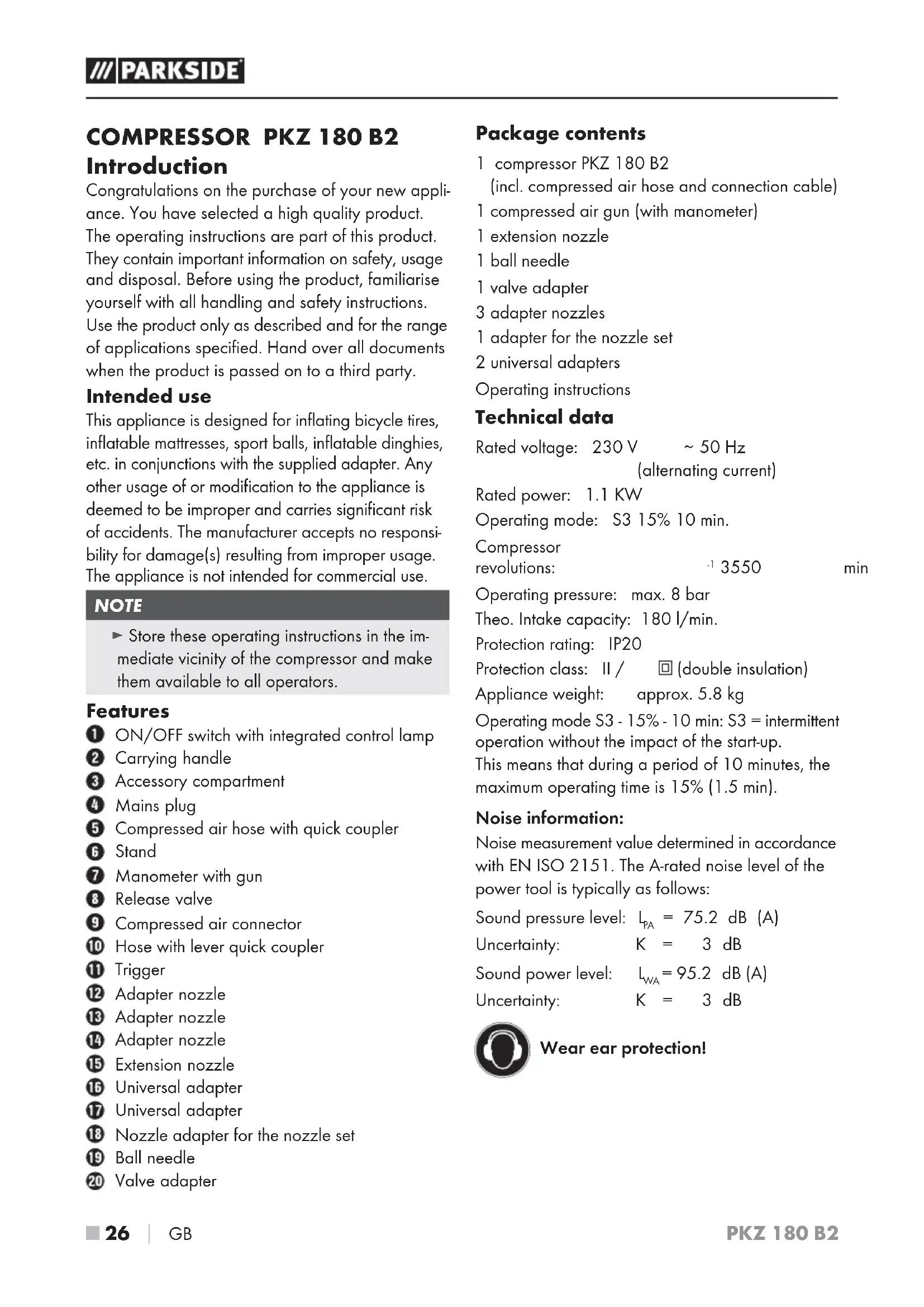

COMPRESSOR PKZ 180 B2 Introduction
Congratulations on the purchase of your new appliance. You have selected a high quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, familiarise yourself with all handling and safety instructions. Use the product only as described and for the range of applications specified. Hand over all documents when the product is passed on to a third party.
Intended use
This appliance is designed for inflating bicycle tires, inflatable mattresses, sport balls, inflatable dinghies, etc. in conjunctions with the supplied adapter. Any other usage of or modification to the appliance is deemed to be improper and carries significant risk of accidents. The manufacturer accepts no responsibility for damage(s) resulting from improper usage. The appliance is not intended for commercial use.
NOTE
- Store these operating instructions in the immediate vicinity of the compressor and make them available to all operators.

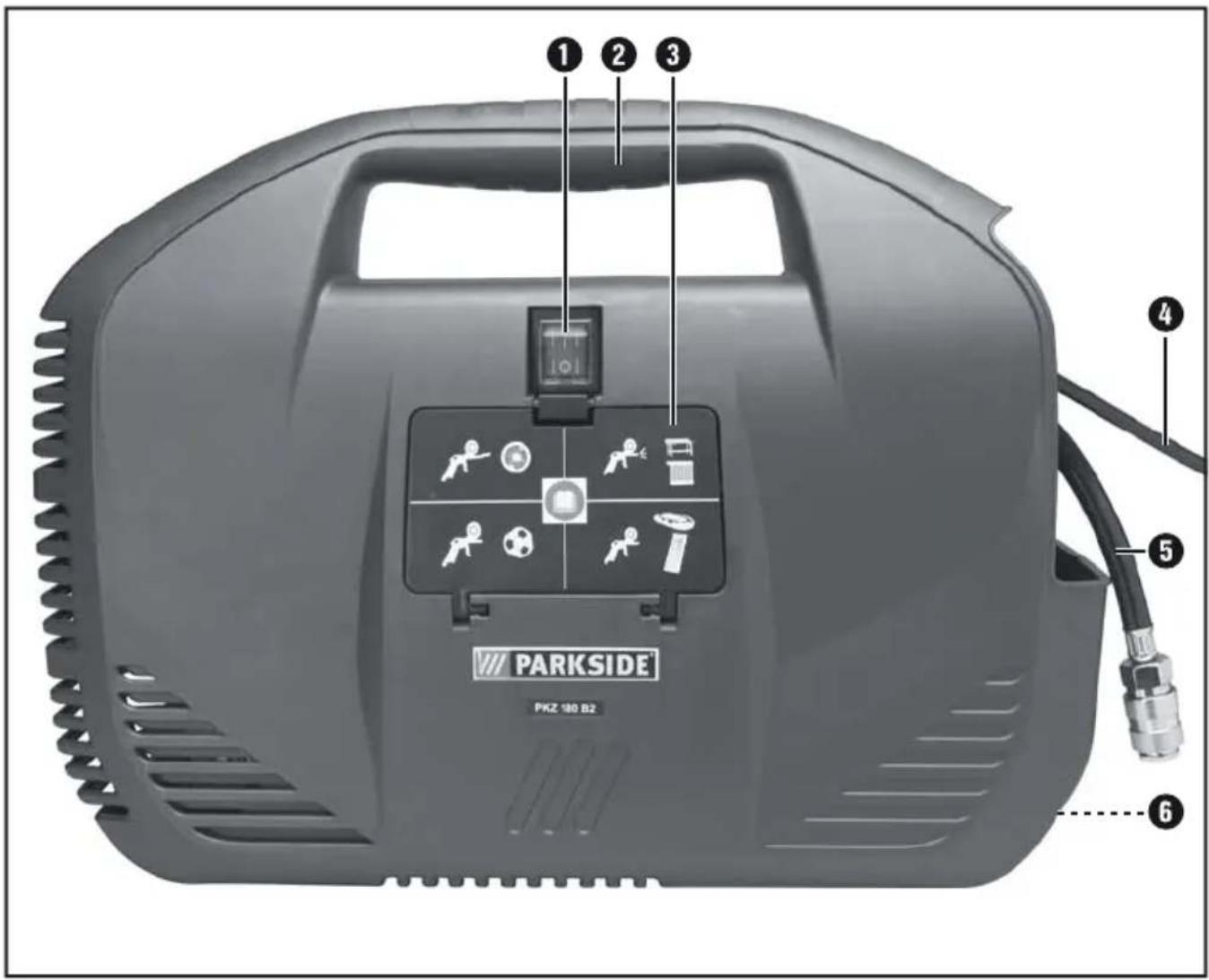

Features
ON/OFF switch with integrated control lamp
Carrying handle
3 Accessory compartment
4 Mains plug
5 Compressed air hose with quick coupler
6 Stand

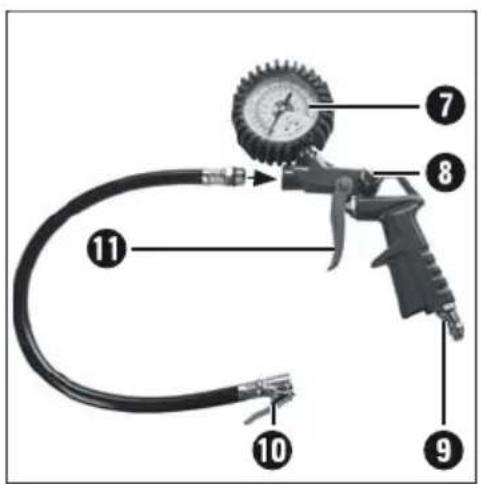

Manometer with gun
8 Release valve
9 Compressed air connector
10 Hose with lever quick coupler
Trigger

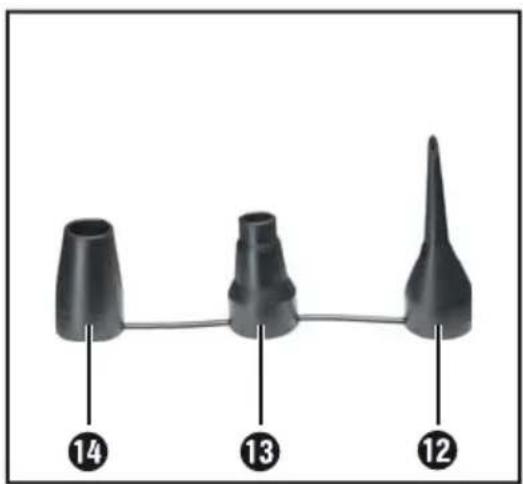

12 Adapter nozzle
13 Adapter nozzle
14 Adapter nozzle
15 Extension nozzle
16 Universal adapter
17 Universal adapter
16 Nozzle adapter for the nozzle set
19 Ball needle
20 Valve adapter
Package contents
1 compressor PKZ 180 B2 (incl. compressed air hose and connection cable)
1 compressed air gun (with manometer)
1 extension nozzle
1 ball needle
1 valve adapter
3 adapter nozzles
1 adapter for the nozzle set
2 universal adapters
Operating instructions
Technical data
Rated voltage: 230 V 50Hz (alternating current)
Rated power: 1.1 KW
Operating mode: S3 15% 10 min.
Compressor
revolutions: 3550
min
Operating pressure: max. 8 bar
Theo. Intake capacity: 180 l/min.
Protection rating: IP20
Protection class: II / (double insulation)
Appliance weight: approx. 5.8kg
Operating mode S3 - 15% - 10 min: S3 = intermittent operation without the impact of the start-up.
This means that during a period of 10 minutes, the maximum operating time is 15% (1.5 min).
Noise measurement value determined in accordance with EN ISO 2151. The A-rated noise level of the power tool is typically as follows:
Sound pressure level: L_PA = 75.2 ~dB(A)
Uncertainty: K = 3 dB
Sound power level: L_WA = 95.2 dB (A)
Uncertainty: K = 3 dB
Wear ear protection!
Explanation of the symbols on the appliance!
Read the original operating instructions and safety instructions before initial operation.
Wear ear protection!
Do not start
Compressor can start without warning
Risk of burns caused by hot surfaces!
Warning: electrical voltage!
Only for indoor use!
Sound power level LWA data in dB.
General SafetyWarnings
WARNING!
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (cored) compressor.
1. Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5. Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Always arrange for the exchange of the plug or the power cord to be carried out by the manufacturer of the appliance or by its approved customer services. This will ensure that the safety of the power tool is maintained.
Device-specific safety instructions
This appliance may not be used by children or people with reduced physical, sensory or mental capabilities or a lack of experience and knowledge. Children must not use the appliance as a plaything. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.
Avoid using the compressor at temperatures below +5 degrees.
Never leave the compressor unsupervised while it is in use.
Ensure that the ON/OFF switch is turned off when connecting to the mains power supply.
Caution! Operate the compressor only for a short time. The appliance may overheat if operated continuously for longer than 10 minutes. Switch the appliance off immediately and allow it to cool down for at least 10 minutes.
■ Risk of injury! Do not pump any objects up to more than the intended pressure. They could burst and cause injury and/or material damage.
- Do not exceed the permissible output range of the compressor. Do not pump up any lorry, tractor or other large tires.
Do not work with any materials that are or could be easily inflammable or explosive.
Never use the appliance for purposes other than the ones for which it was designed.
The appliance must always be kept clean, dry and free from oil or grease.
Never use gasoline or other inflammable liquids to clean the unit! Vapours remaining in the appliance could be ignited by sparks and lead to the explosion of the appliance!
Remain alert at all times! Never use the appliance when you are distracted or don't feel well.
Safety instructions for working with compressed air and blow-out guns
The compressor and hoses can get very hot during operation. Touching them can cause burns.
The gases or vapours sucked in by the compressor intake must be kept free of admixtures that could lead to fires or explosions inside the compressor.
When removing the hose coupling, always hold the hose coupling firmly to avoid injury caused by the hose flying off.
When working with the blow-out gun, wear goggles. Foreign bodies and blown out particles can easily cause injuries.
Do not direct the blow-out gun at people or use it to clean clothing you are wearing.
Check all connections and supply lines. All maintenance units, couplings and hoses must correspond to the appliance parameters in terms of pressure and air flow. Excessively low pressure will adversely affect the function of the appliance; excessively high pressure can cause property damage and personal injury. Protect the hoses against kinking, constriction, solvents and sharp edges.
Ensure that the hose clamps are always tight. Loose or damaged hose clamps can allow air to escape in an uncontrolled manner.
Replace a damaged hose immediately. A faulty supply line can cause a compressed-air hose to thrash about and cause personal injury.
Do not breathe in the exhaust air directly.
The hose must be designed for at least 150% of the maximum pressure generated in the system.
The tool and the supply hose must be fitted with a hose coupling that allows the pressure of the coupling hose to be dispersed completely during disconnection.
WARNING! An undersized compressed air system will reduce the efficiency of your appliance.
Avoid getting exhaust air in your eyes. The exhaust air from the appliance may contain water, oil, metal particles or impurities from the compressor. This can cause damage to health.
WARNING!
Take care when putting down the appliance! Always put the appliance down so it does not lie on the ON/OFF switch. Under certain circumstances, this could cause an accidental activation of the appliance which, in turn, could lead to hazards.
Operation
NOTE
The appliance vibrates during operation. Therefore, always put it down during operation. There are four feet 6 on the bottom of the appliance for this purpose.
Remove the required accessories from the accessory compartment 3.
Switching on and off
Switching the appliance on:
Move the ON/OFF switch into the position "I" to switch the appliance on. The integrated control lamp lights up.
Switching the appliance off:
Move the ON/OFF switch into the position "O" to switch the appliance off. The integrated control lamp goes out.
CAUTION!
Caution! This appliance is not designed for continuous operation. To prevent the motor from overheating, the appliance may only be used as follows: within a period of 10 minutes the appliance may only be operated at the rated power input for 15% of the period, in other words, 1.5 minutes. During the rest of the time period (cooling phase 8.5 minutes), the appliance cools down again.
Compressed air hose with quick coupler 5
Connecting:
Push the compressed air connector into the quick coupler of the compressed air hose 5 the sleeve automatically springs forwards.
Cutting:
Pull back the sleeve on the quick coupler of the compressed air hose and remove the compressed air connector
CAUTION!
Caution! When disconnecting the quick coupler of the compressed air hose, hold the coupler firmly to prevent injuries caused by the hose flying off.
Inflation
withadapter
Schrader valve
Area of use:
This application allows for a simple and accurate inflation. The manometer 7 is used to check the tire pressure. Thanks to the integrated release valve it is possible to reduce the tire pressure if it is too high.
ATTENTION!
Please note, the manometer is not calibrated! After inflation, always check the tire pressure immediately, for example, at a petrol station.
Ensure that the ON/OFF switch is set to "O".
Press the lever quick couple downwards to attach it.
Place the lever quick couple onto the valve and then release the lever.
Insert the mains plug of the compressor into a mains power socket.
Switch the ON/OFF switch to "I". The integrated control lamp lights up.
Pull the trigger.
Read the air pressure from the manometer.
Let the trigger off again.
Switch the ON/OFF switch to "O" as soon as the correct or permissible air pressure has been reached. The integrated control lamp goes out.
Press down the lever quick couple and pull it off the valve.
Remove the mains plug from the mains power socket.
using the valve adapter 20
Sclaverand valve
Dunlop valve
Area of use:
The valve adapter 20 facilitates easy inflation of bicycle tires.
Use the valve adapted to pump to the valves shown above.
Connect the valve adapter into the lever quick coupler and then release it.
Start by pressing the valve adapte20 onto the valve.
Inflate as described above.
using the ball needle 19 / universal adapters 16 17
Area of use:
The ball needle can be used to inflate various balls. The universal adapters 16 can be used to inflate air mattresses or similar.
Press the lever quick couple downwardsto attach it.
Insert the ball needle or one of the universal adapters 16 to the lever quick coupler 10 and then release it.
Inflate as described above.
NOTE
To avoid damage to the valve, you should moisten the ball needle 19 before insertion.
with the extension nozzle 15
Area of use:
The extension nozzle is used for the cleaning/ blowing out of concealed spaces or hard-to-reach areas, as well as for the cleaning of contaminated equipment. The infinitely variable trigger allows an exact dosage of the compressed air.
If you want to use the extension nozzle 15, you must first unscrew the hose with the lever quick coupler from the gun with the manometer.
Now screw on the extension nozzle into the gun with the manometer
using the adapter nozzle 12
Area of use:
The adapter nozzle is suitable for all valves with an internal diameter of 8 mm. You can use the adapter nozzle or items such as inflatable mattresses, pools and also boats.
Press the lever quick couple downwards to attach it.
Insert the nozzle adapter into the lever quick coupler and then release it.
Screw the nozzle adapter into the adapter nozzle 12
Inflate as described above.
using the adapter nozzle 13
Area of use:
You can use the adapter nozzle for all commercially available bathing boots, kayaks or other large items, such as pools, that are equipped with a screw valve.
Press the lever quick couple downwards to attach it.
Insert the nozzle adaptet into the lever quick coupler and then release it.
Screw the nozzle adapter into the adapter nozzle 13
Inflate as described above.
using the adapter nozzle 14
Area of use:
You can insert the adapter nozzle 14 in a vent valve. You will find this together with other valves (standard valve, screw valve,...) on large-volume items, for example an inflatable mattress.
Press the lever quick couple to downwards to attach it.
Insert the nozzle adaptet into the lever quick coupler and then release it.
Screw the nozzle adapter into the adapter nozzle
Inflate as described above.
Maintenance and cleaning
NING! RISK OF INJURY! Switch the appliance off and remove the power plug before commencing any work to the appliance.
Do not use any sharp objects to clean the appliance. Never permit fluids to penetrate inside the appliance. The appliance could be damaged.
The appliance is maintenance-free.
Ensure that the appliance has cooled down completely, otherwise there is a risk of burns.
The appliance must be depressurised before all cleaning and maintenance tasks. To do this, open the release valve until no more air escapes.
Clean the appliance regularly, preferably immediately after completion of the work.
Clean the housing with a dry cloth - do NOT use petrol, solvents or cleaners that can attack the plastic.
Ensure that no water gets into the appliance.
Ventilation openings must never be obstructed.
NOTE
Replacement parts not listed (such as adapter nozzles, switch) can be ordered via our service hotline.
NOTE
This appliance is maintenance free. Never open the appliance. The appliance may only be repaired by an authorised service centre or Customer Service. If one of the faults listed below occurs, note the following:
Disconnect the appliance from any power supply.
Allow the appliance to cool down and wait a short while for the residual energy to neutralise.
Ensure that the appliance is in good working condition.
| Troubleshooting |
| Fault Solution | |
| 1. Appliance does not run | 1. Check your power supply.
Check that all cables, fuses and the mains socket are in working order.
2. Do not use excessively long extension cables.
3. Do not use the appliance at temperatures below +5 degrees.
4. Avoid overheating the motor. Allow the motor to cool down. |
| 2. Working pressure too low | Check the seals and the non-return valve. Replace these if necessary. |
| 3. Tools do not work | Check the hoses, quick coupler and the tools. Replace these if necessary. |
Storage
NOTE
-
Store the appliance in a dry and secure environment. Before storage, the appliance and all connected compressed air tools should be bled.
-
Disconnect the mains power plug and then bleed the appliance and all connected compressed air tools.
Store the appliance so that it cannot be used by unauthorised persons.
Disposal
The packaging consists of enviro friendly material. It can be disposed of in the local recycling containers.
European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environmentally compatible manner. Your local community or municipal authorities can provide information on how to dispose of the worn-out appliance.
This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.
Warranty conditions
The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.
If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence. If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.
Warranty period and statutory claims for defects
The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.
The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.
This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
Please have the till receipt and the item number (e.g.IAN 12345) available as proof of purchase.
You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
NOTE
For Parkside and Florabest tools, please send us only the defective item without the accessories (e.g. battery, storage case, assembly tools, etc.).
You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.
Service
Service Great Britain
Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: kompernass@lidl.co.uk
IAN 280284
Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
We, KOMPERNASS HANDELS GMBH, Custodian of Documents: Mr. Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:
Machinery Directive
(2006/42/EC)
EC Low Voltage Regulations
(2014/35/EU)
EMC (Electromagnetic Compatibility)
(2014/30/EU)
RoHS Directive
(2011/65/EU)*
*The manufacturer is solely responsible for issuance of the declaration of conformity. The object of the declaration described above is in conformity with Directive 2011/65/
EU of the European Parliament and of the Council of 8 June 2011 on the restriction of use of certain hazardous substances in electrical and electronic equipment.
Applied harmonised standards:
EN 1012-1: 2010
EN 60204-1: 2006/A1: 2009
EN 55014-1:2006/A2:2011
EN 55014-2: 2015
EN 61000-3-2: 2014
EN 61000-3-3:2013
Type designation of machine:
Compressor PKZ 180 B2
Year of manufacture: 11 - 2016
Serial number: IAN 280284
Bochum, 05/09/2016
Semi Uguzlu
The right to effect technical changes in the context of further development is reserved.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DEUTSCHLAND/GERMANY
www.kompernass.com
Last Information Update: 09 / 2016
Ident.-No.: PKZ180B2-092016-2
