USER MANUAL PWSA 18 A1 PARKSIDE

Translation of the original instructions

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

GB Translation of the original instructions Page 52

Sommaire

Introduction 4

Chere cliente, cher client,

Extent of the delivery 53

Description of function 53

Overview 53

Technical data 53

Notes on safety. 54

Symbols and icons 55

General Safety Directions for Power

Tools 56

Additional safety instructions 61

RESIDUAL RISKS 62

Charging the battery 65

Removing / inserting the battery ....65

Recharging the battery. 65

Used batteries 66

Checking the battery charge level ....66

Practical tips 66

Assembly 66

Mount additional handgrip 67

Assemble/set protective hood 67

Installing/chang disc 67

Operation 67

Turning on and off 68

Cleaning 69

Storage 69

Disposal and protection of the envi

ronment 69

Replacement parts/Accessories ..70

Troubleshooting 71

Guarantee 72

Repair Service 73

Service-Center 73

Importer 73

Translation of the original

EC declaration of conformity .... 77

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended purpose

The angle grinder is a tool for cutting, scrubbing and brushing metal, concrete or tiles without using water.

The device is not intended for any other types of applications (e.g. grinding with unsuitable grinding tools, grinding with a coolant solution, grinding or cutting hazardous materials such as asbestos).

The device is intended to be used by do-it-yourselfers. It was not designed for heavy commercial use.

The tool is to be used by adults. Children under the age of 16 may not use the tool except under supervision.

The manufacturer is not liable for damages caused by an improper use or incorrect operation of this device.

General description

See the front fold-out page for illustrations.

Extent of the delivery

Carefully unpack the appliance and check that it is complete. Dispose of the packaging material correctly.

• Device
• Battery-charger
• Battery
• Additional handle
• Protective hood
• Chuck key
• Cutting disc
• Translation of the original instructions for use

Description of function

The angle grinder is made for cutting, scrubbing or brushing metal. There is a special disc for each of the separate applications. Please refer to the information from the disc manufacturer. Please refer to the descriptions below for information about the operating devices. The battery included in the scope of delivery can also be used for the cordless reciprocating saw PSSA 18 A1 and the cordless drill driver PDSSA 18 A1.

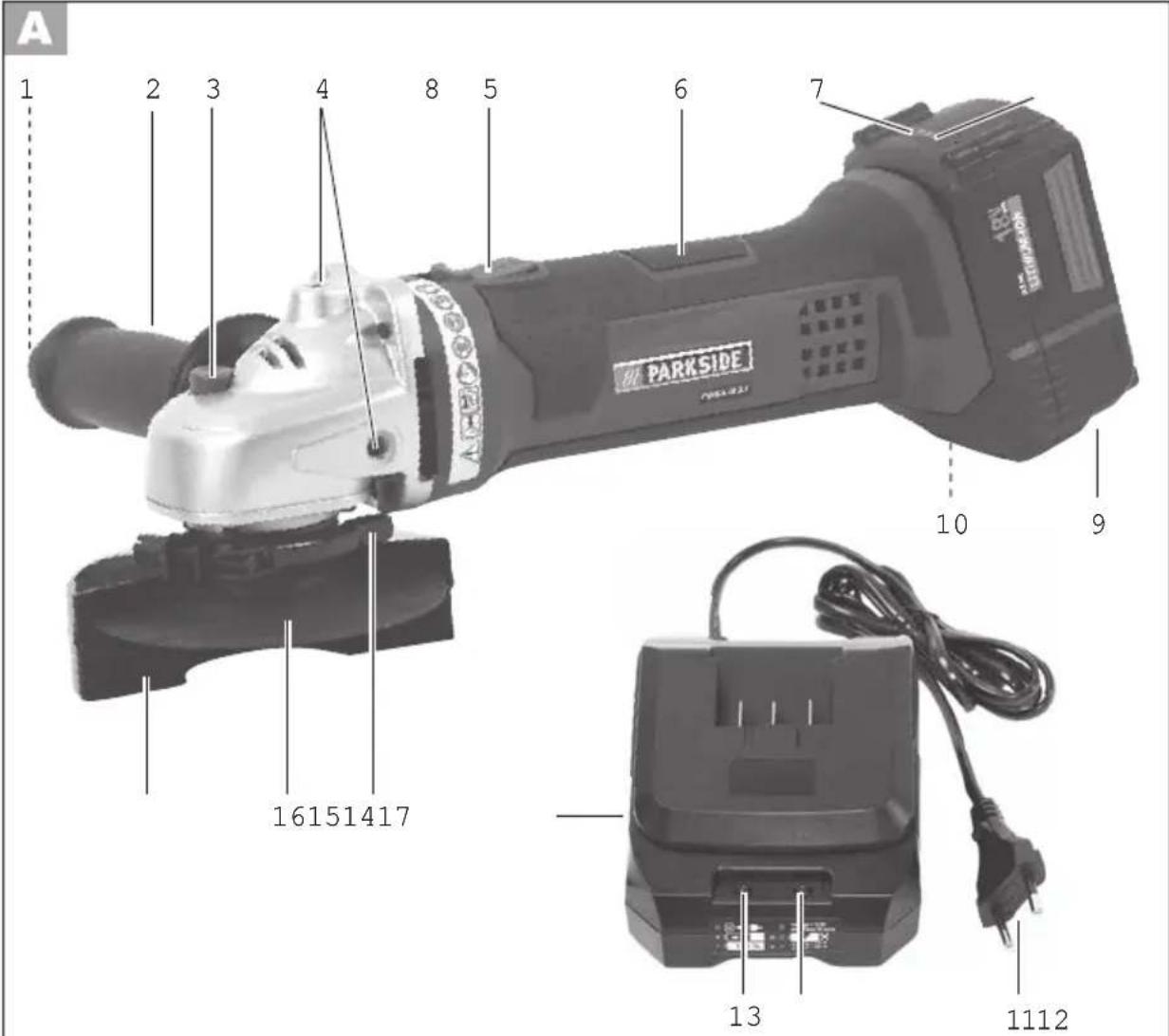

Overview

1 Chuck key with storage facility (not visible)

2 Additional handle
3 Spindle stop button
4 Threads for additional handgrip
5 On/off switch
6 Handgrip

7 Activation button battery Indicator
8 Battery Indicator
9 Battery
10 Battery release button (not visible)
11 Power plug of charger
12 Green LED
13 Red LED
14 Charger

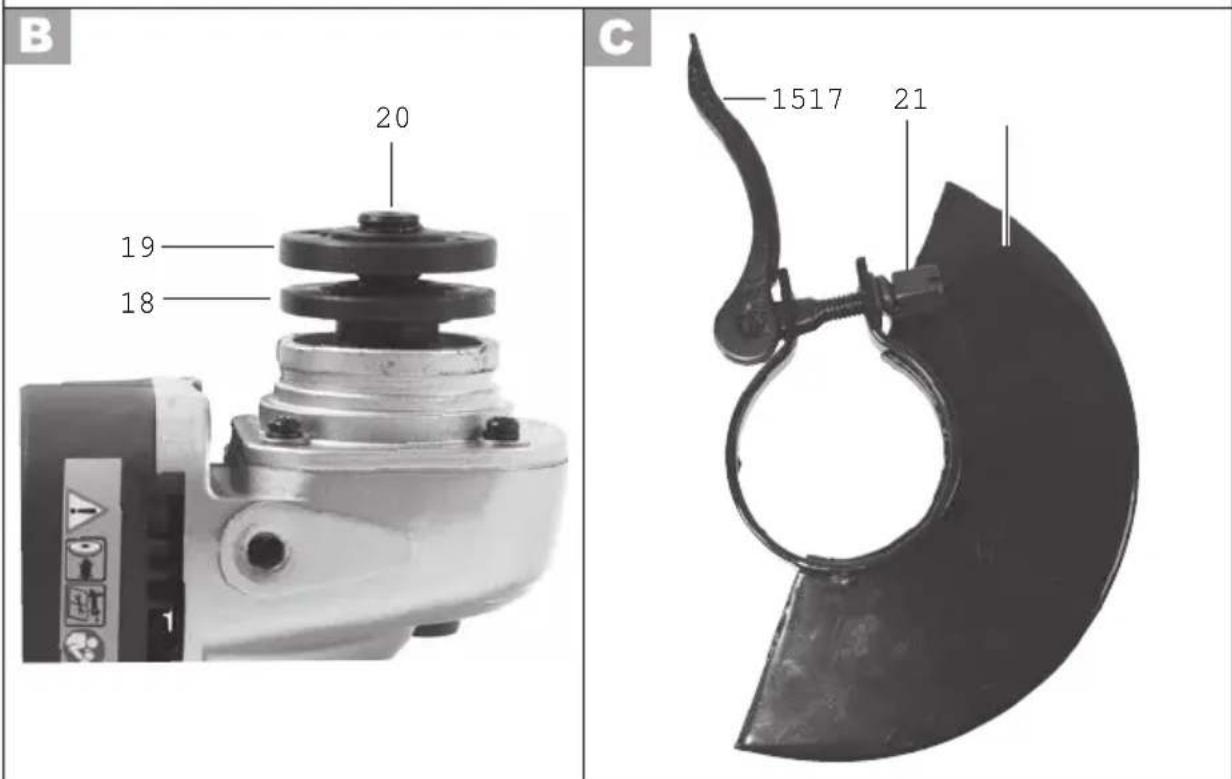

15 Tightening lever for protective hood
16 Cutting disc
17 Protective hood

18 Mounting flange

19 Clamping nut
20 Mounting spindle

21 Adjustment nut

Technical data

Angle Grinding PwSA 18 A1:

Rated input voltage 18 V=

Measurement idling speed (n) ...8000 min
Dimensions of the cutting/roughing discs
115 x 22.2 mm

Thickness of the cutting/roughing discs max. 6 mm

Grinding spindle thread M14

Thread length of the grinding spindle max. 14 mm

Protection category.. IPX0

Sound pressure level (L_pA) 81,6 dB(A); K_pA = 3 dB

Sound power level (L_wA) measured 92,6 dB(A); K_wA = 3 dB guaranteed 96 dB(A)

Vibration values (a_h) Main handgrip ... 3,043 m/s2 K= 1,5 m/s2

Additional handle 5,024m / s^2K = 1,5m / s^2

Battery (Li-Ion) ......PAP18-2.6A1

Number of battery cells. 10

Nominal voltage. 18 V=

Capacity 2,6 Ah

Charging time ca. 1 h

Recharger .........JLH-H260-18G

Nominal consumption 70 W

Uptake voltage/Input

220-240V\~，50-60Hz

Voltage output/Output

18V=2600mA

Protection class Ⅱ

Protection category IPX0

The vibration values represent maximum values which have been determined with the supplied cutting disc. The actual vibration values may vary depending on the used accessories. The vibration values are still affected by the handling of the user's.

Cutting disc (extent of delivery):

ldling speed n_0 max.13300 min

Disc speed max. 80m / s^*

Outer diameter 115 mm

Bore hole 22,2 mm

Thickness 2,4 mm

• The grinding disc must keep a rotational speed of 80 m/s

Noise and vibration values have been determined according to the standards and regulations mentioned in the declaration of conformity.

Technical and optical changes may be undertaken in the course of further development without notice. All dimensions, references and information in this instruction manual are therefore not guaranteed.

Legal claims made on the basis of the instruction manual can therefore not be

considered as valid.

The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another.

The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning:

The vibration emission value whilst actually using the electrical tool may vary from the given values independently of the type and way in which the electric tool is used.

Safety measures for the protection of the operator are to be determined that are based on an estimate of the actual exposure under the real operating conditions (for this, all parts of the operating cycle are to be taken into account, for example, times in which the electric tool is turned off, and those during which it is turned on but running without a load).

Notes on safety

Caution! When using power tools, observe the following basic safety measures for the prevention of electric shocks and the risk of injury and fire.

Please read all these instructions before using this electric tool and please keep the safety instructions.

Symbols and icons

Symbols on the device:

Warning!

Risk of injury from the rotating tool! Keep hands away

Warning! Electric shock hazard.
ways unplug the device before
working on it

Read the manual!

Wear ear protection

Wear eye protection

Wear breathing protection

Risk of cuts! ar cut-resistant gloves

Electrical machines do not belong with domestic waste

Other symbols on the cutting disc:

Do not use for side grinding

Do not use for wet grinding

Do not use defective discs

Suitable for metal

Wear safety shoes

Symbols on the battery:

Do not dispose of batteries in household waste, fire or water.

Do not subject the battery to strong sunlight over long periods and do not leave it on a heater (max. 45^ ).

Take batteries to an old battery collection point where they will be recycled in an environmentally friendly manner.

Symbols on the recharger:

Warning!

Before using for the first time, carefully read through the user manual

The recharger is for indoor use only.

T2.5A

Miniature fuse

Protection class II

Electrical appliances must not be disposed of with the domestic waste.

Green LED flashes up without battery

Charger ready

Green LED lights up

Battery such alleged charged

Red LED lights up Battery charging

Green LED flashes with battery:

Battery has to be charged in advance for 30 minutes before charging starts
Red and green LED flashes Battery defect Red and green LED lights up
Battery too cold or too warm. Battery cannot be charged

Symbols in the manual

Warning symbols with information on damage and injury prevention.

Instruction symbols (the instruction is explained at the place of the exclamation mark) with information on preventing damage.

Help symbols with information on improving tool handling.

General Safety Directions for Power Tools

WARNING! READ ALL SAFETY DIRECTIONS AND INSTRUC

TIONS. Omissions in the compliance with safety directions and instructions can cause electrical shock, fire and/or severe injuries.

Retain all safety directions and instructions for future use.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety :

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in

explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety :

CAUTION! The following states how to avoid accidents and injuries due to electric shock:

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of

electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. Use a circuit breaker with a current limit of 30mA or less.
3) Personal safety:

CAUTION! The following states how to avoid accidents and injuries:

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care :

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjust -ments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may af

fect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5) CAREFUL HANDLING AND USE OF BATTERY DEVICES
a) Charge the batteries only in chargers that are recommended by the manufacturer. Risk of fire if a charger that is suitable for a specific type of battery is used with other batteries.
b) In the power tools, use only the batteries designed for the purpose. The use of other batteries may result in injuries and risk of fire.
c) Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal objects, which could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or fire.
d) If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery fluid may cause skin irritations or burns.

6) SERVICE

Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

7) SPECIAL SAFETY DIRECTIONS FOR BATTERY-OPERATED TOOLS

a) Ensure that the device is switched off before inserting the battery. Inserting a battery into a power tool that is switched on may result in accidents.
b) Recharge the batteries indoors only because the battery charger is designed for indoor use only.
c) To reduce the electric shock hazard, unplug the battery charger from the mains before cleaning the charger.
d) Do not subject the battery to strong sunlight over long periods and do not leave it on a heater. Heat damages the battery and there is a risk of explosion.
e) Allow a hot battery to cool before charging.
f) Do not open up the battery and avoid mechanical damage to the battery. Risk of short circuit and fumes may be emitted that irritate the respiratory tract. Ensure fresh air and seek medical assistance in the event of discomfort.
g) Do not use non-rechargeable batteries!
8) CORRECT HANDLING OF THE BATTERY CHARGER
a) This device can be used by children aged 8 and over and by people with reduced physical, sensory or mental

capacities or with a lack of experience or knowledge, if they are supervised or have been instructed regarding safe use of the device and understand the resulting risks. Children are not permitted to play with the device. Cleaning and user maintenance are not to be undertaken by children without supervision.

b) Children should be supervised to ensure that they do not play with the appliance.
c) To charge the battery, use only the charger supplied.

Risk of fire and explosion. This ensures that the safety of the device is maintained.

d) Before each use, check the charger, cable and plug and have them repaired by qualified professionals and only with original parts.
Do not use a defective charger and do not open it up yourself. This ensures that the safety of the device is maintained.
e) Connect the charger only to a socket with an earth. Ensure that the mains voltage matches the specifications on the charger rating plate. Risk of electric shock.
f) Disconnect the charger from the mains before closing or opening connection to the battery / power tool / device.
g) Keep the charger clean and away from wet and rain. Do not use the charger outdoors. Dirt and the entry of water increase the risk of electric shock.
h) Operate the charger only with the appropriate original batteries. Charging other batteries may result in injuries and risk of fire.
i) Avoid mechanical damage to the charger. This can result in internal short circuits.
i) Do not operate the charger on a combustible surface (e.g. paper, textiles). Risk of fire due to heating dur

ing charging.

k) If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.
1) The battery of the appliance is not fully charged at the time of delivery. It therefore needs to be fully recharged before you use it for the first time. For the first recharge cycle we recommend that you charge the battery for about 1 hour. Slot the battery into the base and plug the battery charger into a mains outlet.
m) When the battery is fully charged, unplug the charger from the mains and from the appliance. Charging time is approx. 1 hour.
n) Do not charge the battery continuously since this may damage the battery cells. Note: Repeatedly charging small capacities may damage the battery cells. Recharge the battery only if the appliance is becoming slow.
o) Do not use the charger to charge nonrechargeable batteries.

9) RESIDUAL RISKS

Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards:

a) Cuts
b) Ear damage if working without ear protection.
c) Damage to your health caused by swinging your hands and arms when operating the appliance for longer periods of time or if the unit is not held or maintained properly.

Warning! During operation, this electric tool generates an electromagnetic

field which, under certain circumstances, may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we recommend that persons with medical implants consult their doctor and the manufacturer of their medical implant before operating the machine.

Safety instructions for all applications

Common safety instructions for grinding, sanding, working with wire brushes and cutting grinders:

• This electric tool is to be used as a grinder, sander, wire brush and cutting grinder. Follow all safety instructions, directives, illustrations and facts which you receive with the device. If you do not follow these instructions, an electrical shock, fire and/or serious injury may occur.
• This electric tool is not suitable for cup brushes. Using the electric tool in ways for which it is not intended may cause hazards and injuries.
• This electric tool is not suitable for cup wheels, mounted points or grinding cones. Using the electric tool in ways for which it is not intended may cause hazards and injuries.
• This electric tool is not suitable for polishing. Using the electric tool in ways for which it is not intended may cause hazards and injuries.
• Do not use any accessories that are not specifically intended and recommended for this electric tool by the manufacturer. Simply because an accessory can be attached to your electric tool does not guarantee

safe operation.

• The allowable rotation speed of the attachment tools must be at least as high as the highest rotation speed indicated on the electric tool. Accessories that run faster than the allowable speed can break and fly apart.
• The outside diameter and thickness of the attachment tool must correspond to the dimensions indicated for your electric tool. Attachment tools which are wrongly dimensioned cannot be sufficiently shielded or controlled.
• Attachment tools with threaded attachment must fit the threading of the grinding spindle exactly. For attachment tools which are mounted through a flange, the diameter of the hole in the attachment tool must fit the mounting diameter of the flange. Attachment tools which cannot be precisely attached to the electric tool turn unevenly, vibrate very strongly and can ultimately lead to a loss of control.
• Never use damaged attachment tools. Check attachment tools such as grinding discs for chipping or cracks, grinding plates for cracks, wear or strong abrasion and wire brushes for loose or broken wires before using them. If the electric tool or the attachment tool falls off, check whether it is damaged or, use an undamaged attachment tool. If you have checked the attachment tool and attached it, keep yourself and any nearby persons beyond the level of the rotating attachment tool and allow the device to run for 1 min.

at the highest rotational speed.

Damaged tools usually break during this test period.

• Wear personal safety equipment. Depending on the application, use full face shields, eye protection or safety goggles. In so far as it is appropriate, wear dust masks, ear protection, gloves or special aprons which keep small grinding and material particles away from you. Eyes should be protected from the foreign matter which can be caused to fly during the various applications. Dust or breathing masks should filter the dust that is created during operation. If you are exposed to loud noise for a long time, you may suffer hearing loss.
• Ensure that other people are at a safe distance to your working area. Anyone who enters the working area should wear personal protective equipment. Broken bits from the piece being worked or broken attachment tools can fly away and cause injuries even beyond the direct working area.
• Hold the electric tool only by the insulated gripping surfaces when performing work in which the cutting tool may come into contact with hidden wiring or its own cord. Contact with a live wire can also cause a charge in metal parts of the device and result in an electric shock.
• Keep the cord away from the rotating attachment tool. If you lose control of the device, the power cord can become separated or caught and your hand or arm may be pulled into the rotating attachment tool.
• Never put the electric tool down

before the attachment tool has come to a full stop. The rotating attachment tool can come into contact with the surface upon which it is set, whereby you could lose control of the electric tool.

• Never allow the electric tool to run whilst you are carrying it. Your clothing may accidentally come into contact with the rotating attachment tool and get caught and the attachment tool could drill into your body.
• Clean the ventilation slots of your electric tool routinely. The motor air pulls dust into the housing and, should too much metallic dust collect, could cause electrical hazards.
• Never use the electric tool near flammable material. Sparks could ignite this material.
• Do not use attachment tools which require liquid coolant. Using water or another liquid coolant could lead to electrical shock.

Additional safety instructions

• Connect the appliance only to a power socket with a residual current circuit breaker of rated residual current no more than 30mA .
• Keep power cords and extension cords away from the disc. If they are damaged or cut through, immediately pull the plug from the outlet. Do not touch the cable before it has been disconnected from the power supply.

Risk of electric shock!

• The replacement of the plug or the connection line must always be executed by the manufacturer of the electric tool or his/her customer service in order to avoid any hazards.
• Only use grinding discs where the in

dicated rotational speed is at least as high as what has been specified on the name plate of the device.

• Carry out a visual inspection of the grinding disc before use. Do not use any damaged or deformed grinding discs. Replace any damaged or worn grinding discs.
• Make sure that the sparks produced by grinding do not present a danger, e.g. reach people or ignite flammable substances.
  Always wear safety goggles, safety gloves, respiratory protection and ear protection when grinding, brushing and cutting.
• Never keep the fingers between the grinding disc and spark protection or in close proximity to the protective hoods. There is a risk of crushing.
• The rotating parts of the device cannot be covered due to functional reasons. Therefore, proceed cautiously and hold the workpiece firmly in order to avoid slipping which could cause your hands to come into contact with the grinding disc.
• The workpiece gets hot during grinding. Do not touch the machined area, allow it to cool down. There is a risk of burning. Do not use coolants or the like.
  If you are tired or have consumed alcohol or tablets, do not work with the device. Always have a break on time.
• Turn off the appliance and, before doing any servicing, remove the battery.

RESIDUAL RISKS

Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards:

a) Cuts
b) Ear damage if working without ear pro

tection.

c) Damage to your health caused by swinging your hands and arms when operating the appliance for longer periods of time or if the unit is not held or maintained properly.
d) Health injuries which result from swinging hand and arm, in the event that the device is used over a longer period of time or is not used and maintained properly.

Warning! During operation, this electric tool generates an electromagnetic field which, under certain circumstances, may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we recommend that persons with medical implants consult their doctor and the manufacturer of their medical implant before operating the machine.

Kickback

Kickback is the sudden reaction from a chopp ing or blocked grinder attachment such as a grinding disc, grinding plate, wire brush etc. Chopping or blocking leads to sudden stopping of the rotating attachment. This causes an uncontrolled electric tool to accelerate in a direction counter to the rotational direction of the attachment tool. If, for example, a grinding disc cuts into the workpiece or blocks it, the edge of the grinding disc that digs into the workpiece can get caught and, through that, break off the grinding disc or cause a kickback. The grinding disc then moves towards or away from the operator, depending on the direction of rotation of the disc at the blocked spot. Here, the grinding discs can also break. A kickback is caused by wrongly or incorrectly operating the electric tool. It can be avoided by suitable cautionary measures,

such as described below.

a) Hold the electric tool very

firmly and bring your body and your arm into a position in which you can resist the kickback force. Always use the supplemental handle if available to give you the best control over kickback force or reaction time during acceleration. The operator can master the kickback and reaction force through suitable precautions.
b) Never bring your hands near a rotating attachment tool. The attachment tool can run over your hand in the kickback.
c) Keep your body away from the area in which the electric tool would move during a kickback. The kickback drives the electric tool in the counter-direction to the rotation of the grinding disc at the blocked spot.
d) Work particularly cautiously in corner areas or where there are sharp corners etc. Prevent the attachment tools from recoiling from the workpiece and jamming. The rotating attachment tool tends to jam when near corners, sharp edges or when it recoils from such. This causes a loss of control or kickback.
e) Do not use chain or toothed saw blades. Such attachment tools frequently cause a kickback or loss of control over the electric tool.

Special safety instructions for grinding and cutting

a) Use only grinders which have been approved for your electric tool and the protective hood intended for these grinders. Grinders which are not intended for the elec

tric tool may not be sufficiently shielded and are unsafe.

b) Depressed centre grinding wheels must be pre-mounted in such a way that their grinding surface does not protrude over the level of the edge of the protective cover. An incorrectly mounted grinding wheel which protrudes beyond the level of the edge of the protective cover cannot be adequately shielded.
c) The protective hood must be securely attached to the electric tool and adjusted so that the greatest level of safety is reached, i.e., the smallest possible amount of the grinder is exposed to the operator. The protective hood should protect the operator from broken bits and accidental contact with the grinder.
d) Grinders may only be used for the recommended attachment options. For example: Never grind with the side surface of a cutting disc. Cutting discs are for cutting material using the edge of the disc. Pushing sideways on these grinders can break them.
e) Always use undamaged clamping flanges of the correct size and shape for the grinding disc you selected. Suitable flanges support the grinding disc and thus reduce the danger of the grinding disc breaking. Flanges for cutting discs can be distinguished from flanges for other grinding discs.
f) Do not use worn grinding discs for larger electric tools. Grinding discs for larger electric tools are not set up for the higher rotation speeds of

smaller electric tools and can break.

Other special safety instructions for cutting grinding

a) Avoid blocking the cutting disc or pressing down too hard. Do not make any excessively deep cuts. Overloading the cutting disc increases wear and its tendency to tilt or block and, with that, to kickback or break the grinder.
b) Avoid the area in front of and behind the rotating cutting disc. When you move the cutting disc by itself in the workpiece, in the event that the electric tool kicks back with the rotating disc, it can spin directly towards you.
c) If the cutting disc jams, or you interrupt your work, switch the device off and hold it until the disc has come to a full stop. Never try to pull the cutting disc out of the cut while it is still running, because it can kick back. Identify and correct the cause of the jamming.
d) Do not switch the electric tool on again as long as it is in the workpiece. Allow the cutting disc to first reach its full rotational speed before you carefully resume with the cutting. Otherwise, the disc may catch, spring away from the workpiece or cause a kickback.
e) Support plates or workpieces to reduce the risk of kickback from a jammed cutting disc. Large workpieces may bend under their own weight. The workpiece must be supported on both sides of the disc, near the cutting disc as well as also at the edge.
f) Be particularly careful for pocket

cuts in existing walls or other areas where you cannot see what is there. The cutting disc may cause a kickback when it cuts into gas or water lines, electrical lines or other hidden objects.

Additional safety instructions for sanding

Special safety instructions for sanding:

• Do not use overly large sandpaper sheets; follow the manufacturer's information for sandpaper sizes. Sandpaper sheets which extend beyond the sanding plate can cause injuries and can block, tear the sandpaper, or cause kickback.

Additional safety instructions for working with wire brushes

Special safety instructions for working with wire brushes:

• Be aware that the wire brushes also lose wire pieces during typical use. Do not overload the wires by pressing down too hard. Flying wire pieces can very easily penetrate thin clothing and/or your skin.
• If a protective hood is recommended, do not allow the wire brushes and the protective hood to touch each other. The diameter of plate and cup brushes can enlarge if too much pressure and centrifugal force is exerted.

Charging the battery

Do not expose the battery to extreme conditions such as heat or impact. Risk of injury from escaping electrolytic solution! After eye/skin contact, rinse the affected areas with water or a neutraliser and consult a doctor.

Charge the battery in a dry room only.

Prior to attaching the charger, check that the battery's outer surface is clean and dry.

There is a risk of injury due to electric shock.

Only use the original charger from the package to charge the battery. Mind not to charge the appliance for more than 1 hours at a time. If you do, the battery and the appliance may be damaged and longer charging times would be a waste of energy. Excessive charging will void the warranty.

Make sure that the power supply voltage matches the voltage rating indicated on the device's type plate.

• Charge the battery before the first time of use. Do not briefly charge the battery several time in a row.
• Recharge the battery when you notice that the appliance is becoming slower.
• If a fully recharged battery lasts for considerably shorter operating times, the battery is used up and needs to be replaced. Only use an OEM spare battery available from our Customer Service.
  Always take heed of the applicable safety

instructions as well as the environmental protection regulations and information.

• The warranty excludes all defects caused by improper handling.

Removing / inserting the battery

1. To remove the battery (9) from the appliance, press the release button 10) on the battery and pull out the battery.
2. To insert the battery (9), place it on the guide track and push it back into the appliance. It will audibly snap in.

Recharging the battery

1. Remove the battery (9) from the appliance.
2. Insert the battery (9) in the charging compartment of the battery charger.
3. Plug the battery charger into a mains outlet.
4. When the battery (9) is fully recharged unplug the battery charger from the mains.
5. Pull the battery (9) out of the battery charger.

Green LED flashes up without battery

Charger ready

Green LED lights up

Battery such alleged charged

Red LED lights up Battery charging

Green LED flashes with battery:

Battery has to be charged in advance for 30 minutes before charging starts

Red and green LED flashes Battery defect Red and green LED lights up

Battery too cold or too warm. Battery cannot be charged

Used batteries

• If a fully recharged battery lasts for considerably shorter operating times, the battery is used up and needs to be replaced. Only use an OEM battery pack replacement available from our Customer Service.
• Always take heed of the applicable safety instructions as well as the environmental protection regulations and information (see "Cleaning and Maintenance").

Checking the battery charge level

The battery's (9) charge level is indicated by the charge state indicator (8).

Press the activation button battery indicator on the battery.

The LEDs indicate the battery's charge level.

red-yellow-green = Battery fully charged red and yellow = Battery half charged red = Battery needs to be charged

Practical tips

Scrubbing wheels:

Never use a cutting wheel for scrubbing!

Exert only moderate pressure on the workpiece. Move the device evenly back and forth.

A working angle of 30^ to 40^ achieves the best results for scrub grinding.

Cutting disc:

Never use a scrubbing wheel for cutting!

Only certified, fibre-reinforced cutting or grinding discs may be used.

In general, work with small scrubs. Exert only moderate pressure on the workpiece.

Always work in the counter-direction. This ensures that the device is not pushed out of the cut through lack of control.

Cutting of stone materials:

• It is best to use a diamond cutting disc to cut stone materials. Make sure in any case that the cutting disc is suitable and labelled for your application.
• When cutting stone materials, ensure that the dust extraction is sufficient.
• Wear a dust protection mask.
• The device may only be used for dry cutting/dry grinding.

Information on building statics:

Slits in structural walls are subject to the standard DIN 1053 Part 1 or country-specific regulations. These regulations must be observed without fail. Before beginning work you should ask the structural engineer, architect or relevant construction supervisor for advice.

Assembly

Caution! Risk of injury!

sure that you have sufficient space in which to work, and that you do not endanger other people.

• All hoods and protective devices must be assembled properly before commissioning.
• Disconnect the mains plug before changing the setting on the device

Mount additional handgrip

The device must only be operated with the handgrip mounted.

Screw the additional handgrip (2), depending on the type of work, to the left, right or above the device using the threading for the handgrip (4).

Assemble/set protective hood

Adjust the protective cover such that any sparks or detached parts cannot hit either the user or any bystanders.

The protective cover must also be positioned such that the sparks cannot ignite combustible parts, including those in the surroundings.

The device must only be operated with the protective hood mounted.

1. Open the tightening lever (15).
2. Place the protective hood (17) on the positioning holes.
3. Turn the protective hood (17) into the working position. The closed side of the protective hood must always face the operator.
4. Close the tightening lever (15) again. The protective hood

should not be able to be turned any more.

If needed, the tension on the adjustment nut (C21) can be set.

Installing/changing disc

1. Press the spindle stop button (3).
2. Release the clamping nut B 19 with the chuck key (1).
3. Set the desired disc onto the mounting flange (B 18). label on the disc should always face the device.
4. Set the clamping nut ( B 19) on the mounting spindle (B 20) again. The flat side of the clamping nut must face the attachment tool.
5. Press the spindle stop button (3) and pull the clamping nut (19) tight again using the chuck key (1).

Operation

Caution! Risk of injury!

ways remove the mains plug before working on the tool.

• Only use grinding discs and accessories recommended by the manufacturer. Using other attachment tools and other accessories can represent a risk of injury for you.
• Only use grinding tools which bear information about the manufacturer, type of binding, dimension and permitted number of revolutions.
• Only use grinding discs where the printed rotational speed is at

least as high as what has been specified on the name plate of the device.

• Do not use any broken, cracked, or otherwise damaged grinding discs.
• Never operate the device without protective equipment.
  Support plates or workpieces to reduce the risk of kickback from a jammed cutting disc. Large workpieces may bend under their own weight. The workpiece must be supported on both sides of the disc, near the cutting disc as well as at the edge.

Keep your hands away from the disc when the device is in operation. Risk of injury.

Information on replacement:

• Never operate the device without protective equipment.
• Ensure that the rotation speed stated on the grinding disc is the same or higher than the nominal rotation speed of the device.
• Ensure that the grinding disc dimensions match those of the device.
• Only use flawless grinding discs (ringing test: when you strike the grinding disc with a plastic hammer, it results in a clear sound).
• Never re-drill a locating hole which is too small to make it larger.
• Never use separate bushings or adapters in order to make grinding discs with a hole that is too large fit the device.

• Do not use any saw blades.

• To clamp the grinding tools only use the clamping flange provided. The pads between the clamping flange and the grinding tools must be made of elastic materials e.g., rubber, soft cardboard etc.
  Always reassemble the device completely after replacing the grinding disc.

Turn off the appliance and, before doing any servicing, remove the battery.

Wear protective gloves when changing the grinding discs in order to avoid cutting damages.

The grinding disc nut must not be screwed too tightly in order to avoid breaking the disc and nut.

Turning on and off

1. Press the on switch to start the device. Press the on/off switch (5).
2. To turn it off, release the on-off button. The device turns off.

After switching on the device, wait until the device has reached its max. speed. Only then should you start with the work.

The disc still runs even after the device has been switched off. Risk of injury.

Trial run:

Always carry out a trial run before carrying out your first grinding procedure and after every disc replacement. Switch the device off immediately if the grinding disc is not rotating smoothly, if considerable

vibration occurs or if you hear abnormal noises.

Cleaning and servicing

Contact our Service Centre about repairs and servicing not described in this manual. Only use OEM parts. Risk of injury!

Turn off the appliance and, before doing any servicing, remove the battery.

Perform the following cleaning and maintenance work regularly. This guarantees reliable use for a long time.

Always check the device before using it for obvious deficiencies such as loose, worn or damaged parts, correct the positioning of screws or other parts. Examine the grinding disc in particular. Exchange the damaged parts.

Cleaning

Do not use any cleaning agent or solvent. Chemical substances can etch the plastic parts of the device. Never clean the device under running water.

• Thoroughly clean the device after every use.
• Clean the ventilation openings and the surface of the device with a soft brush or cloth.

Storage

• Store the appliance in a dry place well out of reach of children.
  In order to keep the battery well

charged, avoid exposing the appliance to extreme heat or cold in storage.

• Remove the battery before storing the unit for longer periods of time.
  Grinding discs must be dry and stored upright and should never be stacked.

Disposal and protection of the environment

Remove the battery from the device and take the device, battery, accessories and packaging for environmentally friendly recycling.

Machines do not belong with domestic waste.

Do not dispose of batteries in household waste, fire (risk of explosion) or water. Damaged batteries may damage the environment and your health if toxic fumes or liquids leak out.

• Return the unit to a recycling centre. The plastics and metals in the unit can be sorted and appropriately recycled. Ask our Service Centre for details.
• Dispose of batteries in discharged condition. We recommend covering the pole with adhesive tape to prevent a short circuit. Do not open up the battery.
• Dispose of batteries in accordance with the local regulations. Take batteries to an old battery collection point where they will be recycled in an environmentally friendly manner. For information about this, ask your local waste management company or our service centre.
  Defective units returned to us will be disposed of for free.

Replacement parts/Accessories

Spare parts and accessories can be obtained at www.grizzly-service.eu

If you do not have internet access, please contact the Service Centre via telephone

(see "Service-Center" page 73). Please have the order number mentioned below ready.

Pos.	Description	Product No.
A	Chuck key	91104101
2	Additional handgrip	91104100
9	Battery 18V / 2,6 Ah	80001162
14	Charger	80001086
	Cutting disc	30211060
	Protective hood	91104104
B	Mounting flange	91104102
	Clamping nut	91104103
	Grinding wheel	30211070
	Battery 18V / 1,5 Ah	80001161

We recommend using the battery only with the battery charger supplied.

Troubleshooting

Turn off the appliance and, before doing any servicing, remove the battery.

Problems Possible Cause Error correction
Device doesn't start	On/off switch (A5) may be defective	Repair by Customer Care
	Engine faulty
Grinding tools do not move although the engine is running	Grinding disc nut (B19) is loose	Tighten grinding disc nut (B 19) (see „Changing the grinding disc“)
	Workpiece, remaining workpieces or remaining grinding tools block drive	Remove blockages
Engine is slower and stops	Device is overloaded through workpiece	Reduce pressure on grinding tool
		Workpiece unsuitable
Grinding disc does not rotate smoothly, abnormal noises can be heard	Grinding disc nut (B19 is loose	Tighten grinding disc nut (B 19 (see „Changing the grinding disc“)
	Grinding disc is defective Change grinding disc

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace - at our choice - the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully pro

duced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. grinding wheels, grinding belts, clamping flange) or to cover damage to breakable parts (e.g. switches, batteries, or parts made of glass).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficient handling of your query, please follow the directions below:

• Please have the receipt and item number (IAN 104454) ready as proof of purchase for all enquiries.
• Please find the item number on the rating plate.
• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.
  After consultation with our customer

service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

Service Great Britain

Tel.: [phone]

(£0.10/Min.)

E-Mail: [e-mail]

IAN 104454

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Translation of the original EC declaration of conformity
We hereby confirm that the Cordless Angle Grinder Design Series PWSA 18 A1 Serial Number 2015020000001 - 201503040000 conforms with the following applicable relevant version of the EU guidelines :
2006/42/EC • 2004/108/EC • 2006/95/EC • 2011/65/EU*
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 60745-1/A11:2010 • EN 60745-2-3/A2:2013 EN 60335-1:2012 • EN 62233:2008 • EN 60335-2-29/A2:2010 EN 55014-1/A2:2011 • EN 55014-2/A2:2008 EN 61000-3-2/A2:2009 • EN 61000-3-3:2013
This declaration of conformity (15)** is issued under the sole responsibility of the manufacturer:
Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großbostheim Germany 25.03.2015 CE	Volker Lappas Documentation Representative

The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
*The last two digits of the year in which the CE marking was affixed.

GRIZZLY TOOLS GMBH & CO. KG

Last Information Update: 02/2015

Ident.-No.: 72037301022015-2
