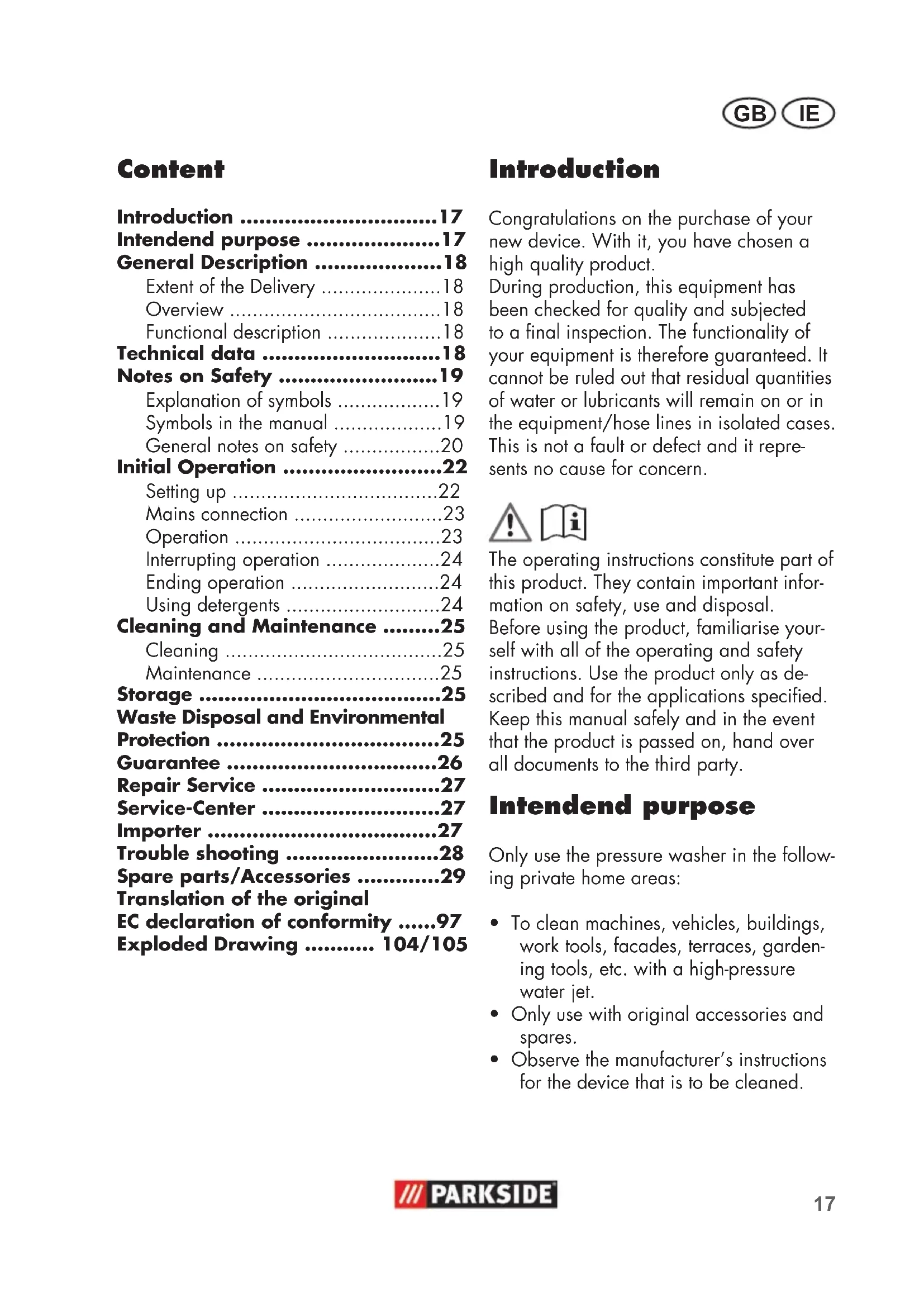

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed. It cannot be ruled out that residual quantities of water or lubricants will remain on or in the equipment/hose lines in isolated cases. This is not a fault or defect and it represents no cause for concern.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intendend purpose

Only use the pressure washer in the following private home areas:

- To clean machines, vehicles, buildings, work tools, facades, terraces, gardening tools, etc. with a high-pressure water jet.

- Only use with original accessories and spares.

- Observe the manufacturer's instructions for the device that is to be cleaned.

General Description

Extent of the Delivery

Unpack the pressure washer and verify the contents:

• Pressure washer
• Gun
• High-pressure hose
• Jet lance
• High-pressure nozzle
• Adjustable flat-jet nozzle
• Cleaning agent container with nozzle
• Accessories holder
• Nozzle cleaning pin
• Translation of the original instructions for use

The diagram of the most important functional elements can be found on the foldout sides.

Overview

1 High-pressure connection on the washer side
2 Jet lance
3 Carrying handle
4 Gun
5 Gun holder
6 Nozzle cleaning pin
7 High-pressure connection
8 Power supply cable
9 High-pressure hose holder

10 Water connection with sieve insert (not visible)

11 Adjustable flat-jet nozzle
12 High-pressure nozzle
13 Nozzle holder
14 Jet lance holder
15 Cleaning agent container with nozzle

16 Cleaning agent container / Power supply cable holder
17 ON / OFF switch
18 High-pressure connection on the gun side

19 Locking lever

Functional description

The pressure washer is to be used for washing with a high-pressure water jet. A detergent can be added if this is required. For the functions of the operating elements please refer to the subsequent description. Ensure that the safety instructions are always observed!

Technical data

Pressure Washer ...... PHD 110 A1

Mains connection .... 230 V\~, 50 Hz

Power consumption 1300 W

Mains cable 5 m

Weight (incl. all parts) ....5.5 kg

Safety class ...... □ II

Degree of protection IPX5

Inflow temperature (T in max) .....40 °C

Inflow pressure (p in max) .. 0.8 MPa (8 bar)

Operating pressure (p) ... 7,5 MPa (75 bar)

Max. operating pressure

(p max) 11 MPa (110 bar)

Pumping rate, water (Q).... 5 l/min

Max. pumping rate, water

(Q max) 6.6 l/min

Acoustic pressure level

(L_pA) 77 dB(A); K_pA = 3 dB

Sound power level ( L_WA )

measured .....89 dB(A); K_WA=2,24 dB

guaranteed 91 dB(A)

Vibration (a_h) ≤ 2,5m / s^2

The operating conditions during measuring and the procedures used for measuring in accordance with EN 60335-2-79:2009.

Technical and optical changes can be carried out in the course of further development without notice. All dimensions, references and information of this instruction manual are therefore without guarantee. Legal claims, which are made on the basis of the instruction manual, cannot thus be considered as valid.

Notes on Safety

This Section is concerned with the basic safety rules when working with the pressure washer.

Explanation of symbols

Attention!

Before beginning work, familiarise yourself thoroughly with all the operating elements, particularly with how they function and operate. Ask a specialist if necessary.

Attention: Remove the plug from the socket as soon as the power lead is damaged or cut.

The pressure washer is not suitable for direct connection to the drinking water supply system.

CAUTION. pressure washers can be dangerous if they are not operated correctly! The jet must never be directed at people, animals, electric equipment connected to the power supply or against the actual pressure washer.

Information of the acoustic power level L_WA in dB.

Electric appliances should not be disposed of in the domestic garbage.

Safety class II

Symbols in the manual

Warning symbols (the danger can be explained at the place of the exclamation mark) with information on damage and injury prevention.

Instruction symbols (the instruction can be explained at the place of the exclamation mark) with information on preventing damage.

Help symbols with information on improving tool handling.

General notes on safety

• Children may not operate the device.

- This device can be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience or knowledge if they are supervised or have been instructed in how to use the device safely and understand the associated dangers. Children must not play with the device.

- Use the equipment only on a flat, stable surface.

- The transport handle is exclusively for transporting the equipment. The equipment is portable but not to be carried during operation.

- For your safety, it is recommended that you wear safety glasses, safety boots and gloves and, if necessary, ear protection.

- In the event of a fault or defect during operation, immediately switch off and unplug the equipment. Then read page 28 of the operating instructions for possible fault causes or contact our service centre.

Working with the equipment

Caution: to avoid accidents and injuries:

CAUTION. pressure washers can be dangerous if they are not operated correctly! The jet must never be directed at people, animals, electric equipment connected to the power supply or against the actual pressure washer.

- Do not direct the jet at yourself or others in order to clean clothes and shoes.

- Do not operate the pressure washer when other people are in the immediate vicinity, other than they are also wearing protective clothes.

- Always use the spray gun with both hands. This will enable you to safely counter the recoil force from the emerging water jet.

• Take appropriate measures to keep children away from the equipment whilst it is running.

- Dispose of the packaging material correctly.

- Do not use the equipment in the vicinity of flammable liquids or gases. Non-observance will result in a risk of fire or explosion.

- Do not spray combustible liquids. Risk of explosion.

- Store the equipment in a dry place and out of reach of children.

• Children must be supervised in order to ensure that they do not play with the equipment.
- Ensure that no exhaust emissions occur within the vicinity of air inlets.

Caution! To avoid damage to the equipment and any possible person injury resulting from this:

• Do not work with damaged or incomplete equipment, or with equipment that has been converted without the approval of the manufacturer. Before initial operation, have a specialist check that the required electrical protection measures are in place.
• Never operate the pressure washer if the power supply cable or other important parts, such as the high-pressure hose or the gun, are damaged.
• Protect the pressure washer from frost and dry running.
• Use only original accessories and do not carry out conversion work on the equipment.
• Please read the notes in the operating instructions on the topic of "maintenance and cleaning". Any measures above and beyond these, particularly opening the equipment, are to be carried out by an electrician. In the case of repairs, always contact our service centre.
• The washer was designed for operation with a neutral detergent based on a biologically decomposable anionic tenside.

Other detergents or chemical substances could impair the safety of the washer and damage it.

• If you come into contact with cleaning agents, rinse with plenty of clean water.
  • Water that has passed through a backflow preventer is classified as undrinkable.
• High-pressure hoses, fittings and couplings are important for machine safety. Use only high-pressure hoses, fittings and couplings recommended by the manufacturer.
• To ensure machine safety, use only original replacement parts from the manufacturer or replacement parts authorised by the manufacturer.

Electrical safety:

Caution: to avoid accidents and injuries from electric shocks:

- The plug and socket of an extension cable must be water-tight!

Unsuitable extension cables can be dangerous as people can be harmed by an electric shock!

• Protect the electric plug connections against moisture.
• If there is a risk of flooding, fix the plug connections in an area that is safe from flooding.

GBIE

• Ensure that the mains voltage matches the specifications on the rating plate.
• The electrical installation shall be according to national wiring rules.
• Connection to the mains must be carried out by an experienced electrician and meet the requirements of IEC 60364-1.
• The device must only be connected to a mains socket via a residual-current circuit breaker (RCD) with a rated leakage current of not more than 30 mA. Fuse: at least 13 ampere.
• Before each use, check the equipment, cable and plug for damage.
• If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.
• Do not pull the plug from the socket by the cable. Protect the cable from heat, oil and sharp edges.
• Do not carry or fix the equipment by the cable.
• Use only extension cables that are protected from spray water and designed for outdoor use. Always fully unroll a cable drum before use. Check the cable for damage.

• Before any work on the equipment, during work breaks and in the case of non-use, remove the plug from the socket.

• The cross-section of the power supply cable must not be less than 2 × 2.5 mm^2 .

• Wear sturdy footwear to protect against electric shock.

Initial Operation

keeping with current regulations a pressure washer must never be operated off the drinking water mains supply without a controllable backflow preventer. A suitable backflow preventer in conformity with EN 12729 type BA must be used.

Water that has passed through a backflow preventer is classified as undrinkable.

A backflow preventer is available from specialist retailers.

- Employ an ordinary garden hose for the water intake and ensure sufficient length.

Setting up

- Slide the holder for the detergent tank / mains cable (16) to the into the receptor on the appliance side.

• Slide the holders for the steel tube (14) into the receptors on the back side.
• Slide the holders for the steel tube (9) into the receptors on the back side.

• Slide the holder for the spray gun (5) to the into the receptor on the front side.

• Remove the nozzle cleaning pin (6) from the rear fold-out side of the guidance and slide it into the receptor on the holder for the spray gun (5).

• Screw the equipment side of the high-pressure hose connection (1) to the high-pressure hose connection (7) on the equipment.
• Insert the high-pressure connection on the gun side (18) into the spray gun (14).
• Establish the water supply by connecting the rapid-action water supply connector to the water connection with sieve insert (A 10).

- Connect to the spray gun (4) by inserting and screwing in the jet tube (2).

• If the jet pipe (2) is fitted, screw in with the jet pipe (2) to connect either the adjustable fan nozzle (11) or the high pressure nozzle (12).
• Screw in to connect the detergent container with nozzle (A 15) directly to the spray gun (4). With using the cleaning agent container with the nozzle (A 15), pour only cleaning agent into the container. It is sucked in automatically.

The width of the jet can be increased by turning the end of the nozzle to the left. To reduce the width of the jet, turn the end of the nozzle to the right.

Mains connection

The pressure washer you have acquired is already fitted with a mains plug. The pressure washer must only be connected to an earthed socket 230 V \~ 50 Hz.

Only operate the pressure washer after all the above points have been observed.

• Ensure that the pressure washer is turned off by its ON/OFF switch (A 17).
• Insert the mains plug into the mains socket

Operation

• Connect the equipment to the water tap. Observe the regulations for the use of a system separator.
• Turn on the water tap entirely.

Never operate the pressure washer with a closed water tap. Dry running will damage the washer!

Be prepared for the recoil force of the emitted water jet! Ensure that you are standing firmly and that you are holding the gun (A 4) securely, otherwise you could injure yourself or other people.

• Switch on the pressure washer with the ON/OFF switch (A 17).
• Pull the lever of the gun (A 4) to turn on the washer.

Releasing the lever will switch off the washer, but the pressure within the system is retained.

GBIE

- Lock / unlock the switch-on lever of the gun (4) by depressing the locking lever (19).

Lock the switch-on lever to prevent the pressure washer from being inadvertently/accidentally started.

Locked

Open

In case of leaks in the water system, immediately switch off the equipment at the on/off switch (17) and disconnect the mains cable (8) of the equipment from the mains. There is a risk of electric shock. Start restoring the water connections (see "Initial Operation - Setting up").

If there is still air in the equipment, please proceed as follows:

Bleed the supply hose:

1. Remove the quick connection for the garden hose adapter on the water connection (10) and open the water tap until water with no bubbles emerges.
2. Close the water tap.
3. Connect the supply hose to the equipment with the aid of the quick connection for the garden hose adapter (10).
4. Fully open the water tap.

Bleed the equipment:

1. Switch on the equipment at the on/off switch (17) until the pressure has built up.

2. Switch off the equipment at the on/off switch (17).

3. Depress the start lever on the spray gun (10) until the pressure is released.

4. Please repeat steps 5. to 7. several times until there is no further air in the equipment.

Interrupting operation

• Release the lever of the gun ( A 4).
• During prolonged work intervals turn off the washer by its ON / OFF switch (A 17).

Ending operation

• After working with cleaning agents, run the equipment with clean water to completely rinse the cleaning agent from the pipes.
- Release the lever of the gun ( A 4).
- Turn off the pressure by its ON / OFF switch (A 17).
- Turn off the water tap.
- Pull the lever of the gun ( A 4) to vent the pressure existing within the system.
- Pull the mains plug and wind up the mains cable.
- Disconnect the pressure washer from the water mains.

Using detergents

The washer was designed for operation with a neutral detergent based on a biologically decomposable anionic tenside. Other detergents or chemical substances could impair the safety of the washer and damage it.

Cleaning and Maintenance

Pull out the power plug before every maintenance operation. There is a risk of electrocution or of injury from moving parts.

Cleaning

Never direct the water jet against the washer, nor clean the washer under flowing water. This could give rise to the danger of electric shock and damage the washer! .

Always keep the washer clean. Do not use any detergents or solvents.

• Always keep the ventilation slots clean and free.
- Only clean the pressure washer with a soft brush or a slightly moist cloth.
- In case a nozzle of the jet tube (A 11/12) is clogged up, use the nozzle cleaning pin (A 7) to remove the object from the nozzle.

If necessary, take off the water connection with the filter insert (10) and clean the filter insert.

Maintenance

The pressure washer is maintenance free.

Ask our service centre to carry out any work that is not described in these instructions. Use only original parts.

Storage

• Drain all the water from the pressure washer. Disconnect the unit from the water supply. Press the On/Off switch (A 17) to turn on the pressure washer for no longer than 1 minute until no more water escapes from the high-pressure connection (A 7). Turn off the unit.
  • Wind up the mains cable.
• Store all add-ons (11/12) vertically with the connection side facing downwards.
• Protect the pressure washer and its accessories from frost when they have not been completely drained of all water.
• Store the pressure washer and its accessories in a frost-free room.
  • To transport or put away the equipment, use only the carrying handle.
• Store the equipment only in a horizontal position in order to protect it from any damage.

Waste Disposal and Environmental Protection

Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.

Electric appliances should not be disposed of in the domestic garbage.

Hand the tool in at a recycling centre. The plastics and metal parts can be separated and recycled. Ask your Service Center about this.

We can carry out a waste disposal of your device free of charge.

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. filters or attachments) or to cover damage to breakable parts (e.g. switches, batteries, or parts made of glass).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficient handling of your query, please follow the directions below:

• Please have the receipt and identification number (IAN 285109) ready as proof of purchase for all enquiries.
• Please find the item number on the rating plate.
• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

GB Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

IAN 285109

IF Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 285109

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Problem Possible cause Remedy
Washer is not operating	ON / OFF switch (A 17) is turned off	Check ON / OFF switch.
	Damaged power supply cable (A 8)	Check power supply cable (A 8) for damage. If necessary have the power supply cable replaced by a qualified electrician.
	Mains fault	Check the electrical system for conformity with the data on the rating plate.
Washer does not transport water	Air trapped in the pressure washer	Switch on the equipment and pull the lever of the gun (A 4).
		Bleed the equipment, see steps 5. - 8.
Washer does not generate any pressure	Air trapped in the pressure washer	Turn on the washer with high-pressure hose until bubble-free water flows out of the high-pressure connection (A 7).
	Drop in the water mains pressure	Check the water mains.
Severe pressure fluctuations	High-pressure nozzle (A 12) is dirty	Rinse the high-pressure nozzle (A 12) with water. If necessary clean the nozzle hole with a needle.
		Clean the high-pressure nozzle (A 12) with the nozzle cleaning pin.

Spare parts/Accessories

Spare parts and accessories can be obtained at www.grizzly-service.eu

If you do not have internet access, please contact the Service Centre via telephone (see "Service-Center" page 27). Please have the order number mentioned below ready.

Item Description ....Order No.

A 1/18 High-pressure hose....91104126
A 10 Water connection .....91097408
A 4 Gun 91104125
A 2 Jet lance 91096768
A 11 Adjustable flat-jet nozzle 91096767
A 12 High-pressure nozzle 91096765
Cleaning agent 30990010

Sommaire

Introduction ....30

Service Réparations ....43

Service-Center 43

Importateur ....43

	Translation of the original EC declaration of conformity
We hereby confirm that the Pressure Washer Design Series PHD 110 A1 Serial number 201703000001 - 201703173000 conforms with the following applicable relevant version of the EU guidelines:
2000/14/EC • 2006/42/EC • 2005/88/EC • 2014/30/EU • 2011/65/EU*
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 60335-1:2012/A11:2014 • EN 60335-2-79:2012 • EN 62233:2008 EN 55014-1/A2:2011 • EN 55014-2:2015 EN 61000-3-2:2014 • EN 61000-3-3:2013
We additionally confirm the following in accordance with the 2000/14/EC emissions guideline: Guaranteed sound power level: 91 dB(A) Measured sound power level: 89 dB(A) Compliance evaluation process carried out in accordance with Appendix V, 2000/14/EC
This declaration of conformity is issued under the sole responsibility of the manufacturer:
Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim, 10.04.2017 Germany	CE

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
