USER MANUAL HG01939A SILVERCREST

Operation and Safety Notes

NL BE

KEUKENWEEGSCHAAL

GB/IEOperation and Safety NotesPage 13

Kuchenwaage (Abb. B+C):

Description of parts.. 14

Technical data.. 14

Includes. Page 14

Safety Instructions

General Safety Instructions

Safety instructions for batteries/rechargeable batteries

Preparing the product for use

Replacing the battery.. Page 17

Operation

Weighing.

Incremental weighing.. Page 17

Changing the measuring unit. Page 17

Switching off.. Page 18

Troubleshooting

Cleaning and Maintenance

Disposal

Warranty

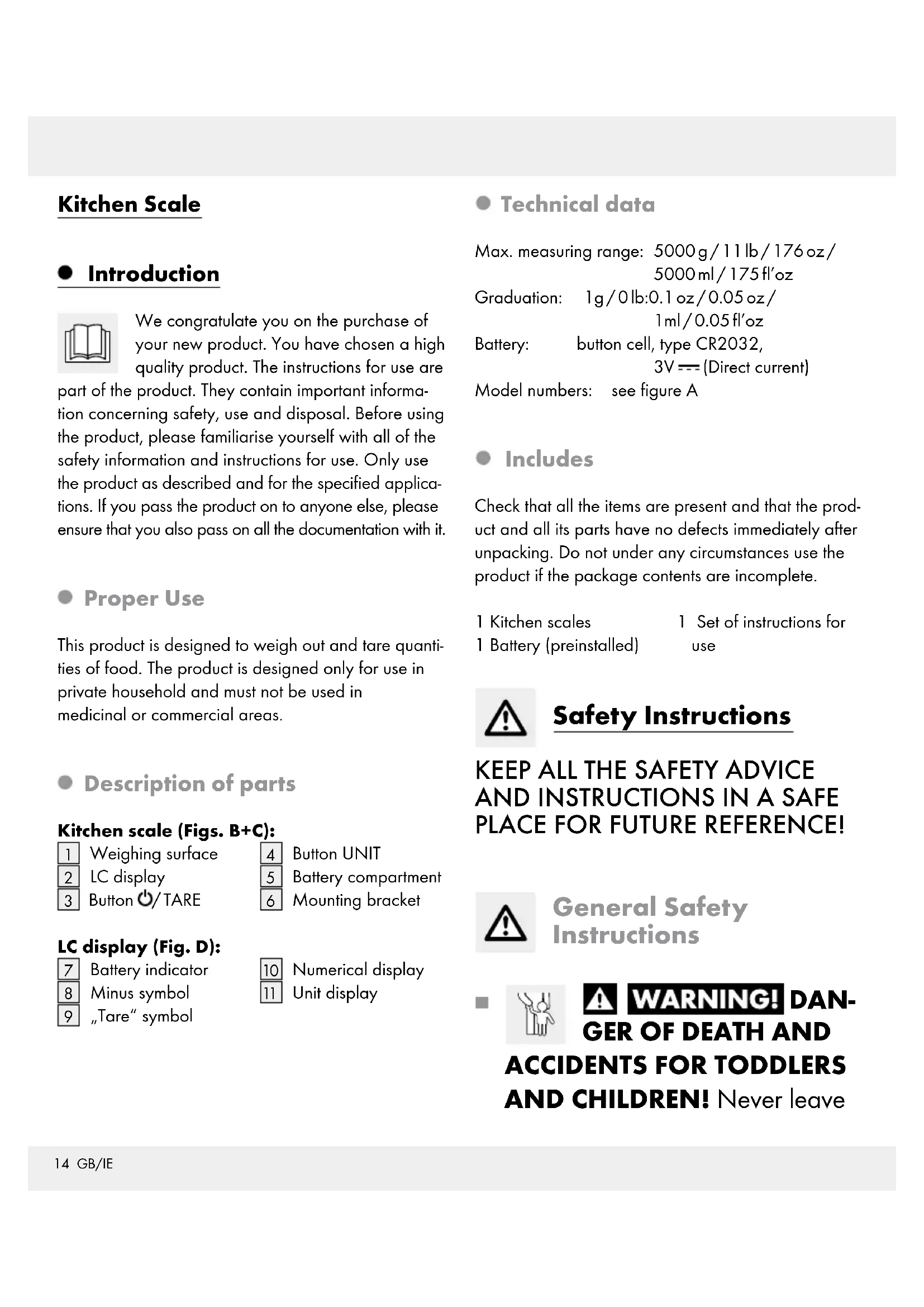

Kitchen Scale

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are

part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Proper Use

This product is designed to weigh out and fare quantities of food. The product is designed only for use in private household and must not be used in medicinal or commercial areas.

Description of parts

Kitchen scale (Figs. B+C):

Weighing surface
2 LC display
3 Button /TARE

4 Button UNIT
5 Battery compartment
6 Mounting bracket

LC display (Fig. D):

7 Battery indicator
8 Minus symbol
9 ,Tare"symbol

10 Numerical display
11 Unit display

- Technical data

Max. measuring range: 5000g / 11lb / 176oz/ 5000ml / 175fl'oz

Graduation: 1g / 0lb:0.1oz / 0.05oz/

1ml/0.05fl'oz

Battery: button cell, type CR2032,

3V = (Direct current)

Model numbers: see figure A

- Includes

Check that all the items are present and that the product and all its parts have no defects immediately after unpacking. Do not under any circumstances use the product if the package contents are incomplete.

1 Kitchen scales 1 Set of instructions for
1 Battery (preinstalled) use

Safety Instructions

KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!

General Safety Instructions

WARNING! DANGER OF DEATH AND

ACCIDENTS FOR TODDLERS

AND CHILDREN! Never leave

children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Always keep children away from the packaging material.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.

AUTION! RISK OF IN

JURY! Do not place more

than 5kg on the product. This could damage the product.

Do not expose the product to

• extreme temperatures,
• direct sunlight
  -magnetic fields,
• moisture.

These can damage the product.

• Protect the product from electrostatic charge/discharge. This could hinder the internal data exchange, which causes errors in the LCD readout.
  Check the product for damage before use. Never use a damaged product.
  Magnetic fields may cause the product not to function properly. If this happens, briefly remove the batteries from the product and re-insert them.

FOOD-SAFE! The taste

and smell of your food are

not detrimentally affected by this product.

Safety instructions for batteries/rechargeable batteries

DANGER TO LIFE! Keep batteries / rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

DANGER OF EXPLO

SION! Never recharge

non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result.

• Never throw batteries / rechargeable batteries into fire or water.
• Do not exert mechanical loads to batteries/rechargeable batteries.

Risk of battery leakage

• Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators/direct sunlight.
• Avoid contact with the skin, eyes and mucous membranes. In the event of contact with battery acid, thoroughly flush the affected area with plenty of clean water and seek immediate medical attention.

WEAR PROTECTIVE

GLOVES! Leaked or

damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable

protective gloves at all times if such an event occurs.

In the event of a battery leak, immediately remove it from the product to prevent damage.
Only use the same type of batteries/rechargeable batteries.Do not mix used and new batteries / rechargeable batteries.
- Remove the batteries/rechargeable batteries if the product will not be used for a longer period.

Risk of damage of the product

Only use the specified type of battery/rechargeable battery!
When inserting ensure the correct polarity! This is shown inside the battery compartment!
Clean the contacts on the battery and in the battery compartment before inserting!
Remove exhausted batteries / rechargeable batteries from the product immediately.

Preparing the product for use

Pull out the insulation strip from the battery compartment 5.

- Replacing the battery (Fig. C)

Loosen the screw located at the back of the product.
- Open the battery compartment 5 on the back of the product.
Remove the used battery, if present.
Insert a battery type CR2032 in the battery compartment 5.

Note: Make sure you insert the batteries with the correct polarity. This is indicated on the cover of the battery compartment.

• Close the battery compartment 5 and tighten the screw.

Operation

Set the product on a solid, level and flat surface to weigh.

Weighing

Note: Always place the object you wish to weigh gently onto the weighing surface 1 to avoid damaging the glass surface.

• Briefly touch the button ARE 3 to switch on the product. The LC display 2 will show all displays for approx. 3 seconds.

Note: A slight touch of the button 0 /TARE 3 and the button UNIT 4 is sufficient to operate the product. If there is too much pressure, the product may cause tilting.

During this time the weighing equipment on the product is adjusting. Afterwards the numerical display 10 will read ^ 0^ . The unit display 11 will show the last unit selected.

Note: if an object (e.g. a key) is already on the weighing surface 1 while switching on, the numerical display 10 will still read _0^ .

Place the item you wish to weigh onto the product. The numerical display 10 will show the weight of the item you are weighing.

Incrementalweighing

Touching the button ARE 3 with the product on will change the numerical display 10 from the reading to ^ . The Tare" symbol 9 will appear.
Now add another item to weigh onto the product. The numerical display 10 will show the weight of the newly added item.
□ If you remove the item added to the product, the numerical display 10 will again read 0^
If you remove all items from the product, the LC display 2 will show a negative value indicated by the minus symbol 8.
Then briefly touch the button ARE 3 and the "Tare" symbol 9 will disappear.
Important! Be sure never to add more than 5kg to the weighing surface. Overloading the product can damage it.

- Changing the measuring unit

The product will display the weight in the official European measuring unit "g" (grams), as well as the traditional unit of weight "oz" (ounce, 1 oz ≈ 28.35 g) or "lb'oz" (pound: ounce, 1 lb = 16 oz ≈ 453.59 g).

When measuring the volume of water, the product calculates it by the weight using the official European unit

of volume m l^ (millilitres) or the traditional unit of measure fl'oz (fluid ounces, 1fl'oz ≈ 28.41 ml). To switch the unit of measure, briefly touch the button UNIT 4. After each time it is touched, the unit display will switch to the next unit listed:

- Switching off

□ Holding the button TARE 3 for approx. 3 seconds will switch off the product. If no movement is detected on the weighing surface 1 for 2 minute and no button is pressed, the product will automatically switch off.

- Troubleshooting

Fauult
Cause
O = Solution
= E E E E
The product is overloaded.
O = Remove the overload.

= The battery is low.
O = Replace the battery (see chapter, Replacing the battery).
=lo
= The batteries are too weak to weigh. You cannot operate the product.
O = Replace the battery (see section "Replacing the battery").

Note: The product contains sensitive electronic components. For this reason it is possible that it can be disrupted by radio transmitting equipment in the immediate vicinity. If the LC display 2 indicates a problem, move such objects away from it.

Electrostatic discharges can lead to malfunctions. In cases of the product failing to work, remove the batteries for a short while and then replace them.

- Cleaning and Maintenance

• Never immerse the product in water or other liquids. This can damage the product.
  Clean the product with a slightly dampened, fluff-free cloth. To remove more stubborn dirt, you can also dampen the cloth with a weak soap solution.

Note: You may store the product using the mounting bracket 6

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. The Green Dot is not valid for Germany.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibreboard/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries must be recycled in accordance with Directive 2006 / 66 / EC and its amendments. Please return the batteries and / or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries!

Batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries at a local collection point.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of

purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Introduction

Balance de cuisine (voir ill. B+C):

Surface de pesage
Ecran a cristaux liquides
3 Bouton/ARE

Kuchyńska váha (obr. B+C):

$$ C R 2 0 3 2, 3 V = - $$

$$ \left(\text {s t e j n o s m e r n y p r o u d}\right) $$

Cisla modelu: viz obrazek A

- Obsahdodávky
