USER MANUAL SKIR 32 B1 SILVERCREST

Operating instructions

NL BE

IN-EAR KOPTELEFOON

Gebruiksaanwijzing

E

AURICULARES DE BOTON

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Table of contents

Introduction 24

Information about these operating instructions . .24

Copyright 24

Limitation of liability 25

Use for intended purpose 25

Warnings 26

Safety instructions 27

Descriptions of components 30

Commissioning 31

Package contents (see fold-out page) 31

Disposal of packaging 31

Using the headphones 32

Replacing the ear cushions 32

Connecting the headphones 3 3

Multi-function button functions 33

Microphone 34

Fault rectification 35

Fault causes and rectification 35

Cleaning 36

Storage when not in use 36

Disposal 37

Appendix 38

Technical details 38

Notes on the EU Declaration of Conformity 39

Information about these operating instructions

Congratulations on the purchase of your new device.

You have decided to purchase a high-quality product. The operating instructions are a constituent of this product. They contain important information with regard to safety, use and disposal. Before using the product, familiarise yourself with all operating and safety instructions. Use this device only as described and only for the specified areas of application. Retain these instructions for future reference. Please also pass these operating instructions on to any future owner(s).

Copyright

This documentation is subject to copyright protection. Any copying or reproduction, including extracts of the documentation, and the reproduction of images or modified versions thereof, is only permitted with the written authorisation of the manufacturer.

Limitation of liability

The manufacturer assumes no liability for damage caused by failure to observe these instructions, non-intended use, improper repairs, making unauthorised modifications or using non-approved replacement parts.

Use for intended purpose

These headphones are a consumer electronics device. They are intended for non-commercial use for listening to audio material. The headphones can also be used as a headset set in order to accept calls thanks to the integrated microphone. Any other or additional usage is considered to be improper use and can lead to damage. Claims of any kind for damage arising as a result of non-intended use will not be accepted.

Warnings

The following warnings are used in these operating instructions:

DANGER

A warning at this risk level indicates a potentially hazardous situation.

Failure to avoid this hazardous situation could result in physical injury or death.

Follow the instructions in this warning to prevent physical injury.

CAUTION

A warning at this risk level indicates potential damage to property.

Failure to avoid this situation could result in damage to property.

Follow the instructions in this warning to prevent damage to property.

NOTE

A note indicates additional information that will assist you in handling the device.

Safety instructions

For safe handling of the device, follow the safety information below:

Check the headphones for external signs of damage before use. Do not operate damaged headphones or earphones that have been dropped.
If the cables or connections are damaged, have them replaced by an authorised specialist or customer service.
■ Persons who are incapable of operating the headphones safely due to their physical, intellectual or motor abilities must only use them under the supervision or direction of a responsible adult.
Children may only be permitted to use the headphones if they are under supervision.
Repairs to the headphones should only be carried out by authorised specialist personnel or by the customer service department. Failure to make proper repairs can put the user at risk. This will also invalidate warranty claims.

Repairs to the headphones during the warranty period may only be carried out by a customer service department that has been authorised by the manufacturer, otherwise no additional warranty claims can be considered for subsequent damage.
Defective components must always be replaced with original replacement parts. It can only be guaranteed that safety requirements are being complied with if using original replacement parts are used.
No unauthorised design changes or modifications must be made to the headphones.
- Protect the headphones from penetration by moisture and liquids.
- Do not use the headphones in the vicinity of naked flames (e.g. candles).
DANGER! The packaging material is not a plaything. Keep plastic sheeting, bags and all other packaging material away from children. There is a risk of suffocation.

Risk of hearing damage

DANGER

Risks as a result of extremely high sound levels!

Loud music can lead to hearing damage.

• Avoid extreme sound levels, especially over long periods of time, when you are using these headphones.

Risk of accidents

DANGER

Danger as a result of affected perception!

• Acoustic warning and indication signals and ambient noise may be perceived differently when headphones are being worn. It is important to be aware of how these signals can differ so that you can recognise them in the relevant situations.

DANGER

Do not use the headphones while driving a vehicle, riding a bicycle, operating machinery or in any other situation in which impaired perception of ambient noise could put you or other people in danger. Please also observe the statutory provisions and regulations of the country in which you are using the headphones.

Descriptions of components

1 Headphones
2 Ear cushions (medium)
3 3.5 mm jack plug
4 Microphone
Multi-function button
6 Ear cushions (small)
7 Ear cushions (large)
Set of operating instructions

Commissioning

Package contents (see fold-out page)

The headphones are delivered with the following components as standard:

• Headphones ① with pre-installed ear cushions (medium size ②)

• 2 pairs of ear cushions (small 6 and large 7)

These operating instructions 8

NOTE

• Check contents for completeness and for signs of visible damage.
  If the contents are incomplete or damaged due to defective packaging or through transportation, contact the Service Hotline (see chapter Service).

Disposal of packaging

The packaging protects the appliance from transport damage.

Recirculating the packaging into the material cycle conserves raw materials and reduces the amount of waste that is generated.

Dispose of packaging material that is no longer needed in accordance with applicable local regulations.

Using the headphones

When putting on the headphones 1, pay attention to the side indicators "R" (right) and "L" (left) on the earpieces.

Carefully slide one of the headphones ① deep into the ear canal. In order to straighten the ear channel somewhat and therefore make the microphone easier to insert, pull auricle backwards and upwards a little.

■ Proceed in the same way to insert the otherearphone 1.

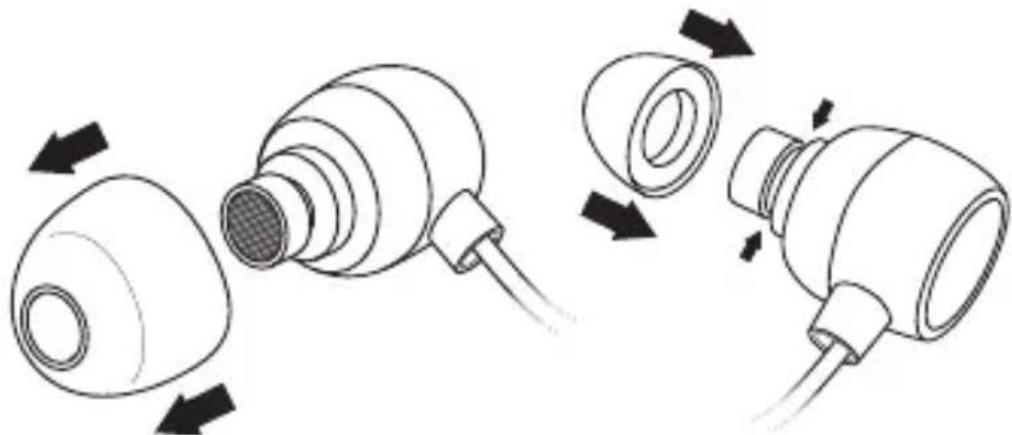

Replacing the ear cushions

In the as-delivered condition, the headphones 1 are provided with medium size ear cushions 2. Depending on the size of your auricle you can use ear cushions (6 or 7) of a different size from the ones supplied.

NOTE

The better the ear cushion seals off the ear canal, the better the sound quality, particularly at lower frequencies.

Use your fingers to carefully pull on the ear cushions 2 to detach them from the headphones 1 (see fig. 1).

• Select suitable ear cushions (6 or 7) from the ones that are supplied. Push these directly onto the headphones until they slip into the recesses on the headphones (see fig. 2).

Fig. 1 Fig. 2

Connecting the headphones

The headphones ① are equipped with a 3.5 mm jackplug. Many electronic entertainment devices are provided with an appropriate headphone socket. If your audio device has been equipped with a different headphone connector, you may need to use a suitable adapter (not supplied).

Multi-function button functions

The multifunction button 5 can be used to carry out basic functions for playing music and making telephone calls.

NOTE

The functions available from the multifunction button 5 depend on the device connected. Depending on the device connected (e.g. smartphone), it could be that not all functions are supported, or that more functions are available.

Telephone	Press ⑤ multifunction button
Accept call Press once
End call Press once
Reject call	Press for approx. 2 seconds then release it
Activate voice control	Keep multifunction button pressed
Music
Play/pause Press once
Next title Press twice rapidly
Previous title Press rapidly 3 x

Microphone

The microphone can be used during telephone calls. The nearer to your mouth it is the better the communication.

Fault rectification

Fault causes and rectification

The following table will help with localising and remedying minor malfunctions:

Defect Cause/remedy
No sound coming from headphones ①.	The volume control of the play-back device is set to the minimum volume. Increase the playback volume.
	The 3.5 mm jackplug is not fully inserted into the playback device's headphone socket. Push the 3.5 mm jackplug all the way into the socket.
Sound is only coming from one side of the headphones ①.	The 3.5 mm jackplug is not fully inserted into the playback device's headphone socket. Push the 3.5 mm jackplug all the way into the socket.
	The Stereo-Balance-Control on the playback device is incorrectly adjusted. Adjust it to the setting you desire.

NOTE

If the malfunction cannot be remedied with the described solution proposals or if other types of malfunctions occur please contact our service department (see chapter Service).

Cleaning

CAUTION

Do not allow any liquids to penetrate the interior of the headphones ①. This could cause irreparable damage to them.

Clean the headphones ① with a slightly damp cloth.
- Remove the ear cushions (2, 6 or 7) for cleaning. Clean the ear cushions under running water. Dry the ear cushions properly. Do not fold the ear cushions back over the headphones until they are properly dry.

Storage when not in use

Store the headphones 1 in a dry and dust-free location.

Disposal

The symbol of a crossed-out wheelie bin means that this product is subject to European Directive 2012/19/EU and may not be disposed of in the domestic

waste. The product must be taken to a dedicated collection point for electrical and electronic appliances.

This disposal is free of charge for the user. You will be helping to protect both the environment and your personal health and recycling valuable raw materials.

More information on disposal and the nearest collection point is available from your town council.

Appendix

Technical details

Impedance 32 Ω +/- 4 Ω
Sensitivity 100 dB +/- 10% at 1 kHz
Frequency response 20 Hz - 20 kHz
Input power max. 50 mW
Wide band characteristic voltage	approx. 100 mV +/- 20%
Connector 3.5 mm jackplug
Cable length approx.	120 cm
Weight approx. 22 g
Operating temperature	5 - 35 °C
Storage temperature 0 - 45 °C
Humidity (no condensation)	5 - 80 %

Notes on the EU Declaration of Conformity

This device complies with the basic requirements and other relevant provisions of the Electromagnetic Compatibility Directive 2014/30/EU and the RoHS Directive 2011/65/EU.

The complete EU Declaration of Conformity is available from the importer and may be requested if required (see Chapter Importer).

CE

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase. If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or

replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence. If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery. The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly main

tained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

• Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.

• You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.

• If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

• You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN281910
