USER MANUAL BMAD 550 A1 Bellarom

Operating instructions

NL BE

MELKOPSCHUIMER

Gebruksaanwijzing

ES

ESPUMADOR DE LECHE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IE Operating instructions Page 15

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Contents

Introduction. 16

Copyright 16
Intended use 16

Package contents 17

Appliance description. 17

Technical details 17

Safety information 18

Preparations 20

Unpacking 20
Disposal of the packaging. 20
Setting up. 20

Operation 21

Heating milk. 21
Tips for frothing milk. 22
Making hot frothed milk. 22
Making cold frothed milk. 23

Using milk froth. 23

Italian-style cappuccino 23
Marocchino 23
Vienna Melange 23

Cleaning and Care 24

Storage 25

Troubleshooting 25

Disposal of the appliance. 25

Kompernass Handels GmbH warranty. 26

Service. 27

Importer 27

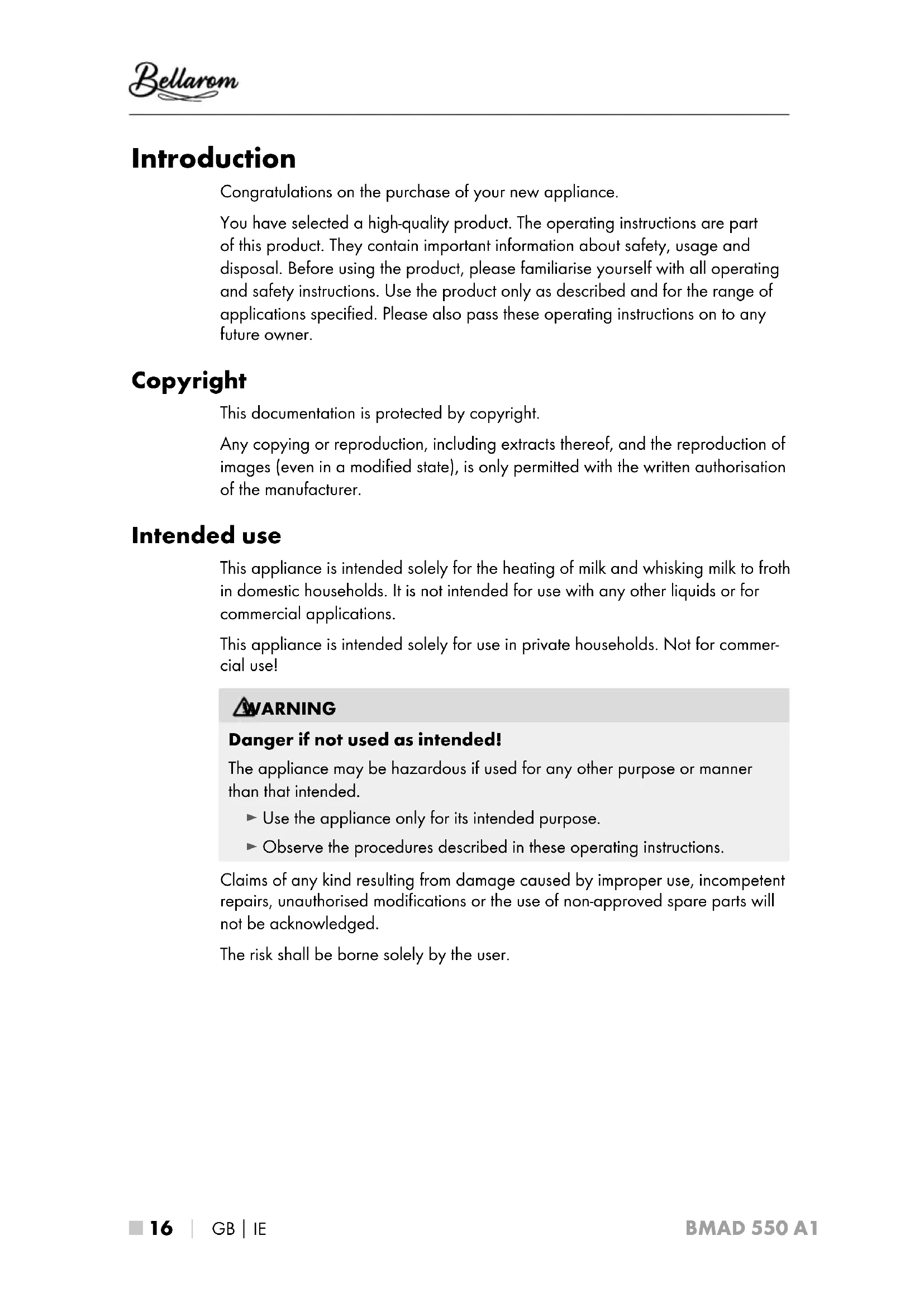

Introduction

Congratulations on the purchase of your new appliance.

You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Copyright

This documentation is protected by copyright.

Any copying or reproduction, including extracts thereof, and the reproduction of images (even in a modified state), is only permitted with the written authorisation of the manufacturer.

Intended use

This appliance is intended solely for the heating of milk and whisking milk to froth in domestic households. It is not intended for use with any other liquids or for commercial applications.

This appliance is intended solely for use in private households. Not for commercial use!

WARNING

Danger if not used as intended!

The appliance may be hazardous if used for any other purpose or manner than that intended.

Use the appliance only for its intended purpose.
Observe the procedures described in these operating instructions.

Claims of any kind resulting from damage caused by improper use, incompetent repairs, unauthorised modifications or the use of non-approved spare parts will not be acknowledged.

The risk shall be borne solely by the user.

Package contents

The appliance is supplied with the following components as standard:

Milk Frother (jug)
- Base
3whisks

(2 x frothing whisks, 1 x whisk for uniform heating)

• Operating instructions

NOTE

Check the package for completeness and signs of visible damage.
If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the Service hotline (see section Service).

Appliance description

Lid
Sealing ring
3 Frothing whisk
"On/off" button with integrated control lamp
5 Base
Cable retainer
Whisk for uniform heating

Technical details

Voltage supply 220 - 240V (alternating current), 50 / 60Hz

Rated power 450 - 550 W

All of the parts of this appliance that come into contact with food are food-safe.

Safety information

DANGER - RISK OF ELECTRICAL SHOCK!

• Ensure that the base containing the electrical connections NEVER comes into contact with water! Allow the base to dry completely if it accidentally becomes wet.

• Use the appliance only with the supplied base.

• Ensure that the power cable never becomes wet or damp when the appliance is in use. Route the cable so that it cannot be trapped or damaged in any way.

• To prevent accidents, have defective plugs and/or power cables replaced immediately by an authorised specialist technician or our Customer Service department.

• Check the appliance for visible external damage before use. Do not operate an appliance that has been damaged or dropped.

• All repairs must be carried out by authorised specialist companies or by the Customer Service department. Improper repairs may put the user at risk. It will also invalidate any warranty claims.

NEVER immerse the appliance in water or any other liquid!

WARNING - RISK OF INJURY!

Before you change accessories, disconnect the appliance from the mains power socket. This prevents an unintentional starting of the appliance.
The appliance becomes hot during operation. Therefore, hold it by the rubberised part only.
Do not touch the rotating parts during operation!

WARNING - RISK OF INJURY!

This appliance may be used by children aged 8 years or over if they are supervised or have been told how to use the appliance safely and are aware of the potential risks.
- Cleaning and user maintenance tasks must not be carried out by children unless they are aged 8 years or over and are supervised.
The appliance and its connecting cable must be kept away from children younger than 8 years old.
- This appliance may be used by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks.
Children must not play with the appliance.
- Ensure that the appliance is stable and vertical before switching it on. Otherwise, the appliance may tip over and the hot milk will spill out.

CAUTION - PROPERTY DAMAGE!

• Do not use an external timing switch or a separate remote control system to operate the appliance.
  Never leave the appliance unattended during operation.
• Ensure that the appliance, the power cable or the plug do not come into contact with sources of heat, such as hot plates or open flames.
• NEVER operate the appliance when it is empty. The appliance may be irreparably damaged.

Preparations

Unpacking

Remove all parts of the appliance and the operating instructions from the box.
Remove all packaging material.
Clean the appliance as described in the section "Cleaning and Care".

Disposal of the packaging

The packaging protects the appliance from damage during transport.

The packaging materials have been selected for their environmental friendliness and ease of disposal, and are therefore recyclable.

Returning the packaging into the material cycle conserves raw materials and reduces the amount of waste generated. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

NOTE

If possible, keep the original packaging of the appliance for the entire duration of the warranty period so that the appliance can be packed properly for return shipment in the event of a warranty claim.

Dispose of the packaging in an environmentally friendly manner.

Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:

1-7:Plastics,

20-22: Paper and cardboard,

80-98: Composites

Setting up

1) Unwind the cable from around the cable retainer 6 and guide it through the recess on the base 5.
2) Place the appliance on a dry and level surface. Ensure that the mains adapter is in easy reach.
3) Insert the plug into a mains power socket.

Operation

DANGER - RISK OF ELECTRICAL SHOCK!

NEVER place the electrical base 5 in close proximity to water - risk of fatal electric shock!

WARNING - RISK OF INJURY!

For safety reasons you should not open the lid ① while the appliance is in operation. There is a risk of scalding.
Always use fresh milk. Do not consume milk that has been standing in the jug for some time.

NOTE

If you lift the jug off the base 5 during preparation, the appliance will stop. You will have to restart preparation by pressing the "on/off" button 4.

Heating milk

1) Fit the whisk for uniform heating ⑦ onto the drive shaft inside the jug.
2) Take the jug from the base 5 and pour the milk in. Fill the jug with milk to at least the MIN mark inside the jug. Never fill it with milk beyond the upper MAX mark (O). Otherwise the appliance may overflow.
3) Place the jug on the base 5.
4) Put the lid 1 on.
5) Press the "on/off" button 4. The integrated control lamp lights up red. The whisk for uniform heating 7 starts to turn. This ensures that the milk is heated evenly.
6) The appliance switches itself off and the integrated control lamp goes out as soon as the milk reaches a temperature of around 65^ .

NOTE

If you wish to stop the preparation process before completion, press the "on/off" button. If you press the "on/off" button again, preparation will resume.

7) Take the lid ① off and pour the hot milk into the desired container.

Wait about 2 minutes before you heat up another portion of milk.

Tips for frothing milk

Froth only cow's milk with this appliance. Other types of milk can only be frothed to a certain extent, or may cause the appliance to overflow.
Low fat or skimmed milk does not burn on as easily as whole milk, however, a too low fat content contributes to the risk that the milk will not be well frothed. Therefore, when possible use a milk with a fat content of 3.5% or 1.5% .
Well-cooled milk can be better frothed than less cold.
Do not froth the milk a second time, otherwise it may burn.
Leave frothed milk to stand for about 30 seconds before you put the foam onto cappuccino, espresso, etc. This allows the larger bubbles to burst and the still liquid milk sinks to the bottom. You can then use the fine foam.

Making hot frothed milk

1) Place the frothing whisk ③ onto the drive shaft inside the jug.
2) Remove the jug from the base 5 and fill it with milk. Fill the jug with milk to at least the MIN mark inside the jug. However, never fill it with milk beyond the lower MAX mark (6). Otherwise the appliance may overflow. When frothed, the volume of the milk increases significantly!
3) Place the jug on the base 5.
4) Put the lid 1 on.
5) Press the "on/off" button 4. The integrated control lamp lights up red. The frothing whisk 3 starts to turn, the milk is frothed and heated.
6) The appliance switches itself off and the integrated control lamp goes out as soon as the milk is frothed.

NOTE

If you wish to stop the preparation process before completion, press the "on/off" button. If you press the "on/off" button again, preparation will resume.

7) Wait about 30 seconds. During this time the still liquid milk flows to the bottom.
8) Remove the lid 1 and pour the milk froth into the desired container to make, for example, a cappuccino.

Wait about 2 minutes before you froth up another portion of milk.

Making cold frothed milk

1) Place the frothing whisk ③ onto the drive shaft inside the jug.
2) Remove the jug from the base 5 and fill it with cold milk. Fill the jug with milk to at least the MIN mark inside the jug. However, never fill it with milk beyond the lower MAX mark (O). Otherwise the appliance may overflow. When frothed, the volume of the milk increases significantly!
3) Place the jug on the base 5.
4) Put the lid 1 on.
5) Press and hold the on/off button until the integrated control lamp lights up blue and the frothing whisk starts to turn.
6) The appliance switches itself off and the integrated control lamp goes out as soon as the milk is frothed.

NOTE

If you wish to stop the preparation process beforehand, press the "on/off" button 4. To restart preparation, press and hold the "on/off" button 4 until the integrated control lamp lights up blue and the frothing whisk 3 starts to turn.
7) Wait about 30 seconds. During this time the still liquid milk flows to the bottom.
8) Remove the lid 1 and pour the milk froth into the desired container to make, for example, a cappuccino.

Using milk froth

You can use the milk froth for various drink variations:

Italian-style cappuccino

Pour an espresso (about 25 - 30 ml) into an approx. 120 - 180 ml cup.
Then pour milk froth onto it until the cup is filled to the brim.

Marocchino

Melt about a teaspoon of milk chocolate.
- Spread the melted chocolate onto the inside wall of a glass and pour an espresso in.
■ Add 3 - 4 teaspoons of frothed milk and then sprinkle it with cocoa powder.

Vienna Melange

Pour about 125 ml of strong black coffee into a mocha coffee cup.
Froth up about 110 ml of milk and add as much milk froth as is needed to fill the cup to just below the rim.
Depending on personal taste, you can add a little sugar.

Cleaning and Care

DANGER - RISK OF ELECTRICAL SHOCK!

Before cleaning the appliance, disconnect the power plug from the mains power socket! Otherwise there is the risk of electric shock!
- Never open any parts of the housing. There are no serviceable parts whatsoever inside. When the housing is open, there is the risk of receiving a potentially fatal electrical shock.

NEVER immerse the appliance in water or any other liquid! There is a risk of fatal electric shock if residual liquids come into contact with live components during operation.

WARNING - RISK OF INJURY!

• Allow the appliance to cool sufficiently before cleaning it. Risk of burns!

CAUTION - PROPERTY DAMAGE!

Do not clean the appliance or parts of it in the dishwasher! If you so, the appliance will be damaged beyond repair.

• Do not use abrasive or caustic cleaning agents. These can attack the surface and damage the appliance beyond repair.

NOTE

• Ideally, clean the appliance directly after cooling, so that milk residues cannot dry onto it. For the first rough cleaning fill the jug with water and a little detergent (the whisk 3 / 7 used is still fitted). Pay attention to the MIN and MAX - markings. Start the appliance so that the whisk 3 / 7 swirls through the water. Afterwards, rinse the appliance out with plenty of clean water.

For a thorough cleaning, proceed as follows:

Remove the whisk 3/7 from the appliance to clean it and clean the inside of the appliance with warm water. Add a little detergent. Wipe the interior with a soft cloth or sponge. Pay special attention to the area around the drive shaft. Rinse out the appliance carefully with plenty of clean water.
Pull the sealing ring 2 off the lid 1 and clean both parts in mild soapy water. Rinse off detergent residues with clean water and dry both parts well. Push the sealing ring 2 back onto the lid 1.
Clean the whisks 3/7 in mild soapy water and then rinse them well with clean water.
Clean all exterior surfaces, the base 5 and the power cable with a damp cloth. Always dry the appliance properly before using it again. For stubborn soiling use a mild detergent on the cloth. Ensure that there is no detergent residue on or in the appliance before using it again.

Storage

Let the appliance cool down completely before putting it into storage.
Wrap the power cable around the power cable retainer 6.
Store the appliance in a dry location.

Troubleshooting

Malfunction Cause Remedy
The appliance is not working.	The plug is not inserted into a mains power socket.	Connect the plug to the power supply.
	The appliance is not switched on.	Switch the appliance on.
	The appliance is defective.	Contact the Customer Service department.
	The appliance is still too hot.	Allow the appliance to cool down.
The milk is not be-ing frothed.	The wrong whisk ⑦ is fitted in the appliance.	Fit the frothing whisk ③.

Disposal of the appliance

Never dispose of the appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU.

Dispos of the appliance via an approved disposal company or your municipal waste facility. Please comply with all applicable regulations. Please contact your waste disposal centre if you are in any doubt.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.
- You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 298444

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com

Table des matieres

Introduction 30

Droits d'auteur 30

Usage conforme 30

Matériel livre. 31

Chere cliente, cher client,

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoud

Inleiding. 44

Voeding 220 - 240 V ~ (wisselstroom), 50/60 Hz

Nominal vermogen 450-550 W

WAARSCHUWING - LETSELGEVAAR!

WAARSCHUWING - LETSELGEVAAR!

WAARSCHUWING - LETSELGEVAAR!

WAARSCHUWING - LETSELGEVAAR!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

DUITSLAND

www.kompernass.com

Obsah

Uvod. 58

Autorské pravo. 58

Pouziti v souladu s urcenim 58

Rozsah dodávky. 59

Popis pristroje 59

Technické udaje. 59

POZOR - HMOTNÉŠKODY!

POZOR - HMOTNÉ SKODY!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

NÉMECKO

www.kompernass.com

Indices

Introduccion. 72

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANIA

www.kompernass.com

Indices

Introducao. 86

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

ALEMANHA

www.kompernass.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

DE-44867 BOCHUM

GERMANY

www.kompernass.com
