USER MANUAL HMLCSw1PlDNR5 Homematic IP

Wireless Switch Actuator 1-channel, plug adapter type J

1x HomeMatic Wireless Switch Actuator 1-channel, plug adapter type J
1x Operating manual

1st English edition 10/2014

Documentation © 2014 eQ-3 AG, Germany

All rights reserved. Translation from the original version in German.

This manual may not be reproduced in any format, either in whole or

in part, nor may it be duplicated or edited by electronic, mechanical or

chemical means, without the written consent of the publisher.

Typographical and printing errors cannot be excluded. However, the

information contained in this manual is reviewed on a regular basis and

any necessary corrections will be implemented in the next edition.

accept no liability for technical or typographical errors or the conse

quences thereof.

All trademarks and industrial property rights are acknowledged.

Printed in Hong Kong

Changes may be made without prior notice as a result of technical advances.

141158/V 1.0

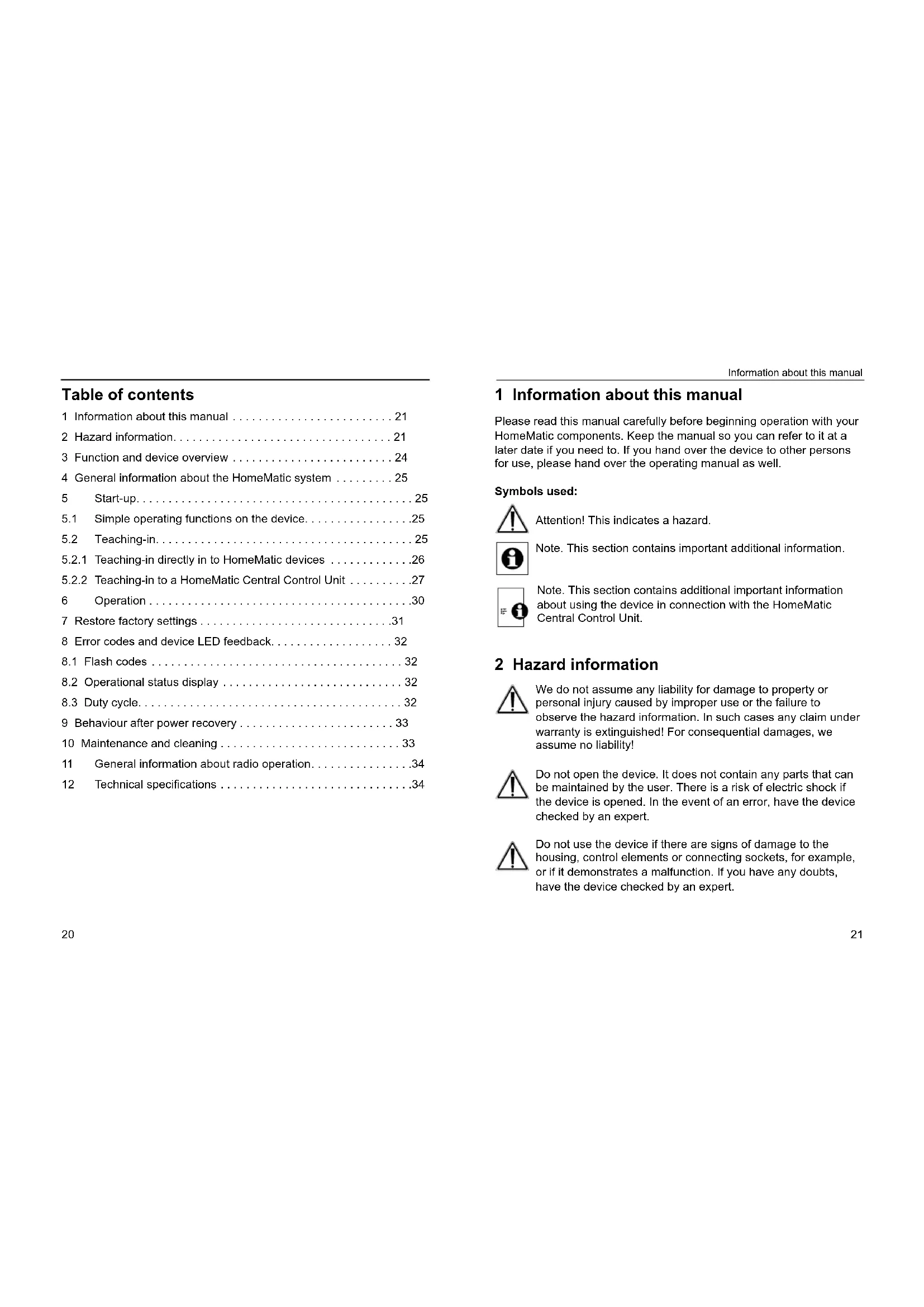

Table of contents

1 Information about this manual 21
2 Hazard information. 21
3 Function and device overview 24
4 General information about the HomeMatic system 25

5 Start-up. 25

5.1 Simple operating functions on the device. 25
5.2 Teaching-in. 25
5.2.1 Teaching-in directly in to HomeMatic devices 26
5.2.2 Teaching-in to a HomeMatic Central Control Unit 27
6 Operation 30

7Restore factory settings 31
8 Error codes and device LED feedback. 32
8.1 Flash codes 32
8.2 Operational status display 32
8.3 Duty cycle. 32
9 Behaviour after power recovery 33
10 Maintenance and cleaning 33
11 General information about radio operation. 34
12 Technical specifications 34

1 Information about this manual

Please read this manual carefully before beginning operation with your HomeMatic components. Keep the manual so you can refer to it at a later date if you need to. If you hand over the device to other persons for use, please hand over the operating manual as well.

Symbols used:

Attention! This indicates a hazard

Note. This section contains important additional information.

Note. This section contains additional important information about using the device in connection with the HomeMatic Central Control Unit.

2 Hazard information

We do not assume any liability for damage to property or personal injury caused by improper use or the failure to observe the hazard information. In such cases any claim under warranty is extinguished! For consequential damages, we assume no liability!

Do not open the device. It does not contain any parts that can be maintained by the user. There is a risk of electric shock if the device is opened. In the event of an error, have the device checked by an expert.

Do not use the device if there are signs of damage to the housing, control elements or connecting sockets, for example, or if it demonstrates a malfunction. If you have any doubts, have the device checked by an expert.

Hazard information

Hazard information

For safety and licensing reasons (CE), unauthorized change and/or modification of the product is not permitted.

The device may only be operated indoors and must be protected from the effects of moisture, vibrations, solar or other methods of heat radiation, cold and mechanical loads.

The device is not a toy; do not allow children to play with it. Do not leave packaging material lying around, plastic films/bags, pieces of polystyrene etc., can be dangerous in the hands of a child.

Please take the technical data (in particular the maximum permissible switching capacity of the relay and the type of load to be connected) into account before connecting a load! All load data relates to resistive loads! Do not exceed the capacity specified for the device. Exceeding this capacity could lead to the destruction of the device, to a fire or to an electrical accident.

The device may only be connected to an easily accessible power socket outlet. In case of danger, disconnect the device from the power socket outlet.

Only use the HomeMatic Switch Actuator with properly installed wall outlets with earth contacts and not with multiple socket outlets or extension cables.

Do not connect devices into the HomeMatic Switch Actuator which could cause fire or other types of damage in unattended operation (e.g. irons).

Remove the plug of the connected device from the HomeMatic Switch Actuator, whenever you make changes or modifications to the device (e.g. replacing light bulbs).

Always lay cables in such a way that they do not become a risk to people and domestic animals.

The device has not been designed to support safety disconnection. The load is not isolated from the mains.

Before cleaning the device, unplug it from the socket outlet. Use a dry linen cloth to clean the device. If the device is particularly dirty, you can slightly dampen the cloth to clean it. Do not use any detergents containing solvents for cleaning purposes. Make sure that no moisture will ingress into the housing.

Using the device for any purpose other than that described in this operating manual does not fall within the scope of intended use and shall invalidate any warranty or liability. This also applies to any conversion or modification work. The device is intended for private use only.

Do not connect multiple plug adapters into one another.

Devices with electronic power supply units (e.g. TV or high voltage LED light sources) are no ohmic loads. They can generate inrush currents with more than 100 A. Switching such kind of loads may lead to premature wear of the actuator.

The device may only be operated whitin residential buildings.

3 Function and device overview

The HomeMatic Wireless Switch Actuator 1-channel, plug adapter enables switching of connected devices via radio.

The device can be easily mounted without tools - after the device has been plugged in, it is immediately ready for use. The wireless switch actuator enables easy operation directly on the device. Alternatively, multiple HomeMatic devices (e.g. HomeMatic remote controls) can be assigned. Information about the current operating status or error messages is given by the device LED.

In connection with the HomeMatic Central Control Unit CCU2 the wireless switch actuator can be individually configured via the WebUI user interface and the full range of functions can be used. The maximum switch on and off duration as well as a delay time for switching connected devices on and off can be individually adjusted.

(A) - Channel button
(B)-DeviceLED

4 General information about the HomeMatic system

This device is part of the HomeMatic home control system and works with the bidirectional BidCoS wireless protocol.

All devices are delivered in a standard configuration. The functionality of the device can also be configured with a programming device and software. The additional functions that can be made available in this way and the supplementary functions provided by the HomeMatic system when it is combined with other components are described in the HomeMatic WebUI Manual.

All current technical documents and updates are provided in the download area at www.homematic.com.

5 Start-up

5.1 Simple operating functions on the device

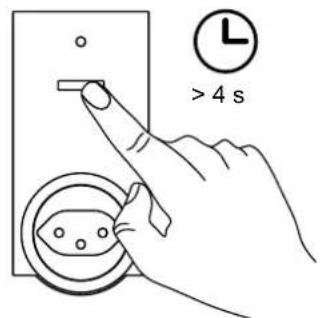

• Insert the wireless switch actuator into a socket.

The device is immediately ready for operation and can be taught-in to a HomeMatic CCU (or to other HomeMatic devices).

Via the channel button (A), connected loads can be controlled (switch on and off) with a short button press.

Before being able to use and configure your device in the HomeMatic system, the switch actuator has to be taught-in first (see sec. 5.2 Teaching-in on page 25).

5.2 Teaching-in

Please read this entire section before starting the teach-in procedure.

To integrate the switch actuator into your HomeMatic system and enable it to communicate with other HomeMatic devices (e.g. HomeMatic

Start-up

remote control), you must teach it in first. You can teach-in the switch actuator directly to other HomeMatic devices or to the HomeMatic Central Control Unit:

5.2.1 Teaching-in directly in to HomeMatic devices

If you want to teach-in the switch actuator to one or more HomeMatic devices, the teach-in mode of both devices has to be activated first. To do this, proceed as follows:

During teach-in, please make sure you maintain a distance of at least 50 cm between the devices.

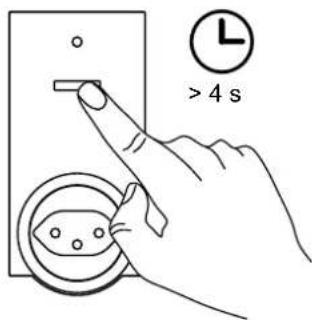

Activate the teach-in mode of your switch actuator.

• Therefore, press and hold the channel button (A) for at least 4 seconds. The device LED (B) will flash slowly to indicate that teach-in mode is active. The teach-in time is 20 seconds.

• Now put the device you wish to teach-in to the switch actuator (e.g. HomeMatic remote control, see the following fig.) into teach-in mode. Remove the battery compartment cover and press the teach-in button briefly using a pointed object.

Start-up

After teaching-in, the device LED of the switch actuator will stop flashing.

After successfully teaching-in the device, it can be switched on and off e.g. by a HomeMatic remote control.

If no teach-in operations are carried out, teach-in mode is exited automatically after 20 seconds. If other devices are also in teach-in mode, they will be taught-in.

5.2.2 Teaching-in to a HomeMatic Central Control Unit

Your device can be conveniently

• controlled and configured,
• connected directly to other devices or
• used in Central Control Unit programs

by using the HomeMatic software "WebUI". Therefore, your switch ac
tuator has to be taught-in to the HomeMatic Central Control Unit first. New devices are taught-in to the Central Control Unit via the Home
Matic WebUI

As soon as a device has been taught-in to a Central Control Unit, it can only be connected to other components via this unit.

Start-up

Each device can only be taught-in to one Central Control Unit.

During teach-in, please make sure you maintain a distance of at least 50 cm between the HomeMatic devices and the Central Control Unit.

To teach-in your device to the Central Control Unit, proceed as follows:

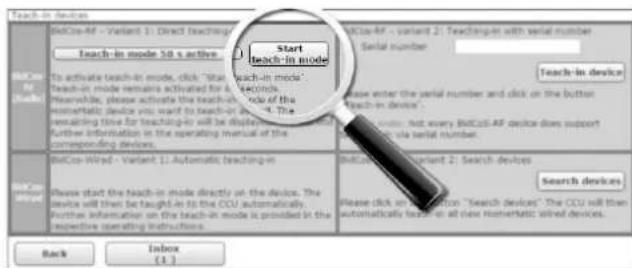

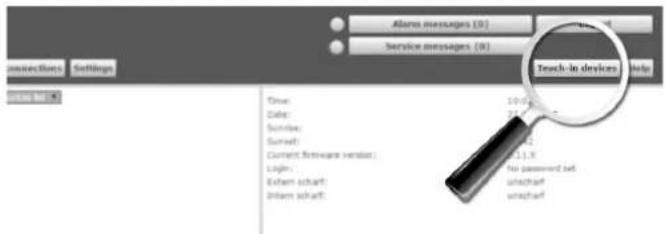

- Open the "WebUI" user interface in your browser. Click the "Teach-in devices" button on the right-hand side of the screen.

• To activate teach-in mode, click "Start teach-in mode" in the next window.

• Teach-in mode remains activated for 60 seconds. An information

Start-up

box shows how much teach-in time remains.

• Meanwhile, please activate the teach-in mode of your switch actuator to teach-in as well. Therefore, press and hold the channel button (A) for at least 4 seconds. The device LED (B) will flash slowly to indicate that teach-in mode is active.

After a short time, the newly taught-in device will appear in the inbox of your software interface. The button, Inbox (x new devices) indicates how many new devices have been taught-in successfully
- If required, you can teach-in additional devices by repeating the steps described above for each device.
- Now configure the newly taught-in devices in the inbox as described in section ,Configuring newly taught-in devices".

Configuring newly taught-in devices

Once you have taught-in your switch actuator to the HomeMatic Central Control Unit, it will be moved to the inbox. Here, you must configure the device and its associated channels in order to make them available for operating and configuration tasks. Give the device a name and assign the device/channels to a room. You can individually adjust the switch on and off duration of the device as well as a delay time for switching connected devices on and off.

Operation

Restore factory settings

Now you can use the "WebUI" user interface to control your device, configure it, connect it directly to other devices, or use it in central control unit programs. Please refer to the HomeMatic WebUI Manual for more details (you can find this in the Downloads area of the website www.homematic.com).

6 Operation

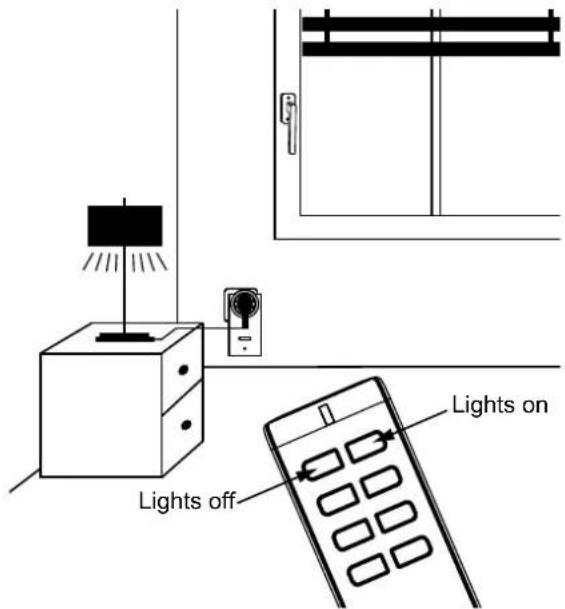

After teaching-in and configuring the device, you can control the switch actuator e.g. with a connected remote control to switch on and off connected loads (see the following fig.).

7 Restore factory settings

The factory settings of the switch actuator can be restored manually. If you do this, you will lose all your settings.

To restore the factory settings, please proceed as follows:

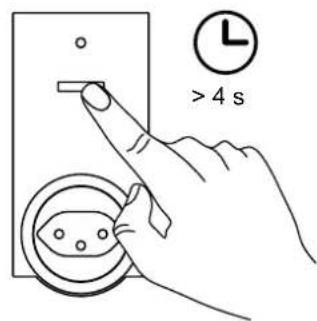

• Press and hold down the channel button (A) for at least four seconds until the device LED (B) will slowly start flashing.
• Release the button again.

• Press and hold down the channel button (A) again for at least 4 seconds until the device LED (B) will quickly start flashing.
• Release the button again.
  The device LED stops flashing.
  The factory settings of the device are now restored.

8 Error codes and device LED feedback

8.1 Flash codes

Various actuator states are indicated by the device LED (B):

Flashing sequence	Meaning Solution
Slow flashing Teach-in	mode activated or stage before restoring the factory settings	/
Fast flashing The factory settings of the device will be restored.		/
1 x long, 1 x short flashing	Transmit limit (duty cycle) reached	please see sec. "8.3 Duty cycle" on page 32
1 x long, 2 x short flashing	Device defective Please use contact your specialist dealer.

8.2 Operational status display

The device LED (B) lights up permanently as soon as the switch actuator is switched on.

After configuring the switch actuator with the Central Control Unit or a programming tool, the device LED indicates other device states besides those described (e.g. switch on and off delay or duration).

8.3 Duty cycle

The duty cycle is a legally regulated limit of the transmission time of devices in the 868 MHz range. The aim of this regulation is to safeguard the operation of all devices working in the 868 MHz range. In the 868 MHz frequency range we use, the maximum transmission time of any device is 1% of an hour (i.e. 36 seconds in an hour). Devices must cease transmission when they reach the 1% limit until this time restriction comes to an end. HomeMatic devices are designed and

produced with 100% conformity to this regulation.

During normal operation, the duty cycle is not usually reached. However, repeated and wireless-intensive teach-in processes mean that it may be reached in isolated instances during start-up or initial installation of a system. If the duty cycle is exceeded, this is indicated by one long and one short red flash of the device LED, and may manifest itself in the device temporarily working incorrectly. The device starts working correctly again after a short period (max. 1 hour).

9 Behaviour after power recovery

After the device has been inserted to a socket or after power recovery the switch actuator performs a self-test/restart. The device LED will flash if an error is detected during this check (see sec. 8.1 Flash codes on page 32). This is repeated continuously and the device does not perform its function.

If the test is completed without errors, the switch actuator transmits a wireless telegram containing its status information. To prevent all HomeMatic actuators from transmitting at the same time when power is recovered (after a mains power failure or a disconnection, for example), there is a random delay before the switch actuator transmits. During this time, the device LED flashes slowly. If the delay is very short, this flashing may be almost imperceptible.

10 Maintenance and cleaning

The product does not require any maintenance. Enlist the help of an expert to carry out any repairs. Clean the product using a soft, lint-free cloth that is clean and dry. You may dampen the cloth a little with lukewarm water in order to remove more stubborn marks. Do not use any detergents containing solvents, as they could corrode the plastic housing and label.

11 General information about radio operation

Radio transmission is performed on a non-exclusive transmission path, which means that there is a possibility of interference occurring. Interference can also be caused by switching operations, electrical motors or defective electrical devices.

The range of transmission within buildings can differ greatly from that available in the open air. Besides the transmitting power and the reception characteristics of the receiver, environmental factors such as humidity in the vicinity have an important role to play, as do on-site structural/screening conditions.

If "secure transmission" (AES) is activated for the switch actuator, this implies:

• increased volume of communication traffic
• actuator groups are unable to execute commands simultaneously. Please refer to the HomeMatic WebUI Manual at www.homematic.com for further information on secured operation.

eQ-3 AG hereby declares that this device complies with the essential requirements and other relevant regulations of Directive 1999/5/EC. You can find the full declaration of conformity at www.homematic.com.

12 Technical specifications

Device short description: HM-LC-Sw1-PI-DN-R5

Supply voltage: 230V / 50Hz

Current consumption: 10 A (max.)

Power consumption in standby: 0.6 W

Load type: ohmic load

Maximum switching capacity: 2300 W

Relay:

NO contact, 1-pole, contact

Radio frequency:	868.3 MHz
Switching cycle:	40000 (10 A, ohmic load)
Receiver category:	SRD category 2
Typ. open area RF range:	>100 m
Duty cycle:	<1 % per h
Operating mode:	S1
Switch type:	independently mounted switch
Degree of protection:	IP20
Protection class:	I
Method of operation:	Type 1
Withstand voltage:	2500 V
Degree of pollution:	2
Ambient temperature:	-10 °C to +35 °C
Dimensions (W x H x D):	59 x 122 x 40 mm (not incl. plug)
Weight:	162 g

Subject to technical changes.

Instructions for disposal

Do not dispose of the device with regular domestic waste. Electronic equipment must be disposed of at local collection points for waste electronic equipment in compliance with the Waste Electrical and Electronic Equipment Directive

Information about conformity

The CE Marking is simply an official symbol relating to the free movement of a product; it does not warrant a product's characteristics.

For technical support, please contact your specialist dealer.

(A)-Pulsante canali (B)-LED appearcchio

Manufacturer's authorised representative:

eQ-3 AG

Maiburger Straße 29

26789 Leer / GERMANY

www.eQ-3.de
