USER MANUAL BDRXD05W PIONEER

CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK),NO USER-SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Thank you for buying this Pioneer product. Before using the drive, read all warnings, cautions, notices and other important safety information contained in these Operating Instructions. Please read the entire manual before using this drive as it contains important information, such as regulatory data, software license agreement(s), product registration details, service instructions and guidelines.

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture. D3-4-2-1-3_B_En

WARNING: Handling the cord on this product or cords associated with accessories sold with the product may expose you to chemicals listed on proposition 65 known to the State of California and other governmental entities to cause cancer and birth defect or other reproductive harm.

Wash hands after handling

D36-P4_A_En

Precautions Regarding Use

• Pioneer may not be held liable for the loss of any data or any other direct or indirect damage suffered as the result of the use or breakdown of this product. It is strongly recommended to regularly back up all critical data.
• Care must be taken not to infringe copyright restrictions under the laws of each country. If this device is used to record copyrighted materials, approval must be obtained from the respective copyright holders. The recording of copyrighted materials without the express approval of the respective copyright holders may result in legal penalties. Pioneer disclaims any and all responsibility for any legal damages resulting from the use of this device in the unauthorized copying of copyrighted materials.
• All names of corporations, products, and systems listed herein, even when the (^TM) or () symbols are omitted, are considered the registered trademarks of the respective owners.

DANGER - VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM.

IMPORTANT

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK).NO USER-SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

D3-4-2-1-1_A1_En

CAUTION

This product is a class 1 laser product, but this product contains a laser diode higher than Class 1. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel. The following caution label appears on your unit. Location: bottom of the unit

CLASS 1 LASER PRODUCT

CAUTION CLASS 3B VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN,AVOID EXPOSURE TO THE BEAM.

ATTENTION RADIATIONS LASER VISIBLES ET INVISIBLES DE CLASSES 3B QUAND OUVERT. EVITEZ TOUT EXPRESSION AUF BSACEAU.

ADVARSEL KLASSE 38 SYNLIG OG USYNLIG LASERSTRALING VED ABNING. UNDGA UDSJETTELSE FOR STRALING.

AVATTAESSA OLET ALTTINA NAKYVALLE JA
VARO! NAKYMATTOMALLE LUOKAN 3B LASERSATEIYLLE.
ALKATO SATEESEEN.

WARNING KCLASS 38 SYNLIG OCH OSYNLIG LASERSTRALING NAR DENINA DEL AR OPPNAD. UNDVIK ATT UTSATTA DIG FOR STRALEN. BE GEOFFNETER ABDECKUNG IST SICHTBARD UNDSICHTBARE LASERSTRAHUNG DER KLASSE IM GERATEINNEREN VORHANDEN. NICH DENT DEM LASERSTRAH USSETZENI

PRECAUCION CUANDO SE ABRE HAY RADIACION LASEN DE CLASE 3B VISIBLE E INVISIBLE. EVITE LA EXPOSICION A LOS RAYOS LASEN.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD. D6-8-2-1 En

For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall be easily accessible.

IMPORTANT NOTICE

RECORD THE MODEL NUMBER AND SERIAL NUMBERS OF THIS EQUIPMENT BELOW. THE NUMBERS ARE ON THE BOTTOM.

MODEL NO. BDR-XD05W
SERIAL NO.

KEEP THESE NUMBERS FOR FUTURE USE.

D1-4-2-6-2*A1_En

Operating Environment

Operating environment temperature and humidity: +5^ to +35^ (+41^ to +95^) less than 85% RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light)

D3-4-2-1-7c*A1En

Machine Noise Information Regulation 3.

GPSGV: The highest sound-pressure level is 70 dB(A) or less in accordance EN ISO 7779.

Information to User

Alterations or modifications carried out without appropriate authorization may invalidate the user's right to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.

D8-10-1-2_A1_En

CAUTION

This product satisfies FCC regulations when shielded cables (with Ferrite-cores attached) and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables (with Ferrite-cores attached) and connectors for connections. D8-10-3b_A1_En

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Product BD/CD WRITER

Model NBDFxD05W

Responsible Party Name: PIONEER ELECTRONICS (USA) INC.

Address: P.O. BOX 1760, Long Beach, California 90801-1760, U.S.A.

Phone: [phone]

URL: http://www.pioneerelectronics.com/PUSA/ D8-10-4*C1_EN

This product was classified under the Safety of laser products, IEC 60825-1:2007

is a trademark of Blu-ray Disc Association.

is a trademark of DVD Format/Logo Licensing Corporation.

Safety instructions

To ensure your personal safety and to maximize the full operating potential of your unit, read and follow these safety instructions.

Read & Retain Instructions - Read all operating and user information provided with this drive.

Cleaning - Use a damp cloth to clean the exterior housing. Avoid using any fluids including liquid, aerosol or alcohol-based cleaning products.

Water or Moisture - Avoid operating or locating this drive near water or other sources of fluid.

Accessories - Do not place this product on an unstable cart, stand, or table. The product may fall and be seriously damaged.

Ventilation - Slots and openings in the chassis are for cooling and proper operation of the unit. Do NOT block or cover the openings. Do NOT place this unit on a bed, rug, etc. as this can block the openings. This unit should not be placed in a built-in installation unless properly ventilated.

Operation - Avoid moving, lifting or reorienting this drive while a disc is rotating inside.

Environment - Avoid installing this drive in a location with exposure to large quantities of dust, high temperatures, high humidity, or subject to excessive vibrations or shocks.

Power Sources - Operate this drive only from the recommended power sources. If you are unsure of the power source, consult an authorized Pioneer representative.

Power-Cord Protection - When unplugging the unit, pull on the plug - not on the cord. Do not handle the cord or plug with wet hands; doing so could cause an electric short or shock. Do not allow anything to pinch or rest on the power cord and do not place in a walkway.

Object & Liquid Entry - Never push inappropriate objects into the device. Avoid spilling any liquids into or on the outside of the drive.

Condensation - Moisture can form in the operating section of the product if the drive is taken from cool surroundings to a room with a warmer temperature. Let the drive stand for one to two hours in the new location before turning it ON.

Servicing - Opening or removing the cover exposes you to possible electrical shock or other danger. Contact a Pioneer authorized service representative for repairing this drive (refer to the enclosed Service & Support Card).

Damage Requiring Service – Unplug the unit and refer servicing to qualified service personnel in the following situations:

• When the power cord, plug, or chassis is damaged.
  If liquid has been spilled, or objects have fallen into the video product.
• If the product has been exposed to rain or water.
• If the product does not operate normally when the operating instructions are followed. Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and can require extensive work by a qualified technician to restore the unit to its normal operation.
• When the product exhibits a distinct change in performance – this indicates a need for service.

About DualDisc Playback - DualDisc is a two-sided disc with one side containing DVD video/audio/etc. content and the opposite side containing non-DVD content such as digital audio material. The non-DVD audio side is not compliant with the CD Audio Specification; therefore, may not play. The DVD side of DualDisc media plays in this unit. For more details about the DualDisc specification, please refer to the disc manufacturer or your retailer.

• Avoid touching or scratching the signal surface (shiny side) of the disc.
• Hold the disc by the edges or by the center hold and one edge.
• Do not affix paper or labels to the disc.
• Discard warped or cracked discs as they may cause damage to the drive.
• Avoid specially shaped discs such as hearts or polygons.
• Remove dust or lint from the disc with a soft cloth by wiping from the inside to the outside edge rather than in a circular motion.
• Do not use record-cleaning or anti-static agents as the solutions may cause damage to a disc.

Always be sure to store your discs in proper disc storage cases when not in use, and always be sure to check for dirt or dust on discs (especially on the recording side) before use.

Note

Some discs may not be playable due to different recording formats or the physical condition of the disc at the time of recording or playback.

Features

Write Speed (▲ZCLV, ★CAV)

BD-R 2X,4X,6X*3

BD-R DL 2X,4X,6X*3

BD-R TL 2X,4X

BD-RQL 2X,4X

BD-R (LTH) 2X,4X,6X*3

BD-RE 2X

BD-RE DL 2X

BD-RE TL 2X

DVD-R 1X,2X,4X▲,6X▲,8X

DVD-R DL 2X,4X,6X

DVD-RW 1X,2X,4X▲,6X▲

DVD+R 2.4X,4X,6X,8X

DVD+R DL 2.4X,4X,6X

DVD+RW 2.4X,3.3X*(1),4X▲,6X▲,8X▲

DVD-RAM 2X,3X,5X▲

CD-R 4X,10X,16X▲,24X

CD-RW 4X,10X,16X*(2)▲,24X*(2)

Maximum Read Speed (▲ZCLV, ★CAV, ●PCAV)

BD-ROM 6X

BD-ROM DL 6X

BD-R 6X

BD-R DL 6X

BD-R TL 4X

BD-RQL 4X

BD-R (LTH) 6X

BD-RE 6X

BD-RE DL 6X

BD-RE TL 4X

DVD-ROM 8X

DVD-ROM DL 8X

DVD-R 8X

DVD-R DL 8X

DVD-RW 8X

DVD+R 8X

DVD+R DL 8X

DVD+RW 8X

DVD-RAM 5X

CD-ROM 24X

CD-R 24X

CD-RW 24X*

*1) High Speed Media Only
*2) US,US+CD-RW Only
*3) When used with a USB 3.0 port.

Buffer Memory Size 4 MBytes (Read/Write)

Interface USB 3.0 & 2.0

Disc Format

BD-ROM Single layer/dual layer

B D - R
BD - RE

DVD-ROM Single layer/dual layer
DVD-Video Single layer/dual layer
DVD-R
DVD-RW
- DVD + R
- DVD + RW
DVD-RAM (Non-cartridge), ver2.0&2.1&2.2
CD-R

• CD-ROM Mode 1
• CD-ROM XA Mode 2 (form 1, form 2)
  KODAK Photo CD (Single and Multi-session)
• CD-Extra (CD PLUS)
  CDtext
• CD-RW (MS/HS/US/US+)

RAM2 media is supported only reading.

Note

• A specific application software is necessary to write the formats listed above.
• Supported media required for specific BD, DVD and CD writing speeds.
• Average writing speed may decrease when multiple discs are written during the same session.

Interface

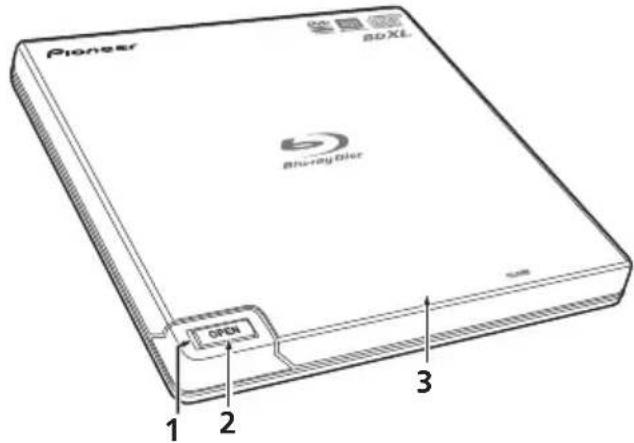

Front/Top view

1 Power/Busy Indicator

Operation status is indicated as follows:

During Power ON: Lights dimly

During reading/writing: Lights

During disc cover open: Lights

2 OPEN Button

Press to open the disc cover.

3 Disc Cover

Press the OPEN button to open the disc cover then place a BD, DVD or CD disc onto the tray with the label facing up. Close the disc cover gently.

Do not manually force open the disc cover.

Use the Forced Open Lever to open the disc cover during POWER OFF.

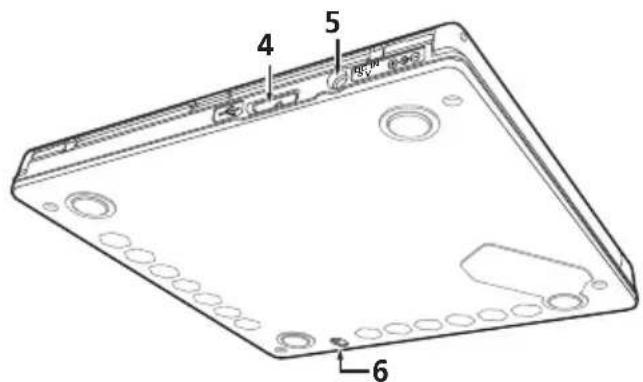

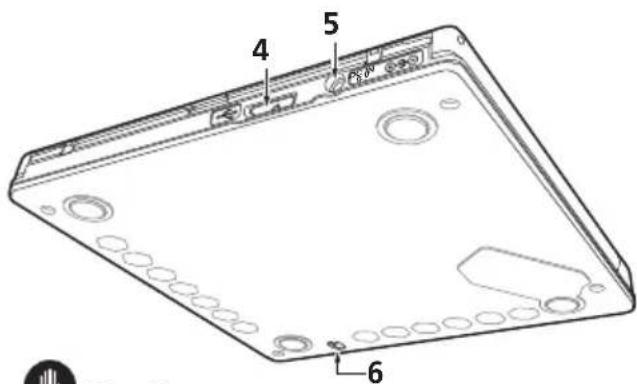

Rear/Bottom view

4 U S B 3 . 0

USB 3.0 Micro-B Connector

5 D C

AC Adapter Connector

Some computers may not provide enough power through two USB ports to operate the drive. An AC adapter (not included) can be connected to the drive through the DC IN connector to provide power. For more details, visit or contact http://www.pioneerelectronics.com/PUSA/ Phone: [phone]

Do not connect any AC adapter other than specified by Pioneer.

6 Forced Open Lever

Use to open the disc cover when the drive is not powered. If the disc cover fails to open when the Open button is pressed, turn the power to the drive OFF and wait approximately one minute until the disc stops spinning before trying to open the disc cover. During normal operation, the Open button should be used to open the disc cover.

Caution

About Region codes

• The region code can only be changed five (5) times, including the initial setting. Please be aware that the fifth change becomes PERMANENT. Therefore, avoid changing the region code unless absolutely necessary.
• Region codes are part of the DVD Standard. However, region codes on DVD discs are optional. DVD discs with no specified region code can be played on all compliant players.

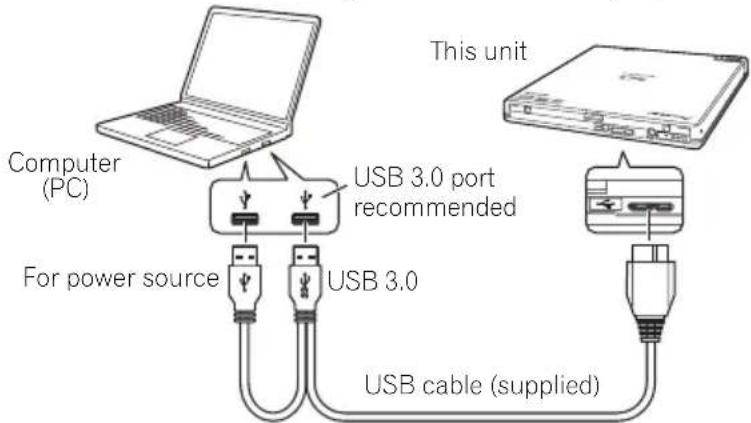

Connection

This is a hot-plug unit. Connect the unit to the supplied USB cable.

1 Confirm that your computer (PC) has available USB port.
2 With your Windows® or Mac® operating system running, use the supplied USB cable to connect this unit to the PC.

Caution

• Do not disconnect the USB cable during data transfers.
• Do not disconnect the USB cable during the PC start nor any operation with the unit.

Note

• Connection to a USB 3.0 port is recommended, since when a USB 3.0 cable is connected to a USB 2.0 port, the connection will be limited to USB 2.0 performance standards.
• This unit can operate with USB 1.1 but will not provide optimum performance.
• Connecting this unit through a USB HUB or using unspecified cables may not guarantee proper operation.
• In some cases, the use of a single USB port may be insufficient for normal operation. Use two USB ports for power enhancement.
• If power is insufficient when using two USB ports, connect an AC adapter (not included) through the DC IN connector on the unit's rear panel and plug into a wall outlet to deliver power. Connect the USB cable (included) after connecting the AC adapter for proper operation. For more details about the AC adapter connection, visit or contact http://www.pioneerelectronics.com/PUSA/ Phone: [phone]
• Do not connect any AC adapter other than specified by Pioneer.
  This BD/DVD/CD WRITER is for use only with compatible UL Listed personal computers that have Installation Instructions detailing user installation of USB accessories.
• UL Listed, Class 2 AC Adapter (Output 5 V, min. 1.0 A) shall be used.

Operations

The unit writes to BD-R/RE media when the software application is installed on your PC. Writing fails if the PC or operating system does not support the software.

Begin writing to BD-R/RE

1 Connect the necessary USB cable.
2 Turn on the PC.
3 Press the OPEN button, and gently lift the disc cover by hand.
4 Place the disc in the tray with the label facing up.
5 Close the disc cover gently.
6 Start the disc-burning application.

End the writing session

1 Quit the disc burning application.
2 Press the OPEN button, and gently lift the disc cover by hand.
3 Remove the disc.
4 Close the disc cover gently.
5 Shut down the PC.
- When the lock mechanism is released, the disc cover needs to be fully opened in order to close again.

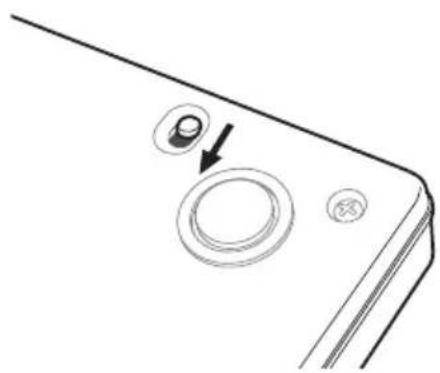

Manual disc cover open

Use the Forced Open Lever to remove discs if the disc cover fails to open and all other methods have been exhausted.

1 Shut down the PC.
2 Wait for the disc to stop spinning.
3 Slide the Forced Open Lever to open the disc cover.
4 Gently open the disc cover and remove the disc.

Warning

To prevent injury and damage to the unit, do NOT force the disc cover to open while the disc is spinning.

Specifications

Position . This drive is horizontal use.

Disc Size. 4.72 inch/3.15 inch (12 cm/8 cm)
(Drive does not support non-standard shapes such as business cards, diamond, etc.)
(Drive does not support 8 cm adapter.)

Disc Transfer Rate * Media that is dirty or damaged can affect the transfer rate.

Data Read (sustained) BD. Max. 21.06 MBytes/sec.

DVD. Max. 8.64 MBytes/sec.

Data Write (sustained) BD. Max. 21.06 MBytes/sec. (6X BD-R)

DVD. Max. 8.64 MBytes/sec. (8X DVD-R)

CD. Max. 3.24 MBytes/sec. (24X CD-R)

Access Time/Seek Time (Random Averages)

Access Time BD-ROM 210 ms

DVD-ROM 200 ms

CD-ROM 190 ms

Seek Time BD-ROM 190 ms

DVD-ROM 180 ms

CD-ROM 170 ms

Power

Standby 0.5 W

DC IN Connector

Power Supply DC +5V 1.0 A (AVE)

Physical Information

Dimensions (excluding foot pad) 5.19 inch (W) x 5.19 inch (D) x 0.58 inch (H)/

133 mm (W) × 133 mm (D) × 14.8 mm (H)

Weight (Drive only) .0.51 Ibs/0.23 kg (Typ.)

Operating Temperature +41°F to +95°F (+5°C to +35°C)

Operating Humidity 5% to 85% (no condensation)

Storage Temperature -41°F to +140°F (-40°C to +60°C)

Storage Humidity 5% to 90% (no condensation)

Accessories

Operating Instructions (This document)

USB Cable (PIONEER, ODF8003) 1

Warranty card 1

Note

Specifications and designs are subject to possible modifications without notice, due to improvements.

© 2013 PIONEER CORPORATION.

All rights reserved.

CAUTION CLASS 38 VISIBLE AND INVASIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO THE BEAM.

ATTENTION RADIATIONS LASER VISIBLES ET INVISIBLES DE CLASSE 38 QUAND OUVERT. EVITEZ TOUT EXPOSITION AU RISCEAU.

ADVARSEL KLASSE 38 SYNLIG OG USYNLIG LASERSTRALING VED ABNING. UNDGA UDSAEETALSE FOR STRALING.

AVATTAESSA OLET ALTTINA NAKYVALLE JA
VARO! NAKYMATTOMALLE LUOKAN 3B LASERSATEILYLEL
ALAI KATO SATESEEN.

WARNING KCLASS 3B SYNLIG OCH OSYNLIG LASERSTRALNING NAR DENNA DEL AR OPPNAD. UNOVIK ATT UTSATTA DIG FOR STRALEN. BEI GEOFFNER ABDECKUNG IST SICHTBAIRE UNDSICHTBARE LASERSTRAHLING DER KLASSE 3B IM GERAENNEREN VORHANDEN. NICK DEM LASERSTRAHL AUSSETZEN!

PRECAUCION CUANDO SE ABRE HAY RADIACION LASER DE CLASE 3B VISIBLE E INVISIBLE. EVITE LA EXPOSICION A LOS RAYOS LASER.

BD-R (LTH) 2X,4X,6X*3

BD-RE 2X

BD-RE DL 2X

BD-RE TL 2X

DVD-R 1X,2X,4X▲,6X▲,8X

DVD-R DL 2X,4X,6X

DVD-RW 1X,2X,4X6X

DVD+R 2.4X,4X,6X,8X

DVD+R DL 2.4X,4X▲,6X

DVD+RW 2.4X,3.3X*(1),4X▲,6X▲,8X▲

DVD-RAM 2X,3X,5X▲

CD-R 4X,10X,16X▲,24X

CD-RW 4X,10X,16X*(2)▲,24X*(2)

Vitesse de lecture maximale (▲ZCLV, ★CAV, ●PCAV)

BD-ROM 6X*

BD-ROM DL 6X

BD-R 6X

BD-R DL 6X

BD-R TL 4X

BD-RQL 4X

BD-R (LTH) 6X

BD-RE 6X

BD-RE DL 6X

BD-RE TL 4X

DVD-ROM 8X

DVD-ROM DL 8X

DVD-R 8X

DVD-R DL 8X

DVD-RW 8X

DVD+R 8X

DVD+R DL 8X

DVD+RW 8X

DVD-RAM 5X

CD-ROM 24X

CD-R 24X

CD-RW 24X

1 Voyant Power/Busy (Alimentation/Occupe)

Pendant la lecture/Pendant I'ecriture: S'allume

Dimensions (talon non compris) 133 mm (L) x 133 mm (P) x 14,8 mm (H)

© 2013 PIONEER CORPORATION.

CAUTION CLASS 3B VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN,AVOID EXPOSURE TO THE BEAM.

ATTENTION RADIATIONS LASER VISIBLES ET INVISIBLES DE CLASSES 3B QUAND OUVERT. EVITEZ TOUT EXPRESSION AUF BSACEAU.

ADVARSEL KLASSE 38 SYNLIG OG USYNLIG LASERSTRALING VED ABNING. UNDGA UDSFETTELSE FOR STRALING.

AVATTAESSA OLET ALTTINA NAKYVALLE JA
VARO! NAKYMATTOMALLE LUOKAN 3B LASERSATEIYLLE.
ALKATO SATEESEEN.

WARNING KCLASS 38 SYNLIG OCH OSYNLIG LASERSTRALING NAR DENNA DEL AR OPPNAD. UNDVIK ATT UTSATTA DIG FOR STRALEN. BE GEOFFNETER ABDECKUNG IST SICHTBARE UNDSICHTBARE LASERSTRAHUNG DER KLASSE 38 IM GERATEINNEREN VORHANDEN. NICH DEM LASERSTRAHL AUSSETZENI

PRECAUCION CUANDO SE ABRE HAY RADIACION LASER DE CLASE 3B VISIBLE E INVISIBLE. EVITE LA EXPOSICION A LOS RAYOS LASER.

BD-ROM	6X*
BD-ROM DL	6X*
BD-R	6X*
BD-R DL	6X*
BD-R TL	4X*
BD-R QL	4X*
BD-R (LTH)	6X*
BD-RE	6X*
BD-RE DL	6X*
BD-RE TL	4X*

DVD-ROM	8X★
DVD-ROM DL	8X★
DVD-R	8X★
DVD-R DL	8X★
DVD-RW	8X★
DVD+R	8X★
DVD+R DL	8X★
DVD+RW	8X★
DVD-RAM	5X▲

CD-ROM	24X*
CD-R	24X*
CD-RW	24X*

Conector USB 3.0 Micro-B

http://www.pioneerelectronics.com/PUSA/

Telf.: 1-800-872-4159

© 2013 PIONEER CORPORATION.

AFTER SALES SERVICE FOR PIONEER PRODUCTS

Please contact the dealer or distributor where you purchased this product for its after-sale service (including warranty conditions) or any other information. In case the necessary information is not available, please contact the Pioneer's subsidiarity (regional service headquarters) listed below.

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1760, Long Beach, California 90801-1760

PIONEER CORPORATION

© 2013 PIONEER CORPORATION.

All rights reserved.

© 2013 PIONEER CORPORATION.

PIONEER ELECTRONICS (USA) INC.

1925 E. Dominguez Street, Long Beach, CA 90810

For BDR-XD05W support, go to:

http://www.pioneerelectronics.com/PUSA/
