| Product type | Powerline adapter |
| Brand | TriStar |
| Model | NS6701 |
| Maximum speed | 500 Mbps |
| Ethernet ports | 2 RJ45 ports |
| Maximum distance | 200 meters |
| Maximum number of units | 8 |
| Power supply | 230 V AC via mains socket |
| LED indicators | Power (green), Powerline (green/orange/red), Ethernet (green) |
| Standby function | Yes, after 15 minutes without Ethernet connection |
| Security | Random password encryption, simple connection button |
| Reset button | Yes (factory reset 5s, new password 10s) |
| Compatibility | HomePlug AV, any compatible Powerline adapter |
| Dimensions (approx.) | 7 x 5 x 3 cm |
| Weight (approx.) | 100 g |
| Care | Clean with a soft, dry cloth |
| Warranty | 24 months |
| Recycling | Do not dispose of in household waste, take to a collection point |
Frequently Asked Questions - NS6701 TRISTAR
User questions about NS6701 TRISTAR
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Powerline Adapter in PDF format for free! Find your manual NS6701 - TRISTAR and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. NS6701 by TRISTAR.
USER MANUAL NS6701 TRISTAR
This product is in compliance with the essential requirements and other relevant provisions of the R&TTE directive. This is confirmed by the CE-mark.
The Declaration of conformity can be found on:
www.tristar.eu
NL
Powerlan NS-6701 plugs can be used to establish a network connection between your modem, PC, set-top Box, games console, etc.
By default, the Powerlan NS-6701 plugs are not connected. To connect them, follow the procedure given in Chapter 6.
Limitations
Ideally, the maximum electrical cable length between two Powerline devices should be no more than 200 metres.
The connection quality will be impaired by:
– poor-quality electrical cabling.
- fuses.
– lightning/power surge protectors.
– multiphase voltage: some houses have three-phase electricity. The quality of the Powerline connection will be dramatically impaired if the devices are connected to different phases. In some cases, there will be no communication at all.
- Some electrical equipment, such as microwave ovens, vacuum cleaners, and old laptop/mobile phone chargers, will generate background noise on the mains network during operation.
2 Safety instructions
For your own safety, make sure you read and follow all warning notices and instructions.
- Do not open the device. Opening or removing the device cover can expose you to dangerous high-voltage points or other risks. The device can only be serviced by qualified service staff. Please contact your vendor for further information.
- Do not use the device during a thunderstorm. There may be a risk of electric shocks due to lightning.
- Do not expose the device to dust or corrosive liquids.
- Do not use this product near water sources.
- Make sure the cables are connected to the right port.
- Do not obstruct the vents on the device.

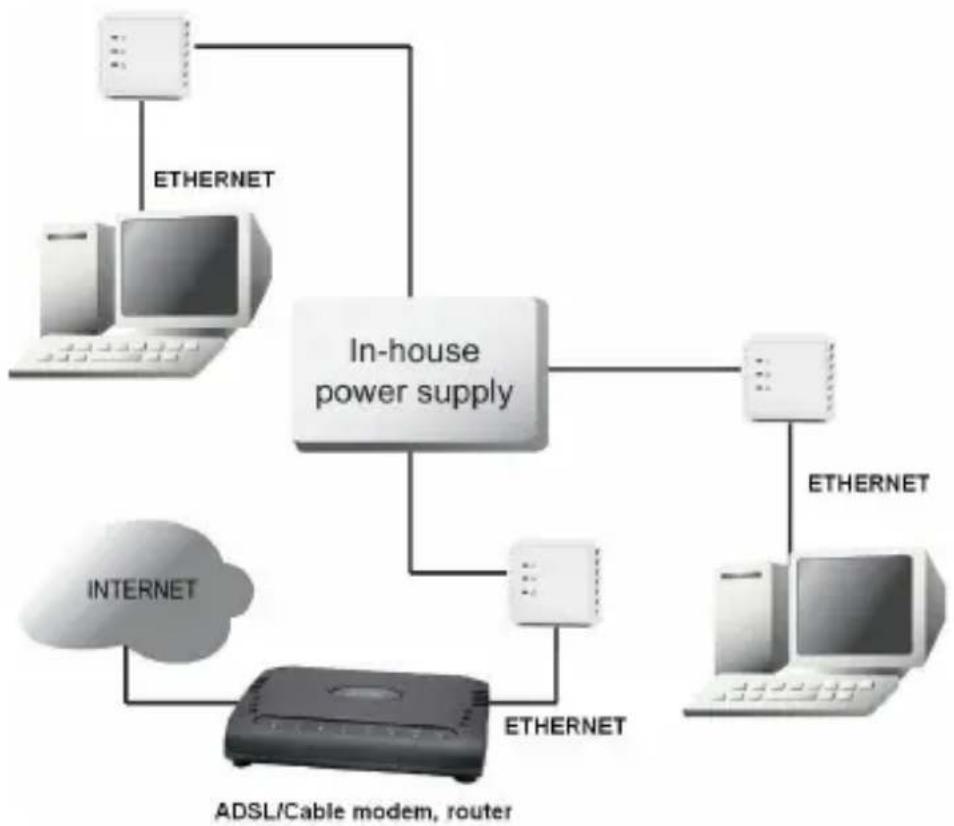

3 Typical applications


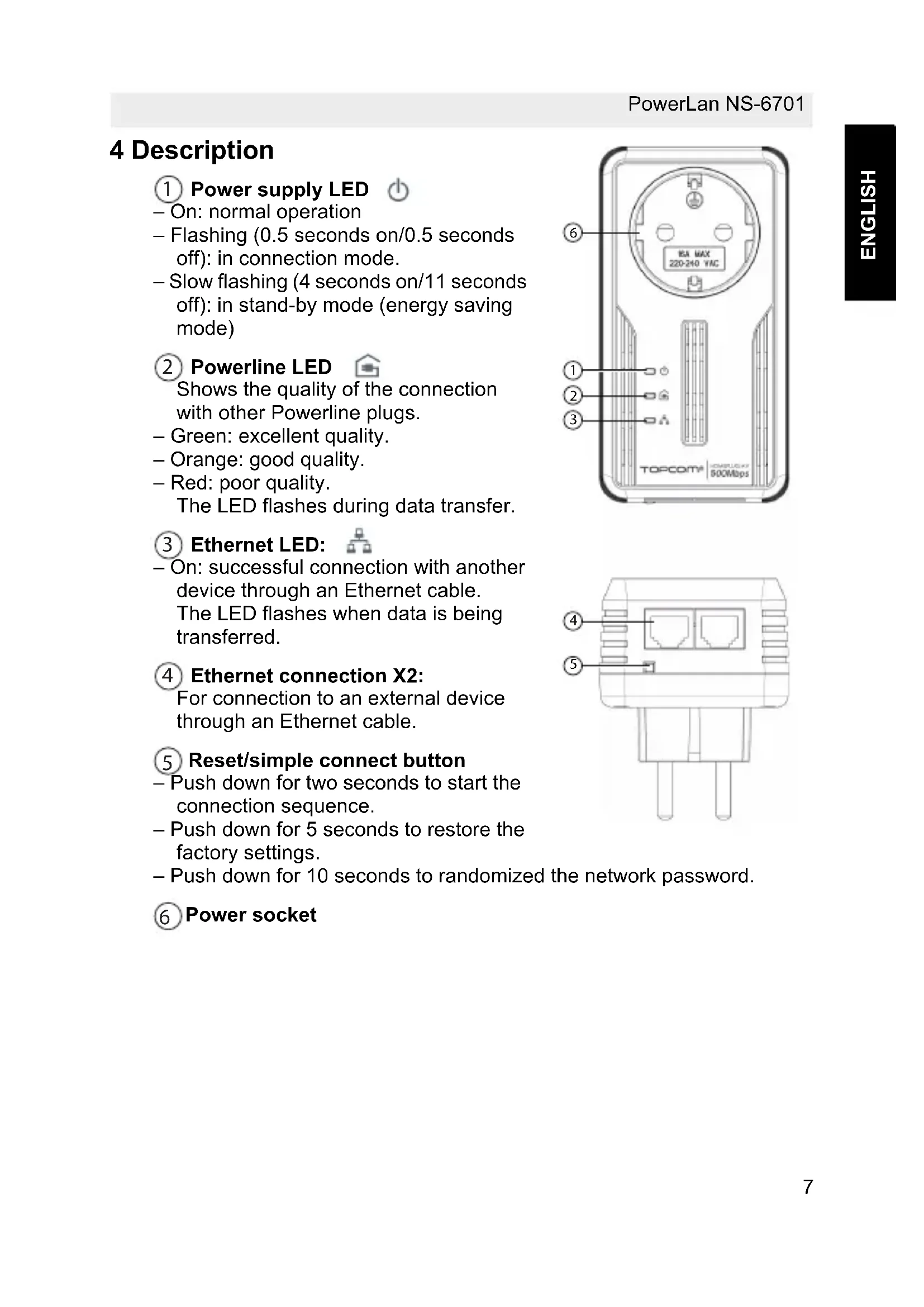

4 Description
① Power supply LED
- On: normal operation
- Flashing (0.5 seconds on/0.5 seconds off): in connection mode.
- Slow flashing (4 seconds on/11 seconds off): in stand-by mode (energy saving mode)
② Powerline LED
Shows the quality of the connection with other Powerline plugs.
– Green: excellent quality.
- Orange: good quality.
- Red: poor quality.
The LED flashes during data transfer.
③ Ethernet LED:
- On: successful connection with another device through an Ethernet cable. The LED flashes when data is being transferred.
④ Ethernet connection X2:
For connection to an external device through an Ethernet cable.
⑤ Reset/simple connect button
- Push down for two seconds to start the connection sequence.
- Push down for 5 seconds to restore the factory settings.
- Push down for 10 seconds to randomized the network password.
⑥ Power socket
The Powerline plug switches to stand-by mode (energy saving function) when it is not connected to a device through an Ethernet cable for 15 minutes.
By default, the Powerlan NS-6701 plugs are not connected. To connect them with each other, follow the procedure set out below.
- Plug all the Powerlines into the power socket.
The easiest way is to plug them in next to each other in the same place. Once they have been successfully connected, you can put them in the desired location.
-
Push down the (reset/simple connect) key on the first Powerline plug for two seconds. The power-supply LED will flash slowly (0.5 seconds on/0.5 seconds off).
-
Within two minutes, push down the key on the second plug. The connection sequence starts.
A random password will be exchanged between the Powerlines.
Once the connection is complete, restart both plugs and the Powerline LEDs on both plugs will light up.
Push down the reset/simple connect key for at least 12 seconds to restore the Powerlan NS-6701 factory settings. When the factory settings are restored, the Powerlan NS-6701 plug will need to be reconnected!
6 Adding an additional Powerlan NS-6701
A Powerline network can be created with up to a maximum of eight Powerlines. If you already have two Powerlines in operation, you can add a maximum of six.
To add a Powerline, follow the procedure set out below.
- Plug the extra Powerline (NS-6701) into the power socket, and press for 10 seconds. The on/off light will flash slowly (0.5 seconds on/0.5 seconds off).
- Push down for two seconds on the key on one of the Powerline plugs that is already in operation.
The on/off light will flash slowly (0.5 seconds on/0.5 seconds off).
- Within two minutes, push down the key on the extra Powerline plug for two seconds.
Once the connection is complete, the on/off light will stop flashing
Before adding the new Powerline, it is recommended that the network passport for this plug be changed by pushing down the "reset/simple connect" button for 12 seconds.
A Powerline that has already been used in another network will still have the password for that network, which means that the "reset/simple connect" button mechanism will not operate.
7 PC help programme (Utility)
You can find all available information and spare parts at service.tristar.eu!
8 Topcom Warranty
8.1 Warranty period
The Topcom units have a 24-month warranty period. The warranty period starts on the day the new unit is purchased.
Consumables or defects causing a negligible effect on operation or value of the equipment are not covered.
The warranty has to be proven by presentation of the original or copy of the purchase receipt, on which the date of purchase and the unit-model are indicated.
8.2 Warranty exclusions
Damage or defects caused by incorrect treatment or operation and damage resulting from use of non-original parts or accessories are not covered by the warranty.
The warranty does not cover damage caused by outside factors, such as lightning, water and fire, nor any damage caused during transportation.
No warranty can be claimed if the serial number on the units has been changed, removed or rendered illegible.
Any warranty claims will be invalid if the unit has been repaired, altered or modified by the buyer.
9 Disposal of the device (environment)
Some of the product materials can be re-used if you bring them to a recycling point. By re-using some parts or raw
materials from used products you make an important contribution to the protection of the environment. Please contact your local authorities in case you need more information on the collection points in your area.
