Product type	Wireless remote control for alarm system
Brand	ABUS
Model	FUSG50010
Frequency	868.6625 MHz
Transmission power	10 mW (amplifier output)
Range in open field	Approximately 200 m
Indoor range	Variable depending on conditions
Power supply	Lithium battery CR2450, 3 V
Battery life	Several years depending on usage
Dimensions (L x H x D)	36.2 x 62 x 17 mm
Weight	35 g
Operating temperature	-10 °C to +40 °C
Allowable humidity	75% max., without condensation
Security level	2 (EN 50131-1:2006)
Environmental class	II (EN 50131-1:2006)
Standard	EN 50131-3
Main functions	Arm/disarm alarm, panic function, status inquiry, output control
Coding technology	Rolling code (secure)
LED indicators	2 LEDs (red and green) for status and firmware version
Compatibility	Secvest control panels (FUAA50xxx) with firmware ≥ v2.00.06, 868 MHz receivers Secvest/Terxon
Water resistance	Not waterproof, avoid contact with water
Rechargeable battery	No, non-rechargeable battery
Maintenance	Clean with a dry cloth; replace the battery when the LEDs no longer light up
Disposal	Do not dispose of with household waste; follow the WEEE directive (2002/96/EC)

Frequently Asked Questions - FUSG50010 ABUS

How to replace the battery of the FUSG50010 remote control?

Open the battery compartment, remove the old battery and insert a new lithium CR2450 (3 V) battery, observing polarity. Close the compartment. When inserted, all LEDs briefly light up to verify proper operation.

What is the range of the remote control?

In open field, the range is approximately 200 m. Indoors, the range varies depending on obstacles and building materials.

Is the remote control waterproof?

No, the remote control is not waterproof. Avoid any direct contact with water. Do not use it in the rain and do not immerse it in water.

How to know if the alarm is armed using the remote control?

Press the dedicated button (usually the * button or a status button). The LEDs indicate the status: for example, red steady for armed, green for disarmed. Refer to your control panel manual for more details.

Is the FUSG50010 remote control compatible with all ABUS control panels?

It is compatible with Secvest control panels (models FUAA50xxx) provided the firmware is at least version v2.00.06. It also works with 868 MHz receivers of the Secvest/Terxon ranges.

What to do if the remote control stops working?

First check the battery. If it is discharged, replace it with a new one. If the problem persists, reset the remote control by removing and reinserting the battery. If nothing changes, contact your installer or ABUS customer service.

How to use the panic function?

The panic function allows you to send a silent alarm in case of threat. Depending on the programming, press a specific key combination (e.g., hold down a key). Refer to your control panel manual for the exact configuration.

Can I use the remote control to control multiple control panels?

Yes, it is possible to learn the remote control on several compatible control panels. Follow the learning procedure described in each control panel's manual. Note that each control panel must be in learning mode.

How to read the software version of the remote control?

When inserting the battery, observe the upper LEDs: the red LED blinks to indicate the major version, the green LED blinks for the minor version. For example, 2 red blinks followed by 3 green blinks correspond to version 2.3.

How to dispose of the remote control at end of life?

Do not throw the remote control in the household waste. In accordance with the WEEE directive (2002/96/EC), take it to a collection point for electronic waste or to your retailer. The battery must be removed and disposed of separately.

USER MANUAL FUSG50010 ABUS

Security Tech Germany

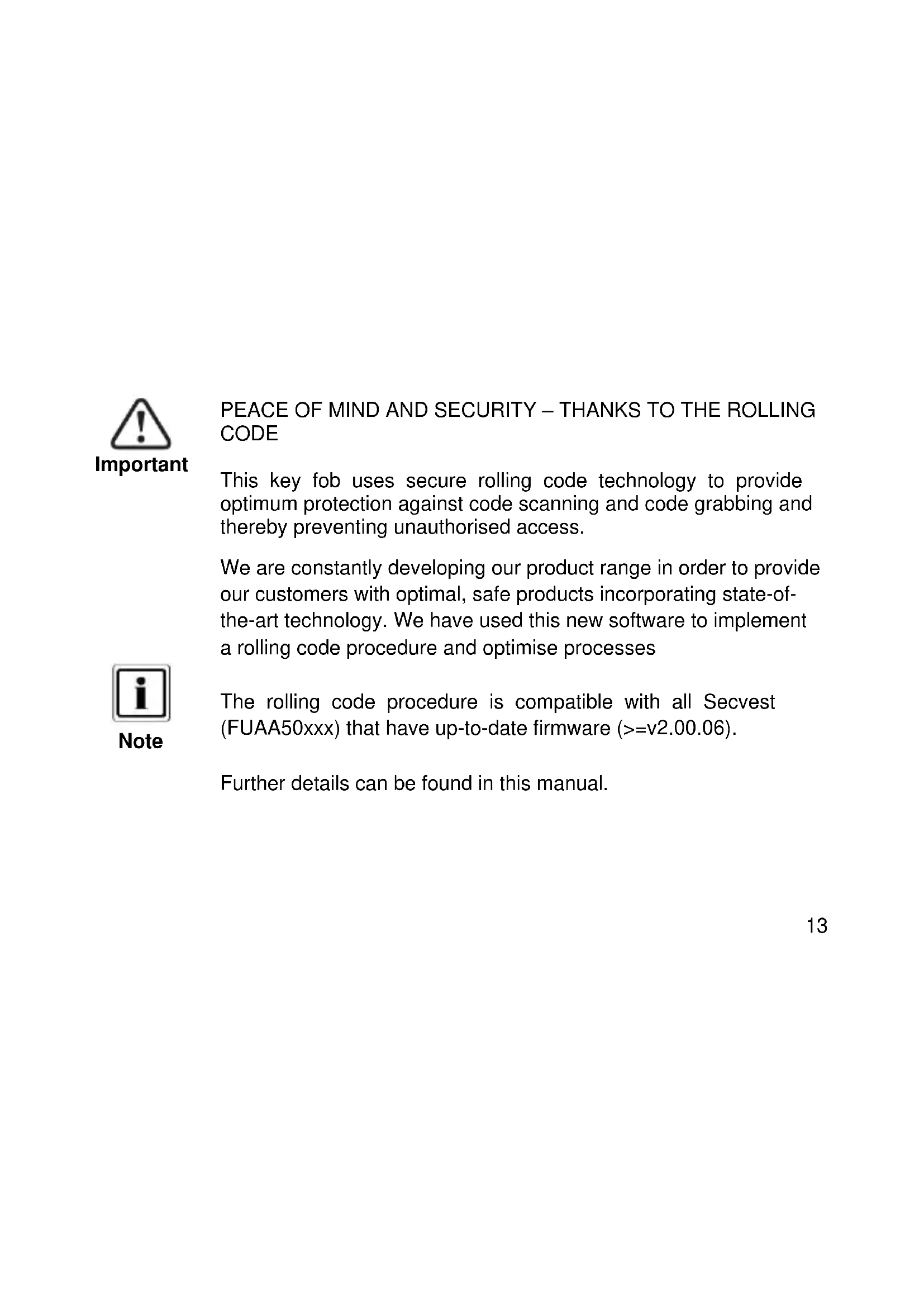

This key fob uses secure rolling code technology to provide optimum protection against code scanning and code grabbing and thereby preventing unauthorised access.

We are constantly developing our product range in order to provide our customers with optimal, safe products incorporating state-of-the-art technology. We have used this new software to implement a rolling code procedure and optimise processes

The rolling code procedure is compatible with all Secvest (FUAA50xxx) that have up-to-date firmware ( >=v2.00.06 ).

Further details can be found in this manual.

Preface

Dear customer,

Thank you for purchasing this wireless remote control. In choosing our product, you now have a piece of equipment that is built according to state-of-the-art technology.

This document refers to the V1.3 software version of the wireless remote control.

This user guide contains important installation and operation information. Store this user guide in a safe place for future reference. This user guide belongs to this product - bear this in mind if you pass on this product to others.

Conformity

Hereby, ABUS Security-Center GmbH & Co. KG declares that the radio equipment type FUBE50014 is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.abus.com search: FUBE50014/Downloads.

The declaration of conformity can be obtained from the following address: ABUS Security-Center GmbH & Co. KG, Linker Kreuthweg 5, 86444 Affing, GERMANY

Intended use

Read the notes and advice in this user guide carefully. If you do not follow these instructions, your guarantee claim becomes invalid. No liability can be accepted for resulting damages. No part of the product may be changed or modified in any way. The remote control

is not waterproof. Please avoid direct contact with water. Everything possible has been done to ensure that the content of this user guide is correct. However, neither the author nor ABUS Security-Center GmbH & Co. KG can be held liable for loss or damages caused by incorrect or improper use or failure to observe the safety instructions and warnings. We reserve the right to make changes to these instructions without prior notice.

Refer to the end of the user guide for more notes and information on operating the wireless remote control. [beginning on page 59]

Information on the battery

The device is supplied with direct current from a 3V lithium battery. To guarantee a long service life and avoid fire and injury, please note the following:

• Do not dispose of the battery in domestic waste.
• The battery must not be directly exposed to heat or sunlight, and must not be stored in a place with a very high temperature.
• The battery must not be burned.
• The battery must not come into contact with water.
• The battery must not be dismantled, pierced or otherwise damaged.
• The battery contacts must not be short-circuited.
• The battery must be kept away from small children.
• The battery cannot be recharged.

Disposal

Disposal as per directive WEEE 2002/96 EC

The product contains valuable raw materials. At the end of its service life, dispose of the product according to the applicable legal requirements. Within the EU, the product and its accessories must be collected and disposed of separately. Devices displaying this symbol may not be disposed of as

domestic waste. Please contact your dealer or dispose of the products at the local collection point for electronic waste.

Features

The wireless remote control is used for arming and disarming alarm systems. It indicates the current status of the alarm system. A switching output can also be armed as an option. The wireless remote control has a panic feature. This can also be used for controlling 868 MHz transceivers in the Secvest/Terxon product range.

Technical data

Wireless frequency: 868.6625 MHz

Transmission power: max. 10mW (amplifier output)

Range (outdoors): approx. 200m

Range (indoors): Depending on ambient conditions

Power supply: Lithium battery type / CR 2450 Li-Mn 3V

Operating temperature: -10^ to +40^

Humidity: max. 75% (non-condensing)

Dimension (WxHxD): 36.2 × 62 × 17 ~mm

Weight: 35 g

Security level: 2 (EN 50131-1:2006)

Environmental class: II (EN 50131-1:2006)

Standard: EN 50131-3

Operation

Inserting or changing the battery

Before the wireless remote control can be used, the battery has to be inserted. When inserting the battery, all the LED pairs light up red and green one after another which show that all the LEDs are working properly.

Reading the software version

The software version of the remote control is then shown by the two LEDs at the top. The main version is shown by the flashing red LED and the sub version is shown by the flashing green LED.

Learning in

Follow the steps described in the user guide for the compatible component. The " *" button can be used for "arming internally" or for switching an output. Find out more details from the user guide for the compatible component.

Customer service and support

End consumer

Please consult your dealer or installer if you have any questions.

Dealer/installer

Consult our website for product information.

© ABUS Security-Center GmbH & Co. KG, May 2015

Security Tech Germany

FUBE50014 NOTICE D'UTILISATION

[UK] User Guide 12
[FR] Notice d'utilisation 22
[NL] Gebruikershandleiding 31
[DK] Betjeningsvejledning 40
[ES] Manual de instrucciones....... 49

CE

FUBE50014

UN AGRÉABLE SENTIMENT DE SECURITÉ GRÂCE AU CODE TOURNANT

Chere cliente, cher client,

Security Tech Germany

FUBE50014 GEBRUIKERSHANDLEIDING

[UK] User Guide 12
[FR] Notice d'utilisation. 22
[NL] Gebruikershandleiding ...... 31
[DK] Betjeningsvejledning 40
[ES] Manual de instrucciones....... 49

CE

FUBE50014

MET VEILIGHEID EEN GOED GEVOEL - DANKZIJ DE ROLLINGCODE

Security Tech Germany

FUBE50014 BETJENINGSVEJLEDNING

[UK] User Guide 12
[FR] Notice d'utilisation. 22
[NL] Gebruikershandleiding 31
[DK] Betjeningsvejledning. 40
[ES] Manual de instrucciones....... 49

CE

FUBE50014

SIKKERHED GIVER EN GOD FORNEMMALSE - TAKKET VÆRE ROLLING-CODE

[UK] When arming the system, you are not allowed to be in the controlled area. When using alarm panels which are installed regarding Vds3438 this device is not allowed for arming or disarming the panel.

[UK] Status query [ System is armed internally]
