FUBE50013 - Remote control ABUS - Free user manual and instructions

Product type	Garage door remote control
Brand	ABUS
Model	FUBE50013
Dimensions (L x W x H)	70 x 35 x 15 mm
Weight	30 g (with battery)
Power supply	1 CR2032 lithium battery, 3V
Battery life	Approximately 2 years depending on usage
Main functions	Remote opening and closing, rolling code, up to 4 channels
Range	Up to 30 m in open field
Frequency	433.42 MHz
Coding	Dynamic code (rolling code) with 128 bits
Operating temperature	-20 °C to +60 °C
Protection rating	IP43 (protected against water splashes)
Material	ABS plastic
Color	Black
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Security	AES 128-bit encryption, code changes with each use
Spare parts and repairability	Battery replaceable by user. No additional spare parts.
Compatibility	ABUS FUBE500 series receivers
Certifications	CE, RoHS
Warranty	2 years
Package contents	1 remote control, 1 CR2032 battery, 1 user manual

Frequently Asked Questions - FUBE50013 ABUS

How to pair the ABUS FUBE50013 remote control with my receiver?

Press the learning button on the receiver (often marked 'LEARN' or 'PROG') until the LED flashes. Then press the button on the remote you want to pair. The receiver's LED stays on to confirm pairing. Refer to your receiver's manual for details.

What battery to use for the FUBE50013 remote and how to replace it?

Use a CR2032 lithium battery (3V). To replace the battery, open the compartment with a Phillips screwdriver, remove the old battery and insert the new one with correct polarity (+ facing up). Close carefully.

The range of the remote is reduced. What to do?

Check that the battery is not low (replace if necessary). Make sure no large metal obstacle is between the remote and the receiver. Keep the remote away from other electronic devices that may cause interference. Maximum range is about 30 meters in open field.

Can I use the ABUS FUBE50013 remote with other brands of receivers?

This remote is designed to work with ABUS FUBE500 series receivers. Use with other brands is not guaranteed. If your receiver accepts code learning on 433.42 MHz with rolling code, it may be compatible, but this depends on the manufacturer.

How to reset the remote to factory settings?

The ABUS FUBE50013 remote does not have a user reset function. To clear programmed channels, remove the battery for about 10 seconds. This clears temporary memory, but rolling codes are reset automatically. For a real erase, consult the manual.

What to do if a button on the remote is stuck or no longer responds?

First check that the battery is in good condition. If a button seems stuck, gently clean around it with a dry cloth. If the problem persists, the button may be damaged; the remote is not repairable for individual buttons. Replacement will be necessary.

Does the remote work with an old garage door system?

It depends on the receiver. Old systems often use fixed codes (DIP switches) and not rolling codes. The FUBE50013 uses a dynamic rolling code, so it is not compatible with fixed code receivers. Check compatibility before purchase.

Can I program multiple remotes on the same receiver?

Yes, most ABUS receivers accept multiple remotes. Follow the pairing procedure for each remote. The maximum number of remotes that can be stored depends on the receiver model (usually up to 8 or 16).

The LED on the remote does not light up. Is it defective?

Most FUBE50013 remotes do not have an indicator LED. If no sign of operation is visible, check the battery: remove it and measure voltage (should be >2.7V). If the battery is good and the remote does not work, contact customer service.

How to clean the remote without damaging it?

Use a soft, slightly damp cloth (clean water) to wipe the surface. Never immerse the remote in water. Avoid chemicals, solvents or abrasive cleaners. Dry it immediately after cleaning.

USER MANUAL FUBE50013 ABUS

Security Tech Germany

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or disposal (no text or labels)

Security Tech Germany

FUBE50013 USER GUIDE

[UK] User Guide ...... 9

Thank you for purchasing this wireless remote control. In choosing our product, you now have a piece of equipment that is built according to state-of-the-art technology.

This document refers to the V1.3 software version of the wireless remote control.

This user guide contains important installation and operation information. Store this user guide in a safe place for future reference. This user guide belongs to this product – bear this in mind if you pass on this product to others.

Conformity

ABUS Security-Center GmbH & Co. KG, hereby declares that the device with item number FUBE50013 complies with the essential requirements and other relevant provisions of Directive (1999/5/EG). The declaration of conformity can be obtained from the following address: ABUS Security-Center GmbH & Co. KG, Linker Kreuthweg 5, 86444 Affing, GERMANY"

Intended use

Read the notes and advice in this user guide carefully. If you do not follow these instructions, your guarantee claim becomes invalid. No liability can be accepted for resulting damages. No part of the product may be changed or modified in any way. The remote control is not waterproof. Please avoid direct contact with water. Everything possible has been done to ensure that the content of this user guide is correct. However, neither the author nor ABUS Security-Center GmbH & Co. KG can be held liable for loss or damages caused by incorrect or improper use or failure to observe the safety instructions and warnings. We reserve the right to make changes to these instructions without prior notice.

Refer to the end of the user guide for more notes and information on operating the wireless remote control. [beginning on page 48]

Information on the battery

The device is supplied with direct current from a 3V lithium battery. To guarantee a long service life and avoid fire and injury, please note the following:

• Do not dispose of the battery in domestic waste.
• The battery must not be directly exposed to heat or sunlight, and must not be stored in a place with a very high temperature.
• The battery must not be burned.
• The battery must not come into contact with water.
• The battery must not be dismantled, pierced or otherwise damaged.
• The battery contacts must not be short-circuited.
• The battery must be kept away from small children.
• The battery cannot be recharged.

Disposal

Disposal as per directive WEEE 2002/96 EC

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or disposal (no text or labels)

The product contains valuable raw materials. At the end of its service life, dispose of the product according to the applicable legal requirements. Within the EU, the product and its accessories must be collected and disposed of separately.

Devices displaying this symbol may not be disposed of as

domestic waste. Please contact your dealer or dispose of the products at the local collection point for electronic waste.

Features

The wireless remote control is used for arming and disarming alarm systems. It indicates the current status of the alarm system. A switching output can also be armed as an option. The wireless remote control has a panic feature. This can also be used for controlling 868 MHz transceivers in the Secvest/Terxon product range.

Technical data

Wireless frequency: 868.6625 MHz

Transmission power: max. 10 mW (amplifier output)

Range (outdoors): approx. 200 m

Range (indoors): Depending on ambient conditions

Power supply: Lithium battery type / CR 2450 Li-Mn 3V

Operating temperature: -10°C to +40°C

Humidity: max. 75% (non-condensing)

Dimension (WxHxD): 36.2 x 62 x 17 mm

Weight: 35 g

Security level: 2 (EN 50131-1:2006)

Environmental class: II (EN 50131-1:2006)

Standard: EN 50131-3

Operation

Inserting or changing the battery

Before the wireless remote control can be used, the battery has to be inserted. When inserting the battery, all the LED pairs light up red and green one after another which show that all the LEDs are working properly.

Reading the software version

The software version of the remote control is then shown by the two LEDs at the top. The main version is shown by the flashing red LED and the sub version is shown by the flashing green LED.

Learning in

Follow the steps described in the user guide for the compatible component. The “*” button can be used for “arming internally” or for switching an output.

Find out more details from the user guide for the compatible component.

Customer service and support

End consumer

Please consult your dealer or installer if you have any questions.

Dealer/installer

Consult our website for product information.

© ABUS Security-Center GmbH & Co. KG, May 2015

Security Tech Germany

FUBE50013 NOTICE D'UTILISATION

[UK] User Guide 9

Symbol of a trash bin crossed with diagonal lines, representing waste sorting or restriction (no text present)

Security Tech Germany

FUBE50013 GEBRUIKERSHANDLEIDING

[UK] User Guide 9

Symbol of a trash bin crossed with diagonal lines, no text or labels present

Security Tech Germany

FUBE50013 BETJENINGSVEJLEDNING

[UK] User Guide 9

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Security Tech Germany

FUBE50013 INSTRUKCJA OBSŁUGI

[UK] User Guide 9

Symbol of a trash bin crossed with a diagonal line, no text or labels present

[UK] Arming the alarm system

[UK] When arming the system, you are not allowed to be in the controlled area. When using alarm panels which are installed regarding VdS3438 this device is not allowed for arming or disarming the panel.

[UK] Arming internally

[FR] Activer en interne

[NL] Intern activeren


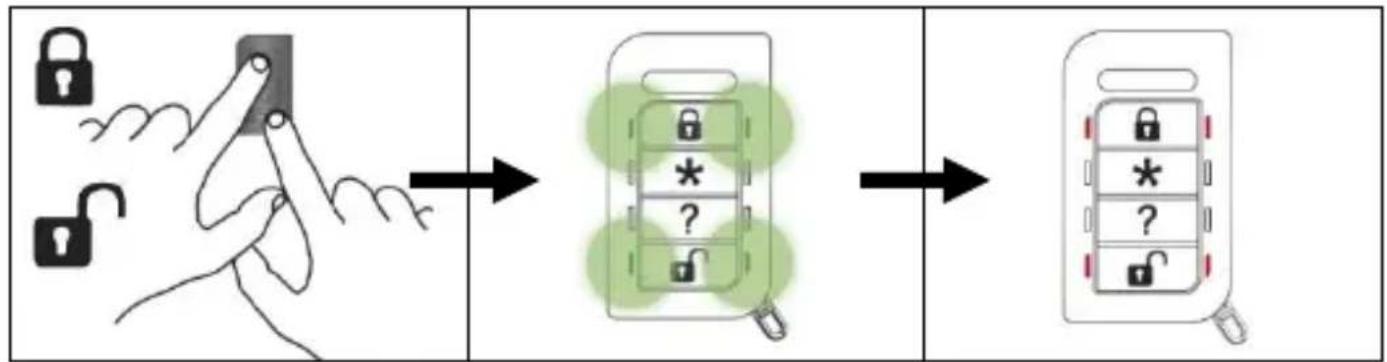

[DE] Deaktivieren
