TM9025 - Deep fryer Tomado - Free user manual and instructions

Product type	Hot air fryer
Brand	Tomado
Model	TM9025
Power	1500 W
Voltage	220-240 V ~ 50/60 Hz
Dimensions (L x D x H)	27 x 34 x 32 cm
Net weight	5 kg
Maximum capacity	800 g
Adjustable temperature	Yes, control knob
Timer	0-30 min with buzzer
Indicator lights	Power and heating
Exterior material	Plastic
Basket material	Metal
Cooking type	Hot air
Cleaning basket and tank	By hand with non-abrasive sponge
Exterior cleaning	Damp cloth
Safety	Hot surface, do not immerse
Replaceable cord	By professional
Warranty	2 years
Included accessories	Basket, tank
Usage	Household only

Frequently Asked Questions - TM9025 Tomado

How to clean the fryer after use?

After unplugging and cooling, clean the basket and tank with hot water and a little dish soap with a non-abrasive sponge. The exterior is cleaned with a damp cloth. Never immerse the appliance in water and do not use abrasive products.

Can the basket and tank be put in the dishwasher?

No, the basket and tank are not dishwasher safe. They must be washed by hand to avoid any damage.

Why does the heating indicator light turn on and off?

That's normal. The heating indicator light turns on and off during cooking to maintain the set temperature. This indicates that the heating element operates in cycles.

How long to cook frozen fries?

For frozen fries, allow 10 to 18 minutes at 200 °C, depending on the amount (300 to 700 g). Shake the basket halfway through for even results.

Can oil be used in this fryer?

This fryer operates with hot air, so do not fill the tank with oil. You can add a small amount of oil (1/2 tablespoon) to the food for extra crispiness, but not in the tank.

The appliance gets very hot, is that normal?

Yes, the temperature of accessible surfaces may become high during use. Always use the handle to handle the tank and keep the appliance out of reach of children.

What to do if the appliance does not turn on?

Check that the plug is connected and that the timer is turned to a cooking position. If the problem persists, contact customer service. Do not attempt to repair yourself.

How to adjust the temperature for different foods?

Use the temperature control knob according to the provided table: for example, 200 °C for fries and spring rolls, 180 °C for sticks, 100 °C for cakes. The timer can be set from 0 to 30 minutes.

Can I prepare cakes in the fryer?

Yes, place a baking mold in the basket. For a cake, set 100 °C for 20-25 minutes. Use a mold suitable for the basket size.

What is the warranty for this product?

Tomado offers a 2-year warranty against manufacturing defects and material defects, from the date of purchase. Keep your proof of purchase. The warranty does not cover damage due to misuse or unauthorized repairs.

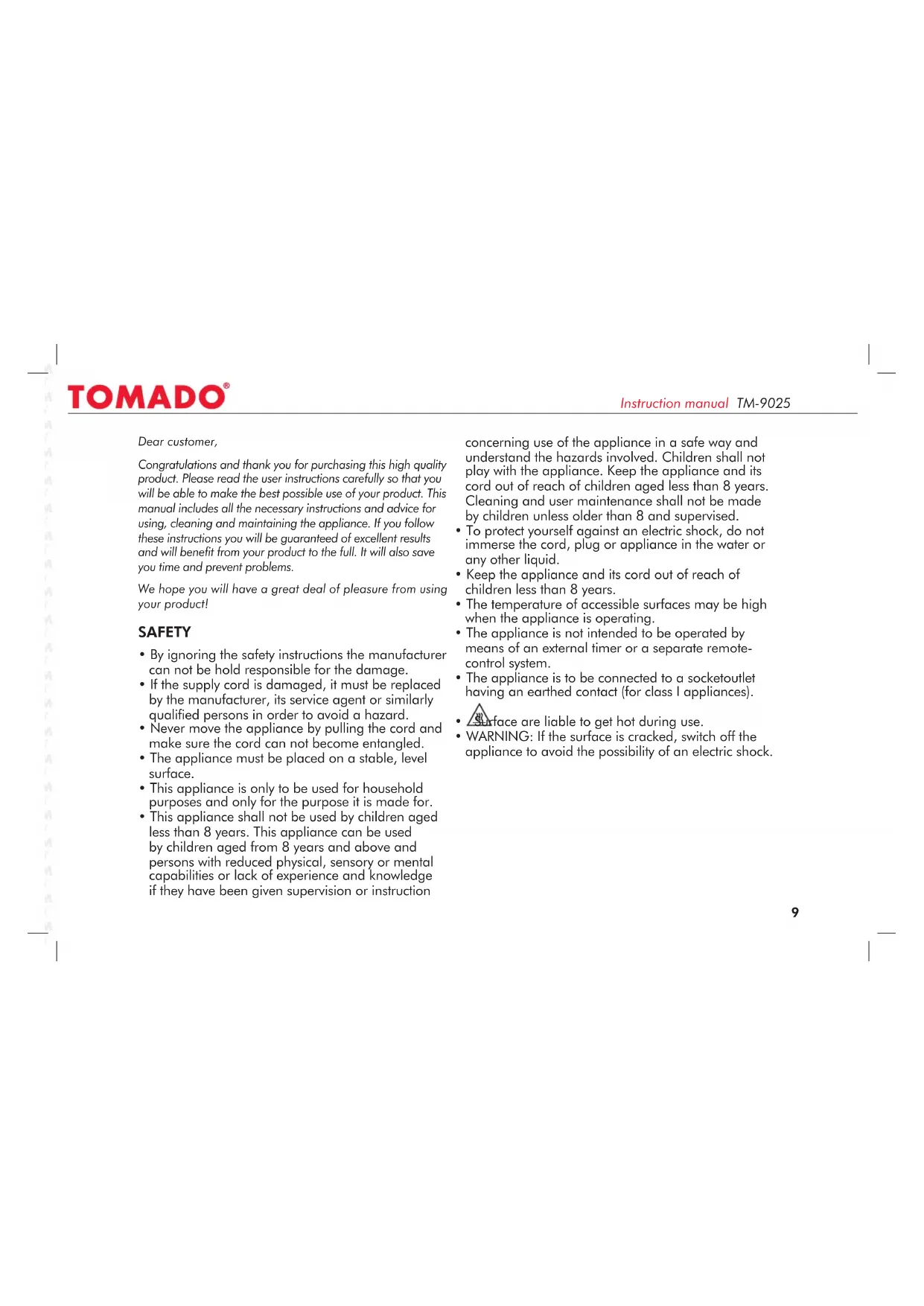

USER MANUAL TM9025 Tomado

Congratulations and thank you for purchasing this high quality product. Please read the user instructions carefully so that you will be able to make the best possible use of your product. This manual includes all the necessary instructions and advice for using, cleaning and maintaining the appliance. If you follow these instructions you will be guaranteed of excellent results and will benefit from your product to the full. It will also save you time and prevent problems.

We hope you will have a great deal of pleasure from using your product!

SAFETY

• By ignoring the safety instructions the manufacturer can not be hold responsible for the damage.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never move the appliance by pulling the cord and make sure the cord can not become entangled.
• The appliance must be placed on a stable, level surface.
• This appliance is only to be used for household purposes and only for the purpose it is made for.
• This appliance shall not be used by children aged less than 8 years. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children unless older than 8 and supervised.

• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
• Keep the appliance and its cord out of reach of children less than 8 years.
  The temperature of accessible surfaces may be high when the appliance is operating.
• The appliance is not intended to be operated by means of an external timer or a separate remote-control system.
  The appliance is to be connected to a socketoutlet having an earthed contact (for class I appliances).

Surface are liable to get hot during use.

WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of an electric shock.

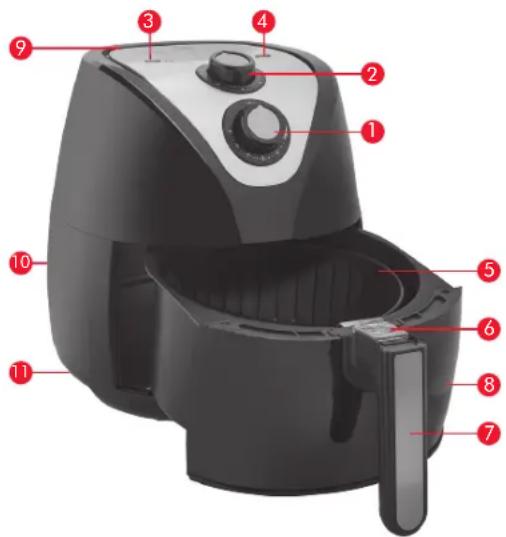

PARTS DESCRIPTION

1. Temperature control knob
2. Timer (0-30 min.)/power-on knob
3. Power light
4. 1. Heating up light
5. Basket
6. Basket release button
7. Basket handle
8. Pan
9. Air inlet
10. Air outlet openings
11. Mains cord

BEFORE THE FIRST USE

• Remove all packaging material.
• Remove any stickers or labels from the appliance.
• Thoroughly clean the basket and the pan with hot water, some washing-up liquid and a non-abrasive sponge.
• Wipe the inside and outside of the appliance with a moist cloth.
• Place the appliance on a stable, horizontal and level surface, do not place the appliance on non-heat-resistant surfaces.
• Place the basket in the pan properly
• This is an air fryer that works on hot air. Do not fill the pan with oil or frying fat.
• In order to prevent disruptions of the airflow do not put anything on top of the appliance and make sure there is always 10 centimeter of free space around the appliance.

USE

• Put the mains plug in an earthed wall socket.
• Carefully pull the pan out of the air fryer.
• Put the ingredients in the basket.
• Slide the pan back into the air fryer.
• Never use the pan without the basket in it.
• Do not touch the pan during and some time after use, as it gets very hot. Only hold the pan by the handle.
• Turn the temperature control knob to the required temperature.
• Determine the required preparation time for the ingredient.

TOMADO

Instruction manual TM-9025

• To switch on the appliance, turn the timer knob to the required preparation time, add 3 minutes to the preparation time when the appliance is cold.
  The timer starts counting down the set preparation time.
• During the hot air frying process, the heating-up light comes on and goes out from time to time. This indicates that the heating element is switched on and off to maintain the set temperature.
• Excess oil from the ingredients is collected on the bottom of the pan.
  Some ingredients require shaking halfway through the preparation time. To shake the ingredients, pull the pan out of the appliance by the handle and shake it. Then slide the pan back into the air fryer. Do not press the basket release button during shaking.
• When you hear the timer bell, the set preparation time has elapsed. Pull the pan out of the appliance and place it on a heat-resistant surface.
• Check if the ingredients are ready. If the ingredients are not ready yet, simply slide the pan back into the appliance and set the timer to a few extra minutes.
• To remove small ingredients (e.g. fries), press the basket release button and lift the basket out of the pan. Do not turn the basket upside down with the pan still attached to it, as any excess oil that has collected on the bottom of the pan will leak onto the ingredients.
• Empty the basket into a bowl or onto a plate.

When a batch of ingredients is ready, the air fryer is instantly ready for preparing another batch.

	Min-max amount (g)	Time (min)	Temperat ure (°C)	Shake	Extra information
Fries	300-700	10-18	200	shake
Homemade fries	300-800	18-20	200	shake	add 1/2 a tablespoon of oil
Frozen fish fingers	100-400	6-10	200		Use oven ready
Drumsticks	100-500	18-22	180
Hamburger	100-500	13-15	180
Springrolls	100-400	8-10	200	shake	Use oven ready
Cake	300	20-25	160		Use baking tin
Quiche	300	20-25	160		Use baking tin
Muffins	300	15-18	200		Use baking tin

Tips

• Shaking smaller ingredients halfway during the preparation time optimizes the end result and can help prevent unevenly fried ingredients.
• Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the air fryer within a few minutes after you've added the oil.
• Do not prepare extremely greasy ingredients such as sausages in the air fryer.
• Place a baking tin or oven dish in the basket if you want to bake a cake or quiche or if you want to fry fragile ingredients or filled ingredients.
• You can also use the air fryer to reheat ingredients. To reheat ingredients, set the temperature to 150°C for up to 10 minutes.

CLEANING AND MAINTENANCE

Before cleaning, unplug the appliance and wait for the appliance to cool down.
- Never immerse the device in water or any other liquid. The device is not dishwasher proof.
- Clean the pan and basket with hot water, some washing-up liquid and a non-abrasive sponge. The pan and basket are not dishwasher-proof.
- If dirt is stuck to the basket or the bottom of the pan, fill the pan with hot water with some washing-up liquid. Put the basket in the pan and let the pan and the basket soak for about 10 minutes.
- Clean the appliance with a damp cloth. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the device.

TECHNICAL DATA:

Type no.: TM-9025

Power: 1500 W

Mains voltage: 220-240V~50/60 Hz

Dimensions: 27 × 34 × 32 cm

Net weight: 5 KG

TOMADO

Warranty regulations

We would like to congratulate you on buying an appliance from the TOMADO product range.

Warranty regulations

TOMADO provides a 2-year warranty for all defects caused by hidden deficiencies which render the appliance useless for normal operation.
The warranty runs from the date of purchase; we advise you to carefully save your receipt.
- Within the warranty period any defects in production or material will be resolved free of charge, by means of reparation, replacement of parts or replacement of the appliance as a whole.
- The warranty certificate has to be filled in by the sales person at the moment of purchase.
- Repairs will only be made under warranty in case it can proven (by means of a filled in warranty card and the receipt) that the day the complaint is filed falls into the warranty period.
- The warranty does not apply when defects or damages result from an accident, misuse, negligence (e.g. incorrect cleansing), or when repairs of alterations have been executed outside the authorized TOMADO service centre (excl. disassembling, as stated in the instruction manual).
- The warranty does not cover any defects arising when the appliance is connected to the wrong outlet voltage, not following the guidelines in the instruction manual and usual wear and tear.
The warranty does not cover any defects arising from the lack of frequent descaling of appliances, whatever type of water has been used (especially for steam irons, coffee machines and water boilers).

TOMADO cannot be held responsible for any material damage or personal accident resulting from connecting the appliance in breach of the locally applicable safety regulations and technical standards (for instance an inferior AC outlet). The warranty under no circumstances grants the right for any compensation.
- All other claims, including damages, are excluded unless the Law states otherwise.
- Other warranty regulations than the warranty regulations stated above are not applicable.

Service

For more information you can write to the following address (postage paid):

TOMADO Consumenservice

Antwoordnummer 19016

NL-1000VC Amsterdam

The Netherlands

What do you do in case your appliance does not work?

When your appliance shows defects, you can refer to your salesperson. Your salesperson will make sure any defect will be repaired as soon as possible.

Repairs outside the warranty period

You can always hand in your appliance to have it repaired outside the warranty period. This will of course not be free of charge.

Cher Client,

487 This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Packaging

The packaging is 100% recyclable, return the packaging separated.

Product

This device is equipped with a mark according to European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring that the product correctly as waste is processed, it helps you may have adverse consequences for the environment and human health.

EC declaration of conformity

This device is designed, manufactured and marketed in accordance with the safety objectives of the Low Voltage Directive "No 2006/95/EC, the protection requirements of the EMC Directive 2004/108/EC "Electromagnetic Compatibility" and the requirement of Directive 93/68/ EEC.
