Product Type	Backpack Sprayer
Brand	Chapin
Model	63985
Tank Capacity	15 liters (4 US gallons)
Power Source	20 V lithium-ion battery (compatible with Black & Decker)
Charge Time	3.5 to 4 hours
Filtration System	3 stages: strainer basket, removable tube, shut-off filter
Nozzle Type	Adjustable fan nozzle (brass and poly tip)
Hose Length	Not specified (standard estimate)
Tank Material	Polyethylene (likely)
Maximum Solution Temperature	49 °C (120 °F)
Recommended Use	Gardening, herbicides, pesticides, residential cleaning
Recommended Safety Equipment	Goggles, gloves, long-sleeved shirt, long pants, closed-toe shoes
Cleaning	Empty and rinse after each use; do not use abrasive cleaners

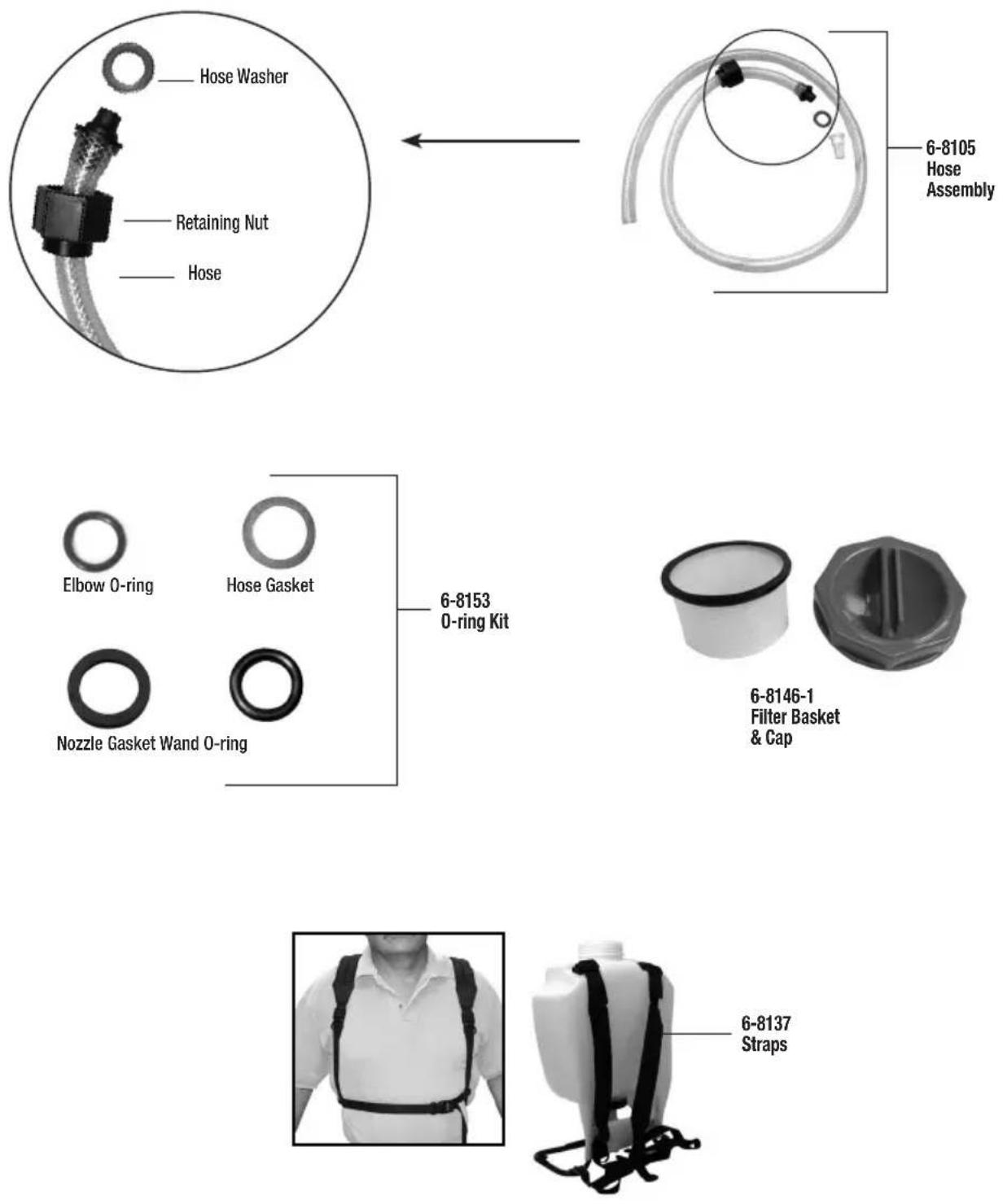

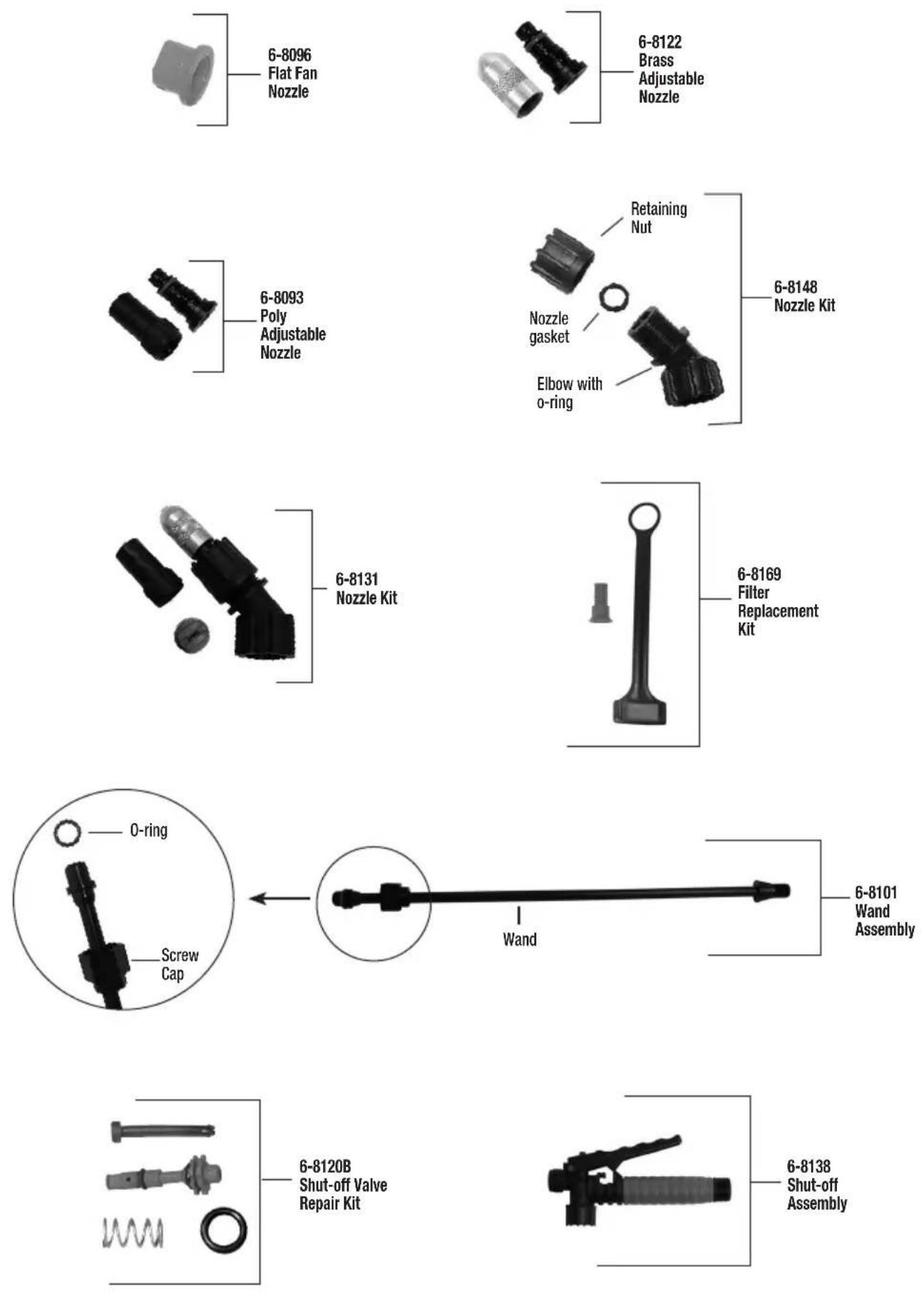

Replacement Parts Available	Yes, seal kits, filters, nozzles, hoses, straps
Warranty	Register online at www.chapinmfg.com
Country of Origin	United States (American brand)

Frequently Asked Questions - 63985 Chapin

How do I install and remove the battery from the sprayer?

To install the battery, insert it into the tool until you hear a click. Make sure it is properly seated. To remove it, press the release button and pull out the battery. Ensure the switch is in the off position before handling.

How do I charge the battery correctly?

Plug the charger into an appropriate outlet, then insert the battery. The green LED blinks during charging and stays solid when charging is complete. Recharge the battery after each use. The ideal temperature is between 18°C and 24°C.

What should I do if the sprayer does not spray while the pump is running?

This means the pump is not primed. Activate the shut-off handle until liquid is sprayed, then release so the pump stops. Also check that the battery is charged and the filters are not clogged.

How do I clean the sprayer after use?

Always empty the tank and rinse it thoroughly with water. You can add mild soap. Do not use abrasive or strong cleaners. Follow the manufacturer's instructions for disposing of wastewater.

How should I store the sprayer in winter?

Remove the battery and drain all liquid from the tank, pump, hose, and nozzle to prevent freeze cracking. Lock the shut-off valve in the open position. Store the unit in a cool, dry place away from sunlight.

How do I clean the filters in the filtration system?

The filters are located in three stages: the strainer basket in the tank opening, the removable tube near the pressure cylinder, and the shut-off filter at the valve. Remove them and rinse with water to remove debris. Regular cleaning ensures a consistent flow.

What should I do if the nozzle is clogged?

Unscrew the locking nut and remove the nozzle body with its seal. Clean the nozzle tip carefully. Reassemble in reverse order. Poor spray distribution usually indicates a clogged nozzle.

What safety precautions should I take when using the sprayer?

Always wear safety goggles, gloves, a long-sleeved shirt, long pants, and closed-toe shoes. Do not spray flammable, caustic, or acidic products. Read and follow the chemical manufacturer's guidelines. Do not leave the sprayer pressurized in the sun.

Can I use powder chemicals in this sprayer?

Yes, but make sure they are fully dissolved in the liquid solution. Powders are abrasive and can accelerate wear. Clean and rinse the sprayer thoroughly after each use to prolong its life.

How do I recycle the battery at the end of its life?

Do not throw the battery in the trash. Take it to an authorized Black & Decker service center or a recycling point participating in the RBRC program. You can also call 1-800-8-BATTERY to find the nearest location.

USER MANUAL 63985 Chapin

ProSee ProSei BackpackBackp SprayerSpray

Use and Care Manual

Chapin International, Inc

P.O. Box 549

700 Ellicott St.

Batavia, NY 14021-0549 U.S.A.

1-800-950-4458

www.chapinmfg.com

CHAPIN

20V MAX POWERED

LITHIUM by SLACK+DECKER

WIDE

MOUTH

37/201

[Unreadable]

DEL GABBO

(1) 2016年

Model 63985 • 4G/15L

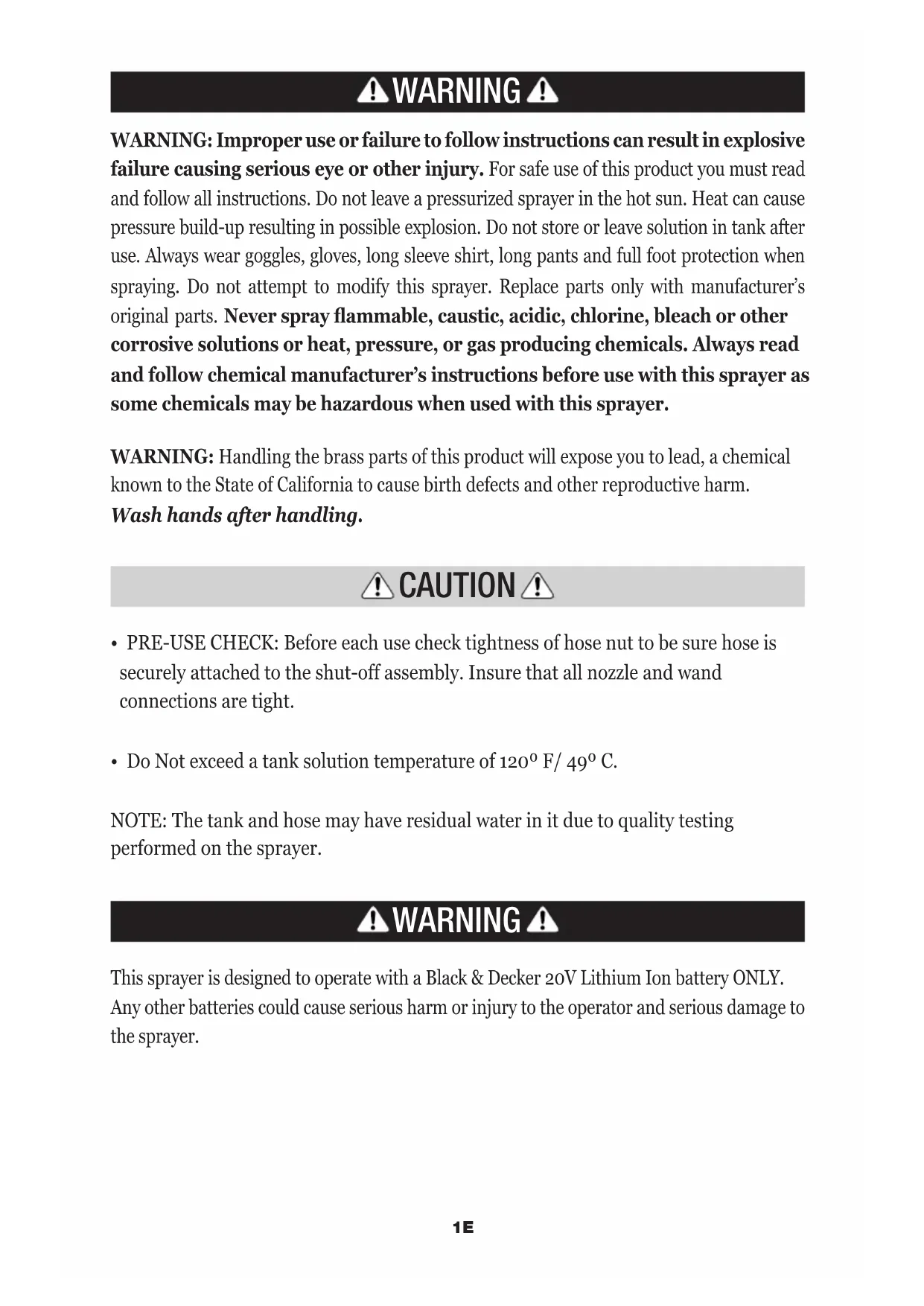

WARNING

Carefully Read These Instructions Before Use

WARNING

WARNING: Improper use or failure to follow instructions can result in explosive failure causing serious eye or other injury. For safe use of this product you must read and follow all instructions. Do not leave a pressurized sprayer in the hot sun. Heat can cause pressure build-up resulting in possible explosion. Do not store or leave solution in tank after use. Always wear goggles, gloves, long sleeve shirt, long pants and full foot protection when spraying. Do not attempt to modify this sprayer. Replace parts only with manufacturer's original parts. Never spray flammable, caustic, acidic, chlorine, bleach or other corrosive solutions or heat, pressure, or gas producing chemicals. Always read and follow chemical manufacturer's instructions before use with this sprayer as some chemicals may be hazardous when used with this sprayer.

WARNING: Handling the brass parts of this product will expose you to lead, a chemical known to the State of California to cause birth defects and other reproductive harm.

Wash hands after handling.

CAUTION

• PRE-USE CHECK: Before each use check tightness of hose nut to be sure hose is securely attached to the shut-off assembly. Insure that all nozzle and wand connections are tight.
• Do Not exceed a tank solution temperature of 120^ / 49^ .

NOTE: The tank and hose may have residual water in it due to quality testing performed on the sprayer.

WARNING

This sprayer is designed to operate with a Black & Decker 20V Lithium Ion battery ONLY. Any other batteries could cause serious harm or injury to the operator and serious damage to the sprayer.

IMPORTANT SAFETY INSTRUCTION FOR BATTERY PACKS

WARNING: For safe operation, read this manual before using the charger.

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below. Then follow charging procedures outlined.

READ ALL INSTRUCTIONS

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when battery packs are burned.
• Do Not charge or use battery in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery from the charger may ignite the dust or fumes.
• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte for Lithium-Ion batteries is composed of a mixture of liquid organic carbonates and lithium salts.
• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention.

WARNING: Burn hazard. Battery liquid may be flammable if exposed to spark or flame.

• Charge the battery packs only in Black & Decker chargers.
• DO NOT splash or immerse in water or other liquids. This may cause premature cell failure.
• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 105^ (40°C) (such as outside sheds or metal buildings in summer).

WARNING: Never attempt to open the battery pack for any reason. If battery pack case is cracked or damaged, do not insert into charger. Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (i.e., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to service center for recycling.

WARNING: Fire hazard. Do not store or carry battery so that metal objects can contact exposed battery terminals. For example, do not place battery in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, etc.

Transporting batteries can possibly cause fires if the battery terminals inadvertently come in contact with conductive materials such as keys, coins, hand tools and the like. The US Department of transportation Hazardous Material Regulations (HMR) actually prohibit transporting batteries in commerce or on airplanes (i.e., packed in suitcases and carry-on luggage) UNLESS they are properly protected from short circuits. So when transporting individual batteries, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. NOTE: Lithium-Ion batteries should not be put in checked baggage.

STORAGE RECOMMENDATIONS

1. The best storage place is one that is cool and dry away from direct sunlight and excess heat or cold.
2. Long storage will not harm the battery pack or charger.

CHARGING PROCEDURE

Black & Decker chargers are designed to charge

Black & Decker battery packs in 3.5-4 hours depending on the pack being charged.

1. Plug the charger into an appropriate outlet before inserting the battery pack.
2. Insert the battery pack into the charger as shown in figure A.
3. The green LED will flash indicating that the battery is being charged.
4. The completion of charge is indicated by the green LED remaining on continuously. The pack is fully charged and may be used at this time or left on the charger.

A LITHIUM 15W 20V

Recharge discharged batteries as soon as possible after use or battery life may be greatly diminished. For longest battery life, do not discharge batteries fully. It is recommended that the batteries be recharged after each use.

LEAVING THE BATTERY IN THE CHARGER

The charger and battery pack can be left connected with the green LED glowing indefinitely. The charger will keep the battery pack fresh and fully charged.

IMPORTANT CHARGING NOTES

1. Longest life and best performance can be obtained if the battery pack is charged when the air temperature is between 65^ F and 75^ F ( 18^-24^ C). DO NOT charge the battery pack in an air temperature below +40^ F (+4.5°C), or above +105^ F (+40.5°C). This is important and will prevent serious damage to the battery pack.
2. The charger and battery pack may become warm to touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed, or an uninsulated trailer.
3. If the battery pack does not charge properly:
   a. Check current at receptacle by plugging in a lamp or other appliance.
   b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights.
   c. Move charger and battery pack to a location where the surrounding air temperature is approximately 65^ F and 75^ F ( 18^-24^ C).
   d. If charging problems persist, take the tool, battery pack and charger to your local service center.
4. The battery pack should be recharged when it fails to produce sufficient power on jobs which were easily done previously. DO NOT CONTINUE to use under these conditions. Follow the charging procedure. You may also charge a partially used pack whenever you desire with no adverse effect on the battery pack.
5. Foreign materials of a conductive nature such as, but not limited to, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug charger before attempting to clean.
6. Do not freeze or immerse charger in water or any other liquid.

WARNING: Shock hazard. Do not allow any liquid to get inside charger. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or cracks, return to a service center for recycling.

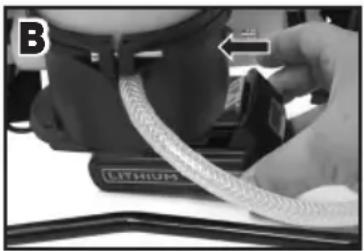

INSTALLING AND REMOVING THE BATTERY PACK FROM THE SPRAYER

WARNING: Make sure switch is in the off position. TO INSTALL BATTERY PACK: Insert battery pack into tool until an audible click is heard (Figure B). Make sure battery pack is fully seated and latched into position.

TO REMOVE THE BATTERY PACK: Depress the battery release button as shown in Figure C and pull battery pack out of tool.

Close-up of a hand holding a flexible cable or wire, with no visible text or symbols

C UM LEAV 20V+

• Pull by plug rather than cord when disconnecting charger. This will reduce risk of damage to electric plug and cord.
• Make sure that cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock, or electrocution.
• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. the smaller the gauge number of the wire, the greater the capacity of the cable, that is 16 gauge has more capacity than 18 gauge. When using more than one extension to make up the total lenght, be sure each individual extension contains at least the minimum wire size.
• Do not operate charger with damaged cord or plug - have them replaced immediately.
• Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way. Take it to an authorized service center.
• Do not dissassemble charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock electrocution or fire.
• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce the risk.
• NEVER attempt to connect 2 chargers together.
• The charger is designed to operate on standard household electrical power (120Volts). Do not attempt to use it on any other voltage.

SAVE THESE INSTRUCTIONS

Symbols

The label on your tool may include the following symbols.

V ____ volts

Hz.hertz

min.minutes......

Class I Construction (grounded)

☐ Class II Construction (double insulated)

Read instruction manual before use

Use proper eye protection

A ____ amperes

W..... watts

\~...... alternating current

n_0 no load speed

⊕ ____ earthing terminal

⚠️ ...... safety alert symbol

.../min or rpm_revolutions or reciprocation per minute

Use proper respiratory protection

O..... Use proper hearing protection

IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CHARGERS

SAVE THESE INSTRUCTIONS: This manual contains important safety instructions for battery chargers.

- Before using charger, read all instructions and cautionary markings on charger, battery pack, and product using battery pack.

WARNING: Shock hazard. Do not allow any liquid to get inside charger.

CAUTION: Burn hazard. To reduce the risk of injury, charge only designated Black & Decker batteries. Other types of batteries my burst causing personal injury and damage.

CAUTION: Under certain conditions, with the charger plugged into the power supply, the charger can be shorted by foreign material. Foreign materials of a conductive nature such as, but not limited to, steel wool, aluminum foil, or any build up of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug charger before attempting to clean.

WARNING: DO NOT attempt to charge the battery pack with any chargers other than the ones in this manual. The charger and battery pack are specifically designed to work together.

- These chargers are not intended for any uses other than charging designated Black & Decker rechargeable batteries. Any other uses may result in risk of fire, electric shock or electrocution.

- Do not expose charger to rain or snow.

APPLICATIONS & USE FOR YOUR SPRAYER

Avoid using a sprayer for general cleaning purposes if plant protection or herbicide chemicals have already been used in the sprayer. If a sprayer has been used for plant protection or as an herbicide, clean the sprayer completely (see cleaning section) before using.

Plant Food: Use different spray patterns for optimum foliage feeding or for fungicide and pesticide application.

Herbicides: Reduce weeds and unwanted plants but avoid using the same sprayer for plant feeding or protection without thoroughly cleaning (see cleaning section) the sprayer first.

General Household Use: Apply detergents, cleaning solutions, warm water (do not exceed 120^ F/ 49^ C) or nontoxic household cleaning chemicals for carpets, floors, walls, glass, counter tops and ceilings. DO NOT use sprayer that has been used with herbicides, pesticides or other toxic chemicals for household applications.

General Outdoor Use: Use the sprayer for cleaning windows or with a detergent for general purpose cleaning.

SPRAYER COMPONENTS & USE INFORMATION

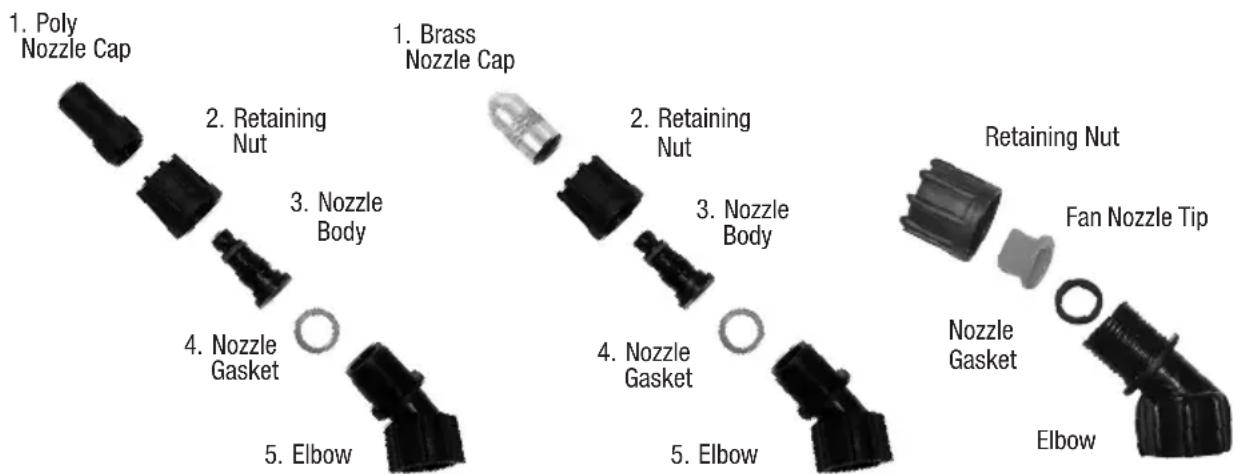

NOZZLE ASSEMBLY

Figure 1-2

Unscrew the nozzle cap (1) from the nozzle body (3) with retaining nut (2) fastened tightly to the elbow (5). Unscrew the retaining nut (2). Push the nozzle body (3) with the nozzle gasket (4) out of the retaining nut (2). To reinstall the nozzle, reverse the above instructions.

Figure 3

Unscrew the retaining nut from the elbow and push the fan nozzle tip and gasket out of the retaining nut. To reinstall the nozzle, reverse the above instructions.

1. Poly Nozzle Cap 2. Retaining Nut 3. Nozzle Body 4. Nozzle Gasket 5. Elbow 1. Brass Nozzle Cap 2. Retaining Nut 3. Nozzle Body 4. Nozzle Gasket 5. Elbow Retaining Nut Fan Nozzle Tip Nozzle Gasket Elbow

Figure 3 Figure 21

SPRAYER COMPONENTS & USE INFORMATION, Continued

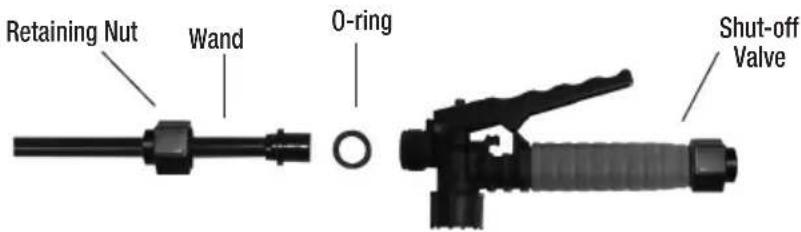

WAND ASSEMBLY

1. Make sure the o-ring is installed on the end of the wand. Insert the wand into shut-off valve.
2. Turn and tighten the retaining nut clock-wise onto the shut-off valve.

Retaining Nut Wand O-ring Shut-off Valve

INSTALLING THE SHOULDER STRAP

The top of the shoulder straps are attached to the tank. Attach the lower end of the straps by clipping the strap hooks to the metal frame between where the frame exits the tank and curves around.

Close-up of a black cable with a strap, partially attached to a white surface (no text or symbols visible)

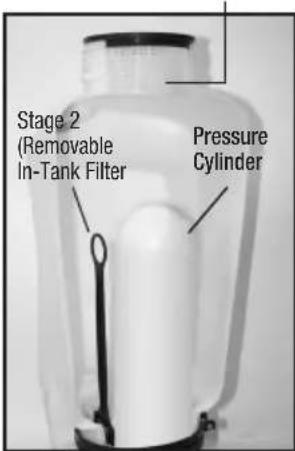

3 STAGE FILTERING SYSTEM

This backpack sprayer is equipped with a 3 stage filtering system (see figure 1). Stage 1 is a filter basket incorporated into the tank opening where fluid is added. Stage 2 filter is located at the inlet of the pressure cylinder. Stage 2 is a removable In-Tank filter. Stage 3 is a removable filter incorporated into the shut-off assembly. Periodic cleaning of these filters is recommended to insure consistent fluid flow through the sprayer. This will also reduce sprayer component wear.

The stage 3 filter is a removable filter incorporated into the inlet side of the shut-off valve (see section “disassembling and repairing the shut-off valve”). Make sure pressure is released before detaching the hose from the shut-off. It is best to have no or minimal fluid in the pressure cylinder before removing and reinstalling the stage 3 shut-off filter as fluid can leak from the hose.

Figure 1 Stage 1 (Filter basket)

Stage 2 (Removable In-Tank Filter) Pressure Cylinder

Figure 2 Stage 2 (removable In-Tank filter)

Close-up of a mechanical component with a textured surface and a small protrusion (no visible text or symbols)

Guide edge facing away from pressure cylinder

Close-up of a black mechanical component with a textured surface and a pointed top (no visible text or symbols)

Guide edge on pressure cylinder

Stage 3 (removable Shut-off filter)

SPRAYER COMPONENTS & USE INFORMATION, Continued

FILLING THE SPRAYER

Make sure the filter basket is in place to keep debris from entering the tank.

Determine the amount of mixture needed for your application. Add the proper amount of water to the tank. Add the proper amount of chemical to the tank (check the chemical label for proper ratio of chemical). Stir mixture in tank with a clean utensil (like a paint stirrer). The tank will hold the 4-gallon (15.1L) capacity plus the chemical.

It is not necessary to completely fill the sprayer tank with each use. You can fill the tank with only the amount needed for each application.

Always follow the manufacturer's instructions included on their product label.

• Plug in charged battery
• Turn switch to on position
• Spray liquid back into tank to prime pump
• Close shut-off. Pump should stop running.
• Replace cap & begin spraying.

POWDER-BASED CHEMICALS

Powder-based chemicals (powder mixed with liquids to make the spraying agent) are usually abrasive and can cause wear. When you use a powder-based chemical in your sprayer, make sure it is thoroughly dissolved in the liquid solution. Thoroughly clean and flush the sprayer with water to extend the life of the sprayers parts.

When finished spraying turn switch to off position.

Remove and re-charge battery.

Note: Unit is equipped with a battery protection circuit. If sprayer abruptly stops after spraying for an extended period of time, the battery may require charging.

CLEANING

• Always empty the sprayer and clean the tank thoroughly after each use.

Other Cleaning Hints:

• Improper spray distribution usually means the nozzle is clogged, remove the nozzle and clean it.
• Soap can be added to the water to clean the tank.
• Do not use strong cleaning agents or abrasives.
• If you use a chemical agent to clean the tank follow the manufacturer's recommendations for the disposal of the waste water.
• Follow the chemical manufacturers instructions for clean up.

STORING / MAINTAINING YOUR SPRAYER

The Battery Should be removed prior to storage.

• The sprayer should be stored out of direct sunlight in a cool dry space.
• Before freezing weather make sure to drain all liquid in the tank, pump, hose, shut-off valve, wand and nozzle, to avoid liquid expansion and cracking in the sprayer components (See “Cleaning” section). Lock the shut-off valve in the “open” position.
• When service is required call your nearest dealer and always insist on original manufactured replacement parts.
• Inspect the hose, wand, tank and shut-off valve for wear, damage or leaks on a regular basis and repair defects promptly.

Black-and-white image of a firearm with lever and barrel (no text or symbols visible)

Figure 1

1) Assembled shut-off valve (Figure 1).

Mechanical component with a cylindrical tool and attached spring-like bracket, labeled 'A' (no text or symbols on the tool itself)

Figure 2

2) Remove the retaining pin (A) (Figure 2) place the notched end of the retaining pin on a hard surface and push down. Remove the retaining pin and slide the handle off the valve.

Valve Stem B C

Figure 3

3) Remove the retaining nut (o-ring attached), spring, and valve stem (B) (Figure 3). Replace worn parts. Lubricate the O-rings and reassemble by reversing the steps above. Place the handle groove in the slotted area of the valve stem and make sure the locking clip is positioned in the neutral position (see “Helpful Spraying Information” section). Insert the retaining pin. Push down on the handle a few times to distribute the lubricant evenly. Check filter (C) in end of shut-off valve for debris. Remove filter and flush with water to clean out.

Symptom	Possible Reason	Correction
Unit runs but does not spray Pump is not primed Activate shut-off handle until liquid sprays out. Release handle and pump will shut-off.
Unit will not start Battery pack not installed properly Check battery pack installationBattery pack not charged Check battery pack charging requirements
Battery pack will not charge Battery pack not inserted into charger Insert battery pack into charger until green LED appearsCharger not plugged in Plug charger into a working outlet.Refer to “Important Charging Notes” for more detailsSurrounding air temperature too hot or too cold Move charger and battery pack to a surrounding air temperature of above 40 degrees F (4.5°C) or below105 degrees F (+40.5°)
Unit shuts off abruptly Battery pack has reached its maximum thermal limit. Allow battery pack to cool down.Out of charge. (To maximize the life of the battery pack it is designed to shutoff abruptly when the charge is depleted.)
Shut-off leaksWorn or damaged shut-off	Connections loose	Tighten connection
	Rebuild or replace the shut-off valve
Wand assembly leaks Connections looseDamaged or worn o-ring/gasket	Tighten connection
	Replace o-ring/gasket
Nozzle assembly leaks Connections looseDamaged or worn o-ring/gasket	Tighten connection
	Replace o-ring/gasket
Leak between pump assembly and tank	Pump clamp loose	Tighten clamp
	O-ring worn or damaged	Replace pressure chamber o-ring
Hose leaking at tank outlet	Hose clamp loose	Tighten clamp
Hose leaking at shut-off Damaged or worn o-ring/gasket	Connection loose	Tighten retaining nut
	Replace o-ring/gasket

The RBRC™ Seal

The RBRC ^™ (Rechargeable Battery Recycling Corporation) Seal on the lithium-ion battery (or battery pack) indicates that the costs to recycle the battery (or battery pack) at the end of its useful life have already been paid by Black & Decker. In some areas, it is illegal to place spent lithium-ion batteries in the trash or municipal solid waste stream and the RBRC program provides an environmentally conscious alternative.

RBRC in cooperation with Black & Decker and other battery users, has been established programs in the United States and Canada to facilitate the collection of spent lithium-ion batteries. Help protect our environment and conserve natural resources by returning the tool to an authorized Black & Decker service center for recycling. You may also contact your local recycling center for information on where to drop off the spent battery, or call 1-800-8-BATTERY.

REPLACEMENT PARTS ORDER INFORMATION

REPLACEMENT PARTS ORDER INFORMATION

Congratulations!

You have just purchased a quality Chapin product.

Register Your Sprayer Online@ www.chapinmfg.com/warranty.asp

LITHIUM by BLACK-DECKER

40/18L MOOEL 63980

Sargent's wild subcooccurrence limited of women

A solid line is only a special step 1.13

Modelo 63985 • 4G/15L

ADVERTENCIA

Close-up of a hand holding a metallic cable or wire, with no visible text or symbols

Close-up of a hand pressing down on a device labeled 'UM 20V' with a downward arrow (no readable text or symbols beyond branding)

Close-up of a black cable with a strap, partially visible against a white background (no text or symbols)

Close-up of a mechanical component or tool with no visible text or symbols

Close-up of a black metal bracket with a mesh pattern on the side (no text or symbols visible)

Black-and-white photo of a mechanical device with lever and cylindrical body (no visible text or symbols)

Figura 1

Mechanical device with a cylindrical component and a separate flat base, labeled A (no text or symbols on the device itself)

Figura 2

RECOMMANDATIONS D'ENTREPOSAGE

A LITHIUM 15kV 20V

Close-up of a hand holding a coiled metal cable labeled 'LITHIUM' (no additional text or symbols visible)

Close-up of a hand pressing down on a small electronic device labeled 'UM LEAI 20V' with a downward arrow (no readable text or symbols beyond branding)

Close-up of a black cable connector with a strap, resting on a white surface (no text or symbols visible)

SYSTÈME DE FILTRAGE À 3 ÉTAPES

Close-up of a mechanical component with a textured spherical part, possibly a knob or knob (no visible text or symbols)

Close-up of a black mechanical component with a mesh grille (no visible text or symbols)

Black-and-white photo of a firearm with lever and barrel (no visible text or symbols)

Figure 1

Mechanical component with labeled section A, showing a cylindrical assembly and a flanged base (no text or symbols on the main subject)

Figure 2

Tige de la valve B C

Figure 3
