USER MANUAL KFZ 45211 A2 Koenic

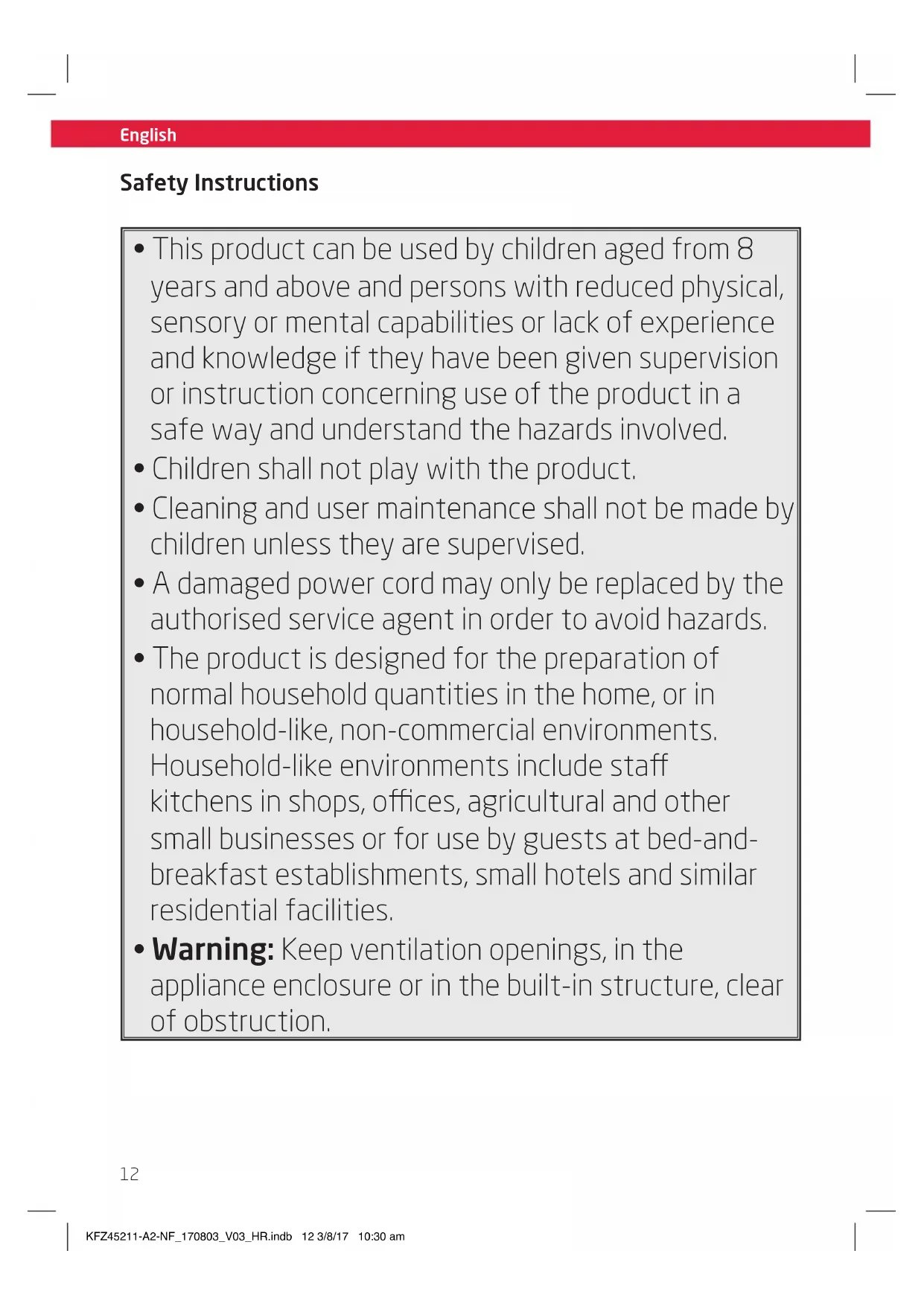

• This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

• Children shall not play with the product.

• Cleaning and user maintenance shall not be made by children unless they are supervised.

• A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.

• The product is designed for the preparation of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include sta kitchens in shops, oces, agricultural and other small businesses or for use by guests at bed-and- breakfast establishments, small hotels and similar residential facilities.

• Warning: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. KFZ45211-A2-NF_170803_V03_HR.indb 12 3/8/17 10:30 amEnglish

• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Warning: Do not damage the refrigerant circuit.

• Warning: Do not use electrical appliances inside the food storage compartments of the product, unless they are of the type recommended by the manufacturer.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this product.

• The lamp is not replaceable.

• Follow the instructions in the chapter Cleaning and care.

• Warning: The refrigerant and insulation blowing gas are flammable. When disposing of the product, do only at an authorized waste disposal center or contact the service agent. KFZ45211-A2-NF_170803_V03_HR.indb 13 3/8/17 10:30 amEnglish

thoroughly. It contains important information for your safety as well as for the use and maintenance of the equipment.

2. Do not place any objects on top of the

3. Never immerse electrical parts of the

product in water during cleaning or operation. Never hold the product under running water.

4. Do not under any circumstances attempt

to repair the product yourself. For servicing and repairs, please consult an authorised service agent.

5. The mains voltage must match the

information on the rating label of the product.

6. Only unplug from the power socket can

separate the product completely from the mains.

7. Avoid damages to the power cord that may

be caused by kinks or contact with sharp corners.

8. Keep this product including power cord and

power plug away from all heat sources like for example, ovens, hot plates and other heat-producing products/objects.

9. Only unplug from the power socket by the

plug itself. Do not pull on the cord.

10. Unplug the product ...

- when the product is not being used, - in case of malfunctions, - before attaching / detaching accessories and - before cleaning the product.

11. Use this product in dry indoor areas only

12. This product is not intended for commercial

use. It is designed for household use only.

13. Make sure that electrical components, live

parts and the power cord do not become wet.

14. Use accessories supplied with the device or

recommended by the manufacturer only!

15. Do not cover the product while in use. Fire

hazard! KFZ45211-A2-NF_170803_V03_HR.indb 14 3/8/17 10:30 am15 English Congratulations! Thank you for your purchase of a KOENIC product. Please read this manual carefully and keep it for future reference. Intended use This product is suitable for freezing food only. Any other use may damage the device or cause injuries. The product is only intended to be used in private households and shall not be used for commercial purposes. The Imtron GmbH assumes no liability for damages to the product, for property damages or for personal injuries due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer’s specified purpose. Before first time use Carefully remove the product and accessories from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center. Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately. After unpacking, please refer to chapter Cleaning and care. Content 1 x Freezer 1 x Set for reversing the doors 1 x Ice cube maker set 1 x User manual Part list

Temperature and function control with display

Adjustable feet, front

Power cord with plug

Freezer compartments

Ice cube maker set Accessories Set for reversing the door (not shown) Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information. Refrigerants must be evacuated and disposed of by a qualified specialist in accordance with federal and local regulations before the appliance is scraped. KFZ45211-A2-NF_170803_V03_HR.indb 15 3/8/17 10:30 am16 English Installation Note: The installation should be performed by at least 2 persons to avoid dangerous. Fig.

Place the unit on a level and stable surface. Keep the minimum distances to all sides. Fig.

Unevenness can be compensated with the adjustable front feet. Fig.

The freezer is equipped with 6 freezer drawers and glass shelves. The lower four drawers and glass shelves can be removed. If removed, large or small pieces (e.g. beef legs or small side of pork) can be stored. Operation Fig.

Plug in the power plug into an appropriate mains socket outlet. Freezer mode Fig.

Press temperature setting key Temp. Set to adjust a temperature from -14 to -26 °C in 1 °C steps. Fig.

Additional functions Additional functions can be selected by pressing the Func.Set function key. Select the function so that the corresponding symbol flashes and confirm the selection with the confirmation key ON / 5S to activate the function. The corresponding symbol is permanently on. To stop the function, select it again so that the corresponding symbol flashes and confirm the selection with the confirmation key ON/ 5S. The corresponding symbol turns o. Eco - Energy saving function: a) If this function is activated, the freezer automatically operates between -14 and -18 °C. If a lower temperature is set, the function is automatically set to -18 °C when the function is activated. The Eco energy saving function can not be used together with the quick freezing function S.Frz.. b) If the temperature is set in a range from -23 to -26 ° C, it will be automatically set to -22 ° C after 56 hours to save energy. Ordinary foods can be stored at -18 ° C. The lower the temperature, the higher the power consumption. S.Frz. - Quick-freezing function: Use this function if larger quantities of food are to be frozen. If possible, activate this feature 30 minutes before you freeze the food (e.g. activate it before shopping). If this function is activated the freezer operates at higher energy consumption for 56 hours. KFZ45211-A2-NF_170803_V03_HR.indb 16 3/8/17 10:30 am17 English Alarm function: If this function is activated acoustic alarm will sound, the symbol will flash and the temperature displays HH from 0 °C on and above. The alarm signal can be turned o by deactivating the alarm function. The alarm condition is only terminated when the temperature drops below 0 °C. Child lock - Key lock: If this function is activated, no settings can be changed. However, the key lock can be disabled in the same way as it is activated. Fig.

To switch the freezer on and o, press and hold the ON/ OFF switch ON / 5S for at least 5 seconds. This allows the freezer to be switched on and o without using the mains plug. Fig.

If you need ice cubes fill the ice cube tray with the water cup. Place the ice cube maker in a freezer and wait several hours. If the liquid is suciently frozen, turn the knobs (a, b) to the right and then release them. The ice cubes fall into the tray. If necessary shake the ice cube maker together with collecting tray. Adjust the side of the hinges Attention Make sure that the freezer stands safe during work and cannot tilt. Note:

• If necessary, and if the premises require it, the mounting of the doors can be changed. To do this, follow all the following instructions in the given order.

• The following tools are required: Socket wrench 8 mm, wrench 8mm, phillips screwdriver, slotted screwdriver. Due to the uniqueness of the appropriate tools, those are not mentioned separately in the following instructions.

• For this work a dierent hinge holder and cover are needed, which are provided with the unit. Caution

• Pull out the mains plug!

• The mounting should be performed by at least 2 persons to avoid dangerous.

Disconnect the plug and socket.

During unscrewing hold the refrigerator door or it might be damaged. Remove the three screws of the top hinge.

Pull out the door and place it on a soft and clean surface. KFZ45211-A2-NF_170803_V03_HR.indb 17 3/8/17 10:30 am18 English

Remove the blind cap on the top of the freezer (use a plastic card or spatula to help loosen the cap) and insert it into the holes on the right side.

Pull o the front panel and place the cable as shown.

Make sure the LED light bar is seated in the guides and attach the front panel back to the front.

Loosen the two caps on the top of the door.

Insert the end of the cable into the hole and close it with the blind cap.

Pull the other cable out and close the hole with the cap having the cable gland.

Loosen the angled plate on the bottom of the door and screw it on the other side. Do not turn the metal plate and note that the small holes must be placed on the plastic pins while the screw hole and the tapped hole must be aligned.

Loosen the three screws on the lower hinge plate and remove it. If necessary tilt the refrigerator to get better access to the bottom side.

Unscrew the hinge pin and screw it back on the other side.

Place the hinge plate on the left side into position.

Tighten the hinge plate securely.

Keep the door in position. Take the additional hinge provided and insert the hinge pin into the corresponding hole in the door. Hold the hinge plate in position and screw it.

Connect the plug and the socket. Clip the supplied cap onto the hinge, make sure not to damage the cable.

Pull the two caps o the rails of the door handle.

Remove both cross-head screws.

Rotate the handle and place it into position after removing the blind caps on the other side of the door.

Place the two caps on the rails of the door handle. Insert the blind caps into the holes that have now been visible on the other side. Caution After you have placed the freezer upright on its feet, wait for 24 hours before you connect it to the mains to permit the cooling system to regain full capacity. KFZ45211-A2-NF_170803_V03_HR.indb 18 3/8/17 10:30 am19 English Cleaning and care Warning

• Unplug the product before cleaning.

• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning materials and tools may scratch the surface(s).

• Never use oil or grease on the door seal. This will make it porous over time.

• Do not use steam cleaning equipment. The steam may come in contact with electrical parts of the product, causing a short circuit.

• Clean the product’s exterior surfaces with a slightly damp cloth and then dry them thoroughly.

• Make sure that no water enters the product interior (for example, through the switch).

• Wipe the door seal with clean water only, and dry it thoroughly afterwards.

• Removable parts e.g. glass shelves, can be taken out for cleaning. Energy saving tips

• Do not place the product in the vicinity of a heat source (radiator or kitchen stove, etc.).

• Ensure unobstructed air flow around the refrigerator and freezer.

• If an ice layer has built, defrost the unit. A thick ice layer aects the transmission of the cold, thus the energy consumption will be increased.

• When opening and taking out food, only open the door shortly. A shorter door opening time causes less ice to deposit on the freezer walls.

• Select the temperature regulator setting according to the of filling amount of the product.

• Use drawers, baskets or shelves to store the food. If the energy of the product is used eciently, the energy consumption can be minimized. KFZ45211-A2-NF_170803_V03_HR.indb 19 3/8/17 10:30 am20 English Technical data Voltage : 220-240 V~ Frequency : 50 Hz Rated current : 1.5 A Energy Consumption kWh/24h : 0.625 kWh/year : 228 Ambient temperature : 10°C-43°C Net capacity of freezer : 226 L Measurement (HxWxD) : 1671x600x640 mm Depth with door open : 1200 mm This product is intended to be used in climate classes from SN to T. Climate class Ambient temperature SN +10 to +32 °C S +16 to +32 °C ST +18 to +38 °C T +18 to +43 °C Decommissioning If a longer break should occur during operation of the refrigerator, the following steps must be carried out:

• Clean the interior of the freezer compartment and let it dry.

• Carefully clean all the accessories (vegetable containers, door compartments, glass shelves, etc.)

• Let the door open to avoid the formation of unpleasant odors and mold. Troubleshooting If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer. Problem Possible causes Solution Product does not work •Interrupted power supply •Check the power supply Temperature in the compartments is not low enough.

• The door is not closed firmly or it is opened to often.

• Re-arrange the food so that the door can be closed firmly.

• The ambient temperature is lower than 10 °C or higher than 43 °C

• The product is intended to be operated in an ambient temperature of 10°C to 43°C The interior lamp doesn’t shine

Energy consumption “XYZ” kWh per year Energy consumption 228 kWh per year, based on the standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.

• Storage volume of each compartment

h Temperature of other compartment -- i Frost free for which compartment Freezing compartment j Power cut safe “X” h 14 k Freezing capacity in kg/24h 18

Climate class This appliance is intended to be used at an ambient temperature between “X” °C and “X” °C SN,N,ST,T This appliance is intended to be used at an ambient temperature between +10 °C and +43 °C m Noise emissions ( dB(A) re1 pW) 40 n Intended for built in (yes/no) No KFZ45211-A2-NF_170803_V03_HR.indb 58 3/8/17 10:30 am59 Español Ficha del producto
