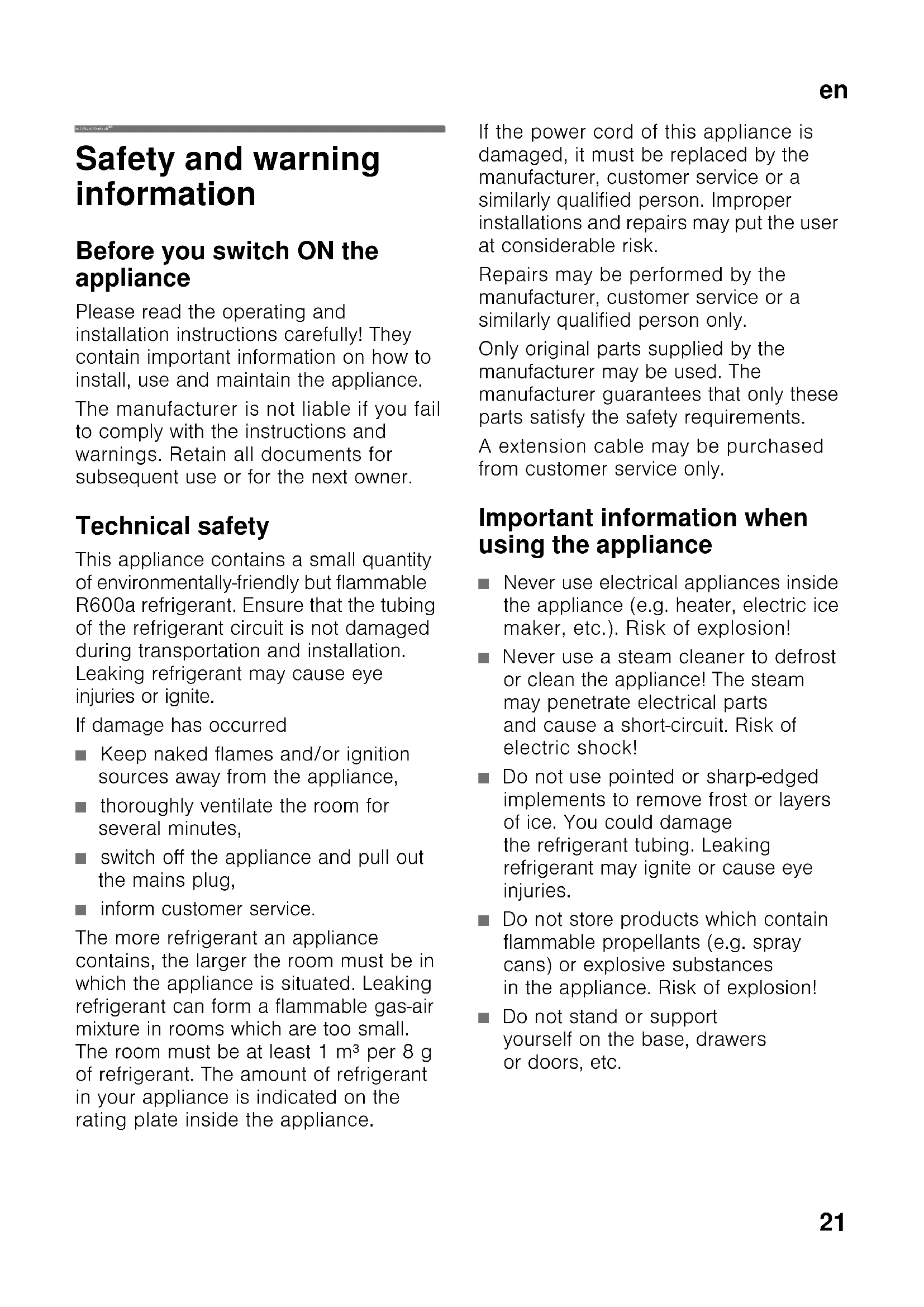

enTable of Conte nts enInstruction for Use Safety and warning information Before you switch ON the appliance Please read the operating and installation instructions carefully! They contain important information on how to install, use and maintain the appliance. The manufacturer is not liable if you fail to comply with the instructions and warnings. Retain all documents for subsequent use or for the next owner. Technical safety This appliance contains a small quantity of environmentally-friendly but flammable R600a refrigerant. Ensure that the tubing of the refrigerant circuit is not damaged during transportation and installation. Leaking refrigerant may cause eye injuries or ignite. If damage has occurred ■ Keep naked flames and/or ignition sources away from the appliance, ■ thoroughly ventilate the room for several minutes, ■ switch off the appliance and pull out the mains plug, ■ inform customer service. The more refrigerant an appliance contains, the larger the room must be in which the appliance is situated. Leaking refrigerant can form a flammable gas-air mixture in rooms which are too small. The room must be at least 1 m³ per 8 g of refrigerant. The amount of refrigerant in your appliance is indicated on the rating plate inside the appliance. If the power cord of this appliance is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person. Improper installations and repairs may put the user at considerable risk. Repairs may be performed by the manufacturer, customer service or a similarly qualified person only. Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements. A extension cable may be purchased from customer service only. Important information when using the appliance ■ Never use electrical appliances inside the appliance (e.g. heater, electric ice maker, etc.). Risk of explosion! ■ Never use a steam cleaner to defrost or clean the appliance! The steam may penetrate electrical parts and cause a short-circuit. Risk of electric shock! ■ Do not use pointed or sharp-edged implements to remove frost or layers of ice. You could damage the refrigerant tubing. Leaking refrigerant may ignite or cause eye injuries. ■ Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance. Risk of explosion! ■ Do not stand or support yourself on the base, drawers or doors, etc.en

■ Before defrosting and cleaning the appliance, pull out the mains plug or switch off the fuse. Do not pull out the mains plug by tugging the cable. ■ Bottles which contain a high percentage of alcohol must be sealed and stored in an upright position. ■ Keep plastic parts and the door seal free of oil and grease. Otherwise, parts and door seal will become porous. ■ Never cover or block the ventilation openings for the appliance. ■ People (childern incl.) who have limited physical, sensory or mental abilities or inadequate knowledge must not use this appliance unless they are supervised or given meticulous instructions. ■ Do not store bottled or canned drinks (especially carbonated drinks) in the freezer compartment. Bottles and cans may explode! ■ Never put frozen food straight from the freezer compartment into your mouth. Risk of low-temperature burns! ■ Avoid prolonged touching of frozen food, ice or the evaporator pipes, etc. Risk of low-temperature burns! Children in the household ■ Keep children away from packaging and its parts. Danger of suffocation from folding cartons and plastic film! ■ Do not allow children to play with the appliance! ■ If the appliance features a lock: keep the key out of the reach of children! General regulations The appliance is suitable ■ for freezing food, ■ for making ice. This appliance is intended for use in the home and the home environment. The appliance is suppressed according to EU Directive 2004/108/EC. The refrigeration circuit has been checked for leaks. This product complies with the relevant safety regulations for electrical appliances (EN 60335-2-24).en

Information concerning disposal

• Disposal of packaging The packaging protects your appliance from damage during transit. All utilised materials are environmentally safe and recyclable. Please help us by disposing of the packaging in an environmentally friendly manner. Please ask your dealer or inquire at your local authority about current means of disposal.

• Disposal of your old appliance Old appliances are not worthless rubbish! Valuable raw materials can be reclaimed by recycling old appliances. ã=Warning Redundant appliances

1. Pull out the mains plug.

2. Cut off the power cord and discard

with the mains plug.

3. Do not take out the trays

and receptacles: children are therefore prevented from climbing in!

4. Do not allow children to play with

the appliance once it has spent its useful life. Danger of suffocation! Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal. Scope of delivery After unpacking all parts, check for any damage in transit. If you have any complaints, please contact the dealer from whom you purchased the appliance or our customer service. The delivery consists of the following parts: ■ Free-standing appliance■ Interior fittings (depending on model)■ Operating instructions■ Installation manual■ Customer service booklet■ Warranty enclosure■ Information on the energy consumption and noises ■ Bag containing installation materials This appliance is identified according to the European guideline 2002/96/EC on waste electrical and electronic equipment – WEEE. The directive specifies the framework for an EU-wide valid return and re-use of old appliances.

Ambient temperature and ventilation Ambient temperature The appliance is designed for a specific climate class. Depending on the climate class, the appliance can be operated at the following temperatures. The climate class can be found on the rating plate. Fig. 9 Note The appliance is fully functional within the room temperature limits of the indicated climatic class. If an appliance of climatic class SN is operated at colder room temperatures, the appliance will not be damaged up to a temperature of +5 °C. Ventilation Fig. 3 The air on the rear panel of the appliance heats up. Conduction of the heated air must not be obstructed. Otherwise, the refrigerating unit must work harder. This increases power consumption. Therefore: Never cover or block the ventilation openings! Connecting the appliance After installing the appliance, wait at least 1 hour until the appliance is switched on. During transportation the oil in the compressor may have flowed into the refrigeration system. Before switching on the appliance for the first time, clean the interior of the appliance (see chapter “Cleaning the appliance”). Electrical connection The socket must be near the appliance and also freely accessible following installation of the appliance. The appliance complies with the protection class I. Connect the appliance to 220–240 V/50 Hz alternating current via a correctly installed socket with protective conductor. The socket must be fused with a 10 to 16 A fuse. For appliances operated in non- European countries, check whether the stated voltage and current type match the values of your mains supply match the values of the mains supply. This information can be found on the rating plate. Fig. 9 ã=Warning Never connect the appliance to electronic energy saver plugs. Our appliances can be used with mains and sine-controlled inverters. Mains- controlled inverters are used for photovoltaic systems which are connected directly to the national grid. Climate class Permitted ambient temperature SN +10 °C to 32 °C N +16 °C to 32 °C ST +16 °C to 38 °C T +16 °C to 43 °Cen

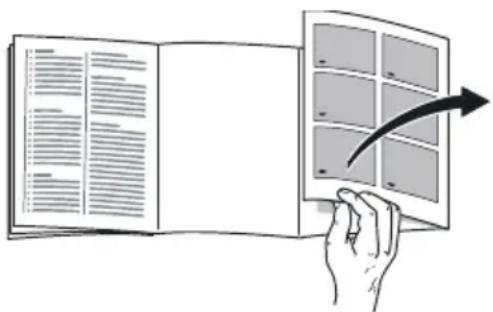

Sine-controlled inverters must be used for isolated applications (e.g. on ships or in mountain lodges) which are not connected directly to the national grid. Getting to know your appliance Please fold out the illustrated last page. These operating instructions refer to several models. The features of the models may vary. The diagrams may differ. Fig. 1

• Not all models. Controls Fig. 2 Switching the appliance on Fig. 2 Switch on the appliance with the On/Off button 1. A warning signal sounds. The temperature display 2 flashes. Press the temperature selection button 4. The warning signal switches off. When the freezer compartment has reached the set temperature, the temperature display 2 is lit. 1-4 Controls 5NoFrost System 6 Freezer compartment flap 7Glass shelf 8 Frozen food container (small) 9 Frozen food container (large) 10 Height-adjustable feet 11 Ice pack * 12 Freezer calendar 13 Door ventilation 1 On/Off button Serves to switch the whole appliance on and off. 2 Temperature display Indicates the set temperature of the freezer compartment. 3 Display super freezing Illuminates when super freezing is on. 4 Temperature selection button The required temperature is set with this button.en

Operating tips ■ After the appliance has been switched on, it may take several hours until the set temperature has been reached. Do not put any food in the appliance beforehand. ■ The fully automatic No Frost system ensures that the freezer compartment remains free of ice. Defrosting is not required. ■ Thesides ofthehousing are sometimes heated slightly. This prevents condensation in the area of the door seal. ■ If the freezer compartment door cannot be immediately re-opened after it has been closed, wait until the resulting low pressure has equalised. Setting the temperature Fig. 2 Freezer compartment The temperature can be set from -16 °C to -26 °C. Keep pressing temperature selection button 4 until the required freezer compartment temperature is set. The value last selected is stored. The set temperature is indicated on display 2. We recommend a factory setting of -18 °C in the freezer compartment. Alarm function In the following cases an alarm may be actuated: Door alarm The door alarm (continuous sound) switches on if the appliance door is open for longer than one minute. Close the door to switch off the warning signal. Temperature alarm The temperature alarm (beeping signal) switches on if the freezer compartment is too warm and the frozen food is at risk of thawing. The temperature display 2 flashes. Note Do not refreeze thawing or thawed food. It can only be refrozen when it has been used to prepare a ready meal (boiled or fried). No longer store the frozen produce for the max. storage period. The alarm may switch on without any risk to the frozen food: ■ when the appliance is switched on, ■ when large quantities of fresh food are placed in the appliance, ■ if the freezer compartment door is open too long. Switching off the alarm Fig. 2 Press the temperature selection button 4 to switch off the alarm.en

Usable capacity Information on the usable capacity can be found inside your appliance on the rating plate. Fig. 9 Fully utilising the freezer volume The maximum amount of food can be placed in the freezer by removing several fittings. The food can be stacked directly on the shelves. Note To comply with the values indicated on the rating plate, the fitting at the very top should remain in the appliance. Removing the fittings ■ Pull out the frozen food container all the way, lift at the front and remove. Fig. 4 ■ Freezer compartment flap Fig. 5

1. Open freezer compartment flap

2. detach holder from one side

3. pull freezer compartment flap

forwards and remove from the holder,

4. detach holder from the other side

of the appliance. Freezer compartment Use the freezer compartment ■ To store deep-frozen food. ■ To make ice cubes. ■ To freeze food. Note Ensure that the freezer compartment door has been closed properly. If the door is open, the frozen food will thaw. The freezer compartment will become covered in thick ice. Also: waste of energy due to high power consumption! Max. freezing capacity Information about the max. freezing capacity within 24 hours can be found on the rating plate. Fig. 9en

Freezing and storing food Purchasing frozen food ■ Packaging must not be damaged. ■ Use by the “use by” date. ■ Temperature in the supermarket freezer must be -18 °C or lower. ■ If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer compartment. Note when loading products Freeze large quantities of food preferably in the very top compartment where food freezes particularly quickly and therefore also gently. Place the food over the whole area of the compartments or in the frozen food container. Food which is already frozen must not come into contact with the food which is to be frozen. If required, move the frozen food to the frozen food container. To ensure good air circulation in the appliance, insert the frozen food container all the way. Do not cover the ventilation slots on the rear panel with frozen food! Freezing fresh food Freeze fresh and undamaged food only. To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching. Literature on freezing and blanching can be found in bookshops. Note Keep food which is to be frozen away from food which is already frozen. ■ The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese, butter and quark, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, soufflés and desserts. ■ The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, crème fraîche and mayonnaise.en

Packing frozen food To prevent food from losing its flavour or drying out, place in airtight containers.

1. Place food in packaging.

4. Label packaging with contents

and date of freezing. Suitable packaging: Plastic film, tubular film made of polyethylene, aluminium foil, freezer containers. These products are available from specialist outlets. Unsuitable packaging: Wrapping paper, greaseproof paper, cellophane, bin liners and used shopping bags. Items suitable for sealing packaged food: Rubber bands, plastic clips, string, cold- resistant adhesive tape, etc. Bags and tubular film made of polyethylene can be sealed with a film heat sealer. Shelf life of frozen food Depends on the type of food. At a temperature of -18 °C: ■ Fish, sausage, ready meals and cakes and pastries: up to 6 months ■ Cheese, poultry and meat: up to 8 months ■ Vegetables and fruit: up to 12 months Super freezing Food should be frozen solid as quickly as possible in order to retain vitamins, nutritional value, appearance and flavour. To prevent an undesirable temperature rise when placing fresh food in the freezer compartment, switch on super freezing several hours beforehand. If the max. freezing capacity is to be used, super freezing must be switched on for 24 hours before the fresh produce is placed in the freezer compartment. Smaller quantities of food (up to 2 kg) can be frozen without “super freezing”. Note When super freezing is switched on, increased operating noises may occur. Switching on and off Fig. 2 Keep pressing the temperature selection button 4 until the Super display 3 is lit. Super freezing automatically switches off after approx. 2½ days.en

Thawing frozen food Depending on the type and application, select one of the following options: ■ at room temperature ■ in the refrigerator ■ in an electric oven, with/without fan assisted hot-air ■ in the microwave ã=Caution Do not refreeze food which is beginning to thaw or which has already thawed. It can only be refrozen when it has been used to prepare a ready meal (boiled or fried). No longer store the frozen produce for the max. storage period. Interior fittings (not all models) Frozen food container (large) Fig. 1/9 For freezing and storing large food items, e.g. turkey, duck and goose. Freezer calendar Fig. 6/A To prevent the quality of the food from deteriorating, it is important that the permitted storage period is not exceeded. The storage period depends on the type of produce. The figures next to the symbols indicate the permitted storage period of the produce in months. When purchasing frozen produce, observe the date of manufacture or use- by date. Ice pack Fig. 6/B If a power failure or malfunction occurs, the ice packs can be used to slow down the thawing process. The longest storage time is obtained by placing the ice pack directly on the food in the top compartment. To save space, the ice pack can be stored in the door compartment. The ice packs can also be used to cool food temporarily, e.g. in a cold bag. Ice cube tray Fig. 7 Fill the ice cube tray ¾ full of water and place in the freezer compartment. If the ice tray is stuck to the freezer compartment, loosen with a blunt implement only (spoon-handle). To loosen the ice cubes, twist the ice tray slightly or hold briefly under flowing water.en

Switching off and disconnecting the appliance Switching off the appliance Fig. 2 Press the On/Off button 1. Temperature display goes out, refrigerating unit switches off. Disconnecting the appliance If you do not use the appliance for a prolonged period:

1. Switch off the appliance.

2. Pull out mains plug or switch off fuse.

3. Clean the appliance.

4. Leave the appliance door open.

Defrosting Freezer compartment The fully automatic No Frost system ensures that the freezer compartment remains free of ice. Defrosting is no longer required. Cleaning the appliance ã=Caution ■ Do not use abrasive, chloride or acidic cleaning agents or solvents. ■ Do not use scouring or abrasive sponges. The metallic surfaces could corrode. ■ Never clean shelves and containers in the dishwasher. The parts may warp! Note Approx. 4 hours before cleaning the appliance, switch on super freezing so that the food drops to a very low temperature and can therefore be stored at room temperature for a longer period. Proceed as follows:

1. Before cleaning: Switch the appliance

3. Take out the frozen food and store in

a cool location. Place the ice pack (if enclosed) on the food.

4. Clean the appliance with a soft cloth,

lukewarm water and a little pH neutral washing-up liquid. The rinsing water must not run into the light.

5. Wipe the door seal with clear water

only and then wipe dry thoroughly.

6. After cleaning reconnect and switch

the appliance back on.

7. Put the frozen food back in the freezer

Tips for saving energy ■ Install the appliance in a dry, well ventilated room! The appliance should not be installed in direct sunlight or near a heat source (e.g. radiator, cooker). If required, use an insulating plate. ■ Do not block the ventilation openings in the appliance. ■ Allow warm food and drinks to cool down before placing in the appliance! ■ When thawing frozen products, place them in the refrigerator. Use the coldness of the frozen food to cool food. ■ Open the appliance as briefly as possible. ■ Ensure that the freezer compartment door is always closed properly. ■ Occasionally clean the rear of the appliance to prevent an increased power consumption. ■ If available: Fit wall spacers to obtain the indicated energy rating of the appliance (see Installation instructions). A reduced wall gap will not restrict the function of the appliance. The energy rating may then change slightly. The gap of 75 mm must not be exceeded. Operating noises Quite normal noises Droning Motors are running (e.g. refrigerating units, fan). Bubbling, humming or gurgling noises Refrigerant is flowing through the tubing. Clicking Motor, switches or solenoid valves are switching on/off. Preventing noises The appliance is not level Please align the appliance with a spirit level. Use the height-adjustable feet or place packing underneath them. The appliance is not free-standing Please move the appliance away from adjacent units or appliances. Containers or storage areas wobble or stick Please check the removable parts and re-insert them correctly if required.en

Eliminating minor faults yourself Before you call customer service: Please check whether you can eliminate the fault yourself based on the following information. Customer service will charge you for advice – even if the appliance is still under guarantee! Fault Possible cause Remedial action Temperature differs greatly from the set value. In some cases it is adequate to switch off the appliance for 5 minutes. If the temperature is too high wait a few hours and check whether the temperature has approached the set value. If the temperature is too low check the temperature again the next day. Displays do not illuminate. Power failure; the fuse has been switched off; the mains plug has not been inserted properly. Connect mains plug. Check whether the power is on, check the fuses. Appliance is not cooling, temperature display and light are lit. Showroom mode is switched on. Hold down temperature selection button fig. 2/4 for 10 seconds until an acknowledgement signal sounds. After a short time check whether your appliance is cooling.en

Fault Possible cause Remedial action Warning signal sounds. Temperature display flashes. Fig. 2/2 Fault – the freezer compartment is too warm! To switch off the warning signal, press the temperature selection button 4. Frozen food is at risk! Note Frozen food which has started thawing or which has thawed can be refrozen if meat and fish were above +3 °C for not more than one day or other frozen food for not more than three days. If taste, odour and appearance have not changed, the food can be boiled or fried and then refrozen. No longer store the frozen produce for the max. storage period. Appliance is open. Close the appliance. Ventilation openings have been covered. Ensure that there is adequate ventilation. Too much food was placed in the freezer compartment at once. Do not exceed max. freezing capacity. When the fault has been rectified, the temperature display stops flashing.en

Fault Possible cause Remedial action Freezer compartment door was open for a long time; temperature is no longer reached. The evaporator (refrigeration generator) in the No Frost system is covered in thick ice and can no longer be defrosted fully automatically. To defrost the evaporator, remove the frozen food with the compartments, insulate well and store in a cool location. Switch off the appliance and move it away from the wall. Leave the appliance door open. After approx. 20 min. the condensation begins to run into the evaporation pan, at the rear of the appliance. Fig. 8 To prevent the evaporation pan from overflowing in this case, mopupthecondensation with a sponge. The evaporator is defrosted when the water stops running into the evaporation pan. Clean the interior. Switch the appliance back on again.en

Appliance self-test Your appliance features an automatic self-test program which shows you sources of faults which may be repaired by customer service only. Starting the appliance self-test

1. Switch off the appliance and wait

2. Switch on the appliance and hold

down the temperature selection button, Fig. 2/4, for 3-5 seconds within the first 10 seconds until -26 °C is lit on the temperature display. The self-test programme starts, when the temperature displays lit up in succession. When after a short time the appliance displays the set temperature prior to the self-test, everything is ok. If the super display flashes for 10 seconds, an error has occurred. Inform customer service. Ending the appliance self-test When the programme has ended, the appliance switches over to normal operation. Customer service If you have any questions please do not hesitate to contact our customer service. Contact data can be found in the enclosed warranty. Please provide customer service with the appliance product number (E-Nr.) and production number (FD). These specifications can be found on the rating plate. Fig. 9 To prevent unnecessary call-outs, please assist customer service by quoting the product and production numbers. This will save you additional costs. Repair order and advice on faults Contact data for the respective countries can be found in the enclosed warranty.fr
