ZR555 - Hi-fi system AIWA - Free user manual and instructions

Product type	Hi-fi system
Brand	Aiwa
Model	ZR555
Main unit dimensions (W × H × D)	360 × 394.5 × 381 mm
Main unit weight	7.5 kg
Speaker dimensions (W × H × D)	260 × 444 × 205 mm
Speaker weight	3.3 kg
Power supply	Mains voltage 120 V, 60 Hz
Power consumption	90 W
Main functions	CD player (5 discs), double cassette deck, FM/AM tuner, turntable (supplied), 30 W + 30 W amplification
Graphic equalizer	ROCK, POP, CLASSIC modes
T-BASS system	Bass boost (3 levels)
Timer	Built-in timer for programmed on/off, sleep timer

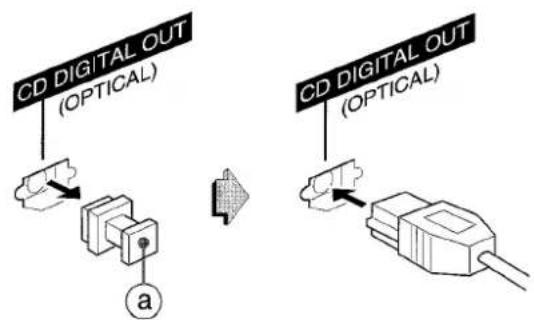

Inputs	VIDEO/AUX/PHONO IN (RCA), CD DIGITAL OUT optical output
Outputs	Speakers (6 ohms or more), headphones (6.3 mm stereo jack)
Antennas	FM antenna (T-shaped), AM loop antenna, possibility of external FM antenna
Radio tuning	Manual, automatic search, 32 presets
Compatible cassettes	Type I (normal) only
Maintenance and cleaning	Clean the cabinet with a soft dry cloth; clean the heads and tape path every 10 hours; demagnetize every 20-30 hours
Safety	Do not expose to moisture, do not block ventilation, unplug if not used for extended periods

Frequently Asked Questions - ZR555 AIWA

How to set the clock on the Aiwa ZR555?

Press CLOCK/Dimmer once, then ENTER within 4 seconds. Turn the MULTI JOG dial to set the hour, press ENTER, then set the minutes in the same way.

How to record a CD onto cassette with the Aiwa ZR555?

Insert a blank tape into deck 1, select the CD source, program tracks if desired, then press ● on deck 1 to start recording. Recording starts simultaneously with CD playback.

What to do if the CD player does not work?

Check that the disc is correctly placed (label side up) and not dirty. If condensation has formed, wait about an hour. If the problem persists, reset the unit by holding Clear while pressing POWER.

How to preset radio stations?

Select a band (FM or AM) with TUNER/BAND, tune to a station manually or by search, then press ISET. The station is assigned to the next preset number. You can store up to 32 stations.

How to use the T-BASS function?

Press T-BASS to activate or change the bass boost level (3 levels). To deactivate, press until the indicator goes off. Avoid using it if bass is already accentuated on the source.

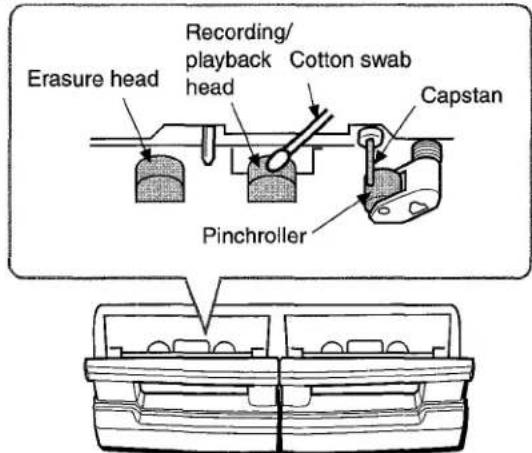

How to clean the cassette deck heads?

Use a cleaning cassette or a cotton swab soaked in denatured alcohol. Clean the record/play head, erase head (deck 1), capstans, and pinch rollers every 10 hours of use.

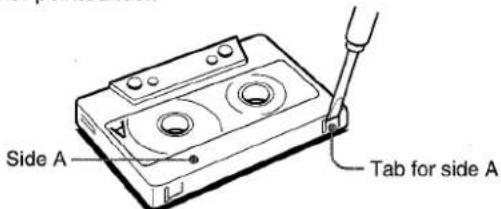

What types of cassettes can I use?

Only Type I (normal) cassettes are compatible. 120-minute or longer cassettes are not recommended as the tape is very thin and may deform.

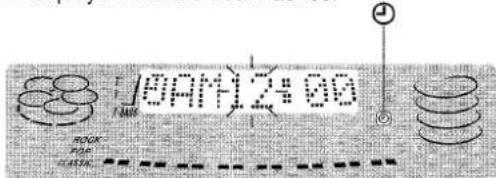

How to set the timer for automatic power-on?

Make sure the clock is set. Press TIMER, then ENTER within 6 seconds. Set the power-on time, source, running time, then prepare the source (CD, cassette or radio). Turn off the unit with POWER. The ① indicator should remain displayed.

Why is there no sound?

Check that the power cord is plugged in, the speakers are properly connected (no short circuit), and you have selected the correct source. The volume may be at minimum (VOL 0). Plugging in headphones cuts speaker sound.

How to use the turntable with the Aiwa ZR555?

Connect the stereo turntable to the VIDEO/AUX/PHONO IN jacks (red to R, white to L). Set the turntable's EQUALIZER AMP. switch to ON. Press VIDEO/AUX/PHONO on the unit, set volume to minimum, then start playing the record.

USER MANUAL ZR555 AIWA

COMPACT DISC STEREO SYSTEM SISTEMA ESTEREO CON REPRODUCTOR DE DISCOS COMPACTOS CHAINE STEREO AVEC LECTEUR DE DISQUES COMPACTS

Z-R565

OPERATING INSTRUCTIONS MANUAL DE INSTRUCCIONES MODE D'EMPLOI

En (English)

E (Espanol)

F (Francais)

For assistance and information

call toll free 1-800-BUY-AIWA

(United States and Puerto Rico)

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

"CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL."

Explanation of Graphical Symbols:

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Owner's record

For your convenience, record the model number and serial number (you will find them on the rear of your unit) in the space provided below. Please refer to them when you contact your Aiwa dealer in case of difficulty.

Model No.	Serial No. (Lot No.)
CX-ZR555 U
SX-ZR25 U
PX-E855

PRECAUTIONS

Read the Operating Instructions carefully and completely before operating the unit. Be sure to keep the Operating Instructions for future reference. All warnings and cautions in the Operating Instructions and on the unit should be strictly followed, as well as the safety suggestions below.

Installation

1 Water and moisture - Do not use this unit near water, such as near a bath, sink, swimming pool, or the like.
2 Heat - Do not use this unit near sources of heat, including heating vents, stoves, or other appliances that generate heat. It also should not be placed in temperatures less than 5^ (41^) or greater than 35^ (95^) .
3 Mounting surface - Place the unit on a flat, even surface.

4 Ventilation - The unit should be situated with adequate space around it so that proper heat ventilation is assured. Allow 10 cm clearance from the rear and the top of the unit, and 5 cm from each side.

• Do not place the unit on a bed, rug, or similar surface that may block the ventilation openings.
• Do not install the unit in a bookcase, cabinet, or airtight rack where ventilation may be impeded.

5 Objects and liquid entry - Take care that objects or liquid do not get inside the unit through the ventilation openings.

6 Carts and stands - When placed or mounted on a stand or cart, the unit should be moved with care.

Quick stops, excessive force, and uneven surfaces may cause the unit or cart to overturn or fall.

7 Condensation - Moisture may form on the CD pickup lens when:

• The unit is moved from a cold spot to a warm spot
• The heating system has just been turned on
• The unit is used in a very humid room
• The unit is cooled by an air conditioner

When this unit has condensation inside, it may not function normally. Should this occur, leave the unit for a few hours, then try to operate again.

8 Wall or ceiling mounting — The unit should not be mounted on a wall or ceiling, unless specified in the Operating Instructions.

Electric Power

1 Power sources — Connect this unit only to power sources specified in the Operating Instructions, and as marked on the unit.
2 Polarization - As a safety feature, some units are equipped with polarized AC power plugs which can only be inserted one way into a power outlet. If it is difficult or impossible to insert the AC power plug into an outlet, turn the plug over and try again. If it is not still inserted easily into the outlet, please call a qualified service technician to service or replace the outlet. To avoid defeating the safety feature of the polarized plug, do not force it into a power outlet.

3 AC power cord

• When disconnecting the AC power cord, pull it out by the AC power plug. Do not pull the cord itself.
• Never handle the AC power plug with wet hands, as this could result in fire or shock.
• Power cords should be firmly secured to avoid being severely bent, pinched, or walked upon. Pay particular attention to the cord from the unit to the power socket.
• Avoid overloading AC power plugs and extension cords beyond their capacity, as this could result in fire or shock.

4 Extension cord To help prevent electric shock, do not use a polarized AC power plug with an extension cord, receptacle, or other outlet unless the polarized plug can be completely inserted to prevent exposure of the blades of the plug.

5 When not in use - Unplug the AC power cord from the AC power plug if the unit will not be used for several months or more. When the cord is plugged in, a small amount of current continues to flow to the unit, even when the power is turned off.

Outdoor Antenna

1 Power lines - When connecting an outdoor antenna, make sure it is located away from power lines.
2 Outdoor antenna grounding - Be sure the antenna system is properly grounded to provide protection against unexpected voltage surges or static electricity build-up. Article 810 of the National Electrical Code, ANSI/NFPA70, provides information on proper grounding of the mast, supporting structure, and the lead-in wire to the antenna discharge unit, as well as the size of the grounding unit, connection to grounding terminals, and requirements for grounding terminals themselves.

Antenna Grounding According to the National Electrical Code

NEC-NATIONAL ELECTRICAL CODE

Maintenance

Clean the unit only as recommended in the Operating Instructions.

Damage Requiring Service

Have the units serviced by a qualified service technician if:

• The AC power cord or plug has been damaged.
• Foreign objects or liquid have got inside the unit
• The unit has been exposed to rain or water.
• The unit does not seem to operate normally.
• The unit exhibits a marked change in performance
• The unit has been dropped, or the cabinet has been damaged.
  DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF

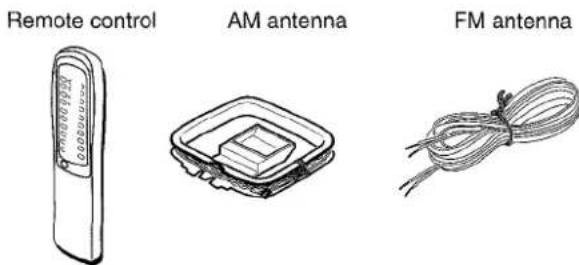

Check your system and accessories

CX-ZR555 Compact disc stereo cassette reciever
SX-ZR25 Front speakers

PX-E855 Stereo turntable

Operating Instructions, etc

TABLE OF CONTENTS

PREPARATIONS

CONNECTIONS 3
REMOTE CONTROL 4
BEFORE OPERATION 5
SETTING THE CLOCK 5

SOUND

AUDIO ADJUSTMENTS 6
GRAPHIC EQUALIZER 6

RADIO RECEPTION

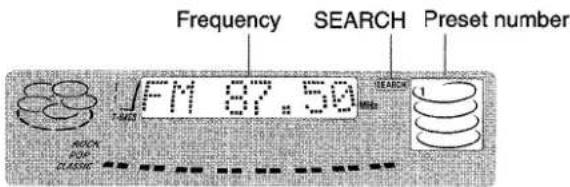

MANUAL TUNING 7
PRESETTING STATIONS 8

TAPE PLAYBACK

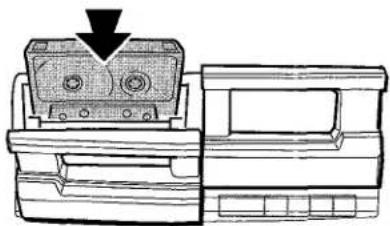

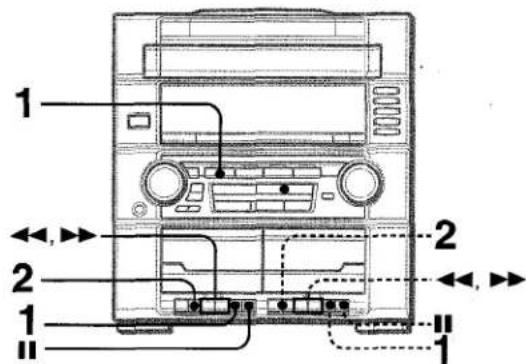

BASIC OPERATIONS 8

CD PLAYING

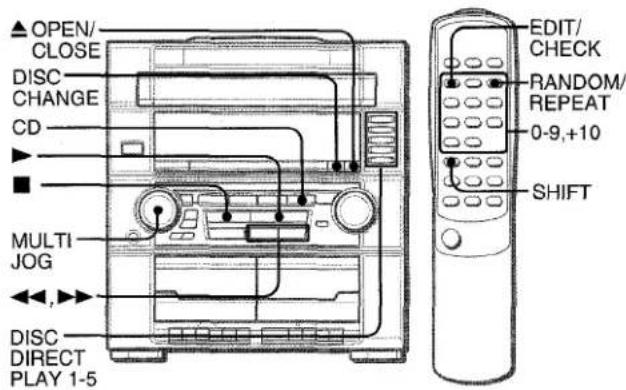

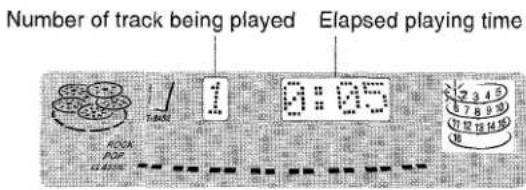

BASIC OPERATIONS 9

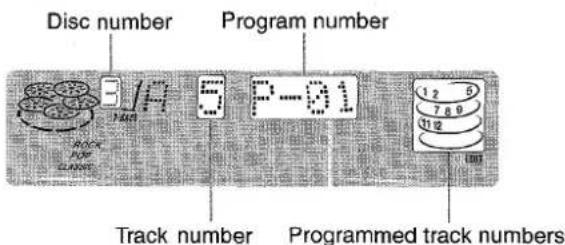

PROGRAMMED PLAY 10

RECORDING

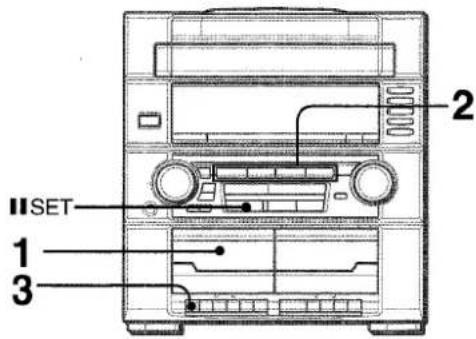

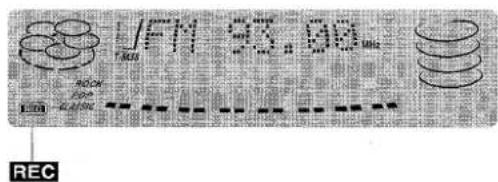

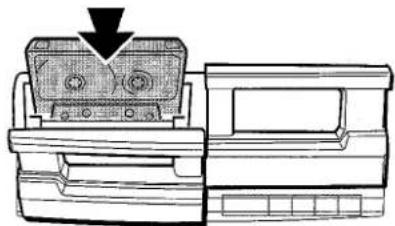

BASIC RECORDING 11

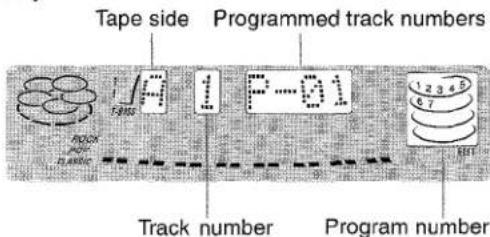

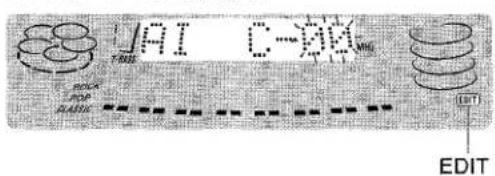

AI EDIT RECORDING 12

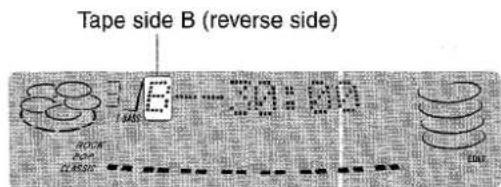

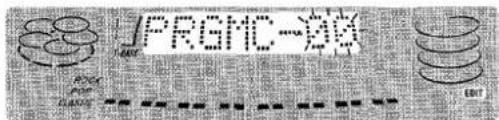

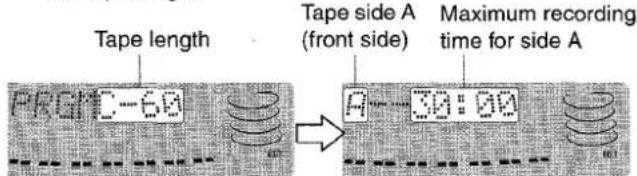

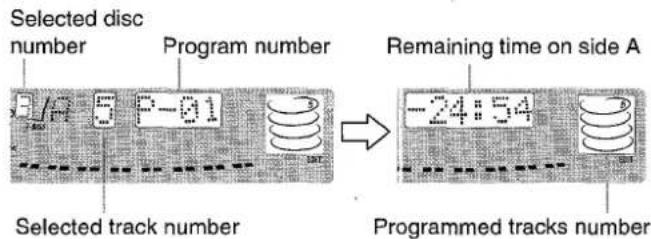

PROGRAMMED EDIT RECORDING 13

TIMER

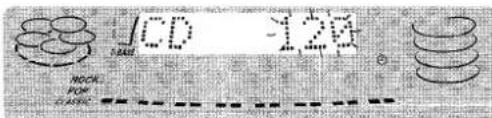

SETTING THE TIMER 14

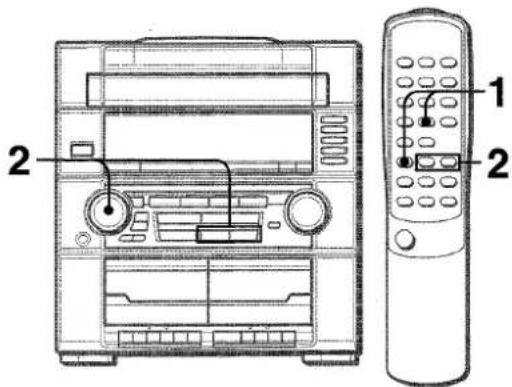

SETTING THE SLEEP TIMER 15

TURNTABLE

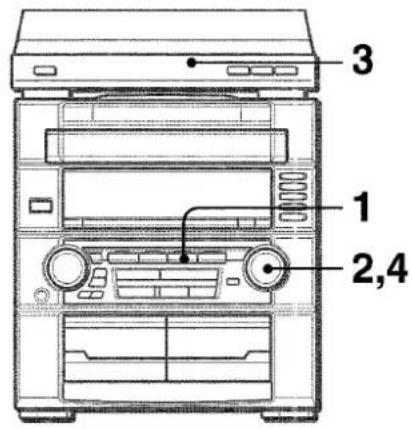

BASIC OPERATION 15

OTHER CONNECTIONS

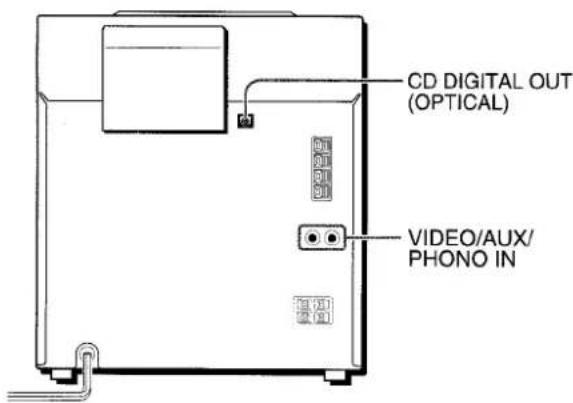

CONNECTING OPTIONAL EQUIPMENT 16

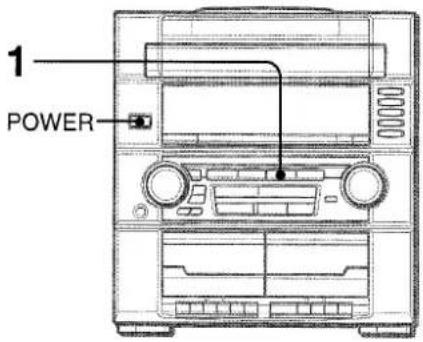

LISTENING TO EXTERNAL SOURCES 16

GENERAL

CARE AND MAINTENANCE 17
TROUBLESHOOTING GUIDE 17
SPECIFICATIONS 18

PARTS INDEX Back cover

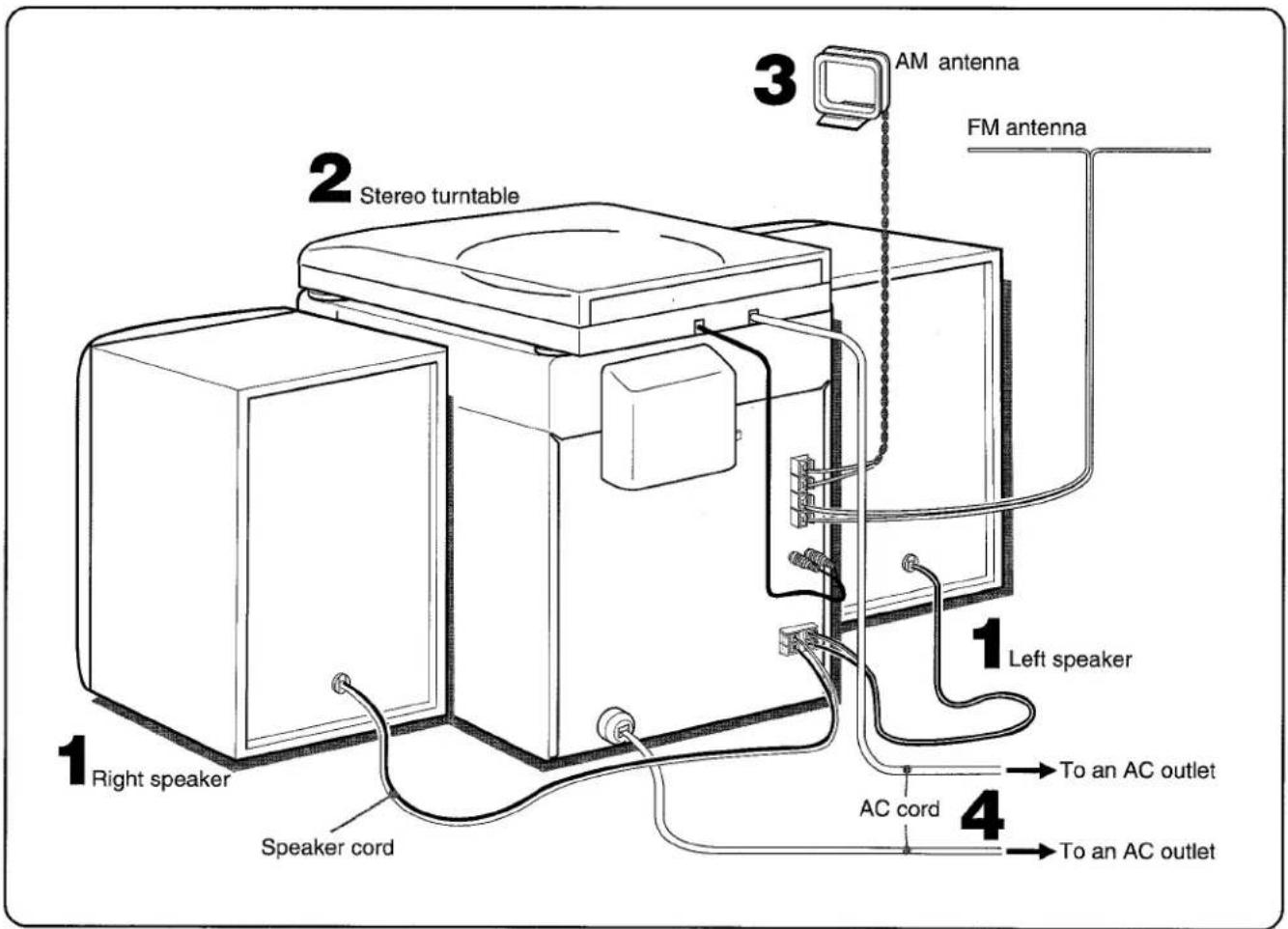

CONNECTIONS

Check the AC voltage

The rated voltage of your unit shown on the rear panel is 120 V AC. Check that the rated voltage matches your local voltage.

IMPORTANT

Connect the speakers, antennas, and all optional equipment first. Then connect the AC cord in the end.

Speakers

There are no difference between the speakers. Both speakers can be connected as L (left) or R (right).

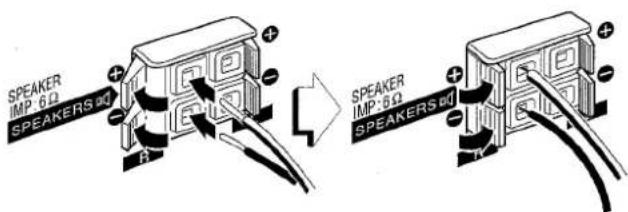

1 Connect the right and left speakers to the main unit.

Connect the right speaker cord to SPEAKERS R terminals, and the left to SPEAKERS L terminals.

The speaker cord with the white stripe should be connected to the terminal and the black cord to the terminal.

2 Connect the stereo turntable to the main unit.

Connect the red plug toVIDEO/AUX/PHONO IN R jack, and the white plug toVIDEO/AUX/PHONO IN L jack.

3 Connect the supplied antennas.

Connect the FM antenna to FM 75Ω terminals and the AM antenna to AM LOOP terminals.

4 Connect the AC cord to an AC outlet.

To position the antennas

FM feeder antenna:

Extend the antenna horizontally in a T-shape and fix its ends to the wall.

AM antenna:

Position to find the best reception.

To stand the AM antenna on a surface

Fix the claw to the slot.

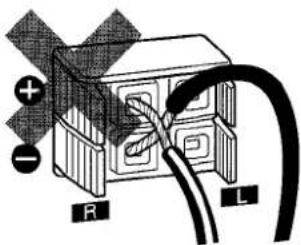

NOTE

• Be sure to connect the speaker cords correctly. Improper connections can cause short circuits in SPEAKERS terminals.

• Do not leave objects generating magnetism, such as credit cards, near the speakers, as the objects may be damaged.
• Do not position the FM antenna near metal objects or curtain rails.
• Do not position the AM antenna near other optional equipment, the stereo system itself, the AC cord or speaker cords, as interference will occur.
• Do not unwind the AM antenna wire.

CONNECTING AN OUTDOOR ANTENNA

For better FM reception, use of an outdoor antenna is recommended.

Connect the outdoor antenna to FM 75 terminals.

To connect other optional equipment page 16.

REMOTE CONTROL

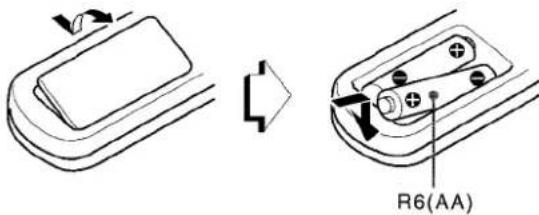

Inserting batteries

Detach the battery cover on the rear of the remote control and insert two R6 (size AA) batteries.

When to replace the batteries

The maximum operational distance between the remote control and the sensor on the main unit should be approximately 5 meters (16 feet). When this distance decreases, replace the batteries with new ones.

To use SHIFT on the remote control

Buttons 1 have two different functions. One of these functions is indicated on the button, and the other on the plate above the button.

To use the function on the button, simply press the button. To use the function on the plate above the button, press the button while pressing SHIFT.

To use FUNCTION on the remote control

FUNCTION substitutes for the function buttons (TAPE, TUNER/ BAND,VIDEO/AUX/PHONO, CD) on the main unit.

Each time FUNCTION is pressed, the next function is selected cyclically.

NOTE

• If the remote control is not going to be used for an extended period of time, remove the batteries to prevent possible electrolyte leakage.
  The remote control may not operate correctly when:

• The line of sight between the remote control and the remote sensor inside the display window is exposed to intense light, such as direct sunlight

• Other remote controls are used nearby (those of a television, etc.)

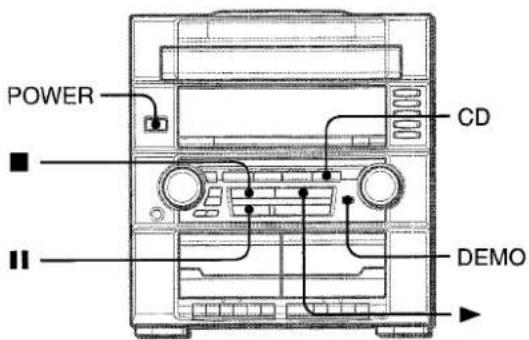

BEFORE OPERATION

To turn the unit on

Press one of the function buttons (TAPE, TUNER/BAND, VIDEO/ AUX/PHONO, CD). Playback of the inserted disc begins, or the previously tuned station is received (Direct Play Function).

POWER is also available.

When the unit is turned on, the disc compartment may open and close to reset the unit.

To turn the power off

Press POWER.

Flash window

The window on the top of the unit lights up or flashes while the unit's power is on.

To turn off the light of the top window, press while pressing CD. To turn back on, repeat the above.

Game Demo

When the AC cord is connected, the display window demonstrates the game Demo. When the power is turned on, the game Demo is overridden by the operation display. When the power is turned off, the game Demo is restored.

To cancel the game Demo

Press DEMO. To re-activate the game Demo, press DEMO again.

To play the game Demo

1 Press DEMO so that the game Demo displays.
2 Press

Three numbers on the display start to run.

3 Press once.
The number on the left side stops.
4 Press twice to stop the remaining two numbers.

Scoring:

20 points are given to start the game.
If all the numbers are equal, 50 points are added to the score.
If not equal, one point is subtracted.
If the gained points reach 9999, you win.
If the gained points fall to 0, you lose.

To reset the game Demo

Press DEMO twice, then press . The game starts again.

NOTE

• During playing the game Demo, and are available only for the game Demo. Cancel the game Demo to use these buttons for other functions such as CD playing, etc.
• During the game Demo, some indicators unrelated with the actual operation light up on the display.

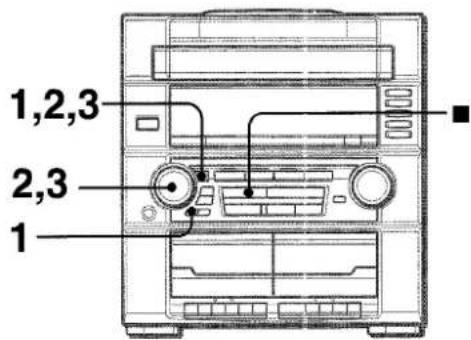

SETTING THE CLOCK

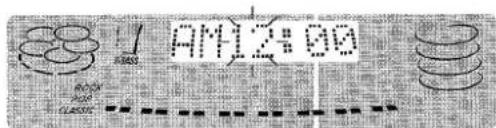

1 Press CLOCK/Dimmer once, then press ENTER within 4 seconds.

When using the remote control

Press CLOCK while pressing SHIFT, then press ISET within 4 seconds.

2 Turn MULTI JOG to designate the hour, then press ENTER.

The hour stops flashing and the minute starts flashing.

3 Turn MULTI JOG to designate the minute, then press ENTER.

The minute stops flashing on the display and the clock starts from 00 seconds.

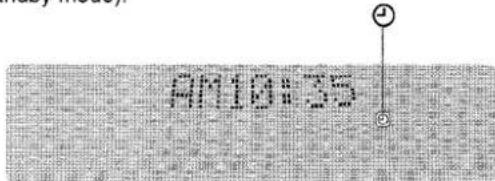

To display the current time

Press CLOCK/DIMMER once. The time is displayed for 4 seconds.

However, the time cannot be displayed during recording.

To switch to the 24-hour standard

Press CLOCK/DIMMER once and then press within 4 seconds.

Repeat the same procedure to restore the 12-hour standard.

If the clock display flashes

This is caused by a power interruption. The current time needs to be reset.

If power is interrupted for more than approximately 24 hours, all settings stored in memory after purchase need to be reset.

and are also available instead of MULTI JOG.
SET is also available instead of ENTER.

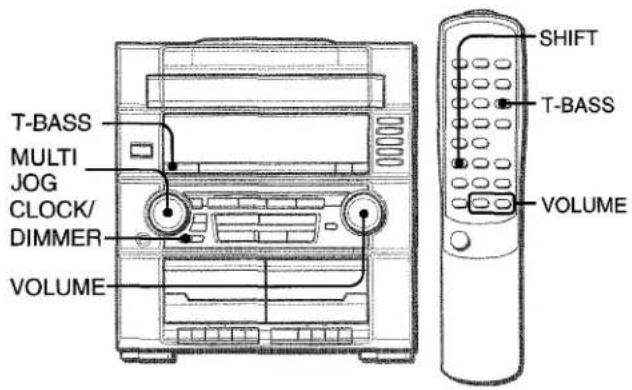

AUDIO ADJUSTMENTS

VOLUME CONTROL

Turn VOLUME on the main unit, or press VOLUME on the remote control.

The volume level is displayed as a number from 0 to MAX (31). The volume level is automatically set to 16 when the power is turned off with the volume level set to 17 or more.

SUPER T-BASS SYSTEM

The T-BASS system enhances the realism of low-frequency sound.

Press T-BASS.

Each time it is pressed, the level changes. Select one of the three levels or the off position to suit your preference.

To select with the remote control

Press T-BASS while pressing SHIFT.

NOTE

Low frequency sound may be distorted when the T-BASS system is used for a disc or tape in which low frequency sound is already emphasized. In this case, cancel the T-BASS system.

To dim the illumination of the display

1 Press CLOCK/Dimmer twice, then press ENTER within 4 seconds.
2 Within 4 seconds, turn MULTI JOG to select the dimmer mode.

DIMMER 0 DIMMER 1 DIMMER 2 DIMMER 3

DIMMER 0: The usual display.
DIMMER 1: The illumination of the display is dimmer than usual.
DIMMER 2: The illumination of the display is dimmer than DIMMER 1.
DIMMER 3: The illumination of the display is dimmer than DIMMER 2. The spectrum analyzer and the illumination on the buttons also light off.

and are also available instead of MULTI JOG.

GRAPHIC EQUALIZER

This unit provides the following three different equalization curves.
ROCK: Powerful sound emphasizing treble and bass
POP: More presence in the vocals and midrange
CLASSIC: Enriched sound with heavy bass and fine treble.

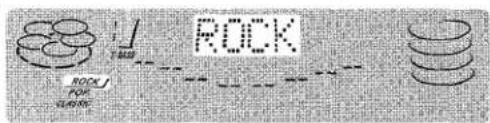

Press GEO repeatedly to select the equalization mode.

The GEQ mode is displayed cyclically as follows.

The selected equalization mode is displayed.

To cancel the selected mode

Press GEQ repeatedly until "GEQ OFF" is displayed.

To select with the remote control

Press GEO repeatedly while pressing SHIFT.
* MULTI JOG is also available to change the equalization mode.

Using the headphones

Connect headphones to PHONES jack with a standard stereo plug ( 6.3mm,1 / 4 inch).

No sound is output from the speakers while the headphones are plugged in.

Sound adjustment during recording

The output volume and tone of the speakers or headphones may be freely varied without affecting the recording.

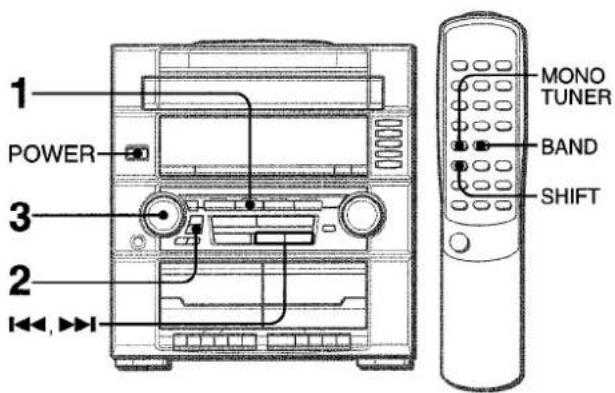

MANUAL TUNING

1 Press TUNER/BAND to select the FM or AM band.

When TUNER/BAND is pressed while the power is off, the power is turned on directly (Direct Play Function).

To select a band with the remote control

Press BAND while pressing SHIFT.

2 Press TUNER PRESET repeatedly to select the manual tuning mode.

Each time the button is pressed, the following three tuning modes are selected cyclically.

① Preset tuning mode: The preset number flashes.
② Auto search mode:"SEARCH"is displayed.
3 Manual tuning mode: "SEARCH" is not displayed and the preset number does not flash.

NOTE

The preset tuning mode is skipped if no station is preset.

3 Turn MULTI JOG clockwise or counter-clockwise to tune in to a station.

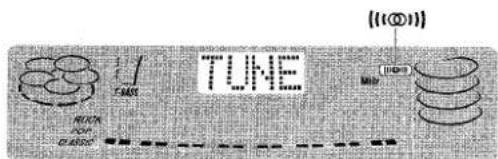

The frequency changes as you turn MULTI JOG. When a station is received, "TUNE" is displayed for 2 seconds.

During FM stereo reception, (u(w)) is displayed.

• DOWN and IUP are also available to tune in to a station.

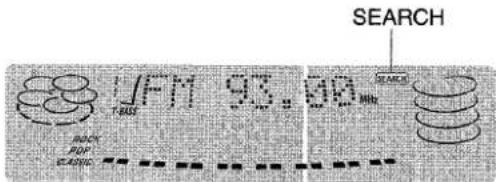

To search for a station quickly (Auto Search)

Press TUNER PRESET repeatedly to display "SEARCH"(auto search mode), and turn MULTI JOG clockwise or counterclockwise until the frequency starts to change rapidly. After tuning in to a station, the search stops.

To stop the Auto Search manually, turn MULTI JOG a little in either direction.

The Auto Search may not stop at the stations with very weak signals.
- DOWN and ↑UP are also available to search for a station. Keep ↓DOWN or ↑UP pressed until the tuner starts searching. Press the button to stop the search manually.

When an FM stereo broadcast contains noise

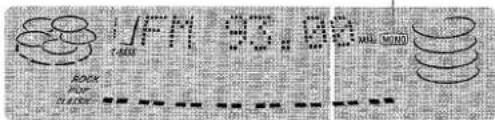

Press MONOTUNER on the remote control while pressing SHIFT so that "MONO" appears on the display.

Noise is reduced, although reception is monaural.

To restore stereo reception, press MONOTUNER on the remote control while pressing SHIFT so that "MONO" disappears.

To change the AM tuning interval

The default setting of the AM tuning interval is 10kHz step. If you use this unit in an area where the frequency allocation system is 9kHz step, change the tuning interval.

Press POWER while pressing TUNER/BAND on the unit.

To reset the interval, repeat this procedure.

NOTE

When the AM tuning interval is changed, all preset stations are cleared. The preset stations have to be set again.

BASIC OPERATIONS

LOADING DISCS

Press CD, then press OPEN/CLOSE to open the disc compartment. Load disc(s) with the label side up.

To load one or two discs, place the disc(s) on the tray(s) in the direction of the arrows as illustrated.

To load three to five discs, press DISC CHANGE to rotate the trays after placing two discs. Place the next disc on empty tray. Each time DISC CHANGE is pressed, the trays rotate and one disc can be placed.

After placing the discs, press OPEN/CLOSE to close the disc compartment.

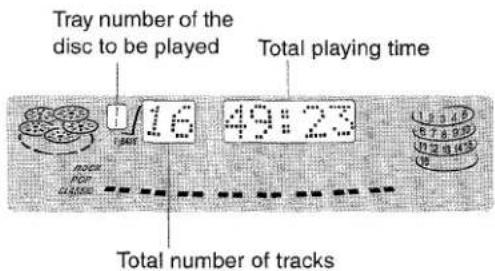

The display shows the information of the disc to be played.

PLAYING DISCS

Load discs.

To play all discs in the disc compartment, press Play begins with the disc on tray 1.

To play one disc only, press one of DISC DIRECT PLAY 1-5.

The selected disc is played once.

To stop play, press

To pause play, press. To resume play, press again.
To search for a particular point during playback, keep or pressed and release the button at the desired point
To skip to the beginning of a track during playback, MULTI JOG or press or repeatedly.

To remove discs, press OPEN/CLOSE.

You can only remove the two discs that face you. When the disc(s) to be removed does(do) not face you, press DISC CHANGE repeatedly.

To start play when the power is off (Direct Play Function) Press CD. The power is turned on and play of the loaded disc(s) begins.

When OPEN/CLOSE is pressed, the power is also turned on and the disc compartment is opened.

To check the remaining time

During play, press EDIT/CHECK on the remote control while pressing SHIFT. The amount of time remaining until all tracks finish playing is displayed. To restore the playing time display, repeat the above.

Selecting a track with the remote control

1 Press one of DISC DIRECT PLAY 1-5 to select a disc. To select disc 4 or 5, press DISC DIRECT PLAY 4 or 5 while pressing SHIFT.
2 Press numbered buttons 0-9 and +10 to select a track. Example:

To select the 25th track, press +10, +10 and 5.

To select the 10th track, press +10 and 0.

The selected track starts to play and continues to the end of that disc.

Replacing discs during play

While one disc is playing, the other discs can be replaced without interrupting play.

1 Press DISC CHANGE.
Two discs can be replaced.
2 Remove the discs and replace with other discs.
To replace the other two discs, press DISC CHANGE again.
3 Press OPEN/CLOSE to close the disc compartment.

PRESETTING STATIONS

The unit can store a total of 32 preset stations. When a station is stored, a preset number is assigned to the station. Use the preset number to tune in to a preset station directly.

1 Press TUNER/BAND to select a band, and press DOWN or HUP to select a station.
2 Press IISET to store the station.

A preset number beginning from 1 in consecutive order for each band is assigned to the station.

3 Repeat steps 1 and 2.

No more stations will be stored if a total of 32 preset stations have already been stored.

PRESET NUMBER TUNING

Use the remote control to select the preset number directly.

1 Press BAND while pressing SHIFT to select a band.
2 Press numbered buttons 0-9 and +10 to select a preset number.

Example:

To select preset number 20, press +10, +10 and 0.

To select preset number 15, press +10 and 5.

Selecting a preset number on the main unit

Press TUNER/BAND to select a band. Press TUNER PRESET repeatedly until the preset number flashes (preset tuning mode), and turn MULTI JOG. The preset numbers are selected in sequence as you turn MULTI JOG.
- PRESET is also available to select the preset number. Each time the button is pressed, the next highest number is selected.

To clear a preset station

Select the preset number of the station to be cleared with the numbered buttons. Then, press CLEAR, and press ISET within 4 seconds.

The preset numbers of all other stations in the band with higher numbers are decreased by one.

BASIC OPERATIONS

(Deck 1)
(Deck 2)

Usable tapes

Use Type I (normal) tapes only.

1 Press TAPE, then press to open the cassette holder.

Insert a tape with the exposed side down. Push the cassette holder to close.

2 Press to start play.

Only the side facing out from the unit can be played back.

To stop play, press

To pause play, press. To resume play, press again.

To fast forward or rewind, press or in stop mode. Then press / to stop the tape.

When both Deck 1 and Deck 2 are set in the playback mode

Deck 2 is heard.

NOTE

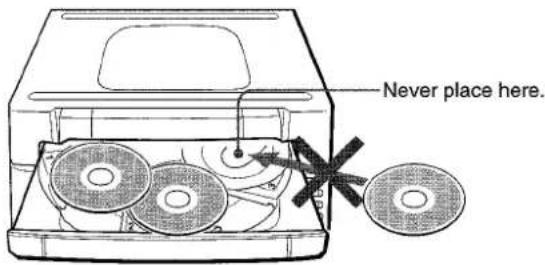

• When loading an 8-cm (3-inch) disc, make sure to place it onto the inner circle of the tray precisely. Otherwise, the disc may be damaged or the disc compartment will not open. If it does not open, please consult your Aiwa dealer for repair.
• Do not place more than one compact disc on one disc tray.
• Do not tilt the unit with discs loaded. Doing so may cause malfunctions.
• When transporting the unit, remove the discs from the trays.
• When replacing the discs during play, do not replace discs other than those facing you.

If you place a disc on the empty right inner tray, and then press OPEN/CLOSE, "ERROR" is displayed and the disc compartment may not close. Remove the disc on that tray.

RANDOM /REPEAT PLAY

Use the remote control.

RANDOM play

All the tracks on the selected disc or all the discs can be played randomly.

REPEAT play

A single disc or all the discs can be played repeatedly.

Press RANDOM/REPEAT while pressing SHIFT.

Each time it is pressed, the function can be selected cyclically.

RANDOM play — RANDOM lights up on the display.

REPEAT play - lights up on the display.

RANDOM/REPEAT play — RANDOM and light up on the display.

Cancel - RANDOM and l disappear from the display.

To play all discs, press to start play.

To play a single disc, press one of DISC DIRECT PLAY 1-5 to start play.

To select disc 4 or 5 from the remote control, press DISC DIRECT PLAY 4 or 5 while pressing SHIFT.

NOTE

During random play it is not possible to skip to the previously played track with

PROGRAMMED PLAY

Up to 30 tracks can be programmed from any of the inserted discs.

Use the remote control.

1 Press PRGM while pressing SHIFT in stop mode. "PRG" is displayed.

2 Press one of DISC DIRECT PLAY 1-5 to select a disc.

To select disc 4 or 5, press DISC DIRECT PLAY 4 or 5 while pressing SHIFT.

Go to the next step when the tray stops rotating.

3 Press numbered buttons 0-9 and +10 to program a track.

Example:

To select the 25th track, press +10 , +10 and 5.

To select the 10th track, press +10 and 0.

4 Repeat steps 2 and 3 to program other tracks.

5 Press to start play.

To check the program

Each time or is pressed in stop mode, a disc number, track number, and program number will be displayed.

To clear the program

Press CLEAR in stop mode.

To add tracks to the program

Repeat steps 2 and 3 in stop mode. The track will be programmed after the last track.

To change the programmed tracks

Clear the program and repeat all the steps again.

To play the programmed tracks repeatedly

After programming the tracks, press RANDOM/REPEAT repeatedly while pressing SHIFT until appears on the display.

NOTE

During programmed play, you can not use random play, check the remaining time or select a disc or track.

BASIC RECORDING

Preparation

• Use Type I (normal) tapes only.
• Set the tape to the point where recording will start.
  Note that recording is done on only one side of the tape.

1 Insert the tape to be recorded on into Deck 1. Insert the tape with the side to be recorded on first facing out from the unit.

2 Press one of the function buttons and prepare the source to be recorded.

To record from a CD, press CD and load the disc(s).

To record from a tape, press TAPE. Then, insert the original tape into Deck 2 and play it.

To record from a radio broadcast, press TUNER/BAND and tune in to a station.

To record from a connected source, press VIDEO/AUX/PHONO and play.

3 Press on Deck 1 to start recording.

is depressed simultaneously.

When the selected function is CD, playback and recording start simultaneously.

To stop recording, press on Deck 1.

To pause recording, press on Deck 1.

To resume recording, press it again.

To record selected tracks of the CD

Before pressing , program the tracks (see page 10).

To record part of the CD

When is pressed, recording always starts from the first track. To start in the middle of a track, play the CD first and press SET for CD at the point you wish to start recording from. Then, press

The pause mode for CD button is released automatically and recording starts.

Sound adjustment during recording

The output volume and tone of the speakers or headphones may be freely varied without affecting the recording.

NOTE

• Do not press the buttons on Deck 2 during recording.
• cannot be depressed if the erasure prevention tab on the side of the tape to be recorded is broken off.
• If squealing or beating sounds occur when recording an FM broadcast, press MONOTUNER while pressing SHIFT on the remote control, so as to eliminate the noise.

Each time these buttons are pressed, "MONO" is turned on and off on the display.

MONO

To erase a recording

A previous recording is erased when a new recording is made on that part of that tape.

1 Insert the tape you want to erase into Deck 1.
2 Press TAPE and stop all the tape operation in Deck 2.
3 Wind up the tape to the point where the erasure is to be started.
4 Press on Deck 1 to start the erasure.

About cassette tapes

• To prevent accidental erasure, break off the plastic tabs on the cassette tape after recording with a screwdriver or other pointed tool.

To record on the tape again, cover the tab openings with adhesive tape, etc.

• 120-minute or longer tapes are extremely thin and easily deformed or damaged. They are not recommended.

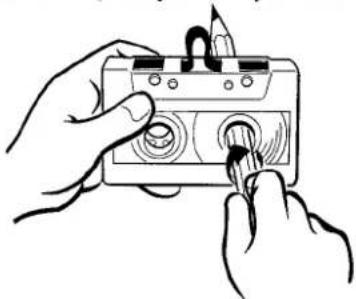

• Take up any slack in the tape with a pencil or similar tool before use. Slack tape may break or jam in the mechanism.

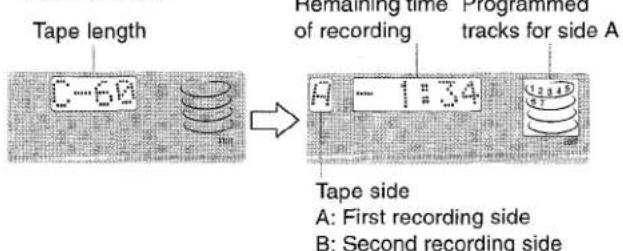

AI EDIT RECORDING

The AI edit recording function enables CD recording without worrying about tape length and track length. When a CD is inserted, the unit automatically calculates the total track length. If necessary, the order of tracks is rearranged so that no track is cut short.

(AI: Artificial Intelligence)

1 Insert the tape into Deck 1.

Insert the tape with the side to be recorded on first facing out from the unit, and wind up the tape with

2 Press CD and load the disc(s).

3 Press EDIT/CHECK once while pressing SHIFT on the remote control.

"EDIT" and "AI" are displayed.

• When "PRGM" is displayed, press EDIT/CHECK while pressing SHIFT again.

4 Press one of DISC DIRECT PLAY 1-5 to select a disc.

To select disc 4 or 5 from the remote control, press DISC DIRECT PLAY 4 or 5 while pressing SHIFT.

5 Press numbered buttons 0-9 on the remote control to designate the tape length.

10 to 99 minutes can be specified.
Example: When using a 60-minute tape, press 6 and 0. In a few seconds, the tracks to be recorded on each side of the tape are determined.
- or MULTI JOG are also available to designate the tape length. Remaining time: Programmed

6 Press on Deck 1 to start recording on the first side.
REC flashes for 10 seconds, and then CD play and recording of edited tracks for the first side start simultaneously. When the end of the tape is reached, Deck 1 enters the recording stop mode. After entering the recording stop mode go to step 7.
7 Press EDIT/CHECK while pressing SHIFT on the remote control to display the program for the second recording.
"B" is displayed.
8 Turn over the tape in Deck 1 and press to start recording on the second side.

To stop recording

Press on Deck 1.

Recording and CD play stop simultaneously.

To clear the edit program

Press CLEAR twice in the stop mode so that "EDIT" disappears on the display, or press OPEN/CLOSE.

To check the order of the programmed track numbers Before recording, press EDIT/CHECK while pressing SHIFT on the remote control to select side A or B, and press or repeatedly.

To add tracks from other discs to the edit program

If there is any time remaining on the tape after step 5, you can add tracks from other discs in the CD compartment.

1 Press EDIT/CHECK while pressing SHIFT on the remote control to select side A or B.
2 Press one of DISC DIRECT PLAY 1-5 to select a disc. To select disc 4 or 5 from the remote control, press DISC DIRECT PLAY 4 or 5 while pressing SHIFT.
3 Press numbered buttons on the remote control to select the tracks.

A track whose playing time is longer than the remaining time cannot be programmed.

4 Repeat steps 2 and 3 to add more tracks.

Time on cassette tapes and editing time

The actual cassette recording time is usually a little longer than the specified recording time printed on the label. This unit can program tracks to use the extra time. When the total recording time is a little longer than the tape's specified recording time after editing, the display shows the extra time (without a minus mark), instead of the time remaining on the tape (with the minus mark).

NOTE

The AI edit recording function cannot be used with discs containing 31 tracks or more.

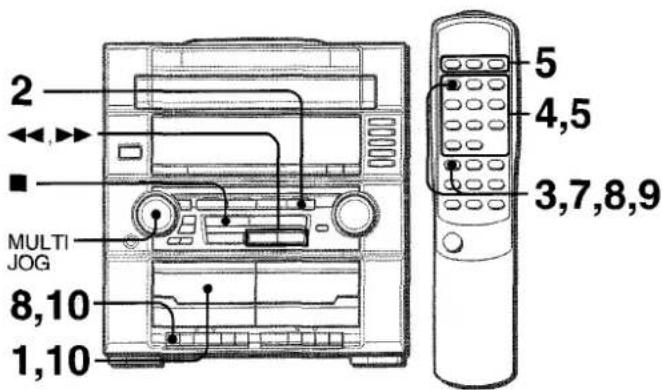

PROGRAMMED EDIT RECORDING

In the Programmed edit recording function the tracks can be programmed while checking the remaining time on each side of the tape as the tracks are programmed.

1 Insert the tape into Deck 1.
Insert the tape with the side to be recorded on first facing out from the unit, and wind up the tape with
2 Press CD and load the disc(s).
3 Press EDIT/CHECK twice while pressing SHIFT on the remote control.

"EDIT" and "PRGM" are displayed.

• When "AI" is displayed, press EDIT/CHECK while pressing SHIFT again.

4 Press numbered buttons on the remote control to designate the tape length.
10 to 99 minutes can be specified.
- or MULTI JOG are also available to designate the tape length.

5 Press one of DISC DIRECT PLAY 1-5 to select a disc.

Then, press numbered buttons 0-9 and +10 on the remote control to program a track.

To select disc 4 or 5 from the remote control, press DISC DIRECT PLAY 4 or 5 while pressing SHIFT.

Example: To select the 10th track of disc 2, press DISC DIRECT PLAY 2, then press +10 and 0.

6 Repeat step 5 for the rest of the tracks for side A.
A track whose playing time is longer than the remaining time cannot be programmed.
7 Press EDIT/CHECK while pressing SHIFT on the remote control to select side B and program the tracks for side B.

8 Press EDIT/CHECK while pressing SHIFT to select side A and press on Deck 1.

REc flashes for 10 seconds, and then CD play and recording of edited tracks for the first side start simultaneously. When the end of the tape is reached, Deck 1 enters the recording stop mode. After entering the recording stop mode, go to step 9.

9 Press EDIT/CHECK while pressing SHIFT on the remote control for recording of the second side.

"B" is displayed.

10 Turn over the tape in Deck 1 and press to start recording.

Recording starts.

To stop recording

Press on Deck 1. Recording and CD play stop simultaneously.

To check the order of the programmed track numbers

Before recording, press EDIT/CHECK while pressing SHIFT on the remote control to select side A or B, and press or repeatedly.

To change the program of each side

Press EDIT/CHECK while pressing SHIFT on the remote control to select side A or B, and press CLEAR to clear the program on the selected side. Then program tracks again.

To clear the edit program

Press CLEAR twice in stop mode so that "EDIT" disappears on the display.

SETTING THE TIMER

The unit can be turned on at a specified time every day with the built-in timer.

Preparation

Make sure the clock is set correctly.

1 Press TIMER to display ②, then press ENTER within 6 seconds.

is displayed and the hour flashes.

NOTE

If you press ENTER after 6 seconds, another operation may start.

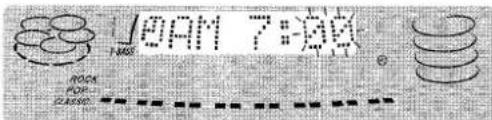

2 Designate the hour of the timer-on time by turning MULTI JOG, then press ENTER.

Repeat to designate the minute of the timer-on time.

After you designate the timer-on time, one of the source names flashes on the display.

3 Press one of the function buttons to select a source, then press ENTER.

If TUNER/BAND is pressed, the band cannot be selected in this step.

4 Select the duration for the timer-activated period with MULTI JOG, then press ENTER.

The duration for the timer-activated period can be set between 5 and 240 minutes in 5-minute steps.

5 Prepare the source.

To listen to a CD, load the disc to be played first on tray 1.

To listen to a tape, insert the tape into Deck 1 or 2.

To listen to the radio, tune in to a station.

6 Press POWER to turn the unit off after adjusting the volume and tone.

remains on the display after the power is turned off (timer standby mode).

7 Get ready for the TAPE function or the timer recording.

To listen to the tape, press

To record the source, press on Deck 1.

When the timer-on time is reached, the unit turns on and begins play with the selected source.

The volume level is automatically set to 16 when the power is turned off with the volume level set to 17 or more.

The timer recording period and tape length

When the length of the tape to be recorded is shorter than the timer recording period, on Deck 1 is released before the timer is off.

When the tape length is longer than the timer recording period,

is not released. If is not released for a long time, the tape in the deck may be damaged. Press to release

To check the specified time and source

Press TIMER. The timer-on time, the selected source name and the duration for the timer-activated period are displayed for 4 seconds.

To cancel timer standby mode temporarily

Press TIMER repeatedly until disappears on the display.

To restore the timer standby mode, press TIMER once or twice to display ②.

Using the unit while the timer is set

You can use the unit normally after setting the timer.

Before turning off the power, carry out step 5 to prepare the source, and adjust the volume and tone.

NOTE

• Timer playback and timer recording will not begin unless the power is turned off.

• Connected equipment cannot be turned on and off by the built-in timer of this unit. Use an external timer.

• and are also available instead of MULTI JOG.

• ISET is also available in stead of ENTER.

SETTING THE SLEEP TIMER

The unit can be turned off automatically at a specified time.

Use the remote control.

1 Press SLEEP while pressing SHIFT.

2 Within 4 seconds, turn MULTI JOG or press or to specify the time until the power is turned off.

The time changes between 5 and 240 minutes in 5-minute steps. Specified time

To check the time remaining until the power is turned off Press SLEEP once while pressing SHIFT. The remaining time is displayed for 4 seconds.

To cancel the sleep timer

Press SLEEP twice while pressing SHIFT so that "SLEEPoFF" appears on the display.

BASIC OPERATION

Preparation

• Connect the supplied stereo turntable to the main unit. (See page 3)
• Set EQUALIZER AMP, selector on the turntable to ON position. (Refer to the operating instructions of the turntable for details.)

1 PressVIDEO/AUX/PHONO on the main unit.

"VIDEO" appears on the display.
The source name on the display can be changed to "PHONO". (See "LISTENING TO EXTERNAL SOURCES" on page 16.)

2 Adjust the volume to minimum.

Turn VOLUME counterclockwise until "VOL 0" is displayed.

3 Play the turntable.

Refer to the operating instructions of the turntable for details.
4 Adjust the volume according to your preference.

CONNECTING OPTIONAL EQUIPMENT

Refer to the operating instructions of the connected equipment for details.

• The connecting cords are not supplied. Obtain the necessary connecting cords.
• Consult your local Aiwa dealer for optional equipment.

VIDEO/AUX/PHONO IN JACKS

This unit can input analog sound signals through these jacks. Use a cable with RCA phono plugs to connect audio equipment (LD players, MD players, VCRs, TV, etc.).

Connect the red plug toVIDEO/AUX/PHONO IN R jack, and the white plug toVIDEO/AUX/PHONO IN L jack.

CD DIGITAL OUT (OPTICAL) JACK

This unit can output CD digital sound signals through this jack. Use an optical cable to connect digital audio equipment (DAT deck, MD recorder, etc.).

Remove the dust cap ⑧ from the CD DIGITAL OUT (OPTICAL) jack. Then, connect an optical cable plug to the CD DIGITAL OUT (OPTICAL) jack.

When the CD DIGITAL OUT (OPTICAL) jack is not being used

Attach the supplied dust cap.

LISTENING TO EXTERNAL SOURCES

To play equipment connected to VIDEO/AUX/PHONO IN jacks proceed as follows.

1 Press VIDEO/AUX/PHONO.

"VIDEO" appears on the display.

2 Play the connected equipment.

To change a source name on the display

WhenVIDEO/AUX/PHONO is pressed, "VIDEO" is displayed initially. It can be changed to "AUX", "PHONO" or "TV".

With the power on, press POWER while pressing VIDEO/AUX/PHONO.

Repeat the procedure to select one of the names.

CARE AND MAINTENANCE

Occasional care and maintenance of the unit and the software are needed to optimize the performance of your unit.

To clean the cabinet

Use a soft and dry cloth.

If the surfaces are extremely dirty, use a soft cloth lightly moistened with mild detergent solution. Do not use strong solvents, such as alcohol, benzine or thinner as these could damage the finish of the unit.

To clean the heads and tape paths

After every 10 hours of use, clean the heads and tape paths with a head cleaning cassette or cotton swab moistened with cleaning fluid or denatured alcohol. (These cleaning kits are commercially available.)

When cleaning with a cotton swab, wipe the recording/playback head, erasure head (Deck 1 only), capstans, and pinchrollers.

After cleaning the heads and tape paths with a liquid head cleaning cassette or a moistened swab, wait until the cleaned parts are completely dry before inserting the tapes.

To demagnetize the heads

The heads may become magnetized after long-term use. This may narrow the output range of recorded tapes and increase noise. After 20 to 30 hours use, demagnetize the heads with any commercially available demagnetizer.

Care of discs

• When a disc becomes dirty, wipe the disc from the center out with a cleaning cloth.

After playing a disc, store the disc in its case. Do not leave the disc in places that are hot or humid.

Care of tapes

• Store tapes in their cases after use.
• Do not leave tapes near magnets, motors, television sets, or any source of magnetism. This will downgrade the sound quality and cause noise.
• Do not expose tapes to direct sunlight, or leave them in a car parked in direct sunlight.

TROUBLESHOOTING GUIDE

If the unit fails to perform as described in these Operating Instructions, check the following guide.

GENERAL

There is no sound.

Is the AC cord connected properly?
- Is there a bad connection? (→ page 3)
- There may be a short circuit in the speaker terminals.

Disconnect the AC cord, then correct the speaker connections.

Was an incorrect function button pressed?

Sound is emitted from one speaker only.

Is the other speaker disconnected?

An erroneous display or a malfunction occurs.

Reset the unit as stated below.

TUNER SECTION

There is constant, wave-like static.

Is the antenna connected properly? ( page 3)
Is the signal weak?

Connect an outdoor antenna.

The reception contains noise interferences or the sound is distorted.

• Is the system picking up external noise or multipath distortion?
  Change the orientation of the antenna.
  Move the unit away from other electrical appliances.

CASSETTE DECK SECTION

The tape does not run.

Is the deck in pause mode? ( page 8)

The sound is off-balance or not adequately high.

Is the playback head dirty? ( page 17)

Recording is not possible.

Is the erasure prevention tab on the tape broken off? (→ page 11)

Is the recording head dirty? ( page 17)

Erasure is not possible.

Is the erasure head dirty? ( page 17)
Is a metal tape being used?

High frequency sound is not emitted.

Is the recording/playback head dirty? ( page 17)

CD PLAYER SECTION

The CD player does not play.

Is the disc correctly placed? ( page 9)
Is the disc dirty? (→ page 17)
Is the lens affected by condensation?

→ Wait approximately one hour and try again.

To reset

If an unusual condition occurs in the display window or the cassette decks, reset the unit as follows.

1 Press POWER to turn off the power.
2 Press POWER to turn the power back on while pressing CLEAR. Everything stored in memory after purchase is canceled.

If the power cannot be turned off in step 1 because of a malfunction, reset by disconnecting the AC cord, and connect it again. Then carry out step 2.

SPECIFICATIONS

Main unit CX-ZR555
FM tuner section
Tuning range	87.5 MHz to 108 MHz
Usable sensitivity (IHF)	13.2 dBf
Antenna terminals	75 ohms (unbalanced)
AM tuner section
Tuning range	530 kHz to 1710 kHz (10 kHz step)
	531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity	350 μV/m
Antenna	Loop antenna
Amplifier section
Power output	30 W + 30 W (6 ohms T.H.D. 1%, 1 kHz)
Total harmonic distortion	0.05 % (15 W, 1 kHz, 6 ohms, DIN AUDIO)
Inputs	VIDEO/AUX/PHONO IN: 500 mV
Outputs	SPEAKERS: accept speakers of 6 ohms or more
	PHONES (stereo jack): accepts headphones of 32 ohms or more
Cassette deck section
Track format	4 tracks, 2 channels stereo
Frequency response	50 Hz - 10000 Hz
Recording system	AC bias
Heads	Deck 1: Recording/playback head ×1, erase head ×1
	Deck 2: Playback head ×1

Compact disc player section
Laser	Semiconductor laser (λ = 780 nm)
D-A converter	1 bit dual
Signal-to-noise ratio	85 dB (1 kHz, 0 dB)
Harmonic distortion	0.05 % (1 kHz, 0 dB)
Wow and flutter	Unmeasurable
General
Power requirements	120 V AC, 60 Hz
Power consumption	90 W
Dimensions of main unit	360 × 394.5 × 381 mm
(W × H × D)	(141/4 × 155/8 × 15 in.)
Weight of main unit	7.5 kg (16 lbs. 9 oz)

Speaker system SX-ZR25
Cabinet type	2 way, bass reflex
Speakers	Woofer: 130 mm (51/4 in.) cone type Super tweeter: 20 mm (13/16 in.) ceramic type
Impedance	6 ohms
Output sound pressure level	87 dB/W/m
Dimensions (W × H × D)	260 × 444 × 205 mm (101/4 × 171/2 × 81/8 in.)
Weight	3.3 kg (7 lbs. 4 oz)

Specifications and external appearance are subject to change without notice.

COPYRIGHT

Please check the laws on copyright relating to recordings from discs, radio or external tape for the country in which the machine is being used.

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Modifications or adjustments to this product, which are not expressly approved by the manufacturer, may void the user's right or authority to operate this product.

ADVERTENCIA

PARA REDUCIR EL RIESGO DE INCENDIOS O SACUDidas ELECTRICAS, NO EXPONGA STE APARATO A LA LLUVIA N A LA HUMEDAD.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

*PRECAUCION:PARA REDUCIR EL RIESGO DE QUE SE PRODUZCAN SACUDIDAS ELECTRICAS, NO QUITE LA CUBIERTA (O PANEL POSTERIOR).

EN EL INTERIOR NO HAY PIEZAS QUE

SINTONIZATION MANUAL 7

PREAJUSTE DE EMISORAS 8

REPRODUCCION DE CINTAS

SINTONIZATION MANUAL

Paraocularly, a small amount of water is added to the bottom of the container.

SINTONIZATION MANUAL 7

PREAJUSTE DE EMISORAS 8

REPRODUCCION DE CINTAS

SINTONIZATION MANUAL

Paraocularly, a small amount of water is added to the bottom of the container.

TOMA CD DIGITAL OUT (OPTICAL)

(Platine 1)
(Platine 2)

PRISE CD DIGITAL OUT (OPTICAL)

GEQ (Graphic equalizer)

(ROCK,POP,CLASSIC) 6

TUNER PRESET 7,8

CLOCK/Dimmer 5,6

TIMER 14

PHONES 6

4 CLEAR 5,8-10,12-14

17

PRESET 5,8-10

SET 5,8,9,11,14

UPI/ 5-10,12-15

DOWN. 5-10,12-15

5 DECK 1 (, , , , , , , . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DISC DIRECT PLAY1-5. 9,10,12,13

OPEN/CLOSE 9,10

DISC CHANGE 9

7 VOLUME 6

DEMO 5

3 DECK 2 (>, <, >, /, II) ..... 8

Name/Nombre/Nom

Page/Pagina/Page

DISC DIRECT PLAY1-5. 9,10,12,13

10 0-9,+10 .8,9,12,13

1/EDIT/CHECK 9,12,13

2/PRGM 10

3/RANDOM/REPEAT 10

4/GEQ 6

6/T-BASS 6

7/TIMER 14

8/SLEEP 15

9/CLOCK 5

0/MONO/TUNER 7,11

+10/BAND 7,8

SHIFT 4

12 FUNCTION 4

6 POWER 5,15,17

14 UP▶H/▶ 5-10,12-15

↓/↓DOWN 5-10,12-15

ISET 5,8,9,11,14

CLEAR 5,8-10,12-14

17

PRESET 5,8,10

VOLUME ( ,) 6

For assistance and information

call toll free 1-800-BUY-AIWA (United States and Puerto Rico)
