USER MANUAL WS160FSAA HAIER

WS160FSAA2 Heading 1 Names of Wine Cellar Components WS160FSAA (160 bottle capacity) Door handle Wine cellar register Wooden shelf Pull-out shelf Pull-out shelf Adjustable foot screw Door3 Heading 1

1. Read all of the instructions before using this appliance.

2. Use this appliance only for its intended purpose as described in this use

3. This wine cellar must be properly installed in accordance with the

installation instructions before it is used. See grounding instructions in the installation section.

4. It is intended strictly for household use. If using it for industrial or

commercial purpose, be sure to observe the relevant norms and regulations. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

5. The appliance must be positioned so that the plug is accessible.

6. If the supply cord is damaged, it must be replaced by the manufacturer, its

service agent or similarly qualied persons in order to avoid a hazard.

7. Keep ventilation openings, in the appliance enclosure or in the built-in

structure, clear of obstruction.

8. Do not use mechanical devices or other means to accelerate the defrosting

process, other than those recommended by the manufacturer.

9. Do not damage the refrigerant circuit.

10. Do not use electrical appliances inside the food storage compartments

of the appliance, unless they are of the type recommended by the manufacturer.

11. If the light is damaged, it must be replaced by the manufacturer, its service

agent or similarly qualied persons in order to avoid a hazard.

12. This appliance is intended to be used exclusively for the storage of wine.

13. Risk of child entrapment. Before you throw away your old wine cellar, take

off the doors. Leave the shelves in place so that children may not easily climb inside.

14. Do not store explosive substances such as aerosol cans with a ammable

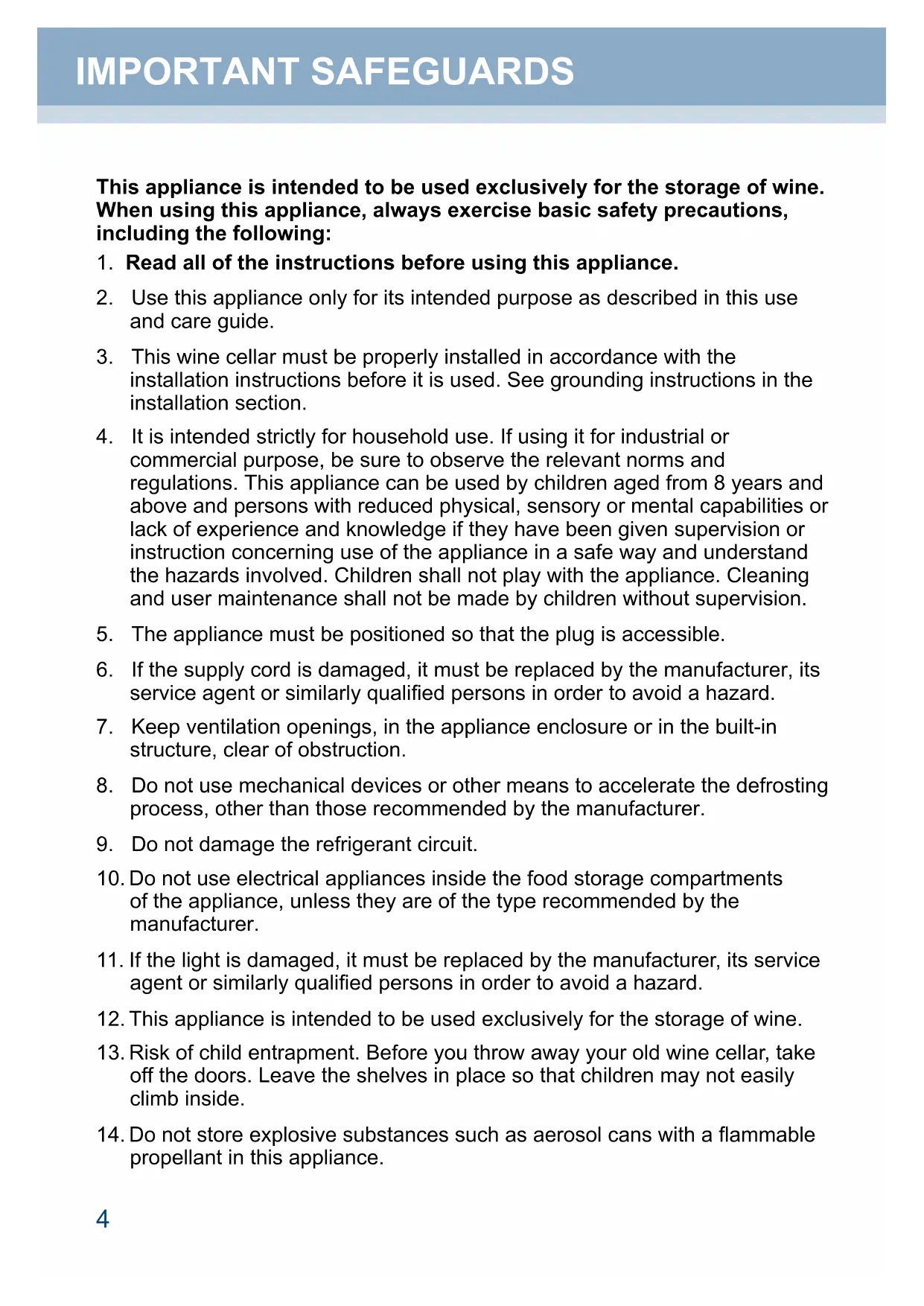

propellant in this appliance. IMPORTANT SAFEGUARDS5 Heading 1

Installing Your Wine Cellar Unpacking Your Wine Cellar 1. Remove all packaging material. This includes the foam base and all adhesive tape holding the wine cellar accessories inside and outside. 2. Inspect and remove any remains of packing, tape or printed materials before powering on the wine cellar. Leveling Your Wine Cellar

• Your wine cellar has four leveling legs which are located in the front and rear corners of your wine cellar. After properly placing your wine cellar in its nal position, you can level your wine cellar. • Leveling legs can be adjusted by turning them clockwise to raise your wine cellar or by turning them counterclockwise to lower your wine cellar. The wine cellar door will close easier when the leveling legs are extended. Proper Air Circulation
• To assure your wine cellar works at the maximum efciency it was designed for, you should install it in a location where there is proper air circulation, plumbing and electrical connections. • The following are recommended clearances around the wine cellar: Sides ................4" (100mm) Top ................... 4" (100mm) Back .................4" (100mm) • Do not over ll your wine cellar for proper wine cooling. Note: If your wine cellar has been tilted for any reason, wait 24 hours before plugging it in. More than 10 cm from the top More than 10 cm from the right High Low Adjustable foot screw More than 10 cm from the rear More than 10 cm from the left6 Heading 1 Electrical Requirement

• Make sure there is a suitable power Outlet (220-240V, 15 amps outlet) with proper grounding to power the wine cellar.

• Avoid the use of three plug adapters or cutting off the third grounding in order to accommodate a two plug outlet. This is a dangerous practice since it provides no effective grounding for the wine cellar and may result in shock hazard. Install Limitations

• Do not install your wine cellar in any location not properly insulated or heated e.g. garage etc. Your wine cellar was not laid to operate if the ambient temperature is below 10°C.

• Select a suitable location for the wine cellar on a hard even surface away from direct sunlight or heat source e.g. radiators, baseboard heaters, cooking appliances etc. Any oor unevenness should be corrected with the leveling legs located on the front and rear bottom corners of the wine cellar.

• Your wine cellar is designed for free-standing installation only. It is not designed for built-in application. Use of Extension Cord

• Avoid the use of an extension cord because of potential safety hazards under certain conditions. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot outlet that will accept the plug. The marked rating of the extension cord must be equal to or greater than the electrical rating of the appliance. Initial Setup Once you have plugged the unit into an electrical outlet, let the unit run for at least 30 minutes to acclimatize itself before making any adjustments. During this time, depending on the internal temperature, the red or white wine light will stay on for the upper compartment and red or white wine light will stay on for the lower compartment. The LED display will show the current internal temperature.7 Introduction to Main Functions of The Appliance Control Panel Temperature Setting Button Temperature Display Area Alarm Indicator Rouge Indicator Blanc Indicator Function Setting Button (Rouge/Blanc/Alarm/Child lock) Child lock Indicator OK Button/ Power Button Rouge BlancTemp.SetOK/ 5SFunc.SetChild lockAlarmCave à Vin 1.Automatic locking and Unlocking The appliance has an automatic locking function in order to prevent improper operation of the opera- ting temperature due to accidental triggering. Child lock indicator lights up when no operation for 30s and control panel will be locked. Press “Func. Set”button till "Child lock" flashes, then press “OK/5S”, “Child lock” indicator turns off and control pa- nel unlocked. 2.Temperature Adjustment Under unlocked mode, press

, temperature flashes and control panel starts temp- erature setting. The temperature rises by 1℃each time when “Temp. Set” is pressed and te- mperature circulates between 5~20℃. After 3 seconds, temperature is set. Display will retu- rn to real temperature inside the cabinet. 3.Rouge Indicator 4.Blanc Indicator nction. After setting Rouge mode, Rouge indicator lights up and system works with designed tempera- ture of 12℃.Rouge mode has power-off memory. Under unlocked mode, press

OK/5S” to set this fun- ction. After setting Blanc mode, Blanc indicator lights up and system works with designed temperature of 8℃. Rouge mode has power-off memory. Under unlocked mode, press

to set this fu-8 8.OK/5S Button Function 5.Alarm Function 6.Child Lock 9.Power-off Memory 7.Screen Saver Function Breakdown alarm: If alarm icon flashes with intermittent buzzer and display shows “E0, E7, F4, E1, F1, dr or L1”, that means the product requires a servicing, please contact the after sales service. Door alarm: If the door is left open over 60s, buzzer starts but no alarm indicator.The alarm condition will stop by closing the door or by pressing “Func. Set” to select Alarm function and pressing the “OK /5S”button. Under unlocked mode, press “Func. Set” button to select “Child lock” and press “OK/5S” to confirm the function, the function will be on. To unlock the display, press any button and display lights up, then press “Func. Set” till Child lock icon flashes,press “OK/5S”. 10.Livre des Vins(Wine cellar register function) Under unlocked mode, the display turns off if no button is pressed within 30s and the door is closed, system starts screen saver mode. (Display lights up if any button is pressed or door is open, but the display will keep locked). When a certain function is selected, press “OK/5S” to confirm this function, or else the selected function will be cancelled after the icon flashes 5 times. Press the OK/5S button for 5 seconds to power off the cabinet. In case of power failure, the cabinet will automatically save the set temperature. After power recovery, it will run based on the temperature set before the power failure while other functions will return to the default status. Livre des Vins helps to manage information of your wine collection. Below information below could be registered: Use only white water pen to write on the register so as the register can be reused, do not use oil pen. To erase information, use a slightly moistened cloth or sponge. Never use detergent or abrasive mat- erials. There is a pen box on top of the register which can be used to hold the water pen horizontally. Couleur: Color Appellation: Region Millésime: Year Quantité: Quan

Do not place too much wine in the cellar so as not to exceed the bearing capacity of the wine shelves. Do not place more than three layers of wine on each shelf. The number of wine bottles should not exceed three layers on each shelf, or the bearing capacity of the wine shelves should not exceed 35kg.Before placing the bottles inside the wine cellar, conrm whether or not the wine shelves are completely stable.In addition, conrm whether or not any bottle protrudes from the shelves in order to prevent bottles hitting the glass door upon closing. Precautions for Use of Wine Cellar Automatic Defrosting This appliance has an automatic defrosting function.When using the appliance for the rst time, please place a through-hole pin at the drainage hole. During use, ensure that the drainage hole is unblocked so as to force defrosting water to ow smoothly through the drainage hole into the water receiver inside the cellar cabin. If blocked, take the through-hole pin inside drainage hole out, clear away blockages inside and then put the pin back.Regularly clean water receivers at the bottom of the upper and lower compartments; use a dry cloth to absorb water inside the water receivers and wipe down them (clean them every three months as suggested). Air exchange with activated carbon lter The way in which wines continue to mature depends on the ambient conditions. The quality of the air is therefore decisive for preserving the wine. An activated carbon lter has been tted in the lower area of the rear wall of the appliance to ensure that the air through put remains at an optimum quality. CAUTIONWe recommend that you replace the lter once a year. Filters can be obtained from your dealer. Changing the lter: Take the lter by the handle. Turn it to the left and remove. Inserting the lter: Insert with the handle in a vertical position. Turn it to the right and insert. Through-hole pinDrainage hole10 Heading 1 Shelving

• The shelves are designed for appearance and easy cleaning. Larger bottles or Magnums can be more easily accommodated at the cross shelves at the bottom of the cellar.

• There are some shelves for easy storage and removal of your wine. Normal Operating Sounds You May Hear

• Boiling water, gurgling sounds or slight vibrations that are the result of the refrigerant circulating through the cooling coils.

• The thermostat control will click when it cycles on and off.11 Heading 1

Cleaning and Maintenance

To avoid electric shock always unplug your wine cellar before cleaning. Ignoring this warning may result in death or injury. Caution: Before using cleaning products, always read and follow manufacturer's instructions and warnings to avoid personal injury or product damage. General:

• Prepare a cleaning solution of 3-4 tablespoons of baking soda mixed with warm water. Use sponge or soft cloth, dampened with the cleaning solution, to wipe down your wine cellar.

• Rinse with clean warm water and dry with a soft cloth.

• Do not use harsh chemicals, abrasives, ammonia, chlorine bleach, concentrated detergents, solvents or metal scouring pads. SOME of these chemicals may dissolve, damage and/or discolor your wine cellar. Door Gaskets:

• Clean door gaskets every three months according to general instructions. Gaskets must be kept clean and pliable to assure a proper seal.

• Petroleum jelly applied lightly on the hinge side of gaskets will keep the gasket pliable and assure a good seal. Wine Shelf: If the wine shelf was accidentally sprinkled with wine or water droplets, please use 300-400 sandpaper to polish, then use soft cloth to wipe down the sawdust. Do not use towel or soft cloth with water. Power Interruptions

• Occasionally there may be power interruptions due to thunderstorms or other causes. Remove the power cord from AC outlet when a power outage occurs. When power has been restored, replug power cord to AC outlet. Vacation and Moving Care

• For long vacations or absences, unplug the wine cellar and clean the wine cellar and door gaskets according to "General cleaning" section. Leave doors open, so air can circulate inside.

• When moving always move the wine cellar vertically. Do not move with the unit lying down, as possible damage to the sealed system could occur. Note: After moving, wait for 24 hours before plugging in the wine cellar. Proper Wine Cellar Care and Cleaning12 Heading 1 Wine Cellar Does Not Operate:

• Check if wine cellar is plugged in.

• Check if there is power in the AC outlet, by checking the circuit breaker. Wine appears too warm:

• Frequent door openings.

• Allow time for recently added wine to reach desired temperature.

• Check gaskets for proper seal.

• Clean condenser coils.

• Adjust temperature control to colder setting. Wine temperature is too cold:

• If temperature control setting is too cold, adjust to a warmer setting. Wine cellar runs too frequently:

• This may be normal to maintain constant temperature during high temperature and humid days.

• Doors may have been opened frequently or for an extended period of time.

• Clean condenser coils.

• Check gasket for proper seal.

• Check to see if doors are completely closed. Moisture build up on interior or exterior of the wine cellar:

• This is normal during high humidity periods.

• Prolonged or frequent door openings.

• Check door gaskets for proper seal. Wine cellar door does not shut properly:

• Level the wine cellar.

• Check for blockages e.g. wine bottles, shelves. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact you local government for information regarding the collection systems available. If electrical appliances are disposed of in landlls or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge. TroubleShooting13 Heading 1

Technical Data•Packing List Technical Data Packing List This appliance is being developed continuously. We reserve the right to change the components of the wine cellar without notice.User GuideInformation KitPull-out Shelf Wooden ShelfThrough-hole Pin Key WS160FSAA 1 1 2 5 1 2 Model Climate Type Electric Shock Resistance TypeAvailable Capacity (l) Rated Voltage (V)Rated Frequency (Hz) Input Power (W) WS160FSAA SN~ST I 360 220~240 50 75Temperature Range (°C) Refrigerant (R600a) (g) Supply Cord Connection Mode Weight (kg) Noise (Acoustic Power Level) dB (A)Overall Dimension (Depth × Width × Height) (mm) 5~20 65 Y 73 39 639×595×1,850 Remarks:
