Product Type	Wine Cellar
Brand	Haier
Model	HWS58GGH1
Capacity	58 bottles (0.75 L)
Energy class	G
Annual energy consumption	147 kWh/year
Dimensions (W × D × H)	475 × 456 × 1280 mm
Power supply	220-240 V ~ 50 Hz
Refrigerant	R600a (isobutane, flammable)
Temperature range	5 °C to 20 °C
Lighting	LED, switch
Lock	Yes, with key
Wi-Fi	Yes, compatible with hOn app
Door open alarm	Yes
Defrost	Automatic
Power failure memory	Yes
Winter mode	Low temperature compensation
Door reversibility	Yes, left/right
Cleaning	Interior: warm water and neutral detergent; door seals: every 3 months
Safety	Flammable refrigerant, installation precautions
Spare parts	Thermostats, sensors, boards, lights: 7 years; door seals: 10 years
Warranty	2 years (EU)
Noise level	37 dB(A)

Frequently Asked Questions - HWS58GGH1 HAIER

How to install my Haier HWS58GGH1 wine cellar?

Place the appliance in a well-ventilated area, away from sunlight and heat sources. Leave at least 50 mm of space around the appliance. Let it rest for 30 minutes before plugging in after transport, then 2 hours before first use.

How to adjust the temperature?

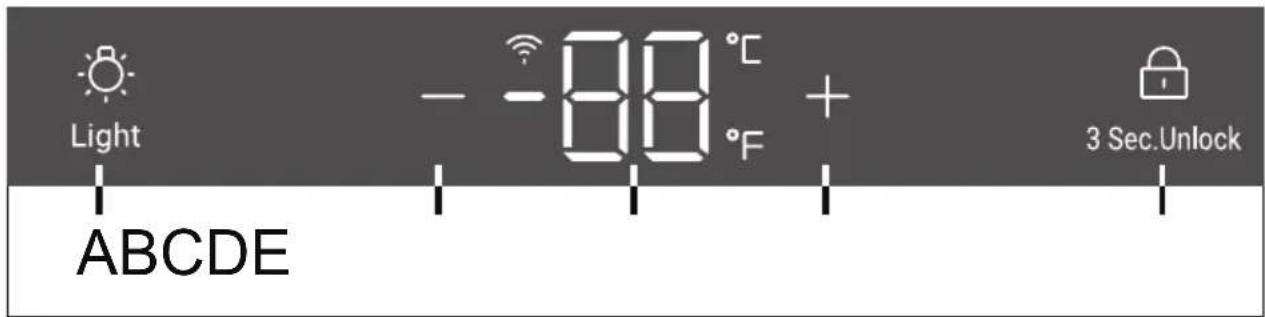

Unlock the display by pressing the lock key for 3 seconds. Press + or - to set between 5 °C and 20 °C. The temperature is automatically confirmed after 3 seconds of inactivity.

What to do if the door open alarm sounds?

Close the door or press any key on the panel to stop the alarm. The alarm triggers if the door remains open for more than one minute.

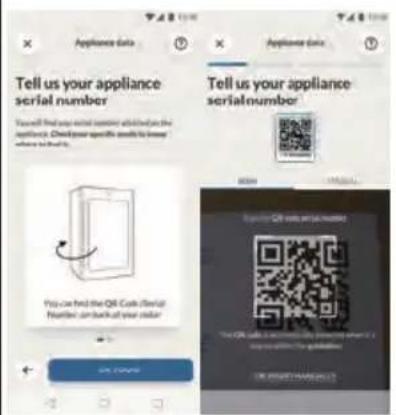

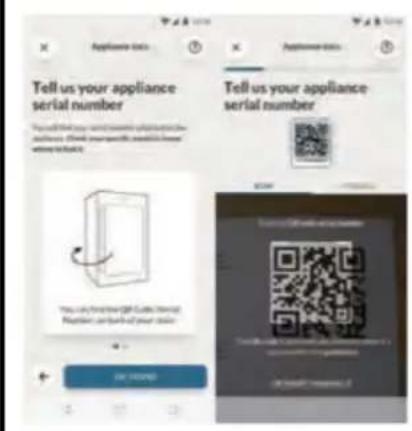

How to connect Wi-Fi?

Press the Light key for 3 seconds to activate Wi-Fi. Download the hOn app, create an account, add the device via QR code or serial number, then follow the instructions.

How to lock or unlock the door?

Use the supplied key: turn clockwise to unlock, counterclockwise to lock. Keep the key out of reach of children.

How to clean the interior of the wine cellar?

Unplug the appliance. Clean with a sponge soaked in warm water and neutral detergent. Rinse and dry with a soft cloth. Do not clean the glass door with hot water.

Do I need to defrost manually?

No, defrosting is automatic. No manual intervention is needed.

What to do if the wine cellar does not cool enough?

Check that the set temperature is not too high, that the door is closing properly, that the seals are clean, and that ventilation around the appliance is adequate. Wait after adding bottles.

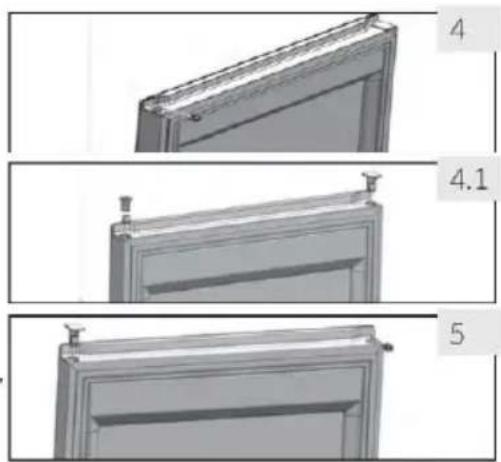

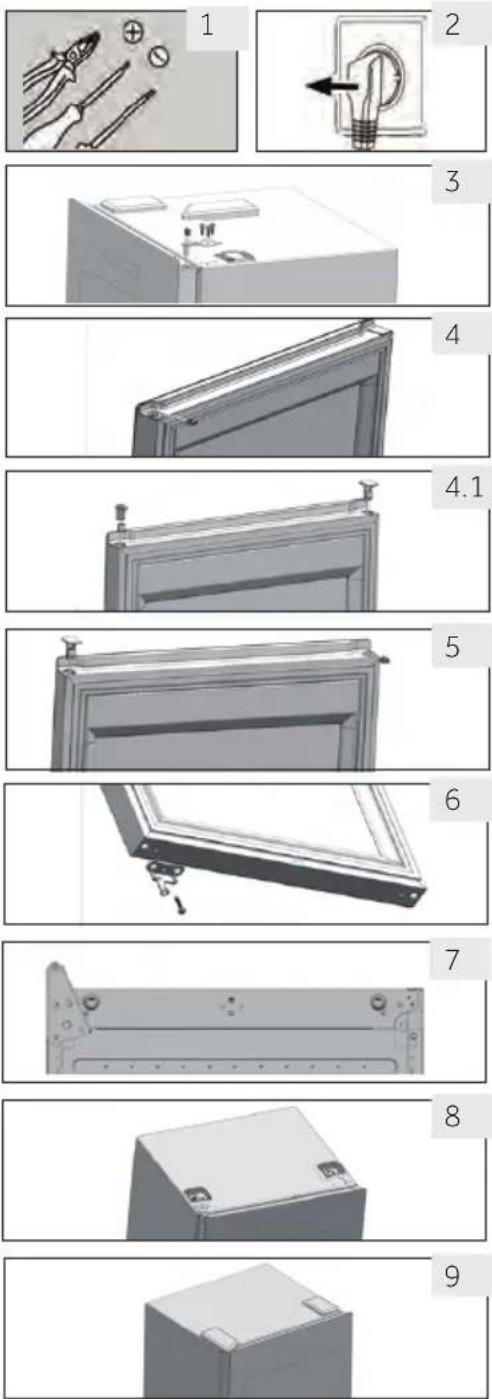

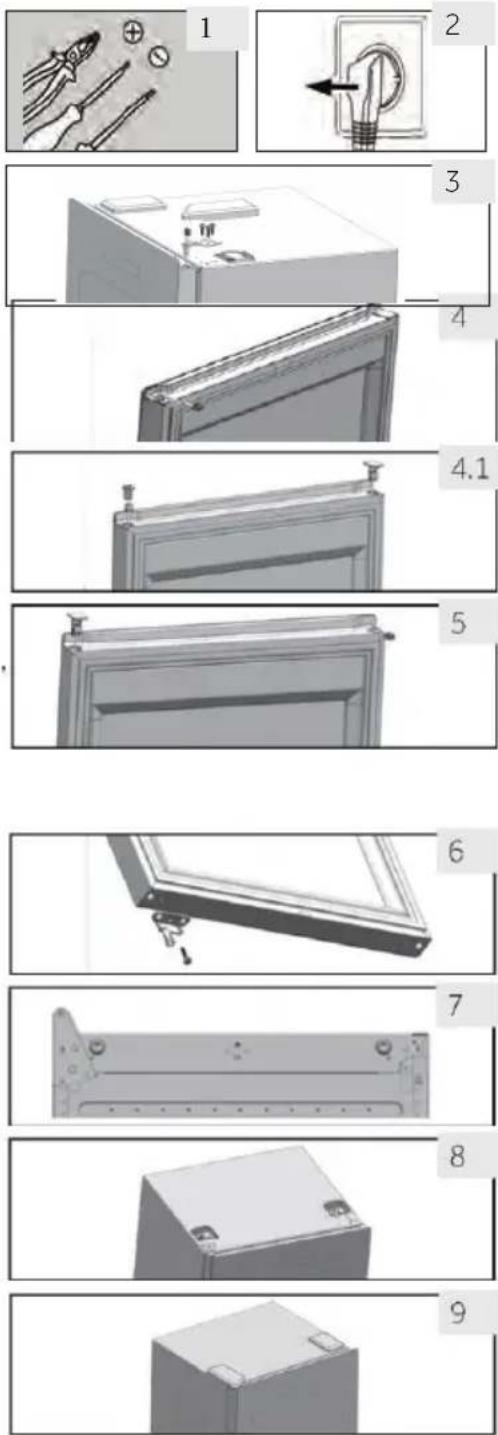

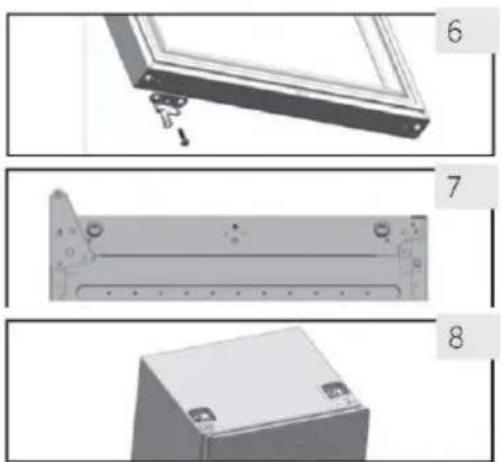

Can the door opening direction be reversed?

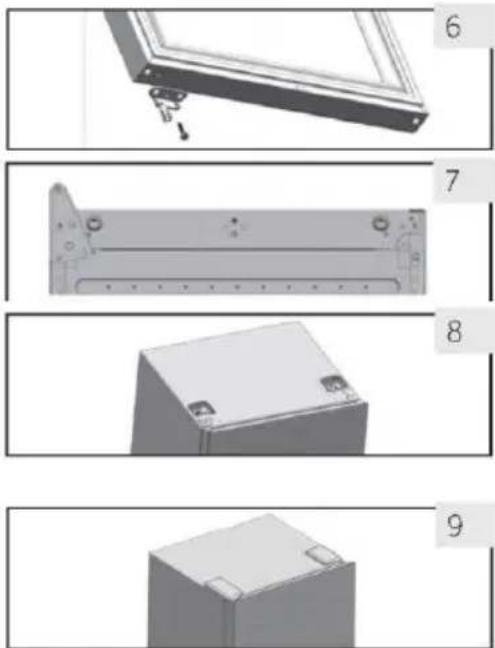

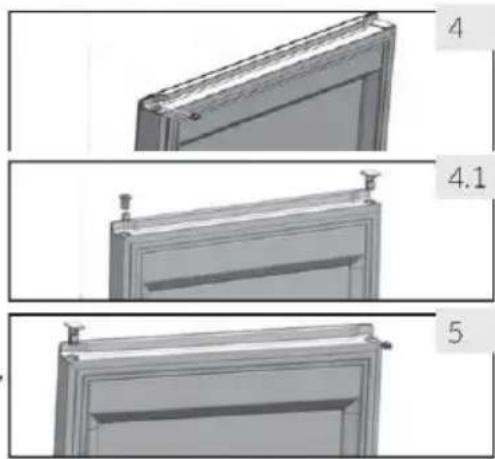

Yes, the door is reversible. Unplug the appliance, tilt it to less than 45°, then follow the steps in the manual to move the hinges to the left. Requires two people.

What safety precautions related to the refrigerant?

The appliance contains R600a (isobutane), a flammable gas. In case of leak, ventilate the room, avoid flames, do not plug/unplug anything, and contact customer service. Do not puncture the refrigerant circuit.

USER MANUAL HWS58GGH1 HAIER

EN WARNING: Risk of fire/flammable material.

The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by ingiting flammable material.

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

Symbol of a trash bin crossed with no text or labels

Legend

Warning – Important Safety information

General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

WARNING!

Risk of injury or suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance.

Old appliances still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again.

Cyclopentane, a flammable substance not harmful to ozone, is used as an expander for the insulation foam.

By ensuring this product is disposed of corectly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused.

For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product, handled by the professionals.

EN

Content

1 - Safety information....4
2 - Safety tips....7
3 - Maintenance .... 11
4-Accessories....13
5- Product description 14
6-Installation 15
7-Use....19
8- Energy saving tips 24
9 - Equipment 25
10- Care and cleaning 26
11- Troubleshooting 27
12- Technical data .... 30
13- Customer Service 31

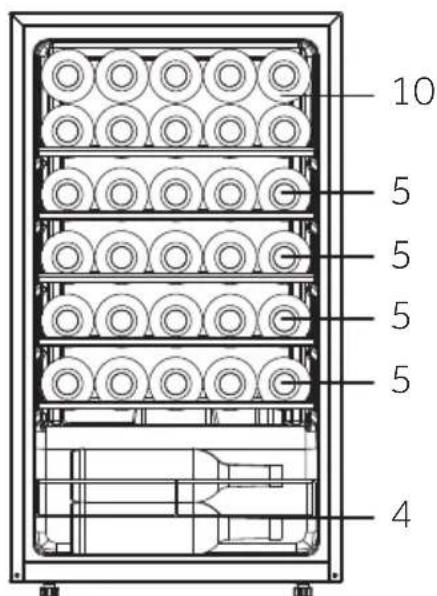

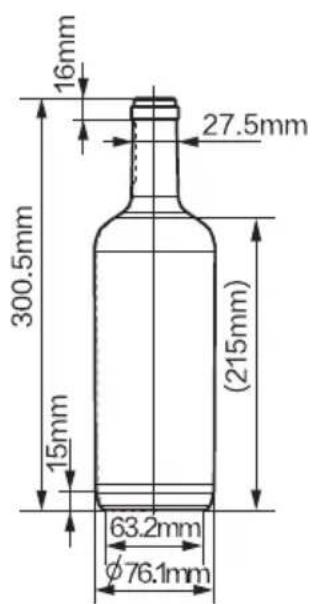

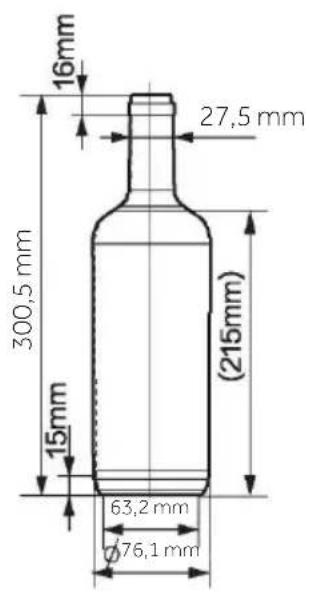

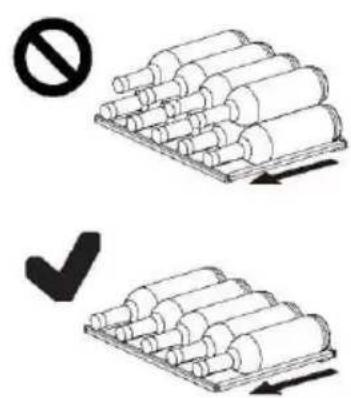

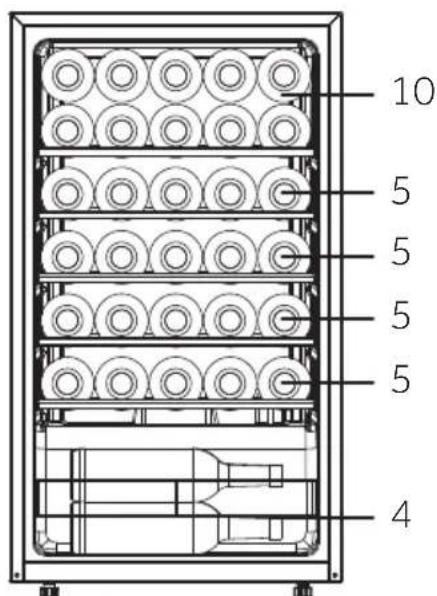

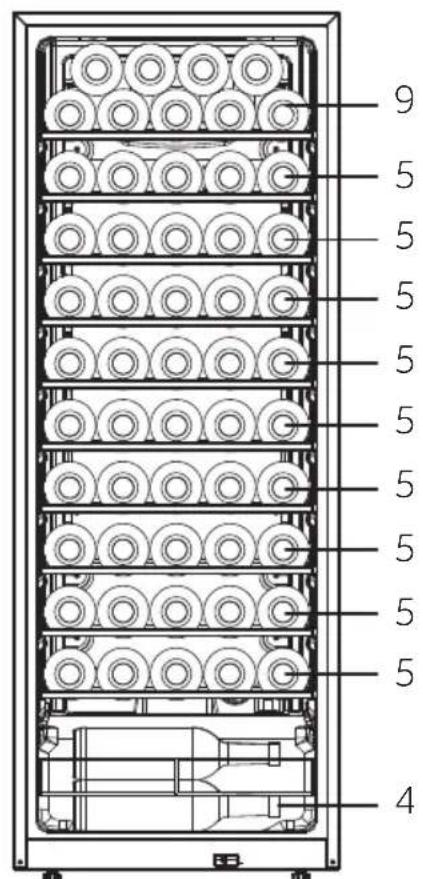

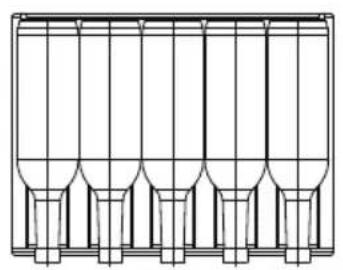

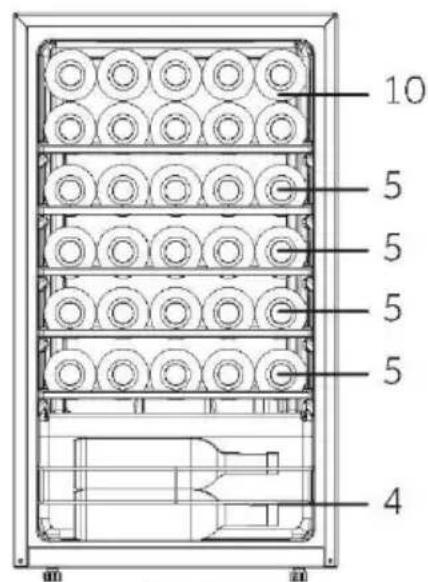

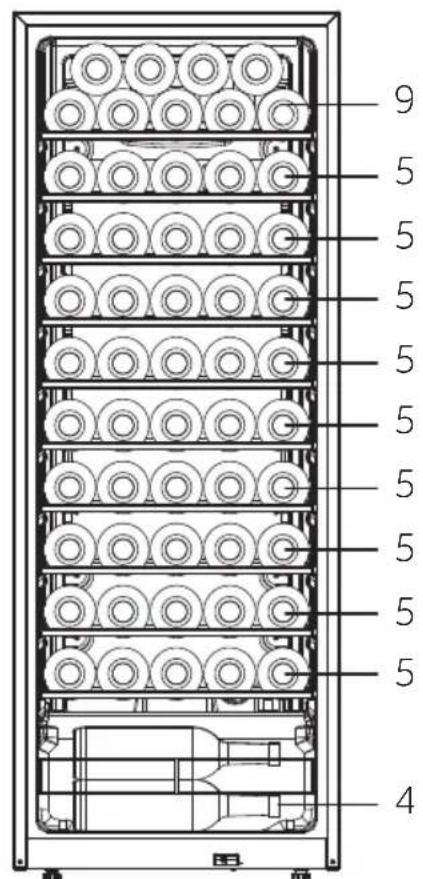

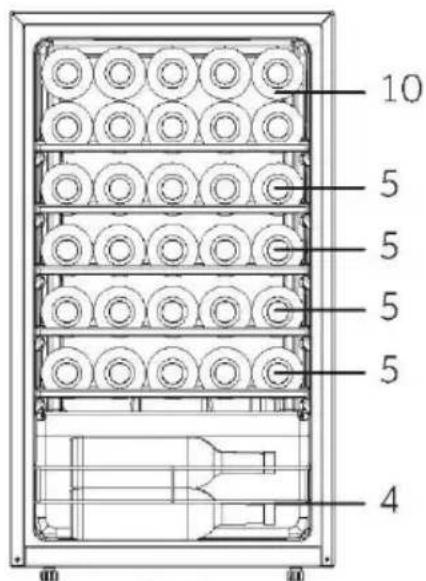

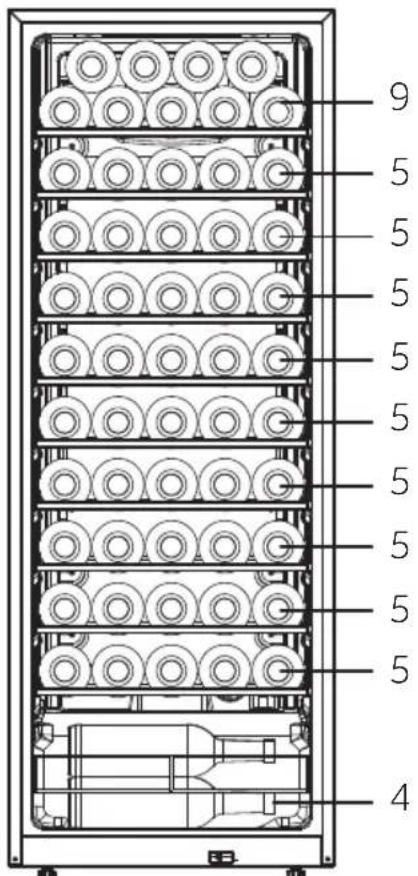

14- Wine bottle stacking....32

This appliance is intended to be used exclusively for the storage of wine. Before switching on the appliance for the first time read the following safety hints:

WARNING!

Before first use

▶ Make sure there is no transport damage.
Remove all packaging and keep out of children's reach and dispose them in an environmentally friendly manner.
▶Wait at least 0.5 hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient.
▶ Handle the appliance always with at least two persons because it is heavy.

Installation

The appliance should be placed in a well-ventilated place. Ensure a space of at least 50mm above and around the appliance.
▶WARNING : Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
▶Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth.
▶ Do not install your wine cellar in any location not properly insulated or heated e.g. garage etc. Your wine cellar was not designed to operate in ambient temperature below 10°C.
▶Do not install the appliance in direct sunlight or in the near of heat sources(e.g.stoves,heaters).
▶ Install and level the appliance in an area suitable for its size and use.
▶Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.
▶Do not use multi-plug adapters and extension cables.

WARNING!

▶WARNING: Do not locate multiple portable socket outlets or portable power supplies at the rear of the appliance.

▶WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

▶Do not step on the power cable.

▶ Use a separate earthed socket for the power supply which is easy accessible. The appliance must be earthed.

Only for UK: The appliance's power cable is fitted with 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.

▶WARNING: Do not damage the refrigerant circuit.

Daily use

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

▶ Children shall not play with the appliance.

▶Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances, but not allowed to clean and install the refrigerating appliances.

▶ Keep away children under 3 years of age from the appliance unless they are constantly supervised.

▶Cleaning and user maintenance shall not be made by children with out supervision.

The appliance must be positioned so that the plug is accessible.

If coal gas or other inflammable gas is leaking into vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows and do not unplug the power cable of the appliance.

▶ Wait at least 7 minutes to reconnect the power after the power has been disconnected.

▶Do not lift the appliance by its door handles.

The keys must be kept out of the reach of children and not in the vicinity of the appliance to prevent children from being locked inside the appliance.

WARNING!

▶Notice that the appliance is set for operation at the secific ambient range between 10 and 38°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.
▶ Do not place unstable articles(heavy objects, containers filled with water) on top of the appliance, to avoid personal injury caused by falling or electric shock caused by contact with water.
▶Open and close the door only with the handles. The gap between the door and the cabinet is very narrow. Do not put your hands in these areas to avoid pinching your fingers. Open or close the appliance doors only when there are no children standing within the range of door movement.
▶ Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity.
▶Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
▶ Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.
▶Do not set unnecessarily low temperature in the wine cabinet compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst
▶ Do not touch the inside surface of the appliance compartment when in operation, especially with wet hands, as your hands may freeze onto the surface.
For proper wine cooling, do not overload the appliance.
▶ Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.
▶WARNING: Do not use electrical devices inside the appliance, unless they are of the type recommended by the manufacturer. To avoid risks a damaged power cord must be replaced by the customer service(see warranty card).
▶ To prolong the service life of the appliance, avoid turning it off.
▶ Never place the appliance horizontally on the ground. After tilting the appliance more than 45^ , wait for 24 hours before plugging it in.

WARNING!

Maintenance / cleaning

Make sure children are supervised if they carry out cleaning and maintenance.
▶ Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.
▶ Hold the plug, not the cable, when unplugging the appliance.
- Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator/freezer detergent to avoid damage. Eventually use warm water and baking soda solution - about a tablespoon of baking soda to a litre/quart of water. Rinse thoroughly with water and wipe dry. Do not use cleaning powders or other abrasive cleaners. Do not wash removable parts in a dishwasher.
▶WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
▶ Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.
If the illuminating lamps are damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
▶ Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption.

▶ Do not spray or flush the appliance during cleaning.
▶ Do not use water spray or steam to clean the appliance.
▶Do not clean the cold glass door with hot water. Sudden temperature change may cause the glass to break.
▶ If you leave your appliance out of use for an extended period, leave it open to prevent odour and unpleasant smells building up inside.

Refrigerant gass information

WARNING!

The appliance contains the flammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service.

In case of eyes get into contact with the refrigerant, rinse it immediately under running water and call immediately the eye specialist.

WARNING: The refrigeration system is under high pressure. Do not tamper with it. Since the flammable refrigerants are used, please, install, handle and service the appliance strictly according to the instruction and contact the professional agent or our after-sales service to dispose of the appliance.

Intended use

This appliance is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

▶To ensure the safe preservation of wine, please comply with this instruction for use.

The details on the most appropriate part in the compartment of the appliance where specific types of food shall be stored, considering the distribution of temperature that can be present in the different compartments of the appliance are in the other part of the manual.

Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.

Disposal

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Since the flammable insulation blowing gases are used, please contact the professional agent or our after-sale service to dispose of the appliance.

WARNING!

Risk of injury of suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals to prevent children and pets to get closed in the appliance.

▶ WARNING: Disconnect the appliance from the power supply before cleaning.

▶ Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.

▶ Clean the appliance when only little or no wine is stored. It is only necessary to clean it when it is dirty.

▶ Clean the inside and housing of the appliance with a sponge damped in warm water and neutral detergent

▶ Rinse with clean warm water and dry with soft cloth.

▶ Do not clean any of the parts of the appliance in a dishwasher.

- Allow at least 7 minutes before re-starting the appliance as frequent starting may damage the compressor.

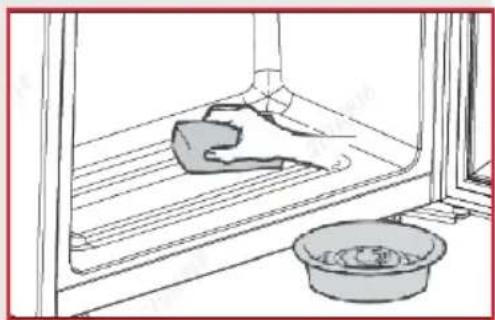

Line drawing of a kitchen sink with a cloth and a basin (no text or symbols)

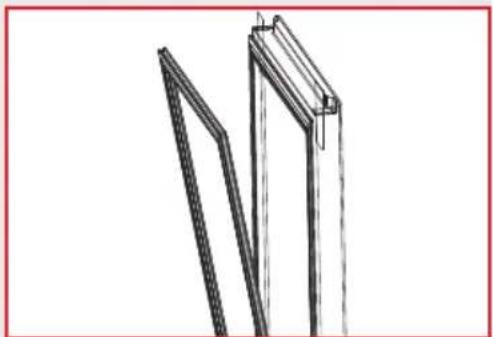

Clean the door gasket:

The door gaskets should be cleaned every 3 months to assure a proper seal. As below: Remove: Grasp the door gasket and pull

it out according to the direction of arrow to remove the whole door gasket in order.

Dip the brush with water or food grade alcohol, clean up the door gasket groove firstly by pulling back and forth the brush. Then wipe door gasket surface with a towel dipped with water or food grade alcohol. Finally, wash the door gasket clean and wipe it dry with a clean towel.

Technical line drawing of two structural beams or panels with vertical supports (no text or symbols)

Installation door gasket after cleaning:

Before installation, make sure that there is no water on the door gasket. Insert the door gasket into the groove, and press the door gasket tightly from the top to the bottom by hand until the whole door gasket is inserted into the groove.

Cleaning the shelves:

▶ All shelves can be taken out for cleaning.
▶ Take out all bottles.
▶ Lift each shelf a little and take it out.
▶ Clean the shelf with a soft towel.
▶Wait until the shelves are dry before putting them back in.

WARNING:

Wait at least 7 minutes to reconnet the power after the power has been disconnected.

Check the accessories and literature in accordance with this list:

Name	User Manual	Service Card	Shelf	Hinge Cover	Energy	Wire barrier	Key
HWS34GGH1	1	1	5	1	1	1	/
HWS58GGH1	1	1	1	0	1	1 1	2
HWS34GGH1K	1 1 5 1 1					1	/

Product description

EN

Notice

Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

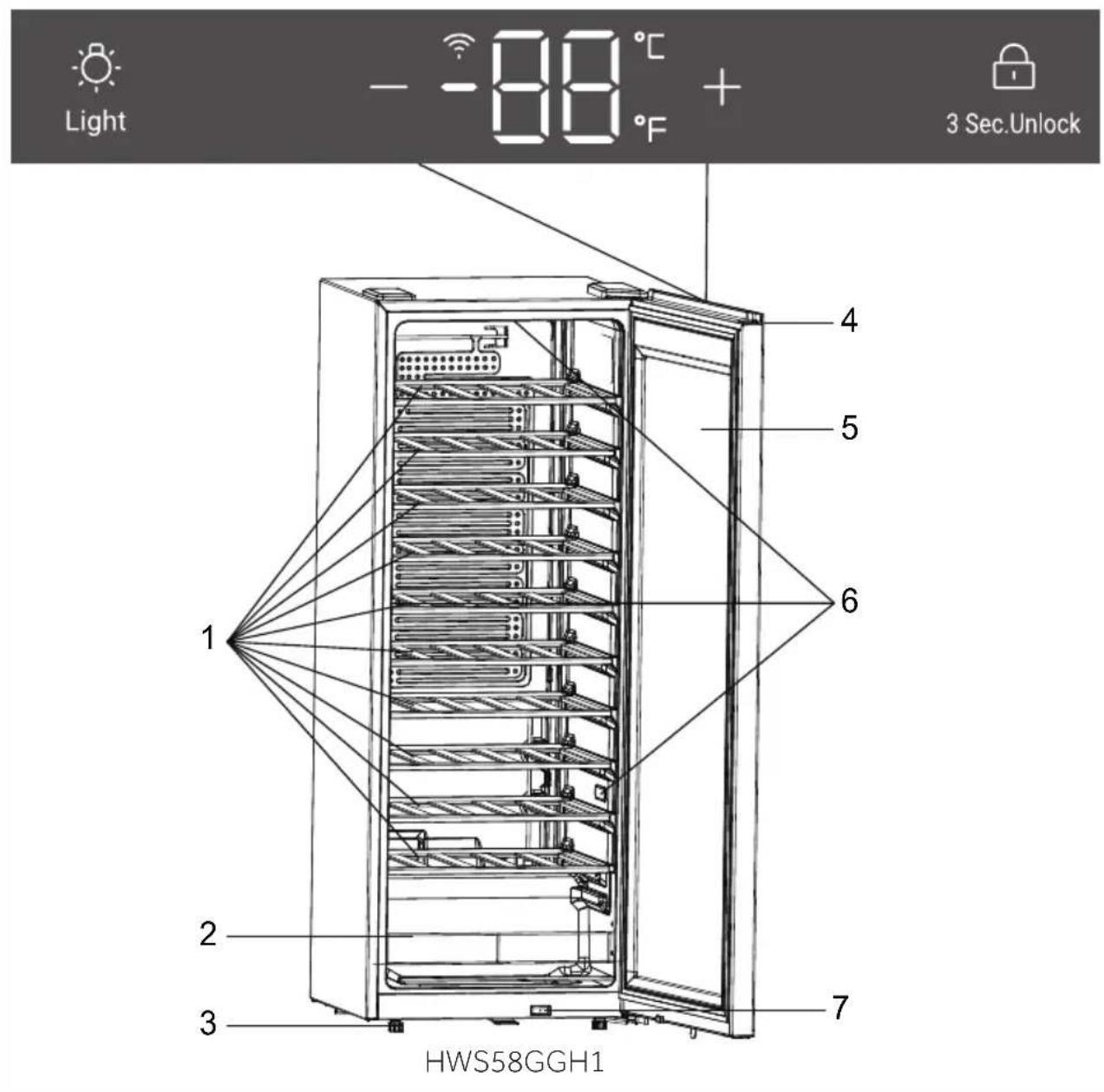

Picture of appliance

1. Shelf
2. Wire barrier
3. Adjustable feet

4. Display

5. Door

6. LED lamp
7. Switch

1. Unpacking

▶Take the appliance out of the packaging.
Remove all packaging materials including the foam base and all adhesive tape holding the accessories.

2. Environmental conditions

The room temperature should always be between 10 °C and 38 °C, since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation.

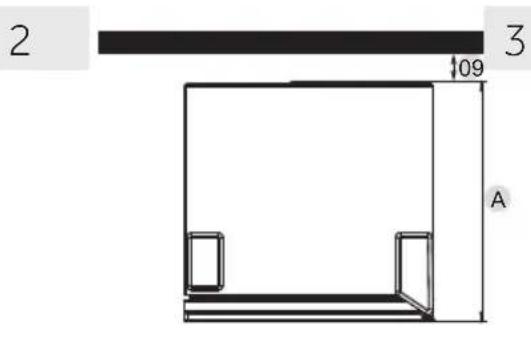

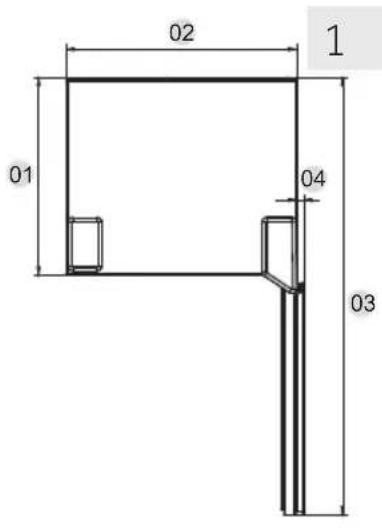

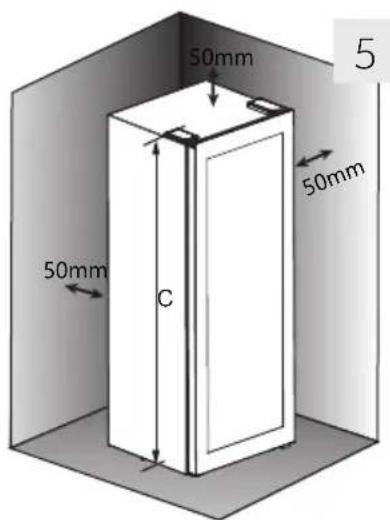

3. Space requirements

Required space to open the door (Fig. 1,2,3,4); For safety and energy reasons, the required ventilation distance of 50 mm in all directions must be observed (Fig. 5).

Measurement: mm	HWS34GGH1	HWS58GGH1	HWS34GGH1K
Depth A 456		456	456
Width B	475	475	475
Height C	849	1279	849
Overall Height D	850	1280	850
01	406	406	406
02	475	475	475
03	897	897	897
04	13	13	13
05	608	608	608
06	133	133	133
07	166	166	166
08	105°	105°	105°
09	50	50	50

WARNING!

- Keep ventilation openings in the appliance or in the in-built structure clear of obstruction. This refrigerating appliance is not intended to be used as a built-in appliance

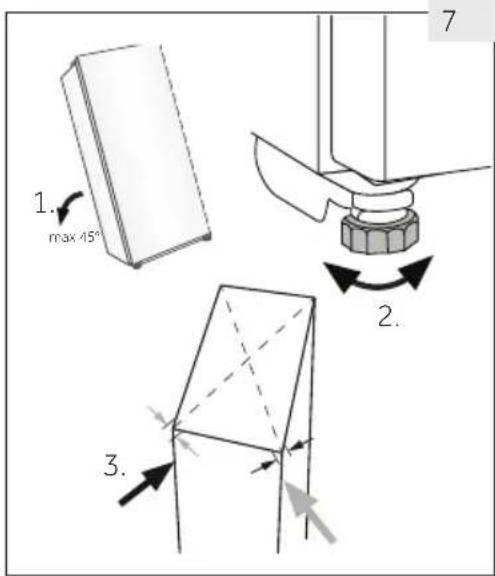

4. Aligning the appliance

The appliance should be placed on a flat and solid surface.

1. Tilt the appliance slightly backwards (Fig. 7).
2. Set the adjustable front feet to the desired level by turning them.
3. The stability can be checked by alternately bumping on the diagonals. The slight swaying should be the same in both directions. Otherwise the frame can warp; possible leaking door seals are the result. A low tendency to the rear facilitates the closing of the door.

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

5. Fine tuning of the door

The appliance closes more easily if the levelling feet on the front are used:

Rotate the adjustable feet (Fig. 8) to turn them up or down:

▶Turning the feet clockwise raises the appliance.
▶Turning the feet counterclockwise lower the appliance.

6. Waiting time

The maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during transport if the appliance is tilted. Before connecting the appliance to the power supply, wait 0.5 hours (Fig. 9) so that the oil runs back into the capsule.

7. Electrical connection

Before each connection check if:

▶ power supply, socket and fusing are appropriate to the rating plate.
▶the power socket is earthed and no multi-plug or extension.
▶ the power plug and socket are fit properly.

Connect the plug to a properly installed household socket.

WARNING!

To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

8. Door Reversibility

Before connecting the appliance to the power supply you should check, whether the door swing must changed from right (as delivered) to left, if this is required by the installation location and the usability

WARNING!

The appliance is heavy. You need two persons to carry out the door reversibility.
▶ Before any operation, first unplug the appliance from the mains.
▶Do not tilt the appliance more than 45^ to prevent damage of the cooling system.

Installation

EN

Assembly steps

1. Provide necessary tool.
2. Unplug the appliance.

3. Remove the left and right hinge cover, disconnect the wiring harness connection terminal between the door body and the box body, remove the three screws from the upper hinge and remove the door body.

4. The hinge side shaft sleeve passes through the wiring harness terminal and is taken out from the door body, remove the decorative cover on the door opening side and pull out the hidden wiring harness from the door body.

5. Install the removed shaft sleeve through the wiring harness terminal to the other side of the door body, the wiring harness terminal on the other side is hidden inside the decorative cover, extend the wiring harness into the body, and buckle the decorative cover.

6. Remove the fixing screws, shaft sleeves, and door stop at the bottom of the door body and install them on the other side of the door body.

7. Remove the lower hinge screw at the bottom of the box, fix the lower hinge screw to the other side of the box.

8. Install the door body onto the lower hinge of the body, the door harness is connected to the box harness terminal and placed inside the box, with screws securing the upper hinge.

9. Install the hinge cover and decorative cover, and complete the left and right door replacement.

1. Before first use

Remove all packaging materials. This includes the foam base and all adhesive tape holding the wine cellar accessories inside and outside. Keep them out of children's reach and dispose them in an environmentally friendly manner.
▶Clean the inside and outside of the appliance with water and a mild detergent before putting any wine in it.
▶After the appliance has been levelled and cleaned, wait for at least 2 hours before connecting it to the power supply. If your wine cellar has been tilted for any reason, wait 24 hours before plugging it in. See section INSTALLATION.
▶Once you have plugged the unit into an electrical outlet, let the unit run for at least 30 minutes to acclimatize itself before making any adjustments.
The temperature is automatically set to 12 °C. If desired, you can change the temperature manually. Please see TEMPERATURE.

2. Touch buttons

The buttons on the control panel are touch buttons

with the finger.

3. Description for control panel

A Light button

D Temperature adjust button:up

B Temperature adjust button:down

E Lock button

C Display

4. Automatically locking function

In the lock screen state, long press the lock button for 3S, the display screen displays 3, 2 and 1, the display screen is unlocked; If there is no operation, the screen will be locked automatically after 30s, In the lock screen state, all the lock button icons are on, and the buttons on the display screen cannot be operated (except the lighting button);

5. Temperature setting

Notice

Presettings

▶Once you have plugged the unit into an electrical outlet, let the unit for at least 30 minutes to acclimatize itself before making any adjustments.
When the appliance is switched on after disconnection from the main power supply, it may take several hours for the correct temperatures to be reached. The exact time varies depending on the environment and the temperature setting.

Press the + or - button, the display will start to flash. Press the + or - button to set the desired temperature. The temperature setting range: 5-20°C (41-68°F). Stop pressing the button for 3 second, the temperature is confirmed.

6.Standby-mode

The display screen is dimmed automatically 30 seconds.

It lights up automatically when any button is touched or the door is opened(for HWS58GGH1).

Notice

Influences on temperatures

The temperature inside the appliance is influenced by the following factors:

▶ Ambient temperature
▶ Frequency of door opening

▶Amount of stored bottles

The location of the appliance

The default setting is 12°C

When display stops flashing, it goes back to showing the current temperature inside the wine cellar. It will take some time to reach the set temperature.

7. Lighting mode setting

Press the Light button. the lights will be lighted up gradually. When pressed the Light button once again the lights will be off gradually.

8. ^ C/^ F function

Press the “—” button for 3 seconds, switch between Fahrenheit and Celsius.

9. Wi-Fi function

Press the Light button for 3 seconds, the Wi-Fi button starts to flash quickly and automatically enters the configuration mode.

10. Power-Off Memory function

If a power outage, the cellar will automatically save the set temperature. After power recovery, it will run based on the temperature set before the power outage.

11. Winter mode

The wine cellar has a low temperature compensation function to ensure the stability of the temperature: When the ambient temperature is lower than the set temperature, the wine cellar automatically starts the low temperature compensation function, heating the appliance. When the temperature in the appliance reaches the set temperature, the low temperature compensation function is automatically turned off.

The temperature inside the appliance deviates from the set temperature by 1\~2 °C, which is normal.

12. Door opening alarm (for HWS58GGH1)

If the door is kept open for over 1 min, buzzer will be beeping to give an alarm till the door is closed or any key on display panel can be operated and then the buzzer will stop beeping.

13. Wi-Fi mode setting

CONNECTIVITY WIRELESS PARAMETERS

Technology	Wi-Fi	Bluetooth
Standard	IEE 802.11 b/g/n	Bluetooth v4.2, BR/EDR, BLE
Frequency Band(s) [MHz]	2401-2483	2402-2480
Maximum power [mW]Band(s) [MHz]	100	10

PRODUCT INFORMATION

How to activate Wi-Fi module:

Press the light button for 3 seconds to activate the Wi-Fi

· The Wi-Fi module is switched on the Wi-Fi icon starts to blink
- If the wine cellar is enrolled but the Wi-Fi is off the icon will blink
· If the wine cellar is enrolled and connected the Wi-Fi icon is always on
· To reset the Wi-Fi press the light for 3 seconds

IN APP PAIRING PROCEDURE

Step 1

- Download the hOn app on the stores

Step 2

Log in or sign up

Step 3

- Add a new appliance selecting the wine cellar from the

list

Step 4

- Scan the QR or insert manually the serial number

Step 5

- Press the light button on the product for 3s to activate the Wi-Fi

Step 6

- The wi-Fi icon will blink, the pairing process is in progress - You will have 5 minutes to complete the pairing process - When the process is completed the Wi-Fi icon will stop blinking and it will remain always on NOTE

Energy saving tips

▶Make sure the appliance is properly ventilated (see INSTALLATION).
▶ Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).
- Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set.
▶Open the appliance door as little and as briefly as possible.
▶ Do not exceed the designed amount of bottles to avoid obstructing the air flow.
▶Keep door seals clean so that the door always closes correctly.
The most energy-saving configuration requires drawer, food box and shelves to be positioned in the appliance on factory-fresh condition, and food to be placed without blocking the air outlet of the duct.
▶To increase the energy efficiency, the lights should be turned off when the wine cellar is not being viewed.

1. Shelf

1. The shelves are designed for easy storage and easy removal of the wine. They can be cleaned with a soft towel.

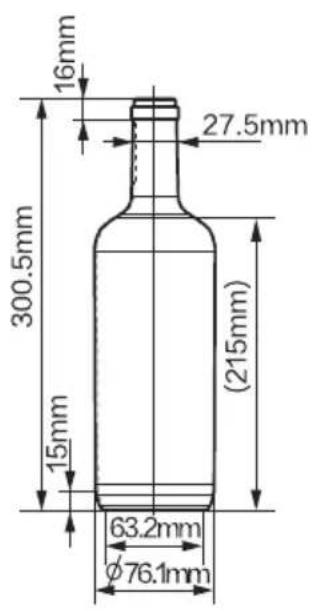

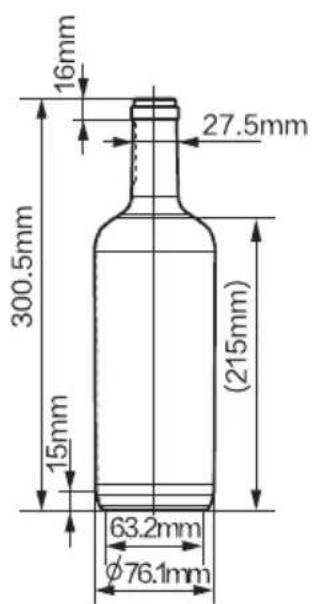

2. Regualr bottles with diameter of 76mm can be stacked.
3. The quantity can vary from the depicted number or bottles if they are stacked in a different way.

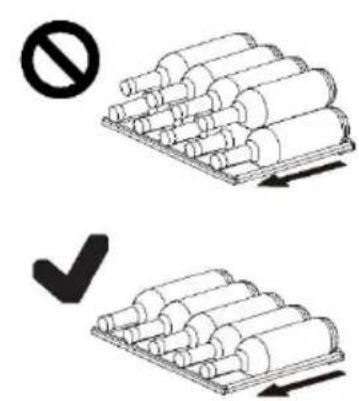

Advice for the layout of your wine cellar

We recommend that the number of wine bottles should not exceed two layers on each shelf, and the bearing capacity of the wine shelves should not exceed 15 kg. Before placing the bottles inside the wine cellar, confirm whether or not the wine shelves are completely stable. In addition, confirm whether or not any bottle protrudes from the shelves in order to prevent bottles hitting the glass door upon closing.

Illustration of cylindrical pipes on a rack with a no-smoking symbol nearby (no text or labels)

Illustration of cylindrical pipes mounted on a rack with a prohibition symbol (no text or labels)

Illustration of rolled cylindrical objects on a rack with a checkmark symbol (no text or labels)

Illustration of rolled cylindrical objects on a rack with a checkmark and arrow (no text or symbols)

2. The light

The LED interior light comes on when the door is opened. (for HWS58GGH1)

3. The lock

To lock the wine cellar, close the door and put the key in the lock (for HWS58GGH1):

▶ Unlock the door by turning the key clockwise;
- Lock the door by turning the key counterclockwise;

Care and cleaning

EN

1. Defrosting

The defrosting of the wine cellar is done automatically; no manual operation is needed.

2. Replacing the LED lamp

The lamp uses LED as its light source, featuring low energy consumption and long service life. If there is any abnormality, please contact the customer service. See CUSTOMER SERVICE.

WARNING!

Do not replace the LED lamp yourself. It must only be replaced by either the manufacturer or the authorised service agent.

Parameters of LED lamp:

Voltage12V

Max power: 5W(for HWS58GGH1)

Max power: 2W(for HWS34GGH1)

3. Non-use for a longer period

Unplug the power cord.

Clean the appliance and door gaskets as described above.

Keep the door open to prevent the creation of bad odours inside.

4. Moving the appliance

1. Remove all bottles and unplug the appliance.
2. Secure shelves and other moveable parts in the wine cellar with adhesive tape.
3. Do not tilt the wine cellar more than 45^ to avoid damaging the refrigerating system.

Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.

WARNING!

Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages.
▶A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Error Code	Cause Solution
L2	Low temperature alarm when the temperature of the control sensor is too low;	1.Check the ambient temperature.2.Check the Compressor connector.3.Check the resistance of the temperature control sensor.

Troubleshooting

EN

Problem	Possible Cause	Possible Solution
The compressor does not work.	Mains plug is not connected in the mains socket.	Connect the mains plug.
The appliance runs frequently or runs for a too long period of time.	The outdoor temperature is too high.The appliance has been off power for a period of time.A door of the appliance is not tightly closed.The door has been opened too frequently or for too long.The door gaskets are dirty, worn, cracked or mismatched.The required air circulation is not guaranteed.The temperature is set too low.	In this case, it is normal for the appliance to run longer.Normally, it takes a while for the appliance to cool down completely.Close the door and ensure the appliance is located on a level ground and there is no food or container jarring the door.Do not open the door too frequently.Clean the door gasket or replace them by the customer service.Ensure adequate ventilation.The problem will resolved itself when the desired temperature has been reached.
The inside of the wine cellar is dirty and/or smells..	The inside of the wine cellar needs cleaning.	Clean the inside of the wine cellar.
It is not cold enough inside the appli-ance.	The temperature is set too high.Bottles have been added recently.A door of the appliance is not tightly closed.The door has been opened frequently or for long time.The door gaskets are dirty, worn, cracked or mismatched.	Reset the temperature.Allow time for recently added bottles to reach desired temperature.Close the door.Do not open the door too frequently.Clean the doorgasket or replace them by the customer service..
It is too cold inside the appliance.	The temperature is set too low.	Reset the temperature.
Moisture formation on the inside of the refrigerator com-partment.	The climate is too warm and too-damp.A door of the appliance is not tightly closed.The door has been opened frequently or for long time.	Increase the temperature.Close the door.Do not open the door/drawer too frequently.
Problem Possible Cause Possible Solution
Moisture accumulates on the wine cellar's outside surface.	The climate is too warm and too dampThe door is not closed tightly.The cold air in the appliance and the warm air outside it condensates.	This is normal in damp climate and will change when the humidity decreases.Ensure that the door is shut tightly and that the gaskets seal properly.
The appliance makes abnormal sounds	The appliance is not located on level ground.The appliance touches some object around it.	Ajust the feet to level the appliance.Remove objects around the appliance.
A slight sound is to be heard similar water.	This is normal -	-
The interior lighting or cooling system does not work.	Mains plug is not connected to the mains socket.The power supply is not intact.The LED-lamp is out of order.	Connect the mains plug.Check the electrical supply to-the room.Call the local electricity company.Please call the service for changing
The sides of the cooler get warm.	This is normal. -	-
The door does not shut properly	The appliance is not level.The door is blocked.	Level the appliance with the leveling feet.Check for blockages like bottles or shelves.

To contact the technical assistance, visit our website:

https://corporate.haier-europe.com/en/

Under the section "website", choose the brand of your product and your country. You will be redirected to the specific website where you can find the telephone number and form to contact the technical assistance.

Product fiche according to regulation EU No. 2019/2016

Brrandand	Haier	Haier	Haier
Model name / identifier	HWS58GGH1	HWS34GGH1	HWS34GGH1
CaCattegoryegory	Wine Cellar	Wine Cellar	Wine Cellar
Energy efficiency class	G	G	G
Annual ene Annual energgy cconsumption consumption (kWh/annum)(kWh/annum)	147	140	140
Bottle capacity (0.75L bordeaux bottle)	58	34	34
Climate class:This appliance is intended to be used at an ambient temperature between 10 °C and 38 °C	SNNST	SNNST	SNNST
Airborne acoustical noise emissions (db(A) re 1pW)	37	37	37
Type of applianype of applianccee	ï õèèö-äñçînê	ï õèèö-äñçînê	ï õèèö-äñçînê
This appliance is intended to be used exclusiveused exclusivelyy for the sor the sttoorrage of wine.age of wine.	Yes	Yes	Yes
Dimensions (W/D/H in mmDimensions(W/D/ftin mm2/9/456/1280)		475/456/850	475/456/850

Explanations:

1) based on standard test results for 24 hours. The actual power consumption depends on the actual environment, the amount of bottling, the set temperature, the door opening and closing, etc.
2) The nominal power consumption is the value obtained according to the standard test when the wine cabinet does not turn on the internal light.
- extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';
- temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';
- subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';
- tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

Standards and directives

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards, which provide for CE marking.

We recommend our Haier Customer Service and the use of original spare parts.

If you have a problem with your appliance, please first check section TROUBLESHOOTING.

If you cannot find a solution there, please contact

▶ your local dealer or

▶ the Service & Support area at www.haier.com where you can find telephone numbers and FAQs and where you can activate the service claim.

To contact our Service, ensure that you have the following data available.

The information can be found on the rating plate.

Model____ Serial No.____

Also check the Warranty Card supplied with the product in case of warranty.

For general business enquiries please find our addresses in Europe below:

European Haier addresses

Country* Postal address Country Postal address
Italy	Haier Europe Trading SRLVia De Cristoforis, 1221100 VereseITALY	France	Haier Europe Trading SRLVia De Cristoforis, 1221100 VereseITALY
SpainPortugal	Haier Iberia SLPg. Garcia Faria, 49-5108019 BarcelonaSPAIN	Belgium-FRBelgium-NLNetherlandsLuxembourg	Haier Benelux SAAnderlechtRoute de Lennik 451BELGIUM
GermanyAustria	Haier Deutschland GmbHHewlett-Packard-Str. 4D-61352 Bad HomburgGERMANY	PolandCzechiaHungaryGreeceRomaniaRussia	Haier Poland Sp. zo.o.Al. Jerozolimskie 181B02-222 WarszawaPOLAND
UnitedKingdom	Haier Appliances UK Co. Ltd.One Crown SquareChurch Street EastWoking, Surrey, GU21 6HRUK

AVAILABILITY OF SPARE PARTS: Thermostats, temperature sensors, printed circuit boards and light sources are available for a minimum period of seven years after placing the last unit of the model on the market. Door handles, door hinges, trays and baskets for a minimum period of seven years and door gaskets for a minimum period of 10 year, after placing the last unit of the model on the market

Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

For further information about the product, please consult https://eprel.ec.europa.eu/ or scan the QR on the energy label supplied with the appliance.

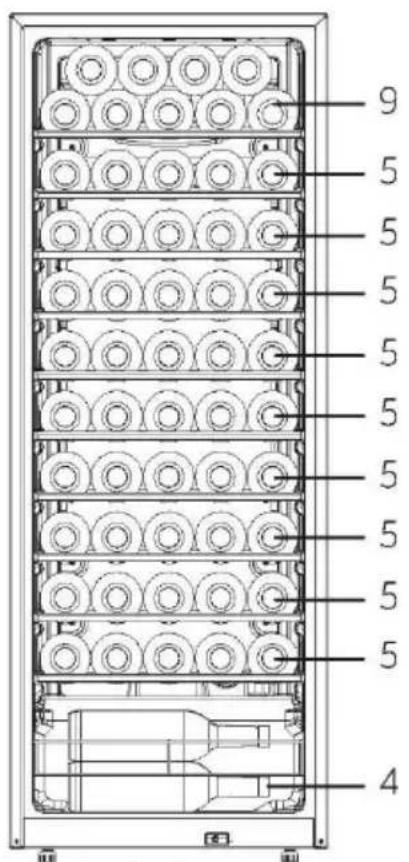

Wine bottle stacking

EN

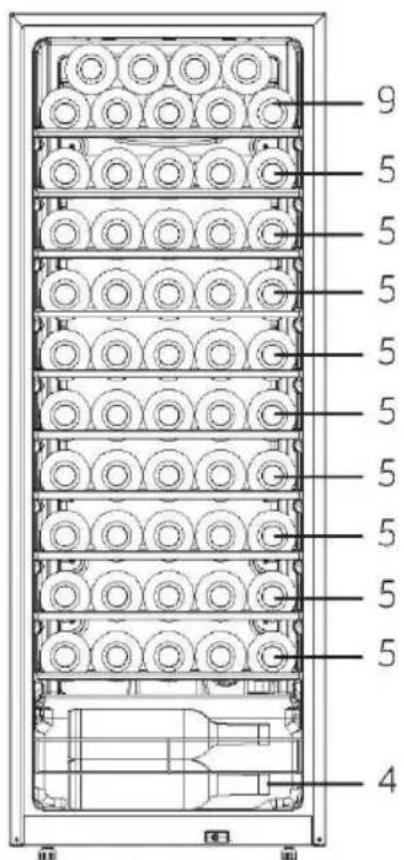

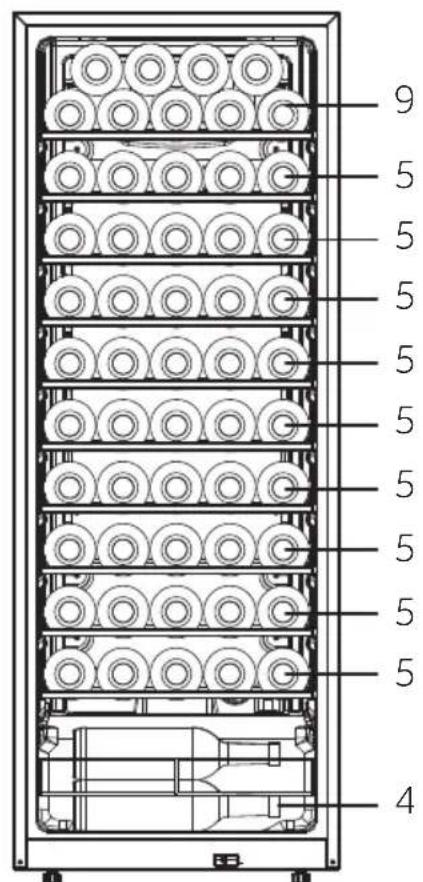

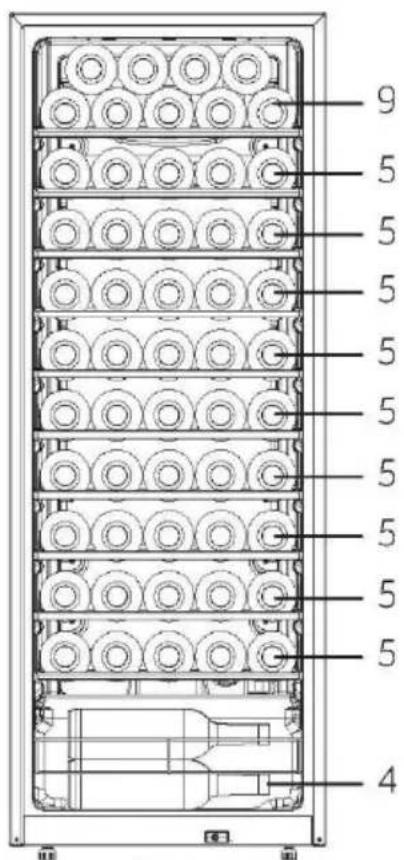

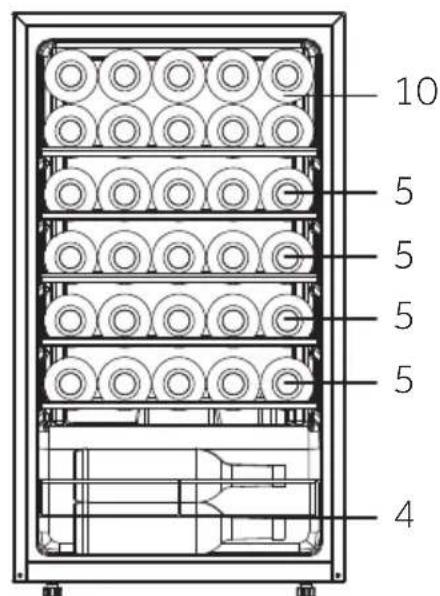

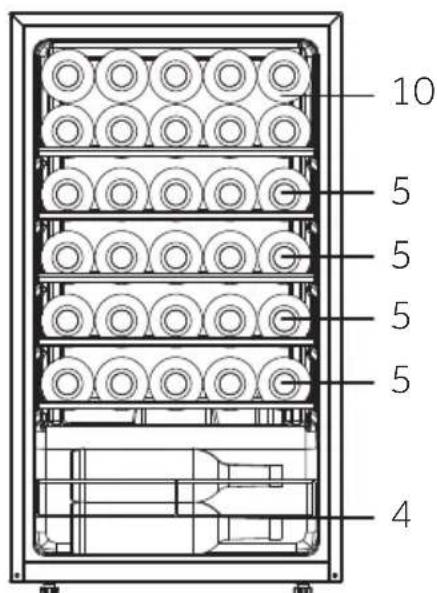

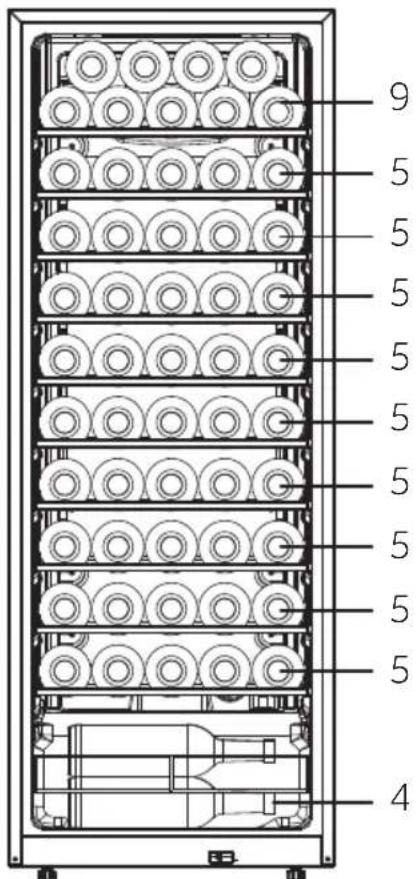

1. The bottle arrangement is based on a graphic representation of a standard Bordeaux bottle (0.75 l).
2. Due to the different bottle specifications, the actual bottle loading quantity could be different.

Pure technical line drawing of a multi-column industrial or processing unit structure without any text, numbers, or symbols

(58) HWS58GGH1

(34) HWS34GGH1 HWS34GGH1K

Benutzerhandbuch

Weinklimaschrank

HWS34GGH1

HWS58GGH1

HWS34GGH1K

Symbol of a trash bin crossed with no text or labels

Simple line drawing of a kitchen sink with a bag and a basin (no text or symbols)

Technical line drawing of two structural beams or supports (no text or symbols)

WARNUNG!

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

3D rendered cube with two small square cutouts on top (no text or symbols)

PRODUKTINFORMATIONEN

Schritt 2

Schritt 3

Schritt 4

Schritt 5

Energiespartipps

Pure technical line drawing of a multi-layered industrial or mechanical component structure without any text, numbers, or symbols.

(58) HWS58GGH1

(34) HWS34GGH1 HWS34GGH1K

HWS-34GGH1-58GGH1-34GGH1K-DE

Haier

Manual de usuario

Bodega de vinos

HWS34GGH1 HWS58GGH1 HWS34GGH1K

Symbol of a trash bin crossed with no text or labels

Line drawing of a kitchen sink with a hand cleaning the surface and a basin nearby (no text or symbols)

Technical line drawing of two structural beams or panels (no text or symbols)

¡ADVERTENCIA!

Simple line drawing of a rectangular object with a curved arrow below it, no text or symbols present.

Paso 2

Paso 3

Paso 4

Paso 6

Illustration of cylindrical pipes stacked on a rack with a no-smoking symbol nearby (no text or labels)

Illustration of stacked cylindrical objects on a rack with a prohibition symbol (no text or labels)

Illustration of cylindrical mechanical components arranged on a base plate, with a checkmark symbol nearby (no text or labels)

Illustration of rolled cylindrical objects on a metal rack with a checkmark and arrow (no text or symbols)

2. La luz

Pure technical line drawing of a multi-layered industrial or mechanical component structure without any text, numbers, or symbols.

(58) HWS58GGH1

(34) HWS34GGH1 HWS34GGH1K

HWS-34GGH1-58GGH1-34GGH1K-ES

Haier

HWS34GGH1 HWS58GGH1 HWS34GGH1K

Line drawing of a kitchen sink with a hand cleaning the surface and a basin nearby (no text or symbols)

Technical line drawing of two structural beams or panels (no text or symbols)

AVERTISSEMENT!

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

INFORMATIONS SUR LE PRODUIT

Étape 2

Étape 3

Étape 4

Étape 5

2. La lumière

Pure technical line drawing of a multi-layered industrial or mechanical component structure without any text, numbers, or symbols.

(58) HWS58GGH1

(34) HWS34GGH1 HWS34GGH1K

HWS-34GGH1-58GGH1-34GGH1K-FR

Haier

Manuale dell'utente

Cantinetta

HWS34GGH1 HWS58GGH1 HWS34GGH1K

Symbol of a trash bin crossed with no text or labels

Line drawing of a kitchen sink with a bag and a basin (no text or symbols)

Technical line drawing of two structural beams or panels, one with flange and the other with grid pattern (no text or symbols)

AVVERTENZA!

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

Passo 2

Passo 3

Passo 4

Passo 5

Illustration of cylindrical pipes stacked on a rack with a no-smoking symbol nearby (no text or labels)

Illustration of cylindrical pipes on a rack with a no-smoking symbol nearby (no text or labels)

Illustration of cylindrical mechanical components arranged on a base plate, with a checkmark symbol nearby (no text or labels)

Illustration of rolled cylindrical objects on a metal rack with a checkmark and arrow (no text or symbols)

2. Luce

Pure technical line drawing of a multi-layered industrial or mechanical component structure without any text, numbers, or symbols.

(58) HWS58GGH1

(34) HWS34GGH1 HWS34GGH1K

HWS-34GGH1-58GGH1-34GGH1K-IT

Haier

HWS34GGH1 HWS58GGH1 HWS34GGH1K

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

Simple line drawing of a kitchen sink with a bag and a basin (no text or symbols)

De deurpakking reinigen:

Technical line drawing of two structural beams or supports (no text or symbols)

WAARSCHUWING!

Simple line drawing of a rectangular object with a curved arrow below it, no text or symbols present.

Illustration of a closed book with visible pages and cover (no text or symbols)

Pure architectural or mechanical diagram showing a frame structure with no text, numbers, or symbols

Exterior view of a modern office building (no signage)

Close-up of a mechanical component with mounting holes and a small inset detail (no visible text or symbols)

Exterior view of a mechanical component with mounting holes and a flat plate (no text or symbols visible)

Exterior view of a rectangular electronic device with a lid and mounting holes (no text or symbols visible)

3D rendered cube with two side notches and a label '9' in the corner (no other text or symbols)

Stap 2

Stap 3

Stap 4

Stap 5

Engergiebesparingstips

NL

Illustration of cylindrical pipes mounted on a rack with a no-smoking symbol nearby (no text or labels)

Illustration of cylindrical pipes on a rack with a prohibition symbol (no text or labels)

Illustration of cylindrical mechanical components on a base plate, with a checkmark symbol nearby (no text or labels)

Illustration of rolled cylindrical objects on a metal rack with a checkmark and arrow (no text or symbols)

2. De verlichting

Pure technical line drawing of a multi-layered industrial or mechanical component structure without any text, numbers, or symbols.

(58) HWS58GGH1

(34) HWS34GGH1 HWS34GGH1K

HWS-34GGH1-58GGH1-34GGH1K-NL

Haier

Instrukcja obsługi

Chłodziarka do wina

HWS34GGH1 HWS58GGH1 HWS34GGH1K

Symbol of a trash bin crossed with diagonal lines, representing no waste or discharge (no text or labels)

Simple line drawing of a kitchen sink with a bag and a basin (no text or symbols)

Technical line drawing of two structural beams or panels (no text or symbols)

OSTRZEŻENIE!

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

Krok 2

Krok 4

Krok 5

Illustration of cylindrical pipes on a rack with a no-smoking symbol nearby (no text or labels)

Illustration of rolled cylindrical objects on a rack, with a checkmark symbol nearby (no text or labels)

Illustration of rolled cylindrical objects on a tray with a checkmark and arrow (no text or symbols)

2. Oświetlenie

Pure technical line drawing of a multi-layered industrial or mechanical component structure without any text, numbers, or symbols.

(58) HWS58GGH1

(34) HWS34GGH1 HWS34GGH1K

HWS-34GGH1-58GGH1-34GGH1K-PL

Haier

Manual do utilizador

Garrafeira

HWS34GGH1 HWS58GGH1 HWS34GGH1K

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

Simple line drawing of a kitchen sink with a bed and a bag (no text or symbols)

Technical line drawing of two structural beams or panels (no text or symbols)

AVISO!

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

Passo 2

Passo 3

Passo 4

• Digitalize o QR ou insira manualmente o número de série

Passo 5

2. Aluz

Pure technical line drawing of a multi-layered industrial or mechanical component structure without any text, numbers, or symbols.

(58) HWS58GGH1

(34) HWS34GGH1 HWS34GGH1K

HWS-34GGH1-58GGH1-34GGH1K-PL

Haier

HWS34GGH1 HWS58GGH1 HWS34GGH1K

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or labels)

Line drawing of a kitchen sink with a bed and a basin (no text or symbols)

Technical line drawing of two structural beams or panels (no text or symbols)

ПРЕДУПРЕЖДЕНИЕ!

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

5. Фина настройка на вратата

Simple line drawing of a cabinet or storage unit with no text, numbers, or symbols visible

3D rendering of a rectangular panel or cabinet with a side tab, no visible text or symbols

3D model of a door frame with mounting feet and a side-mounted fixture (no text or symbols visible)

Simple line drawing of a cabinet or rack with no text, numbers, or symbols

Diagram of a rectangular panel with a small inset showing a screw and a label '6' (no text or symbols on the panel itself)

Technical diagram of a mechanical component with mounting holes and a central shaft (no text or symbols)

Simple 3D rendering of a rectangular box with a small side panel and label '8' in the corner (no text or symbols on the box itself)

3D rendered image of a rectangular box with a small side panel, no visible text or symbols

Стъпка 2

Стъпка 3

Стъпка 4

Стъпка 5

Illustration of stacked cylindrical pipes with a prohibition symbol (no text or labels)

Stack of cylindrical pipes with a prohibition symbol (no text or labels)

Illustration of rolled cylindrical objects on a metal rack, with a checkmark symbol nearby (no text or labels)

Illustration of rolled cylindrical objects on a tray with a checkmark and arrow (no text or symbols)

2. Светлина

Pure technical line drawing of a multi-layered industrial or processing unit structure without any text, numbers, or symbols

(58) HWS58GGH1

(34) HWS34GGH1 HWS34GGH1K

HWS-34GGH1-58GGh1-34GGH1K-BG

Haier

HWS34GGH1 HWS58GGH1 HWS34GGH1K

Symbol of a trash bin crossed with no text or labels

Legenda

Simple line drawing of a kitchen sink with a bed and bowl (no text or symbols)

Line drawing of two structural beams or panels, one tilted and one upright, with no text or symbols present.

VAROVÁNÍ!

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

Diagram of a rectangular frame with a small inset showing a pin and arrow, no text or symbols present.

Pure mechanical component diagram without any text, numbers, or symbols

3D rendering of a rectangular electronic device with mounting holes (no visible text or symbols)

3D rendered cube with a small protrusion on top (no text or symbols)

POSTUP PÁROVÁNÍ S APLIKACÍ

Krok 1

Krok 2

Krok 3

Krok 4

Krok 5

Illustration of cylindrical pipes mounted on a rack with a no-smoking symbol nearby (no text or labels)

Stack of cylindrical pipes with a prohibition symbol (no text or labels)

Illustration of stacked cylindrical objects on a rack, with a checkmark symbol nearby (no text or labels)

Illustration of rolled cylindrical objects on a base with an arrow indicating downward motion (no text or symbols)

2. Světlo

Pure technical line drawing of a multi-column industrial or processing unit structure without any text, labels, or symbols

(58) HWS58GGH1

(34) HWS34GGH1 HWS34GGH1K

HWS-34GGH1-58GGh1-34GGH1K-CS

Haier

Εγχειρίδιο χρήσης

Συντηρητής

κρασιών

HWS34GGH1

HWS58GGH1

HWS34GGH1K

Symbol of a trash bin crossed with no text or labels

Simple line drawing of a kitchen sink with a cloth and a basin (no text or symbols)

Technical line drawing of two vertical structural beams or panels (no text or symbols)

ΠΡΟΕΙΔΟΠΟΙΗΣΗ!

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

3D rendering of a rectangular panel or cabinet with a handle and mounting bracket (no visible text or symbols)

3D rendering of a rectangular frame with a central handle and two protruding pins (no text or symbols visible)

Exterior view of a modern office building (no signage)

Illustration of a rectangular frame with a small inset showing a small lock or latch, no text or symbols present.

Technical diagram of a mechanical component with mounting holes and a central horizontal bar (no text or symbols)

3D rendering of a rectangular electronic device with mounting holes (no visible text or symbols)

3D rendered image of a rectangular box with two small protrusions, no text or symbols visible

Βήμα 2

Bñμα 3

Βήμα 4

Βήμα 5

Illustration of stacked cylindrical pipes with a prohibition symbol (no text or labels)

Stack of cylindrical pipes with a prohibition symbol (no text or labels)

Illustration of rolled cylindrical objects on a metal rack, with a checkmark symbol nearby (no text or labels)

Illustration of rolled cylindrical objects on a tray with a checkmark and arrow (no text or symbols)

2. Φωτισμός

Pure technical line drawing of a multi-layered industrial or processing unit structure without any text, numbers, or symbols

(58) HWS58GGH1

(34) HWS34GGH1 HWS34GGH1K

HWS-34GGH1-58GGh1-34GGH1K-EL

Haier

Manualul de utilizare

Cramă de vinuri

HWS34GGH1 HWS58GGH1 HWS34GGH1K

Legendă

Simple line drawing of a kitchen sink with a bed and a cloth (no text or symbols)

Line drawing of two vertical structural beams or panels, one with a flanged edge and the other with a rectangular base (no text or symbols)

AVERTIZARE!

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

Simple line drawing of a cabinet or enclosure with no text, numbers, or symbols visible.

Exterior view of a modern office building (no signage)

Pure architectural or mechanical component diagram without any text, numbers, or symbols

Simple line drawing of a cabinet or rack with no text, numbers, or symbols

Diagram of a rectangular frame with a small inset showing a pin and a label '6' (no text or symbols on the frame itself)

Pure technical diagram of a mechanical component with no visible text, numbers, or symbols

3D rendering of a rectangular electronic device with mounting holes (no text or symbols visible)

3D rendered image of a rectangular block with two small protrusions, no visible text or symbols

INFORMATII DESPRE PRODUS

Pasul 2

Pasul 3

Pasul 4

Pasul 5

Sfaturi de economisire a energiei

Illustration of cylindrical storage tanks with no symbols indicating prohibition or rejection (no text or labels present)

2. Lumina

Pure technical line drawing of a multi-layered industrial or processing unit structure without any text, numbers, or symbols

(58) HWS58GGH1

(34) HWS34GGH1 HWS34GGH1K

HWS-34GGH1-58GGh1-34GGH1K-RO

Haier

Navodila za uporabo

Hladilnik za vino

HWS34GGH1

HWS58GGH1

HWS34GGH1K

Zahvaljujemo se vam za nakup izdelka Haier.

Symbol of a trash bin crossed with no text or labels

Odstranjevanje

Simple line drawing of a kitchen sink with a bed and bowl, no text or symbols present

▶ Nobenega dela aparata ne čistite v pomivalnem stroju.

Technical line drawing of two structural beams or panels (no text or symbols)

OPOZORILO!

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

Pritisnite gumb ✝ ali -, zaslon bo začel utripati. Pritisnite gumb ✝ ali -, da nastavite želeno temperaturo. Območje nastavitve temperature: 5-20 °C (41-68 °F). Nehajte pritiskati gumb za 3 sekunde, temperatura je potrjena.

6. Stanje pripravljenosti

Zaslon se samodejno zatemni po 30 sekundah.

Zasveti samodejno, ko se dotaknete katerega koli gumba ali odprete vrata (za HWS58GGH1).

Obvestilo

Vplivi na temperature

1. korak

Vpišite se oz. se registrirajte

1. korak

4.korak

5.korak

- Pritisnite gumb Light na izdelku za 3 sekunde, da aktivirate Wi-Fi

6. korak

Pure technical line drawing of a multi-layered industrial or processing unit structure without any text, numbers, or symbols

(58) HWS58GGH1

(34) HWS34GGH1 HWS34GGH1K

HWS-34GGH1-58GGh1-34GGH1K-SL

Haier

Symbol of a trash bin crossed with no text or labels

Vysvetlivky

Simple line drawing of a kitchen sink with a bed and a bowl (no text or symbols)

▶ Opláchnite čistou teplou vodou a osušte mäkkou handričkou.

Technical line drawing of two structural beams or supports (no text or symbols)

VAROVANIE!

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

INFORMÁCIE O PRODUKTE

Ako aktivovat' modul Wi-Fi:

Stlačte tlačidlo osvetlenia na 3 sekundy, aby ste aktivovali Wi-Fi.

• Modul Wi-Fi sa zapne a začne blikat' ikona Wi-Fi.
• Ikona bude blikat, ak je vinotéka zaregistrovaná, ale Wi-Fi je vypnutá.
• Ak je vinotéka zaregistrovaná a pripojená, ikona Wi-Fi ostane svietit.
• Ak chcete resetovat Wi-Fi, stlačte tlačidlo osvetlenia na 3 sekundy

V REŽIME PÁROVANIA APLIKÁCIE

Krok 1

• Stiahnite si aplikáciu hOn z obchodov

Krok 2

• Prihláste sa alebo sa zaregistrujte

Krok 3

Krok 4

Krok 5

Tipy na úsporu energie

Illustration of cylindrical pipes mounted on a rack with a no-smoking symbol nearby (no text or labels)

Illustration of stacked cylindrical objects with a prohibition symbol (no text or labels)

Illustration of cylindrical mechanical components arranged on a rack, with a checkmark symbol nearby (no text or labels)

Illustration of rolled cylindrical objects on a tray with a checkmark and arrow (no text or symbols)

2. Osvetlenie

Interiérové LED osvetlenie sa rozsvieti po otvorení dverí. (pre HWS58GGH1)

3. Uzamknutie

Pure technical line drawing of a multi-layered industrial or processing unit structure without any text, numbers, or symbols.

(58) HWS58GGH1

(34) HWS34GGH1 HWS34GGH1K

HWS-34GGH1-58G Gh1-34GGH1K-SK

Haier

Kasutusjuhend

Veinikelder

HWS34GGH1

HWS58GGH1

HWS34GGH1K

Aitäh, et ostsite Haieri toote.

Sümbolite selgitus

Hoiatus! Oluline ohutusteave

Simple line drawing of a kitchen sink with a bed and a bag, no text or symbols present

Technical line drawing of two vertical structural beams or panels (no text or symbols)

HOIATUS!

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

Simple 3D diagram of a rectangular block with two circular cutouts and a small protrusion, no text or symbols present.

Close-up of a metallic door or panel with a small inset detail (no visible text or symbols)

Exterior view of a modern office building (no signage)

Close-up of a window frame with a small tab and a number 5 on the side (no text or symbols on the frame itself)

Close-up of a rectangular electronic component with mounting holes and a small metallic clip, no visible text or symbols.

Technical illustration of a mechanical component with mounting holes and a curved top section (no text or symbols)

3D rendering of a rectangular electronic device with mounting holes (no text or symbols visible)

3D rendered cube with a flat top and two small notches, no text or symbols visible

2. toiming

3. toiming

4. toiming

5. toiming

Illustration of stacked cylindrical pipes with a prohibition symbol (no text or labels)

Illustration of cylindrical pipes on a rack with a no-smoking symbol (no text or labels)

Illustration of stacked cylindrical components on a rack, with a checkmark symbol nearby (no text or labels)

Illustration of rolled cylindrical objects on a metal base with a checkmark and arrow (no text or symbols)

2. Valgusti

Technical line drawing of a multi-layered industrial vessel or storage unit (no text or symbols)

(58) HWS58GGH1

(34) HWS34GGH1 HWS34GGH1K

HWS-34GGH1-58GGh1-34GGH1K-ET

Haier

Naudotojo vadovas

Vyno šaldytuvas

HWS34GGH1

HWS58GGH1

HWS34GGH1K

Simple line drawing of a kitchen sink with a bed and a bag, no text or symbols present

Line drawing of two vertical structural beams or panels, no text or symbols present

ÍSPÉJIMAS!

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

Pure diagram of a rectangular frame with mounting holes and a small inset detail (no text or symbols)

Metallic electronic component with mounting holes and a numbered label '7' (no text or symbols on the part itself)

3D rendering of a rectangular electronic component with mounting holes (no text or symbols visible)

3D rendered cube with a small protrusion and label '9' in the corner (no other text or symbols)

2 veiksmas

3 veiksmas

4 veiksmas

5 veiksmas

Illustration of cylindrical pipes arranged in a rack with a no-smoking symbol nearby (no text or labels)

Illustration of cylindrical pipes on a rack with a no-smoking symbol (no text or labels)

Illustration of cylindrical mechanical components arranged on a base plate, with a checkmark symbol nearby (no text or labels)

Illustration of rolled cylindrical objects on a tray with checkmark and arrow symbols (no text or labels)

2. Apšvietimas

Atidarius dureles užsidega salono šviesos diodo lemputė (modeliui HWS58GGH1)

3. Užrakinimas

Pure technical line drawing of a multi-layered industrial or processing unit structure without any text, numbers, or symbols.

(58) HWS58GGH1

(34) HWS34GGH1 HWS34GGH1K

HWS-34GGH1-58GGh1-34GGH1K-LT

Haier

Simple line drawing of a kitchen sink with a cloth and a basin (no text or symbols)

Technical line drawing of two structural beams or panels (no text or symbols)

BRĪDINĀJUMS!

Simple line drawing of a rectangular object with a curved arrow indicating rotation or motion (no text or symbols)

Simple line drawing of a 3D object with no text, numbers, or symbols

Close-up of a metallic door or panel with a flat lid and a side tab, no visible text or symbols.

Exterior view of a modern office building (no signage)

Exterior view of a modern office building (no signage)

Diagram of a rectangular panel with a small inset showing a small object, no text or symbols present

Exterior view of a mechanical component with mounting holes and a flat base (no text or symbols visible)

Simple 3D illustration of a rectangular box with two small buttons, no text or symbols present.

3D rendered cube with a flat top and two small protrusions on its side (no text or symbols)

2. darbība

3. darbība

4. darbība

5. darbība

•Uz 3 sekundēm nospiediet apgaismojuma pogu, lai aktivizētu Wi-Fi.

6. darbība

Illustration of cylindrical pipes mounted on a rack with a no-smoking symbol nearby (no text or labels)

Illustration of stacked cylindrical pipes with a prohibition symbol (no text or labels)

Illustration of stacked cylindrical containers on a rack, with a checkmark symbol nearby (no text or labels)

Illustration of rolled cylindrical objects on a tray with a checkmark and arrow (no text or symbols)

2. Apgaismojums

Pure technical line drawing of a multi-layered industrial or mechanical component with no text, numbers, or symbols

(58) HWS58GGH1

(34) HWS34GGH1 HWS34GGH1K

HWS-34GGH1-58GGh1-34GGH1K-LV

Haier
