JD36AB50 - Basket Junker - Free user manual and instructions
Find the device manual for free JD36AB50 Junker in PDF.
| Product type | Built-in extractor hood |
| Brand | Junker |
| Model | JD36AB50 |
| Width | 600 mm |
| Cabinet depth | 280 to 350 mm |
| Minimum cabinet height | 300 mm |
| Weight (external extraction) | 9.5 kg |
| Weight (recirculation with charcoal filter) | 10.5 kg |
| Power supply | 220-240 V, 50 Hz (estimated) |
| Suction power | 3 levels |
| Lighting | Candle bulbs E14, max. 40 W |
| Grease filters | Metal, dishwasher safe |
| Activated charcoal filter | Optional for recirculation, replace yearly |
| Minimum distance above electric hob | 430 mm |
| Minimum distance above gas hob | 650 mm |
| Number of grease filters | 2 |
| Control type | Filter drawer with power switch |
| Material | Stainless steel, glass (panel) |
| Maintenance | Clean grease filters monthly, change charcoal filter yearly |
| Repairability index | Spare parts available: filters, bulbs, charcoal kit |
Frequently Asked Questions - JD36AB50 Junker
User questions about JD36AB50 Junker
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Basket in PDF format for free! Find your manual JD36AB50 - Junker and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. JD36AB50 by Junker.

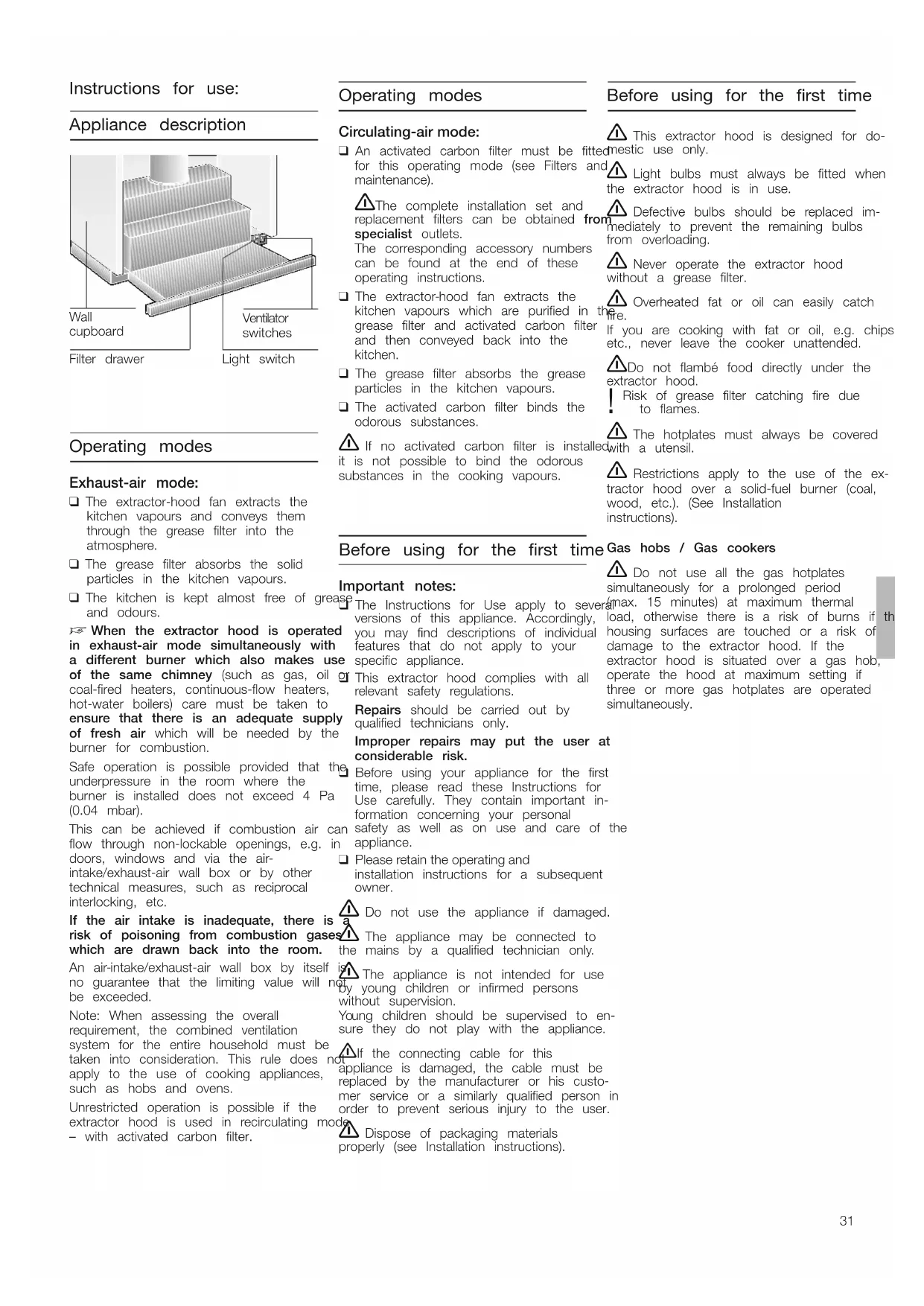

USER MANUAL JD36AB50 Junker
The extractor-hood fan extracts the kitchen vapours and conveys them through the grease filter into the atmosphere.
The grease filter absorbs the solid particles in the kitchen vapours.
The kitchen is kept almost free of and odours.
F When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion.
Safe operation is possible provided that the underpressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar).
This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the air-intake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc.
If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room.
An air-intake/exhaust-air wall box by itself no guarantee that the limiting value will not be exceeded.
Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does apply to the use of cooking appliances, such as hobs and ovens.
Unrestricted operation is possible if the extractor hood is used in recirculating mode with activated carbon filter.
Operating modes
Circulating-air mode:
An activated carbon filter must be fit for this operating mode (see Filters a maintenance).
The complete installation set and replacement filters can be obtained specialist outlets.
The corresponding accessory numbers can be found at the end of these operating instructions.
The extractor-hood fan extracts the kitchen vapours which are purified in grease filter and activated carbon filter and then conveyed back into the kitchen.
The grease filter absorbs the grease particles in the kitchen vapours.
The activated carbon filter binds the odorous substances.
If no activated carbon filter is installe it is not possible to bind the odorous substances in the cooking vapours.
Before using for the first time
This extractor hood is designed for do-mestic use only.
Light bulbs must always be fitted when the extractor hood is in use.
Defective bulbs should be replaced immediately to prevent the remaining bulbs from overloading.
Never operate the extractor hood without a grease filter.
Overheated fat or oil can easily catch If you are cooking with fat or oil, e.g. chips etc., never leave the cooker unattended.
Do not flambé food directly under the extractor hood.
Risk of grease filter catching fire due to flames.
The hotplates must always be covered with a utensil.
Restrictions apply to the use of the extractor hood over a solid-fuel burner (coal, wood, etc.). (See Installation instructions).
Before using for the first time Gas hobs / Gas cookers
Important notes:
The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
This extractor hood complies with all relevant safety regulations.
Repairs should be carried out by qualified technicians only.
Improper repairs may put the user at considerable risk.
Before using your appliance for the first time, please read these Instructions for Use carefully. They contain important information concerning your personal safety as well as on use and care of the appliance.
- Please retain the operating and installation instructions for a subsequent owner.
Do not use the appliance if damaged.
The appliance may be connected to the mains by a qualified technician only.
The appliance is not intended for use by young children or infirmed persons without supervision. Young children should be supervised to ensure they do not play with the appliance.
If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user.
Dispos of packaging materials properly (see Installation instructions).
Do not use all the gas hotplates simultaneously for a prolonged period (max. 15 minutes) at maximum thermal load, otherwise there is a risk of burns if th housing surfaces are touched or a risk of damage to the extractor hood. If the extractor hood is situated over a gas hob, operate the hood at maximum setting if three or more gas hotplates are operated simultaneously.
Operating the extractor hood
If you encounter a problem
Filters and maintenance
Kitchen fumes are best eliminated byf you have any questions or if a fault
Switching ON the fan when you start cooking.
Switching OFF the fan
several minutes after you finish cooking.
Removing and installing the filter frames
Removal:
- Pull out the filter drawer all the way.
- Press the detents on the filter frames all the way in the direction of the arrow.
Switching ON the fan:
- Pull out the filter drawer by the handle
E-Nr. FD
The fan is now operating.
2. Select the desired fan setting.
Controls on the various models:
Setting 3
Setting 1
Setting 2
Enter the relevant numbers into the box above. The E-Nr. (product no.) and FD (production date) are shown on the nameplate which can be seen inside the extractor hood after the filter frame has been detached.
Setting 1
Setting 2
Setting 3
Setting 1
OFF
Setting 2
Switching OFF the fan:
Push in the filter drawer all the way.
Note: If the filter drawer is pulled out again the fan starts operating at the last selected setting.
Light:
OFF
ON
Note: the light can be used at any time, even if the filter drawer has been pushed
Filters and maintenance
Metal-mesh grease filters have been installed to filter grease particles out of the kitchen fumes.
The filter mats are made of incombustible metal.
Attention:
As grease accumulates in the filter, there an increased risk of the filter catching fire and the extractor hood may malfunction.
Important:
By cleaning the metal grease filters at appropriate intervals, the possibility of them catching fire as a result of a build-up of such as occurs when deep-fat frying or roasting is taking place, is reduced.
Cleaning the metal grease filters:
In normal operation (1 to 2 hours daily) the metal grease filter must be cleaned 1 x a month.
The filters can be cleaned in a dishwasher. It is however possible that they will become slightly discoloured.
The filter must be placed loosely, and NOT wedged, in the dishwasher.
Important:
Metal filters that are saturated with grease should not be washed together with other dishes etc.
- When cleaning the filters by hand, soak them in hot soapy water first of all. Do not use aggressive, acidic or caustic cleaners.
Then brush the filters clean, rinse them thoroughly and leave the water to drain off.
If there are two grease filters, remove the front one first.
3 Fold the filter frame down at the side an remove.
Installation:
- Pull out the filter drawer all the way.
- Insert the filter frame at an angle into the holder, fold up and attach by pressing the detent all the way.
If there are two grease filters, first insert the rear filter frame and then the front filter frame (profiled edge) into the filter drawer.
Ensure that the grease filters are securely positioned on both sides.
Filters and maintenance
Activated carbon filter:
For filtering odours during circulating-air mode.
The activated carbon filter is installed above the grease filter(s) in the extractor hood.
- Remove the grease filter(s) (see Filters and maintenance).
- Insert the two enclosed plastic holders into the right and left sides of the extractor-hood housing and attach each holder with a screw (required only if installing an activated carbon filter for first time).
- Insert the activated carbon filter from below into the extractor-hood housing and lock into position on both sides.
Ensure that the edge of the activated carbon filter is underneath. - Re-install the grease filter (see Filters maintenance).
Removal:
The activated carbon filter is removed in reverse sequence.
Press the locking hooks outwards.
Replacing the activated carbon filter:
During normal operation (1 to 2 hours of the activated carbon filter should be replaced approx. 1× year. The activated carbon filter can be obtained from specialist retailers (see Optional accessories).
To ensure the best possible results, use only original filters.
Disposal of the old activated carbon filter:
- Activated carbon filters do NOT contain any pollutants, i.e. they can be disposed of as household rubbish.

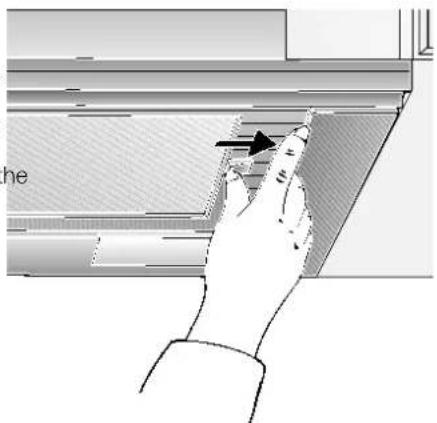

Cleaning and care
For appliances with a glass plate in pull-out vapour extractor:
The glass plate is easily removed and we can be cleaned in a dishwasher.
To remove the lugs, push outwards.
Isolate the extractor hood by pulling out the mains plug or switching off the fuse.
Do not clean the extractor hood with abrasive sponges or with cleaning agents which contain sand, soda, acid or chlorine!
Clean the extractor hood with a hot soap solution or a mild window cleaner.
Do not scrape off dried-on dirt but wipe off with a damp cloth.
- When cleaning the grease filters, remove grease deposits from accessible parts of the housing. This prevents the risk of fire and ensures that the extractor hood continues operating at maximum efficiency.
Note: Do not use alcohol (spirit) on plastic surfaces, as dull marks may appear.
Caution: Ensure that the kitchen is adequately ventilated. Avoid naked flames!
Clean the operating buttons with a mild soapy solution and a soft, damp cloth only. Do not use stainless-steel cleaner to clean the operating buttons.
Stainless steel surfaces:
Use a mild non-abrasive stainless steel cleaner.
Clean the surface in the same direction as it has been ground and polished.
We recommend our stainless steel cleaner no. 461731. See enclosed service booklet for order address.
Aluminium and plastic surfaces:
Do not use dry clothes.
Use a mild window cleaning agent.
Do not use aggressive, acidic or caustic cleaners.
Observe the warranty regulations in the enclosed service booklet.
Replacing the light bulb
Switch off the extractor hood and pull out the mains plug or switch off the electricity supply at the fuse box.
- Pull out the filter drawer all the way.
- Pull the lamp cover forwards.
- Replace the light bulbs. (Standard)
ut candle bulbs, max. 40 W, E14 socket).
- Re-insert the lamp cover.
- Plug appliance into mains again or switch on at the fuse box.
Important information
Old appliances are not worthless rubbish. Valuable raw materials can be reclaimed by recycling old appliances. Before disposing of your old appliance, render it unusable.
You received your new appliance in a protective shipping carton. All packaging materials are environmentally friendly and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally-friendly manner.
Please ask your dealer or inquire at your local authority about current means of disposal.
The extractor hood can be used in exhaust air or circulating air mode.
Always mount the extractor hood over the centre of the hob.
Minimum distance between electric hob and bottom edge of extractor hood: 430 mm, Fig. 1.
The extractor hood must not be installed over a solid fuel cooker - a potential fire hazard (e.g. flying sparks) unless the cooker features a closed, non-removable cover and all national regulations are observed.
The smaller the gap between the extractor hood and hotplates, the greater the likelihood that droplets will form on t underside of the extractor hood.
Additional information concerning gas cookers:
When installing gas hotplates, comply with the relevant national statutory regulations (e.g. in Germany: Technische Regel Gasinstallation TRGI).
Always comply with the currently valid regulations and installation instructions supplied by the gas appliance manufacturer.
Only one side of the extractor hood may be installed next to a high-sided unit or high wall. Gap at least 50 mm.
Minimum distance on gas hotplates between the upper edge of the trivet and lower edge of the extractor hood: 650 mm, Fig. 1.
Prior to installation
Exhaust-air mode
The exhaust air is discharged upwards through a ventilation shaft or directly through the outside wall into the open. Exhaust air should neither be directed into a smoke or exhaust flue that is currently used for other purposes, nor into a shaft that is used for ventilating rooms which stoves or fireplaces are also locate
Exhaust air may be discharged in accordance with official and statutory regulations only (e.g. national building regulations).
Local authority regulations must be Note: When assessing the overall observed when discharging air into smoke requirement, the combined ventilation or exhaust flues that are not otherwise insystem for the entire household must be use. taken into consideration. This rule does not When the extractor hood is operated apply to the use of cooking appliances, in exhaust-air mode simultaneously with such as hobs and ovens.
a different burner which also makes use of restricted operation is possible if the of the same chimney (such as gas, oil extractor hood is used in recirculating coal-fired heaters, continuous-flow heaters, mode - with activated carbon filter.
hot-water boilers) care must be taken to For operating in exhaust-air mode, a ensure that there is an adequate supplyone-way flap should be mounted inside the of fresh air which will be needed by the extractor hood unless there is already one burner for combustion. fitted in the outlet duct or wall ventilation
Safe operation is possible provided that thox.
underpressure in the room where the If no one-way flap was enclosed with the
burner is installed does not exceed 4 Pahood, it can be obtained from a specialist
(0.04 mbar). retailer (see section on optional accessories
in the user instructions).
This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the air-intake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc.
If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room.
An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.
Prior to installation

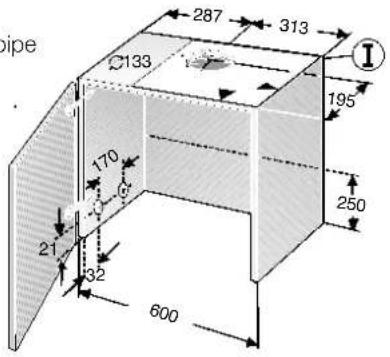

Installing the one-way flap:
- Cut out the protective grid in the air-pipe connector.
- Insert the one-way flap into the bearing apertures on the air-pipe connector.
If the exhaust air is going to be discharged into the open, a telescopic wall box should be fitted into the outside wall.
Exhaust flows straight out at the back:
For optimum extractor hood efficiency: Short, smooth air exhaust pipe.

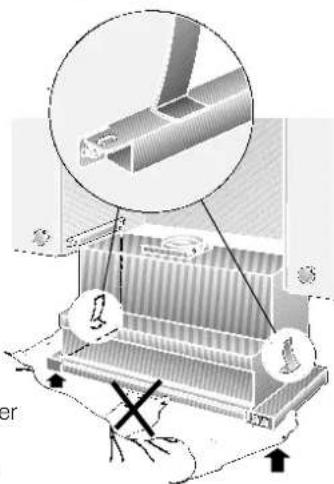

- inside the wall cupboard -
As few bends in the pipe as possible.
Cut a hole in the rear panel of the cupboard, including a groove for the mains cable.
Diameter of pipe to be as large as C possible (ideal is 120 mm) and noe tight bends in pipe. If long, rough exhaust-air pipes, many pipe bends or smaller pipe diameters are used, the air extraction rate will no longer be at an optimum level and there will be an increase in noise.
Connecting the 100 mm exhaust-air pipe:
Cut out the protective grid in the air outlet.
n Attach the reducing connector (enclosed or can be obtained from specialist in retailers) to the air outlet.
The manufacturer of the extractor hoods accepts no liability for complaints which can be attributed to the design and layout the pipework.
Round pipes: We recommend Internal diameter at least. 120 mm.
Flact ducts must have an internal cross-section that equates to that of round pipes with a 100/120 mm intern diameter There should be no sharp bends. 100mm approx. 78~cm^2 120mm approx. 113 cm
If pipes have different diameters:
Insert sealing strip.
For exhaust-air mode, ensure that there is an adequate supply of fresh
Exhaust air flows upwards:
Cut a hole in the top of the wall card, including a groove for the mains cable. - Template 1 is enclosed -
Connecting the 120 mm exhaust-air pipe:
Cut out the protective grid in the air outlet.
Circulating-air mode
- With activated carbon filter if exhaust-air mode is not possible.
The complete insta tation set can be obtained from spe cialist outlets.
The corresponding accessory numbers can be found at the end of these operating instructions.
Electrical connection
This is what you have to do:
- Connect the green and yellow (Earth) wire to the terminal in the plug marked 'E' or with the symbol ( ), or coloured green or green and yellow.
- Connect the blue (Neutral) wire to the terminal in the plug marked 'N' or coloured black.
- Connect the brown (Live) wire to the terminal marked 'L', or coloured red.
The extractor hood may only be connected to an earthed socket that has been installed according to the relevant regulations. If possible, site the earthed socket directly above the wall cupboard or in its immediate vicinity.
The earthed socket should be connected via its own power circuit.
If the earthed socket is no longer accessible following installation of the extractor hood, ensure that there is a permanently installed disconnector.
If it is necessary to wire the extractor hood directly into the mains:
The extractor hood should only be connected to the electricity supply by a properly qualified electrician.
A separator must be installed in the household circuit. A suitable separator is a switch that has a contact gap of more than all mm and interrupts all poles. Such devices include circuit breakers and contactors.
Electrical data:
Are to be found on the name plate inside the appliance after removal of the filter frame.
Before undertaking any repairs, always disconnect the extractor hood from the electricity supply.
Length of the connecting cable: 1.30 m. This extractor hood corresponds to EC regulations concerning RF interference suppression.
Preparing the wall cupboard
Ensure that there is a minimum gap between hob and extractor hood of 650 mm (for gas hobs) or 430 mm (for electric hobs).
This extractor hood has been designed for installation inside a wall cupboard with the following dimensions:
Width: 600 mm
Height: at least 300 mm.
Preparation:
- Remove bottom panel of cupboard - if fitted.

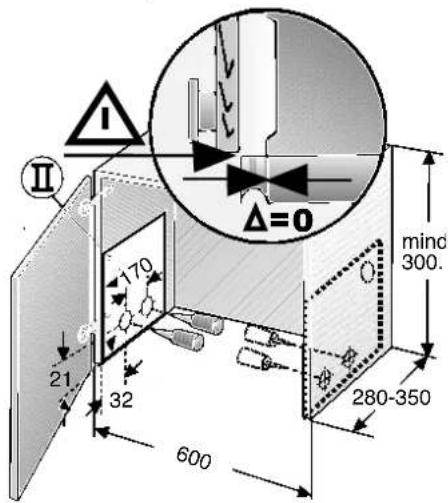

The stability of the cupboard must be maintained. - Mark two points - right and left - on the inside of the cupboard where the hood is to be mounted, and start the hole with a gimlet.
Details for drilling:
2 mm - max. 10 mm deep.
Attention:
Use enclosed template for marking points where hood is to be mounted.
The mounting points shown on the 280 template have been configured in such back, a way as to allow a 20 mm thick handle to be attached flush with the front edges of the cupboard.
A stop allows the handle (Dimension to be positioned further forwards.
If the cupboard depth is greater than 280 mm, the hood can be mounted further
ndle . if the light strip under the cupboard 18es units is mounted further back, if the handle is more than 20~mm 4
Position the template further back.
- Align and screw on the enclosed mounting rails.
Note the thickness of the sides of the cupboard (16 mm or 19 mm). dimension X.
If the interior depth of the cupboard is less than 280~mm the 250~mm high rear panel must be removed.
Installation inside the wall cupboard
- Remove the filter frames (see Operating Manual).
- If the hinges are no longer accessible when the extractor hood has been installed, align the cupboard doors.
- Lift and push the extractor hood from below into the cupboard until the installation aids on the left and right lock into position.
4thull out the filter drawer all the way.
5. Attach the extractor hood by screwing in 2 screws on the left and right. Do NOT tighten the screws. Raise the extractor hood.
6. Align the extractor hood in the cupboard and tighten the screws.
- Feed the mains connection cable through the aperture into the upper cupboard and connect the pipe.
- Connect to the power supply.
- If required, shorten the wall cover to the required size (e.g. saw off) and screw to the upper cupboard.
Installation inside the wall cupboard
Attaching a handle:
A handle must be attached to the filter drawer.
This handle can either be a wooden that matches the kitchen cupboards or a the handle that is available as an optional accessory (see section on optional accessories in the user instructions).

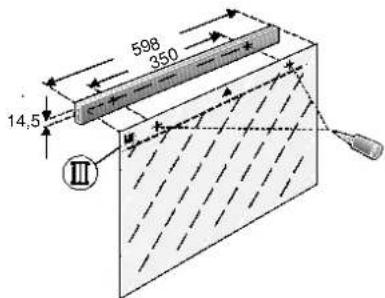

1. Mark two points on the handle with enclosed template and make holes with a bradawl. If the holes are drilled: 2 mm - max. 10 mm deep.

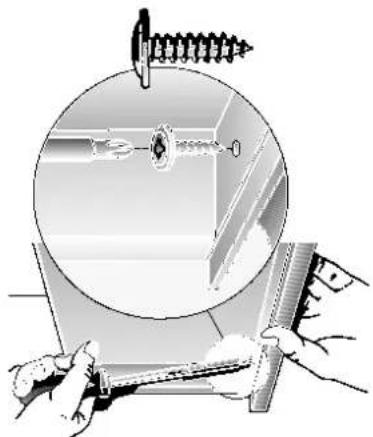

- Align the handle and screw onto the appliance with the two enclosed screws.
- Insert the filter frames (see Operating Manual).
Note: The extractor hood housing inside the wall cupboard can be boarded up (e.g. with chipboard).
Please observe the following:
- T he shelf must not be rest upon the extractor hood housing.
- T he board at the front should not be attached to the housing.
- P rovide access for customer service.
Removal:
The extractor hood is removed in reverse sequence.
Note: In circulating-air mode the activated carbon filter and plastic holder must be removed in order to gain access to the mounting screws and installation aids.
Weight in kg:
| Exhaust air Re-circulating air | |
| 9,5 10,5 | |
The manufacturer reserves the right to make design alterations in the interests of technical development.
| JZ5143X5 | JZ5143X5 |
| 296178 | 296178 |
| 265084 | 265084 |
| 086244 | 086244 |
| Metall: JZ5770N0 | |
