Product type	Range hood
Brand	Junker
Model	JD36AL51
Dimensions (W x D x H)	600 x 320 x 390 mm (minimum recess)
Weight	≤ 18 kg
Power supply	220-240 V, alternating current, connection via plug with protective conductor
Operating modes	External extraction or air recirculation (with optional odor filter)
Fan speeds	3 speeds + intensive speed (activation max 6 min, automatic return)
Lighting	LED lighting (risk group 1, do not look directly for more than 100 s)
Grease filters	Dishwasher-safe (max 70 °C) or hand wash; cleaning recommended every 2 months
Odor filter (optional)	Reference Clean Air 11008080 (replacement), recirculation kit JZ51ITI1X4
Additional functions	Fan run-on (auto shut-off after approx. 10 min)
Safety	Automatic shut-off in case of overheating; safe use with combustion appliances (keep distance and air supply)
Power cable length	Approx. 1.30 m
Protection class	Class 1 (requires grounded outlet)
Availability of spare parts	At least 10 years after placing on the market in the EEA
Warranty	According to country conditions (contact customer service for details)

Frequently Asked Questions - JD36AL51 Junker

How to install the JD36AL51 range hood?

Installation must be carried out by a qualified professional. Observe the minimum safety distances (e.g., 65 cm above a gas hob). The appliance is fixed in a wall cabinet with the supplied brackets. The exhaust duct must have a slope of at least 1° towards the outside.

When and how to clean the grease filters?

Clean the grease filters every 2 months. They can be washed in the dishwasher (max 70 °C) or by hand with warm soapy water and a brush. Do not use aggressive cleaners or steel wool. Make sure they are completely dry before reinstalling.

What to do if the range hood does not work?

First check the power plug and fuse. If the LED lighting does not turn on, replacement must be carried out by the manufacturer, customer service or a qualified electrician. For any other malfunction, contact customer service.

Can I use the range hood with a gas hob?

Yes, but follow the safety instructions: never flambé under the hood, always use a container on the burners, and do not operate two burners on high heat simultaneously for more than 15 min. The minimum distance between the hood and hob must be observed.

What is the minimum safety distance between the range hood and hob?

For electric hobs: at least 45 cm. For gas or mixed hobs: at least 65 cm. Check your hob instructions as the larger distance applies.

How to activate the intensive speed?

Press the '+' button (variant 3) until all LEDs light up. The appliance remains in intensive speed for about 6 minutes then automatically returns to a lower speed. For variants 1 and 2, intensive speed is not mentioned; use speed 3.

What to do if the LED lighting stops working?

Defective LEDs can only be replaced by the manufacturer, its customer service or a qualified person (electrician). Contact customer service with the E-Nr. and FD numbers of your appliance.

How to use the range hood in recirculation mode?

Install an odor filter (ref. Clean Air 11008080) and a recirculation kit (ref. JZ51ITI1X4 if necessary). The cleaned air is returned to the room. This mode is without restriction for combustion appliances.

How can I reduce the energy consumption of the range hood?

Use the lowest speed suitable for the vapors, turn off the lighting when not needed, clean the filters regularly, cover pots and pans, and disable any unnecessary additional functions.

Where to find the serial number (E-Nr.) and production number (FD)?

They are on the rating plate, either inside the appliance after removing the grease filter, or on the top of the appliance. Write them down to communicate to customer service.

USER MANUAL JD36AL51 Junker

Safety warning illustration showing a house with water flow and a skull symbol, alongside a blue checkmark indicating inspection.

Diagram showing electrical symbols including a light bulb, switch, and plus/minus signs with polarity indicators

Technical diagram showing exploded view of mechanical parts with 2x and 4x magnified views

≥430 ≥650

12.3 Sichere Montage

Safety warning illustration showing two household setups with a skull and warning symbol, one checked by a blue checkmark.

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or assembly.

Diagram illustrating a cable installation process with numbered steps: first, second, and third.

Diagram of a mechanical setup with a device mounted on a base, connected to a power outlet and cable (no text or symbols visible)

de Montageanleitung

Illustration of a mechanical tool with a blue handle and metal frame (no text or symbols)

Diagram of a mechanical assembly with blue components and an upward arrow indicating motion (no text or symbols)

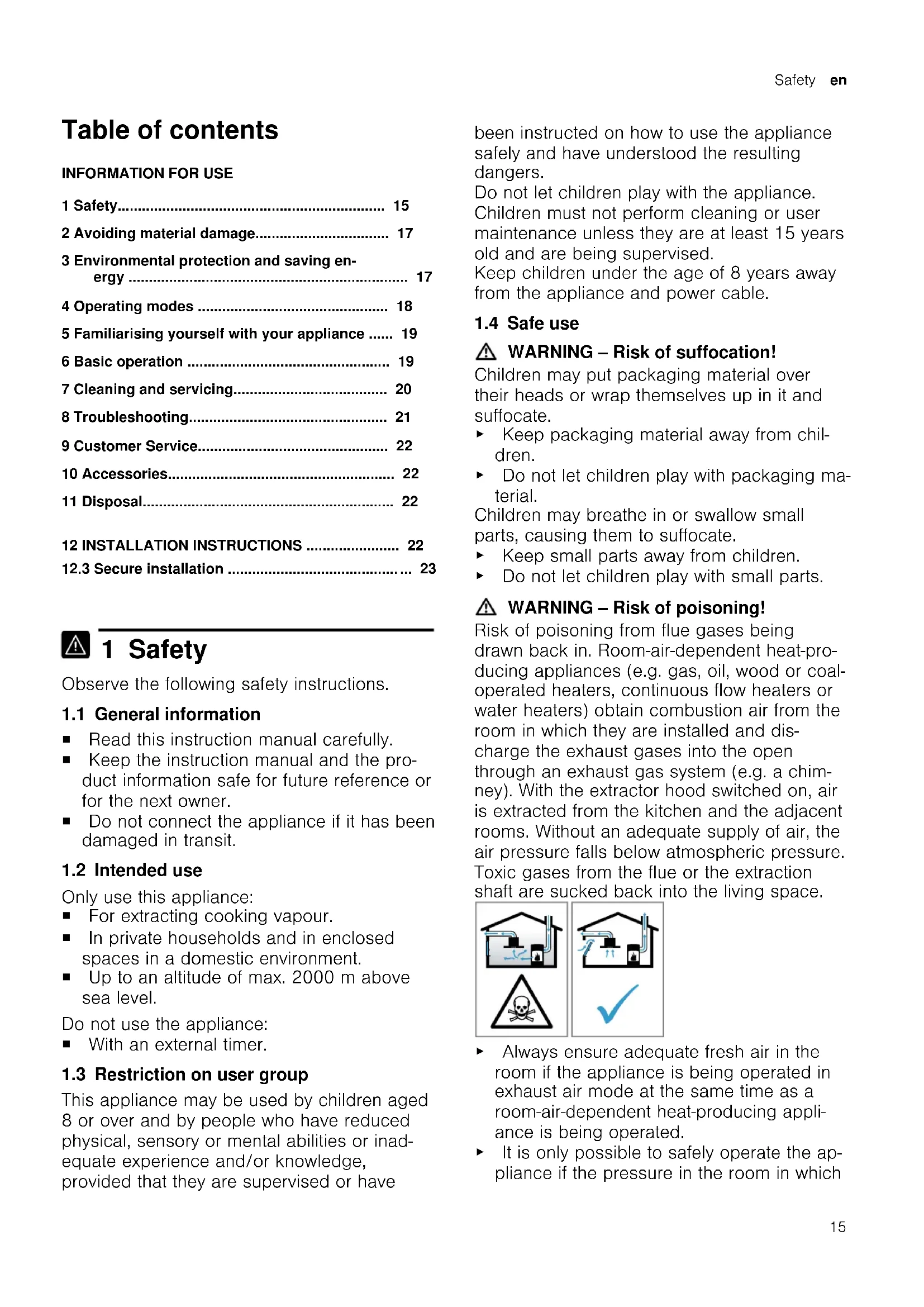

1 Safety.... 15
2 Avoiding material damage.... 17
3 Environmental protection and saving energy 17
4 Operating modes 18
5 Familiarising yourself with your appliance ..... 19
6 Basic operation ...... 19
7 Cleaning and servicing.... 20
8 Troubleshooting.... 21
9 Customer Service.... 22
10 Accessories.... 22
11 Disposal.... 22
12 INSTALLATION INSTRUCTIONS 22
12.3 Secure installation 23

1 Safety

Observe the following safety instructions.

1.1 General information

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
  ■ Do not connect the appliance if it has been damaged in transit.

1.2 Intended use

Only use this appliance:

■ For extracting cooking vapour.
■ In private households and in enclosed spaces in a domestic environment.
■ Up to an altitude of max. 2000 m above sea level.

Do not use the appliance:

■ With an external timer.

1.3 Restriction on user group

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have

been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance. Children must not perform cleaning or user maintenance unless they are at least 15 years old and are being supervised.

Keep children under the age of 8 years away from the appliance and power cable.

1.4 Safe use

⚠ WARNING – Risk of suffocation!

Children may put packaging material over their heads or wrap themselves up in it and suffocate.

• Keep packaging material away from children.
• Do not let children play with packaging material.
  Children may breathe in or swallow small parts, causing them to suffocate.
• Keep small parts away from children.
  ▶ Do not let children play with small parts.

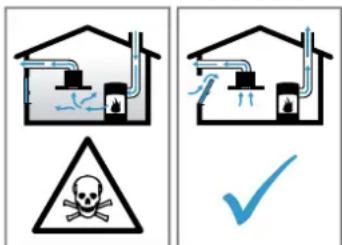

⚠ WARNING – Risk of poisoning!

Risk of poisoning from flue gases being drawn back in. Room-air-dependent heat-producing appliances (e.g. gas, oil, wood or coal-operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open through an exhaust gas system (e.g. a chimney). With the extractor hood switched on, air is extracted from the kitchen and the adjacent rooms. Without an adequate supply of air, the air pressure falls below atmospheric pressure. Toxic gases from the flue or the extraction shaft are sucked back into the living space.

Safety warning illustration showing a house with water and smoke, a skull symbol indicating hazard, and a blue checkmark.

▶ Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as a room-air-dependent heat-producing appliance is being operated.
- It is only possible to safely operate the appliance if the pressure in the room in which

the heating appliance is installed does not drop more than 4 Pa (0.04 mbar) below atmospheric pressure. This can be achieved whenever the air needed for combustion is able to enter through openings that cannot be sealed, for example in doors, windows, incoming/exhaust air wall boxes or by other technical means. An incoming/exhaust air wall box alone does not ensure compliance with the limit.

In any case, consult your responsible chimney sweep. They are able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you.
- Unrestricted operation is possible if the appliance is operated exclusively in circulating-air mode.

⚠ WARNING – Risk of fire!

Fatty deposits in the grease filters may catch fire.

▶ Never operate the appliance without a grease filter.
▶ Clean the grease filters regularly.
▶ Never work with naked flames close to the appliance (e.g. flambéing).
- Do not install the appliance near a solid fuel heating appliance (e.g. wood- or coal-burning) unless the heating appliance has a sealed, non-removable cover. There must be no flying sparks.

Hot oil or grease ignites very quickly.

▶ Always supervise hot oil and fat.
▶ Never extinguish burning oil or fat with water. Switch off the cooking zone. Extinguish flames carefully using a lid, fire blanket or something similar.

When gas burners are in operation without any cookware placed on them, they can build up a lot of heat. A ventilation appliance installed above the cooker may become damaged or catch fire.

▶ Only operate the gas burners with cookware on them.

Operating multiple gas hobs at the same time generates a great deal of heat. A ventilation appliance installed above the cooker may become damaged or catch fire.

▶ Only operate the gas hobs with cookware on them.

▶ Select the highest fan setting.

▶ Never operate two gas hobs simultaneously on the highest flame for longer than 15 minutes. Two gas hobs correspond to one large burner.
▶ Never operate large burners of more than 5 kW with the highest flame for longer than 15 minutes, e.g. a wok.

⚠ WARNING – Risk of burns!

The accessible parts of the appliance become hot during operation.

▶ Never touch these hot parts.
- Keep children at a safe distance.
The appliance becomes hot during operation.

- Allow the appliance to cool down before cleaning.

⚠ WARNING – Risk of injury!

Components inside the appliance may have sharp edges.

- Carefully clean the appliance interior. Changes to the electrical or mechanical assembly are dangerous and may lead to malfunctions.

- Do not make any changes to the electrical or mechanical assembly.

The light emitted by LED lights is very dazzling, and can damage the eyes (risk group 1).

- Do not look directly into the switched-on LED lights for longer than 100 seconds.

⚠ WARNING – Risk of electric shock!

If the appliance or the power cord is damaged, this is dangerous.

▶ Never operate a damaged appliance.
▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
▶ Call customer services. → Page 22 Incorrect repairs are dangerous.

▶ Repairs to the appliance should only be carried out by trained specialist staff.
▶ Only use genuine spare parts when repairing the appliance.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

An ingress of moisture can cause an electric shock.

Before cleaning, pull out the mains plug or switch off the fuse in the fuse box.
- Do not use steam- or high-pressure cleaners to clean the appliance.

⚠ WARNING – Risk of explosion!

Highly caustic alkaline or highly acidic cleaning agents in conjunction with aluminium parts in the interior of the appliance may cause explosions.

▶ Never use highly caustic alkaline or highly acidic cleaning agents. In particular, do not use commercial or industrial cleaning agents in conjunction with aluminium parts, e.g. grease filter on extractor hoods.

⚠ WARNING – Risk of fire!

Fatty deposits in the grease filters may catch fire.

▶ Clean the grease filters regularly.

⚠ WARNING – Risk of injury!

Improper repairs are dangerous.

▶ Repairs to the appliance should only be carried out by trained specialist staff.
▶ If the appliance is defective, call Customer Service.

⚠ WARNING – Risk of electric shock!

Penetrating moisture may cause an electric shock.

▶ Do not use wet sponge cloths.

2 Avoiding material damage

ATTENTION!

Condensate may cause corrosion damage.

- To prevent condensation from building up, switch on the appliance during cooking.

If moisture gets into the controls, this may result in damage.

▶ Never clean controls with a wet cloth. Incorrect cleaning damages the surfaces.

▶ Follow the cleaning instructions.
- Do not use harsh or abrasive detergents.
- Clean stainless steel surfaces in the direction of the finish only.
▶ Never clean controls with stainless steel cleaners.

Condensation that flows back in may damage the appliance.

- The air extraction duct must be installed with a gradient of at least 1^ from the appliance.

If you put incorrect stress on the design elements, they may break off.

▶ Do not pull design elements.

- Do not place objects on the design elements or hang objects from them.

- Do not pull design elements. - Do not place objects on the design elements or hang objects from them.

There is a risk of surface damage if you do not peel off the protective film.

- Remove the protective film from all parts of the appliance before using for the first time.

Painted surfaces are easily damaged.

▶ Follow the cleaning instructions.

→ "Cleaning the appliance", Page 20

▶ Ensure that the painted surfaces are not scratched.

3 Environmental protection and saving energy

3.1 Disposing of packaging

The packaging materials are environmentally compatible and can be recycled.

- Sort the individual components by type and dispose of them separately.

3.2 Saving energy

If you follow these instructions, your appliance will use less power.

Adjust the fan speed to the amount of steam produced during cooking.

■ The lower the fan speed, the less energy is consumed.

Only use the intensive mode as required.

If cooking produces large amounts of steam, select a higher fan speed in good time.

■ The odours are distributed around the room less.

Switch off the lighting if it is no longer required.

■ When the lighting is switched off, it does not consume any energy.

Clean or replace the filters at regular intervals.

■ The effectiveness of the filter is retained.

Put the cooking lid on.

■ The cooking vapours and condensation are reduced.

Only use the additional functions if required.

■ Switching off additional functions reduces power consumption.

4 Operating modes

You can use your appliance in air extraction mode or circulating-air mode.

4.1 Air extraction mode

The air which is drawn in is cleaned by the grease filters and conveyed to the exterior by a pipe system.

The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

■ If the exhaust air is to be conveyed into a non-functioning smoke or exhaust gas flue, you must obtain the consent of the heating engineer responsible.
■ If the exhaust air is conveyed through the external wall, a telescopic duct should be used.

4.2 Air recirculation mode

The air which is drawn in is cleaned by the grease filters and an odour filter, and conveyed back into the room.

To bind odours in circulating-air mode, you must install an odour filter. The different options for operating the appliance in circulating-air mode can be found in our catalogue. Alternatively, ask your dealer. The required accessories are available from specialist retailers, from customer service or from the Online Shop.

5 Familiarising yourself with your appliance

5.1 Controls, variant 1 and 2

You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.

0 1 2 / 0 2 3

1 Switches on fan setting 1.
2 Switches fan setting 2 on.
3 Switches on fan setting 3.
Switching on the lighting
0 Switching off the lighting

5.2 Controls, variant 3

You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.

Diagram of a control panel with indicator lights, a switch, and polarity signs

① Switch the appliance on or off
+ Increase the fan setting
— Decrease the fan setting
Switch the lighting on or off

6 Basic operation

6.1 Control panel, variant 1 and 2

Switching on the appliance

▶ Pull out the filter pull-out.
√ The appliance starts at the selected fan setting.

Switching off the appliance

- Slide the filter pull-out as far as it will go.

Selecting a fan setting

▶ Press 1, 2 or 3

Switching on the lighting

The lighting can be switched on and off independently of the ventilation system.

▶ Press 🔍

Switching off the lighting

▶ Press 0

6.2 Control panel, variant 3

Switching on the appliance

1. Pull out the filter pull-out.
2. Press ①

√ The appliance starts at fan setting 2.

Switching off the appliance

1. Press ①

2. Slide in the filter pull-out.

Selecting a fan setting

▶ Press for .—

Switching on intensive mode

If particularly strong odours or vapours develop, you can use intensive mode.

• Press +repeatedly until all of the LEDs in the display light up.
  √ After approx. six minutes, the appliance automatically switches to a lower fan setting.

Switching off intensive mode

▶ To select a fan setting of your choice, press —

Switching on the fan run-on

During the fan run-on, the appliance continues to run for a short time and then switches off automatically.

Requirement: The appliance is switched on.

▶ Slide in the filter pull-out.
√ The appliance switches off automatically after approx. 10 minutes.

Switching on the lighting

The lighting can be switched on and off independently of the ventilation system.

▶ Press

7 Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

7.1 Cleaning products

You can obtain suitable cleaning products from after-sales service or the online shop.

WARNING – Risk of electric shock!

An ingress of moisture can cause an electric shock.

Before cleaning, pull out the mains plug or switch off the fuse in the fuse box.
- Do not use steam- or high-pressure cleaners to clean the appliance.

WARNING – Risk of burns!

The appliance becomes hot during operation.

- Allow the appliance to cool down before cleaning.

ATTENTION!

Unsuitable cleaning products may damage the surfaces of the appliance.

▶ Do not use harsh or abrasive detergents.
- Do not use cleaning products with a high alcohol content.
- Do not use hard scouring pads or cleaning sponges.
▶ Only use glass cleaners, glass scrapers or stainless steel care products if recommended in the cleaning instructions for the relevant part.
- Wash sponge cloths thoroughly before use.

7.2 Cleaning the appliance

Clean the appliance as specified. This will ensure that the different parts and surfaces of the appliance are not damaged by incorrect cleaning or unsuitable cleaning products.

WARNING – Risk of explosion!

Highly caustic alkaline or highly acidic cleaning agents in conjunction with aluminium parts in the interior of the appliance may cause explosions.

▶ Never use highly caustic alkaline or highly acidic cleaning agents. In particular, do not use commercial or industrial cleaning agents in conjunction with aluminium parts, e.g. grease filter on extractor hoods.

WARNING – Risk of electric shock!

An ingress of moisture can cause an electric shock.

Before cleaning, pull out the mains plug or switch off the fuse in the fuse box.
- Do not use steam- or high-pressure cleaners to clean the appliance.

WARNING – Risk of burns!

The appliance becomes hot during operation.

- Allow the appliance to cool down before cleaning.

WARNING – Risk of injury!

Components inside the appliance may have sharp edges.

- Carefully clean the appliance interior.

1. Observe the information regarding the cleaning agents.
   → "Cleaning products", Page 20
2. Clean as follows, depending on the surface:
3. Clean stainless steel surfaces in the direction of the finish using a sponge cloth and hot soapy water.
4. Clean painted surfaces using a damp sponge cloth and hot soapy water.
5. Clean aluminium using a soft cloth and glass cleaner.
6. Clean plastic using a soft cloth and glass cleaner.

7. Clean glass using a soft cloth and glass cleaner.

8. Dry with a soft cloth.

9. Apply a thin layer of the stainless steel cleaning product to stainless steel surfaces using a soft cloth.

You can obtain stainless steel cleaning products from the after-sales service or the online shop.

7.3 Cleaning controls

WARNING – Risk of electric shock!

Penetrating moisture may cause an electric shock.

▶ Do not use wet sponge cloths.

1. Observe the information regarding the cleaning agents.
   → "Cleaning products", Page 20
2. Clean using a damp sponge cloth and hot soapy water.
3. Dry with a soft cloth.

7.4 Removing the grease filter

1. Pull out the filter pull-out fully.

2. ATTENTION!

Falling grease filters may damage the hob below. ▶ Grip below the grease filter with one hand.

Note: Remove the grease filter in the filter pull-out first, then remove the grease filters in the appliance. Open the locks on the grease filters.

1. Remove the grease filters from the holders.

To prevent grease from dripping, hold the grease filter horizontally.

7.5 Cleaning grease filters in the dishwasher

The grease filters filter the grease from the cooking vapour. Regularly cleaned grease filters guarantee a high level of grease removal. We recommend cleaning the grease filters every two months.

WARNING – Risk of fire!

Fatty deposits in the grease filters may catch fire.

▶ Clean the grease filters regularly.

ATTENTION!

The grease filters may become damaged if they are squeezed.

▶ Do not squeeze the grease filters.

Note: When cleaning the grease filter in the dish-washer, light discolouration may occur. This discolouration has no effect on the performance of the metal grease filters.

Requirement: The grease filters have been removed.

→ "Removing the grease filter", Page 20

1. Observe the information regarding the cleaning agents.
   → "Cleaning products", Page 20

2. Place the grease filters loosely into the dishwasher. Do not clean heavily soiled grease filters with utensils.

Use special grease solvent for stubborn dirt. You can obtain grease solvents from customer service or the online shop.

1. Start the dishwasher.

Select a temperature of no more than 70 °C.

1. Allow the grease filters to drain.

7.6 Cleaning grease filters manually

The grease filters filter the grease from the cooking vapour. Regularly cleaned grease filters guarantee a high level of grease removal. We recommend cleaning the grease filters every two months.

WARNING – Risk of fire!

Fatty deposits in the grease filters may catch fire.

▶ Clean the grease filters regularly.

Requirement: The grease filters have been removed.

→ "Removing the grease filter", Page 20

1. Observe the information regarding the cleaning agents.
   → "Cleaning products", Page 20
2. Soak the grease filter in hot soapy water. Use special grease solvent for stubborn dirt. You can obtain grease solvents from customer service or the online shop.
3. Use a brush to clean the grease filters.
4. Rinse the grease filters thoroughly.
5. Allow the grease filters to drain.

7.7 Fitting grease filters

ATTENTION!

Falling grease filters may damage the hob below.

▶ Grip below the grease filter with one hand.

1. Fit the grease filters.
2. Fold the grease filters upwards and engage the locks.
3. Make sure that the locks engage.

8 Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.

WARNING – Risk of injury!

Improper repairs are dangerous.

• Repairs to the appliance should only be carried out by trained specialist staff.
  ▶ If the appliance is defective, call Customer Service.

WARNING – Risk of electric shock!

Incorrect repairs are dangerous.

• Repairs to the appliance should only be carried out by trained specialist staff.
  ▶ Only use genuine spare parts when repairing the appliance.
  If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

8.1 Malfunctions

Fault Cause and troubleshooting

The appliance is not working.	The mains plug of the power cord is not plugged in. ► Connect the appliance to the power supply.
	The circuit breaker is faulty. ► Check the circuit breaker in the fuse box.
	There has been a power cut. ► Check whether the lighting in your kitchen or other appliances are working.

Fault Cause and troubleshooting

The LED lighting does not work.

Different causes are possible.▸ Defective LED lights may be replaced by the manufacturer, their customer service or a qualified technician (electrician) only.▸ Call the after-sales service.→ "Customer Service", Page 22

9 Customer Service

Function-relevant genuine spare parts according to the corresponding Ecodesign Order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.

Note: Under the terms of the manufacturer's warranty the use of Customer Service is free of charge.

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

If you contact Customer Service, you will require the product number (E-Nr.) and the production number (FD) of your appliance.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

9.1 Product number (E-Nr.) and production number (FD)

You can find the product number (E-Nr.) and the production number (FD) on the appliance's rating plate. Depending on the model, the rating plate can be found:

■ Inside the appliance (remove grease filters for access).
■ On top of the appliance.

Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

10 Accessories

You can buy accessories from the after-sales service, from specialist retailers or online. Only use original accessories, as these have been specifically designed for your appliance.

Accessories vary from one appliance to another. When purchasing accessories, always quote the exact product number (E no.) of your appliance. → Page 22 You can find out which accessories are available for your appliance in our catalogue, in the online shop or from our after-sales service.

www.junker-home.info

Accessories Order number

Clean Air Standard odour	11008080
filter - replacement

Clean Air Standard recirculation kit

JZ51ITI1X4

11 Disposal

11.1 Disposing of old appliance

Valuable raw materials can be reused by recycling.

1. Unplug the appliance from the mains.
2. Cut through the power cord.
3. Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

12 Installation instructions

Observe this information when installing the appliance.

12.1 Included with the appliance

After unpacking all parts, check for any damage in transit and completeness of the delivery.

Technical diagram showing exploded view of mechanical parts with 2x and 4x magnified views

Depending on the appliance specifications

12.2 Safety clearances

Comply with the safety clearances for the appliance.

≥430 ≥650

For Australia and New Zealand the minimum safety clearance above electrical cooktops must be 600 mm.

12.3 Secure installation

Follow these safety instructions when installing the appliance.

WARNING – Risk of poisoning!

Risk of poisoning from flue gases being drawn back in. Room-air-dependent heat-producing appliances (e.g. gas, oil, wood or coal-operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open through an exhaust gas system (e.g. a chimney). With the extractor hood switched on, air is extracted from the kitchen and the adjacent rooms. Without an adequate supply of air, the air pressure falls below atmospheric pressure. Toxic gases from the flue or the extraction shaft are sucked back into the living space.

Safety warning illustration showing a hazard symbol and a checkmark for installation or safety compliance.

▶ Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as a room-air-dependent heat-producing appliance is being operated.
It is only possible to safely operate the appliance if the pressure in the room in which the heating appliance is installed does not drop more than 4 Pa (0.04 mbar) below atmospheric pressure. This can be achieved whenever the air needed for combustion is able to enter through openings that cannot be sealed, for example in doors, windows, incoming/exhaust air wall boxes or by other technical means. An incoming/exhaust air wall box alone does not ensure compliance with the limit.
In any case, consult your responsible chimney sweep. They are able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you.
▶ Unrestricted operation is possible if the appliance is operated exclusively in circulating-air mode.

Risk of poisoning from flue gases being drawn back in.

▶ If an extractor hood with an open-flued heat production source is installed, the power supply for the extractor hood must be provided with a suitable safety switch.

Risk of poisoning from flue gases being drawn back in.

• Do not emit the exhaust air into a smoke or exhaust gas flue that is in operation.
• Do not emit the exhaust air into a shaft that is used to ventilate installation rooms for heat-producing appliances.
  If the exhaust air is to be conveyed into a smoke or exhaust gas flue, you must obtain the consent of the heating engineer responsible.

⚠ WARNING – Risk of suffocation!

Children may put packaging material over their heads or wrap themselves up in it and suffocate.

• Keep packaging material away from children.
• Do not let children play with packaging material.

⚠ WARNING – Risk of fire!

Grease deposits in the grease filter may catch fire.

• The specified safety clearances must be complied with in order to prevent a build-up of heat.
• Observe the specifications for your cooking appliances. If the installation instructions for the cooking appliances specify a different clearance, the larger of the two must always be provided for. If gas hobs and electric hobs are operated together, the largest specified clearance applies.

The grease deposits in the grease filter may catch fire.

▶ Never work with naked flames close to the appliance (e.g. flambéing).
- Do not install the appliance near a heat-producing appliance for solid fuel (e.g. wood or coal) unless a closed, non-removable cover is present. There must be no flying sparks.

⚠ WARNING – Risk of injury!

Components inside the appliance may have sharp edges.

▶ Wear protective gloves.

The appliance may fall down if it has not been properly fastened in place.

▶ All fastening components must be fixed firmly and securely in place.

Changes to the electrical or mechanical assembly are dangerous and may lead to malfunctions.

- Do not make any changes to the electrical or mechanical assembly.

⚠ WARNING – Risk of electric shock!

Sharp-edged components inside the appliance may damage the connecting cable.

- Do not kink or trap the connecting cable. If the appliance or the power cord is damaged, this is dangerous.

▶ Never operate a damaged appliance.
▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
▶ Call customer services. → Page 22

Incorrect repairs are dangerous.

▶ Repairs to the appliance should only be carried out by trained specialist staff.
▶ Only use genuine spare parts when repairing the appliance.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

Incorrect installation is dangerous.

• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
• The protective conductor system of the domestic electrical installation must be properly installed.
  ▶ Never equip the appliance with an external switching device, e.g. a timer or remote control.
• When the appliance is installed, the mains plug of the power cord must be freely accessible. If free access is not possible, an all-pole isolating switch must be installed in the permanent electrical installation according to the conditions of Overvoltage Cat-

egory III and according to the installation regulations.

- When installing the appliance, check that the power cable is not trapped or damaged.

12.4 Information on the installation situation

■ Install this appliance in a kitchen cupboard.
■ To install additional special accessory parts, observe the enclosed installation instructions.
■ The width of the extractor hood must correspond at least with the width of the hob.
■ To optimally detect the cooking vapours, install the appliance in the middle of the hob.

12.5 Instructions for the exhaust air pipe

The appliance manufacturer does not provide any warranty for faults attributable to the pipeline.

■ Use a short, straight exhaust air pipe with as large a pipe diameter as possible.
- Long, rough exhaust air pipes, many pipe bends or small pipe diameters reduce the suction power and increase the fan noise.
■ Use an exhaust pipe that is made of non-combustible material.
■ To prevent condensate from returning, fit the exhaust pipe with a 1° gradient from the appliance.

12.6 Instructions for the electrical connection

In order to safely connect the appliance to the electrical system, follow these instructions.

WARNING – Risk of electric shock!

It must always be possible to disconnect the appliance from the electricity supply. The appliance must only be connected to a protective contact socket that has been correctly installed.

• The mains plug for the mains power cable must be easily accessible after the appliance is installed.
  ▶ If this is not possible, an all-pole isolating switch must be integrated into the permanent electrical installation according to the conditions of overvoltage category III and according to the installation regulations.
• The permanent electrical installation must only be wired by a professional electrician. We recommend installing a residual-current circuit breaker (RCCB) in the appliance's power supply circuit.

Sharp-edged components inside the appliance may damage the connecting cable.

• Do not kink or trap the connecting cable.
  ■ The connection data can be found on the rating plate. → Seite 22
  ■ The connecting cable is approx. 1.30 m long.
  ■ This appliance complies with the EC interference suppression regulations.
  ■ The appliance corresponds to protection class 1. You should therefore only use the appliance with a protective earth connection.
• Do not connect the appliance to the power supply during installation.

■ Ensure that the protection against contact is guaranteed during installation.

12.7 General information

Follow these general instructions during the installation.

■ For the installation, observe the currently valid building regulations and the regulations of the local electricity and gas suppliers.
- When discharging the exhaust air, the official and legal regulations, such as the regional building code., must be observed.
■ In order to freely access the appliance for servicing, select an easy-to-reach installation site.
■ The surfaces of the appliance are sensitive. Avoid damaging them during installation.

12.8 Installation

Checking the unit

1. Check whether the fitted unit is level and has sufficient load-bearing capacity.
   The max. weight of the appliance is 18 kg.
   Note: Note the furniture manufacturer's specifications with regard to the load-bearing capacity of the fitted unit.
2. Ensure that the fitted unit is heat-resistant up to 90 °C.
3. Ensure that the fitted unit is still stable after the cut-outs have been made.
4. Ensure that the fitted unit complies with the following dimensions:

Width 600 mm

Depth Min. 320 mm

Height Min. 390 mm

Preparing the units

Requirement: The unit is suitable for the installation.

→ "Checking the unit", Page 25

1. Cover the hob to prevent damage.
2. Ensure that the stability of the fitted unit is guaranteed after the cut-outs have been made.
3. If the cabinet is less than 320 mm deep, remove part of the back panel.
4. Create the cut-out for the pipe connection.

131 192

1. If the cabinet base is in place, remove it.

2. Remove any shavings.

3. Use the enclosed template to mark the fastening points on the inside of the cabinet and use a bradawl to make indentations where the holes are to be.

4x 176 114 161 350 ≥170 ① ② 5

1. Screw in the four enclosed screws for the angle bracket up to 5 mm.

Preparing the appliance

1. Insert the holders for the wall edging strip on the outside rear of the appliance into the cut-outs and fold them in to the centre of the unit.

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or assembly.

1. Use the screws provided to secure the handle strip to the filter pull-out.

2x 16 2x

1. Connect the enclosed power cord to the appliance and secure the stain relief.

Diagram showing two steps of a plug being inserted into a device, labeled with numbered instructions.

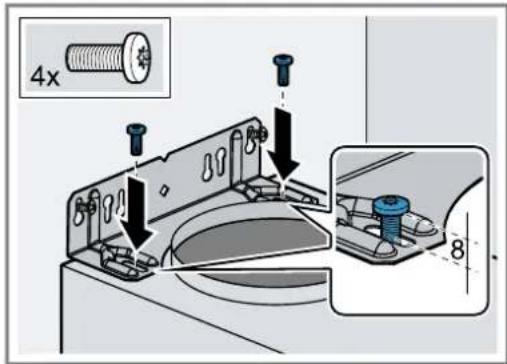

1. Screw the two angle brackets to the appliance. Note the position of the screws. Screw in the screws until 8 mm of the threaded section is still protruding.

4x 8

Installing the appliance

1. Use the angle brackets to hang the appliance on the screws, align it and tighten it.

Diagram of a mechanical setup with a monitor, cable, and plug (no text or symbols)

1. Appliance width 90 cm: Pull the filter pull-out out completely towards the front. Also use two screws each on the left and right to screw the appliance to the side upper cabinets from below.

15 mm 4x

1. Adjust the wall closing strip to the clearance between the appliance and the wall.

Illustration of a mechanical tool with a blue handle and metal frame (no text or symbols)

1. Snap the wall closing strip into the holders.

Diagram of a mechanical assembly with a blue component and an upward arrow indicating force or motion (no text or symbols present)

1. Fit the grease filters.
2. Establish the pipe connection.
3. Establish the electrical connection.

Note:

You can conceal the housing of the extractor hood within the upper cabinet. In doing so, observe the following:

■ The intermediate floor must not rest on the housing.
■ The front panel must not be secured to the housing.
■ Access to the housing must remain possible in order to change the filter and for after-sales service.

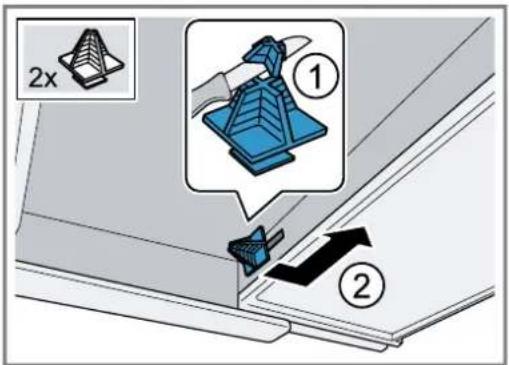

Changing the filter pull-out's limit stop

On some versions of the appliance, the limit stop for the filter pull-out can be changed. Spacers are included with these appliances in order to set the appliance's handle strip so that it is flush with the fitted unit.

1. Pull the filter pull-out towards the front.
2. Shorten the spacers to the required dimension and insert them into the slot specified.

2x ① ②

Table des matières

MANUEL D'UTILISATION

Safety warning illustration showing two household water level systems with hazard symbols and a blue checkmark indicating compliance.

Electrical control panel with indicator lights, a switch, and polarity signs

Technical diagram showing assembly of mechanical parts with 2x and 4x magnified views, including a bolt, screw, and bracket.

≥430 ≥650

Safety warning illustration showing two scenarios: one with a skull and pipe, the other with a checkmark.

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or assembly.

Diagram illustrating a cable installation process with numbered steps: first, second, and third.

Diagram of a mechanical setup with a device mounted on a base, connected to a plug and cable (no text or symbols visible)

Illustration of a tool with a blue handle and metal frame (no text or symbols)

Diagram of a mechanical assembly with a piston and housing, showing internal components and motion direction (no text or labels)

⚠ WAARSCHUWING – Kans op verstikking!

⚠ WAARSCHUWING – Kans op vergiftiging!

Safety warning illustration showing two scenarios: one with a house and smoke, another with a skull and exhaust pipe, both marked with a blue checkmark.

⚠ WAARSCHUWING – Kans op brand!

⚠ WAARSCHUWING – Kans op letsel!

⚠ WAARSCHUWING – Kans op explosie!

⚠ WAARSCHUWING – Kans op brand!

⚠ WAARSCHUWING – Kans op letsel!

Electrical control panel with indicator lights, a switch, and polarity signs

⚠ WAARSCHUWING – Kans op explosie!

⚠ WAARSCHUWING – Kans op letsel!

Diagram illustrating a process with numbered steps and directional arrows, likely illustrating a workflow or system change.

⚠ WAARSCHUWING – Kans op brand!

⚠ WAARSCHUWING – Kans op brand!

⚠ WAARSCHUWING – Kans op letsel!

Technical diagram showing exploded view of mechanical parts with annotations for 2x and 4x magnified views

≥430 ≥650

12.3 Veilige montage

WAARSCHUWING – Kans op giftiging!

Safety warning illustration showing two scenarios: one with a house and smoke, another with a skull and checkmark indicating inspection or verification.

WAARSCHUWING – Kans op stikking!

WAARSCHUWING – Kans op brand!

⚠ WAARSCHUWING – Kans op letsel!

Diagram illustrating a device's internal structure and assembly process, with numbered annotations indicating steps 1 and 2.

Diagram illustrating three steps of a car charging device, showing how to switch from a plug into a plug with a cable.

Diagram of a mechanical setup with a device mounted on a base, connected to a plug and cable (no text or symbols visible)

Illustration of a tool with a blue handle and metal blade, no text or symbols present

Diagram of a mechanical assembly with a piston and housing, showing internal components and motion direction (no text or labels)

Valid within Great Britain:

Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK12 5PT

United Kingdom

BSH Hausgeräte GmbH

Carl-Wery-Straße 34

81739 München, GERMANY

9001530555

021123

de, en, fr, nl
