SHTK 2000 B1 - Hair dryer SILVERCREST - Free user manual and instructions

Product type	Ionic hair dryer
Brand	SilverCrest
Model	SHTK 2000 B1
Rated power	2000 W
Mains voltage	220-240 V, 50 Hz
Protection class	II (double insulation)
Heat levels	3 (cool air, low, high)
Fan speeds	2 (low, high)
Cool air function (Cool-Shot)	Yes
Ion generator	Yes (static electricity neutralization)
Supplied accessories	Concentrator, diffuser
Power cord	Retractable (cord wind button)
Overheat protection	Yes (automatic shut-off)
Air inlet grille	Removable for cleaning
Use	Drying and styling human hair
Warranty	3 years
After-sales service France	0800 919270, [e-mail]
Weight (approx.)	0.5 kg

Frequently Asked Questions - SHTK 2000 B1 SILVERCREST

What is the power of this hair dryer?

The rated power is 2000 W.

How to use the cool air function?

Press the "cool air" button (Cool-Shot) to generate a flow of cool air at any time, regardless of the heat or fan setting.

How to clean the air inlet grille?

Slightly turn the air inlet grille to remove it, clean the openings with a soft brush, then replace it until it clicks into place.

Can I use this appliance in the bathroom?

No, never use it near water (sink, bathtub). Unplug it after each use. The installation of a residual current circuit breaker < 30 mA is recommended.

How to rewind the power cord?

Press the cord wind button to store the cord inside the appliance. Never pull the cord beyond the red mark.

What to do if the appliance suddenly stops?

The appliance is equipped with overheat protection. Unplug it, let it cool for a few minutes, then reuse. If the problem persists, contact customer service.

What accessories are supplied?

The included accessories are a concentrator for precise drying and a diffuser for gentle drying (permed hair).

How to install the concentrator or diffuser?

Snap the accessory onto the front of the hair dryer until it is securely attached. To change, remove the previous one and snap on the new one.

What is the warranty of this appliance?

The warranty is 3 years from the date of purchase, upon presentation of the receipt. It covers manufacturing defects, but not wear parts or damage due to improper use.

Is this appliance suitable for synthetic wigs?

No, the hair dryer is designed only for human hair. Do not use it on synthetic wigs or hairpieces.

USER MANUAL SHTK 2000 B1 SILVERCREST

SECHE-CHEVEUX IONIQUE SHTK 2000 B1

FR BE

SECHE-CHEVEUX IONIQUE

Mode d'emploi

GB

IONIC HAIRDRYER

Operating instructions

DE AT CH

IONEN-HAARTROCKNER

Bedienungsanleitung

IAN 60098

FR BE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

GB

Operating

instructions

Page

21

A
B

Sommaire

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Index

Introduction 22
Copyright 22
Intended use 22
Items supplied 22
Disposal of the packaging. 23
Appliance description 23
Technical data 23
Safety instructions 24
Operation 26
Heat and blower levels 26
Cooling level 27
Ionisation function 27
Drying and styling hair 27
Cleaning 27
Cleaning the housing 28
Cleaning the air suction grill 28
Storage 28
Troubleshooting 28
Disposal of the device 29
Warranty 29
Service 29
Importer 30

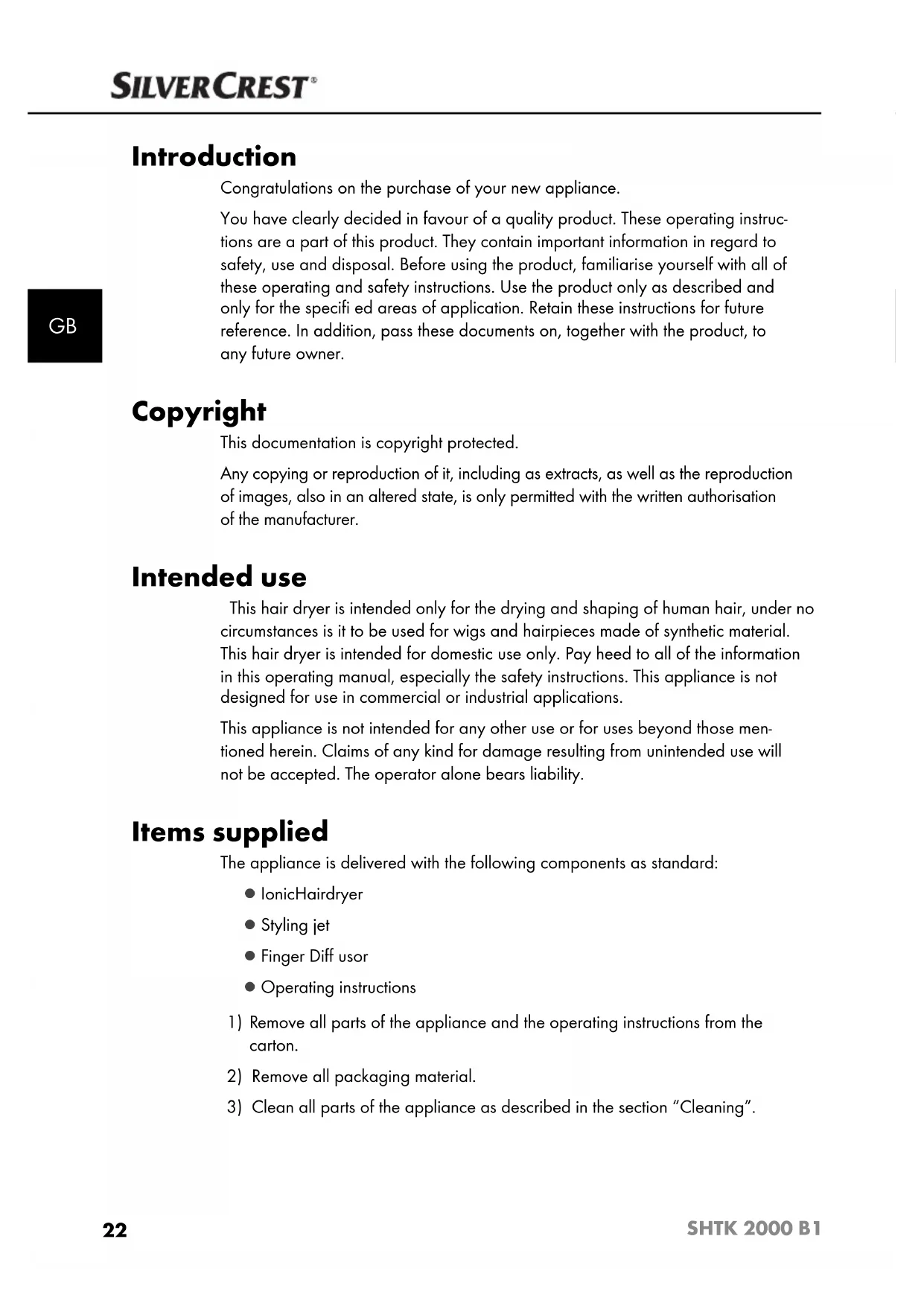

Introduction

Congratulations on the purchase of your new appliance.

You have clearly decided in favour of a quality product. These operating instructions are a part of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use the product only as described and only for the specified areas of application. Retain these instructions for future reference. In addition, pass these documents on, together with the product, to any future owner.

Copyright

This documentation is copyright protected.

Any copying or reproduction of it, including as extracts, as well as the reproduction of images, also in an altered state, is only permitted with the written authorisation of the manufacturer.

Intended use

This hair dryer is intended only for the drying and shaping of human hair, under no circumstances is it to be used for wigs and hairpieces made of synthetic material. This hair dryer is intended for domestic use only. Pay heed to all of the information in this operating manual, especially the safety instructions. This appliance is not designed for use in commercial or industrial applications.

This appliance is not intended for any other use or for uses beyond those mentioned herein. Claims of any kind for damage resulting from unintended use will not be accepted. The operator alone bears liability.

Items supplied

The appliance is delivered with the following components as standard:

IonicHairdryer
Styling jet
- Finger Diff usor
- Operating instructions

1) Remove all parts of the appliance and the operating instructions from the carton.
2) Remove all packaging material.
3) Clean all parts of the appliance as described in the section "Cleaning".

NOTICE

Check the contents to make sure everything is there and for visible damage.
If the contents are not complete or are damaged due to defective packaging or through transportation, contact the Service Hotline (see section "Service").

Disposal of the packaging

The packaging protects the appliance from transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable.

The recirculation of packaging into the material circuit saves on raw material and reduces the amount of waste generated. Dispose of packaging material that is no longer needed according to the regionally established regulations.

NOTICE

If possible preserve the appliance's original packaging during the warranty period so that, in the event of a warranty claim, you can package the appliance ideally for its return.

Appliance description

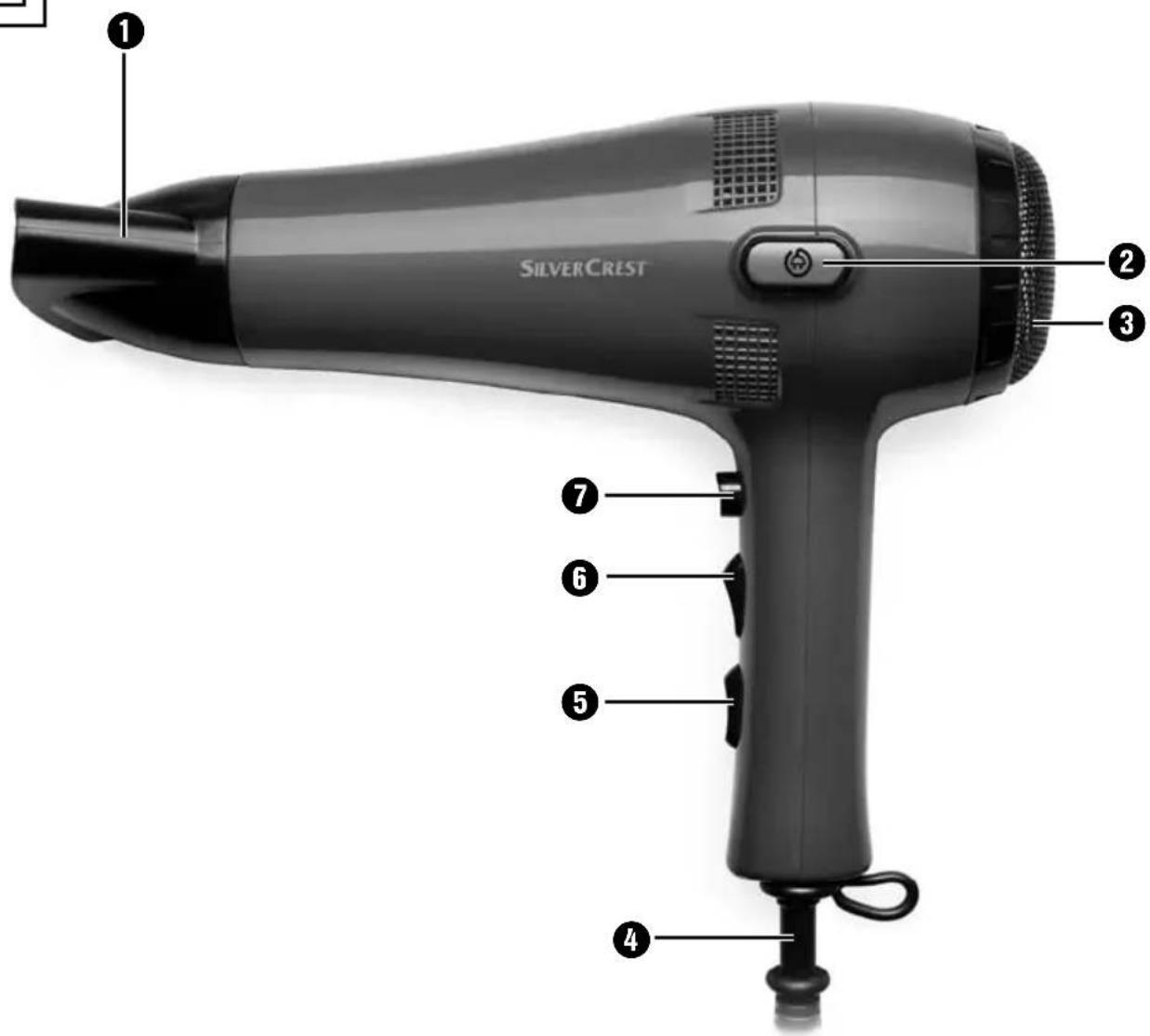

Figure A:

Styling jet
Cord retract button
3 Air intake grill
4 Retractable power cord
Blower level switch (2 levels)
Heater level switch (3 levels)
Coolinglevelbutton (Cool-Shot)

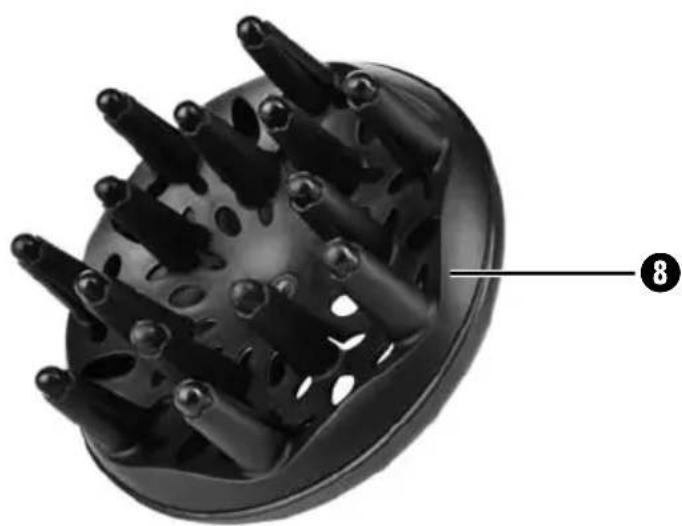

Figure B:

FingerDiffusor

Technical data

Mains voltage 220 - 240 V	~, 50 Hz
Nominal power 2000 W
Protection class	II ☐

Safety instructions

RISK OF ELECTRIC SHOCK

• Connect the hair dryer only to a correctly installed mains power socket providing electrical energy at the level detailed on the rating plate.
• Under no circumstances may the hair dryer be submerged in fluids, or fluids be permitted to enter the appliance housing. Do not expose the appliance to humidity and do not use it outdoors. Should liquids enter the housing, disconnect the appliance from the power source immediately and arrange for it to be repaired by a qualified technician.
• Disconnect the hair dryer from the mains power socket if defective operation is apparent and before cleaning it.
• To disconnect it, pull only on the plug itself, not on the power cable.
• Do not wrap the power cable around the appliance and protect the cable from being damaged.
• Should the power cable of the appliance be damaged, to avoid potential risks it must be replaced by the manufacturer, his customer service or by a qualified technician.
• Do not kink or crush the power cable and lay it in such a way as to prevent people from stepping on or tripping over it.
  Do not use extension cables.
• Never touch the hair dryer, the power cable or the plug with wet hands.
• Disconnect the hair dryer from the power source immediately after use. The appliance is completely free of electrical power only when you unplug it.
• You are not permitted to open or repair the housing of the hair dryer. Should you do so, appliance safety can no longer be assured and the warranty will become void. Arrange for the hair dryer to be serviced and repaired only by qualifi ed specialists.

RISK OF ELECTRIC SHOCK

Never use the appliance near water, particularly not near sinks, baths or other vessels. The proximity of water presents a risk, even when the appliance is switched off. After use, always disconnect the plug from the mains power socket. As additional protection, the installation of a faulty-current protection unit with an activation power rating of not more than 30mA is recommended for the power circuit in the bathroom. Consult your electrician for advice.

WARNING! RISK OF PERSONAL INJURY!

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
- Cleaning and user maintenance tasks shall not be carried out by children unless they are supervised.
- When it is switched on, NEVER lay the hair dryer down or leave it unsupervised.
- Never place the hair dryer close to sources of heat and protect the power cable against potential damage.
- Do not take the hair dryer into use if it has fallen down or is damaged in any way. Arrange for the appliance to be checked and/or repaired by qualified technicians.
- Do not cover the air intake grill while operating the appliance. Clean the grill at regular intervals.
The hair dryer becomes hot when it is in use. Hold it only by the grip when it is hot.

GB

ATTENTION! DAMAGE TO PROPERTY!

• Never pull the power cord out of the device beyond the point indicated with a red mark.
  Always pull the power cord out of the device up to the point indicated with a red mark when you use the device. Otherwise it could overheat!

Operation

NOTE

Before use, pull the plug out of the device up to the point indicated with a red mark!

Heat and blower levels

1) Insert the plug into a power socket.
2) Switch the hair dryer on with the blower level switch 5.

The hair dryer is fitted with two function switches. With these you can separately select the strength of the air flow (blower level switch 5) and the level of heat (heat level switch 6):

Blowerlevels

The hair dryer is switched off

reduced air flow

full power air flow

Heat levels

cold air flow

low heating level

high heating level

3) After use, switch the appliance off in that you place the blower level switch 5 into position "O". Then remove the plug from the wall socket.
4) Press the cord retract button ② to feed the cord back into the device.

Coolinglevel

With the cooling level button you can produce a cooler air flow with every combination of blower and heat levels.

Ionisation function

This hair dryer is equipped with an ionising function:

When drying the hair using a hair dryer, the hair takes on a static charge and begins to "fly".

The ionisation function ensures that this charging of the hair is neutralised and cancelled. The hair becomes soft, supple, shiny and easier to style.

Drying and styling hair

For quick hair drying, we first recommend using a high blower and heater setting for a short period. After slightly drying the hair, switch to a lower blower and heater level to shape the hair.
■ With the supplied styling jet ① you can apply a directed airflow to shape and style your hair. Place the styling jet ① on the front of the hair dryer such that it engages and is seated firmly into place.
If you want to dry your hair very gently, or use the dryer with so-called "air-dried permis", attach the finger diffuser ③. First remove the styling jet ①, if it is fitted, and then attach the finger diffusor ⑧, such that it engages and is seated firmly into place.
Before you comb your hair out, allow it to cool so that the shaping and styling can retain its form.
For cooling the hair you can use the cooling level button or level of the heat level switch.

Cleaning

RISK OF ELECTRIC SHOCK

Always remove the mains plug from the socket before you clean the appliance.
Under no circumstances may you immerse the appliance in water or other liquids when cleaning it!
After being cleaned, the hair dryer must be completely dry before using it again.

WARNING - RISK OF PHYSICAL INJURY!

• Allow the appliance to cool sufficiently before cleaning it.

CAUTION - PROPERTY DAMAGE!

• Do not use any aggressive cleaning liquids or solvents. They could damage the surface.

Cleaning the housing

GB

Use a soft cloth lightly moistened with a mild soap solution to clean the housing and attachments.
Please dry everything off properly before using the appliance again.

Cleaning the air suction grill

WARNING - RISK OF FIRE!

Clean the air intake grill 3 at regular intervals with a soft brush.

1) Turn the air intake grille 3 slightly so that it can be removed from the hair dryer.
2) Clean the openings of the air intake grill 3 with a soft brush.
3) Replace the air intake grille ③ back onto the hair dryer so that the lugs on the air intake grille ③ engage in the slots on the housing of the hairdryer. Turn the air intake grille ③ slightly so that it engages and is firmly seated on the housing.

Storage

CAUTION - PROPERTY DAMAGE!

• First pack and transport the hair dryer when it has completely cooled down. Otherwise, it could damage other items.
  Clean the hair dryer as described in the section "Cleaning".
  Retract the cord by pressing the cord retract button 2.
  Store the hair dryer at a dustfree and dry location.

Troubleshooting

Should your hair dryer not function as expected, fi rst remove the plug from the mains power socket and allow the appliance to cool down for a few minutes. The appliance is fit tted with an overheating protector!

Should the appliance still not function, consult the service department detailed under "Service".

Disposal of the device

Do not dispose of this appliance in your normal domestic waste. This product is subject to the provisions of European Directive 2012/19/EU.

Dispos of the appliance through an approved disposal centre or at your community waste facility. Pay heed to the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Warranty

A 3-year warranty is given with this device, starting from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery.

Please retain your receipt as proof of purchase. In the case of a warranty claim, please make contact by telephone with our service department. Only in this way can a post-free despatch for your goods be assured.

NOTICE

The warranty covers only claims for material and manufacturing defects, it is not applicable for transport damages, parts subject to wear and tear or for damage to fragile components, e.g. switches.

This appliance is intended solely for domestic, not commercial, use. If this product has been subjected to improper or inappropriate handling, abuse, or modifications not carried out by one of our authorised service centres, the warranty will be considered void.

Your statutory rights are not restricted in any way by this warranty. The warranty period is not extended by repairs made under the warranty. This applies also to replaced and repaired parts.

Damages and defects extant at the time of purchase must be reported immediately after unpacking, resp. no later than two days after the date of purchase.

Repairs made after the lapse of the warranty period are subject to charge.

Service

Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN 60098

Hotline availability: Monday to Friday 08:00 - 20:00 (CET)

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

GB

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND/GERMANY

www.kompernass.com

Last Information Update:

05/2014-Ident.-No.:SHTK2000B1-042014-1
