DR7 - Radio HAMA - Free user manual and instructions

Product type	DAB+ digital radio
Brand	Hama
Model	DR7
Power supply	Mains 100-240V AC or batteries (not included)
Main functions	DAB+, FM, presets, volume adjustment, display screen
Antenna	Telescopic antenna
Headphone jack	Yes, 3.5 mm jack
Menu languages	Multilingual (English default, adjustable)
Cleaning and maintenance	Slightly damp lint-free cloth, no harsh detergents
Safety instructions	Do not open the device, use in dry rooms, keep out of reach of children
Service and support	Telephone support (Germany) and online at www.hama.com
Recycling	Compliant with WEEE and battery directives, do not dispose with household waste
Package contents	DR7 radio, power adapter, user manual
Warranty	Warranty void if instructions not followed
Reception	DAB+ and FM

Frequently Asked Questions - DR7 HAMA

How to change the menu language?

Press the Settings button, turn the Volume/Select/Navigate knob to select 'Language', confirm, choose the desired language and confirm again.

How to perform a DAB station search?

Upon first startup, an automatic search is initiated. For a manual search, press the Settings button, select 'Search' or use DAB mode.

Can I use rechargeable batteries?

The manual does not specifically mention rechargeable batteries. Strictly observe polarity and do not attempt to recharge non-rechargeable batteries.

How to clean the device?

Use a slightly damp lint-free cloth. Avoid any harsh detergents. Disconnect the power adapter before cleaning.

What to do if the radio does not turn on?

Check the batteries (polarity and condition) or connect the power adapter. Make sure the power outlet is working. If the problem persists, contact Hama support service.

How to save a station as a preset?

Press the Preset button, then turn the Volume/Select/Navigate knob to select a slot, and confirm by pressing the button.

How to adjust the volume?

Turn the Volume/Select/Navigate knob to increase or decrease the volume.

Where to find the serial number?

The serial number is not mentioned in the manual. It is usually on the label at the back or under the device.

How to recycle the device at end of life?

Do not dispose of the device or batteries with household waste. Drop them off at an appropriate collection point in accordance with local regulations.

How to contact Hama customer service?

By phone at [phone] (German/English) or via the website www.hama.com for more information.

USER MANUAL DR7 HAMA

Further information and features are available on/

00054869:www.hama.com/54869#downloads

A

B

ControlsandDisplays

A:RadioFront
1[MODE]-Button
2[RESET]-Button
3[SETTING]-Button
4[RESET]-Button
5[INFO]-Button
6[RESET]-Button
7Display
8	→	[BACK]-Button
9		[VOLUME/SELECT/NAVIGATE]
10Antenna

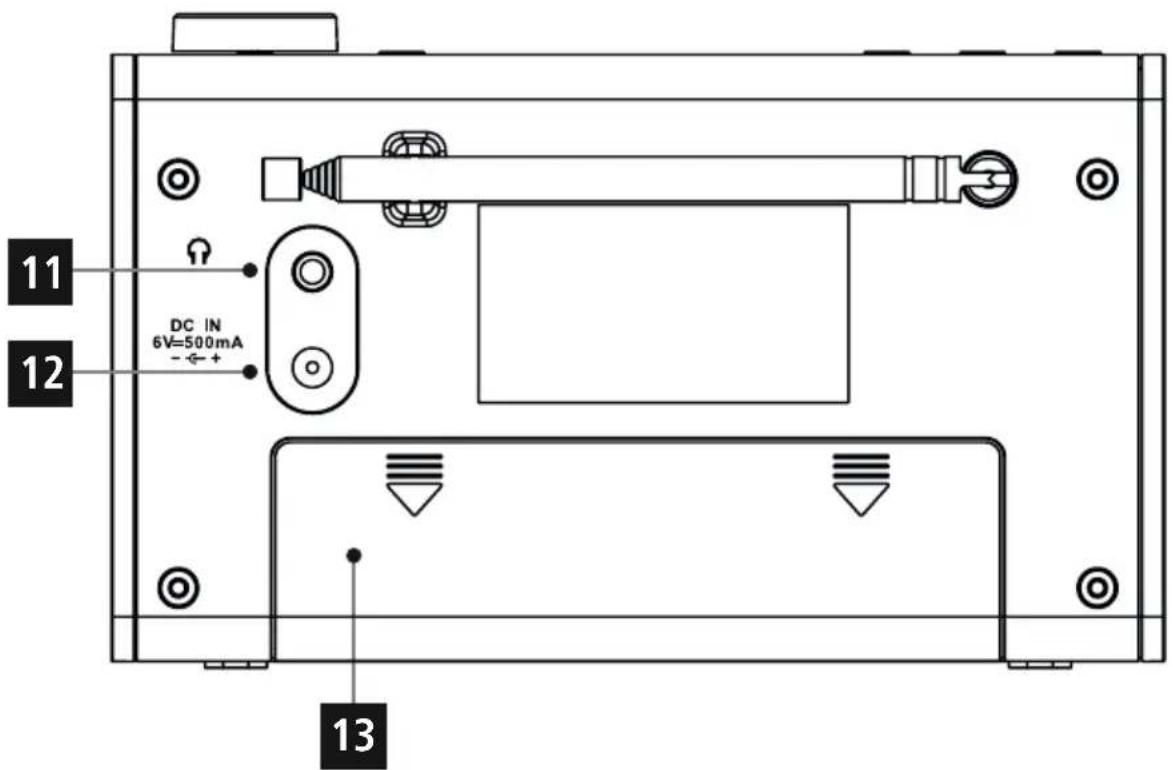

B:Back
11	○	Headphonesocket
12	DCIN	Mainspowersupply
13		Batterycase

Importantnote- O peratinginstructions:

• This is a quick guide to provide you with the most important basic information, such as safety warnings and how to get started using the product.
• For the sake of protecting the environment and saving resources, Hamadispenseswithprinted operatinginstructionsandprovidesthemonlyinthe formofPDFfiles/ e Manualsonwww.hama.com.
• Usethesearchfunctionwiththeitemnumberofyour producttoeasilyfindtheproductdocumentation.
• Savetheoperatinginstructionstoyourcomputer's hard drive for future reference, or print it out if necessary.

1.ExplanationofWarningSymbolsandNotes

Warning

Thisssymbolisusedtoindicatesafetyinstructionsoarto draw your attention to specific hazards and risks.

Note

Thissymbolisusedtoindicateadditionalinformationor importantnotes.

Risikofelectricshock

Thissymbolindicatesproductpartsenergizedwithadangerousvoltageofsufficientmagnitudetoconstitutera riskelectricshock.

2.PackageContents

DigitalradioDR7
Quickguide
-AC/DCAdapter

3.SafetyNotes

The productis intended for private, non-commercial use only.
- Protect the product from dirt, moisture and overheating anduseitindryroomsonly.
- Aswithallelectricaldevices, this devices should be kept out of thereachofchildren.
- Donotdroptheproductanddonotexposeittoany majorshocks.
- Donotoperatetheproductoutsidethepowerlimits given inthespecifications.
- Keepthepackagingmaterialoutofthereachofchildren duetotheriskofsuffocation.
- Disposefpackagingmaterialimmediatelyaccordingto locallyapplicableregulations.
- Do not modify the device in any way. Doing so voids the warranty.

RiskofElectricshock

• Donotopenthedevicorcontinuetooperatetitifit becomesdamaged.
• Do not use the product if the AC adapter, adapter cable or power cable is damaged.
• Donotattemptoserviceorrepairthedevicestheirself.Leave any service work to qualified experts.

Warning-Batteries:

• When inserting batteries, not the correct polarity (+ and - m arkings) and insert the batteries accordingly. Failure to do so could result in the batteries leaking or exploding.
• Donotallowchildrentochangebatterieswithout supervision.
• Donotmixoldandnewbatteriesorbatteriesofadifferenttypeormake.
• Removethebatteriesfromproductsthatare n o t beingusedforanextendedperiod
• Donotshort-circuitbatteries.
• Donotchargebatteries.
• Donotthrowbatteriesinafire.
• Keepbatteriesoutofthereachofchildren.

4.Informationandnotesbeforegettingstarted

Note- O ptimalreception

Please note:

• Extendtheantennaalwayscompletely.
• For best reception it's recommended to extend the antennavertical.
• Try various different positions if necessary to get the bestreception.

5. Gettingstarted

5.1 Batteryoperation

• Open the battery compartment cover. It is located on the rearoftheradio.
• Slidethebatterycompartmentcoverinthedirection indicated.
• Insertthebatteriespayingattentiontothematchthe polaritiescorrectly. The correctpolarityisindicatedby the plusandminussymbolsinthebatterycompartment.
• Replace the battery compartment cover.

5.2Mainsoperation

Connect the network cable to a properly installed and easily accessible network socket.

Thepowersupplyunitissuitableformainsvoltages between100and240Vandisthusoperableonalmost any AC power grid. Please note that a country-specific adaptermaybenecessary.

You can find an appropriate selection of Hama products at www.hama.com.

Note

• Only connect the product to a socket that has been approvedforthedevic.
• Theelectricalsocketmustalwaysbeeasilyaccessible.
• When using a multi SOCKET power strip, make sure that the sum power draws all the connected devices out of the bus.
  If you will not be using the product for a ling period of time, disconnectitfrommainspower.

5.3 Generalnotesonuse

Notesonuse

• When a selection among menu items is to be made (such as Y or N), the one currently selected flashes.
• In menus offering a variety of different options (such asDRC, languageandsoon), the currently selected optionismarkedwith*.

Navigationandcontrols

VOLUME/SELECT/NAVIGATEhastwodifferent functions:

• TurnVOLUME/SELECT/NAVIGATEtoselectamong menuitems.
• ConfirmtheselectionbypressingVOLUME/SELECT/NAVIGATE.

PressBacktoreturntothepreviousmenulevel.

Volumeadjustment

TurnVOLUME/SELECT/NAVIGATEtoincrease/reduce thevolume.

5.4Initialsetup

The station search in the operating mode DAB starts up automaticallywhenthetheradioisturnedonforthirsttime.

Bydefault,theradiostartswiththeEnglishmenu navigation.Setupyourdesiredlanguageasdescribedin

5.5.Language.

5.5Language

Tochangethemenulanguagefromthatselectedatfirst-timestartup,proceedasfollows:

• PressSettingstoaccessthesettingsmenu.
• TurnVolume/SelectNavigatetonavigatetothe 'Language'menuitem.
• ConfirmyourselectionbypressingVolume/Select/ Navigate.
• TurnVolume/SelectNavigatetoselectyourdesired systemlanguage.
• Confirm these selection by pressing Volume/Select/Navigate.

5.6Generalnotesonuse

Notesonuse

• When a selection among menu items is to be made (such as Y or N), the one currently selected flashes.
• In menus offering a variety of different options (such asDRC, language and soon), the currently selected optionismarkedwith*.

Navigationandcontrols

VOLUME/SELECT/NAVIGATEhastwodifferent functions:

• TurnVOLUME/SELECT/NAVIGATEtoselectamong menuitems.
• ConfirmtheselectionbypressingVOLUME/SELECT/NAVIGATE.

PressBacktoreturntothepreviousmenulevel.

Volumeadjustment

TurnVOLUME/SELECT/NAVIGATEtoincrease/reduce thevolume.

6.CareandMaintenance

• Only clean this product with a slightly damp, lint-free cloth and donotuseaggressivecleaning agents.
• If you do not use the product for a long time, turn off the device and disconnect it from the powersupply. S toreitin a lean, dryplaceoutofdirectsunlight.

7.WarrantyDisclaimer

Hama GmbH & Co KG assumes no liability and provides no warrantyfordamageresultingfromimproperinstallation/ mounting,improperuseoftheproductormfromfailureto observetheoperatinginstructionsand/orsafetynotes.

8. Service and Support

PleasecontactHamaProductConsultingifyouhaveany questionsaboutthisproduct.

Hotline.[phone](German/English)

Furthersupportinformationcanbefoundhere:

www.hama.com

9. Recycling Information

Noteonenvironmentalprotection:

AftertheimplementationoftheEuropeanDirective 2012/19/EUand2006/66/EUnthenationalallegalsystem,thefollowingapplies:Electricand electronicdevicesaswellasbatteryismustnotbe

disposedofwithhouseholdwaste.Consumersareobliged bylawtoreturnelectricalandetechnicdevicesaswellas batteriesattheendoftheirservicelivestothepublic collectingpointssetupforthispurposeorpointofsale.

Details to this are defined by the national law of the respective country. This symbol on the product, the instructionmanualorthepackageindicatessthata p roduct issubjecttotheseregulations.Byrecycling,reusingthematerialsorotherformsofutilisingolddevices/Batteries, youare makinganimportantcontributiontoprotectingour environment.

10.DeclarationofConformity

Hereby, Hama GmbH & Co KG declares that the radioequipmenttype[00054869]isincompliance withDirective2014/53/EU. T hefulltextoftheEU

declarationofconformityisavailableatthefollowing internetaddress:

www.hama.com->00054869->Downloads.

Hotline: [phone](Ger/Ang)

Support: [phone] (ty/eng)

Duhittarmersupportinformationhar:

www.hama.com
