USER MANUAL PABS 12 B2 PARKSIDE

PARKSIDE www.lidl-service.com PABS 12 B2 LITHIUM

CORDLESS DRILL PABS 12 B2

GB IE

CORDLESSDRILL

Operation and Safety Notes

Translation of the original instructions

SE

SLADDLÖSBORRSKRUVDRAGARE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FI

GB / IE Operation and Safety Notes Page 5

FI Käyttö- ja turvaohjeet Sivu 15
SE Bruksanvisning och säkerhetsanvisningar		Sidan 25
DK	Brugs- og sikkerhedsanvisninger	Side	35
FR/BE	Instructions d’utilisation et consignes de sécurité	Page	45
NL/BE	Bedienings- en veiligheidsinstructies	Pagina	55
DE/AT/CH	Bedienungs- und Sicherheitshinweise	Seite	65

PARKSIDE 15-19-2 11 1 2 3 4 5 PABS 12 B2 7 6 LITHIUM

Close-up of a hand using a drill bit to work on wooden blocks (no text or symbols visible)

Close-up of a hand using a drill to work on a wooden post with metal fasteners (no text or symbols visible)

C 12 14 13

D 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

Introduction

Intended purpose....Page 6

Equipment Components......Page 6

Items supplied....Page 6

Technical Data Page 6

General safety advice for electrical power tools

1. Workplace safety Page 7

2. Electrical safety....Page 7

3. Personal safety......Page 8

4. Careful handling and use of electrical power tools....Page 8

5. Use and handling of the cordless electrical power tool Page 9

6. Service Page 9

Safety instructions for cordless drills....Page 9

Supplementary Instructions......Page 10

Safety notices for chargers....Page 10

Attention - Service lines!......Page 10

Original ancillaries/accessories Page 10

Before first use

Removing / charging / inserting rechargeable battery pack......Page 10

Reading off the battery status....Page 11

Changing tools....Page 11

2 Gear Drive Page 11

Torque control/drill step......Page 11

Preparing the tool for use

Changing the direction of rotation/unlocking the device Page 11

Switching On/Off......Page 11

Activating the lock....Page 11

Tips and Tricks......Page 12

Cleaning and Maintenance......Page 12

Warranty Page 12

Disposal Page 13

Translation of the original declaration of conformity /

Manufacturer Page 14

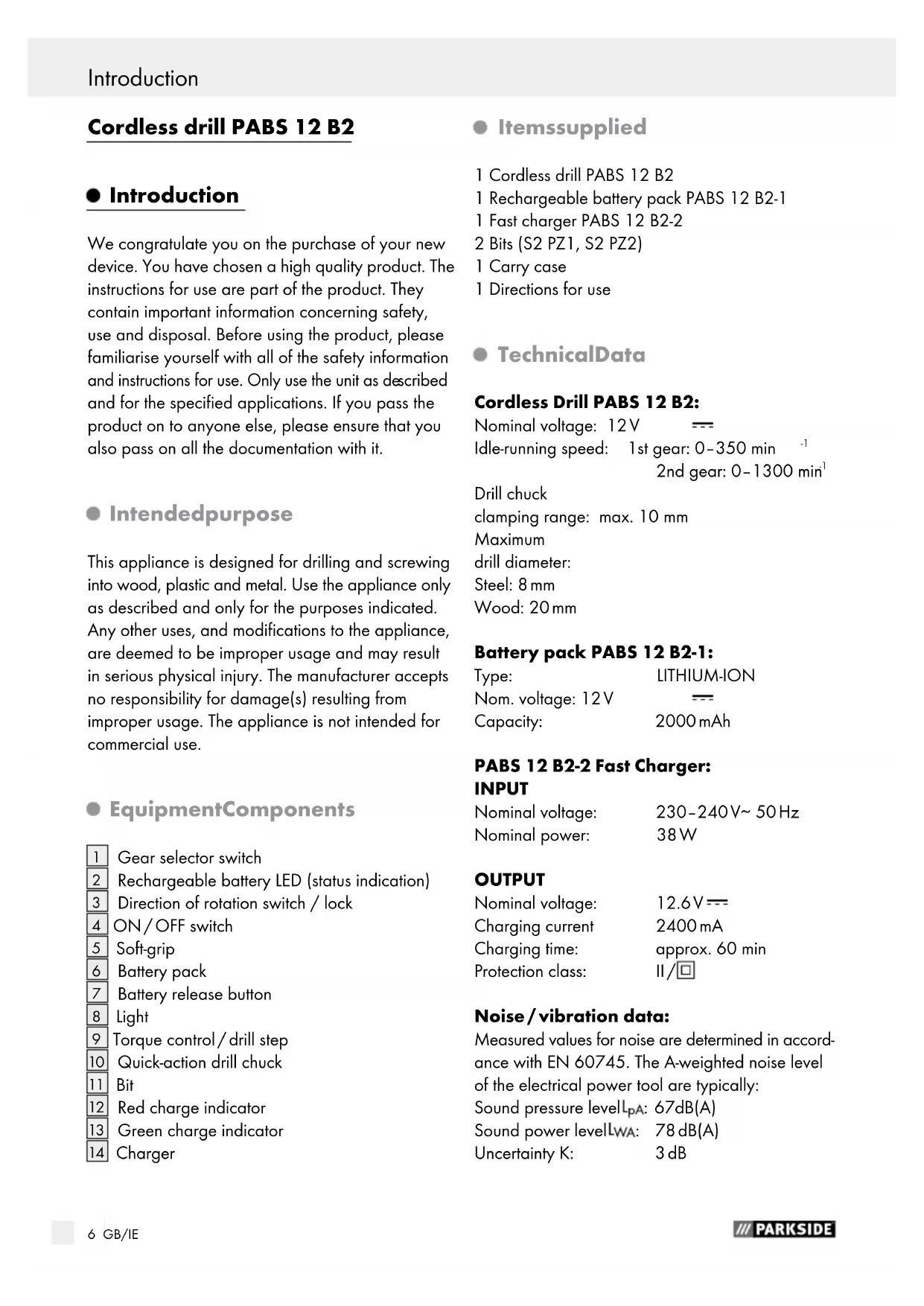

Cordless drill PABS 12 B2

- Introduction

We congratulate you on the purchase of your new device. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the unit as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Intendedpurpose

This appliance is designed for drilling and screwing into wood, plastic and metal. Use the appliance only as described and only for the purposes indicated. Any other uses, and modifications to the appliance, are deemed to be improper usage and may result in serious physical injury. The manufacturer accepts no responsibility for damage(s) resulting from improper usage. The appliance is not intended for commercial use.

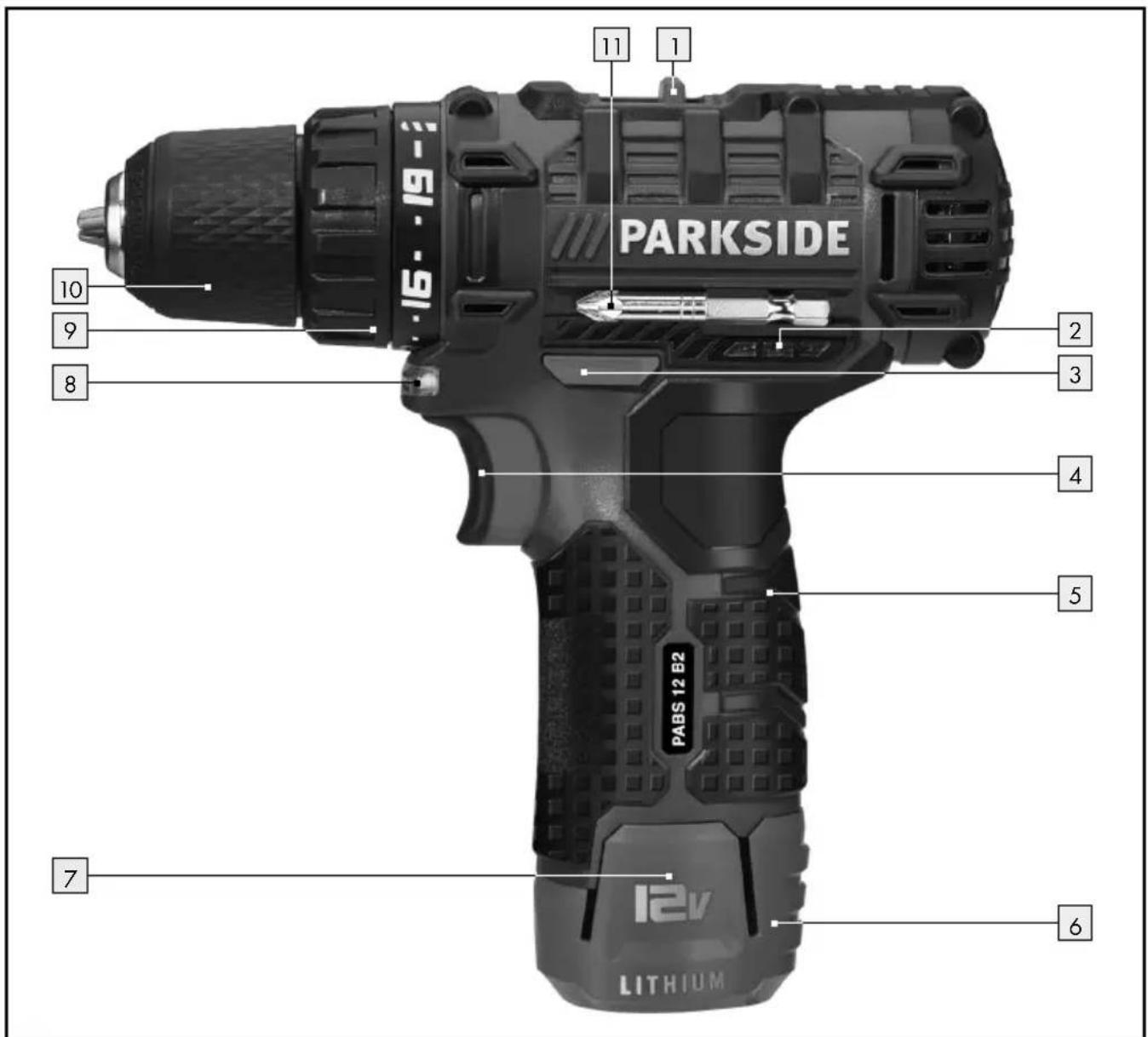

EquipmentComponents

1 Gear selector switch
4 ON/OFF switch
5 Soft-grip
6 Battery pack
7 Battery release button
8 Light
9 Torque control / drill step
10 Quick-action drill chuck
11 Bit
12 Red charge indicator
13 Green charge indicator
14 Charger

2 Rechargeable battery LED (status indication)

3 Direction of rotation switch / lock

- Itemssupplied

1 Cordless drill PABS 12 B2
1 Rechargeable battery pack PABS 12 B2-1
1 Fast charger PABS 12 B2-2
2 Bits (S2 PZ1, S2 PZ2)
1 Carry case
1 Directions for use

- TechnicalData

Cordless Drill PABS 12 B2:

Nominal voltage: 12V

Idle-running speed: 1st gear: 0–350 min ^-1 2nd gear: 0–1300 min ^1

Drill chuck

clamping range: max. 10 mm

Maximum

drill diameter:

Steel: 8 mm

Wood: 20 mm

Battery pack PABS 12 B2-1:

Type: LITHIUM-ION

Nom. voltage: 12V

Capacity: 2000 mAh

PABS 12 B2-2 Fast Charger: INPUT

Nominal voltage: 230-240V\~50Hz

Nominal power: 38 W

OUTPUT

Nominal voltage: 12.6V—

Charging current 2400 mA

Charging time: approx. 60 min

Protection class: II/☐

Noise/vibration data:

Measured values for noise are determined in accordance with EN 60745. The A-weighted noise level of the electrical power tool are typically:

Sound pressure level L_pA : 67dB(A)

Sound power levelLWA: 78 dB(A)

Uncertainty K: 3 dB

Wear ear protection!

Total vibration (vector sum of three directions) is calculated in accordance with EN 60745:

Drilling into metal: Vibration emission value

$$ \alpha_ {h, D} < 2. 5 \mathrm{m} / \mathrm{s} ^ {2}, $$

uncertainty K = 1.5 m/s^2 ,

Screwdriving

without impact: Vibration emission value

$$ \alpha_ {h} < 2. 5 \mathrm{m} / \mathrm{s} ^ {2}, $$

uncertainty K = 1.5 m/s^2 .

Note: The vibration level specified in these instructions was measured in accordance with an EN 60745 standardised measurement process and can be used to compare equipment. The vibration emission value specified can also serve as a preliminary assessment of the exposure.

The vibration level will change according to the application of the electrical tool an in some cases may exceed the value specified in these instructions. Regularly using the electric tool in such a way may make it easy to underestimate the vibration.

WARNING! Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

● General safety advice for electrical power tools

WARNING! Read all the safety advice and instructions! Failure

to observe the safety advice and instructions may result in electric shock, fire and / or serious injury.

Keep all the safety advice and instructions in a safe place for future reference!

The term "electrical tool" used in the safety advice refers to electrical tools powered by mains electricity (by means of a mains lead) and electrical tools powered by rechargeable batteries (without a mains lead).

1. Workplace safety

a) Keep your working area clean and well lit. Untidy or poorly lit working areas can lead to accidents.
b) Do not work with the device in potentially explosive environments in which there are inflammable liquids, gases or dusts. Electrical power tools create sparks, which can ignite dusts or fumes.
c) Keep children and other people away while you are operating the electrical tool. Distractions can cause you to lose control of the device.

2. Electrical safety

a) The mains plug on the power tool (or on the power supply) must fit the mains socket. Never modify the plug in any way. Never use adapter plugs with earthed power tools. Unmodified plugs and the correct sockets reduce the risk of electric shock.

b) Avoid touching earthed surfaces such as pipes, radiators, ovens and refrigerators with any part of your body. There is an increased risk of electric shock if your body is earthed.

c) Keep the device away from rain or moisture. Water entering an electrical device increases the risk of electric shock.

d) Do not use the mains lead for any purpose for which it was not intended, e.g. to carry the device, to hang up the device or to pull the mains plug out of the mains socket. Keep the mains lead away from heat, oil, sharp edges or moving parts of the device. Damaged or tangled mains leads increase the risk of electric shock.

e) When working outdoors with an electrical power tool always use extension

cables that are also approved for use outdoors. The use of an extension cable suitable for outdoor use reduces the risk of electric shock.

f) Use a residual current device (RCD) for protection if operating the electrical power tool in a moist environment is unavoidable. The use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Remain alert at all times, watch what you are doing and always proceed with caution. Do not use the device if you are tired or under the influence of drugs, alcohol or medication. One moment of carelessness when using the device can lead to serious injury.
b) Wear personal protective equipment and always wear safety glasses. The wearing of personal protective equipment such as dust masks, non-slip safety shoes, safety helmets or ear protectors, appropriate to the type of electrical power tool used and work undertaken, reduces the risk of injury.
c) Avoid accidental starting. Verify the power tool is switched off before connecting it to the mains and / or connecting the battery, picking it up, or carrying it. Accidents can happen if you carry the device with your finger on the ON / OFF switch or with the device switched on.
d) Remove any setting tools or spanners before you switch the device on. A tool or spanner left attached to a rotating part of a device can lead to injury.
e) Avoid placing your body in an unnatural position. Keep proper footing and balance at all times. By doing this you will be in a better position to control the device in unforeseen circumstances.
f) Wear suitable clothing. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves clear of moving parts. Loose clothing, jewellery or long hair can become trapped in moving parts.

g) If vacuum dust extraction and collection devices are fitted do not forget to check that they are properly connected and correctly used. The use of these devices reduces the hazard presented by dust.

4. Careful handling and use of electrical power tools

a) Do not overload the device. Always use an electrical power tool that is intended for the task you are undertaking. By using the right electrical power tool for the job you will work more safely and achieve a better result.
b) Do not use an electrical power tool if its switch is defective. An electrical power tool that can no longer be switched on and off is dangerous and must be repaired.
c) Pull the mains plug out of the socket and / or remove the rechargeable battery before you make any adjustments to the device, change accessories or when the device is put away. This precaution is intended to prevent the device from unintentionally starting.
d) When not in use always ensure that electrical power tools are kept out of reach of children. Do not let anyone use the device if he or she is not familiar with it or has not read the instructions and advice. Electrical power tools are dangerous when they are used by inexperienced people.
e) Look after the device carefully. Check that moving parts are working properly and move freely. Check for any parts that are broken or damaged enough to detrimentally affect the functioning of the device. Have damaged parts repaired before you use the device. Many accidents have their origins in poorly maintained electrical power tools.
f) Keep cutting tools clean and sharp. Carefully maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.

g) Use the electrical power tool, accessories, inserted tools etc. in accordance with these instructions and advice, and the stipulations drawn up for this particular type of device. In doing this, take into account the working conditions and the task in hand. The use of electrical power tools for purposes other than those intended can lead to dangerous situations.

5. Use and handling of the cordless electrical power tool

a) Charge a rechargeable battery unit using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery unit. There is the danger of fire if other types of rechargeable battery units are used.

b) Only the rechargeable battery units supplied are to be used with an electrical power tool. The use of other rechargeable battery units may lead to the danger of injury or fire.

c) When they are not being used, store rechargeable battery units away from paperclips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery unit may result in heat damage or fire.

d) Fluids may leak out of rechargeable battery units if they are misused. If this happens, avoid contact with the fluid. If contact occurs, flush the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.

■ CAUTION! DANGER OF EXPLOSION!

The batteries must never be recharged!

Protect the rechargeable bat- tery from heat, e.g. including continuous sun exposure, fire, water, and moisture. Risk of explosion.

6. Service

a) Only have the power tool repaired by qualified professionals using OEM spare parts. This ensures the safety of the power tool is maintained.

WARNING! If the plug or the mains lead needs to be replaced, always have the replacement performed by the manufacturer or its service centre. This will maintain the safety of the device.

Note: spare parts not listed (e.g. carbon brushes, switch) can be ordered through our call centre.

● Safety instructions for cordless drills

■ Use the accompanying handle when using the device. Losing control can result in injury.

- Hold the device by the insulated handles when performing work where there is a risk of screws or the tool hitting hidden electrical wires. Contact with a live wire can also charge metal parts of the device, which may lead to electric shock.

• Supplementary Instructions

■ Securely support the workpiece.

A workpiece held in a clamp or vice is kept more securely in place than one held by your hand.

Harmful / noxious dusts generated from your work represent a risk to the health of the person operating the device and to anyone near the work area.

■ Wear safety glasses and a dust mask!
- Do not drill any material containing asbestos. Asbestos is a known carcinogen.
- Hold the electrical power tool firmly.

High reaction torques may occur momentarily during tightening or loosening of screws.

If the inserted tool jams, switch off the electrical power tool immediately. Be prepared for high reaction torques as they may cause kickback. The inserted tool may jam if the electrical power tool is overloaded or is held at an angle to the workpiece.
Before you carry out any tasks on the device, transport or store it, make sure that the direction of rotation switch is in the middle position (lock). To prevent the device from starting up unintentionally.

Safety notices for chargers

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

The charger is only suitable for indoor use.

If themainspowercable of this appliance is damaged, it must bere placed by the manufacturer or its serviced department, or similarly qualified person to prevent hazards.

- Attention - Service lines!

WARNING! Take steps to ensure that you do not hit upon any service lines (electricity, gas, water) when working with electrical appliances. Check, if need be with a service line detector, before you start to cut or bore into a surface.

● Original ancillaries/accessories

Use only the ancillaries and accessories that are detailed in the operating instructions. The use of ancillaries and accessories other than those recommended in the operating instructions could lead to an increased risk of personal injury for you.

- Before first use

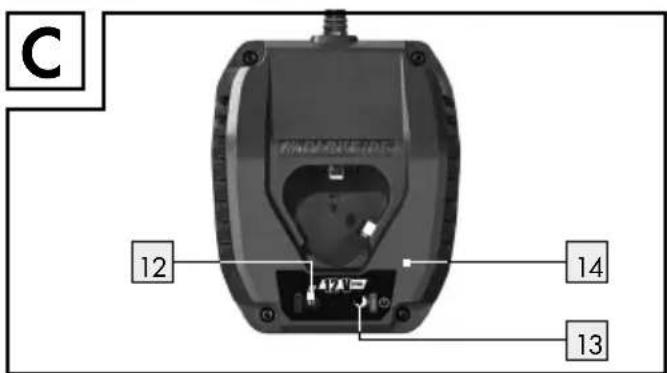

- Removing / charging / inserting rechargeable battery pack

Note: The battery is supplied partially charged. Charge the rechargeable battery in the charging station for at least one hour before first use. By doing this the battery will operate at its highest capacity. You can charge the Li-Ion battery at any time without risk of shortening battery life. Interrupting the charging process does not damage the battery.

1. In order to remove the rechargeable battery pack 6, press the release buttons 7 and take the rechargeable battery pack 6 out of the device.
2. Insert the rechargeable battery pack 6 into the charger 14.
3. Insert the mains plug into the mains socket. The indicator LED 12 illuminates red.
4. The green charge indicator LED 13 shows you that the charging process is complete and the battery pack 6 is ready for use.
5. Insert the rechargeable battery pack 6 into the device.

- Reading off the battery status

The status or residual power is indicated as follows in the battery-operated LED 2 whenever the appliance is switched on:

$$ \begin{array}{l} \text { RED / ORANGE / GREEN } = \text { maximum charge / } \ \text { power } \end{array} $$

$$ \text { RED / ORANGE } = \text { medium - level charge / power } $$

$$ \text { RED } = \text { weak charge - recharge battery } $$

- Changingtools

Your cordless drill / screwdriver has a fully automatic spindle lock SPINDLE LOCK.

Once the motor has come to a halt, the drive shaft is automatically locked, so that the chuck 10 can be opened simply by turning it ↗.

After you have inserted the required bit and fixed it in place by turning the chuck ↗, you can immediately continue working. The spindle lock releases itself automatically when the motor is started (by operation of the ON / OFF switch 4).

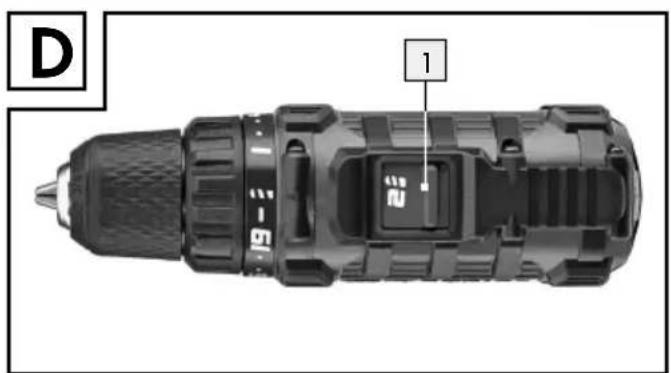

2 Gear Drive

Note: Move the gear selector switch 1 only after the device has come to a standstill.

In the first gear (Gear selector switch 1 in Position: 1)

you achieve a speed of up to approx. 350 rpm and a high torque. This setting is suitable for all screwing tasks.

In the second gear (Gear selector switch in Position: 2)

It achieves a speed of up to approx. 1300 rpm, for the carrying out of drilling tasks.

- Torque control / drill step

You can use the torque control / drill step 9 to adjust the torque. When the value of the torque setting is reached, the clutch disengages the drive connection to the chuck.

☐ Select a low setting for small screws, soft work material.
☐ Select a high setting for large screws, hard work materials and for the extraction of screws.
☐ For drilling work, select the drill setting by putting the torque control / drill setting into the position.
☐ For drilling tasks, also push the gear selector switch 1 to the rear (Position: 2).

● Preparing the tool for use

- Changing the direction of rotation/unlocking the device

Unlock the device and change the direction of rotation by pressing the rotational direction switch 3 to the right or to the left.

- SwitchingON/OFF

Switching on:

☐ To start the appliance squeeze on the ON/OFF switch 4 and then keep it pressed down. The light 8 comes on with a slightly or fully pressed ON/OFF switch 4 and illuminates the working area in poor lighting conditions.

Switching off:

☐ To stop the appliance, release the ON / OFF switch 4.

Changing the rotational speed:

The ON/OFF switch 4 has a variable speed control. Light pressure on the ON/OFF switch 4 causes the device to operate at a low speed. Increasing the pressure increases the speed.

- Activating the lock

☐ Press the rotational direction switch 3 into the middle position. The ON / OFF switch 4 is now blocked.

- Tips and Tricks

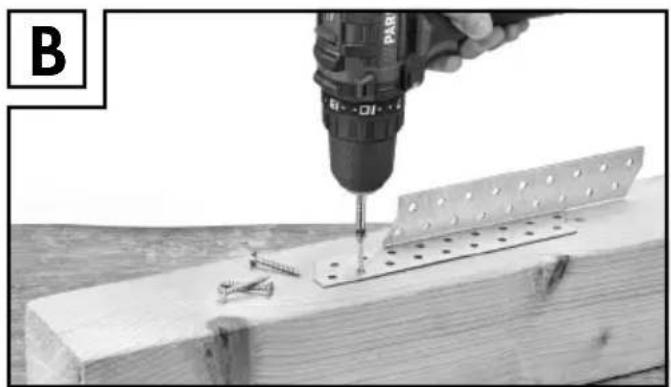

When screwing into wood, metal and other materials:

☐ Screw bits are designated with their dimensions and their shape. If you are unsure, always try the particular screw bit out to see whether it sits in the screw head without any free play.
Before you use the appliance, check to see that the screw or drill bit is properly fitted, i.e. located centrally in the chuck.

Torque:

☐ Smaller screws and bits in particular can be easily damaged if you adjust the appliance with too high a torque and/or rotation speed.

Hard screw bed:

☐ Particularly high torques can occur, for example with metal screws tightened by socket tool bits. Select a lower rotation speed.

Soft screw bed:

☐ You should also select a low speed in order not to damage the wood workpiece surface through contact with the metal screw head. Use a countersinker.

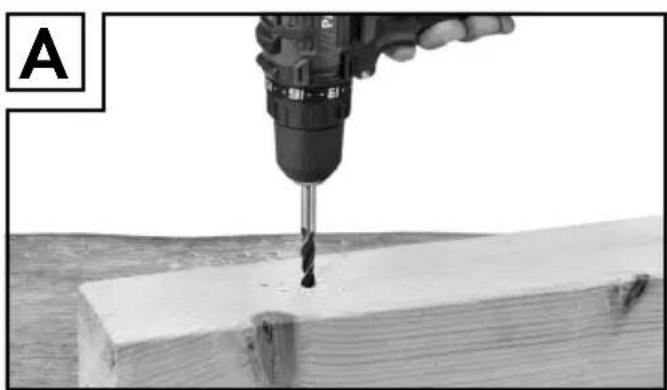

When drilling into wood, metal and other materials:

☐ With small diameter drill bits use a high drill speed. For large diameter drill bits, use a low drill speed.
☐ For hard materials, select a low drill speed. For soft materials, select a high drill speed.
☐ Secure or fix down the workpiece (if possible) in a clamp or vice.
☐ Mark the intended position of the hole with a centre punch or a nail and select a low drill speed for drilling.
☐ Take the rotating drill bit out of the hole frequently so that swarf or drill dust can be re-moved and the hole and tool is ventilated.

Drilling in metal:

☐ Use a metal drill bit (HSS). For the best results, you should cool the bit with oil. Metal drill bits

can also be used to drill into plastic.

Drilling in wood:

□ Normally you should use a wood drill with a centring point. You can screw small screws into soft wood without the need for pre-drilling.

● Cleaning and Maintenance

Pull the mains plug out of the mains socket and remove the rechargeable battery pack 6 every time before you clean or maintain the device.

The Cordless Drill / Screwdriver is maintenance-free.

□ Always keep the device clean, dry and free of oil or grease.
□ Clean the device immediately after you have finished using it.
☐ Do not allow any liquids to enter the device. Use a cloth to clean the housing.
☐ Never use petrol, solvents or cleaning agents that might attack plastic.
☐ When storing a lithium-ion battery for extended periods, regularly check the charge. The optimal charge is between 50 % and 80 %. The optimal storage climate is cooling and dry.

Warranty

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use.

The warranty is void in the case of abusive and improper handling, use of force and internal tampering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty.

The warranty period will not be extended by repairs made unter warranty. This applies also to replaced and repaired parts. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.

GB

Service Great Britain

Tel.: [phone]

(£0.10/minute)

e-mail: [e-mail]

IAN 270217

IE

Service Ireland

Tel: [phone]

(0.08 EUR/Min. (peak)

0.06 EUR/Min. (off peak))

e-mail: [e-mail]

IAN 270217

- Disposal

The packaging comprises exclusively environmentally-friendly material. Dispose of it in your local recycling containers.

Do not dispose of electrical appliances with your domestic waste!

According to the European Directive 2012 / 19 / EU, concerning used electrical and electronic appliances and its implementation in national law, superannuated electrical appliances must be collected and

disposed of via an environmentally suitable recycling facility.

Alternate recycling option for return request:

The owner of the electrical equipment is alternatively obligated to contribute to proper recycling in place of a return in the case of abandonment. For this purpose the used equipment may also be taken to a collection site disposing within the terms of the national Closed Substance Cycle Waste Management Act. This does not apply to accessories attached to the used equipment and implements without electrical components.

Do not dispose of rechargeable batteries with your household refuse!

Defective or worn out rechargeable batteries must be recycled according to Directive 2006 / 66 / EC. Dispose of batteries and appliances over the existing collection facilities.

Your local communal or municipal authorities can provide information on how to dispose of the worn out appliance.

● Translation of the original declaration of conformity / Manufacturer CE

We, KOMPERNASS HANDELS GMBH, the person responsible for documents: Mr Semi Uguzlu, BURGSTRASSE 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EU directives:

Machinery Directive

(2006/42/EC)

EU Low Voltage Directive

(2006/95/EC)

Electromagnetic Compatibility

(2004/108/EC)

RoHS Directive

(2011/65/EU)

Applicable harmonized standards

EN60745-1:2009/A11:2010, EN60745-2-1:2010

EN60745-2-2:2010

EN62233:2008

EN55014-1:2006/A2:2011

EN55014-2:1997/A2:2008

EN60335-1:2012/A11:2014

EN60335-2-29:2004/A2:2010

EN61000-3-2:2014, EN61000-3-3:2013

Type / Appliance Designation:

Cordless drill PABS 12 B2

Date of manufacture (DOM): 09–2015

Serial number: IAN 270217

Bochum, 30.09.2015

Jeddyush

Semi Uguzlu

- Quality Manager -

We reserve the right to make technical modifications in the course of further development.

Johdanto

Buller-/vibrationsinformation:

Directive Machines (2006/42/EC)

Directive CE Basse tension (2006/95/EC)

RoHS Directive (2011/65/EU)

KOMPERNASS HANDELS GMBH

BURGSTRASSE21

44867BOCHUM

GERMANY

Last Information Update · Tietojen tila · Informationsstatus

Tilstand af information · Version des informations

Stand van de informatie · Stand der Informationen:

09/2015·Ident.-No.: PABS12B2092015-FI/DK/BE
