DR350 - Radio HAMA - Free user manual and instructions

Product Type	Internet Digital Radio
Brand	Hama
Model	DR350
Category	Radio
Dimensions (estimated)	200 x 120 x 80 mm
Weight (estimated)	500 g
Power Supply	Mains adapter (AC adapter)
Main Features	DAB+/FM radio, Internet radio, 7 preset buttons, AUX IN socket, headphone socket, LED display
Display	LED Screen
Controls	POWER, MENU, PRESET, INFO, MODE, HOME, BACK, PRESET 1-7, volume/navigation button
Connectivity	AUX IN socket (3.5 mm), headphone socket (3.5 mm), update port, built-in antenna
Available Languages	English, German, Danish, Dutch, Finnish, French, Italian, Norwegian, Polish, Swedish, Czech, Turkish, Slovak
Maintenance	Clean with a slightly damp lint-free cloth; avoid harsh detergents
Safety	Use only in dry indoor environments, do not open, unplug if not used for extended periods
Operating Conditions	Non-commercial domestic use, avoid humidity and overheating
Package Contents	DR350 radio, instruction manual, mains adapter, clamp assembly, screw assembly

Frequently Asked Questions - DR350 HAMA

How to power on the Hama DR350 radio?

Plug the mains cable into a power outlet, wait for initialization to complete, then press the POWER button.

How to change the radio language?

Press MENU > Configuration > Language, then select the desired language (e.g., English) and confirm with ENTER.

How to use the AUX input?

Connect your device (MP3 player, etc.) to the AUX IN socket on the back of the radio. Then select AUX mode using the MODE button.

How to save a station as a preset?

While receiving a station, press and hold one of the PRESET 1-7 buttons until a beep confirms the save.

How to adjust the volume?

Turn the VOLUME knob on the front panel. You can also use the navigation buttons after pressing HOME or BACK.

What to do if the radio does not turn on?

Check that the mains adapter is correctly plugged in and the outlet works. If the problem persists, unplug and plug back in after a few minutes.

How to clean the radio?

Use a slightly damp lint-free cloth. Never use harsh detergents or solvents. Unplug the adapter before cleaning.

Can I use the radio with headphones?

Yes, plug headphones (3.5 mm plug) into the headphone socket on the back. The internal speaker will then be muted.

How to reset the radio?

Access the menu via MENU > Configuration > Reset (or Factory Reset) and confirm. Note: this erases all your settings.

What are the important safety precautions?

Never open the device, avoid contact with water, use only the supplied adapter, and unplug during storms or extended non-use.

USER MANUAL DR350 HAMA

1 2 3 4 5 6 7 VOLUME OK NAVIGATE 0 0 H 0 M 0 D

Quick Guide

Kurzanleitung

Further information and features are a vailable on:

QR code image containing encoded data, no visible human-readable text

00054864

QR code image containing encoded data, no visible human-readable text

8 9 10 11 12 13 14 1 2 3 4 5 6 7 VOLUME OK NAVIGATE 15 1 2 3 4 5 6 7 16 UPDATE PORT AUX IN DC IN 20

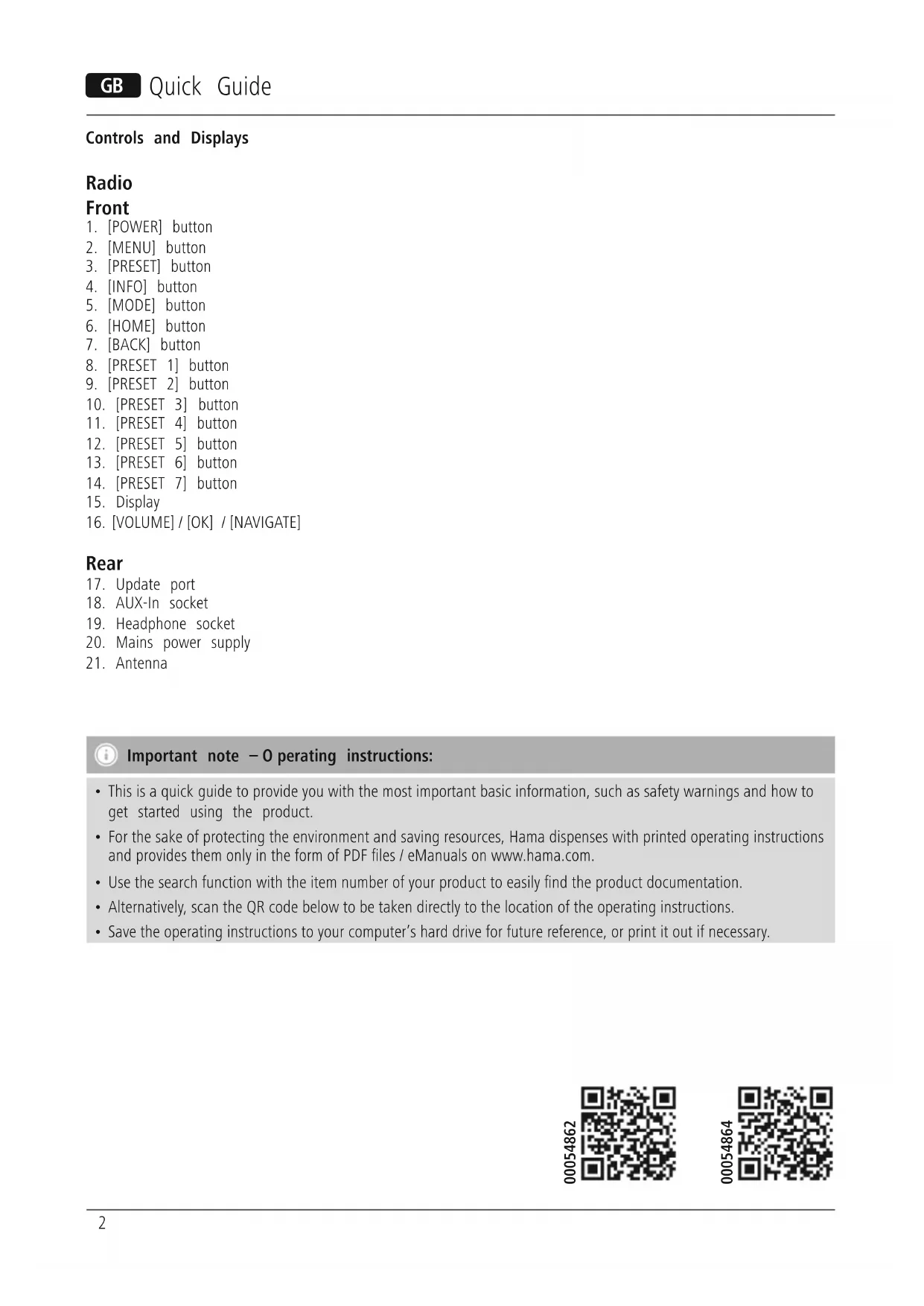

Controls and Displays

Radio

Front

1. [POWER] button
2. [MENU] button
3. [PRESET] button
4. [INFO] button
5. [MODE] button
6. [HOME] button
7. [BACK] button
8. [PRESET 1] button
9. [PRESET 2] button
10. [PRESET 3] button
11. [PRESET 4] button
12. [PRESET 5] button
13. [PRESET 6] button
14. [PRESET 7] button
15. Display
16. [VOLUME] / [OK] / [NAVIGATE]

Rear

1. Update port
2. AUX-In socket
3. Headphone socket
4. Mains power supply
5. Antenna

Important note - 0 perating instructions:

• This is a quick guide to provide you with the most important basic information, such as safety warnings and how to get started using the product.
• For the sake of protecting the environment and saving resources, Hama dispenses with printed operating instructions and provides them only in the form of PDF files / eManuals on www.hama.com.
• Use the search function with the item number of your product to easily find the product documentation.
  • Alternatively, scan the QR code below to be taken directly to the location of the operating instructions.
• Save the operating instructions to your computer's hard drive for future reference, or print it out if necessary.

00054862

00054864

1. Explanation of Warning Symbols and Notes

Warning

This symbol is used to indicate safety instructions or draw your attention to specific hazards and risks.

Note

This symbol is used to indicate additional information important notes.

Risk of electric shock

This symbol indicates product parts energized with a dangerous voltage of sufficient magnitude to constitute a risk of electric shock.

2. Package Contents

• Digital radio DR350
• Quick guide
• Power adapter
• Clip mount
• Screw mount

3. Safety Notes

• The product is intended for private, non-commercial use only.
• Protect the product from dirt, moisture and overheating and use it in dry rooms only.
• As with all electrical devices, this device should be kept out of the reach of children.
• Do not drop the product and do not expose it to any major shocks.
• Do not operate the product outside the power limits given in the specifications.
• Keep the packaging material out of the reach of children due to the risk of suffocation.
• Dispose of packaging material immediately according to locally applicable regulations.
• Do not modify the device in any way. Doing so voids the warranty.

Risk of electric shock

• Do not open the device or continue to operate it if it becomes damaged.
• Do not use the product if the AC adapter, adapter cable or power cable is damaged.
• Do not attempt to service or repair the device yourself. Leave any service work to qualified experts.

4 S witching the device on

- Connect the power cable to a properly installed power socket.

Warning

• Only connect the product to a socket that has been approved for the device. The electrical socket must always be easily accessible.
• Disconnect the product from the power supply using the on/off switch – if this is not available, unplug the power cord from the socket.

- Wait until the radio initialisation procedure has finished.

- Press the [POWER] button to switch the radio on.

5. Language and setup wizard

The first time the system starts the radio uses English. To change this, proceed as follows:

Press [MENU] > System settings > Language > Select language

Confirm your selection by pressing the [ENTER] or [OK] button.

Note

- You can choose from the following languages: English, French, German, Italian, Finnish, Dutch, Danish Norwegian, Polish, Swedish, Slovak, Turkish, Czech

6. Care and Maintenance

• Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents.
• If you do not use the product for a long time, turn off the device and disconnect it from the power supply. Store a clean, dry place out of direct sunlight.

7. Warranty Disclaimer

Hama GmbH & Co. KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes.

8. Service and Support

Please contact Hama Product Consulting if you have any questions about this product.

Hotline: [phone] (German/English)

Further support information can be found here: www.hama.com

9. Recycling Information

After the implementation of the European Directive 2012/19/EU and 2006/66/EU in the national legal system, the following applies: Electric and electronic devices as well as batteries must not be used of with household waste. Consumers are obliged to return electrical and electronic devices as well as at the end of their service lives to the public using points set up for this purpose or point of sale. To this are defined by the national law of the five country. This symbol on the product, the ion manual or the package indicates that a productect to these regulations. By recycling, reusing the risks or other forms of utilising old devices/Batteries, e making an important contribution to protecting our ment.

10. Declaration of Conformity

CE Hereby, Hama GmbH & Co KG declares that the radio equipment type [00054862, 00054864] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

www.hama.com >00054862->Downloads.

www.hama.com >00054864->Downloads.

Hotline: [phone] (Ger/Ang)

86652 Monheim/Germany

www.hama.com

The Spotify software is subject to third party licenses found here: www.spotify.com/connect/third-party-licenses

All listed brands are trademarks of the corresponding companies. Errors and omissions excepted, and subject to technical changes. Our general terms of delivery and payment are applied.
