Technical Specifications	Power: 2000 W, Capacity: 1.7 L, Material: Stainless Steel
Usage	Operation with a single button press, Water level indicator, Automatic shut-off
Maintenance and Repair	Regular cleaning with a soft cloth, Descaling recommended every 1-3 months depending on usage
Safety	Overheat protection, Lid locking system, Non-slip base
General Information	Warranty: 3 years, Weight: 1.2 kg, Dimensions: 22 x 15 x 25 cm

Frequently Asked Questions - SWKG 2000 B1 SILVERCREST

The kettle does not turn on. What should I do?

Check that the kettle is properly plugged into a working electrical outlet. Also ensure that the lid is securely closed, as the kettle will not turn on if the lid is open.

The kettle makes a strange noise during operation. Is this normal?

A slight noise can be normal when boiling water. However, if the noise is very loud or unusual, unplug the device and contact customer service.

How do I clean my SILVERCREST SWKG 2000 B1 kettle?

To clean the kettle, use a soft, damp cloth. Avoid using abrasive products. To remove limescale, you can boil a mixture of water and white vinegar.

The kettle does not heat the water properly. What should I do?

Make sure the kettle is not in 'keep warm' mode. If it still does not heat, unplug the device, let it cool down, and try again. If the problem persists, contact customer service.

What is the maximum volume of water I can boil?

The SILVERCREST SWKG 2000 B1 kettle has a maximum capacity of 1.7 liters. Do not exceed this limit to avoid overflow.

The indicator light does not turn on when I press the button. What should I do?

Check that the kettle is properly placed on its base. If the light still does not turn on, check the electrical outlet and try another power source.

Can I use my kettle for liquids other than water?

It is recommended to use the kettle only for water. Using other liquids may damage the device and void the warranty.

How do I know if the water is boiling?

The kettle has an indicator light that turns on during heating. Once the water reaches boiling, the kettle automatically turns off.

USER MANUAL SWKG 2000 B1 SILVERCREST

Operation and Safety Notes

FR BE

BOUILLOIRE EN VERRE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DK

GB/IEOperation and Safety NotesPage 5

Intended use
Parts description.. 6
Technical Data . 6
Scope of delivery.. 6

Safety instructions

General Safety Information.. 6
Safety notices specific to the device.. 7

Before use.

Start-up

Filling the glass kettle.. 8
Placing the glass kettle on the centre contact station.. Page 8
Boiling water Page 8
Manually interrupting the boiling cycle.. 9
Pouring water. 9

Cleaning and Care

Cleaning the water kettle.. 9
Cleaning the filter cartridge.. 9
Dscaling the glass kettle.. 9

Storage
Troubleshooting
Disposal
Warranty/Service centre
Declaration of conformity.

SILVERCREST

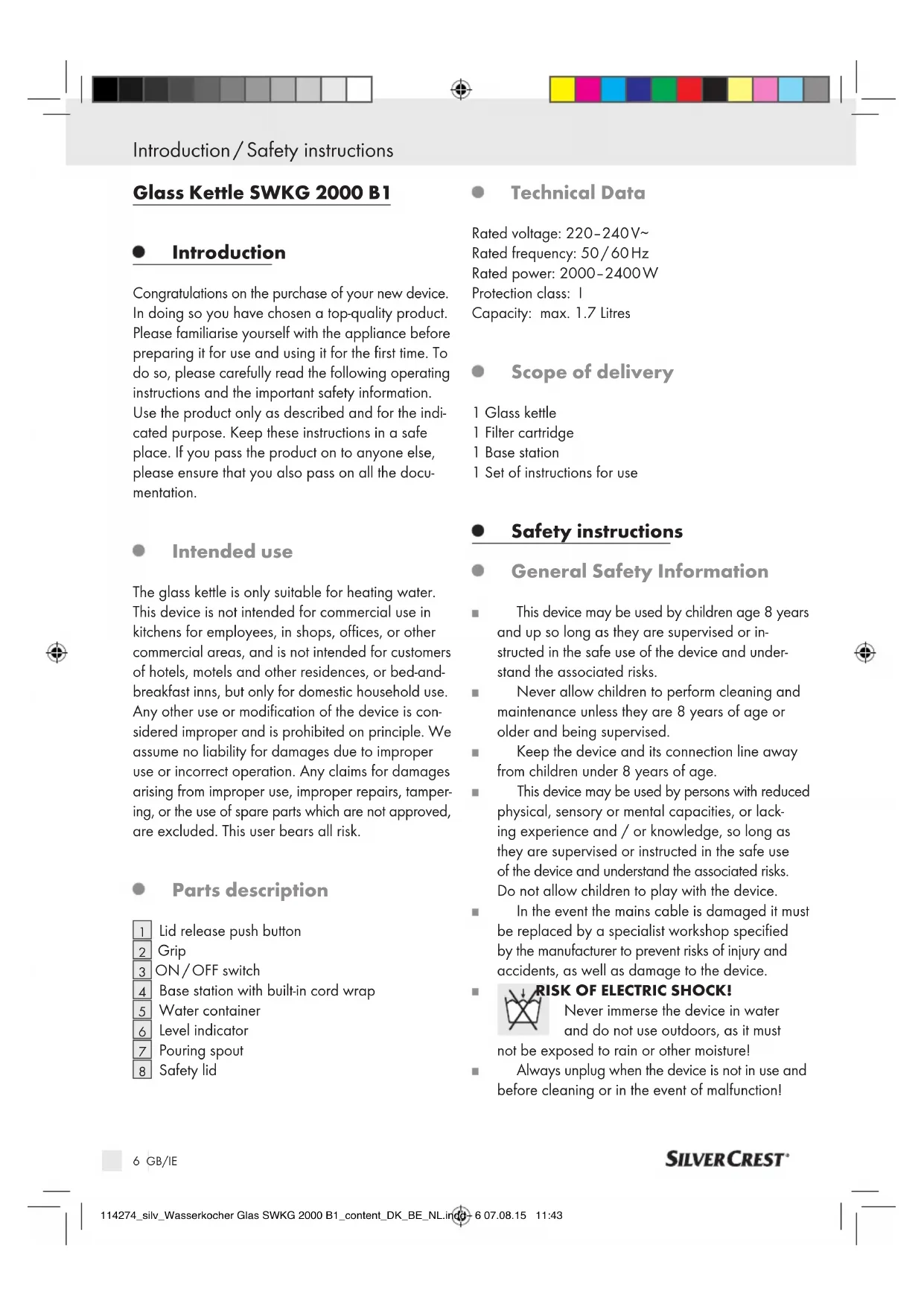

Introduction / Safety instructions

Glass Kettle SWKG 2000 B1

Introduction

Congratulations on the purchase of your new device. In doing so you have chosen a top-quality product. Please familiarise yourself with the appliance before preparing it for use and using it for the first time. To do so, please carefully read the following operating instructions and the important safety information. Use the product only as described and for the indicated purpose. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation.

Intended use

The glass kettle is only suitable for heating water. This device is not intended for commercial use in kitchens for employees, in shops, offices, or other commercial areas, and is not intended for customers of hotels, motels and other residences, or bed-and-breakfast inns, but only for domestic household use. Any other use or modification of the device is considered improper and is prohibited on principle. We assume no liability for damages due to improper use or incorrect operation. Any claims for damages arising from improper use, improper repairs, tampering, or the use of spare parts which are not approved, are excluded. This user bears all risk.

Parts description

1 Lid release push button
2 Grip
3ON/OFF switch
4 Base station with built-in cord wrap
5 Water container
6 Level indicator
Pouring spout
8 Safety lid

Technical Data

Rated voltage: 220 - 240V

Rated frequency: 50 / 60Hz

Rated power: 2000-2400W

Protection class: I

Capacity: max. 1.7 Litres

Scope of delivery

1 Glass kettle
1 Filter cartridge
1 Base station
1 Set of instructions for use

Safety instructions

General Safety Information

This device may be used by children age 8 years and up so long as they are supervised or instructed in the safe use of the device and understand the associated risks.
Never allow children to perform cleaning and maintenance unless they are 8 years of age or older and being supervised.
Keep the device and its connection line away from children under 8 years of age.
This device may be used by persons with reduced physical, sensory or mental capacities, or lacking experience and / or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the device.
In the event the mains cable is damaged it must be replaced by a specialist workshop specified by the manufacturer to prevent risks of injury and accidents, as well as damage to the device.

RISK OF ELECTRIC SHOCK!

Never immerse the device in water and do not use outdoors, as it must

not be exposed to rain or other moisture!

Always unplug when the device is not in use and before cleaning or in the event of malfunction!

6 GB/IE

SILVERCREST

Safety instructions

RISK OF ELECTRIC SHOCK! Never pull on the mains cable!

RISK OF ELECTRIC SHOCK! In the event the device falls into water, first unplug from the mains, then remove it from the water! Do not operate the device after said incident and first have it inspected by an approved service address. This also applies if a mains cable or the device becomes damaged or the device has been dropped!

RISK OF ELECTRIC SHOCK! Careful, never place the mains cable or the device on hot surfaces or near sources of heat. Run the mains cable so it does not come into contact with hot or sharp-edged objects!

RISK OF ELECTRIC SHOCK! Never kink the mains cable and do not wrap it around the device, as this may cause a cable break!

RISK OF ELECTRIC SHOCK! Do not use the device whilst standing on moist floor or if your hands or the device are wet!

RISK OF ELECTRIC SHOCK! Never open the device and never attempt to insert metal objects into the device!

RISK OF SUFFOCATION! Keep packaging film away from children!

ELECTRIC APPLIANCES ARE NOT A TOY!

Therefore use and store the device out of the reach of children. Children are not aware of the dangers associated with handling electric appliances. Do not allow the mains cable to dangle to prevent it from being pulled on.

Repairs must be performed by approved specialist workshops. Improperly repaired devices may be dangerous for the user.
Always connect the device to a properly installed safety socket with a mains voltage matching the type plate.
Do not operate the device unattended to prevent accidents.

Safety notices specific to the device

WARNING! RISK OF BURNS! Always touch the electric kettle by the handle 2. Operating electric heating devices generate high temperatures which may result in hazards, e.g. boiling water, hot steam, and a hot housing! Also instruct other users of the hazards!
WARNING! RISK OF BURNS! Only operate the water kettle with the filter cartridge installed. This prevents water from splattering whilst boiling.
WARNING! RISK OF BURNS! Never open the safety lid 8 with the water boiling.
WARNING! Do not operate the device below wall cupboards or similar items, the steam released may damage your furniture.
WARNING! RISK OF BURNS! Allow the device to cool down completely before cleaning and storing it.
Only operate the device with the included base station 4. To prevent dangerous situations, only add water whilst the device is on the base station!
To prevent hazards, never operate the device with water or with the safety lid 8 open.
Be sure never to operate an over- or underfilled glass kettle. The amount of water added must not be below the MIN mark in the level indicator 6 or above the MAX mark. Boiling water may spurt if overfilled.
Only add clean water to the glass kettle. The device is not suitable for heating other liquids, e.g. milk or coffee. The material may be permanently damaged.
The glass kettle features a safety function which switches it off automatically if accidentally operated empty. In this case allow the glass kettle to cool down before reusing.
Only heat the water in the device once! Empty all water from the device after boiling. Do not allow water to sit in the device to prevent stagnant water, calcium deposits, and algae formation.
The device is not intended for use with an external time switch or a separate telecontrol system.

SILVERCREST

7GB/IE

Before use/Start-up

Before use

To prevent hazards, verify the device, the mains plug and the mains cable are complete and in good condition after unpacking to eliminate any damage.

Your glass kettle is packaged to protect it from transport damage.

Carefully remove the device from the retail pack.
Remove all packaging.
Completely unwrap the mains cable.
Remove any residual packaging dust from the device and all accessories as specified in chapter "Cleaning and Care".
Set up the glass kettle near a protective ground socket, ensuring it is freely accessible.

Furniture is now coated with a variety of paints and plastics, and is treated with the most diverse of cleaners. It is therefore impossible to preclude some of these substances may contain components which would affect and soften the rubber feet of the housing.

If necessary, place a non-slip, heat resistant pad under the glass kettle.
Please the base station on a suitable surface.
Connect the device to the protective ground socket.
Please boil water 2-3 times prior to first use.
To do so, fill the water reservoir to the MAX mark.
Pour out the water after each use and rinse the water reservoir with clean water.
Always allow the water reservoir to cool to room temperature between cycles.

Start-up

Filling the glass kettle

Remove the water reservoir from the base station 4 to fill.
Open the safety by pressing the lid release push button 1.

Add water to the water reservoir. Be sure not to fill below "MIN" or above the "MAX" level of the level indicator
WARNING! Only use fresh potable water. Do not ingest water not identified as potable water. There otherwise is a risk of damage to the health!
WARNING! RISK OF BURNS! Adding too much water to the device poses a risk of boiling over. This can result in burns!

Close the safety id.

Note: The automatic shut-off will not work if the safety lid 8 is not closed correctly.

Placing the glass kettle on the centre contact station

Your glass kettle features a practical centre contact station. This means you may align the water reservoir in any direction without observing the accuracy of fit.

Place the water reservoir on the base station 4.
Now connect the base statio to the mains.

Boiling water

Note: The ON / OFF switch can only be used if the device is on the base station.

Press the ON/OFF switch down in the position "I". The device is switched on. It will now start heating. Once the water is boiling the auto shut-off will switch the device off. The shut-off time depends on the amount of water added. Note: Based on the function of the device, a few drops of condensation may escape from the discharge openings at the bottom of the device at the end of the boiling cycle. This is not a sign the device is leaking but is due to the auto shut-off and does not affect safety.

Safety ON/OFF switch

Note: Your device features a special safety ON / OFF switch 3 ("lift-off switch-off"). Removing the water reservoir 5 from the base station 4 will trip the ON/OFF switch 3 up and the device will automatically switch off.

To use again, return the water reservoir to the base station 4 and push the ON/OFF switch 3 down into the "I" position.

Note: If you do not push the ON / OFF switch 3 down again, the device will remain off, even with the water reservoir 5 on the base station 4.

Overheating protection

Your glass kettle features an overheating protection which will automatically switch the device off when automatically used empty or with an insufficient amount of water.

If the overheat protection is triggered, proceed as follows:

Unplug from the protective ground socket and allow the device to cool to room temperature. Once cooled, it can be used again.

Manually interrupting the boiling cycle

Slide the ON/OFF switch upward to the "0" position.

Pouring water

Remove the water reservoir from the base station 4 to pour. Opening the safety lid 8 is not required.
Pour the hot water through the pouring spout into the designated vessel. Before boiling again, allow the device to first cool to room temperature.

- Cleaning and Care

Always unplug from the mains before cleaning and allow the device to cool completely before cleaning and storing!
Never immerse the base station and water reservoir in water. This poses a risk of burns or electric shock!
Do not use caustic cleaners and abrasives or scouring pads, as this may cause damage the device beyond repair.

- Cleaning the water kettle

Clean all exterior surfaces and the mains cable with a slightly dampened dishcloth. Always dry the device well before using it again. For stubborn soiling use a mild detergent on the cloth. Ensure there is no washing-up liquid residue on and inside the device before using it again.
Rinse the inside of the water reservoir with clean water.
Remove deposits inside the water reservoir by wiping the inside surface with a damp cloth, or use a washing-up or bottle brush. Then rinse the water reservoir 5 with clean water again.

- Cleaning the filter cartridge

The filter cartridge is removable for enhanced cleaning.

Remove the filter cartridge upward at the release tab.
Clean the filter cartridge with some citric acid or lime dissolver suitable for food containers from a homeware shop (e.g. coffee maker cleaner).
Rinse the filter cartridge well with water.
Please carefully slide the filter cartridge downward along the designated guide groove.

- Descaling the glass kettle

Note: Severely scaled devices can result in the device automatically switching off early and energy loss.

SILVERCREST

9 GB/IE

Cleaning and Care/Storage/Troubleshooting/Disposal

Therefore regularly descale the glass kettle (varies by lime content in the water and frequency of use). Only use citric acid or lime dissolver suitable for food containers from a houseware shop (e.g. coffee maker cleaner), do not use acetic acid or other acids.

Fill the water reservoir with water and heat to a simmer.
Add some citric acid or lime dissolver suitable for food containers from a housewares shop (e.g. coffee maker cleaner).
Unplug from the protective ground socket. Lime-cleaned, proceed as follows:

scale will dissolve as the water cools.

Occasionally swivel the water reserv
Repeat the process for thick layers of limescale.

Note: Dscaling may be interrupted, even if some limescale remains. Dscaling down to the bare metal surface is not required.
After descending, simmer 2-3 fillings of fresh water and discard the water.

Storage

Once the glass kettle has cooled down and is

If necessary, unplug the mains plug from the protective ground socket.
1. Wrap the mains cable on the cable wrap of the base station 4.
Now store the glass kettle in a dry location.

Troubleshooting

Problem Cause Solution
The device is not functional.	The device is not connected to the protective ground socket.	Plug the mains plug into the protective ground socket.
	The water reservoir is not properly positioned on the base station 4.	Correctly place the water reservoir on the base station 4.
	The ON/OFF switch 3 has not been activated.	Push the ON/OFF switch 3 down into the " | " position.
The water kettle switches off early.	The bottom of the water reservoir is severely scaled.	Descale the kettle as described in chapter "Cleaning and Care".
The device does not switch off.	The safety lid 8 is not closed correctly. The filter cartridge is missing or inserted incorrectly.	Close the safety lid 8 correctly. Only operate the device with the filter cartridge correctly installed.
The kettle does not switch on.	The overheating protection was activated and the device has not yet cooled down sufficiently.	Allow the device to cool down.

In the event of malfunctions not specified here, please contact our Customer Service Department. Our customer service representatives will gladly assist you. The service address is listed in our terms of warranty.

Disposal

The product packaging is made from recyclable materials. The packaging material may be returned to public collection sites for recycling.

10 GB/IE

SILVERCREST

Disposal/Warranty/Service centre/Declaration of conformity

Waste electrical equipment does not belong in household refuse!

According to the law, the waste electrical equipment must be properly disposed of at the end of its life. Recyclables in the waste electrical device will be reused, protecting the environment. For more information please contact the respective municipal administrative agency or your local waste management company.

Warranty/Service centre

Dear customer,

Our products are submitted to strict quality control. However, we do apologise if this device does not work properly and ask you to contact our Customer Service Department listed below. Please feel free to phone us using the Service Hotline specified. Warranty claims are subject to - without limiting your legal rights -

the following:

1. Warranty claims must be filed within a period of max. 3 years from the date of purchase. Our warranty services are limited to correcting defects in material and manufacture, or replacement of the device. Our warranty service is free of charge to you.
2. Warranty claims must always be filed promptly upon discovery.
3. Warranty claims will not be accepted after the warranty period has expired.
4. Please keep your receipt as proof of purchase.

Not covered by warranty:

• improper or incorrect handling
• Failure to observe the safety precautions for the device
• Use of force
  Changes not performed by a service address authorised by us

• Damage due to return in packaging not safe for transport (the sales packaging of this product is not suitable for separate shipping)

• Self-induced damage due to e.g. impact, shock, drops

• Failure to observe the instructions for use
• Normal wear
• Unauthorised repairs

You may request the instructions for use in PDF format from our Customer Service Department.

Service - GB

Tel.: [phone]

(max. 0.122 EUR/Min.)

E-Mail: [e-mail]

Service - IE

Tel.: [phone]

(max. 0.327 EUR/Min.)

E-Mail: [e-mail]

IAN 114274

Declaration of conformity

The CE declaration of conformity may be requested from the manufactured/imported.

This device complies with the requirements of the German Product Safety Act and the European Low Voltage Directive. This is indicated by the GS mark issued by an independent testing institute.

SILVERCREST

11GB/IE

Indledning

Formalsbestemnt anvendelse .Side 14
Beskrivelse af de enkelte dele. Side 14
Tekniske data. Side 14
Leverede dele Side 14

Protection anti-surchauffe

Chere cliente, cher client,

A WAARSCHUWING! GEVAAR VOOR

WAARSCHUWING! GEVAAR VOOR

WAARSCHUWING! GEVAAR VOOR

WAARSCHUWING! GEVAAR VOOR
