USER MANUAL You Color P503 NGM-Mobile
Copyright © 2015 NGM Italia
Copyright © 2015 NGM Italia

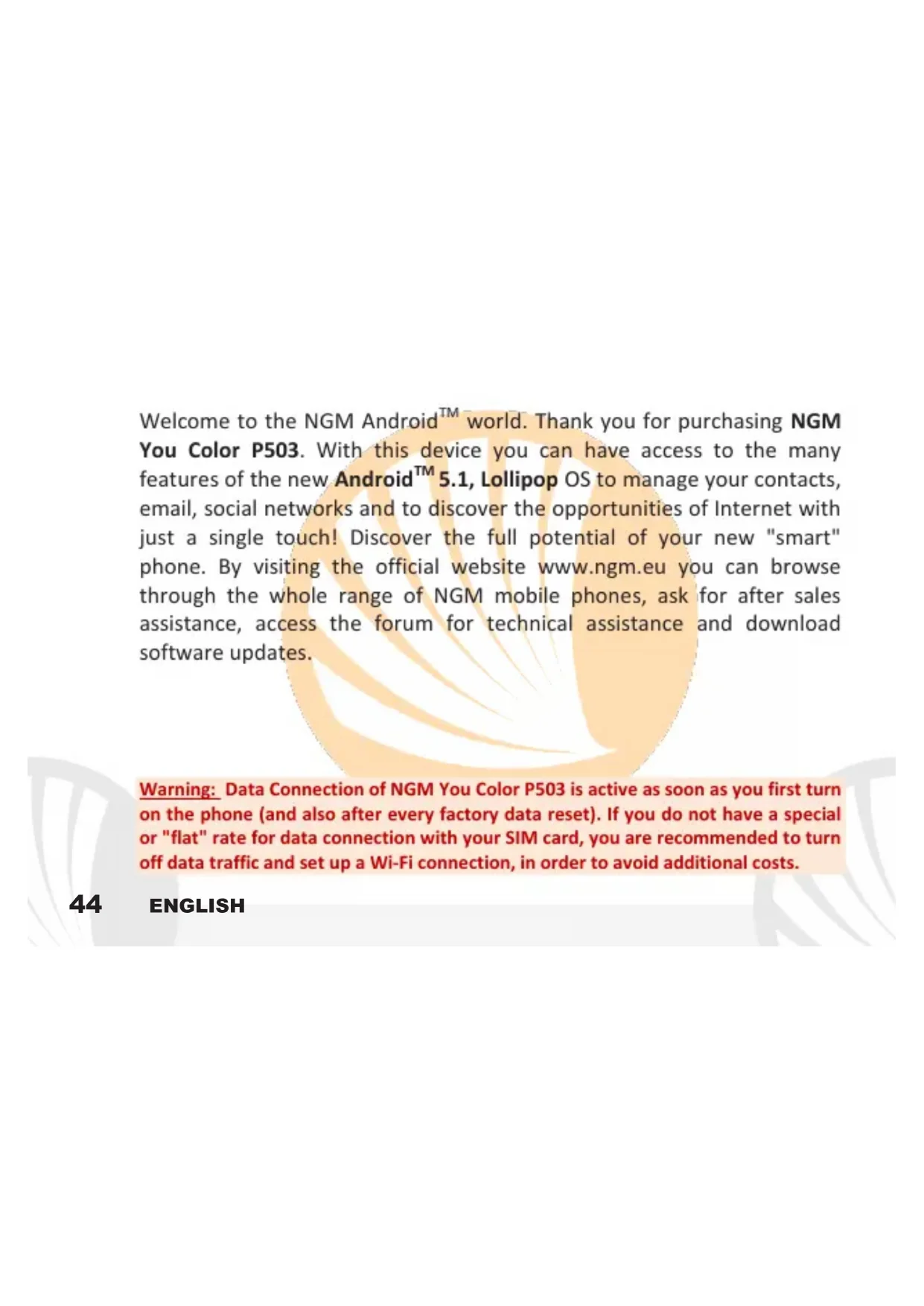

Welcome to the NGM Android™ world. Thank you for purchasing NGM You Color P503. With this device you can have access to the many features of the new Android™ 5.1, Lollipop OS to manage your contacts, email, social networks and to discover the opportunities of Internet with just a single touch! Discover the full potential of your new "smart" phone. By visiting the official website www.ngm.eu you can browse through the whole range of NGM mobile phones, ask for after sales assistance, access the forum for technical assistance and download software updates.
Warning: Data Connection of NGM You Color P503 is active as soon as you first turn on the phone (and also after every factory data reset). If you do not have a special or "flat" rate for data connection with your SIM card, you are recommended to turn off data traffic and set up a Wi-Fi connection, in order to avoid additional costs.

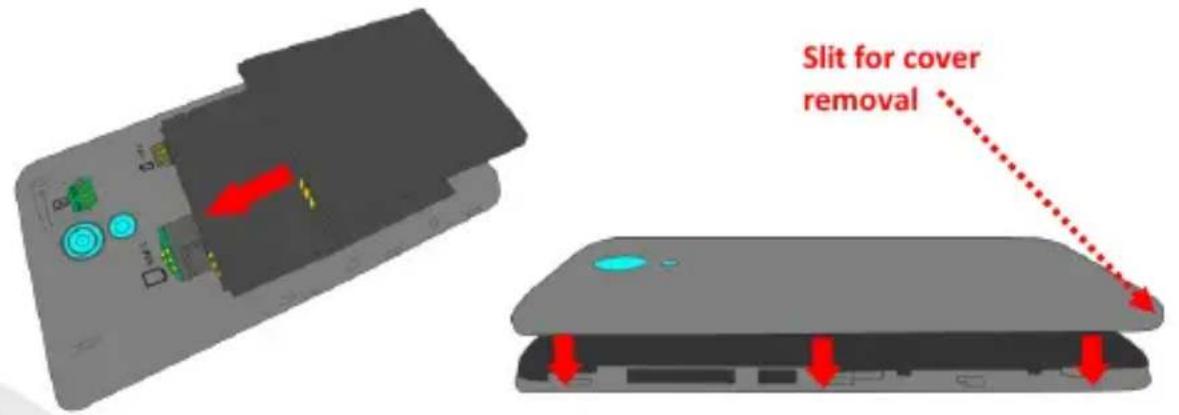

Inserting the battery
Your device is provided with a lithium-ion battery and is designed to be used exclusively with original NGM batteries and chargers. Lift the cover from the slit on the lower right corner. The battery must be inserted into the backside of the phone. Insert the battery into the battery compartment with the contacts facing up, matching those of the phone. When done, put the hind cover back into position as shown in the following illustrations.
ENGLISH
Be careful if you intend to use a micro SIM card with an adapter on the SIM slot, as it might
get stuck inside the slot thus impeding the correct insertion and removal of the
SIM card. For these reasons, the use of card adapters is strongly discouraged.

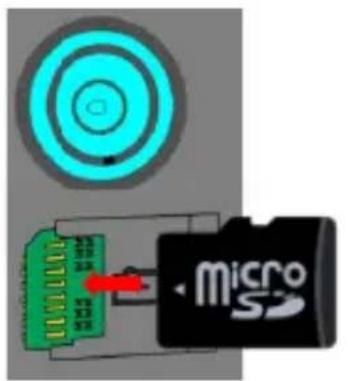

Inserting the memory card: to better manage all the functions of NGM You Color P503, you are recommended to use a micro-SD card: insert it into the back side of the phone. After turning off the phone, remove the back cover and the battery; insert the micro-SD into the slot on the upper right corner as shown in the figure and push it inside its slot.
Charging the battery
Charge the battery before starting to use the device. Use the supplied USB cable and the USB connector on the top side of the phone. Connect the charger to the provided wall socket adapter, and then the device to the USB cable. You can also charge the phone by connecting it with the PC USB port, but in this case charging will take longer. When the battery is charging, an animated icon on the screen will show the charging progress if the phone is on. Once the battery icon is filled, it is fully charged and the phone can be disconnected from the grid.
Warning: Do not connect the phone to a booting-up or running down PC to avoid voltage jumps. To preserve the functionality of the product and the integrity of the warranty, we recommend the use of original NGM chargers. Please charge the battery indoors, in a dry and favorable environment. It's normal for the battery to get slightly warm during the charging process. The battery will reach its full capacity when cycled several times.
Power on, power off and standby

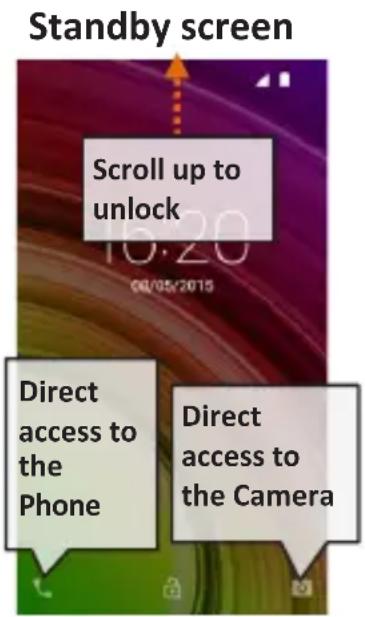

To turn on the phone, press and hold the power on/off key To turn off your device, press and hold the same key and confirm by selecting "Shutdown". A quick pressure sets the phone in stand-by mode (screen off) or allows you to go back to the lock screen (see below).
ENGLISH

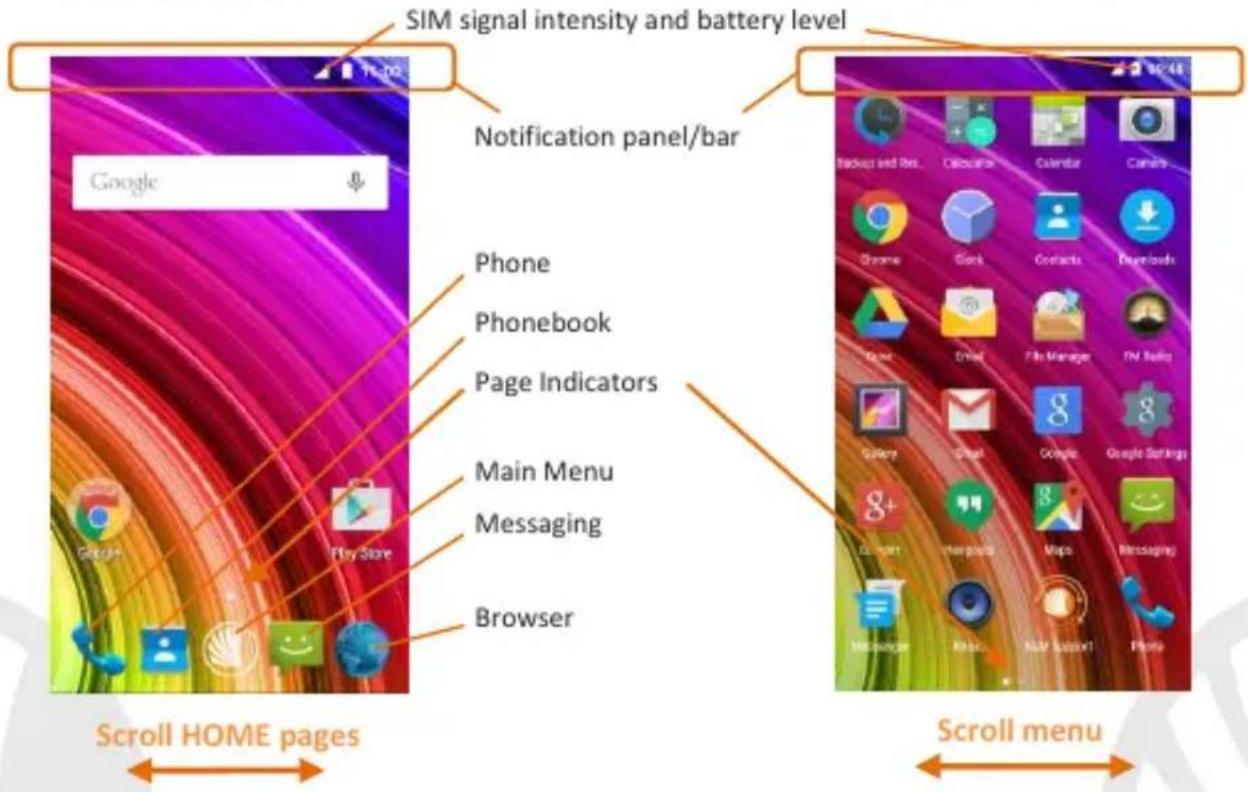

The main screen: use the touch screen by tapping, holding or dragging a finger across the screen. The main screen is the starting point for using all the applications on your phone. Other pages will be available to the right of the main page, as soon as you insert shortcuts or widgets into them: press and hold the desired application icon and drop it onto one of the desktop-thumbsnails. By swiping to the right with the held icon, you will create new pages that you can fill with shortcuts and widgets. You can also customize the four widgets next to the central menu icon by pressing, holding and moving them onto the desktop. To delete a shortcut or widget, tap and hold the icon and drag it onto the "X Remove" symbol on the screen. By moving an icon over another, you can create folders on the desktop and by long pressing an empty space on the desktop you can change the wallpaper.

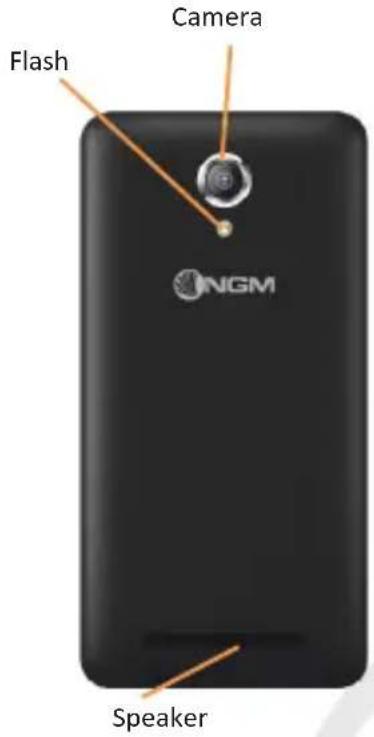

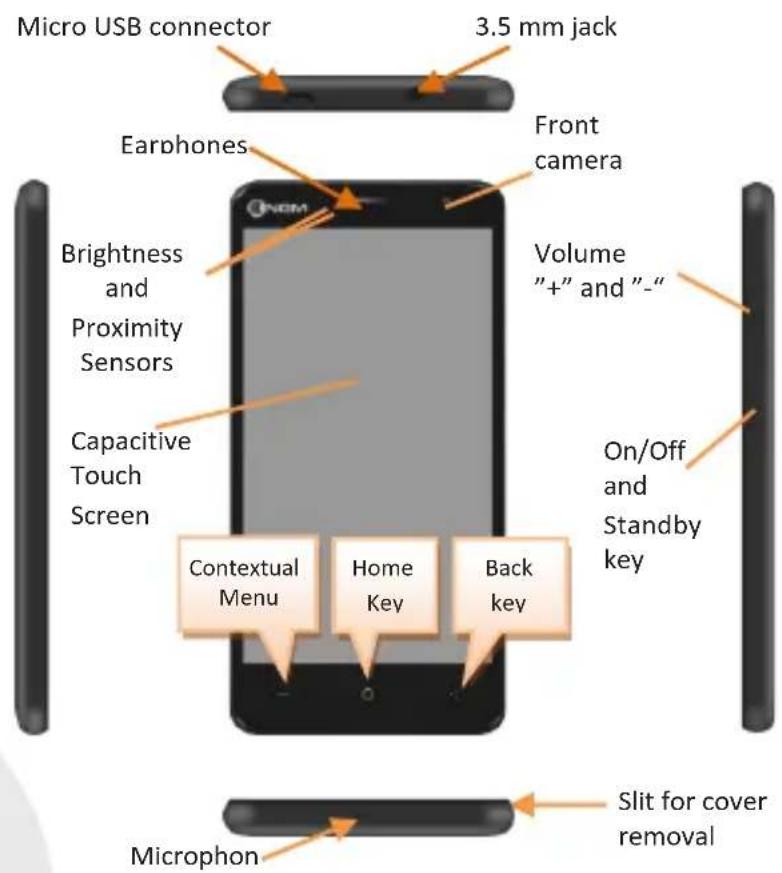

The main menu
Select an application from the main menu or scroll left/right to view other applications. Press back key to return to the previous screen, press the Home key to return to the main screen.
Home Screen
Main Menu
ENGLISH
RAPID ACCESS
Notification panel
To open the Notification Panel, touch the upper icons bar. When scrolling down, the notifications will be shown first; if you continue scrolling down, you will also display the Quick Setup keys. With , you will erase all notifications in the panel. To hide the panel, drag up the bottom of the panel or tap the Back key. Notifications will also be visible in the unlock screen.
Recent applications
When you are inside any application, long press the key: a list of the applications you have recently accessed will be shown and can be directly selected.
Lock screen and vibration
From the main menu, select Settings > Security > Screen Lock. Select the desired unlocking mode (None, Slide, Voice Unlock, Pattern, PIN or Password) and confirm. To quickly lock the screen, briefly press the power on/off key. To unlock it, follow the instructions on the screen.
Contextual Menu
Many apps have a Contextual Menu. By selecting it, you can display a contextual menu referred to the application itself, with related functions.
ENGLISH
MANAGING CALLS
From the main screen touch the Phone icon; use the virtual keypad to enter the desired phone number (select icon to display the virtual keypad)
Press the handset icon.
To end the call press the red end call key.
To answer a call, select Reply on the popup that appears at the top of the screen, or tap the pop-up itself to display the call screen. Now drag the phone icon to the right onto the blue handset to answer the call; to reject it, drag it to the left onto the red handset, to reject with a message drag the phone icon upwards. To silence an incoming call, press Volume "+" or "-" (on the right side of the phone).
Call a number from the call log
From the main menu, first select the Phone App and then select Call Log from the contextual menu (hide the virtual keypad first); this will display the call logs with the missed, received and outgoing calls.
Select the desired number and then Callback.
52 ENGLISH
MANAGE CONTACTS
Note: In the contact contextual menu, you can access the Import/Export functions and several other settings.
Add a new contact
From the main menu select the Contacts icon.
Press on the bottom.
Choose where to save the new contact.
Insert Name, Number and other contact details (if saving on Phone) and confirm with Save.
Add a new contact from call log
From Phone menu, access the Call Logs (contextual menu).
Click on the empty contact icon then select the icon in the top right.
Choose Create New Contact on the top or add the number to an Existing contact by selecting it from the list. Once you selected the saving path and added name and any further information (when saving in Phone), confirm with Done.
Setting the ringtones
Note: you can set ringtones in mid, wav, ogg or mp3 formats.
From the main menu, select Settings > Sound and Notification > General.
Select Phone Ringtone and choose the desired ringtone. If you want to set a custom ringtone: in Music, select the desired audio track and choose Use as Ringtone in the contextual menu. The audio file will be added to the available ringtones list.
ENGLISH
Quickly turn on/off the vibration mode: to quickly disable call and message ringtones press the Volume "-" key. Once the minimum volume has been reached, the phone will enter the vibration mode. In the same way you can handle notifications interruptions (refer to the next paragraph)
Interruptions and app notifications: Android™ Lollipop introduced new features. In Settings > Sound & Notifications > Interruptions you can choose not to receive notifications on specific days and times. In particular, you can set three states:
- Don't interrupt: you will receive all notifications
- Allow only priority interruptions: you will only receive priority notifications, selectable in the next menu (events and reminders, calls or messages. Alerts are always considered priority interruptions)
- Always interrupt: you will not receive any notification, not even priority ones, in established days and times
Once the priority notifications you still want to receive are set, you can set a time frame in which you stop receiving all other notifications that are not considered priority. By activating an interruption, a star will appear on the notification bar.
In Settings > Sound and Notifications > Notifications, you can choose not to receive notifications from specific applications selectable from the notifications app menu.
Sending and reading SMS and MMS
Reading SMS and MMS: when you receive a new SMS or MMS, an icon appears in the notification panel. By clicking on the displayed icon, you can directly access the conversation and read the incoming message. In any case, you can view the incoming messages from the home screen or menu by selecting Messaging.
Sending SMS and MMS: from the Home page or from the main menu, choose Messaging and then the icon on the bottom. Type the first letters of a name into the recipients field to search for a contact and select it from the pop-up or directly enter the phone number; otherwise select the icon next to the field and select the recipient(s) from the contacts. Write the text into the dedicated space with the virtual keypad. Select the "+" icon to insert multimedia files (the message will automatically be converted into MMS) and press key.
CONNECTIVITY: to better use the potentiality provided by the device and its operating system, you must have an active data connection; data connection of NGM You Color P503 is active when you first power ON the phone. If it is not included into your mobile phone plan, data traffic may cause you extra costs, so it is recommended to configure an Internet connection via WiFi. To enable data traffic from the notification panel, select the SIM signal intensity icon and turn ON the upper right switch.
ENGLISH
Connect to the Internet using Wi-Fi: you can connect to the WLAN using Wi-Fi option. To activate it, from the main menu choose Settings > WiFi I/O. Please follow all warnings and indications concerning the use of wireless devices in areas where the use of such functions is restricted (airplanes, hospitals, etc.). Go offline mode when you have to use only the functions that do not require Network access.
Connecting to a Bluetooth® device: turn ON the Bluetooth device you want to connect with. Refer to the device documentation.
From the main menu, choose Settings > Bluetooth on/off to turn on Bluetooth. In the contextual menu you will find additional functions and settings.
Choose Search to automatically find other Bluetooth devices.
Among the discovered devices, select the device name to associate with. The phone will attempt to associate with the device, which may be asked for a pairing code.
Connect to the Internet: from the main menu, choose Browser. Type the URL into the address bar to start browsing. If you choose to navigate using data connection, be aware of costs or choose a "flat" data contract with your service provider. Alternatively, use WiFi (see "Connectivity") where possible.
Gmail account setup: in order to better manage the Android™ OS functionalities, it is recommended to configure a new Gmail account, or insert an existing one. This will allow you to access all Android™ OS applications.
E-mail: by configuring a Gmail account you can easily manage your e-mails and display them automatically on your phone. If you want to use also a different Email account, you can configure a new account with another provider within the Email app in the Main Menu.
Synchronization: synchronization is the most efficient approach to manage your useful data because it allows you to make a backup of the data on your device with an internet account. In case of replacement, loss or damage of the phone you will not experience loss of data. The synchronization can be activated individually for each synchronized application installed; you can find the application list in Settings > Account[Installed App list]. To add a new account, select Add Account. The synchronization uses an active data connection, which could result in data traffic costs. It is advisable to use a WiFi connection when available.
GPS geolocation: the Global Positioning System (GPS) is a satellite-based positioning system, with a global and continuous coverage. To access GPS, select Settings > Localization I/O. When the GPS function is activated, the phone starts to collect data from satellites and determines the current position. The Fix Times (position detection) are variable and can be affected by several external factors (clouds, high buildings, etc.). Limit the use of battery and memory by switching off this function when you don't need it.
ENGLISH
NGM You Color P503 Dual SIM
With your new smartphone NGM You Color P503 you will enjoy the convenience of Dual SIM, that is the ability to handle two SIM cards and consequently two telephone numbers with a single device. You will discover useful features such as setting the preferred SIM for calls, messages and data connection and the possibility to quickly move the data connection, and automatically the 3G, from one SIM to the other without physically having
to exchange them. At any time you can manage ringtones and notifications for each SIM card independently, exactly as if you had two separate devices.
Set up
Warning: insert SIM and SD card only after removing the battery, in order to prevent data loss.

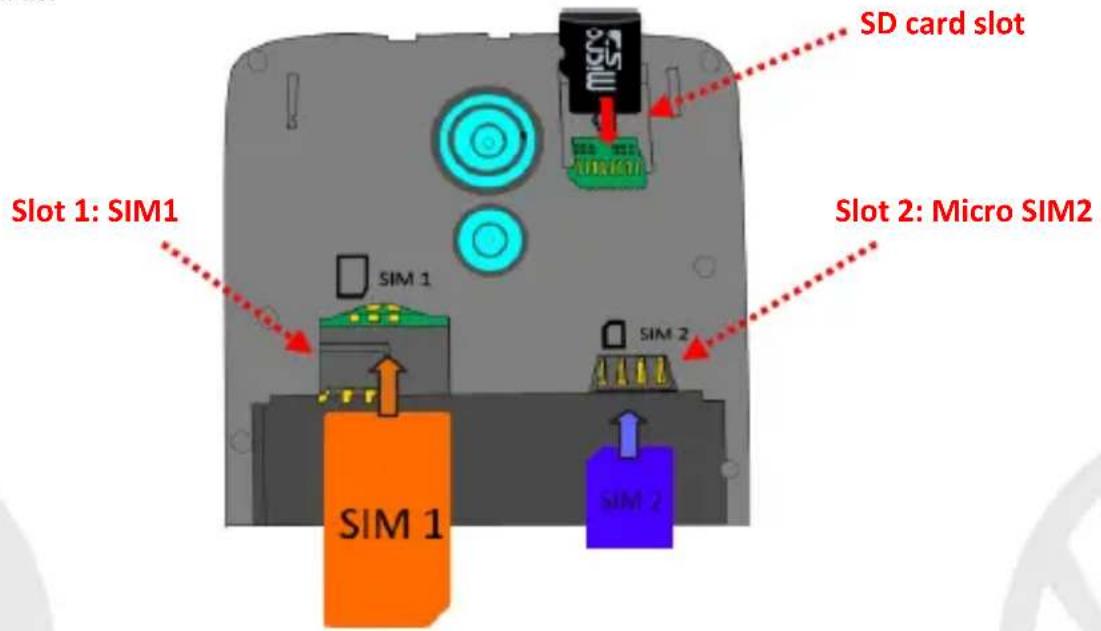

Insertion of the SIM cards: To access the compartment containing the SIM slots, turn off the phone and lift up the cover starting from the slit on the bottom right corner. Remove the battery and insert the SIM cards into the slots with their gold contacts facing downwards.
ENGLISH
Managing the two SIM cards: from the main menu, select Settings > SIM Management. Select the on/off keys next to the phone operators corresponding to "SIM1" and "SIM2" to activate or deactivate selectively the SIM at any time. From this menu you can also customize the color and name for each SIM icon and decide which SIM to use as default for calls, messages and data connection or choose "always ask" if you don't want to set a SIM card as default. By selecting a SIM for data connection, the 3G service will be automatically activated on the same SIM. This allows you to move the 3G connection (normally available on slot1 only) from one SIM to the other without physically exchanging them.
SET RINGTONES WITH DUAL SIM
The Dual SIM management allows you to set a different ringtone for each SIM. From the main menu, select Settings > Sound and Notification > General.
Select Voice call ringtone > SIM1 or SIM2 and choose the desired ringtone for each SIM card. If you want to set a custom ringtone: in Music, select the desired audio track and choose Use as Ringtone in the contextual menu. The audio file will be added to the available ringtones list.
MANAGE CALLS WITH DUAL SIM
From the main screen touch the Phone icon; use the virtual keypad to enter the desired phone number (select icon to display the virtual keypad)
Press the handset icon and choose the desired SIM to call with.
To end the call press the red end call key.
To answer a call, select Reply on the popup that appears at the top of the screen, or tap the pop-up itself to display the call screen. Now drag the phone icon to the right onto the blue handset to answer the call; to reject it, drag it to the left onto the red handset, to reject with a message drag the phone icon upwards. To silence an incoming call, press Volume "+" or "-" (on the right side of the phone).
Call a number from the call log
From the main menu, first select the Phone App and then select Call Log from the contextual menu (hide the virtual keypad first); this will display the call logs with the missed, received and outgoing calls.
Select the desired number and then Call back. In case no default SIM has been set choose which SIM to call with.
ENGLISH
Send SMS and MMS with Dual SIM
From the main menu, choose Messaging and then the icon on the bottom. Type the first letters of a name into the recipients field to search for a contact and select it from the pop-up or directly enter the phone number; otherwise select the icon next to the field and select the recipient(s) from the contacts. Write the text into the dedicated space with the virtual keypad. Select the "+" icon to insert multimedia files (the message will automatically be converted into MMS) and press the key, selecting the SIM you want to use.
Choose the preferred SIM for data connection
To better use the potentiality provided by the device and its operating system, you must have an active data connection; data connection of NGM You Color P503 is active when you first power ON the phone. If it is not included into your mobile phone plan, data traffic may cause you extra costs, so it is recommended to configure an Internet connection via WiFi. To enable data traffic on one of the SIM cards, select Settings > SIM Settings > Data connection, and choose the SIM on which to activate the data connection, thus automatically the 3G service, then activate it from the Quick Setup buttons in the notifications panel, by selecting the SIM signal intensity icon and pushing the upper switch to the right.
62 ENGLISH
Warning: formatting and delivery of this user manual is based on the Android™ operating system, NGM Italia will not bear responsibility for any incompliance with the above guidelines or improper use of the mobile phone. NGM reserves the right to modify any of the content in this user guide without previous public announcement. The content of this manual may vary from the actual content displayed in the mobile phone. In that case, the latter shall govern.
Copyright © 2015 NGM Italia
No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of NGM Italia.
Bluetooth® is a registered trademark of the Bluetooth SIG, Inc. worldwide.
Wi-Fi® and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance.
ENGLISH
