Technical Features	Canister vacuum cleaner with bag, 700W power, 2.5L bag capacity
Usage	Ideal for hard floors and carpets, equipped with a power regulator for tailored cleaning
Maintenance and Repair	Washable HEPA filter, replacement bags available, regular maintenance recommended to maintain performance
Safety	Overheat protection, 5-meter power cable for safe use
General Information	Lightweight for easy handling, compact design for easy storage, 2-year warranty

Frequently Asked Questions - BG72 DIRT DEVIL

How do I assemble my DIRT DEVIL BG72 vacuum cleaner?

To assemble your vacuum cleaner, start by inserting the suction tube into the vacuum body until it clicks into place. Then attach the brush to the tube by turning it until it is securely held.

My vacuum cleaner won't turn on, what should I do?

First, check that the vacuum cleaner is properly plugged in. If the device still does not turn on, inspect the power cord for any damage and ensure the outlet is functioning correctly.

How do I clean the filter of my DIRT DEVIL BG72?

To clean the filter, remove it from the vacuum and gently tap it to remove dust. If necessary, rinse it with lukewarm water without detergent and let it dry completely before reinstalling.

What is the dust container capacity of the vacuum cleaner?

The dust container capacity of the DIRT DEVIL BG72 vacuum cleaner is 1.5 liters.

My vacuum cleaner makes unusual noises, what should I do?

Unusual noises may indicate a blockage or a stuck object. Check the brushes, suction tube, and dust container for debris. Clean or remove any blocking objects if necessary.

How do I change the brush on my vacuum cleaner?

To change the brush, turn it counterclockwise to remove it. Then align the new brush and turn it clockwise until it is securely fixed.

My vacuum cleaner emits an unpleasant odor, what should I do?

An unpleasant odor may be caused by a dirty filter or a full container. Clean the filter and empty the container. If the odor persists, inspect the hose and brushes for obstructions.

What accessories are included with the DIRT DEVIL BG72 vacuum cleaner?

The DIRT DEVIL BG72 vacuum cleaner typically comes with a main brush, a crevice tool, and a brush for delicate surfaces.

How can I get after-sales service for my vacuum cleaner?

For after-sales service, contact DIRT DEVIL customer service via their website or by phone. Make sure to have your model number and proof of purchase ready.

USER MANUAL BG72 DIRT DEVIL

Operating Manual GB bagless multi-cyclonic vacuum cleaner

1.1 About the operating manual

Read the operating manual completely before working with the appliance. Keep the operating manual in a safe place. Include the operating manual if you pass the appliance on to a third party. Failure to comply with this operating manual can lead to serious injuries or damage to the appliance. We take no responsibility for damage due to failure to comply with this operating manual. Always comply with the notices marked as follows to avoid accidents and damage to the appliance.

WARNING:

Warns of health hazards and identifies possible risks of injury.

CAUTION:

Indicates possible dangers to the appliance or other objects.

NOTE:

Highlights tips and information for you.

1.2 Concerning certain groups of persons

These appliances can be used by children of 8 years and upwards and persons with impaired physical, sensory or mental abilities, or insufficient experience or knowledge, providing they are supervised or have been instructed in the proper use of the appliance and understand the risks involved.
Children must not play with the appliance. Children must not perform cleaning or user maintenance tasks without supervision. Children under the age of eight should be kept away from the appliance and the connection cable whilst it is switched on or cooling down.

Packing material must not be used for playing. There is danger of suffocation.

1.3 Information on power supply

The appliance is operated with electrical power, which means there is always a risk of electric shock. Therefore, please comply with the following:

• Never immerse the appliance in water or other liquids; keep it away from rain and moisture. Never touch the plug with wet hands. Do not operate the appliance outdoors or in rooms with a high level of humidity.
  Take care that the power cord is not kinked, pinched, or rolled over and ensure it does not come into contact with heat sources. Also take care that it does not become a stumbling hazard.
  Before connecting to the power supply, make sure that the voltage stated on the type plate matches the voltage of your plug socket.
  Always check the power cord for possible damage before using the appliance.
  Never carry the appliance by its power cord. It could be damaged.
  Before you clean or maintain the appliance, switch off the appliance and pull the mains plug from the socket. Always pull directly on the plug when you disconnect the appliance from the mains. Do not pull on the power cord as this could damage it.
  If possible, do not use extension cords. If you must use an extension cord, use only safety-certified, water-protected single extension cords (no multi-socket distributors) designed for the power consumption of the appliance.

1.4 Information on proper use

The cylinder vacuum cleaner is intended for home use only.

1 Safety instructions

It is not suitable for commercial use.

Use the cylinder vacuum cleaner only for cleaning dry, normally soiled floors and carpet floorings. Depending on which nozzle you have attached (Chapter 2.1, "Assemble appliance and adjust nozzles to surface"), you can also use the appliance to vacuum furniture or non-sensitive upholstery.

Any other use is considered improper use and is prohibited.

Also prohibited:

Vacuuming of:

• Persons, animals, plants, especially hair, fingers and other parts of the body as well as pieces of clothing worn on the body. These might be drawn in. This could result in injuries.
• Water and other fluids, especially damp carpet cleaners. Moisture inside the appliance can cause a short-circuit.
• Toner (for laser printers, copying machines, etc.). There is danger of fire or explosion.
• Hot ashes, burning cigarettes or matches. There is a danger of fire.
• Pointed objects, such as glass shards, nails, etc. They can damage the appliance.
• Rubble, plaster, cement, fine drilling-dust, make-up, etc. These might damage the appliance.

To use the appliance near explosive or highly-flammable substances. There is a risk of fire or explosion.
Use of the appliance outdoors. Rain and dirt may damage the appliance.
Sticking objects into the appliance's openings. It could overheat.
To modify or repair the appliance yourself.

1.5 About the optionally included turbo brush

The bristles of the optionally included turbo brush rotate very rapidly. There is a danger of injury.

• Do not use the turbo brush on persons, animals or plants. Keep body parts away from the rotating brush roller.
  Switch off the vacuum cleaner before cleaning or detaching the turbo brush.
  Never run over cables. Otherwise, the insulation could get damaged.
  The turbo brush is not suitable to clean sensitive surfaces. This may cause damage. Comply with the care and cleaning instructions provided by the manufacturer.

1.6 If the appliance is defective

Never use a defective appliance or operate an appliance with a defective power cord. If the power cord of this appliance is damaged, it must be replaced by the manufacturers, their authorised service representative or a similarly qualified person to avoid danger. Hand over a defective appliance to a specialist dealer or send it to the Dirt Devil customer service department for repairs (▶Page 54, 'International Service').

2.1 Assemble appliance and adjust nozzles to surface

WARNING:

Danger of injury! Only attach the appliance parts when the appliance is not connected to the power supply. Otherwise the machine might start up and parts of your body, hair or pieces of clothing might be sucked in.

CAUTION:

Before assembling, make sure that the fitted nozzle suits the surface to be cleaned. Do not clean e.g. any floors or objects with a brush with rotating bristles that you would not clean without a second thought with a conventional brush. Also observe the flooring manufacturer's recommendations.

NOTE:

You might have to twist the parts when connecting them so they are securely in place. Ensure that installed parts are secure by trying to pull them apart.

1. Assemble the appliance and accessory parts depending on the surface you want to vacuum clean (Fig. 1-15).
2. Ensure that the bypass vent is closed (Fig. 10).
3. If you use the telescopic tube (Fig. 3), set its length (Fig. 4).

4. If you use the floor nozzle (Fig. 5), set it to the floor to be vacuumed (Fig. 6 carpet, Fig. 7 hard floor).

5. For thorough cleaning of hard-wearing carpets we recommend using the optionally included turbo brush (Fig. 8).

6. To use this attachment, attach it to the telescopic tube (Fig. 8).

7. Comply with the following safety information in doing so:

WA

Danger of injury! Switch off the vacuum cleaner before attaching or cleaning the turbo brush. Never run over parts of your body, clothing worn on your body, etc. Never run over power cords, since this could damage the insulation!

1. To vacuum delicate floors we recommend using the parquet brush (Fig. 9) included with the vacuum cleaner. To use this attachment, attach it to the telescopic tube (Fig. 9).
2. For upholstery, we recommend using the long crevice nozzle (Fig. 14) included with the vacuum cleaner. To use this attachment, attach it to the handle (Fig. 14).

3. For difficult-to-reach areas, we recommend using the long flexible crevice nozzle (Fig. 15) included with the vacuum cleaner.

4. To use this attachment, attach it to the handle.

5. Comply with the following information in doing so:

NOTE:

When you use the long, flexible crevice nozzle, under certain circumstances the pressure inside the vacuum cleaner might drop too far thus triggering the safety valve. The signal for this is e.g. a whistling noise (depending on the vacuum cleaner model) and greatly reduced suction performance. In this case, depending on the vacuum cleaner model and equipment, you have to reduce the suction power or open the bypass vent (Fig. 10) until the valve no longer triggers.

2.2 Vacuum cleaning

WARNING:

Danger of injury! Check appliance and power cord before each use. A damaged appliance must never be used.

CAUTION:

Only use the appliance with all filters undamaged, in dry condition and correctly fitted. Make sure that no objects obstruct the telescopic tube, the suction hose or other openings.

1. Pull the cable out of the appliance (Fig. 16) and plug into a socket.

WARNING:

Danger of electric shock! If the red marking shows retract the cord by pressing the retraction button (A) to pull in the cord up to the yellow mark (Fig. 17) again.

1. Switch on the appliance using the on/off switch ( ) (Fig. 18).

2. Set the power to the setting that corresponds to the cleaning task. (Fig. 19).

NOTE:

The auxiliary air regulator (Fig. 10) must be completely closed for vacuum cleaning. With the auxiliary air regulator you can quickly reduce the suction power, to release objects (such as curtains) that have been sucked in.

1. Vacuum clean (Fig. 20).

WARNING:

Danger of injury! Especially when vacuum-cleaning stairs make sure that you always stand on a higher level than the appliance.

NOTE:

Your vacuum cleaner has an integrated protective function that triggers before the appliance can overheat (e.g. due to blocked suction paths or a full dust filter bag), Chapter 4.1, 'Before you send in the appliance'.

2.3 After use

WARNING:

Danger of injury! After vacuuming, switch off the appliance ( ) and wind up the power cord ( ) When winding up the cord keep the plug in your hand so that the cord does not thrash about, possibly injuring you.

WARNING:

Danger of injury! Therefore, always keep the appliance out of the reach of children.

CAUTION:

Never store the appliance next to heat sources (e.g. stoves or radiators). Avoid exposing it to direct sunlight. Keep the appliance and accessories cool and dry and so that it does not take up too much space (Fig. 21-26).

CAUTION:

If you intend to store the appliance for a long period, first replace the dust filter bag with a new one, Chapter 3.1, 'Changing the dust filter bag'.

3.1 Changing the dust filter bag

CAUTION:

Switch off the appliance before changing the dust filter bag. Otherwise, the appliance might be damaged.

NOTE:

Be careful when removing the dust filter bag so that no dust escapes.

Recommendation

We recommend: Swirl® Y50® MicroPor® Plus dust filter bags with AirSpace® Long Power Guarantee Swirl®, AirSpace® MicroPor® and Y50® are registered trade marks of a company of the Melitta group and used with their permission.

NOTE:

Insert the bag in the direction of the arrow on the bag. Unfold the bag after insertion (Fig. 31) so that it can erect itself during vacuuming and fill up optimally.

NOTE:

As soon as the dust filter bag change indicator appears in the window (Fig. 26), the dust filter bag has to be changed. In addition, change the dust filter bag at least every three months and before storing for a long period or sending the appliance.

1. Switch off the appliance ( )
2. Pull the plug out of the plug socket.
3. Open the dust compartment cover (Fig. 27).
4. Pull the full dust filter bag out carefully (Fig. 28-29).
5. Insert a new dust filter bag (Fig. 30).

CAUTION:

You can dispose of the contents of the dust filter bag with your normal domestic waste as long as it contains no substances not allowed in domestic waste.

1. Check whether the dust filter bag is flush with the edges.

CAUTION:

Never use the appliance without having inserted a dust filter bag. Otherwise, the appliance might be damaged.

1. Unfold the bag after insertion (Fig. 31) so that it can erect itself during vacuuming and fill up optimally.
2. Shut the dust compartment cover (Fig. 32).

3.2 Cleaning / changing the motor protection filter

CAUTION:

Clean the motor protection filter upon every filter bag change, and at least every 3 months. Change the motor protection filter every time you open a new dust filter bag packet, because there is a new motor protection filter in every dust filter bag packet.

Change the motor protection filter at least every 6 months.

CAUTION:

The filter is washable, but it may not be cleaned in dishwashers or washing machines. Also, do not use cleaning agents or brushes with hard bristles. Leave the filter to dry after cleaning it with water (approx. 24 hours at room temperature). Only put it back in place when it is completely dry.

1. Switch off the appliance ( )①
2. Pull the plug out of the plug socket.
3. Take the dust filter bag out of the appliance (Fig. 33), Chapter 3.1, 'Changing the dust filter bag'
4. Pull the filter up and out of the filter holder (Fig. 34).
5. Rinse out the filter thoroughly with running cold or hand-warm water (Fig. 35).
6. Leave the filter to dry (approx. 24 hours at room temperature).
7. Insert the filter back into the filter holder (Fig. 36).
8. Put the dust filter bag back in (Fig. 37), Chapter 3.1, 'Changing the dust filter bag'.

3.3 Cleaning / changing the exhaust filter

CAUTION:

Clean the exhaust filter each time you clean the motor protection filter. Change the exhaust filter as soon as it has deformed or is damaged at the latest.

CAUTION:

The filter cannot be washed.

Do not use detergents or brushes with hard bristles to clean it.

Otherwise, the filter could get damaged.

1. Switch off the appliance ( )①
2. Pull the plug out of the plug socket.
3. Open the exhaust filter cover as shown (Fig. 38).
4. Take the filter out of the appliance (Fig. 39).
5. Knock out the dirt and use the 3-in-1 combi-nozzle supplied to clean it thoroughly (Fig. 40).
6. Put the filter back into its holder (Fig. 41).
7. Put the exhaust filter cover into its recesses (Fig. 42).
8. Push the cover until it locks into place.

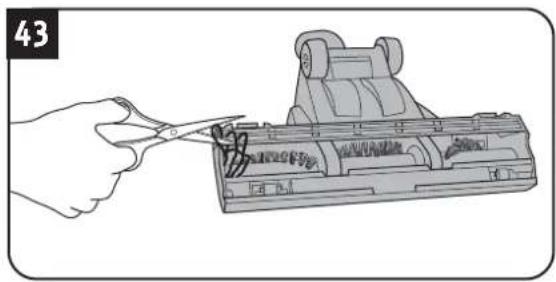

3.4 Cleaning the turbo brush

3.5 Spare parts and accessories

The following accessories and spare parts can be reordered: Accessory parts and spare parts can be reordered from:

Item number Description

7070002 1 exhaust filter

7700022 4 dust filter bags + 1 motor protection filter

M203-5 1 parquet brush

M219 1 mini-turbo brush "Fellino"

M221 1 midi-turbo brush

M232 1 long flexible crevice nozzle

M234 1 large upholstery nozzle

Page 54, 'International Service'

CAUTION:

Only use original spare parts from the scope of delivery or those that you have purchased by reordering.

4.1 Before you send in the appliance

WARNING:

Danger of injury! Never use a defective appliance! Always switch off the appliance and disconnect it from the mains before starting troubleshooting.

Before contacting us or even sending the appliance to us, use the table to check whether you can correct the problem yourself.

Problem Possible cause / solution

The dust filter bag change indicator appears in the window (Fig. 26).	The dust filter bag is full. Change the dust filter bag ▷Chapter 3.1, 'Changing the dust filter bag'.
	The filters are dirty. Clean the respective filter, ▷Chapter 3.2, 'Cleaning / changing the motor protection filter' or ▷Chapter 3.3, 'Cleaning / changing the exhaust filter'.
	Nozzle, telescopic tube or suction hose is blocked. Remove the obstacle. If necessary, use a long wooden stick (e.g. a broomstick) to do this.
The vacuum cleaner stops suddenly.	The overheating protection has tripped (possibly due to blocked suction channels, filters, or similar). 1. Switch the appliance off and pull the plug out of the socket. 2. Remove the cause of overheating (e.g. by disas-sembling telescopic tube and suction hose and removing the obstacle and/or cleaning filters). 3. Wait around 45 minutes until the appliance has cooled down. 4. After the appliance has cooled off, you may switch it on again.

Problem Possible cause / solution

The cleaning results are unsatisfactory in spite of the appliance working correctly.	Bypass vent (Fig. 10) is open. Close the bypass vent (Fig. 10).
	Position of the suction power control is not appropriate (Fig. 19). Adjust the position of the suction power control (Fig. 19).
	The attached nozzle is unsuitable. Change the nozzle, ▷Chapter 2.1, 'Assemble appli- ance and adjust nozzles to surface'.
	Collar brush of the floor nozzle is in a position inappropri- ate to the floor (Fig. 6-7). Adjust the position of the collar brush to the floor via the switch on the floor nozzle (Fig. 6-7).
	The dust filter bag is full. Change the dust filter bag ▷Chapter 3.1, 'Changing the dust filter bag'.
	The filters are dirty. Clean the respective filter, ▷Chapter 3.2, 'Cleaning / changing the motor protection filter' or ▷Chapter 3.3, 'Cleaning / changing the exhaust filter'.
	Nozzle, telescopic tube or suction hose is blocked. Remove the obstacle. If necessary, use a long wooden stick (e. g. a broomstick) to do this.

NOTE:

If you cannot solve the problem following these instructions, contact the Dirt Devil customer service (▶Page 54, 'International Service').

4.2 Warranty

The statutory warranty regulations in accordance with the EU Directive 1999/44/EC apply.

4.3 Disposal

Dispose of the appliance in compliance with the environmental protection laws of your country. Electrical waste may not be disposed of together with domestic waste. Use local old-appliance collection points instead.

In non-EU countries the minimum requirements of the warranty in the respective country apply.

The filters and dust filter bags are made from environmentally-friendly materials. You can dispose of them — as opposed to the appliance itself — with your domestic waste, provided they do not contain anything that is forbidden from disposal in domestic waste.

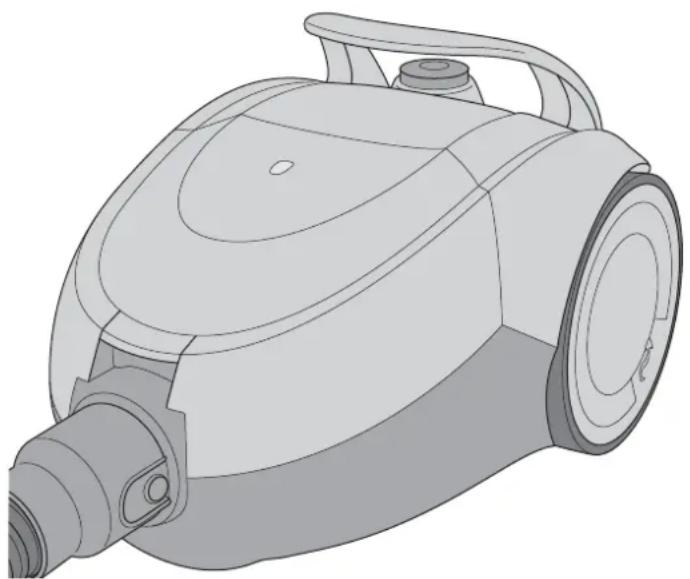

4.4 Technical data

Type of appliance : Bagged vacuum cleaner

Model name: Black Label BG72

Model:DD3201(-0/-1/..-8/-9)

Voltage:220-240V\~,50/60Hz

Power:800W

max. available dust bag capacity : approx. 2.0 litres

Power cord length : approx. 6 m

Weight

:approxx.3.9 kg

Technical and design specifications may be changed in the course of continuous product improvement. © Royal Appliance International GmbH

1.1 Mode d'emploi

Possible cause/solution

一 0 . 1 4 per minute from German landlines, maximum German mobile phone tariff E 0.42 per minute.

The cost of calls from abroad—outside Germany—depend upon the current prices of the respective foreign telephone company.

FR
