USER MANUAL DD9007 DIRT DEVIL

Exterior view of a modern vacuum cleaner with red control buttons and a clear glass body (no text or symbols visible)

STICK VACUUM CLEANER

ITEM: 871125247504

A.I.&E. Adriaan Mulderweg 9-11

5657 EM Eindhoven, The Netherlands

This appliance should only be used for domestic cleaning, as described in this user guide. Please ensure that this guide is fully understood before operating the appliance.

• Always switch off and remove the charger from the socket before cleaning the appliance or any maintenance task.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- If the power cord is damaged stop using the appliance immediately.

- To avoid a safety hazard, an authorized agency service engineer must replace the power cord.

- Keep hands, feet, loose clothing and hair away from rotating brushes.

- Use only the original charger supplied with the appliance.

- Check that your supply voltage is the same as that stated on the charger.

- If the appliance is to be disposed, the batteries must first be removed. The appliance must be disconnected from the supply mains when removing the battery. Dispose of the batteries safely. Run the appliance until it stops because the batteries need to be fully discharged. Used batteries should be taken to a recycling station and not disposed of with household waste. To remove the batteries, please contact the Agency Customer Centre or proceed according to the following instructions.

NOTE: Should you experience any difficulty in dismantling the unit or for more detailed information on treatment, recovery and recycling of this appliance, please contact your local city office or your household waste disposal service.

• When charging the appliance, the power switch must be off.
• Never charge the batteries in temperatures above 37^ C or below 0^ C.
• It is normal for the charger to become warm to the touch when charging. Use only attachments, consumables or spares recommended or supplied by Agency.
• Static electricity: some carpets can cause a small buildup of static electricity. Any static discharge is not hazardous to health.
• Do not use your appliance outdoors, on any wet surface or pick up with wet hands.
• Do not pick up hard or sharp objects, matches, hot ashes, cigarette ends or other similar items.
• Do not spray with or pick up flammable liquids, cleaning fluids, aerosols or their vapors.
• Do not run over the power cord when using your appliance or remove the plug by pulling on the power cord.
• Do not continue to use your appliance or charger if it appears faulty.
• Agency service: To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorized Agency service engineer.
• Do not use the appliance to clean animals or people.
• Do not replace the batteries with non-rechargeable batteries.

PRODUCT DESCRIPTION

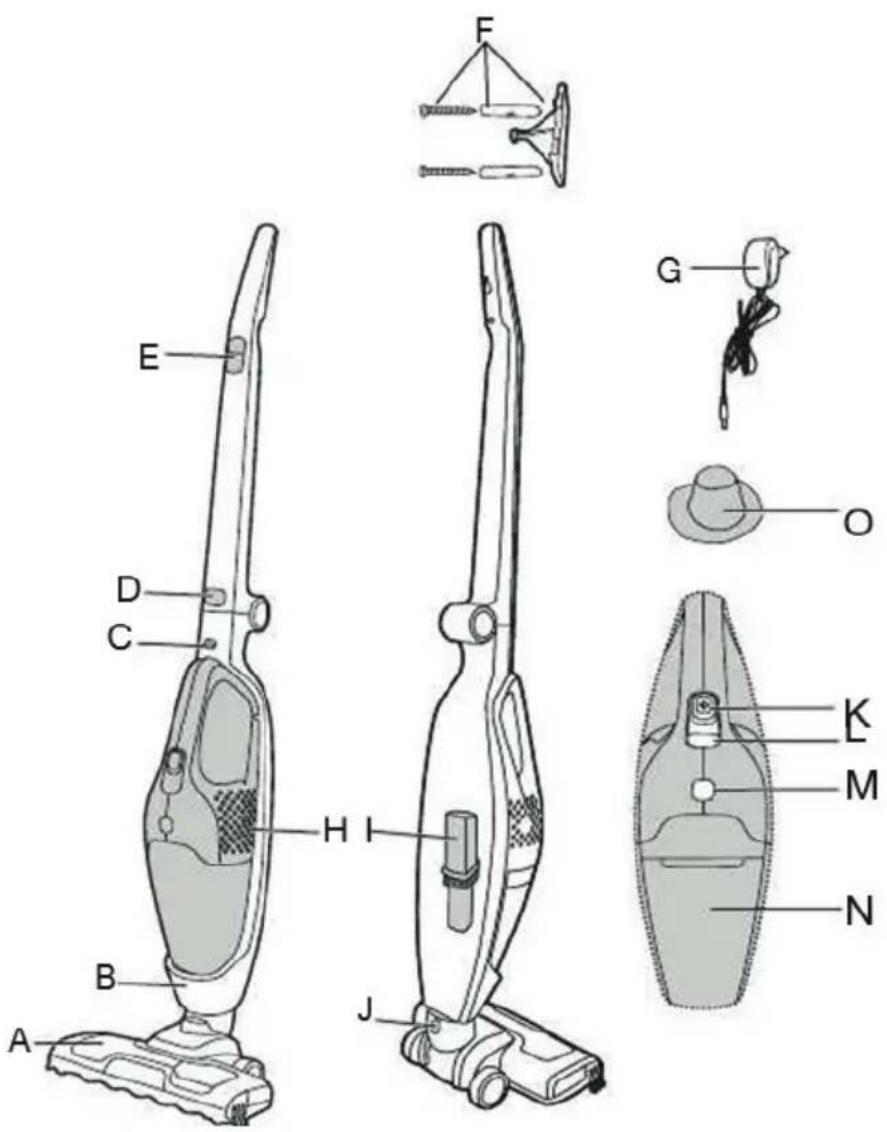

Technical diagram of a vacuum cleaner with labeled parts from A to N, including exploded view and close-up details.

MAIN CLEANER HANDHELD CLEANER

A. Carpet and Floor Nozzle K. On/Off Switch
B. Main Body L. Charing/Power indicator
C. Handheld Release Button M. Dust Container Release Button
D. Handle Release Button N. Dust Container
E. On/Off Switch
F. Product Holder FILTER
G. Charger O. Cloth filter
H. Handheld Unit
I. Crevice Tool / Dusting Brush
J. Nozzle Release Button

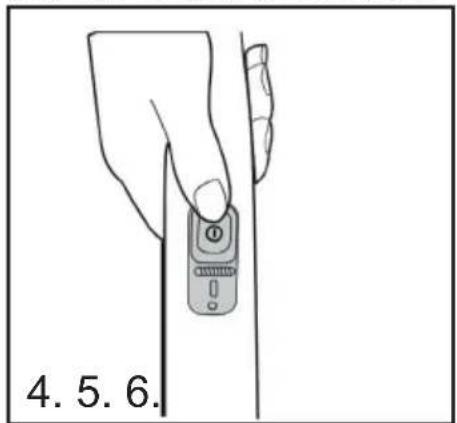

PREPARATION OF THE ITEM

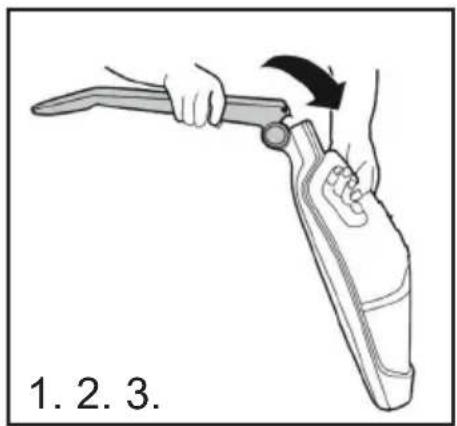

1. Unfold the handle from the main body until it locks in place. [1]

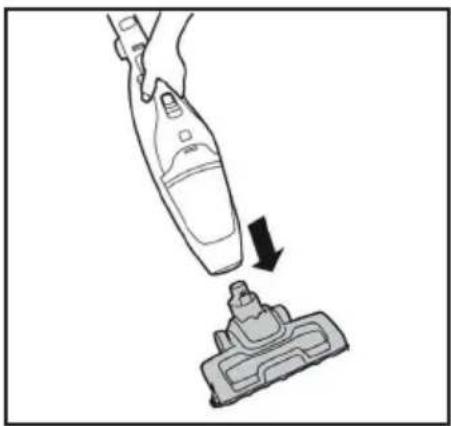

2. Line up the nozzle with the main body and firmly push into the main body until the nozzle locks in place. [2]

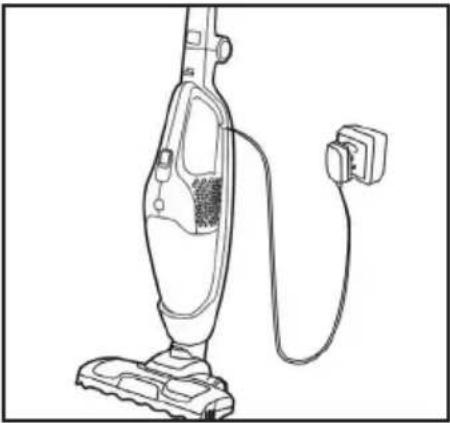

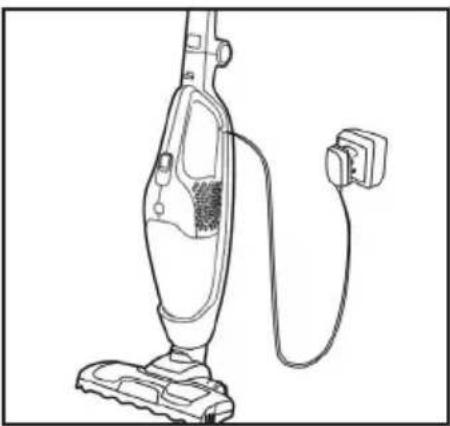

3. For first use, charge your cleaner for 5 hrs and completely discharged. After first use the normal charging time is 4 hrs.
4. The indicator light will blink when charging and remain lit when fully charged.[3]

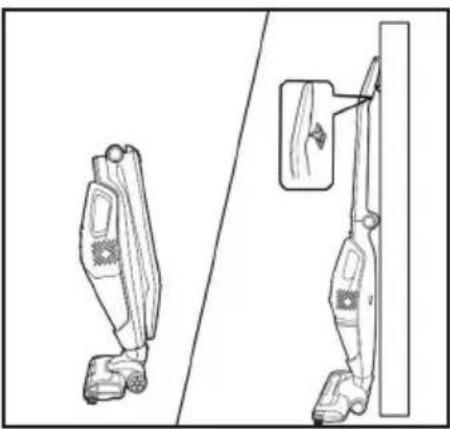

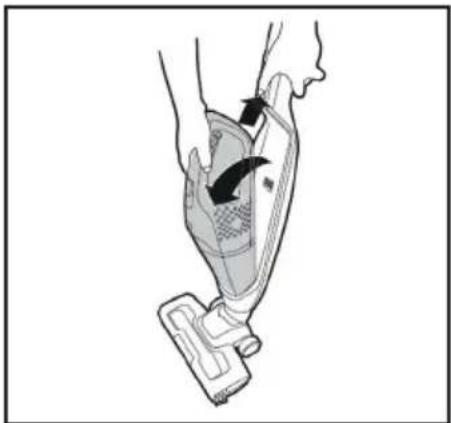

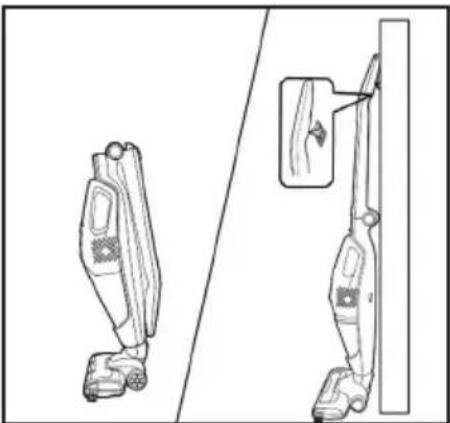

5. Fix the Product Holder to your wall using the screw and holder provided.

Illustration of a hand holding a tool with an arrow indicating motion, labeled 1.2.3 (no text or symbols on the diagram itself)

Illustration of a hand using a vacuum cleaner to lift a small component (no text or symbols present)

Line drawing of a vacuum cleaner with attached power outlet (no text or symbols)

USING YOUR CLEANER

4. 5. 6.

Line drawing of a hand holding a vacuum cleaner with a black arrow indicating motion (no text or symbols)

Line drawing of a person standing next to a door, with an inset showing the same figure's seat and handle (no text or symbols)

MAIN CLEANER

Turn the cleaner on by sliding the On/Off switch[E] to the required settings:[4]

• HARD FLOOR: First position of On/Off switch, the agitator and nozzle LED lights are OFF.
• CARPET: Second position of On/Off switch, the agitator and nozzle LED lights are ON.

HANDHELD CLEANER

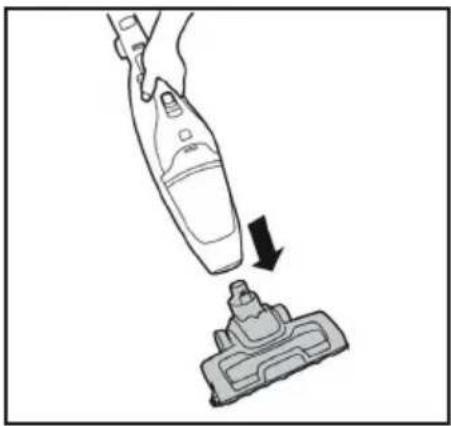

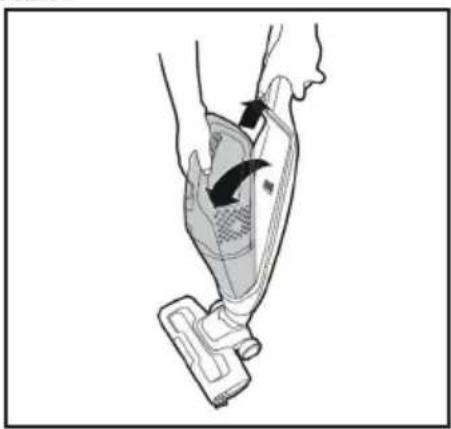

1. Push the handheld release button upward, lift the handheld unit from the main body.[5]
2. Turn the handheld cleaner on by sliding the On/Off switch [K] forward.

CHARGING/POWER INDICATION\*

This cleaner is equipped with a LED display. When the product is working, the display will report the following indication:

BATTERY LEVEL INDICATOR:

3 points = Fully Charged

2 points = 2/3 charge

1 point = 1/3 charge

DISCHARGE INDICATOR: When the batteries are fully discharged, the indicator will flash for around 20 seconds before cleaner switches off automatically.

CREVICE TOOL / DUSTING BRUSH

The accessory is stored at the rear of the main body. It fits directly onto the handheld unit.

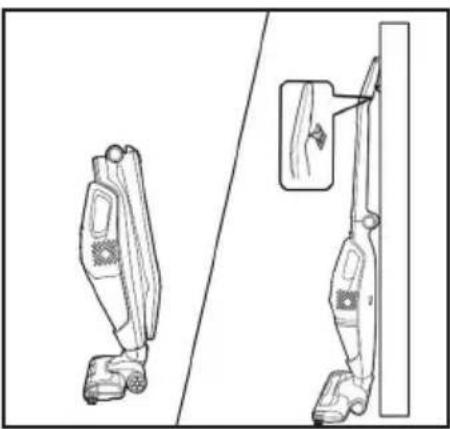

IMPORTANT: During storage and charging, secure your appliance handle into the product holder. [6]

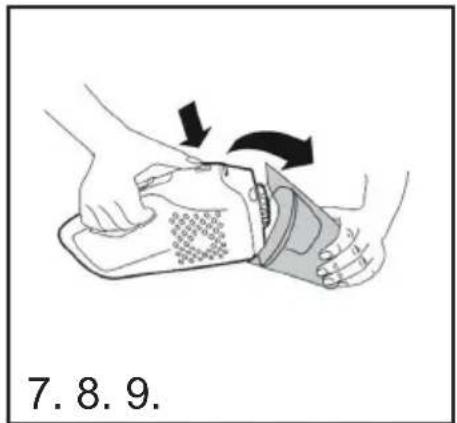

CLEANER MAINTENANCE

7.8.9.

Line drawing of a hand holding a device with a circular component and an arrow indicating direction (no text or symbols)

Illustration of a hand pouring liquid from a container into a bowl (no text or symbols)

Illustration of two handrails hanging from a surface, one on a diagonal line and the other on a rounded surface (no text or symbols)

24 hrs

Illustration of hands using a power tool to cut a device, labeled '12.10. 11.' (no text or symbols on the diagram itself)

Illustration of a hand using a handheld vacuum cleaner to lift a leg, with no visible text or symbols.

Line drawing of a hand holding a handheld electronic device (no text or symbols visible)

15. 16.

Diagram of a hand inserting a component into a device housing (no text or symbols visible)

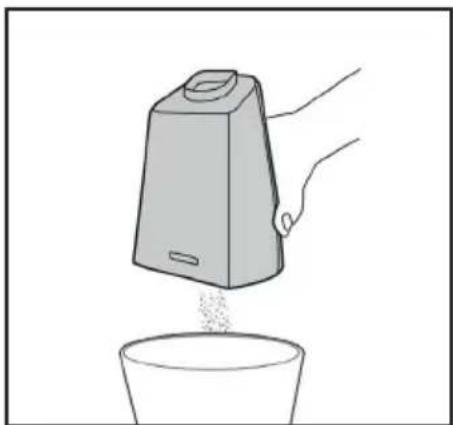

EMPTYING THE DUST CONTAINER

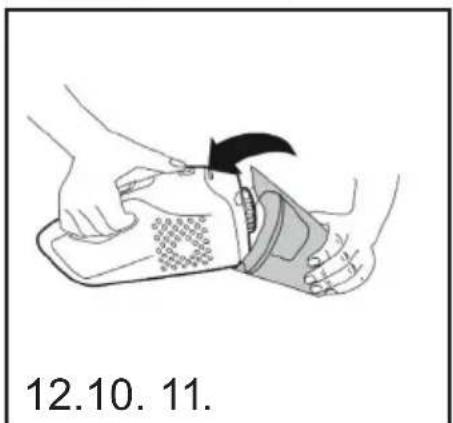

1. Push the handheld unit release button upwards, lift the handheld unit from main body.
2. Press the dust container release button and remove the dust container. [7]

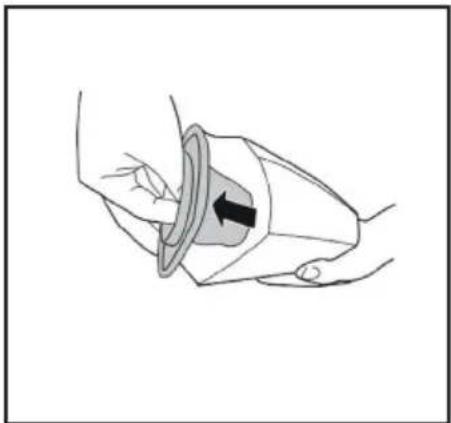

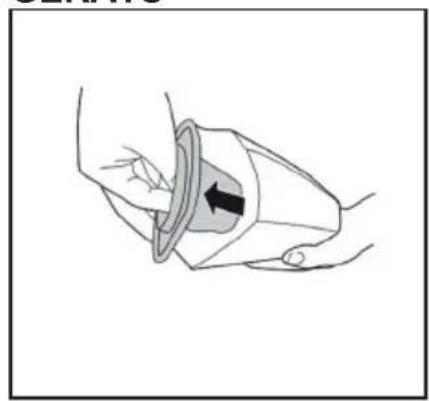

3. Lift the filter from the dust container. [8]

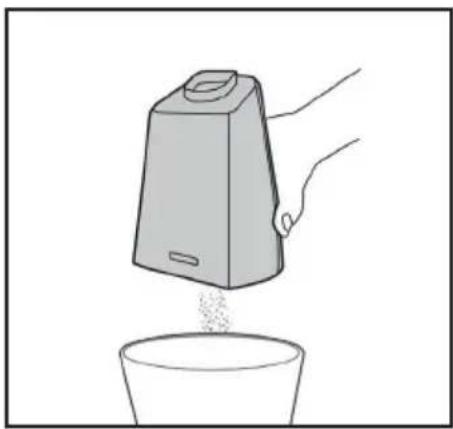

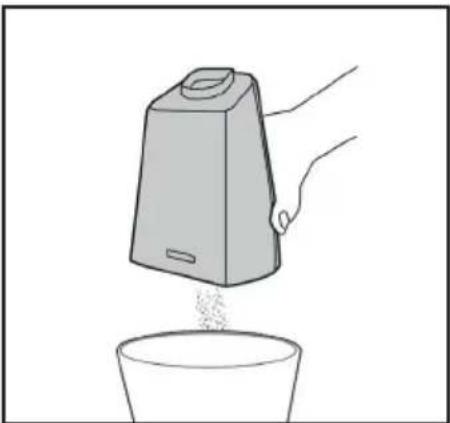

4. Turn the dust container upside down over a bin to instantly empty it. [9]
5. Reassemble the handheld unit and return to the cleaner main body.

CLEANING THE FILTER

1. Push the handheld release button upwards, lift the handheld unit from cleaner main body.
2. Press the dust container release button and remove the dust container.
3. Remove the filter from the dust container and clean.

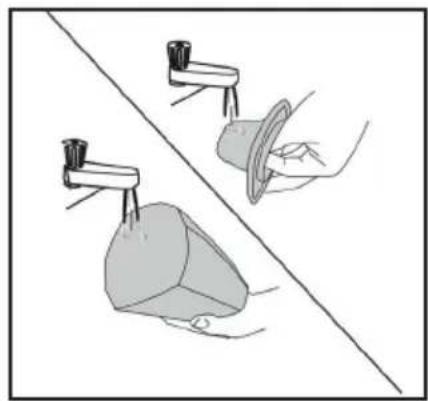

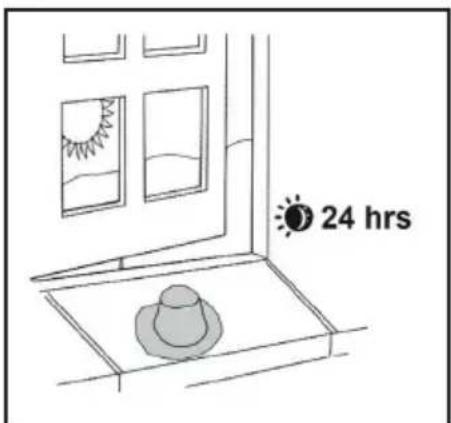

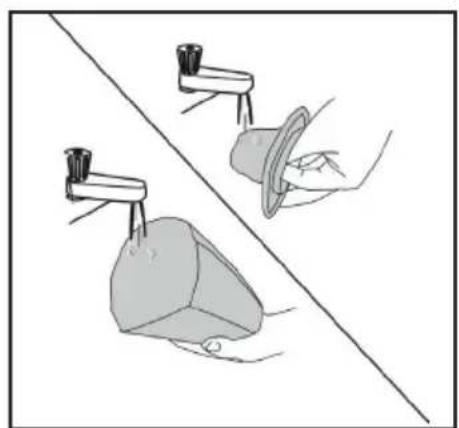

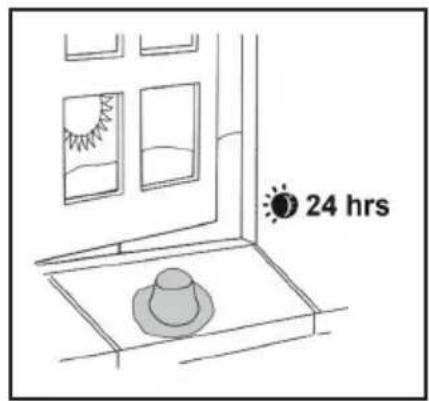

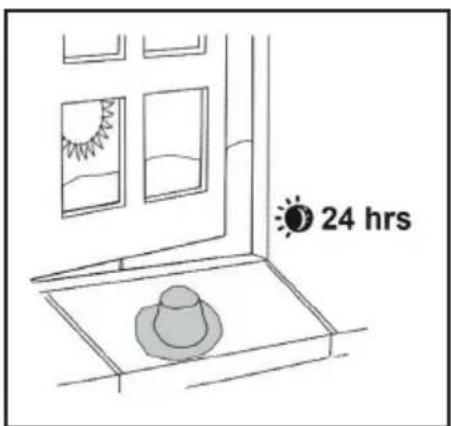

4. Wash the filter in lukewarm water and leave to dry for 24 hours. Once thoroughly dry return to the dust container.[10, 11]
5. If required, wash the dust container in lukewarm water. Ensure it is fully dry before returning to the main body of the cleaner.

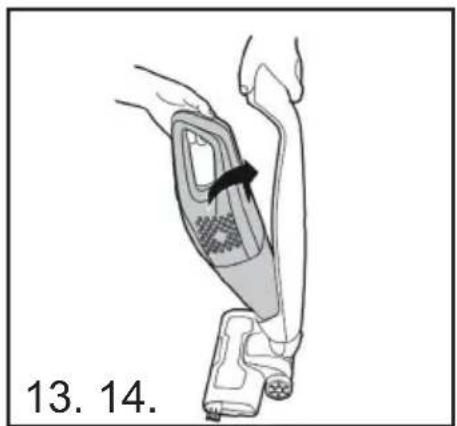

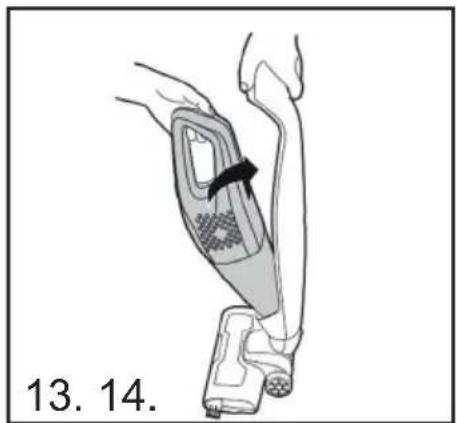

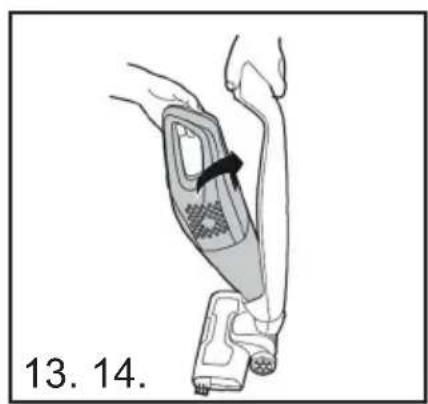

6. Reassemble the handheld unit and return to the cleaner main body. [12,13]

NOTE: Do not use hot water or detergents when cleaning the filters. In the unlikely event of the filters becoming damaged, fit a genuine part replacement. Do not try use the product without a filter fitted. IMPORTANT: For optimum performance, always keep your filter clean. We recommend that the filter should be washed at least once a month.

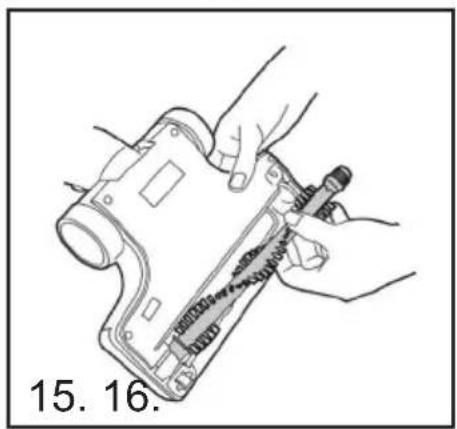

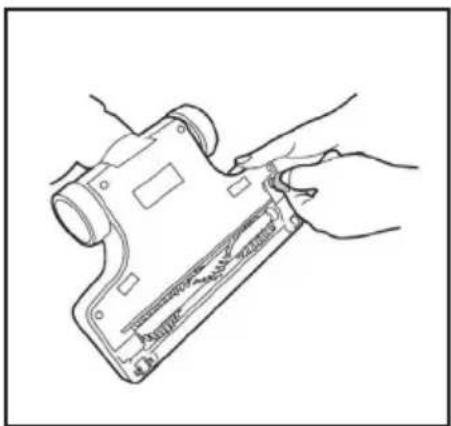

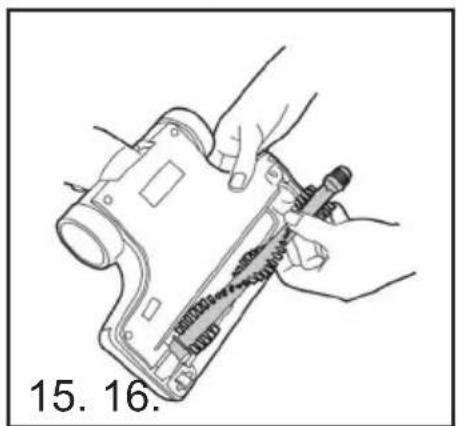

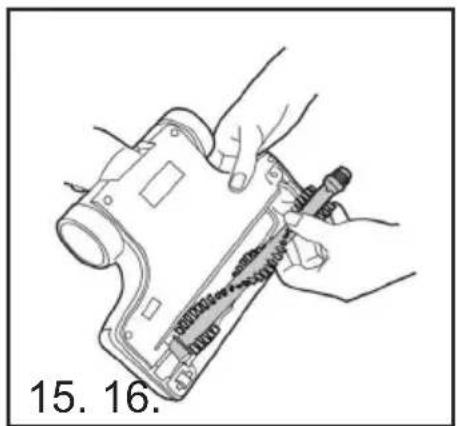

CHANGING AND CLEANING THE AGITATOR

IMPORTANT: Always switch off the cleaner before changing the agitator.

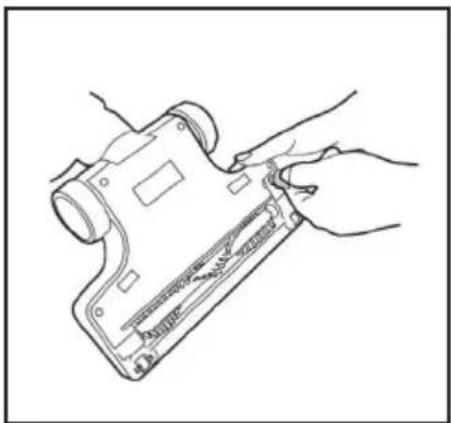

1. Using a coin turn the lock to the open position. [14]
2. Remove the Agitator cover.

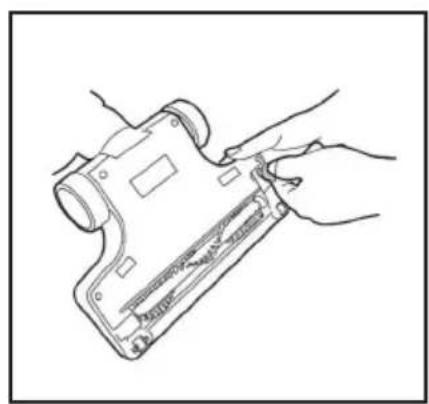

3. Remove the Agitator.
4. Replace with the new Agitator or clean it. This can only fit in one direction. [15]
5. Re-fit the Agitator cover and lock with a coin.

BATTERY REPLACEMENT

For reasons of safety the Lithium-Ion batteries in this cleaner are only replaceable by a Agency Service engineer. When the batteries fail to maintain charge, please contact the Agency Customer Service Centre to arrange a replacement.

END OF PRODUCT LIFE BATTERY DISPOSAL

If the cleaner is to be disposed of the batteries should be removed. Used batteries should be taken to a recycling station and not disposed whit household waste. To remove the batteries, please contact the Agency Customer Service Centre or proceed according to the following instructions:

IMPORTANT: Always fully discharge the batteries before removal and ensure charger is unplugged.

1. Run the unit until the batteries are completely empty.
2. Release the handheld unit from the main body of the cleaner.
3. Press the dust container release button and remove the dust container.

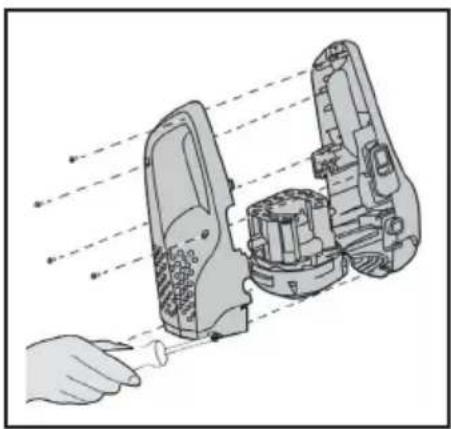

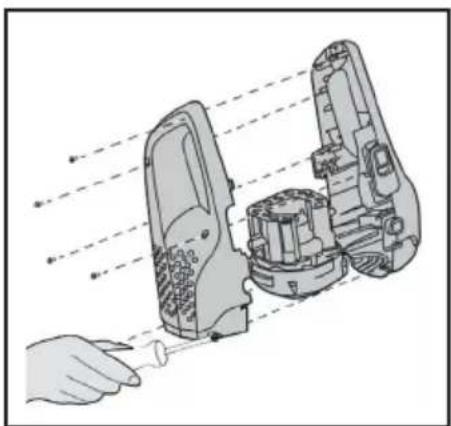

4. Remove screws and open the unit. [16]
5. Remove the motor /battery housing and disconnect the cables.
6. Remove the batteries from the housing.

NOTE: Should you experience any difficulties in dismantling the unit or for more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service.

TROUBLE SHOOTING

Should you have any problem with you cleaner, follow this simple check list before calling the Agency Customer Service Centre:

A. Cleaner does not switch on.

Check if the cleaner is charged.

B. Loss of suction or no suction

Empty the dust container and wash the filter

Remove nozzle and check for any blockages in the duct.

C. Batteries cannot be charged.

This may be a result of very long storage periods (over 6 months). Contact Agency customer service to arrange battery replacement. If the problem persists contact the Agency customer service center.

PRODUCT SPECIFICATIONS

Power source type : Battery powered

Power adapter cable length : 1.8m

Maximum power consumption : 105W

Dust capacity : 0.5l

Material : ABS Plastic

With dust bag or bagless : Bagless

Charging cradle: No

Suitable for liquids : No

Cordless:Yes

Number of power settings : 2

HEPA air filter : N/A

Operating voltage : 22.2V

Brush type : Motorized brush

Maximum suction power : 3300Pa

Brushless motor : No

Weight : 2400g

Operation time lowest power mode : 38 min

Operation time in highest power mode : 17 min

Charging time:3,5h

Foldable:Yes

Use only with Power Adapter:WJG-Y132600500W,Input 100-240V,50-60Hz,24W

PACKAGING CONTENT

1x stick vacuum cleaner

1x 2-in-1 crevice nozzle

1x wall mount

1x power adapter

THE ENVIRONMENT

The symbol on this appliance indicates that this appliance may not be treated as household waste. Instead it must be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this appliance, please contact your local city office, your household and waste disposal service or the shop where you purchased the appliance.

This appliance complies with the European Directives 2014/30/EC, 2014/35/EC and 2011/65/EU.

C€

Technical diagram of a vacuum cleaner with labeled parts including airbags, vacuum tubes, and accessories

HAUPTGERÄT HANDGERÄT

Illustration of a hand holding a tool with an arrow indicating motion, labeled 1.2.3 (no text or symbols on the diagram itself)

Line drawing of a hand using a vacuum cleaner to lift a small component (no text or symbols)

Line drawing of a vacuum cleaner with attached power outlet (no text or symbols)

Line drawing of a hand holding a vacuum cleaner with a black arrow indicating motion (no text or symbols)

Line drawing of a robotic vacuum cleaner with a close-up view of its side panel (no text or symbols)

HAUPTGERÄT

Illustration of hands performing a medical procedure on a device, showing a step with arrows indicating motion (no text or symbols)

Illustration of a hand holding a medical device with a black arrow pointing to the internal component (no text or symbols)

Illustration of a hand pouring granular material from a container onto a cup (no text or symbols)

Illustration of two hand tools interacting with a mechanical component, one holding a circular component and the other a cube (no text or symbols)

24 hrs

Illustration of a hand using a tool to lift a foot, showing the blade and grip (no text or symbols)

Illustration of a hand using a handheld vacuum cleaner to lift a leg, labeled with numbers 13 and 14 (no text or symbols on the diagram itself)

Line drawing of a hand holding a handheld device with a visible internal structure (no text or symbols)

15. 16.

Diagram of a hand using a tool to cut or install a mechanical component, showing internal structure and motion lines (no text or symbols)

LEEREN DES STAUBBEHÄLTERS

Labeled diagram of a vacuum cleaner with parts numbered A through J, showing exploded and assembled views.

ASPIRATEUR PRINCIPAL ASPIRATEUR PORTATIF

Illustration of a hand holding a tool with an arrow indicating motion, labeled 1.2.3 (no text or symbols on the diagram itself)

Line drawing of a hand using a vacuum cleaner to lift a small component (no text or symbols)

Line drawing of a vacuum cleaner with attached power outlet (no text or symbols)

UTILISATION DE VOTRE ASPIRATEUR

4. 5. 6.

Line drawing of a hand holding a vacuum cleaner with a black arrow indicating motion (no text or symbols)

Line drawing of a robotic vacuum cleaner with a close-up view of its side panel (no text or symbols)

ASPIRATEUR PRINCIPAL

Illustration of a hand holding a device with a circular component and an arrow indicating direction (no text or symbols)

Illustration of a hand pouring granular material from a container into a bowl (no text or symbols)

Illustration of two handrails securing a rock and a circular object, no text or symbols present

24 hrs

Illustration of hands using a tool to lift a device, labeled '12.10. 11.' (no text or symbols on the diagram itself)

Line drawing of a hand holding a handheld vacuum cleaner with a black arrow indicating motion (no text or symbols)

Line drawing of a hand holding a device with visible internal components (no text or symbols)

15. 16.

Diagram of a hand inserting a component into a device housing, showing internal components and motion lines (no text or symbols)

VIDAGE DU BAC À POUSSIÈRE

CARACTÉRISTIQUES DU PRODUIT

Station de charge : Non

Convient aux liquides : Non

Sans fil : Oui

Technical diagram of a vacuum cleaner with labeled parts and exploded view, including parts A through N.

HOOFDSTOFZUIGER HANDSTOFZUIGER

G. Lader O. Doekfilter

H. Handstofzuiger

I. Kierenzuigmond/ Afstofborstel

Illustration of a hand holding a tool with an arrow indicating motion, labeled 1.2.3 (no text or symbols on the diagram itself)

Line drawing of a hand using a vacuum cleaner to lift a small component (no text or symbols)

Line drawing of a vacuum cleaner with attached power outlet (no text or symbols)

UW STOFZUIGER GEBRUIKEN

4. 5. 6.

Line drawing of a hand holding a vacuum cleaner with a black arrow indicating motion (no text or symbols)

Line drawing of a robotic vacuum cleaner with a close-up view of its side panel (no text or symbols)

HOOFDSTOFZUIGER

Illustration of a hand holding a device with a circular component inserted, showing a black arrow pointing to the interior area (no text or symbols present)

Illustration of a hand pouring granular material from a container into a bowl (no text or symbols)

Illustration of two handrails securing a rock and a helmet, no text or symbols present

24 hrs

12.10. 11.

Line drawing of a hand holding a handheld vacuum cleaner with a black arrow indicating motion (no text or symbols)

Line drawing of a hand holding a device with visible internal components (no text or symbols)

15. 16.

Diagram of a hand inserting a device into a device housing, showing internal components and motion lines (no text or symbols)

DE STOFCONTAINER LEGEN

Labeled diagram of a vacuum cleaner with parts numbered A through J, showing exploded and assembled views.

ASPIRAPOLVERE PRINCIPALE ASPIRAPOLVERE PORTATILE

A. Spazzola per moquette/tappeti e pavimenti

Illustration of a hand holding a tool with an arrow indicating motion, labeled 1.2.3 (no text or symbols on the diagram itself)

Line drawing of a hand using a vacuum cleaner to lift a small component (no text or symbols)

Line drawing of a vacuum cleaner with attached power outlet (no text or symbols)

MODALITÀ DI UTILIZZO DELL'ASPIRAPOLVERE

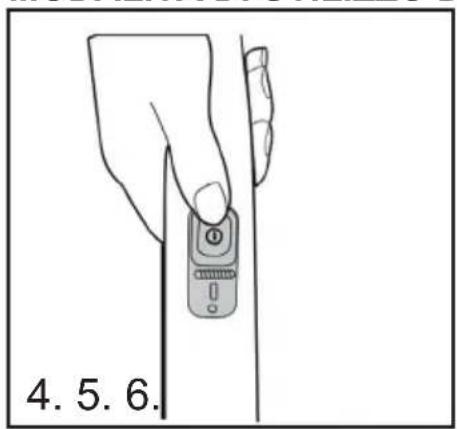

4. 5. 6.

Line drawing of a hand holding a vacuum cleaner with a black arrow indicating motion (no text or symbols)

Line drawing of a robotic vacuum cleaner with a close-up view of its side panel (no text or symbols)

ASPIRAPOLVERE PRINCIPALE

Illustration of a hand holding a device with a circular component and an arrow indicating direction (no text or symbols)

Illustration of a hand pouring granular material from a container into a bowl (no text or symbols)

Illustration of two handrails securing a rock and a circular object, no text or symbols present

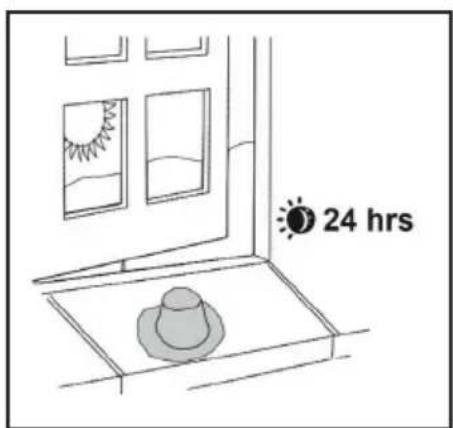

24 hrs

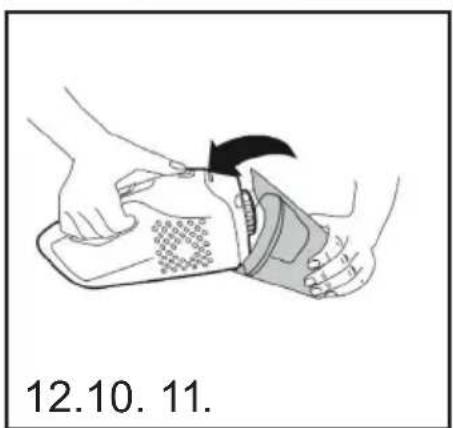

12.10. 11.

Line drawing of a hand holding a handheld vacuum cleaner with a black arrow indicating motion (no text or symbols)

Line drawing of a hand holding a device with visible internal components (no text or symbols)

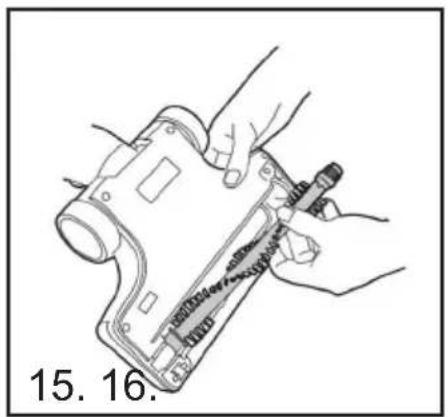

15. 16.

Diagram of a hand inserting a device into a device housing, showing internal components and motion lines (no text or symbols)

Labeled diagram of a vacuum cleaner with parts numbered A through J, showing internal components and exploded view.

Illustration of a hand holding a tool with an arrow indicating motion, labeled 1.2.3 (no text or symbols on the diagram itself)

Line drawing of a hand using a vacuum cleaner to lift a small component (no text or symbols)

Line drawing of a vacuum cleaner with attached power outlet (no text or symbols)

CÓMO USAR LA ASPIRADORA

4. 5. 6.

Line drawing of a hand holding a vacuum cleaner with arrows indicating motion (no text or symbols)

Line drawing of a person wearing a scooter, standing beside a door with a hanging object (no text or symbols)

ASPIRADORA PRINCIPAL

Illustration of a hand holding a device with a circular component and an arrow indicating direction (no text or symbols)

Illustration of a hand pouring granular material from a container into a bowl (no text or symbols)

Illustration of two handrails hanging from a surface, one on a diagonal line and the other on a curved surface (no text or symbols)

24 hrs

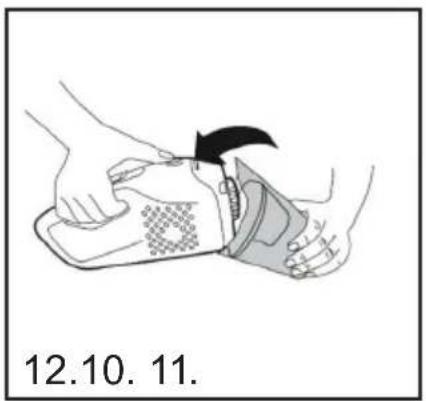

Illustration of hands using a tool to lift a device, labeled '12.10. 11.' (no text or symbols on the diagram itself)

Line drawing of a hand holding a handheld vacuum cleaner with a black arrow indicating motion (no text or symbols)

Line drawing of a hand holding a device with visible internal components (no text or symbols)

15. 16.

Diagram of a hand inserting a device into a mechanical housing (no text or symbols visible)
