DD5001 - Vacuum Cleaner DIRT DEVIL - Free user manual and instructions

Product type	Cordless handheld vacuum cleaner
Brand	Dirt Devil
Model	DD5001
Weight	1300 g
Power supply	Rechargeable battery 14.8 V
Maximum power consumption	80 W
Dust bin capacity	0.5 L
Runtime	20 minutes
Charging time	5 hours
Maximum suction pressure	6000 Pa
Material	ABS plastic
Cordless	Yes
Bagless	Yes
Charging station	Yes (wall mount or flat placement)
Included accessories	Crevice tool, small nozzle, wall mount, power adapter
Charging indicator	Red when charging, green when charged, green flashing when battery low
Child safety	Not suitable for children under 8 without adult supervision
Maintenance	Dust bin and filter washable with water
Recycling	Removable battery for separate recycling

Frequently Asked Questions - DD5001 DIRT DEVIL

How to charge the Dirt Devil DD5001 vacuum?

Place the vacuum on the charging base. Plug the charger into a wall outlet (the appliance must be off). The red light indicates charging; when green, charging is complete. Unplug the charger after use.

What is the runtime of the vacuum?

The runtime is about 20 minutes of continuous use. The green light flashes when the battery is low.

How to empty and clean the dust bin?

Press the release button to remove the bin. Remove the filter, empty the bin and wash it with water. Also wash the filter. Make sure both are completely dry before putting them back.

Can I use the vacuum on liquids?

No, this vacuum is designed only for dry waste. Never vacuum liquids, damp substances, or flammable materials.

How to mount the charging base on the wall?

Attach the wall mount with screws suitable for your wall (not included). You can also place the base flat on a stable surface.

What to do if the vacuum loses power?

Check that the dust bin is not full and the filter is not clogged. Clean them if necessary. Also make sure the crevice tool is not blocked by debris.

How to remove the battery for recycling?

Run the appliance until fully discharged. Unplug the charger, then remove the battery following the instructions in the manual. Do not dispose of the battery with household waste; take it to an appropriate collection point.

Can the vacuum be used by children?

Yes, from 8 years under adult supervision. Children must not play with the appliance or perform cleaning or maintenance without supervision.

What is the full charging time?

The charging time is about 5 hours. The charger may become hot during charging; this is normal.

Is the vacuum compatible with HEPA filters?

No, this model is not equipped with a HEPA filter. The supplied filter is washable and must be cleaned regularly.

USER MANUAL DD5001 DIRT DEVIL

White and black handheld vacuum cleaner with 'Dirt Dewl' branding on the handle (no additional text or symbols visible)

HANDHELD VACUUM CLEANER

ITEM: 871125247510

A.I.&E. Adriaan Mulderweg 9-11 5657 EM Eindhoven, The Netherlands

This appliance should only be used for domestic cleaning, as described in this user guide. Please ensure that this guide is fully understood before operating the appliance.

• Always switch off and remove the charger from the socket before cleaning the appliance or any maintenance task.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children must be supervised by adult when they use the vacuum cleaner. Do not allow children to play with the vacuum cleaner.
• Cleaning and user maintenance shall not be made by children without supervision.
• If the power cord is damaged stop using the appliance immediately.
• To avoid a safety hazard, an authorized agency service engineer must replace the power cord.
• Keep hands, feet, loose clothing and hair away from rotating brushes.
• Use only the original charger supplied with the appliance.
• Check that your supply voltage is the same as that stated on the charger.
• If the appliance is to be disposed of the batteries must first be removed. The appliance must be disconnected from the supply mains when removing the battery. Dispose of the batteries safely. Run the appliance until it stops because the batteries are fully discharged. Used batteries should be taken to a recycling station and not disposed of with household waste. To remove the batteries, please contact the Agency Customer Centre or proceed according to the following instructions.

NOTE: Should you experience any difficulty in dismantling the unit or for more detailed information on treatment, recovery and recycling of this appliance, please contact your local city office or

your household waste disposal service.

• When charging the appliance, the power switch must be off.
• Never charge the batteries in temperatures above 37^ C or below 0^ C.
• It is normal for the charger to become warm to the touch when charging. Use only attachments, consumables or spares recommended or supplied by Agency.
• Static electricity: some carpets can cause a small buildup of static electricity. Any static discharge is not hazardous to health.
• Do not use your appliance out of doors or on any wet surface or for wet pick up.
• Do not pick up hard or sharp objects, matches, hot ashes, cigarette ends or other similar items.
• Do not spray with or pick up flammable liquids, cleaning fluids, aerosols or their vapors.
• Do not absorb reactive liquids (such as: soluble, corrosive, detergent, etc.).
• Do not run over the power cord when using your appliance or remove the plug by pulling on the power cord.
• Do not continue to use your appliance or charger if it appears faulty.
• Agency service: To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorized Agency service engineer.
• Do not use the appliance to clean animals or people.
• Do not replace the batteries with non-rechargeable batteries.

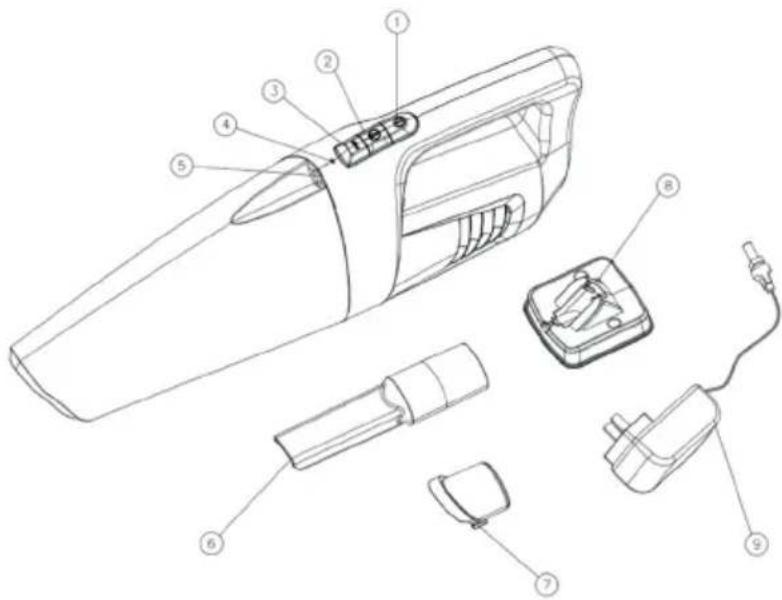

PRODUCT DESCRIPTION

Accessories:

1. On/off button
2. Light button
3. Dust cup release button
4. Charging light
5. Main light
6. Crevise nozzle
7. Small nozzle
8. Charging base (Wall mount)
9. Charger

FIRST USE

How to charge

Tips: the charging base can be mounted on a wall or placed on a flat surface

1. Put the vacuum cleaner on the charging base
2. Insert the charger into the socket. (Make sure the vacuum cleaner is turned off before charging)
3. When charging, charging indicator light up with red.
4. After charging, please unplug the charger.
5. The charger may get hot during charging.

Important: Be sure to use the charger provided with purchase!

Charging indicator:

1. When charging, the red indicator lights up.
2. After charging, the indicator light is green.
3. When using, the indicator light is green.
4. When the battery is about to run out, the green charging indicator blinks.
5. When the battery is completely exhausted, the charging indicator will be off.

Using and Function

Do not use this product while charging.

Note: Please check if there is rubbish in the crevice nozzle frequently, the rubbish may scratch your floor if you didn't clean it.

1. Use the crevice nozzle to clean tables, car interiors, corners, sofas, carpets, etc.
2. Push the on/off button to start the vacuum cleaner.
3. Push down the on/off button to turn it off.

Clean the dust cup

1. Push the dust cup release button, take off the dust cup.
2. Take out the filter.
3. Empty the dust cup.

4. Wash the dust cup and filter.

5. Put the filter into the dust cup

6. Put the dust cup into the vacuum cleaner.

Important: Make sure filter and dust cup are completely dried before placing them.

How to deal with waste batteries

Before discarding the device, remove the batteries from the device. Do not put the discarded batteries together with the daily garbage but should take the batteries to the local recycling center. If you can't remove the batteries by yourself, your local recycling center will do it for you.

MAINTENANCE

When this product got problem, please be sure to let professional maintenance to fix it.

PRODUCT SPECIFICATIONS

Power source type : Battery powered

Power adapter cable length : 1.80 m

Maximum power consumption : 80W

Dust capacity : 0.5l

Material : ABS plastic

With dust bag or bagless : Bagless

Charging cradle : Yes

Suitable for liquids : No

Cordless : Yes

Number of power settings : 1

HEPA air filter : N/A

Operating voltage : 14.8V

Brush type : N/A

Maximum suction power : 6000Pa

Brushless motor : No

Weight : 1300g

Operation time lowest power mode : 20 min

Operation time in highest power mode : N/A

Charging time : 5h

PACKAGING CONTENT

1x handheld vacuum cleaner

1x crevice nozzle

1x small nozzle

1x wall mount

1x power adapter

THE ENVIRONMENT

The symbol on this appliance indicates that this appliance may not be treated as household waste. Instead it must be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this appliance, please contact your local city office, your household and waste disposal service or the shop where you purchased the appliance. This appliance complies with the European Directives 2006/95/EC, 2004/108/EC and 2011/65/EU.

CE

ERSTE VERWENDUNG

Laden des Geräts

PREMIÈRE UTILISATION

Comment charger

CARACTÉRISTIQUES DU PRODUIT

EERSTE GEBRUIK

Hoe te laden

PRIMO UTILIZZO

PRIMER USO

Carga del aparato

PRIMEIRA UTILIZAÇÃO

Como carregar

ENSIMMÄINEN KÄYTTÖKERTA

Latausohjeet

TUOTTEEN TEKNISET TIEDOT

F∅RSTE BRUK

Slik lader du

Tips: Ladebasen kan monteres på vegg eller plasseres på en flat overflate

FÖRSTA ANVÄNDNINGEN

Så här laddar du

F∅RSTE BRUG

Opladning

ELSŐ HASZNÁLAT

PRIMA UTILIZARE

Mod de încărcare

Material: plastic ABS

ПЪРВА УПОТРЕБА

Как да зареждате

PRVNÍ POUŽITÍ

Nabíjení

PRVÉ POUŽITIE

PRVA UPORABA

Punjenje uređaja

PIERWSZE UŻYCIE

Jak ładować

PIRMASIS NAUDOJIMAS

Kaip jkrauti

ESIMENE KASUTAMINE

Kuidas laadida

PIRMĀ LIETOŠANAS REIZE

Norādes par uzlādi

Materials: ABS plastmasa

Ar puteklu maisu vai bez tā: bez maisa

Uzlādes pamatne: jā

iLK KULLANIM

Nasıl şarj edilir?

ΠΡΩΤΗ ΧΡΗΣΗ

Τρόπος φόρτισης
