USER MANUAL Chest Belt Connect 100 HR SOEHNLE

Product description Your personal Soehnle Chest Belt Connect 100 HR reliably records your pulse rate whilst training and sends the data via Bluetooth

to the Soehnle Connect app on your smartphone or tablet. Here you can conveniently combine your values with others and analyse them.

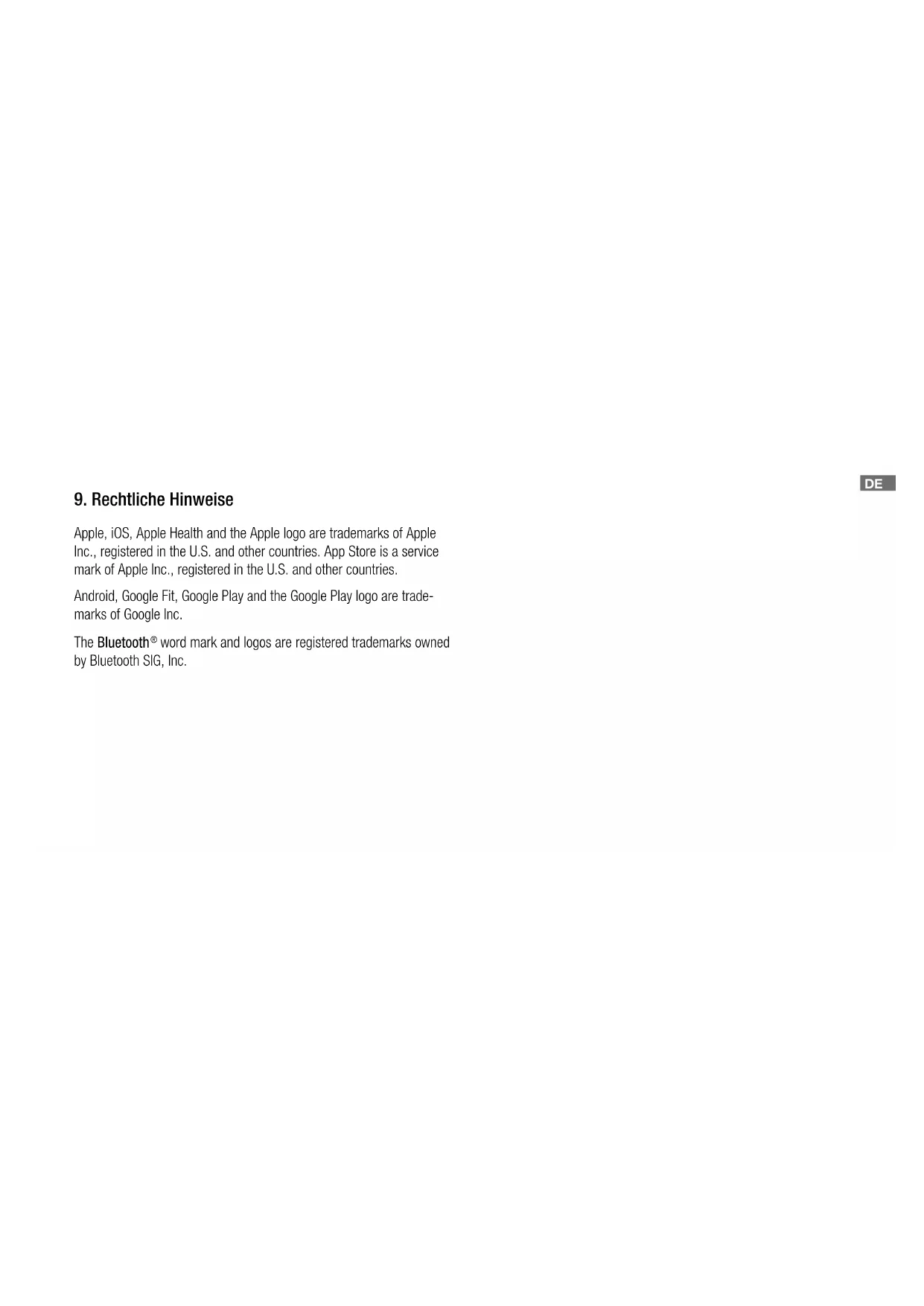

Version: 4.0 Gurt- Einstellbereich: ≤ 100 cm Schutzklasse: IPx4 Frequenzband (Bluetooth): 2,4 GHz (others): 5,3 KHz Maximale Sendeleistung (Bluetooth): 1 mW (others): 65 mW DE9. Rechtliche Hinweise Apple, iOS, Apple Health and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries. Android, Google Fit, Google Play and the Google Play logo are trade- marks of Google Inc. The Bluetooth

word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. DE1. Scope of delivery 1x Soehnle Chest Belt Connect 100 HR (chest belt for measuring pulse rate) 1x 3V lithium battery type CR2032 (already fitted) 1x operating manual

Read through the instructions for use and the following notes carefully before using the device and keep these instructions for use. WARNING! Risk of swallowing by small children! Children may not play with the device. Keep it away from children. WARNING! Risk of fire/explosion or chemical burns! The product con- tains a lithium battery. This may not be taken apart, deformed, thrown into fire or short-circuited. Do not recharge batteries. Table of contents

1. Scope of delivery

3. Soehnle Connect app

4. Initial operation

5. Changing the battery

6. Cleaning and care

ENATTENTION! Possible material damage! The device is splash proof and resistant to sweat, but not waterproof. Keep the device away from water. ATTENTION! Possible material damage! Do not drop the device and protect it against impacts. Do not expose the device to extreme temperatures or high temperature fluctuations. Also protect the device against direct sunshine. Do not use any strong chemicals, aggressive or abrasive detergents for cleaning purposes. NOTE! Persons with heart or circulatory disorders or those fitted with a pacemaker should only use this device after consulting their doctor. Do not use the device to check the frequency of a pacemaker. NOTE! Intended use! The product is designed for personal, non-com- mercial household use. It is not a medical device. NOTE! Avoid strong magnetic fields (e.g. transformers) because other- wise discrepancies in the transmission of the measured data may occur. Battery disposal, EC Directive 2008/12/EC Batteries must not be disposed of with household waste. You must take your old batteries to the public collection points in your local authority or wherever batteries of the relevant type are sold. Waste disposal of electric and electronic equipment, EC Directive 2002/96/EC This product is not to be treated as normal household waste, but must be taken to a collection point for the recycling of electric and electronic equipment. You can get further infor- mation from your local authority, the local waste disposal companies or the shop where you bought the product. Soehnle hereby declares that this device complies with the basic requirements and the other relevant provisions of Directive 2014/53/EU. You can find the EU Declaration of Conformity at www.soehnle.com. EN3. Soehnle Connect app

1. Install the free Soehnle Connect app on your smartphone or tablet.

Scan the QR code to take you to the app. Alternatively you will find the app for your Android

device on Google Play or for your Apple

device in the App Store.

on your smartphone or tablet and start the Soehnle Connect app. When you start the app for the first time, you will be automatically guided through the process for connecting a Soehnle appliance. If you have already used the Soehnle Connect app, to connect go to the “Main menu” in the Soehnle Connect app and press “my devices” and then “Add device”. Compatibility The Soehnle Connect app is compatible with Google Fit

NOTE! You can also use the chest belt without the Soehnle Connect app by connecting it to one of the many compatible sports watches on a radio frequency of 5.3 kHz. In this case, however, your data will not usually be saved. Android

SCAN EN4. Initial operation

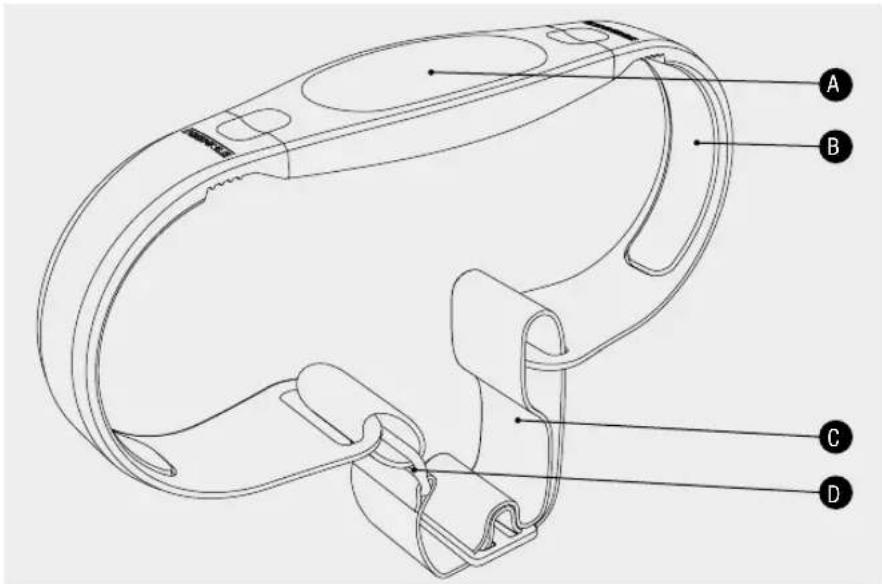

) from the loop on the chest belt (

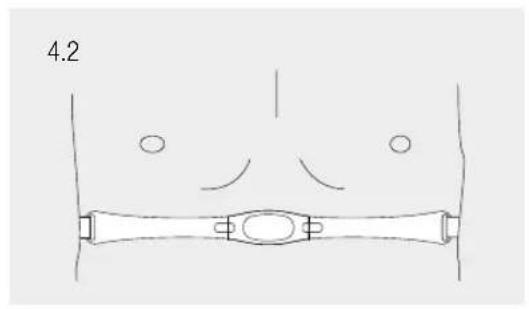

2. Put the chest belt on and fasten the hook back up.

) below the chest muscles for men or below the bosom for women (

). The belt should be fastened firmly around the rib cage and the sensor areas (

) should have good contact with the skin. Wear the tracker directly against your skin, otherwise no measurement is possible. Make sure that the belt is not too loose or too tight and is placed the right way round. For this purpose you will find marks for left and right on the inside of the transmission module. Adjust the belt length to your chest size if necessary.

4. Shortly after both sensor areas come into contact with the skin, the

to the app connected.

5. Press the button on the app to connect the chest belt. Your current

pulse rate is now displayed on the app.

5. Changing the battery

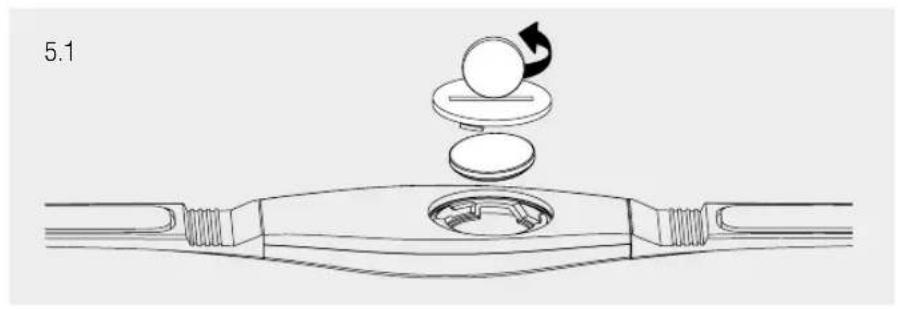

1. Open the battery compartment on the back of the transmission

2. Replace the weak battery with a new one.

ATTENTION! Insert the battery correctly. Bear in mind the polarity. Only insert type CR2032 lithium batteries.

3. Screw the cover back onto the battery compartment.

ATTENTION! When closing the battery compartment, make sure that the washer sits correctly, otherwise moisture can penetrate and the device can be damaged. EN6. Cleaning and care Clean the transmission module with a damp cloth. Leave the device to air dry completely before putting it on or putting it away again. Wash the textile belt by hand at 30 °C with a mild soap solution. Make sure that you do not immerse the transmission module in water or other liquids Handling the device incorrectly can lead to damage. Do not use any aggressive detergents, brushes with hard bristles, or sharp objects. These can damage the surfaces.

Our consumer service is at your disposal for questions and suggestions: Hotline

Version: 4.0 Belt adjustment range: ≤ 100 cm Protection category: IPx4 Frequency band (Bluetooth): 2.4 GHz (others): 5.3 KHz Maximum transmission power (Bluetooth): 1 mW (others): 65 mW EN9. Legal information Apple, iOS, Apple Health and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries. Android, Google Fit, Google Play and the Google Play logo are trade- marks of Google Inc. The Bluetooth
