USER MANUAL STM3200 AEG

STM3xxx_ImmersionBlender_AEG NO-FARSI.indd 3 2017-07-06 15:18:254 www.aeg.com Visit our website to: Get usage advice, brochures, trouble shooter, service information: www.aeg.com/webselfservice Register your product for better service: www.registeraeg.com Buy Accessories and Consumables for www.aeg.com/shop CONTENTS ENGLISH 6 DEUTSCH 10

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not nd on ordinary appliances. Please spend a few minutes reading to get the very best from it.

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available: - Model Number - PNC number - Serial number The information can be found on the rating plate.

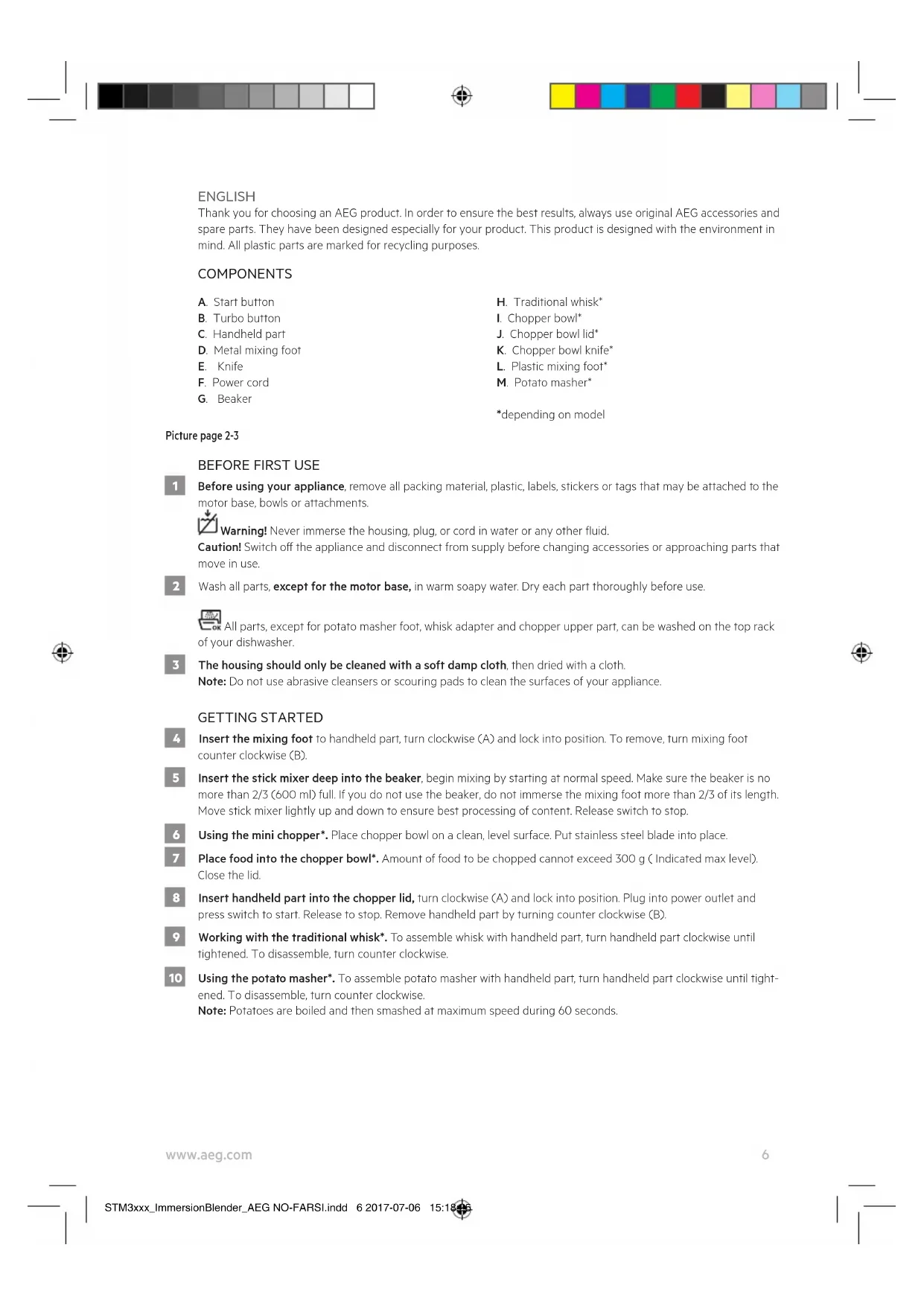

STM3xxx_ImmersionBlender_AEG NO-FARSI.indd 4 2017-07-06 15:18:255 www.aeg.com STM3xxx_ImmersionBlender_AEG NO-FARSI.indd 5 2017-07-06 15:18:256 www.aeg.com ENGLISH Thank you for choosing an AEG product. In order to ensure the best results, always use original AEG accessories and spare parts. They have been designed especially for your product. This product is designed with the environment in mind. All plastic parts are marked for recycling purposes. COMPONENTS A. Start button B. Turbo button C. Handheld part D. Metal mixing foot E. Knife F. Power cord G. Beaker H. Traditional whisk*

J. Chopper bowl lid* K. Chopper bowl knife* L. Plastic mixing foot* M. Potato masher* *depending on model Picture page 2-3

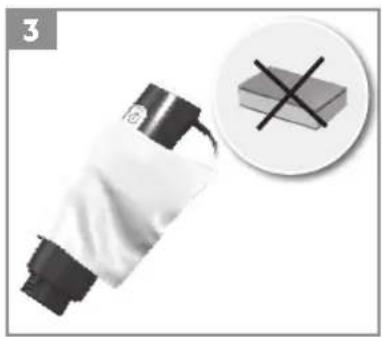

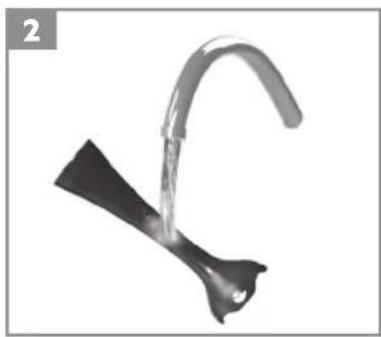

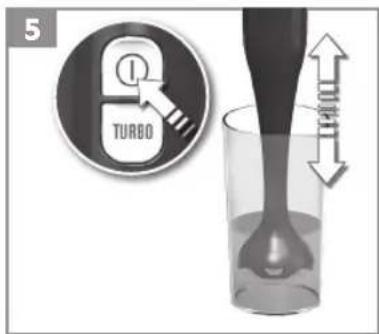

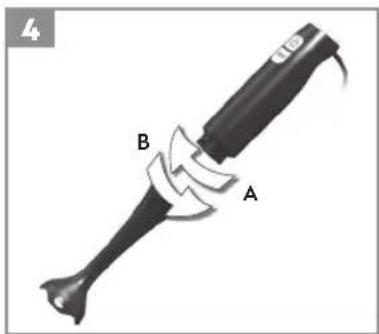

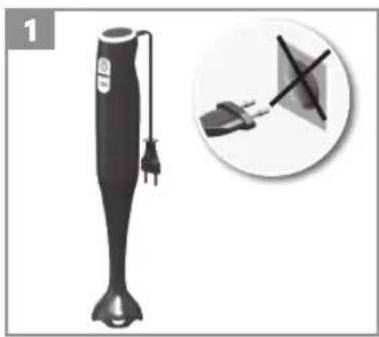

1 Before using your appliance, remove all packing material, plastic, labels, stickers or tags that may be attached to the motor base, bowls or attachments. Warning! Never immerse the housing, plug, or cord in water or any other uid. Caution! Switch o the appliance and disconnect from supply before changing accessories or approaching parts that move in use. 2 Wash all parts, except for the motor base, in warm soapy water. Dry each part thoroughly before use. All parts, except for potato masher foot, whisk adapter and chopper upper part, can be washed on the top rack of your dishwasher. 3 The housing should only be cleaned with a soft damp cloth, then dried with a cloth. Note: Do not use abrasive cleansers or scouring pads to clean the surfaces of your appliance. GETTING STARTED 4 Insert the mixing foot to handheld part, turn clockwise (A) and lock into position. To remove, turn mixing foot counter clockwise (B). 5 Insert the stick mixer deep into the beaker, begin mixing by starting at normal speed. Make sure the beaker is no more than 2/3 (600 ml) full. If you do not use the beaker, do not immerse the mixing foot more than 2/3 of its length. Move stick mixer lightly up and down to ensure best processing of content. Release switch to stop. 6 Using the mini chopper*. Place chopper bowl on a clean, level surface. Put stainless steel blade into place. 7 Place food into the chopper bowl*. Amount of food to be chopped cannot exceed 300 g ( Indicated max level). Close the lid. 8 Insert handheld part into the chopper lid, turn clockwise (A) and lock into position. Plug into power outlet and press switch to start. Release to stop. Remove handheld part by turning counter clockwise (B). 9 Working with the traditional whisk*. To assemble whisk with handheld part, turn handheld part clockwise until tightened. To disassemble, turn counter clockwise. 10 Using the potato masher*. To assemble potato masher with handheld part, turn handheld part clockwise until tight- ened. To disassemble, turn counter clockwise. Note: Potatoes are boiled and then smashed at maximum speed during 60 seconds. STM3xxx_ImmersionBlender_AEG NO-FARSI.indd 6 2017-07-06 15:18:257 www.aeg.com

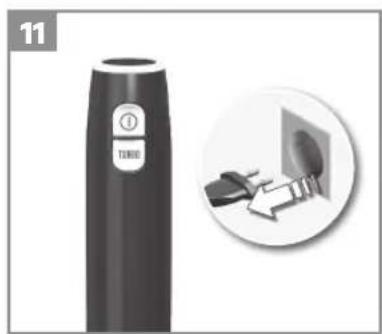

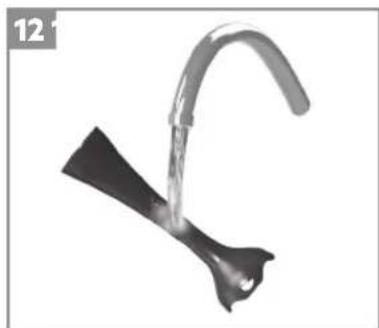

11 Switch the appliance o, remove the plug from the wall socket and wait until the tools have stopped completely. Warning! Never immerse the housing, plug, or cord in water or any other uid. 12 Wash all parts, except for the motor base, in warm soapy water. Dry each part thoroughly before use. All parts, except for potato masher foot, whisk adapter and chopper upper part, can be washed on the top rack of your dishwasher. 13 The housing should only be cleaned with a soft damp cloth, then dried with a cloth. Note: Do not use abrasive cleansers or scouring pads to clean the surfaces of your appliance. Before storage remove the plug from the power outlet. Ensure the appliance is clean and completely dry. Enjoy your new AEG product! SAFETY ADVICE Read the following instruction carefully before using the appliance for the rst time.

• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

• Children shall not play with the appliance.

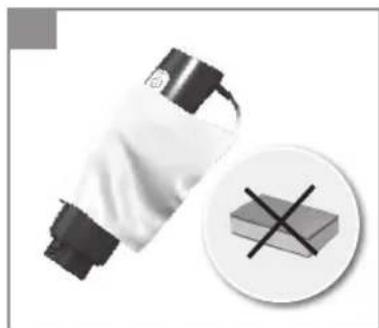

• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

• The appliance may only be connected to a power supply whose voltage and frequency comply with the specications on the rating plate!

• Never use or pick up the appliance if – the supply cord is damaged, – the housing is damaged.

• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied person, in order to avoid hazard.

• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

• Switch o the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

• Never touch the blades or inserts with your hand or any tools while the appliance is plugged in.

• Care shall be taken when handling the sharp cutting blades, emptying the bowland during cleaning.

• The blades and inserts are very sharp! Danger of injury! Caution when assembling, disassembling after use or when cleaning! Ensure that the appliance is disconnected from the mains supply.

• The appliance cannot be used for chopping ice or blending hard and dry substance, such as nut, candy; except with specic accessories provided with the appliance. Otherwise the blade could be blunt.

• Do not immerse the appliance in water or any other liquid. STM3xxx_ImmersionBlender_AEG NO-FARSI.indd 7 2017-07-06 15:18:258 www.aeg.com

• When processing heavy load, do not use the appliance continuously for more than 30 seconds. Allow to cool down before restarting.

• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.

5 Pulses ON for 3 sec, OFF for 2 sec 10 Pulses ON for 3 sec, OFF for 2 sec Turbo

WHISKING/WHIPPING QUANTITIES AND PROCESSING TIMES

Cream 500 g 50-70 sec Turbo Egg whites 4 units 60 sec Turbo Note: it is possible to use the traditional whisk* for whipping cream in the beaker, as long as the temperature of the cream is between 4 and 8 Degree Celcius. For whisking eggs, please use a 1,5 Litre bowl. STM3xxx_ImmersionBlender_AEG NO-FARSI.indd 8 2017-07-06 15:18:259 www.aeg.com

PROBLEM POSSIBLE CAUSE SOLUTION

Blades do not turn when processing. May be too much food in beaker. Pieces of food are too large. Stuck food around the blades. Reduce quantity of food. Reduce size of food. Motor sounds like it is not able to process load. Speed may not be correct. See processing guide for correct speeds. The mini chopper* does not work. The chopper lid is not correctly fastened. Make sure the lid and the chopper bowl are properly assembled. The mixing foot/traditional whisk* does not work. The mixing foot/traditional whisk* is not correctly assembled. Make sure to lock mixing foot/ traditional whisk* into position. The potato masher* does not work. The potato masher* is not correctly assembled. Make sure to lock potato masher* into position. Make sure blade is correctly mounted in the foot bell.
