TA 2629 - Toaster CLATRONIC - Free user manual and instructions

Product type	Toaster
Brand	Clatronic
Model	TA 2629
Supply voltage	230 V ~ 50 Hz
Housing material	Insulating plastic (Cool-Touch)
Number of slots	2
Toasting functions	5 browning levels
Reheat function	Yes (REHEAT button)
Defrost function	Yes (DEFROST button)
Stop function	Yes (STOPP button)
Roll support	Yes, integrated
Crumb tray	Removable for cleaning
Automatic shut-off	Yes, at end of cycle
Cleaning	Exterior: damp cloth; crumb tray: remove and empty
Safety	Do not immerse, do not insert metal utensils
Warranty	24 months
Included accessories	No other accessories specified
Repairability	Repair by an authorized specialist

Frequently Asked Questions - TA 2629 CLATRONIC

How to use the Clatronic TA 2629 toaster?

Plug the appliance into a 230V/50Hz outlet. Set the browning level from 1 (light) to 5 (dark) using the selector. Place the bread slices into the slots and lower the lever until it clicks. The toaster switches off automatically and the carriage rises.

How to use the defrost function?

After lowering the lever, press the DEFROST button. The indicator light turns on. The toaster defrosts and toasts frozen bread.

How to reheat already toasted bread?

Lower the lever with the bread, then press REHEAT. The indicator light shows the function. The bread is reheated without being over-toasted.

How to stop the toaster during the cycle?

Press the STOPP button (stop symbol). The toaster switches off immediately and the carriage rises.

The toaster emits smell and smoke on first use, is this normal?

Yes, it's normal. To eliminate the protective coating on the heating elements, operate the appliance empty 2 or 3 times at the maximum toasting level in a well-ventilated area.

How to clean the Clatronic TA 2629 toaster?

Unplug the appliance and let it cool. Clean the exterior with a damp cloth. Remove the crumb tray by the tab, empty it, and replace it. Do not immerse the appliance.

Can I toast rolls with this toaster?

Yes, the toaster has an integrated roll support. Place them on the support above the slots.

What to do if the bread burns or doesn't toast enough?

Adjust the browning level: turn the selector from 1 (lighter) to 5 (darker). For a first try, start at level 2.

What safety precautions should I follow?

Never insert metal utensils into the slots. Do not use near flammable objects (curtains, wood). Do not immerse the appliance. Supervise the appliance during operation. The housing is insulated (Cool-Touch) but metal parts get hot.

How does the warranty work?

The toaster is guaranteed for 24 months from the date of purchase. Keep the receipt. In case of defect, return the appliance in its original packaging with the receipt to the store. Defective accessories are replaced free of charge without returning the appliance.

USER MANUAL TA 2629 CLATRONIC

White ceramic toaster with a flat blade and control buttons (no visible text or symbols)

TA 2629

D

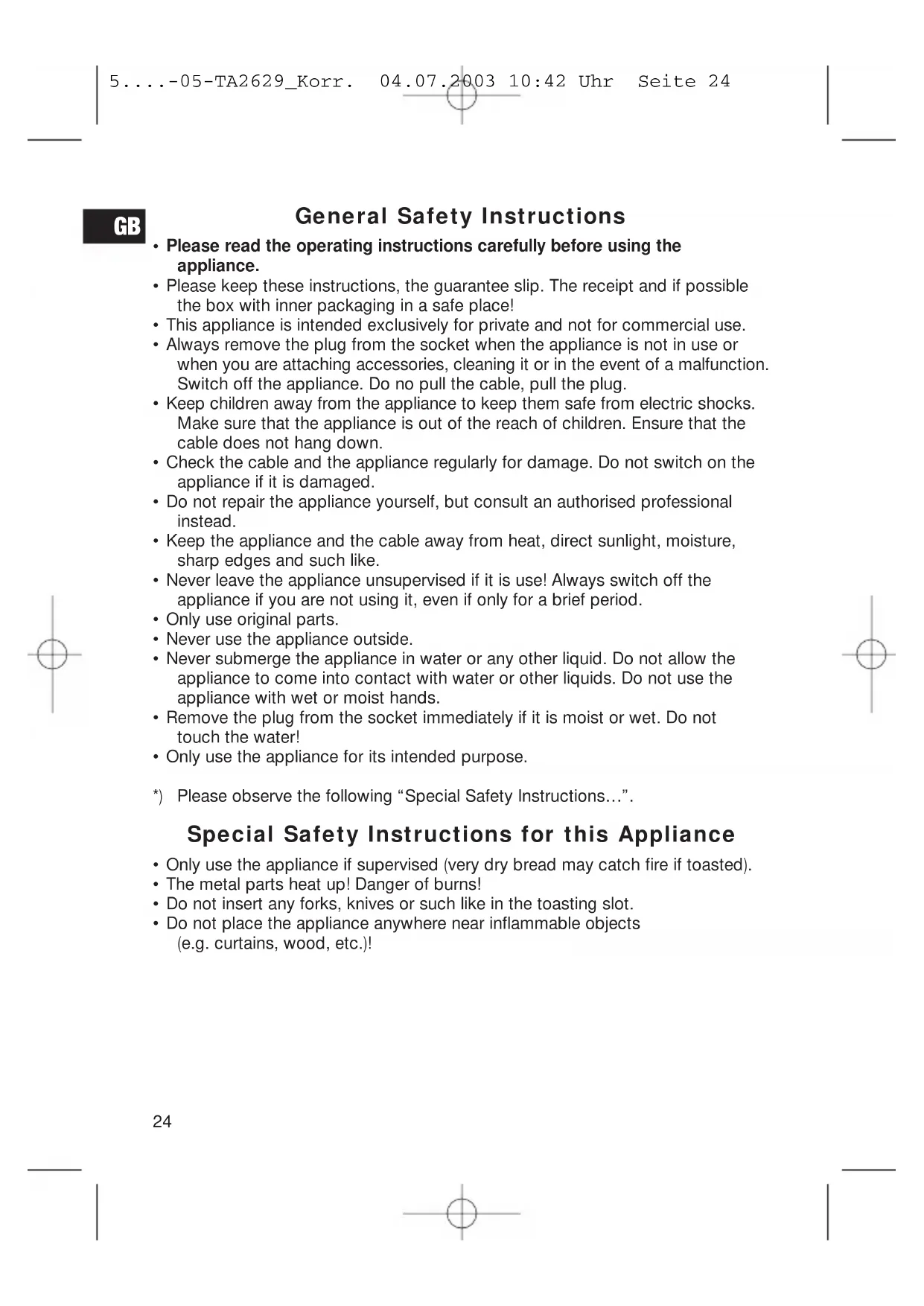

General Safety Instructions

• Please read the operating instructions carefully before using the appliance.
• Please keep these instructions, the guarantee slip. The receipt and if possible the box with inner packaging in a safe place!
• This appliance is intended exclusively for private and not for commercial use.
  • Always remove the plug from the socket when the appliance is not in use or when you are attaching accessories, cleaning it or in the event of a malfunction. Switch off the appliance. Do no pull the cable, pull the plug.
• Keep children away from the appliance to keep them safe from electric shocks. Make sure that the appliance is out of the reach of children. Ensure that the cable does not hang down.
• Check the cable and the appliance regularly for damage. Do not switch on the appliance if it is damaged.
• Do not repair the appliance yourself, but consult an authorised professional instead.
• Keep the appliance and the cable away from heat, direct sunlight, moisture, sharp edges and such like.
• Never leave the appliance unsupervised if it is use! Always switch off the appliance if you are not using it, even if only for a brief period.
• Only use original parts.
• Never use the appliance outside.
• Never submerge the appliance in water or any other liquid. Do not allow the appliance to come into contact with water or other liquids. Do not use the appliance with wet or moist hands.
• Remove the plug from the socket immediately if it is moist or wet. Do not touch the water!
• Only use the appliance for its intended purpose.

*) Please observe the following "Special Safety Instructions...".

Special Safety Instructions for this Appliance

• Only use the appliance if supervised (very dry bread may catch fire if toasted).
  • The metal parts heat up! Danger of burns!
• Do not insert any forks, knives or such like in the toasting slot.
• Do not place the appliance anywhere near inflammable objects (e.g. curtains, wood, etc.)!

Before Initial Use

GB

In order to remove the protective layer on the heating coil you should operate the machine approximately three times when it is empty. Please select the maximum level of browning. Any smoke or smells produced during this procedure are normal. Please ensure sufficient ventilation.

Explanation of Symbols for the Function Keys

This symbol is used to stop toasting

This symbol stands for reheating

This symbol stands for defrosting

Operation

1. Only connect the appliance to a correctly installed safety plug (230 V, 50 Hz).
2. Turn the selector switch clockwise to set the toasting level from the lightest stage 1 to the darkest stage 5. If in any doubt, start with the lower setting (the black mark on the selector switch shows you the setting).
3. Insert sliced bread into the toasting slot and push down the lever until it locks.
4. The appliance starts toasting. The appliance switches off immediately once the set degree of toasting has been reached. The toast then pops up automatically.
5. The appliance has a heat-insulated "cool touch" casing. However, as metal parts still heat up during operation, please allow cooling down before you put it away.

If you wish to use the special functions, press the button you wish to select once you have pushed down the lever: REHEAT or DEFROST. The corresponding control lamp displays the function.

Defrosting: To defrost and toast deep-frozen bread

Reheating: To reheat toasted bread

STOP: To stop toasting prematurely

Integrated grill: To toast rolls

GB

Cleaning

• Before cleaning, remove the plug from the socket and allow the appliance to cool down.
• Use a moderately damp cloth to clean the outside of the appliance.
• Do not use any aggressive or scrubbing detergents.
• Grasp the crumb shaft by the loop and pull it out, remove the bread residue and push the shaft back in.

This appliance conforms to the relevant CE guidelines and has been constructed on the basis of the latest technical safety regulations.

Subject to technical changes!

Guarantee

We accept a guarantee period of 24 months for the appliance we have sold from the date of purchase (receipt).

During this period we will repair any defects in the appliance without charge, provided that these defects are due to material or manufacturing faults. Subject to our own decision, we will repair or replace the appliance. Guarantee services neither extend the guarantee period nor do they mark the start of a new guarantee period!

The receipt of purchase is the proof of guarantee. Free exchange or repair is not possible without this receipt.

In the event of a guarantee claim, please return the complete appliance in the original packaging together the receipt to your dealer.

Defects in accessories will not lead to a replacement of the entire appliance. Free replacement will be sent instead. Do not send back the appliance in these cases, but only reorder the defect accessory! Broken glass damage will always be subject to charges!

Defects in wear parts (e.g. motor carbon, mixing hooks, driving belts, spare remote controls, spare toothbrushes, saw blades and such like) and cleaning, maintenance or the replacement of wear parts are not part of the guarantee services and are therefore subject to charge.

The guarantee will be cancelled in the event of unauthorised tampering.

After the Guarantee

Repairs can be carried out by licensed dealers or the repair services after the end of the guarantee period, but are subject to charge.
