USER MANUAL TS863 MARMITEK

• To prevent short circuits, this product should only be used inside and only in dry spaces. Do not expose the components to rain or moisture. Do not use the product close to a bath, swimming pool etc.
• Do not expose the components of your systems to extremely high temperatures or bright light sources.
• In case of improper usage or if you have altered and repaired the product yourself, all guarantees expire. Marmitek does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. Marmitek does not accept responsibility for additional damage other than covered by the legal product responsibility.
• This product is not a toy. Keep out of reach of children.
• Keep batteries out of the reach of children. Dispose of batteries as chemical waste. Never use old and new batteries or different types of batteries together. Remove the batteries when you are not using the system for a longer period of time. Check the polarity (+/-) of the batteries when inserting them in the product. Wrong positioning can cause an explosion.
• Automatic switching devices provide comfort, but can also be dangerous. They can surprise people or can ignite clothing hanging over an electric heat source. Please be careful and take appropriate measures to avoid accidents.

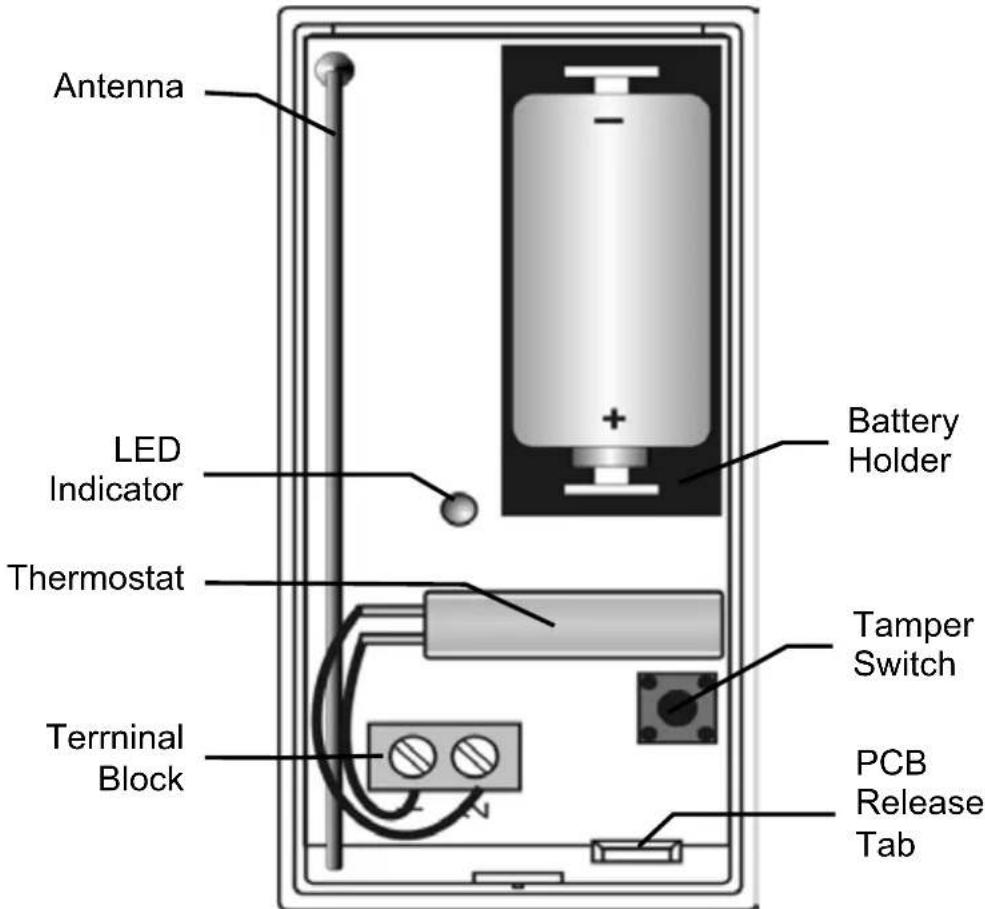

Figure 1: TS863 (Cover Off)

INTRODUCTION

The TS863 is a wireless low temperature sensor designed for use with Marmitek's ProGuard800 series receivers. When you wish to know more about the complete system, its possibilities and its settings, then you can check out the installation manual or visit www.marmitek.com. The TS863 includes a thermostat that causes the transmitter to send an alarm signal when the temperature falls to approximately 5^ ( 41^ ).

MOUNTING LOCATION

Consider the following when choosing a mounting location:

• Do not locate the sensor near heaters or boilers that may stay warm long after the temperature has dropped in other parts of the premises.
• Mount the sensor in a location that is likely to get cold first when the temperature drops.
• Try to locate the sensor in a location where there is good air circulation.

INSTALLATION INSTRUCTIONS

1. To open the housing, insert a small screwdriver at the bottom of the unit between the front and back cover and twist the screwdriver to release the cover.
2. Remove the divider separating the battery from the contacts on the battery holder. When you apply power and the Tamper switch is open, the TS863 enters Test mode during which a transmission is sent every few seconds. You can terminate Test mode by closing the Tamper switch. Test mode is automatically terminated after approximately five minutes. Note: Due to the occurrence of voltage delay in lithium batteries that have been in storage, the batteries may initially appear to be dead. In this case, leave the unit in Test mode for a few minutes until the battery voltage level is stabilized.
3. While the TS863 is in Test mode, set the receiver to Registration mode (See Installation manual Chapter 7.1: Device Registration) and make sure that the transmitter's LED indicator lights up at least twice. After registration, momentarily close the Tamper switch to terminate Test mode. Write the number of the zone and the transmitter number (where applicable) on the sticker provided. Affix the sticker inside the front cover for future reference.
4. Before permanently mounting the unit, test the transmitter from the exact mounting position. If necessary, relocate the transmitter to a better position.
5. To remove the printed circuit board (PCB), press the PCB release tab, carefully lift the board and slide it away from the back cover.
6. Mount the back cover to the wall using two screws and replace the PCB. Use ISO 7050 (ST3.5 x 22) or similar countersunk screws so that the screw head will not touch the PCB - see Figure 2.
7. Test the transmitter making certain that the LED is lit during transmissions.
8. Close the front cover of the TS863.

TECHNICAL DATA

Antenna:

Frequency: 868.35 MHz FM

Power: 3.6V 12 AA Lithium Battery

Current Consumption: 25mA (transmission)

10 A (standby)

RFI Immunity: 40V/m

Operating Temperature: 0 - 60^

Dimensions: 65 × 30 × 25 ~mm

Specifications may be modified without prior notice.

Built-in

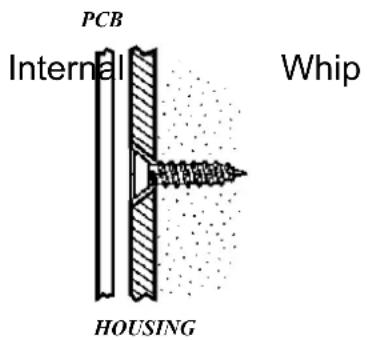

Figure 2:
Mounting
Screw Position
