IAN G54 - Razor Eldom - Free user manual and instructions

Product type	Electric shaver
Model	IAN G54
Brand	Eldom
Supply voltage	DC 5V, 1A
Power	5W
Battery type	Li-ion 600 mAh, 3.7 V
Charging time	1h30
Maximum runtime	1h30
Protection rating	IPX6 (resistant to water jets)
Head type	Triple blade head
Functions	Dry shaving, integrated trimmer, travel lock, LED display
Usage	Face and beard (dry)
Power supply	Mains (via adapter not included) or rechargeable battery
Charging method	Corded via USB-C cable (included)
Maintenance	Clean blades with the included brush after each use
Cleaning	Do not immerse in water
Safety	Do not use near bathtub, shower or swimming pool
Warranty	Manufacturer warranty (excluding blades and foils, wear parts)
Included accessories	USB-C cable, cleaning brush, protective cap
Country of origin	Not specified

Frequently Asked Questions - IAN G54 Eldom

How to charge the Eldom IAN G54 shaver?

Use the included USB-C cable (10) and plug it into a mains outlet via a 5V, 1A power adapter (not included). Full charge takes about 1h30. The LED indicator flashes during charging and stays solid at 100%.

Can I use the shaver while charging?

Yes, the device can be used directly on mains. Plug it in and turn it on with the switch (4). It is ready for immediate use.

Is the shaver waterproof?

It has IPX6 rating, meaning it resists water jets, but it is not designed for immersion or use in the shower. Do not use it for wet shaving.

How to clean the shaver?

Turn off and unplug the device. Use the included brush (9) to clean the blades and head. Never immerse the shaver in water.

How to use the integrated trimmer?

The trimmer (7) opens by pressing the button (8). Use it to trim your beard or long hairs before shaving. Close it after use.

What does the travel lock mean?

The lock prevents accidental activation during travel. To activate, turn on the device and hold down the switch (4) for a few seconds. To deactivate, repeat the same operation.

How long does the battery last?

Maximum runtime is about 1h30 after a full 1h30 charge.

Can I shave wet hair with this shaver?

No, the shaver is designed exclusively for dry shaving. Do not use it on wet hair, with gel or shaving foam.

What if the shaver does not turn on?

Check that the battery is charged or plug it into mains. Make sure the travel lock is not activated (hold the switch for 3 seconds to deactivate). If the problem persists, contact customer service.

How to replace the blades?

Blades and foils are wear parts and are not covered by warranty. To replace them, open the head (2) by pressing the button (3) and remove the old unit. Install the new unit in reverse order. Purchase compatible spare parts.

USER MANUAL IAN G54 Eldom

Black and white photo of a modern electric shaver with digital display and three buttons (no visible text or symbols)

Eldom Sp. z o.o. • ul. Pawła Chromika 5a • 40-238 Katowice, POLAND tel: [phone] • fax: [phone] • www.eldom.eu

/EN/ The disposal of used electrical and electronic equipment (applies to European Union countries and other European countries with separate waste-collection systems).

This symbol on the product or its packaging indicates that it should not be classified as household waste. It should be handed over to an appropriate company dealing with the collection and recycling of electrical and electronic equipment. The correct disposal of the product will prevent potential negative consequences for the environment and human health resulting from hazardous substances present in the product. Electrical devices must be handed over to restrict their re-use and further treatment. If the device contains batte ries, remove them, and hand them over to a storage point separately. DO NOT THROW EQUIPMENT INTO THE MUNICIPAL WASTE BIN. Material recycling helps to preserve natural resources. For detailed information on how to recycle this product, please contact your local authority, the recycling company, or the shop where you bought it.

WYŚWIETLACZ LED (5)

OCHRONAŚRODOWISKA:

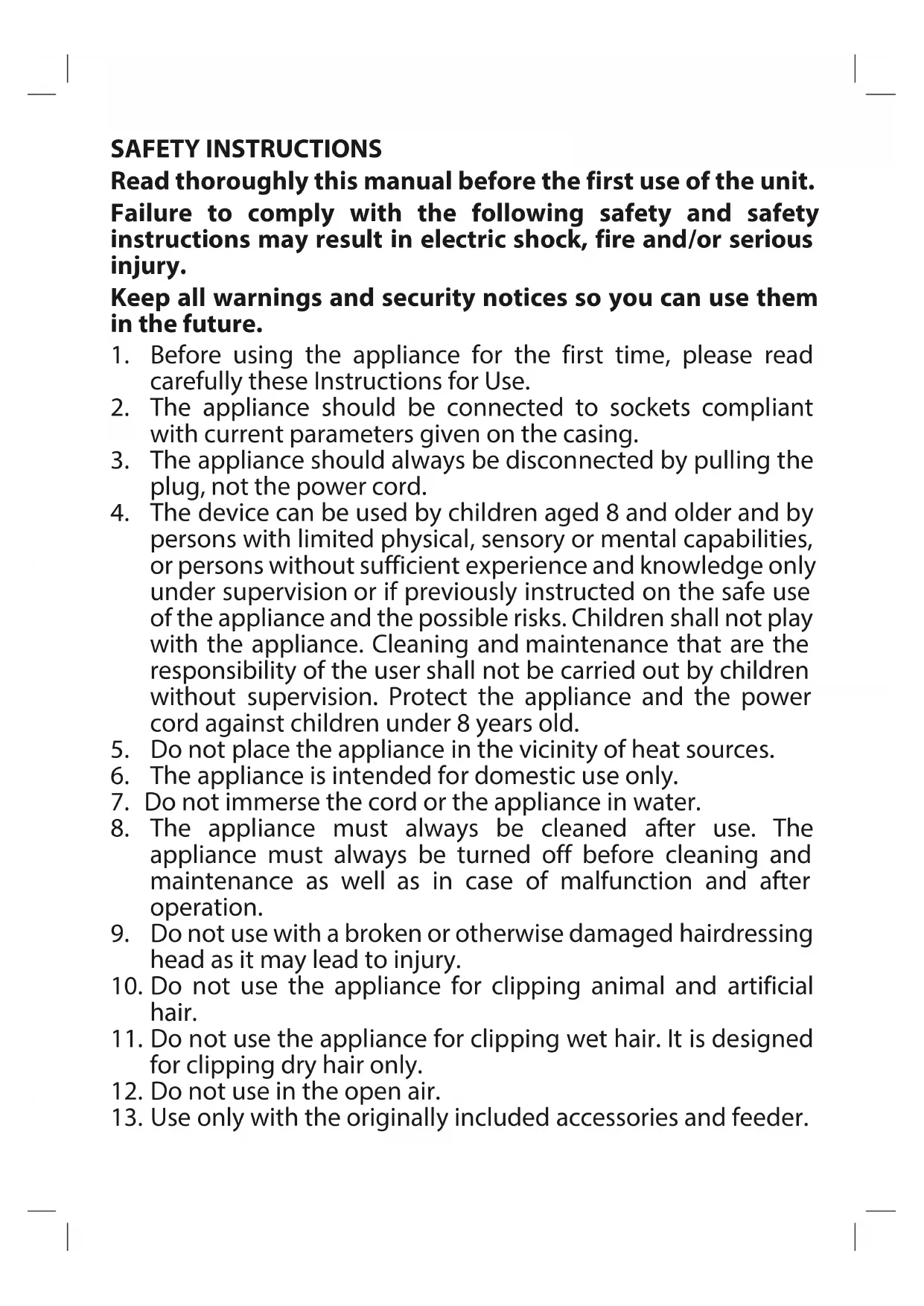

Read thoroughly this manual before the first use of the unit. Failure to comply with the following safety and safety instructions may result in electric shock, fire and/or serious injury.

Keep all warnings and security notices so you can use them in the future.

1. Before using the appliance for the first time, please read carefully these Instructions for Use.
2. The appliance should be connected to sockets compliant with current parameters given on the casing.
3. The appliance should always be disconnected by pulling the plug, not the power cord.
4. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
5. Do not place the appliance in the vicinity of heat sources.
6. The appliance is intended for domestic use only.
7. Do not immerse the cord or the appliance in water.
8. The appliance must always be cleaned after use. The appliance must always be turned off before cleaning and maintenance as well as in case of malfunction and after operation.
9. Do not use with a broken or otherwise damaged hairdressing head as it may lead to injury.
10. Do not use the appliance for clipping animal and artificial hair.
11. Do not use the appliance for clipping wet hair. It is designed for clipping dry hair only.
12. Do not use in the open air.

13. Use only with the originally included accessories and feeder.

14. Never use the appliance when it is wet, with wet hands or in the vicinity of showers, water in a bath, washbasin and other containers.

15. When used in the bathroom, the appliance must be disconnected after use because proximity of water is dangerous even if the appliance is turned off.
16. The appliance must not be immersed in or sprinkled with water.
17. When in operation, do not leave the appliance unattended. The power cord and the whole appliance should be regularly checked for damage. Do not turn the appliance on, if any damage has been found.
18. In the event the power cord is damaged, it must be replaced in the Manufacturer's Service Centre to prevent danger. A list of Service Centres can be found in the attachment and on the website www.eldom.eu.
19. The appliance can be repaired only in an authorised Service Centre. Any modernization or application of spare parts or elements other than the original ones is forbidden and dangerous for the user.
20. The company Eldom Sp. z o.o. shall not be liable for any damage caused by inappropriate use of the appliance.

CAUTION:

Do not use the appliance near bathtubs, showers, swimming pools and similar water reservoirs.

WARNING: Plastic bag can be dangerous, to avoid danger of suffocation keep this bag away from babies and children.

This appliance contains rechargeable batteries that cannot be replaced by the user himself.

The knives and strainers are working components and should be replaced systematically. They are not covered by warranty.

INSTRUCTION MANUAL

ELECTRIC SHAVER G54

EN

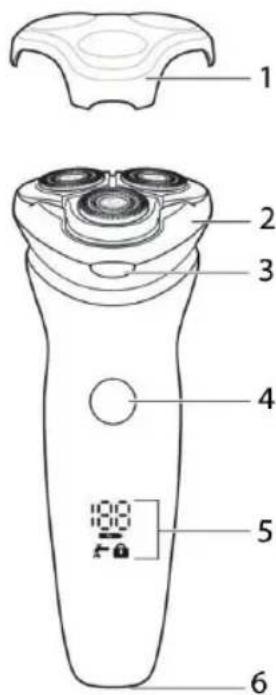

GENERAL DESCRIPTION

1. Protective cap
2. Shaving head with three blades
3. Opening button for the shaving head housing
4. On/off switch
5. LED display
6. Socket for the power cable

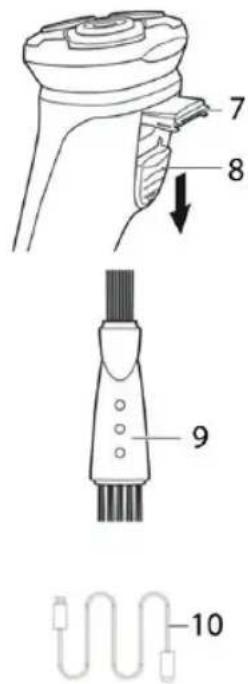

7. Trimmer
8. Trimmer opening button
9. Brush
10. USB-C power cable

TECHNICAL DATA

• IPX6
  • supply voltage: DC 5V, 1A
• power: 5 W
• battery: Li-ion 600mAh 3,7V
• charging time: 1,5 hours
• charging method: wired – cable (10) connect to power supply with parameters: DC 5V, 1A (not included)

LED DISPLAY (5)

Battery indicator

When the device is switched on, the display indicates the battery charge status in the form of numbers.

Charging indicator

Flashes during charging and lights up to the end when power reaches 100%. Flashes when power drops to 5% to remind you to charge the unit.

Travelling Lock Indicator

The lock indicator flashes 3 times when locking and unlocking the shaver. It flashes when the lock is on.

INTENDED USE

The G54 razor features a three-blade shaver head for a perfect fit to the shape of your face and precision performance. The built-in trimmer helps to take care of beard styling. The ergonomic shape and comfortable handle guarantee comfortable handling.

SERVICE

• Before use, check the appliance is complete and undamaged.
• Remove all transport protection.
• The shaver can be used as a mains or battery powered device.
• If mains-powered, the unit is ready to use immediately.

Electric power supply

• Connect one end of the cable (10) to the socket (5) and the other end to the power supply unit (not supplied), with the parameters given above, and then to the mains.
• Connection to the mains is indicated by the indicator.
• Press the switch (4) to start work.

Charging and operation with the batt

• Connect one end of the cable (10) to the socket (6) and the other end to the power supply unit (not supplied), with the parameters given above, and then to the mains.
• Connection to the mains is indicated by the indicator.
• It takes approximately 1.5 hours to fully charge the battery - display indication: 100% .
• Once charged, disconnect the cable from the power supply.
• Do not leave the unit plugged in for more than 24 hours.
• Press the switch (4) to start work.

USE

• Ensure the razor is clean, properly assembled.
• Check the state of charge of the battery - plug in the machine if necessary.

CAUTION. The appliance is not suitable for wet shaving and with shaving gel and foam.

• Press the switch (4) to start work.
• Place the head (2) on the skin and move it by pressing lightly.
• When finished working, switch off the appliance by pressing the switch (4) and clean it.

Travelling Lock

• The appliance has a switch lock (4) to prevent accidental operation during transport.
- To activate the interlock, switch the appliance on using the switch (4) and then hold the switch down for a few seconds.
• To deactivate the lock, hold the switch (4) down for a few seconds.

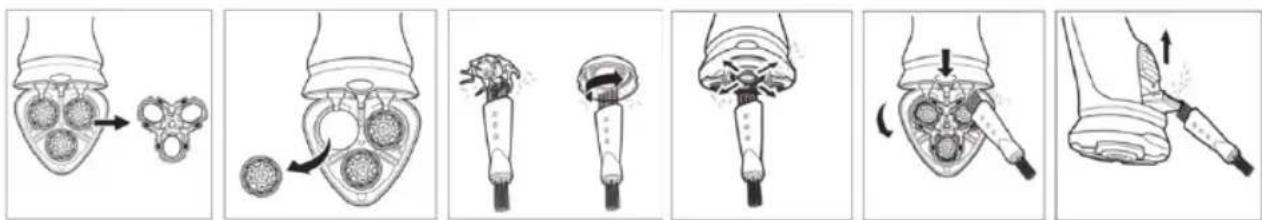

CLEANING AND MAINTENANCE

• Before cleaning, switch the appliance off and disconnect from the mains.
- Do not immerse the appliance or any of its components in water.
- Clean the cutting unit after each use.
- Clean the blades with the brush (9) provided.

ENVIRONMENTAL PROTECTION

• The appliance is made of materials which can be recycled.
- It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

WARRANTY

• This appliance is designed for domestic use only.
- It cannot be used for professional purposes or for other than the intended use.
- Improper use will nullify the guarantee.

LED-ANZEIGE (5)

Akku-Anzeige

Diagram showing a cross-section of a biological structure with internal circular elements and a separate circular arrangement (no text or labels)

Diagram of a biological structure with internal components and a directional arrow (no text or labels)

Two identical mechanical tools or clamps with no visible text or symbols

Diagram of a mechanical device with a central shaft and surrounding components (no text or symbols)

Diagram of a medical procedure showing a tool inserted into a patient's mouth with an arrow indicating direction (no text or labels present)

Anatomical illustration of a foot with a surgical instrument inserted, showing bone structure and force direction (no text or labels)

UMWELTSCHUTZ

INDICADOR LED (5)

Diagram showing a cross-section of a biological structure with three circular elements and an arrow pointing to a separate circular component (no text or labels)

Diagram of a biological structure with internal components and a directional arrow (no text or labels)

Two identical illustrations of a mechanical device with a flame-like top and a circular base, shown side by side (no text or symbols)

Diagram of a mechanical device with a central shaft and surrounding components (no text or symbols)

Diagram of a medical device with a tool inserted into a patient's ear area (no text or labels)

Anatomical illustration of a foot and ankle joint with a surgical instrument inserted (no text or labels)

AFFICHAGE LED (5)

PROTECTION DE L'ENVIRONNEMENT

DISPLAY A LED (5)
