Machine type	Capsule coffee machine
Water tank capacity	0.9 litre
Pump pressure	15 bars
Capsule type	Lavazza A Modo Mio capsules
Features	Preparation of espresso and long coffee
Dimensions	23.5 x 12 x 29 cm
Weight	2.5 kg
Energy consumption	Energy class A
Automatic shut-off system	Yes
Maintenance	Cleaning of the tank and removable parts recommended
Warranty	2 years
Included accessories	A sample of capsules
Available colors	Black, White, Red, Blue
Safety	Overheat protection

Frequently Asked Questions - A Modo Mio Jolie Evo Lavazza

How do I turn on my Lavazza A Modo Mio Jolie Evo machine?

To turn on your machine, press the power button located on the control panel. The indicator lights will turn on to show that the machine is ready.

Why is my machine not making coffee?

Make sure the water tank is filled and the coffee capsule is properly inserted. Also check that the machine is plugged in and turned on.

How do I clean my Lavazza A Modo Mio Jolie Evo machine?

Unplug the machine and wipe the exterior with a damp cloth. The water tank and drip tray can be washed with warm soapy water. Do not immerse the machine in water.

What should I do if my machine makes noise but does not dispense coffee?

The machine may be in the preheating phase. If the noise persists, check that there is no blockage in the flow circuit and that the capsule is properly in place.

How do I adjust the coffee intensity?

The Lavazza A Modo Mio Jolie Evo does not allow adjusting the coffee intensity. However, you can choose different capsules that offer various intensity levels.

Where can I buy compatible capsules?

You can buy Lavazza A Modo Mio capsules in supermarkets, specialized coffee shops, or online on retail websites.

Why is water flowing into the drip tray?

This can happen if the tray is full or if the machine is being cleaned. Check the water level in the drip tray and empty it if necessary.

My machine shows an error light, what should I do?

An error light may indicate a problem with the water or capsule. Consult the user manual to identify the error code and follow the troubleshooting instructions.

How do I descale my machine?

Use a descaling product recommended by the manufacturer. Follow the instructions on the packaging for mixing and descaling procedure.

USER MANUAL A Modo Mio Jolie Evo Lavazza

Dear Customer thank you for purchasing the Lavazza A MODO MIO espresso coffee machine and for choosing our company.

Before operating the machine, we recommend you carefully read the operating instructions that explain how to use, clean and maintain it in perfect working order. We hope you enjoy brewing authentic Italian coffee, thanks to Lavazza!

Felicitations!

Cassetto capsule piano

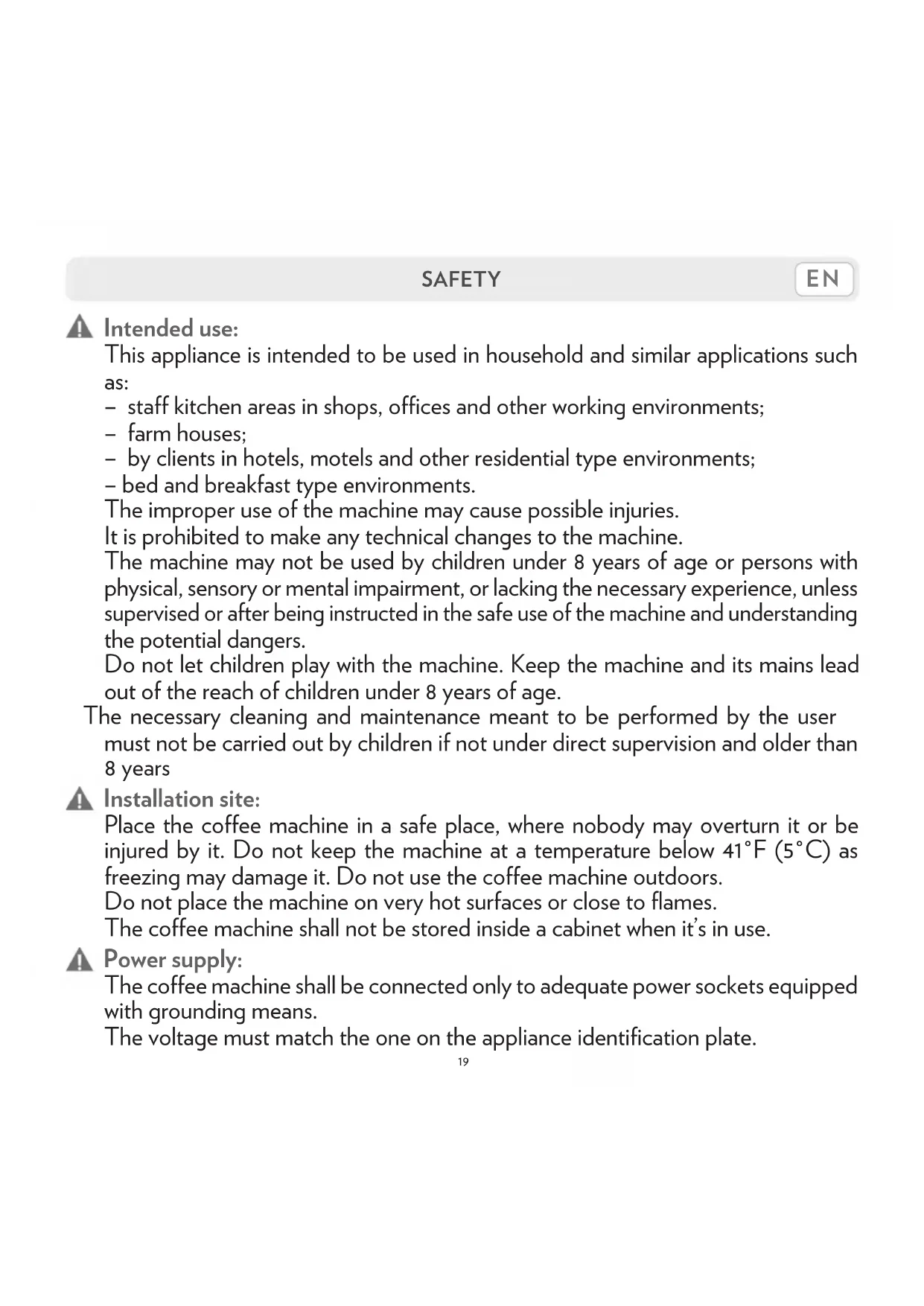

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

The improper use of the machine may cause possible injuries.

It is prohibited to make any technical changes to the machine.

The machine may not be used by children under 8 years of age or persons with physical, sensory or mental impairment, or lacking the necessary experience, unless supervised or after being instructed in the safe use of the machine and understanding the potential dangers.

Do not let children play with the machine. Keep the machine and its mains lead out of the reach of children under 8 years of age.

The necessary cleaning and maintenance meant to be performed by the user must not be carried out by children if not under direct supervision and older than 8 years

Installation site:

Place the coffee machine in a safe place, where nobody may overturn it or be injured by it. Do not keep the machine at a temperature below 41^ ( 5^ ) as freezing may damage it. Do not use the coffee machine outdoors.

Do not place the machine on very hot surfaces or close to flames.

The coffee machine shall not be stored inside a cabinet when it's in use.

Power supply:

The coffee machine shall be connected only to adequate power sockets equipped with grounding means.

The voltage must match the one on the appliance identification plate.

Power supply cable:

Do not operate the coffee machine if the power cord is damaged.

If the power cord is damaged, it must be replaced by the manufacturer (or the latter's technical service staff), in order to prevent any risk.

Do not pass the power cable for angles and sharp edges, over very hot objects, and protect it from oil.

Do not carry or pull the coffee machine holding it by the power cord.

Do not remove the plug by pulling the power cord, do not touch it with wet hands. Power cord should not hang loose from tables or shelves.

Danger of electrocution:

Live parts should never come into touch with water.

This unit shall not be dipped into any liquid.

Protect children under 8 years of age:

Prevent children from playing with the machine.

Children are not aware of the risks related to electric household appliances.

Do not leave the machine packaging materials within the reach of children.

Danger of burns:

Do not touch the hot parts (cartridge holder group) of the machine immediately after use. While dispensing the drink, pay attention to any possible splashes of hot liquid.

Cleaning:

Before cleaning, unplug the machine and let it cool down.

Do not immerse the machine in water! It is strictly forbidden to tamper with the internal parts of the machine. Change the water in the tank if not used for 3 days. To prevent damage to the appliance do not use alkaline cleaning agents when cleaning, use a soft cloth and a mild detergent.

Storing the machine:

If the machine remains inactive for a long time, unplug it and store it in a dry place out of reach of children. Keep it protected from dust and dirt.

Servicing / Maintenance:

In case of failure, problems or a suspected fault resulting from falling of the machine, immediately unplug the machine.

Do not attempt to operate a faulty machine. Servicing and repairs can only be performed by Lavazza Authorized Service Centres. All liability for damages resulting from work not carried out by professionals is declined.

Water tank:

Fill the tank only with fresh, non-sparkling, drinking water. Do not operate the machine if the water is not at least above the minimum level indicated on the tank.

Capsule compartment:

Only Lavazza A MODO MIO or compatible capsules must be introduced in the capsule-holder; do not put in your fingers or any other object.

The capsules shall be used only once.

Machine disposal at the end of its operational life:

INFORMATION FOR THE USER: the symbol of the crossed-out wheeled bin on the appliance or its packaging indicates that the product must be disposed of separately from other waste at the end of its operational life.

The user must therefore take the appliance to be disposed of to an appropriate separate collection centre for electrical and electronic equipment.

Appropriate separate waste collection, in view of the decommissioned equipment's recycling, processing and environment-friendly disposal, helps avoiding possible adverse effects both on the environment and the public health and, also, promotes the reuse and/or recycling of the materials the machine is made up of. Specific administrative sanctions provided for by current regulations will be applied for illicit disposal of the product by the user.

EN

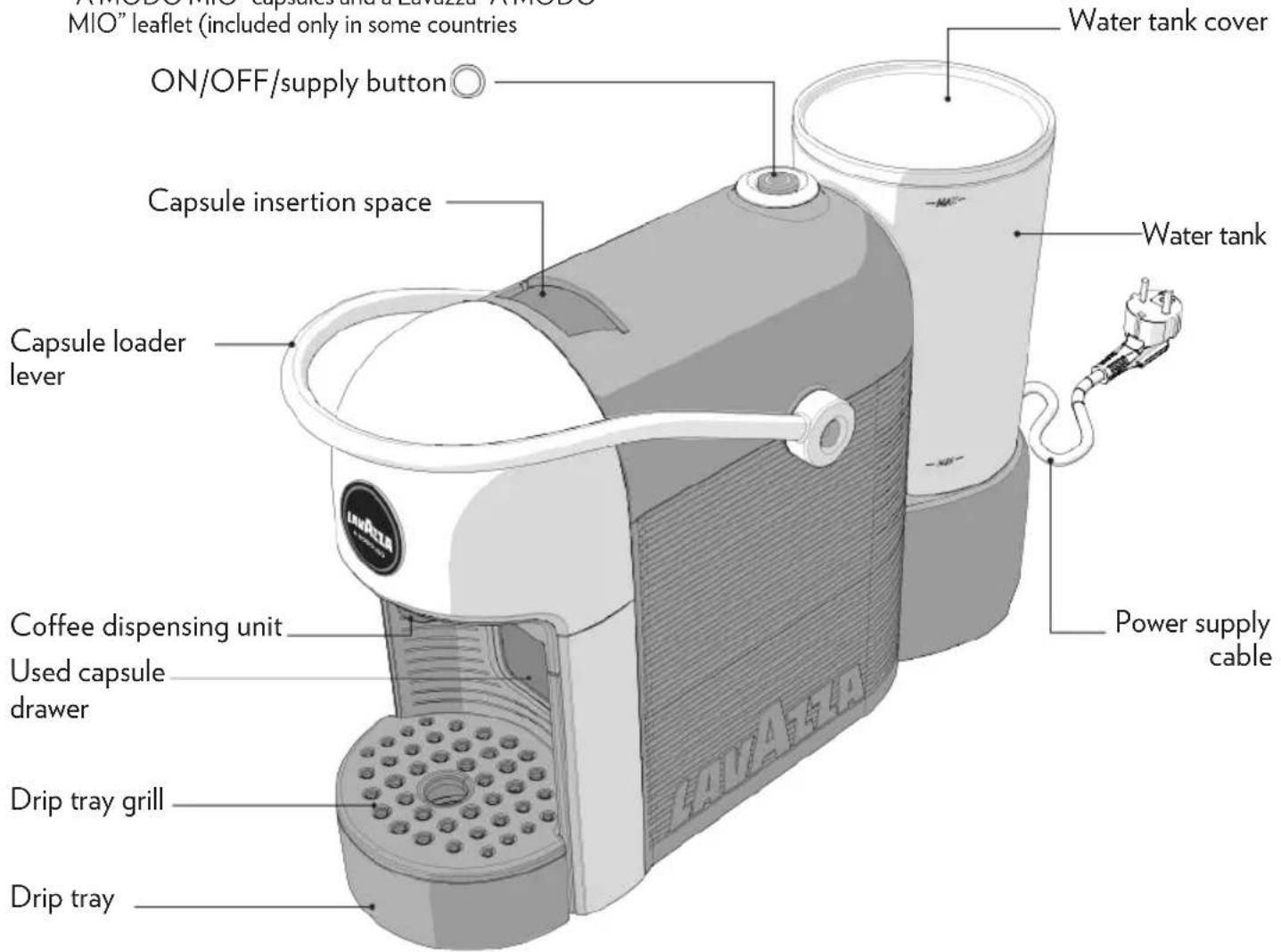

MACHINE COMPONENTS

PACKAGE CONTENT*

Jolie machine
- Welcome kit consisting of 9 assorted Lavazza "AMODO MIO" capsules and a Lavazza "AMODO MIO" leaflet (included only in some countries

• quick guide
• warranty sheet

* The characteristics and the package content can vary according to the target market

INDICATORLIGHTS

EN

Switch-on Press the switch-on button OFF

Heating The button will blink to a white light. White blinking

Machine ready (operating temperature reached) The machine will be ready when the button is illuminated to a steady white light. ON

Switch-off 1. Press the button over at least 3 seconds; 2. Button switch-off; 3. Press the button to start the machine again. OFF

Supplying 1. Press the button to start supplying; 2. The button will blink to a white light during the supplying phase; 3. Press the button again to end the supply. White blinking

EN

INDICATORLIGHTS

Used capsule drawer filled

The button light on with white light and blinking fast.

1. Empty the used capsule drawer;
2. Fit the capsule drawer back into place;
3. Press the button to reset the machine.

Quick white blinking

Generic malfunction

The button will blink to a red light.

Take the plug out and connect it again after approximately 10 seconds.

Red blinking

MACHINE SETTING

EN

No liability is held for damage caused by:

• incorrect use not in accordance with the intended purposes;
• repairs not carried out at Lavazza authorized
• service centers;
• tampering with the power supply cable;
• tampering with any parts of the machine;
  the use of non-original spare parts and accessories;
• failure to descale;
• storage at temperatures below 39,2^ (4^)
• use in places with temperature below 50^ (10^) or above 104^ (40^) ;
• use in places with relative humidity above 95% ;
• use of capsules others than indicated.

In these cases, the warranty is not valid.

STARTING THE MACHINE

Place the coffee machine on a flat and stable surface, far from water and heat sources.

Do not connect the machine to the mains supply. Machine damages due to non-observance of these indications are not covered by warranty.

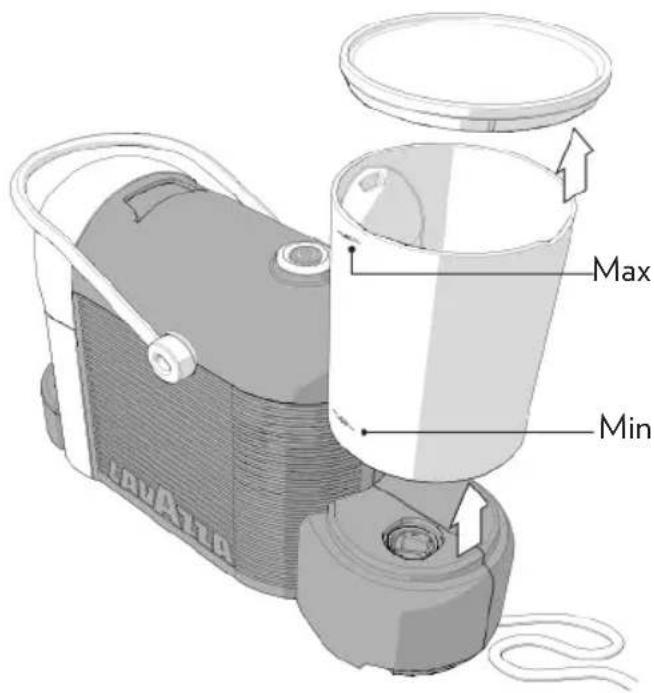

Lift and remove the cover, then the water tank itself.
2 Rinse off the tank.

3 Fill the water tank up to the MAX level indicated, using only fresh drinking water. Fit the tank back into place, then close by using the cover.

Hot water and other liquids can damage the tank and the machine. Do not operate the machine without water: make sure that there is enough water in the tank.

EN

MACHINE SETTING

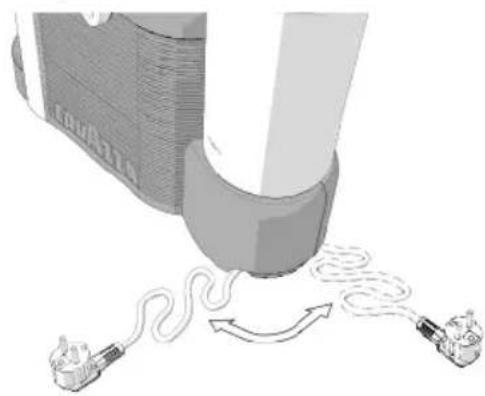

The machine rear features two outlets that can be used for the power cord. You should use the most suitable outlet for your needs.

Fit the supply plug into the power outlet.

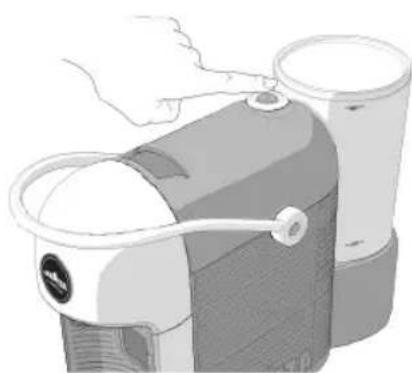

6 Press the button to switch the machine on.

The coffee machine starts the heating cycle. The button will start blinking to a light white.
The machine will be ready for use when the button lights up to a steady white light.
9 At first power-on, supply at least 17 fl oz (0.5 liter) of water without capsule placing a container under the coffee spout.

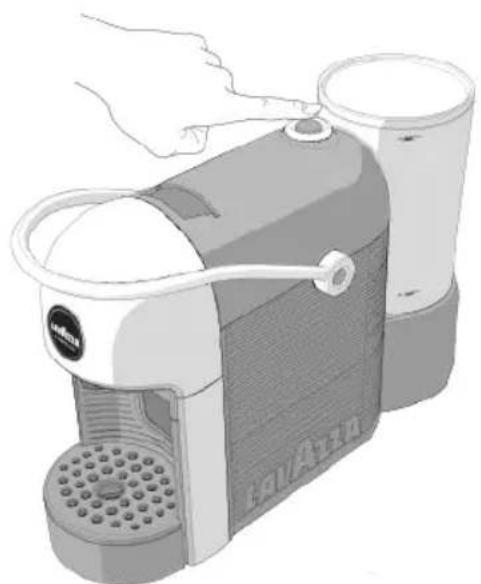

OFF-MODE

To guarantee energy saving, after 2 minutes of not being used, the machine switches off automatically. You can switch off the machine manually by holding down the button for minimum 3 seconds before 2 minutes are elapsed.

This mode is indicated by the switching off of the button The machine can be reactivated by pressing the button again.

PREPARING THE COFFEE

EN

COFFEE DISPENSING

Make sure that the button lights up to a steady white light.
Never put fingers or objects in the capsule-holder. Only compatible capsules must be introduced in the capsule-holder.
Single-dose capsules are prepared to dispense one coffee/product. DO NOT use the capsules more than once. Inserting two or more capsules can cause the machine to malfunction.
To always have a coffee at the perfect temperature, it is recommended to preheat the cup with hot water. Position the cup under the dispensing spout without inserting the capsule. Press the button to supply hot water enough to pre-heat the cup.

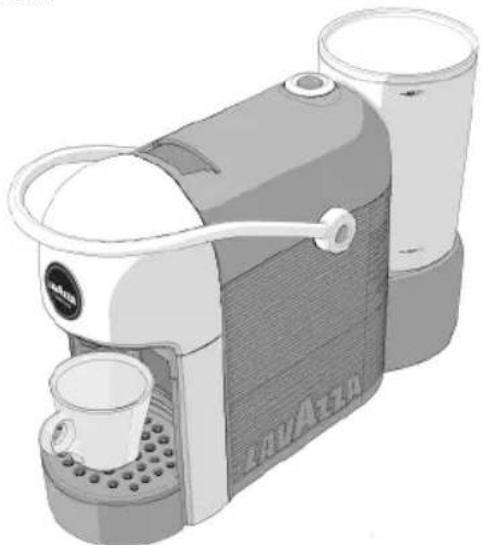

1 Place the cup under the coffee dispenser for a classic.
espresso.

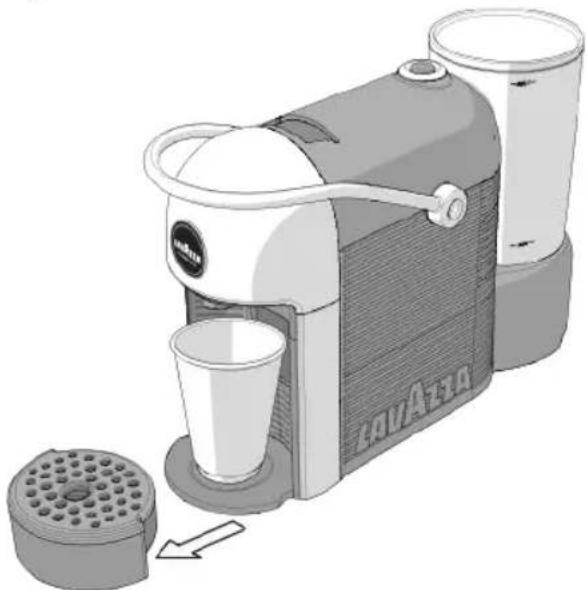

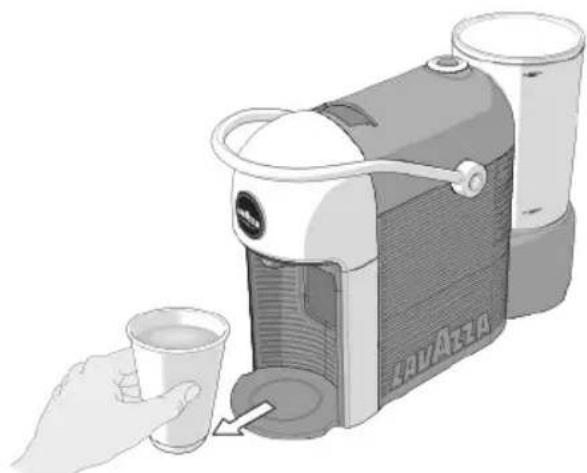

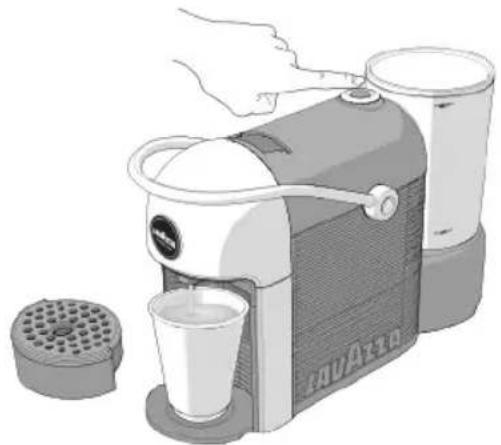

2 Remove the drip tray to use cups of different sizes for a long coffee.

If, during the dispensing cycle power supply is interrupted or water is exhausted within the tank proceed as follows: -Restore the power supply or fill the water tank up to the indicated MAX level.
- Press the button and wait for the button to light up to a steady white light.
- Replace the capsule inside the capsule fitting compartment with a new one.
- Restart the coffee dispensing.

j After 5 supplies the button starts blinking fast with white light to indicate that the spent capsule drawer is filled.

Empty the spent capsule drawer and press the button to reset the coffee machine.

Now the machine is ready for a new supply.

EN

PREPARING THE COFFEE

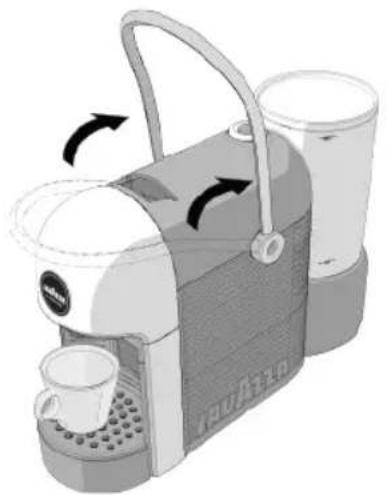

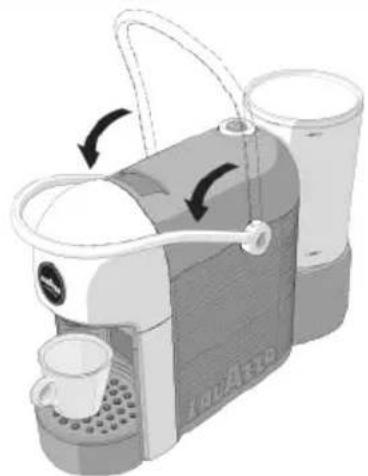

3 Lift the capsule loading lever until it locks into position to open the capsule fitting compartment.

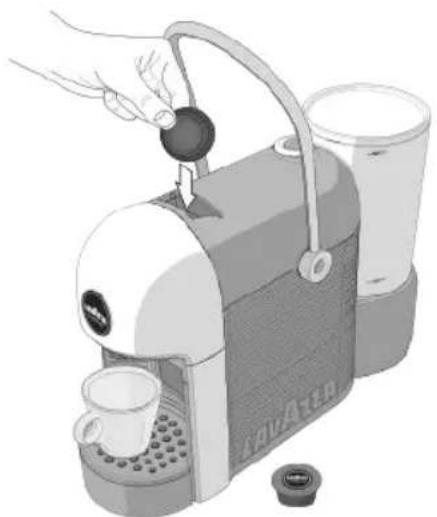

Put a capsule into the capsule fitting compartment.

Lower the capsule loading lever to close the capsule fitting compartment.

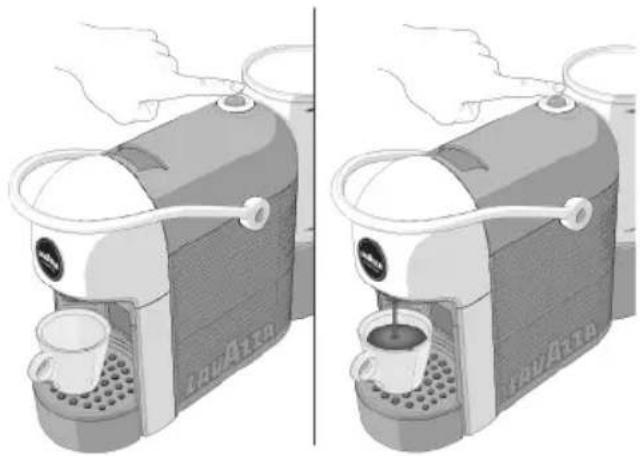

6 Press the button, then wait for the desired amount to be supplied. Press the button again to stop the supply.

The button will light up to a blinking white light when the product is being supplied. The coffee automatically stops dispensing after 90 seconds.

A To supply the product again, wait for the button to light up to a steady white light.

MAINTENANCE AND CLEANING

EN

Never use solvents, alcohol or other aggressive substances or ovens for drying the coffee machine components. Wash machine components (electric components excluded) with cold/lukewarm water and non-abrasive clothes/sponges.

All removable components can be cleaned by using a dishwasher.

Do not leave water in the tank and water circuit for more than 3 days. If this is the case, drain the tank and circuit, rinse it and refill it with fresh water, then carry out a delivery without capsule before making any coffee or other beverage.

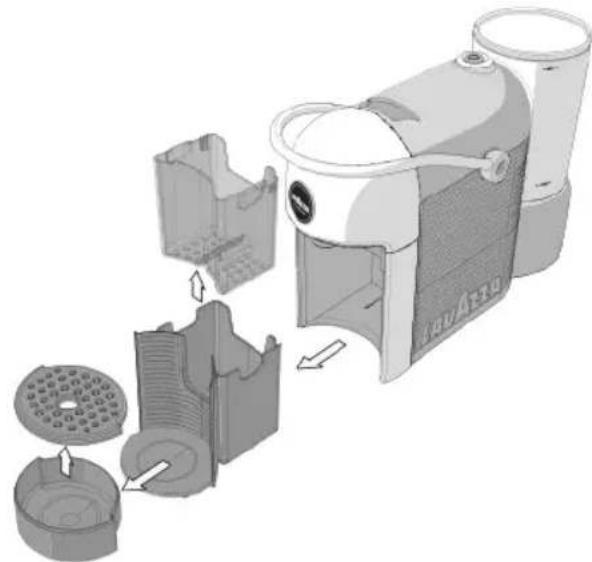

CLEANING THE USED CAPSULE DRAWER AND THE DROP COLLECTING DRAWER

The button will light up to a quick blinking white light when the used capsule tray is full and, therefore, has to be emptied and fitted back into place again.

gularly verify that the used capsule collecting drawer and the drop collecting drawer will not be full, to avoid machine malfunctions and damage.

The used capsule collecting drawer and the drop collecting drawer should be emptied and cleaned after making coffee 4/5 times or every two/three days
2 Take off the drip tray and remove the drip tray grill.

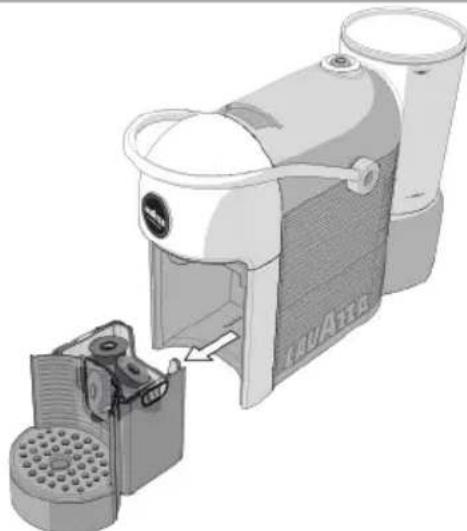

Remove and empty the used capsule collecting drawer. Clean and dry all parts before putting them back.

COFFEE DISPENSER CLEANING

To clean the dispenser, perform a weekly COFFEE DISPENSING procedure without inserting the capsule.

EN

MAINTENANCE AND CLEANING

DESCALING

Carefully read the descending instructions.

Limescale normally builds up with extended use of the appliance; the machine needs descending every 2-3 months and/or whenever a reduction in water flow is noticed.

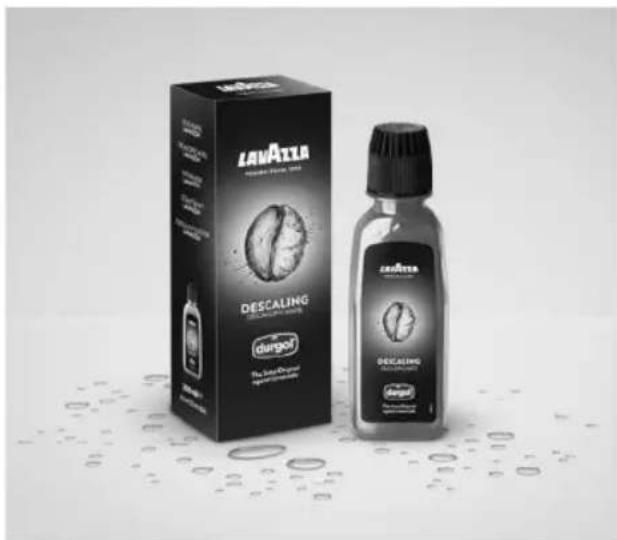

To decalcify the machine, It is recommended that the LAVAZZA DESCALING agent should be used.

Never use vinegar as a descending solution.

The cycle will have, once it has been started, to be performed completely.
Do not switch the machine off when the descending cycle is under way.
Do not move away from the machine when the descending cycle is under way.
Do not drink the descending solution and products dispensed.

1 Check there is no capsule inside the capsule containing compartment.
2 Remove and empty the water tank

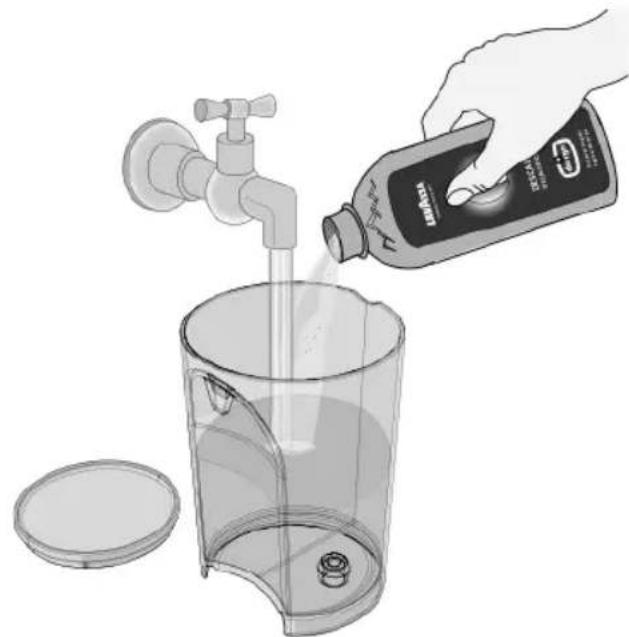

3 Fill the tank with the Lavazza DESCALING agent 8,4 fl oz (250 ml) and water 8.4 fl oz (250 ml).

Use a moist cloth to wipe off the squirts or drops, if any.

4 Fit the tank back into place on the machine.
Place a suitable container under the dispenser.
Press the button to switch the machine on, and wait until the button lights up with a steady white light.

MAINTENANCE AND CLEANING

EN

7 Press the button then supply one cup (approximately 2 fl oz/60 ml) of descending solution. Allow the descending solution to work for about 15-20 seconds.

During breaks, empty the container used to collect the solution.
Repeat the steps described in points and until the water tank is completely empty.

10 Proceed with the rinsing cycle.

Rinsing cycle

1 Remove the water tank, rinse and wash it accurately. Fill it with drinking fresh non-carbonated water up to the MAX level.

Fit the tank with the fresh water back into the machine

Place a suitable container under the spout.
Press the button then supply the full content of the tank.
4 Empty the container and place it again under the dispenser.
Upon completion of the rinsing cycle, perform one more rinsing cycle.
6 Remove the water tank, rinse and wash it accurately. Fill it with drinking fresh non-carbonated water up to the MAX level.
Put the tank back in place on the machine.
Clean the machine by means of a moist, soft cloth.

After cleaning the machine, the descending process will be over. The machine will be ready for use.

Problem encountered Possibl e causes Solution
Machine does not turn on. Power light is off after having pressed the button ○	» Machine is not connected to the power source. » The machine is connect to power strip not working. » Power supply not present.	» Connected the machine to the power source. » Connected the machine directly to the power source. » Connect another device to check the power supply. » If the problem remain please contact L.C.S.
The machine requires a lot of time to heat up.	» Machine storage at low temperatures (e.g.: cellar/garage). » The machine has limescale build-up.	» Store the coffee machine in a proper environment and run 2 supplies without capsules. » Descale the machine. » If the problem remain please contact L.C.S.
The machine is very noisy. » Machine not is on a flat and stable surface. » Power supply cable incorrectly positioned. » Movable parts not fitted properly. » No water in the tank. » Capsule not present.	» Check the surface. » Check the correct position of the cable into the base of the machine. » Fit the movable parts properly. » Top up the tank with fresh drinking water. » Insert Lavazza capsule or compatible. » If the problem remain please contact L.C.S.
No supply.	» Electricalfailure:button not working. » No water in the tank. » Tank not inserted correctly. » Power-onfailed.	» Press button and check the operation of the pilot light (ON with white blinking light) and the machine power-on. » Top up the tank with fresh drinking water. » Insert the tank correctly. » Repeat the coffee machine power-on procedure. » If the problem remain please contact L.C.S.

TROUBLESHOOTING

EN

Problem encountered Possibl e causes Solution
Water leaks at the rear side of the coffee machine.	»Tank not inserted correctly. »Tankdamaged.	»Insert the tank correctly. »Check for leaks in the tank keeping it separate from the machine. »If the problem remain please contact L.C.S.
Water leaks at the front side of the coffee machine.	»Spent capsule drawer not inserted correctly. »Spent capsule drawer filled. »Capsulestuck. »Capsule not compatible.	»Insert the spent capsule drawer correctly. »Empty the spent capsule drawer and the drip tray. »Lift and lower the capsule loading lever. If this is not enough, disconnect the machine from power mains and operate manually to remove the capsule from the duct. »Use Lavazza capsules or compatibles. »If the problem remain please contact L.C.S.
The loading lever does not reach the supply position or requires an excessive closing effort.	»Spent capsule drawer filled. »Capsule fitted incorrectly.	»Empty the spent capsule drawer. »Repeat the sequence, lever in the off position, lever in the brewing position; if this is not enough, operate manually to remove the capsule from the duct with the machine disconnected from power mains.
Red flashing light	»Machinebroken.»Contact Lavazza Customer Service.
Pilot light ON with white light and blinking fast.	»Spent capsule drawer filled. »Remove used capsules from the drawer and press the button to reset the machine.
The coffee flows out too fast and no creamy froth forms on the surface.	»Capsule not compatible. »Capsule already used.	»Use Lavazza capsules or compatibles. »Bring the lever back to rest position and load a new capsule. »If the problem remain please contact L.C.S.
The coffee is cold. » Coffee pours out in drops, water circuit clogged. » The machine has limescale build-up.	» Run the machine washing cycle. » Descale the machine. » If the problem remain please contact L.C.S.
Coffee not supplied and steam coming out of the capsule compartment.	» The loading lever was not set to the brewing position.	» Set the loading lever to the brewing position. » If the problem remain please contact L.C.S.
Coffee pours out in drops. » Faultycapsule. » Pump working improperly. » Spout/water circuit clogged. » The machine has limescale build-up.	» Replace the capsule. » Check for abnormal noise of the machine. » Clean the coffee dispensing spout (see MAINTENANCE AND CLEANING). » Descale the machine. » If the problem remain please contact L.C.S.

Contact Lavazza Customer Service (L.C.S.) for any problem or failure not included in the above list.

TECHNICAL SPECIFICATIONS

• Nominal Voltage - Power Rating - Power Supply: See label on the appliance
• Measurements: Height Width Depth 214 mm 124 mm 330 mm 8.26 in 4.72 in 12.99 in
  Weight: approx. 2.5kg (5 lb)
  Water tank: 0,6 L (20.28 oz) - Removable type

Housing materials: Thermoplastic
- Cable Length: 0,8 m (31.49 in)
Thermo fuses
- Instantaneous aluminum boiler with temperature probe

SECURITE

FR

Destination d'usage:

Compartment capsules:

Reparacoes/Manutenacao:

O led pisca veloz branco

The manufacturer reserves the right to make changes without prior notice.
