USER MANUAL RP118E Fenton

MANUEL D'INSTRUCTIONS

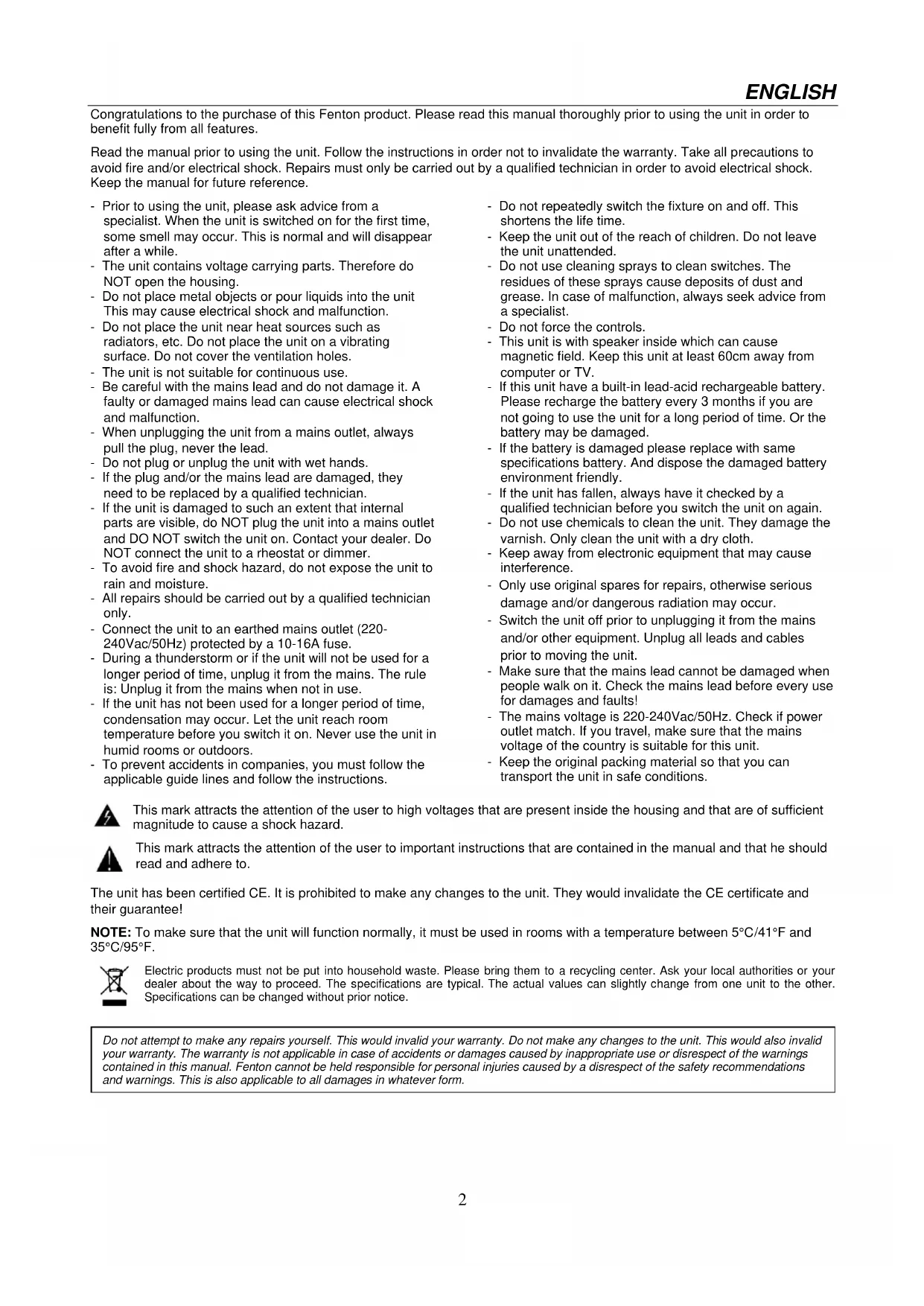

V1.12 ENGLISH Congratulations to the purchase of this Fenton product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features. Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference. - Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while. - The unit contains voltage carrying parts. Therefore do NOT open the housing. - Do not place metal objects or pour liquids into the unit This may cause electrical shock and malfunction. - Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes. - The unit is not suitable for continuous use. - Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction. - When unplugging the unit from a mains outlet, always pull the plug, never the lead. - Do not plug or unplug the unit with wet hands. - If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician. - If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer. - To avoid fire and shock hazard, do not expose the unit to rain and moisture. - All repairs should be carried out by a qualified technician only. - Connect the unit to an earthed mains outlet (220- 240Vac/50Hz) protected by a 10-16A fuse. - During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use. - If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors. - To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions. - Do not repeatedly switch the fixture on and off. This shortens the life time. - Keep the unit out of the reach of children. Do not leave the unit unattended. - Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist. - Do not force the controls. - This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV. - If this unit have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the unit for a long period of time. Or the battery may be damaged. - If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly. - If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again. - Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth. - Keep away from electronic equipment that may cause interference. - Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur. - Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit. - Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults! - The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit. - Keep the original packing material so that you can transport the unit in safe conditions. This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard. This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to. The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee! NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5°C/41°F and 35°C/95°F. Electric products must not be put into household waste. Please bring them to a recycling center. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

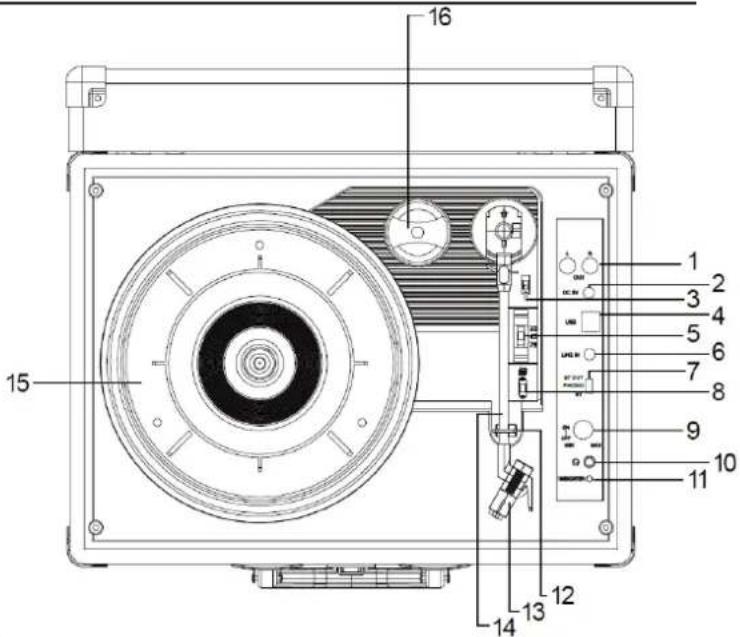

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Fenton cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.3 OVERVIEW

The sound signal from the record is directed to this line output. You can, for example, connect an amplifier or CD/DVD player to this output.

2. Power supply DC port

To connect the supplied power adapter.

Enables raising and lowering the tonearm.

Use the included USB cable to connect your turntable to your computer. The USB connection will send audio from the turntable to your computer.

5. 33 / 45 / 78 RPM switch

Use to adjust the RPM of the turntable platter.

Connect a CD player, digital media player, or other audio source to this 3,5mm (1/8”) stereo line input.

This switch turns the auto stop-function on/off. When the automatic stop is enabled, the platform will start rotating as soon as the tone arm is placed over the record and will stop rotating when it has reached the end of the record. Some vinyl records stop before the end or do not stop when the end is reached. In this case turn off Auto- stop.

9. Power / volume control

To turn on the record player, rotate this knob clockwise until it clicks. When powered on, use this knob to adjust the volume for the internal speakers and headphones. To turn off the record player, turn this knob counter clockwise until it clicks.

10. Headphone output

3.5mm jack to connect your headphones with.

This arm clip secures the tonearm while at rest or when not in use. The arm clip has been designed to remain in the up position whilst unlocked.

13. Stylus cartridge

Cartridge containing the stylus/needle. When the turntable is not in use, it is recommendable to place the removable protection cover on the stylus.

The fixed tonearm can be raised and lowered by hand, or by pressing the raise / lower lever.

Spot to put the record on.

This adapter allows you to play 45RPM records. OPERATION

1. Connect the record player with the power adapter and plug the other end into a wall power outlet.

2. Remove white protective needle cover by gently pulling towards the front of the unit.

3. Place a vinyl record on the turntable platter and select the desired speed (33/45/78RPM) according to

4. Open the tone arm clip to release the tone arm. Gently move the tone arm and put the cartridge onto

the desired position of the record and the turntable player starts to play.

5. Turn the volume control knob clockwise to adjust the volume.

Noted: If the AUTO STOP ON/OFF Switch is turned ON, the record will stop automatically when finished. If Auto Stop Control is turned OFF, record will NOT stop automatically when finished. Some vinyl records stop before the end or do not stop when the end is reached. In this case set Auto-stop to OFF. BT CONNECTION Set the mode switch (7) in BT mode. The LED indicator will blink in blue color. Turn on the BT-function on your smartphone or other BT compatible device and search for “Fenton recordplayer”. After pairing, the LED will light up continuously. You can now play your music from your device, using the turntable player as speaker. This device also features a BT transmitter, meaning that it is possible to play sound from the turntable player via BT to, for example, a BT speaker. Note: When the turntable is being used as a BT speaker, all other playback functions cannot be used at the same time.4

CONNECTING WITH A COMPUTER

Before you connect the turntable to a computer, unplug it from your mixer or Hi-Fi system. The included software is a third party application and therefore Fenton does not handle any questions or problems regarding the software.

1. Turn on the computer.

2. If the computer is booted, connect the turntable. The computer will now install the drivers.

3. After the drivers are installed, install the Audacity software.

Windows users: insert the CD or download the newest software via http://audacity.sourceforge.net MAC users: download the newest software via http://audacity.sourceforge.net To Install Software (PC) 1. Plug in your turntable to a power supply and connect the USB port on the Turntable with the USB port of your computer.

2. Turn on the power switch on your turntable.

3. The Windows system will detect a new device and indicate that it is available to use.

4. Insert the CD that came with your turntable.

5. Run the file to install the Audacity software. Once installed, run the Audacity program.

To Install Software (MAC)

1) Insert the included CD.

2) Open the CD icon on the desktop.

3) Drag the installation folder for audacity to your hard drive. We recommend that you move the folder to your “Applications” folder.

4) A window will come up which shows the files copying.

6) Open “Audacity” from where you moved it to on your hard drive.

SOFTWARE CONFIGURATION

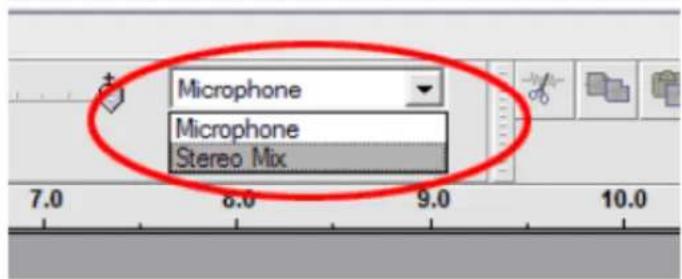

1. Click on Microphone in the drop down menu and select “Stereo Mix”.

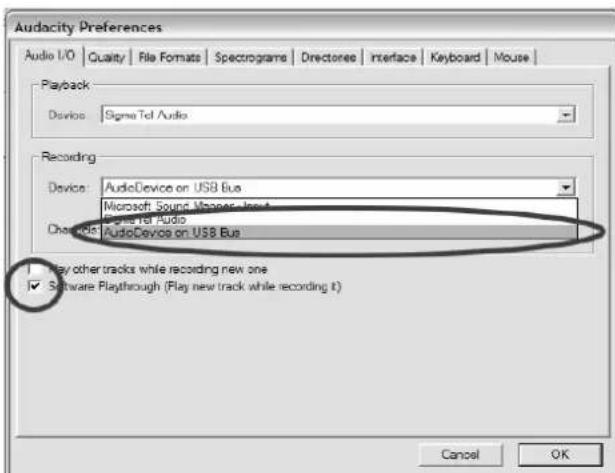

2. Select the “Edit” menu and then “Preferences”.

Select the USB audio device under the “Recording” selection as shown. Select “Software Playthrough” to hear the audio while recording.

Input Connections: 3.5mm jack Output Connections: RCA, USB Speed Settings (RPM): 33, 45, 78 Power Supply: 100-240VAC 50/60Hz (5V Adapter) Dimensions: 280 x 355 x 130mm Weight: 3.50kg The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice. The products referred to in this manual conform to the European Community Directives to which they are subject:

European Union United Kingdom

Tronios Ltd., 130 Harley Street, London W1G 7JU, United Kingdom

2014/30/EU S.I. 2016:1091 2011/65/EC S.I. 2012:3032 2014/53/EU S.I. 2017:1206Specifications and design are to change without prior notice.
